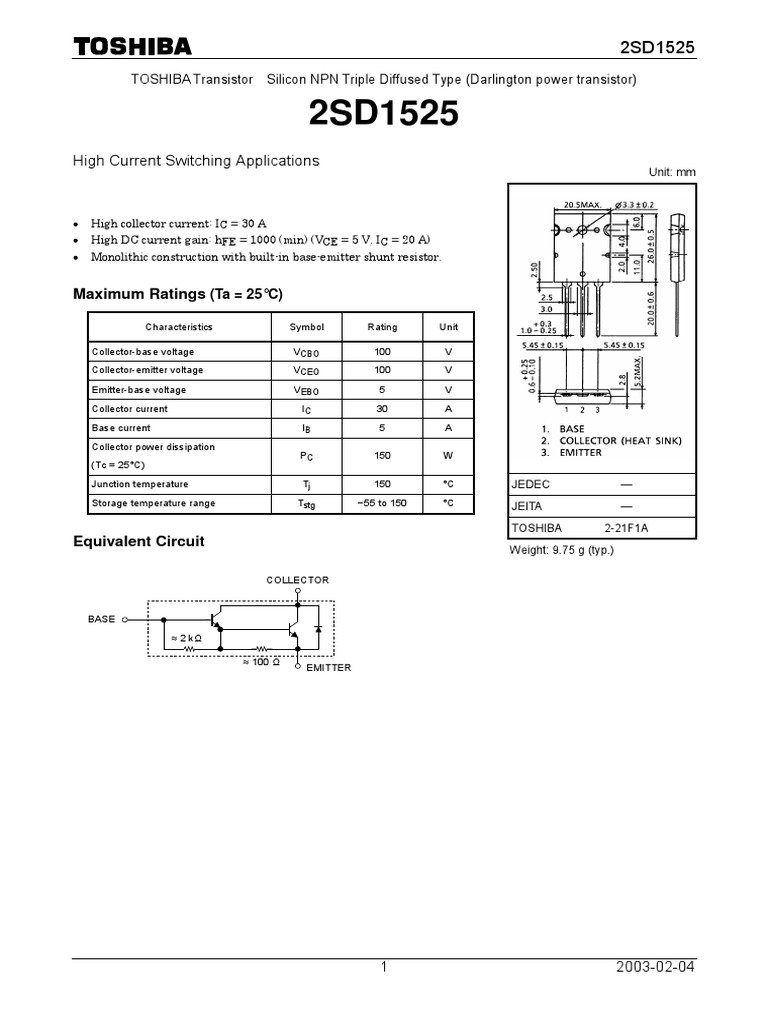

2SD1525

TOSHIBA Transistor Silicon NPN Triple Diffused Type (Darlington power transistor)

2SD1525
High Current Switching Applications
Unit: mm

· High collector current: IC = 30 A

· High DC current gain: hFE = 1000 (min) (VCE = 5 V, IC = 20 A)
· Monolithic construction with built-in base-emitter shunt resistor.

Maximum Ratings (Ta = 25°C)

Characteristics Symbol Rating Unit

Collector-base voltage VCBO 100 V

Collector-emitter voltage VCEO 100 V
Emitter-base voltage VEBO 5 V
Collector current IC 30 A
Base current IB 5 A
Collector power dissipation
PC 150 W
(Tc = 25°C)
Junction temperature Tj 150 °C JEDEC ―
Storage temperature range Tstg −55 to 150 °C JEITA ―
TOSHIBA 2-21F1A
Equivalent Circuit Weight: 9.75 g (typ.)

COLLECTOR

BASE
≈ 2 kΩ

≈ 100 Ω
EMITTER

1 2003-02-04
 2SD1525
Electrical Characteristics (Ta = 25°C)

Characteristics Symbol Test Condition Min Typ. Max Unit

Collector cut-off current ICBO VCB = 100 V, IE = 0 ― ― 100 µA

Emitter cut-off current IEBO VEB = 5 V, IC = 0 ― ― 10 mA
Collector-emitter breakdown voltage V (BR) CEO IC = 50 mA, IB = 0 100 ― ― V
hFE (1) VCE = 5 V, IC = 20 A 1000 ― ―
DC current gain
hFE (2) VCE = 5 V, IC = 30 A 200 ― ―
Collector-emitter saturation voltage VCE (sat) ― ― 1.5 V
IC = 20 A, IB = 0.2 A
Base-emitter saturation voltage VBE (sat) ― ― 2.5 V
Emitter-collector forward voltage VECF IE = 10 A, IB = 0 ― ― 3 V
Transition frequency fT VCE = 5 V, IC = 1 A ― 10 ― MHz
Collector output capacitance Cob VCB = 10 V, IE = 0, f = 1 MHz ― 500 ― pF

Turn-on time ton VCC = 50 V ― 1.5 ―

R = 10 Ω
Input Out-
20 µs put
IB1
Switching time Storage time tstg ― 10 ― µs
IB1

IB2

IB2

Fall time tf ― 1.5 ―

IB1 = −IB2 = 0.01 A, duty cycle ≤ 1%

Marking

TOSHIBA
2SD1525 Product No.
Lot No.
JAPAN

Explanation of Lot No.

Month of manufacture (January to December are denoted by letters A to L respectively.)

Year of manufacture (Last decimal digit of the year of manufacture)

2 2003-02-04
 2SD1525

IC – VCE hFE – IC
10000
Common emitter 8
32 5000
Tc = 25°C 7 Tc = 100°C

hFE
3000
6
(A)

25

DC current gain
24 5
IC

1000
4
−55
Collector current

500
3
16 300
Common emitter
2 VCE = 5 V
100
8 0.1 0.3 1 3 10 30 100
IB = 1 mA
Collector current IC (A)
0
0
0 2 4 6 8 10 12

Collector-emitter voltage VCE (V)

VCE (sat) – IC VBE (sat) – IC

10 10
Base-emitter saturation voltage
Collector-emitter saturation voltage

Common emitter Common emitter

5 5
IC/IB = 100 IC/IB = 100
VBE (sat) (V)

3 3
VCE (sat) (V)

Tc = −55°C
25
1 Tc = −55°C 1
25 100
0.5 0.5
100
0.3 0.3
0.1 0.3 1 3 10 30 100

0.1
Collector current IC (A)
0.1 0.3 1 3 10 30 100

Collector current IC (A)

Safe Operating Area

50
IC max (pulsed)*
30

0.5 ms*
IC max
(continuous) 1 ms*
10 3 ms*
IC – VBE
(A)

10 ms*
5 DC operation
IC

Common emitter
Tc = 25°C
VCE = 5 V 3
Collector current
(A)

24
IC

1
Collector current

16

0.5
Tc = 25°C −55
*: Single nonrepetitive pulse
8 0.3 Tc = 25°C
100
Curves must be derated linearly
with increase in temperature.
VCEO max
0 0.1
0 0.8 1.6 2.4 3.2 2 5 10 30 100 300

Base-emitter voltage VBE (V) Collector-emitter voltage VCE (V)

3 2003-02-04
