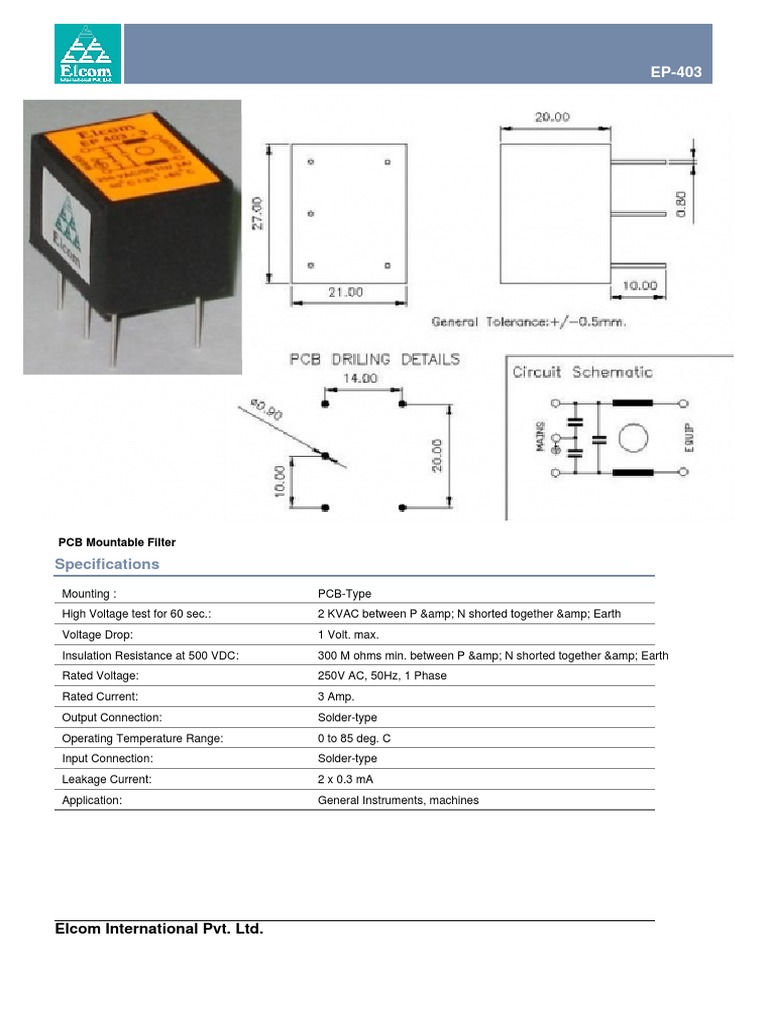

EP-403

PCB Mountable Filter

Specifications
Mounting : PCB-Type
High Voltage test for 60 sec.: 2 KVAC between P & N shorted together & Earth
Voltage Drop: 1 Volt. max.
Insulation Resistance at 500 VDC: 300 M ohms min. between P & N shorted together & Earth
Rated Voltage: 250V AC, 50Hz, 1 Phase
Rated Current: 3 Amp.
Output Connection: Solder-type
Operating Temperature Range: 0 to 85 deg. C
Input Connection: Solder-type
Leakage Current: 2 x 0.3 mA
Application: General Instruments, machines

Elcom International Pvt. Ltd.


EP-405

RFI/EMI Filter, PCB type

Specifications
Mounting : PCB-type
High Voltage test for 60 sec.: 2 KVAC between P & N shorted together & Earth
Voltage Drop: 1 Volt . max.
Insulation Resistance at 500 VDC: 300 M ohms min. between P & N shorted together & Earth
Rated Voltage: 250V AC, 50Hz, 1 Phase .
Rated Current: 1, 3, 6 Amp.
Output Connection: Solder-type
Operating Temperature Range: 0 to 85 Deg. C.
Input Connection: Solder-type
Leakage Current: 2 x 0.3 mA
Application: Power Supplies, Monitors, Terminals, Instrumentation

Elcom International Pvt. Ltd.


EP-422

RFI/EMI Filter, Panel / chassis mounting

Specifications
Mounting : Panel / Chassis-type
High Voltage test for 60 sec.: 2 KVAC between P & N shorted together & Earth
Voltage Drop: 1 Volt . max.
Insulation Resistance at 500 VDC: 300 M ohms min. between P & N shorted together & Earth
Rated Voltage: 250V AC, 50Hz, 1 Phase .
Rated Current: 1, 3 Amp.
Output Connection: Solder-type
Operating Temperature Range: 0 to 85 Deg. C.
Input Connection: Solder-type
Leakage Current: 2 x 0.3 mA
Application: Domestic Appliances, Scales, Electronic Control Systems

Elcom International Pvt. Ltd.


EP-42

RFI/EMI Filter, Chassis type

Specifications
Mounting : Chasis-type
High Voltage test for 60 sec.: 2 KVAC between P & N shorted together & Earth
Voltage Drop: 1 Volt . max.
Insulation Resistance at 500 VDC: 300 M ohms min. between P & N shorted together & Earth
Rated Voltage: 250V AC, 50Hz, 1 Phase .
Rated Current: 1, 3, 6 amp
Output Connection: Fast On 6.3 X 0.8 mm / Solder-type
Operating Temperature Range: 0 to 85 Deg. C.
Input Connection: Fast On 6.3 X 0.8 mm / Solder-type
Leakage Current: 2 x 0.3 mA
Application: Power Supplies, Photocopiers, General Instrumentation.

Elcom International Pvt. Ltd.


EP-660

RFI/EMI Filter with improved performance.

Specifications
Mounting : Chasis-type
High Voltage test for 60 sec.: 2 KVAC between P & N shorted together & Earth
Voltage Drop: 1 Volt . max.
Insulation Resistance at 500 VDC: 300 M ohms min. between P & N shorted together & Earth
Rated Voltage: 250V AC, 50Hz, 1 Phase .
Rated Current: 1, 3, 6, 10, 15, 20 amp
Output Connection: Fast On 6.3 X 0.8 mm / Solder-type
Operating Temperature Range: 0 to 85 Deg. C.
Input Connection: Fast On 6.3 X 0.8 mm / Solder-type
Leakage Current: 2 x 0.3 mA
Application: Power Supplies, Photocopiers, General Instrumentation.

Elcom International Pvt. Ltd.


EP-6AP

RFI/EMI filter, 6 A, Chassis type

Specifications
Mounting : Chasis-type
High Voltage test for 60 sec.: 2 KVAC between P & N shorted together & Earth
Voltage Drop: 1 Volt . max.
Insulation Resistance at 500 VDC: 300 M ohms min. between P & N shorted together & Earth
Rated Voltage: 250V AC, 50Hz, 1 Phase .
Rated Current: 6 Amp.
Output Connection: Fast On 6.3 X 0.8 mm / Solder-type
Operating Temperature Range: 0 to 85 Deg. C.
Input Connection: Fast On 6.3 X 0.8 mm / Solder-type
Leakage Current: 2 x 0.3 mA
Application: Power Supplies, Photocopiers, General Instrumentation.

Elcom International Pvt. Ltd.


EP-10AP

RFI/EMI Filter, 10A, Chassis type

Specifications
Mounting : Chasis-type
High Voltage test for 60 sec.: 2 KVAC between P & N shorted together & Earth
Voltage Drop: 1 Volt
Insulation Resistance at 500 VDC: 300 M ohms min. between P & N shorted together & Earth
Rated Voltage: 250V AC, 50Hz, 1 Phase
Rated Current: 10 Amp
Output Connection: Fast On 6.3 X 0.8 mm / Solder-type
Operating Temperature Range: 0 to 85 Deg. C.
Input Connection: Fast On 6.3 X 0.8 mm / Solder-type
Leakage Current: 2 x 0.3 mA
Application: Power Supplies, Photocopiers, General Instrumentation.

Elcom International Pvt. Ltd.


EP-15AP

RFI/EMI Filter, 15 A, Chassis type

Specifications
Mounting : Chasis-type
High Voltage test for 60 sec.: 2 KVAC between P & N shorted together & Earth
Voltage Drop: 1 Volt . max.
Insulation Resistance at 500 VDC: 300 M ohms min. between P & N shorted together & Earth
Rated Voltage: 250V AC, 50Hz, 1 Phase .
Rated Current: 15 Amp.
Output Connection: Fast On 6.3 X 0.8 mm / Solder-type
Operating Temperature Range: 0 to 85 Deg. C.
Input Connection: Fast On 6.3 X 0.8 mm / Solder-type
Leakage Current: 2 x 0.3 mA
Application: Power Supplies, Photocopiers, General Instrumentation.

Elcom International Pvt. Ltd.


EP-3850

Domestic Appliances, Scales, Electronic Control Systems.

Specifications
Mounting : Chasis
Voltage Drop: 1 Volt .
Rated Voltage: 240V AC, 50Hz, 1 Phase .
Rated Current: 3, 10 and 15 Amps
Output Connection: Wires/Soldering Lugs .
Operating Temperature Range: 0 to 85 Deg. C.
Input Connection: Wires/Soldering Lugs .
Leakage Current: 2 * 0.3 mA

Elcom International Pvt. Ltd.


EP-322

RFI/EMI Filter, Panel type

Specifications
Mounting : Panel-type, Front / Rear
High Voltage test for 60 sec.: 2 KVAC between P & N shorted together & Earth
Voltage Drop: 1 Volt . max.
Insulation Resistance at 500 VDC: 300 M ohms min. between P & N shorted together & Earth
Rated Voltage: 250V AC, 50Hz, 1 Phase .
Rated Current: 1, 3, 6 amp
Output Connection: Fast On 6.3 X 0.8 mm / Solder-type
Operating Temperature Range: 0 to 85 Deg. C.
Input Connection: IEC 320 Inlet, 10A
Leakage Current: 2 x 0.3 mA
Application: Computers, Office Equipment, Power Supplies

Elcom International Pvt. Ltd.


EP 326 B

RFI/EMI Filter

Specifications
Mounting : Panel-type, Front / Rear
High Voltage test for 60 sec.: 2 KVAC between P & N shorted together & Earth
Voltage Drop: 1 Volt . max.
Insulation Resistance at 500 VDC: 300 M ohms min. between P & N shorted together & Earth
Rated Voltage: 250V AC, 50Hz, 1 Phase .
Rated Current: 3, 6 Amp
Output Connection: Fast On 6.3 X 0.8 mm / Solder-type
Operating Temperature Range: 0 to 85 Deg. C.
Input Connection: IEC 320 Inlet, 10A
Leakage Current: 2 x 0.3 mA
Application: Computers, Office Equipment, Power Supplies.

Elcom International Pvt. Ltd.


EP 326 E

RFI/EMI Filter

Specifications
Mounting : Panel-type, Front / Rear
High Voltage test for 60 sec.: 2 KVAC between P & N shorted together & Earth
Voltage Drop: 1 Volt . max.
Insulation Resistance at 500 VDC: 300 M ohms min. between P & N shorted together & Earth
Rated Voltage: 250V AC, 50Hz, 1 Phase .
Rated Current: 3, 6 Amp
Output Connection: Fast On 6.3 X 0.8 mm / Solder-type
Operating Temperature Range: 0 to 85 Deg. C.
Input Connection: IEC 320 Inlet, 10A
Leakage Current: 2 x 0.3 mA
Application: Computers, Office Equipment, Power Supplies.

Elcom International Pvt. Ltd.


EP-361

RFI/EMI Filter, With Fuse

Specifications
Mounting : Panel-type, Front / Rear
High Voltage test for 60 sec.: 2 KVAC between P & N shorted together & Earth
Voltage Drop: 1 Volt . max.
Insulation Resistance at 500 VDC: 300 M ohms min. between P & N shorted together & Earth
Rated Voltage: 250V AC, 50Hz, 1 Phase .
Rated Current: 1, 3, 6 amp
Output Connection: Fast On 6.3 X 0.8 mm / Solder-type
Operating Temperature Range: 0 to 85 Deg. C.
Input Connection: IEC 320 Inlet, 10A
Leakage Current: 2 x 0.3 mA
Application: Computers, Office Equipment, Power Supplies.

Elcom International Pvt. Ltd.


EP-382

RFI/EMI Filter with fuse & switch

Specifications
Mounting : Panel-type
High Voltage test for 60 sec.: 2 KVAC between P & N shorted together & Earth
Voltage Drop: 1 Volt . max.
Insulation Resistance at 500 VDC: 300 M ohms min. between P & N shorted together & Earth
Rated Voltage: 250V AC, 50Hz, 1 Phase .
Rated Current: 1, 3 Amp.
Output Connection: Solder-type
Operating Temperature Range: 0 to 85 Deg. C.
Input Connection: IEC 320 Inlet, 10A
Leakage Current: 2 x 0.3 mA
Application: Computers, Office Equipment, Power Supplies.

Elcom International Pvt. Ltd.


EP-612

RFI/EMI Filter, hgh curreant single phase

Specifications
Mounting : Chasis-type
High Voltage test for 60 sec.: 2 KVAC between P & N shorted together & Earth
Voltage Drop: 1 Volt . max.
Insulation Resistance at 500 VDC: 300 M ohms min. between P & N shorted together & Earth
Rated Voltage: 250V AC, 50Hz, 1 Phase .
Rated Current: 20, 30, 40 Amp
Output Connection: Screw Lead Through M-4
Operating Temperature Range: 0 to 85 Deg. C.
Input Connection: Screw Lead Through M-4
Leakage Current: 2 x 0.3 mA
Application: General Electronic Devices / Telecom

Elcom International Pvt. Ltd.


EP-355

RFI/EMI Filter

Specifications
Mounting : Chasis-type
High Voltage test for 60 sec.: 2 KVAC between P & N shorted together & Earth
Voltage Drop: 1 Volt . max.
Insulation Resistance at 500 VDC: 300 M ohms min. between P & N shorted together & Earth
Rated Voltage: 440(P-P), 250 (P-N) VAC, 50Hz, 3 Phase
Rated Current: 3 and 6 Amps.
Output Connection: Screw Lead Through M-4
Operating Temperature Range: 0 to 85 Deg. C.
Input Connection: Screw Lead Through M-4
Leakage Current: 2 x 0.3 mA
Application: General Electronic, Telecom

Elcom International Pvt. Ltd.


EP-355

RFI/EMI Filter

Specifications
Mounting : Chasis-type
High Voltage test for 60 sec.: 1.5 KVAC between P & N shorted together & Earth
Voltage Drop: 1 Volt. max.
Insulation Resistance at 500 VDC: 300 M ohms min. between P & N shorted together & Earth
Rated Voltage: 440(P-P), 250 (P-N) VAC, 50Hz, 3 Phase
Rated Current: 15 and 30 Amps
Output Connection: Screw Lead Through M-4
Operating Temperature Range: 0 to 85 Deg. C.
Input Connection: Screw Lead Through M-4
Leakage Current: 3 x 0.3 mA
Application: General Electronic, Telecom

Elcom International Pvt. Ltd.


EP-392-2

RFI/EMI Filter with low leakage current

Specifications
Mounting : Panel-type, Front / Rear
High Voltage test for 60 sec.: 2 KVAC between P & N shorted together & Earth
Voltage Drop: 1 Volt . max.
Insulation Resistance at 500 VDC: 300 M ohms min. between P & N shorted together & Earth
Rated Voltage: 250V AC, 50Hz, 1 Phase .
Rated Current: 2 Amp.
Output Connection: Fast On 6.3 X 0.8 mm / Solder-type
Operating Temperature Range: 0 to 85 Deg. C.
Input Connection: IEC 320 Inlet, 10A
Leakage Current: Nil
Application: Patient Monitoring Systems, ECG/EEG Machines, Medical Instruments.

Elcom International Pvt. Ltd.


EP-692-2

RFI/EMI Filter, with low leakage current

Specifications
Mounting : Chasis-type
High Voltage test for 60 sec.: 2 KVAC between P & N shorted together & Earth
Voltage Drop: 1 Volt . max.
Insulation Resistance at 500 VDC: 300 M ohms min. between P & N shorted together & Earth
Rated Voltage: 250V AC, 50Hz, 1 Phase .
Rated Current: 2 Amp.
Output Connection: Fast On 6.3 X 0.8 mm / Solder-type
Operating Temperature Range: 0 to 85 Deg. C.
Input Connection: Fast On 6.3 X 0.8 mm / Solder-type
Leakage Current: Nil
Application: Patient Monitoring Systems, ECG/EEG Machines, Medical Instruments.

Elcom International Pvt. Ltd.


EP-402

PCB mountable Filter

Specifications
Mounting : PCB-type
High Voltage test for 60 sec.: 2 KVAC between P & N shorted together & Earth
Voltage Drop: 1 Volt . max.
Insulation Resistance at 500 VDC: 300 M ohms min. between P & N shorted together & Earth
Rated Voltage: 250V AC, 50Hz, 1 Phase
Rated Current: 1, 3 and 6 Amp.
Output Connection: Solder-type
Operating Temperature Range: 0 to 85 deg. C
Input Connection: Solder-type
Leakage Current: 2 x 0.3 mA
Application: General Instruments, machines

Elcom International Pvt. Ltd.

You might also like
