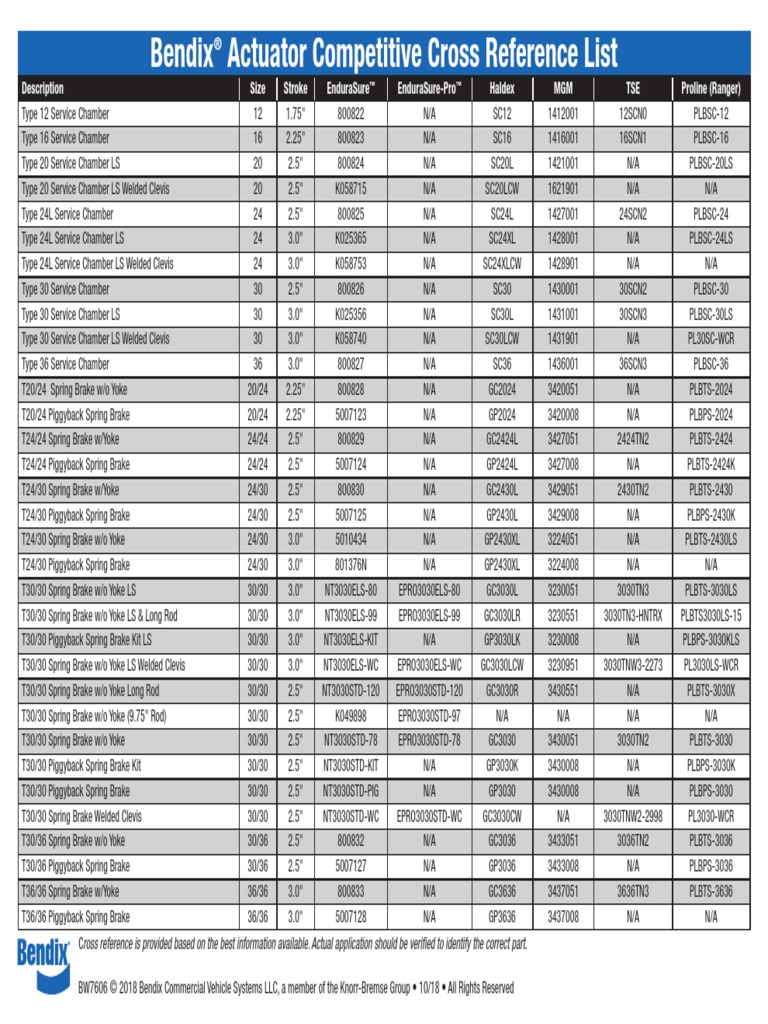

    Bendix® Actuator Competitive Cross Reference List

    Description Size Stroke EnduraSure™ EnduraSure-Pro™ Haldex MGM TSE Proline (Ranger)
    Type 12 Service Chamber 12 1.75" 800822 N/A SC12 1412001 12SCN0 PLBSC-12
    Type 16 Service Chamber 16 2.25" 800823 N/A SC16 1416001 16SCN1 PLBSC-16
    Type 20 Service Chamber LS 20 2.5" 800824 N/A SC20L 1421001 N/A PLBSC-20LS
    Type 20 Service Chamber LS Welded Clevis 20 2.5" K058715 N/A SC20LCW 1621901 N/A N/A
    Type 24L Service Chamber 24 2.5" 800825 N/A SC24L 1427001 24SCN2 PLBSC-24
    Type 24L Service Chamber LS 24 3.0" K025365 N/A SC24XL 1428001 N/A PLBSC-24LS
    Type 24L Service Chamber LS Welded Clevis 24 3.0" K058753 N/A SC24XLCW 1428901 N/A N/A
    Type 30 Service Chamber 30 2.5" 800826 N/A SC30 1430001 30SCN2 PLBSC-30
    Type 30 Service Chamber LS 30 3.0" K025356 N/A SC30L 1431001 30SCN3 PLBSC-30LS
    Type 30 Service Chamber LS Welded Clevis 30 3.0" K058740 N/A SC30LCW 1431901 N/A PL30SC-WCR
    Type 36 Service Chamber 36 3.0" 800827 N/A SC36 1436001 36SCN3 PLBSC-36
    T20/24 Spring Brake w/o Yoke 20/24 2.25" 800828 N/A GC2024 3420051 N/A PLBTS-2024
    T20/24 Piggyback Spring Brake 20/24 2.25" 5007123 N/A GP2024 3420008 N/A PLBPS-2024
    T24/24 Spring Brake w/Yoke 24/24 2.5" 800829 N/A GC2424L 3427051 2424TN2 PLBTS-2424
    T24/24 Piggyback Spring Brake 24/24 2.5" 5007124 N/A GP2424L 3427008 N/A PLBTS-2424K
    T24/30 Spring Brake w/Yoke 24/30 2.5" 800830 N/A GC2430L 3429051 2430TN2 PLBTS-2430
    T24/30 Piggyback Spring Brake 24/30 2.5" 5007125 N/A GP2430L 3429008 N/A PLBPS-2430K
    T24/30 Spring Brake w/o Yoke 24/30 3.0" 5010434 N/A GP2430XL 3224051 N/A PLBTS-2430LS
    T24/30 Piggyback Spring Brake 24/30 3.0" 801376N N/A GP2430XL 3224008 N/A N/A
    T30/30 Spring Brake w/o Yoke LS 30/30 3.0" NT3030ELS-80 EPRO3030ELS-80 GC3030L 3230051 3030TN3 PLBTS-3030LS
    T30/30 Spring Brake w/o Yoke LS & Long Rod 30/30 3.0" NT3030ELS-99 EPRO3030ELS-99 GC3030LR 3230551 3030TN3-HNTRX PLBTS3030LS-15
    T30/30 Piggyback Spring Brake Kit LS 30/30 3.0" NT3030ELS-KIT N/A GP3030LK 3230008 N/A PLBPS-3030KLS
    T30/30 Spring Brake w/o Yoke LS Welded Clevis 30/30 3.0" NT3030ELS-WC EPRO3030ELS-WC GC3030LCW 3230951 3030TNW3-2273 PL3030LS-WCR
    T30/30 Spring Brake w/o Yoke Long Rod 30/30 2.5" NT3030STD-120 EPRO3030STD-120 GC3030R 3430551 N/A PLBTS-3030X
    T30/30 Spring Brake w/o Yoke (9.75" Rod) 30/30 2.5" K049898 EPRO3030STD-97 N/A N/A N/A N/A
    T30/30 Spring Brake w/o Yoke 30/30 2.5" NT3030STD-78 EPRO3030STD-78 GC3030 3430051 3030TN2 PLBTS-3030
    T30/30 Piggyback Spring Brake Kit 30/30 2.5" NT3030STD-KIT N/A GP3030K 3430008 N/A PLBPS-3030K
    T30/30 Piggyback Spring Brake 30/30 2.5" NT3030STD-PIG N/A GP3030 3430008 N/A PLBPS-3030
    T30/30 Spring Brake Welded Clevis 30/30 2.5" NT3030STD-WC EPRO3030STD-WC GC3030CW N/A 3030TNW2-2998 PL3030-WCR
    T30/36 Spring Brake w/o Yoke 30/36 2.5" 800832 N/A GC3036 3433051 3036TN2 PLBTS-3036
    T30/36 Piggyback Spring Brake 30/36 2.5" 5007127 N/A GP3036 3433008 N/A PLBPS-3036
    T36/36 Spring Brake w/Yoke 36/36 3.0" 800833 N/A GC3636 3437051 3636TN3 PLBTS-3636
    T36/36 Piggyback Spring Brake 36/36 3.0" 5007128 N/A GP3636 3437008 N/A N/A
    Cross reference is provided based on the best information available. Actual application should be verified to identify the correct part.

    BW7606 © 2018 Bendix Commercial Vehicle Systems LLC, a member of the Knorr-Bremse Group • 10/18 • All Rights Reserved
