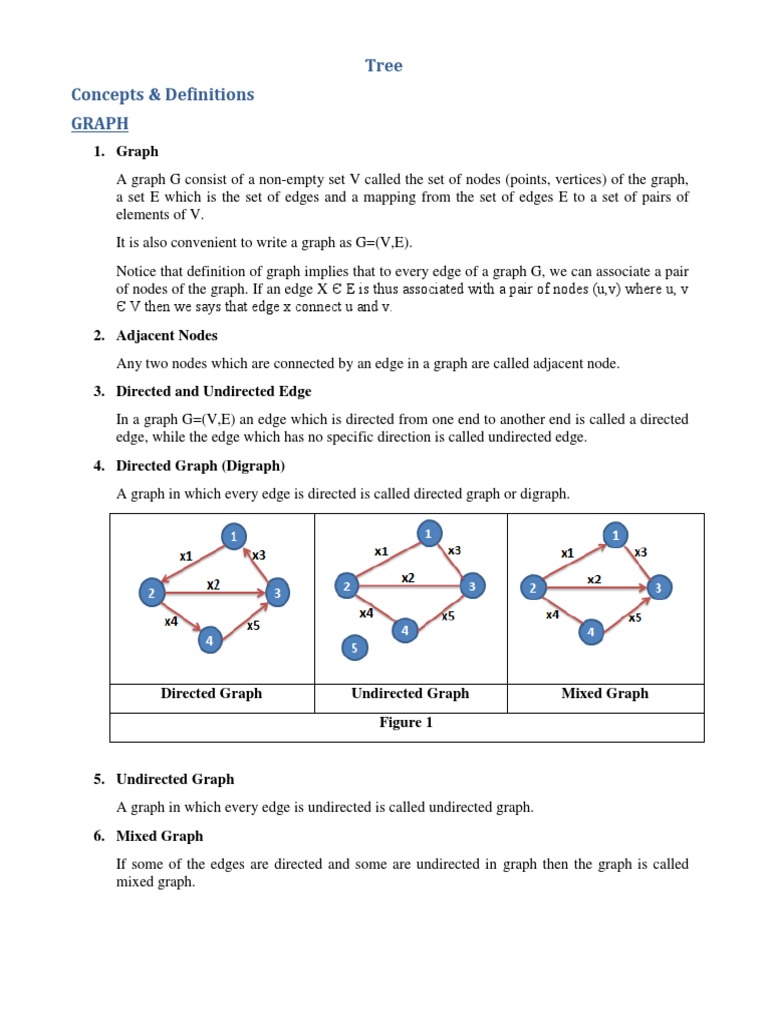

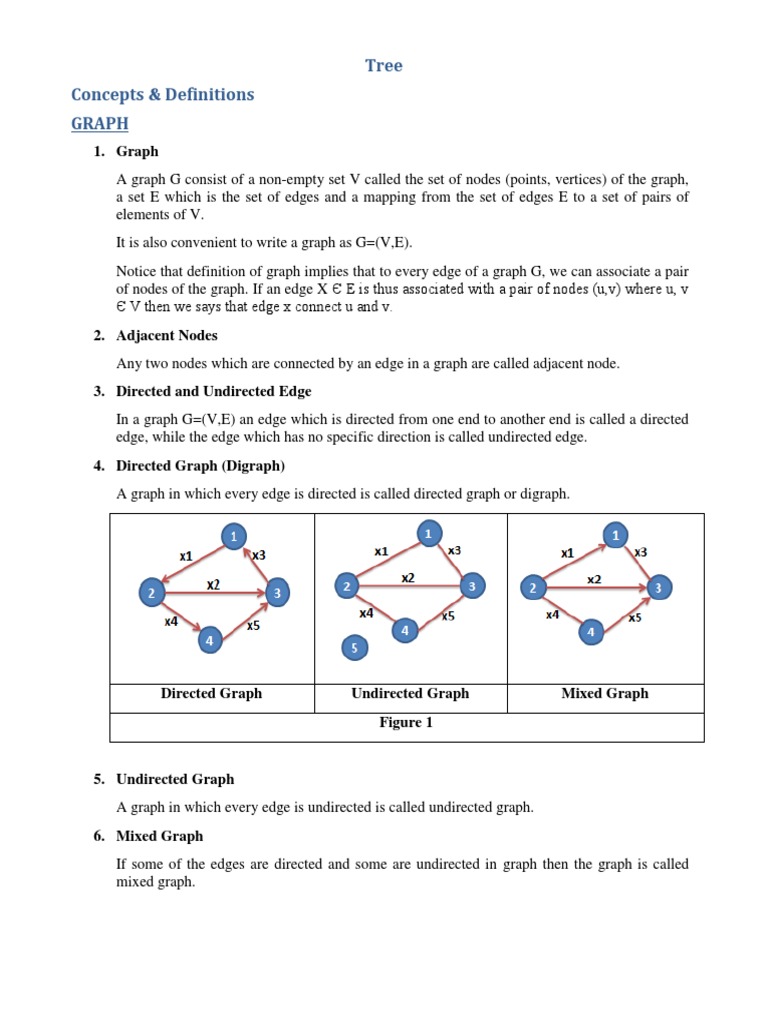

Tree

Concepts & Definitions

GRAPH
1. Graph
A graph G consist of a non-empty set V called the set of nodes (points, vertices) of the graph,
a set E which is the set of edges and a mapping from the set of edges E to a set of pairs of
elements of V.
It is also convenient to write a graph as G=(V,E).
Notice that definition of graph implies that to every edge of a graph G, we can associate a pair
of nodes of the graph. If an edge X Є E is thus associated with a pair of nodes (u,v) where u, v
Є V then we says that edge x connect u and v.
2. Adjacent Nodes
Any two nodes which are connected by an edge in a graph are called adjacent node.
3. Directed and Undirected Edge
In a graph G=(V,E) an edge which is directed from one end to another end is called a directed
edge, while the edge which has no specific direction is called undirected edge.
4. Directed Graph (Digraph)
A graph in which every edge is directed is called directed graph or digraph.

Directed Graph Undirected Graph Mixed Graph

Figure 1

5. Undirected Graph
A graph in which every edge is undirected is called undirected graph.
6. Mixed Graph
If some of the edges are directed and some are undirected in graph then the graph is called
mixed graph.
7. Loop direction of a loop is of no significance,
so it can be considered either directed or
An edge of a graph which joins a node undirected. E.g. An edge 2 from node 2
to itself is called a loop (sling). The to itself.
8. Distinct Edges
In the case of directed edges, the two
possible edges between a pair of nodes
which are opposite in direction are
considered distinct. E.g. edges 1 & 2
between nodes 2 & 3 in Figure 2.
9. Parallel Edges
In some directed as well as undirected
graphs, we may have certain pairs of
nodes joined by more than one edges,
such edges are called Parallel edges.
E.g. edges 1 & 2 between nodes 2 & 3
in Figure 2.
10. Multigraph
Any graph which contains some parallel
edges is called multigraph. E.g. graph in
Figure 2
11. Simple Graph
If there is no more than one edge between a pair of nodes (no more than one directed edge in
the case of a directed graph), then such a graph is called a simple graph.
12. Weighted Graph
A graph in which weights are assigned to every edge is called weighted graph.
13. Isolated Node
In a graph, a node which is not adjacent to any other node is called isolated node.
14. Null Graph
A graph containing only isolated nodes are called null graph. In other words set of edges in
null graph is empty.
15. Path of Graph
Let G=(V, E) be a simple digraph such that the terminal node of any edge in the sequence is
the initial node of the edge, if any appearing next in the sequence defined as path of the graph.
16. Length of Path
The number of edges appearing in the sequence of the path is called length of path.
17. Degree of vertex
The no of edges which have V as their terminal node is call as indegree of node V The no of
edges which have V as their initial node is call as outdegree of node V
 Sum of indegree and outdegree of node V is called its Total Degree or Degree of vertex.
18. Simple Path (Edge Simple)
A path in a diagraph in which the edges are distinct is called simple path or edge simple. E.g.
path P5 and P6 in Figure 3.
19. Elementary Path (Node Simple)
A path in which all the nodes through which it traverses are distinct is called elementary path.
E.g. paths P1, P2, P3 and P4 in figure 3 are elementary paths. Path P5 & P6 are simple but not
elementary.
20. Cycle (Circuit)
A path which originates and ends in the same node is called cycle (circuit). E.g. C1 = ((2,2)),
C2 = ((1,2),(2,1)), C3 = ((2,3),(3,1),(1,2)).
21. Acyclic Digraph
A simple digraph which does not have any cycle is called acyclic digraph.

TREE
1. Directed Tree
A directed tree is an acyclic digraph
which has one node called its root with
in degree 0, while all other nodes have
in degree 1.
Every directed tree must have at least
one node. An isolated node is also a
directed tree.
2. Terminal Node (Leaf Node)
In a directed tree, any node which has
out degree 0 is called terminal node or
leaf node. All other nodes are called Figure 4
branch nodes.
3. Level of Node
The level of any node is the length of its path from the root.
4. Ordered Tree
In a directed tree an ordering of the nodes at each level is prescribed then such a tree is called
ordered tree.
The diagram below represents same directed tree but different ordered trees.

Figure 5
5. Forest
If we delete the root and its edges connecting the nodes at level 1, we obtain a set of disjoint
tree. A set of disjoint tree is a forest.
6. M-ary Tree
If in a directed tree the out degree of every node is less than or equal to m then tree is called an
m-ary tree.
7. Complete M-ary Tree
If the out degree of each and every node is exactly equal to m or 0 and the number of nodes at
level i is mi then the tree is called a complete m-ary tree.
8. Positional M-ary Tree
If we consider m-ary trees in which the m children of any node are assumed to have m distinct
positions, if such positions are taken into account, then tree is called positional m- ary tree.
9. Height of the tree
The height of a tree is the length of the path from the root to the deepest node in the tree.
10. Sibling
Siblings are nodes that share the same parent node.
11. Binary tree (Figure 6(a))
If in a directed tree the out degree of every node is less than or equal to 2 then tree is called
binary tree.
12. Strictly binary tree (Figure 6(b))
 A strictly binary tree (sometimes proper binary tree or 2-tree) is a tree in which every node
other than the leaves has two children.
13. Complete binary tree (Figure 6(c))
If the out degree of each and every node is exactly equal to 2 or 0 and the number of nodes at
level i is 2i then the tree is called a complete binary tree.
14. Almost Complete binary tree (Figure 6(d))

A Binary Tree of depth d is Almost Complete iff:

1. The tree is Complete Binary Tree (All nodes) till level (d-1).

2. At level d, (i.e the last level), if a Node is present, then all the Nodes to the left of that node
should also be present.

(a) Binary Tree (b) Strictly (c) Complete Binary (d) Almost
Binary Tree Tree Complete
Binary Tree
Figure 6

Representation of Directed Tree

A. Venn Diagram

Figure 7.1
B. Nesting of Parenthesis

Figure 7.2

C. Like Table of Content for a book

Figure 7.3

D. Level-Number Format

Figure 7.4
Binary Tree Traversals (Inorder, Preorder and Postorder)
The most common operation performed on tree structure is that of traversal. This is a procedure by
which each node in the tree is processed exactly once in a systematic manner.
Unlike linear data structures (Array, Linked List, Queues, Stacks, etc) which have only one logical way
to traverse them, trees can be traversed in different ways. Following are the generally used ways for
traversing trees.
There are three ways of traversing a binary tree.
1. Preorder Traversal
2. Inorder Traversal
3. Postorder Traversal
Preorder: Preorder traversal of a binary tree is defined as follow
 Process the root node
 Traverse the left subtree in preorder
 Traverse the right subtree in preorder

If particular subtree is empty (i.e., node has no left or right descendant) the traversal is
performed by doing nothing, In other words, a null subtree is considered to be fully traversed
when it is encountered.

Inorder: Inorder traversal of a binary tree is defined as follow

 Traverse the left subtree in Inorder
 Process the root node
 Traverse the right subtree in Inorder

Postorder: Postorder traversal is given by

 Traverse the left subtree in postorder
 Traverse the right subtree in postorder
 Process the root node

Preorder traversal : A B C D E F G
Inorder traversal : C B A E F D G
Postorder traversal : C B F E G D A

Converse Preorder traversal : A D G E F B C

Converse Inorder traversal : GDFEABC
Converse Postorder traversal : G F E D C B A

Converse: If we interchange left and right words in the preceding definitions, we obtain three new
traversal orders which are called Converse Preorder, Converse Inorder and Converse Postorder.
Example

Constructing a binary tree from given two of the three traversals

Objective: – Given an inorder and preorder traversal, construct a binary tree from that.
Input: Inorder and preorder traversals
Approach:
int [] inOrder = {2,5,6,10,12,14,15};
int [] preOrder = {10,5,2,6,14,12,15};

 First element in preorder[] will be the

root of the tree, here its 10.

 Now the search element 10 in inorder[],

say you find it at position i, once you
find it, make note of elements which are
left to i (this will construct the
leftsubtree) and elements which are
right to i ( this will construct the
rightSubtree).

 See this step above and recursively

construct left subtree and link it root.left
and recursively construct right subtree
and link it root.right.
Objective: – Given an inorder and postorder traversal, construct a binary tree from that.
Input: inorder and postorder traversals
Appraoch:
int[] inOrder = { 4, 2, 5, 1, 6, 3, 7 };
int[] postOrder = { 4, 5, 2, 6, 7, 3, 1 };
 Last element in the postorder [] will be the root of the tree, here it is 1.

 Now the search element 1 in inorder[], say you find it at position i, once you find it, make note
of elements which are left to i (this will construct the leftsubtree) and elements which are right
to i ( this will construct the rightSubtree).

 Suppose in previous step, there are X number of elements which are left of „i’ (which will
construct the leftsubtree), take first X elements from the postorder[] traversal, this will be the
post order traversal for elements which are left to i. similarly if there are Y number of elements
which are right of „i‟ (which will construct the rightsubtree), take next Y elements, after X
elements from the postorder[] traversal, this will be the post order traversal for elements which
are right to i

 From previous two steps construct the left and right subtree and link it to root.left and root.right
respectively.
Objective: – Given a preorder and postorder traversal, construct a binary tree from that.
Input: preorder and postorder traversals
Appraoch:

Note: It is not possible to construct a general Binary Tree from preorder and postorder traversals. But if
it is known that the tree is strictly binary tree, it is possible to construct the tree without ambiguity.

Let us understand this with the help of following example.

For example, Preorder and Postorder traversals are same for the trees given in above diagram.
Preorder: AB
Postorder: BA

Let us consider the example of strictly binary tree.

int[] preOrder = { 1, 2, 4, 8, 9, 5, 3, 6, 7};

int[] postOrder = { 8, 9, 4, 5, 2, 6, 7, 3, 1};

In preOrder, the leftmost element is root of tree. Since the tree is strictly binary tree and array size is
more than 1. The value next to 1 in preOrder, must be left child of root. So we know 1 is root and 2 is
left child.
How to find the all nodes in left subtree? We know 2 is root of all nodes in left subtree. All nodes
before 2 in postOrder must be in left subtree. Now we know 1 is root, elements {8, 9, 4, 5, 2} are in left
subtree, and the elements {6, 7, 3} are in right subtree.

1
/ \
/ \
{8, 9, 4, 5, 2} {6, 7, 3}

We recursively follow the above approach and get the following tree.

1
/ \
2 3
/ \ / \
4 5 6 7
/ \
8 9
Algorithms for Preorder, Postorder and Inorder traversal of binary tree
Preorder

Procedure : RPREORDER(T)
Given a binary tree whose root node address is given by pointer variable T and whose node structure is
same as described below, this procedure traverses the tree in preorder, in a recursive manner.

1. [Check for empty tree]

If T= NULL
Then write („EMPTY TREE‟)
Return
Else write(DATA(T))
2. [Process the Left Subtree]
If LPTR(T) ≠ NULL
Then RPREORDER(LPTR(T))
3. [Process the Right Subtree]
If RPTR(T) ≠ NULL
Then RPREORDER(RPTR(T))
4. [Finished]
Return

Procedure : PREORDER(T)
Given a binary tree whose root node address is given by pointer variable T and whose node structure is
same as previously described, this procedure traverses the tree in preorder, in an iterative manner. S
and TOP denote an auxiliary stack and its associated top index, respectively. The pointer variable P
denotes the current node in the tree.

1. [Intialize]
If T= NULL
Then write („EMPTY TREE‟)
Return
Else TOP ← 0
Call PUSH(S,TOP,T)
2. [Process each stacked branch address]
Repeat step 3 while TOP > 0
 3. [Get stored address and branch left]
P ← POP(S, TOP)
Repeat while P ≠ NULL
Write (DATA(P))
If RPTR(P) ≠ NULL
Then Call PUSH(S,TOP,RPTR(P)) /* store address of nonempty right subtree */
P ← LPTR(P) /* branch left */
4. [Finished]
Return

Postorder

Procedure : RPOSTORDER(T)
Given a binary tree whose root node address is given by pointer variable T and whose node structure is
same as previously described, this procedure traverses the tree in postorder, in a recursive manner.

1. [Check for empty tree]

If T= NULL
Then write („EMPTY TREE‟)
Return
2. [Process the Left Subtree]
If LPTR(T) ≠ NULL
Then RPOSTORDER (LPTR(T))
3. [Process the Right Subtree]
If RPTR(T) ≠ NULL
Then RPOSTORDER (RPTR(T))
4. [Process the root node]
Write(DATA(T))
5. [Finished]
Return

Procedure : POSTORDER(T)
Given a binary tree whose root node address is given by pointer variable T and whose node structure is
same as previously described, this procedure traverses the tree in postorder, in an iterative manner. S
and TOP denote an auxiliary stack and its associated top index, respectively. The pointer variable P
denotes the current node in the tree.
Here we need two types of stack entries, the first indicating that a left subtree is being traversed, and
the second that a right subtree is being traversed. For convenience we will use negative pointer values
to indicate the second type of entry. This, of course, assumes that valid pointer data are always nonzero
and positive.

1. [Intialize]
If T= NULL
Then write („EMPTY TREE‟)
Return
Else P←T
TOP ← 0
2. [Traverse in postorder]
Repeat thru step 5 while true
3. [Descend left]
Repeat while P ≠ NULL
Call PUSH(S, TOP, P)
P ← LPTR(P)
4. [Process a node whose left and right subtrees have been traversed]
Repeat while S[TOP] < 0
P ← POP(S, TOP)
Write(DATA(P))
If TOP = 0 (Have all nodes been processed?)
Then Return
5. [Branch right and then mark node from which we branched]
P ← RPTR(S[TOP])
S[TOP] ← -S[TOP]

Inorder

Procedure : RINORDER(T)
Given a binary tree whose root node address is given by pointer variable T and whose node structure is
same as previously described, this procedure traverses the tree in inorder, in a recursive manner.

1. [Check for empty tree]

If T= NULL
Then write („EMPTY TREE‟)
Return
2. [Process the Left Subtree]
 If LPTR(T) ≠ NULL
Then RINORDER (LPTR(T))
3. [Process the root node]
Write(DATA(T))
4. [Process the Right Subtree]
If RPTR(T) ≠ NULL
Then RINORDER (RPTR(T))
5. [Finished]
Return

Procedure : INORDER(T)
Given a binary tree whose root node address is given by pointer variable T and whose node structure is
same as previously described, this procedure traverses the tree in inorder, in an iterative manner. S and
TOP denote an auxiliary stack and its associated top index, respectively. The pointer variable P denotes
the current node in the tree.

1. [Intialize]
If T= NULL
Then write („EMPTY TREE‟)
Return
Else TOP ← 0
P←T
2. [Traverse in inorder]
Repeat step 3 while TOP > 0 or P ≠ NULL
3. [Descend left]
If P ≠ NULL
Then Call PUSH(S, TOP, P)
P ← LPTR(P)
Else
P ← POP(S, TOP)
Write (DATA(P))
P ← RPTR(P)
4. [Finished]
Return
Algorithm to create duplicate copy of a binary tree
Procedure : COPY(T)
Given a binary tree whose root node address is given by pointer variable T and whose node structure is
same as previously described, this procedure generates a copy of the tree and returns the address of its
root node. NEW is a temporary pointer variable.

1. [Null Pointer?]
If T= NULL
Then Return (NULL)
2. [Create a new node]
NEW <= NODE
3. [Copy information field]
DATA(NEW) ← DATA(T)
4. [Set the structural links]
LPTR(NEW) ← COPY(LPTR(T))
RPTR(NEW) ← COPY(RPTR(T))
5. [Return address of new node]
Return(NEW)

Binary Search Tree (BST)

We consider a particular kind of a binary tree called a Binary Search Tree (BST). The basic idea behind
this data structure is to have such a storing repository that provides the efficient way of data sorting,
searching and retrieving.

A BST is a binary tree where nodes are ordered right subtrees of a BST are again search trees;
in the following way: the above definition is recursively applied to all
internal nodes:
 Each node contains one key (also
known as data)
 The keys in the left subtree are less then
the key in its parent node, in short L <
P;
 The keys in the right subtree are greater
the key in its parent node, in short P <
R;
 Duplicate keys are not allowed.
In the following tree all nodes in the left subtree
of 10 have keys < 10 while all nodes in the
right subtree > 10. Because both the left and
Algorithm to insert a node into BST
Procedure: BSTINSERT(HEAD, KEY)
Given a lexically ordered binary tree with the node structure previously described and the information
value KEY of the node to be inserted, this procedure inserts the node whose information field is equal
to KEY. PARENT is a pointer variable which denotes the address of the parent of the node to be
inserted. CURRENT denotes the address of the node in focus. Also, the tree assumed to have a list
head whose address is given by HEAD.
1. [Intialize]
If LPTR(HEAD) = HEAD
Then NEW <= NODE
DATA(NEW) ← KEY
LPTR(HEAD) ← NEW
Return
Else CURRENT ← LPTR(HEAD)
PARENT ← HEAD
2. [Traverse tree to find Parent node of key]
Repeat while CURRENT ≠ NULL
PARENT ← CURRENT
If KEY < DATA(CURRENT)
Then CURRENT ← LPTR(CURRENT)
Else CURRENT ← RPTR(CURRENT)
3. [Create a node with key]
If KEY < DATA(PARENT)
Then LPTR(PARENT) <= NODE
DATA(LPTR(PARENT)) ← KEY
Else RPTR(PARENT) <= NODE
DATA(RPTR(PARENT)) ← KEY
4. [Finished]
Return

Algorithm to delete a node from BST

Procedure: BSTDELETE(HEAD, KEY)
Given a lexically ordered binary tree with the node structure previously described and the information
value KEY of the node marked for deletion, this procedure deletes the node whose information field is
equal to KEY. PARENT is a pointer variable which denotes the address of the parent of the node
marked for deletion. CURRENT denotes the address of the node to be deleted. PRED and SUC are
pointer variables used to find the inorder successor of CURRENT. Q contains the address of the node
to which either the left or right link of the parent of KEY must be assigned in order to complete the
deletion. Finally, D contains the direction from the parent node to the node marked for deletion. Also,
the tree assumed to have a list head whose address is given by HEAD. FOUND is a boolean variable
which indicates whether the node marked for deletion has been found.
1. [Intialize]
If LPTR(HEAD) ≠ HEAD
Then CURRENT← LPTR(HEAD)
PARENT ← HEAD
D ← 'L'
Else Write ('Node not found')
Return
2. [Search for the node marked for deletion]
FOUND ← false
Repeat while nor FOUND and CURRENT ≠ NULL
If DATA(CURRENT) = KEY
Then FOUND ← true
Else If KEY < DATA(CURRENT)
Then PARENT ← CURRENT /* branch left */
CURRENT ← LPTR(CURRENT)
D ← 'L'
Else PARENT ← CURRENT /* branch right */
CURRENT ← RPTR(CURRENT)
D ← 'R'
If FOUND = false
Then Write ('Node not found')
Return
3. [Perform the indicated deletion and restructure the tree]
If LPTR(CURRENT) = NULL
Then Q ← RPTR(CURRENT) /* empty left subtree */
Else If RPTR(CURRENT) = NULL
Then Q ← LPTR(CURRENT) /* empty right subtree */
Else (check right child for successor)
SUC ← RPTR(CURRENT)
If LPTR(SUC) = NULL
Then LPTR(SUC) ← LPTR(CURRENT)
 Q ← SUC
Else (search for successor of CURRENT)
PRED ← RPTR(CURRENT)
SUC ← LPTR(PRED)
Repeat while LPTR(SUC) ≠ NULL
PRED ← SUC
SUC ← LPTR(PRED)
(Connect Successor)
LPTR(PRED) ← RPTR(SUC)
LPTR(SUC) ← LPTR(CURRENT)
RPTR(SUC) ← RPTR(CURRENT)
Q ← SUC
(Connect parent of KEY to its replacement)
If D = 'L'
Then LPTR(PARENT) ← Q
Else RPTE(PARENT) ← Q
Return

Example:
Case 1: Deleting a node with no children
Delete a node with key 15
Case 2: Deleting a node with one child
Delete a node with key 5

Case 3: Deleting a node with both children

Delete a node with key 11
Threaded Binary Tree
 In a linked representation of a binary tree, the number of null links (null pointers) are actually more
than non-null pointers. Consider the following binary tree:

 In above binary tree, there are 7 null pointers & actual 5 pointers. In all there are 12 pointers.
 We can generalize it that for any binary tree with n nodes there will be (n+1) null pointers and 2n
total pointers.
 The objective here to make effective use of these null pointers.
 A. J. perils & C. Thornton jointly proposed idea to make effective use of these null pointers.
 According to this idea we are going to replace all the null pointers by the appropriate pointer values
called threads.
 And binary tree with such pointers are called threaded tree.
 In the memory representation of a threaded binary tree, it is necessary to distinguish between a
normal pointer and a thread.
 Therefore we have an alternate node representation for a threaded binary tree which contains five
fields as show bellow:

Alternate node structure for a threaded binary tree

LTHREAD = true (1): Denotes leaf thread link

LTHREAD = false (0): Denotes leaf structural link
RTHREAD = true (1): Denotes right threaded link
RTHREAD = false (0): Denotes right structural link

 Other method is to use negative address to represent thread.

 A binary tree is threaded according to particular traversal order. e.g.: Threads for the inorder
traversals of tree are pointers to its higher nodes, for this traversal order.
  If left link of node P is null, then this link is replaced by the address of its predecessor.
 If right link of node P is null, then it is replaced by the address of its successor
 Head node is simply another node which serves as the predecessor and successor of first and last
tree nodes. Tree is attached to the left branch of the head node

Head

 Also one may choose a one-way threading or a two-way threading.

 One-way threading: If our threading will correspond to the in order traversal of T, in the one way
threading of T, a thread will appear in the right field of a node and will point to the successor node
(right in-threaded) or a thread will appear in the left field of a node and will point to the
predecessor node (left in-threaded) in the inorder traversal of T.

Inorder traversal of above tree is: D,B,F,E,A,G,C,L,J,H,K

 Two-way threading:
 Here, a thread in the left field points to the predecessor node and a thread in right field
points to a successor node, in the inorder traversal of tree T.
 Furthermore, the left pointer of the first node and the right pointer of the last node (in the
inorder traversal of T) will contain the null value when T does not have a header node.
 Inorder of above tree is: D,B,F,E,A,G,C,L,J,H,K

 Below figure shows the threaded binary tree T, when T has a head node
 Examples:
1. Draw a right in-threaded binary tree for the given tree.

Right in-threaded binary tree:

2. Draw a fully in-threaded binary tree for the given tree.

 Fully in-threaded binary tree:

 Advantages
 Inorder traversal is faster than unthreaded version as stack is not required.
 Effectively determines the predecessor and successor for inorder traversal, for unthreaded
tree this task is more difficult.
 A stack is required to provide upward pointing information in tree, which threading
provides.
 It is possible to generate successor or predecessor of any node without having over head of
stack with the help of threading.
 Disadvantages

 Threaded trees are unable to share common subtrees

 If negative addressing is not permitted in programming language, two additional fields are
required.
 Insertion into and deletion from threaded binary tree are more time consuming because both
thread and structural link must be maintained.
Algorithms for In-Threaded Binary Tree
Procedure: INS(X)
Given X, the address of a node in a threaded binary tree, this function returns the address of its inorder
successor. P is a temporary pointer variable.

1. [Return the right pointer of the given node if a thread]

P ← |RPTR(X)|
If RPTR (X) < 0
Then Return (P)
2. [Branch left repeatedly until a left thread]
Repeat while LPTR (P) > 0
P ← LPTR (P)
3. [Return address of successor]
Return (P)

Procedure: INP(X)
Given X, the address of a node in a threaded binary tree, this function returns the address of its inorder
predecessor. P is a temporary pointer variable.

1. [Return the left pointer of the given node if a thread]

P ← |LPTR(X)|
If LPTR (X) < 0
Then Return (P)
2. [Branch right repeatedly until a right thread]
Repeat while RPTR (P) > 0
P ← RPTR (P)
3. [Return address of predecessor]
Return (P)

Procedure: TINORDER(HEAD)
Given the address of the list head (HEAD) of a binary tree which has been threaded for inorder
traversal and sub algorithm INS previously discussed, this procedure traverses the tree in inorder. P is a
temporary pointer variable.

1. [Initialize]
P ← HEAD
 2. [Traverse threaded tree in inorder]
Repeat while true
P ← INS (P)
If P = HEAD
Then Exit
Else Write (DATA(P))

Procedure: LEFT(X, INFO)

Given the address of a designated node (X) in an inorder threaded binary tree and the information
associated with a new node (INFO), this procedure inserts a new node to the left of the designated
node. P is a temporary pointer variable which denotes the address of the node to be inserted.

1. [Create new node]

P <= NODE
DATA(P) ← INFO
2. [Adjust pointer fields]
LPTR(P) ← LPTR(X)
LPTR(X) ← P
RPTR(P) ← -X
3. [Reset predecessor thread if required]
If LPTR(P) > 0
Then RPTR(INP(P)) ← -P
Return

Expression Trees
 Expression tree is a strictly binary tree in which each internal node corresponds to operator and
each leaf node corresponds to operand

 Binary trees are widely used to store algebraic expressions. For example, consider the algebraic
expression given as: Exp = (a – b) + (c * d)

 This expression can be represented using a binary tree as shown in figure below
 The Preorder traversal of a binary expression tree yields the prefix form of the expression.

 The Postorder traversal of a binary expression tree yields the postfix form of the expression.

 The Inorder traversal of a binary expression tree yields the infix form of the expression with the
ordering of the operations implied by the structure of the tree, as such tree does not contain
parenthesis.
For example, two expression trees given below, when traversed in inorder, generate same
expression i.e. A + B * C. But the evaluation of each of them is different

Huffman Coding
Huffman coding is an encoding algorithm developed by David A. Huffman that is widely
used as a lossless data compression technique. The idea is to assign variable-length codes to input
characters; lengths of the assigned codes are based on the frequencies of corresponding characters. The
most frequent character gets the smallest code and the least frequent character gets the largest code.
The variable-length codes assigned to input characters are Prefix Codes, means the codes (bit
sequences) are assigned in such a way that the code assigned to one character is not prefix of code
assigned to any other character. This is how Huffman Coding makes sure that there is no ambiguity
when decoding the generated bit stream.
Let us understand prefix codes with a counter example. Let there be four characters a, b, c and d, and
their corresponding variable length codes be 00, 01, 0 and 1. This coding leads to ambiguity because
code assigned to c is prefix of codes assigned to a and b. If the compressed bit stream is 0001, the de-
compressed output may be “cccd” or “ccb” or “acd” or “ab”.
There are mainly two major parts in Huffman Coding
1) Build a Huffman Tree from input characters.
2) Traverse the Huffman Tree and assign codes to characters.
1. Steps to build Huffman Tree (Huffman Algorithm)
Input is array of unique characters along with their weight or frequency of occurrences and output is
Huffman Tree.
1. Create a leaf node for each character. Add the character and its weight or frequency
of occurrence to the priority queue.
2. Repeat Steps 3 to 5 while the total number of nodes in the queue is greater than 1.
3. Remove two nodes that have the lowest weight (or highest priority).
4. Create a new internal node by merging these two nodes as children and with weight equal to the
sum of the two nodes' weights.
5. Add the newly created node to the queue.

Example: Create a Huffman tree with the following nodes arranged in a priority queue.

Solution:
2. Steps to print codes from Huffman Tree
In the Huffman tree, circles contain the cumulative weights or frequency of occurrences of their child
nodes. Every left branch is coded with 0 and every right branch is coded with 1. So, the characters A,
E, R, W, X, Y, and Z are coded as shown in Table.

Huffman Tree Characters with their codes

Properties of a Binary Tree
1. The maximum number of nodes at level „i of a binary tree is 2i.
2. Maximum number of nodes in a binary tree of height „h‟ is 2h+1 – 1.
3. In a Binary Tree with N nodes, minimum possible height is ceiling (Log2(N+1)-1).
4. A Binary Tree with L leaves has at least ceiling( Log2L ) + 1 levels
5. In Binary tree where every node has 0 or 2 children, number of leaf nodes is always one more
than nodes with two children.
6. Minimum number of nodes in a strictly binary tree is 2h + 1, where h is the height of a tree.
