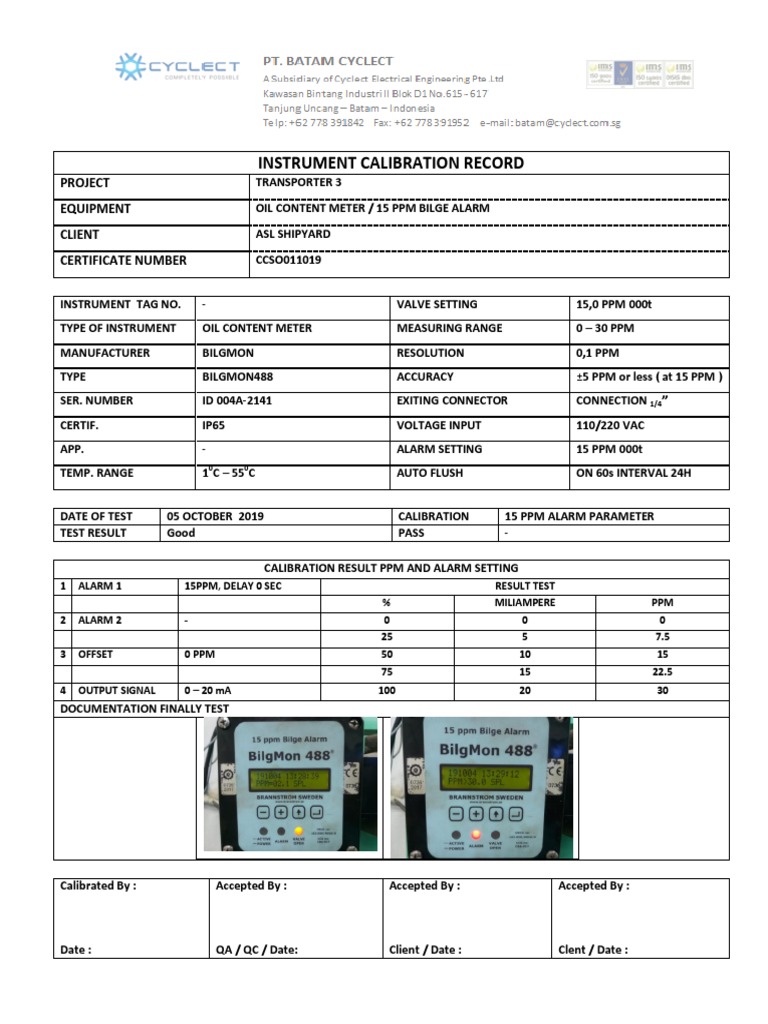

INSTRUMENT CALIBRATION RECORD

PROJECT TRANSPORTER 3

EQUIPMENT OIL CONTENT METER / 15 PPM BILGE ALARM

CLIENT ASL SHIPYARD

CERTIFICATE NUMBER CCSO011019

INSTRUMENT TAG NO. - VALVE SETTING 15,0 PPM 000t


TYPE OF INSTRUMENT OIL CONTENT METER MEASURING RANGE 0 – 30 PPM
MANUFACTURER BILGMON RESOLUTION 0,1 PPM
TYPE BILGMON488 ACCURACY ±5 PPM or less ( at 15 PPM )
SER. NUMBER ID 004A-2141 EXITING CONNECTOR CONNECTION 1/4”
CERTIF. IP65 VOLTAGE INPUT 110/220 VAC
APP. - ALARM SETTING 15 PPM 000t
TEMP. RANGE 10C – 550C AUTO FLUSH ON 60s INTERVAL 24H

DATE OF TEST 05 OCTOBER 2019 CALIBRATION 15 PPM ALARM PARAMETER


TEST RESULT Good PASS -

CALIBRATION RESULT PPM AND ALARM SETTING


1 ALARM 1 15PPM, DELAY 0 SEC RESULT TEST
% MILIAMPERE PPM
2 ALARM 2 - 0 0 0
25 5 7.5
3 OFFSET 0 PPM 50 10 15
75 15 22.5
4 OUTPUT SIGNAL 0 – 20 mA 100 20 30
DOCUMENTATION FINALLY TEST

Calibrated By : Accepted By : Accepted By : Accepted By :

Date : QA / QC / Date: Client / Date : Clent / Date :
