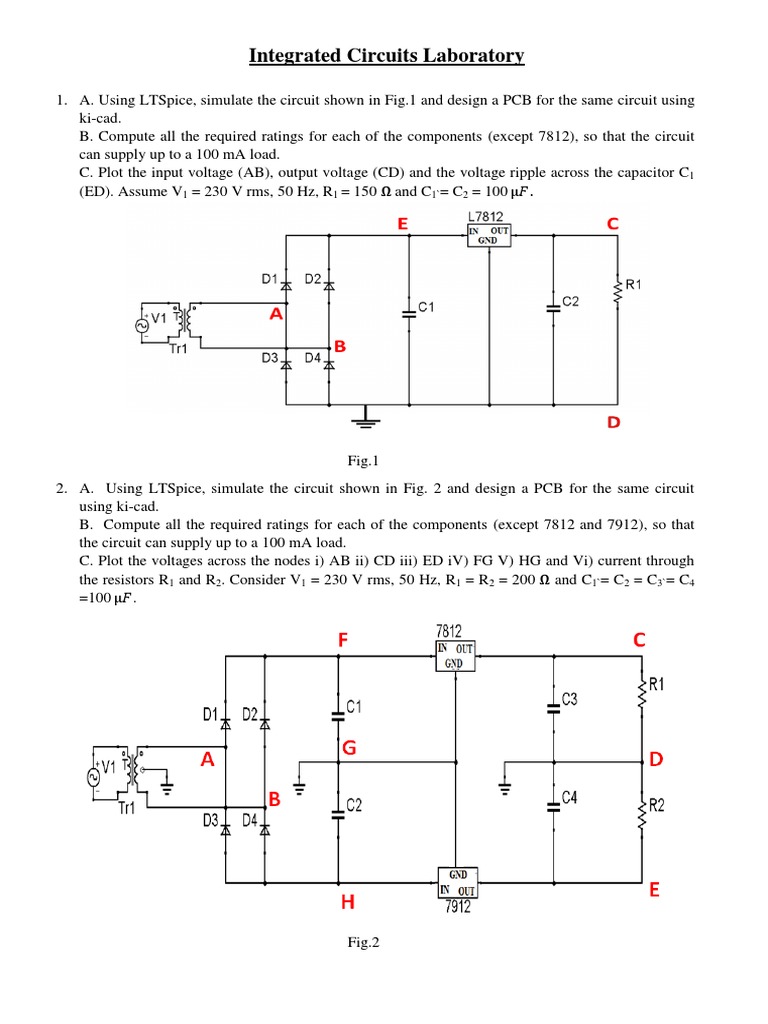

Integrated Circuits Laboratory

1. A. Using LTSpice, simulate the circuit shown in Fig.1 and design a PCB for the same circuit using
ki-cad.
B. Compute all the required ratings for each of the components (except 7812), so that the circuit
can supply up to a 100 mA load.
C. Plot the input voltage (AB), output voltage (CD) and the voltage ripple across the capacitor C1
(ED). Assume V1 = 230 V rms, 50 Hz, R1 = 150 and C1`= C2 = 100

Fig.1
2. A. Using LTSpice, simulate the circuit shown in Fig. 2 and design a PCB for the same circuit
using ki-cad.
B. Compute all the required ratings for each of the components (except 7812 and 7912), so that
the circuit can supply up to a 100 mA load.
C. Plot the voltages across the nodes i) AB ii) CD iii) ED iV) FG V) HG and Vi) current through
the resistors R1 and R2. Consider V1 = 230 V rms, 50 Hz, R1 = R2 = 200 and C1`= C2 = C3`= C4
=100 .

Fig.2
3. A. For the relay circuit shown in Fig. 3, compute the resistor value of R1 to activate the relay
(SRD-05VDC-SL-C).
B. Using LTSpice, simulate the circuit shown in Fig. 3 and design a PCB for the same circuit
using ki-cad.
C. Plot the voltage across the transistor (AB), output voltage (CD) and current through the R2.

Push button

Fig. 3
