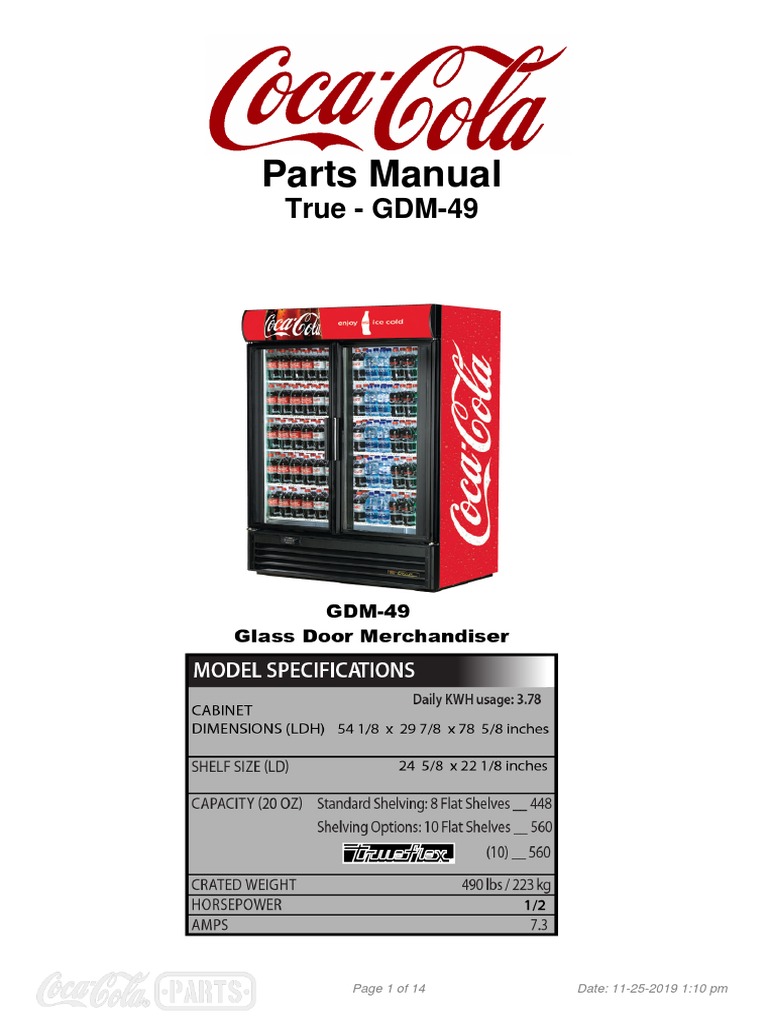

Parts Manual

True - GDM-49

Page 1 of 14 Date: 11-25-2019 1:10 pm

Item No. CCP Part# Mfg. Part# CONA Material# Description
1 1069447 801706 150000891 CORD SERVICE COMP GDMS
2 117398 875402 150021535 UNIT,CONDENSING,1/2HP R134A 115V
2.1 106749 992821 150026068 UNIT,CONDENSING,GDM49,W/REVERSE FAN
3 543338 800402 150004155 MOTOR FAN CONDSENER 9W W/SIL
4 507498 109284 150008592 CORDSET GDM, 6FT LENGTH
5 500373 801006 150010063 BLADE FAN COND 4 BLADE 10IN
6 543916 865417 150004027 BRACKET CONDENSER MOTOR
7 113053 866743 150023642 ACCUMULATOR,TRUE
8 130127 884635 150013745 LINE,SET,GDM49,R-134A, ACCUMULATOR/CAPILLARY TUBE/SUCTION)
9 106213 851134 150026276 TUBE,CAPILLARY,.125OD X .064 IDX12'
10 541456 802115 150004454 CAPACITOR START 1/2HP 85P5165A **

Page 2 of 14 Date: 11-25-2019 1:10 pm

 Compressor Components
Item No. CCP Part# Mfg. Part# CONA Material# Description
11 103643 BPS-801701 150027368 CORD,POWER,TO WALL OUTLET,11FT
12 543685 801229 150004065 OUTLET ELECTRICAL F/COMPRESSR
13 511563 802223 150007576 OVERLOAD AKA4460YXA
14 541455 802113 150004455 RELAY 1/2HP AK9434A P824981
15 108799 975518 150025201 GROMMET,COMPRESSOR MOUNTING
16 542559 870131 150004282 LINE PULL OUT GDM41/45/47/49
17 113551 BPS-842405 150023426 COMPRESSOR,115V 60HZ,1/2HP R134A
18 108800 831503 BOLT, COMPRESSOR MNTG GDM33
19 517767 800801 150006080 DRIER
20 514543 210649 150007025 COIL,CONDENSER,1/2HP ,12.5"X 10.813"X 5.563"
21 1065612 801501 150002561 SHROUD CONDENSOR
22 108803 861074 BASE,COMPRESSOR METAL PLATFORM

Page 3 of 14 Date: 11-25-2019 1:10 pm

Item No. CCP Part# Mfg. Part# CONA Material# Description
NR 514103 800321 150007158 THERMOMETER TUBE TYPE ALL MDLS
NR 122618 302-0110 150018707 WIRE,SENSOR,2WAY,SCKT CONN,3.5M BLACK/BLUE
1 542041 800200 150004358 COIL EVAPORATOR GDM47
2 504554 860529 150009141 BRACKET,EVAP FAN MTR,MTG,DEEP
3 506040 871202 150008833 PAN EVAPORATOR TOP 311/2X91/8
4 500370 800401 150010066 MOTOR EVAPORATOR FAN 9W 115V
5 500371 861106 150010065 BLADE FAN EVAP 3 BLADE 7IN
6 543686 810303 150004064 GROMMET BLK RUBBER F/DRAIN
7 113166 811502 150023581 ELBOW,DRAIN,45 DEG.
8 520368 875548 150005483 KNOB TEMP.CONTROL UNIV.

Page 4 of 14 Date: 11-25-2019 1:10 pm

 Evaporator Components
Item No. CCP Part# Mfg. Part# CONA Material# Description
9 140267 H400456T-1 150035717 CONTROL,TEMP,FITS MOST GDM S
9.1 143744 991224 150056994 CONTROL,RETRO-FIT,ELECTRONIC
10 123519 860602 150018106 COVER,TEMPERATURE CNTROLL,WHITE,
11 504556 997585 150009139 GUARD,EVAP FAN 11 1/4IN,GDM45
12 542016 870902 150004371 HOUSING,EVAPORATOR
13 542067 882671 150004348 HOSE,EVAP. DRAIN,7FT, 1/2"ID,5/8"OD
14 120051 928849 150020075 HEATER,KIT,CONDENSATE PAN
15 510092 874655 150007966 PADS WICKING 5/SET
16 513893 801814 150007232 COIL HEATER DRAIN PAN
17 506301 BPS-810231 150008759 PAN,DRAIN,2 DOOR,TRUE,LARGE
17.1 117716 891858 150021374 PAN,DRAIN,CONDENSATE,BTM,METAL,OPT
18 110799 883306 150024191 KIT, WICKING
19 132065 987100 150012375 HOLDER,WICKING PAD,COND. DRAIN PAN, CLEAR ALUMINUM

Page 5 of 14 Date: 11-25-2019 1:10 pm

Item No. CCP Part# Mfg. Part# CONA Material# Description
NR 515810 801732 150006593 HARNESS SPLIT WIRE GDM49
NR 519951 905256 150005679 MULLION,DOOR,GDM49/72,BLACK
NR 520305 861301 150005499 INSERT MULLION GDM49/72
NR 1069230 877912 150000986 MULLION GDM49/72
NR 148354 410504 150074407 INSERT,KIT,GLASS DOOR,GDM19/23/23H/ 49
NR 148355 410505 150074408 INSERT,KIT,GLASS DOOR,GDM23/49/60, IDL
1 120920 883315 150019779 DOOR,ASY,LH,BLK IDL,115V/208V,GDM49
1.1 117715 883316 150021375 DOOR,GDM49 IDL,RH,BLK FRAMED, 115V/208V,32" PWR CORD
1.2 541416 870649 150004476 DOOR SWING GDM49 BLACK
1.3 542037 870650 150004362 DOOR COMPLETE GDM23/49/60 RH
1.4 117878 882606 150021296 DOOR,RH,BLK,RECESSED HNDL,W/LOCK GD M49
1.41 147036 997788 150068091 DOOR,ASSY,RH,GDM-49-HC TSL01
1.5 117879 882605 150021295 DOOR,LH,BLK,RECESSED HNDL,W/LOCK GDM49

Page 6 of 14 Date: 11-25-2019 1:10 pm

 Door Assembly
Item No. CCP Part# Mfg. Part# CONA Material# Description
1.6 134568 942219 150010753 DOOR,LEFT SIDE,BLK FRAMED,TOP HUNG, GDM49-RL
1.61 147136 997786 150069033 DOOR,ASSY,LEFT HAND,GDM-49-HC
1.7 135224 968652 150010240 DOOR,GDM49,RH,BLK FRAMED,LD LIGHT, 115V,TORSION SPRING,2 (48") LED
1.8 135225 968650 150010239 DOOR,GDM49,LH,BLK FRAMED,LD LIGHT, 115V,TORSION SPRING,2 (48") LED
1.9 146401 960114 150065260 DOOR,ASSY,GDM-49-LD,RH,BLACK
2 540565 912290 150004707 INSERT,GLASS DOOR,GDM23HL/49
2.1 513997 912382 150007182 INSERT GLASS DR GDM49 W/LIGHT
3 514856 873008 150006933 PLATE DOOR GASKET BACK GDM 23
4 517507 801230 150006179 LAMPHOLDER TOP IDL
4.1 1066158 841477 150002331 BASE LAMPHOLDER GDM23/26/35
5 543687 BPS-810803 150004063 GASKET DOOR SWING GDM49/60, 25-5/8X 54-1/8
6 516243 815968 150006524 LAMPSHIELD,GDM SWING DOOR,CLEAR
7 521139 29UY23 150005279 BULB, F28T8/SXL/SPX50/ECO,48 IN, SI NGLE BULB, PLS ORDER CCP 14336
8 513207 801254 150007413 LAMPHOLDER,DOOR,IDL,BTM,115/208/220
8.1 1066158 841477 150002331 BASE LAMPHOLDER GDM23/26/35
9 107988 842898 150025464 CORD,POWER,DOOR,IDL,42IN,600V,4 PIN ,ULTRA FLEX CABLE
10 120920 883315 150019779 DOOR,ASY,LH,BLK IDL,115V/208V,GDM49
10.1 117715 883316 150021375 DOOR,GDM49 IDL,RH,BLK FRAMED, 115V/208V,32" PWR CORD
10.2 150008 209162 150078846 DOOR,ASSY,RH,GDM-49-HC-LD,BLK, W/2 PRONG PLUG FOR LIGHTS
11 500995 879473 150009900 HANDLE GDM SWING DOOR, BLK, GDM5 THRU THE GDM72
11.1 542057 875545 150004353 HANDLE DOOR SWING ST STEEL
11.2 1070717 830532 150000273 SCREW DOOR HANDLE

Page 7 of 14 Date: 11-25-2019 1:10 pm

Item No. CCP Part# Mfg. Part# CONA Material# Description
NR 511234 872904 150007657 WRENCH TENSION
1 543337 BPS-870801 150004156 HINGE DOOR TOP ALL OTHERS
1.1 112981 870886 150023689 HINGE,KIT,DOOR,BOTTOM LEFT
1.2 147059 997789 150069006 HINGE,ASY,TOP,GDM-49-HC TSL01
2 113151 870888 BRACKET,HINGE,DOOR,TOP LEFT
2.1 113152 870887 BRACKET,HINGE,DOOR,TOP RIGHT
3 500998 832108 150009897 SHAFT TOP HINGE ALL SWING
4 500997 832103 150009898 PIN STOP ALL SWING
5 113153 830630 150023591 WASHER,TOP/BOTTOM DOOR BRACKET
6 500999 832110 150009896 BUSHING ALL SWING BRASS
7 1063554 851155 150002770 BLOCK DOOR TOP TRUE
8 544963 875587 150003856 SPRING,DOOR,ALL GDM,52 3/8"
9 543692 832109 150004061 BEARING THRUST BTM HINGE

Page 8 of 14 Date: 11-25-2019 1:10 pm

 Door Parts
Item No. CCP Part# Mfg. Part# CONA Material# Description
10 501025 832113 150075655 BRACKET HINGE BOTTOM ALL SWNG
11 540564 BPS-870810 150004708 HINGE DOOR BOTTOM ALL SWING
12 147181 997790 150069299 HINGE,ASSY,BTM,RIGHT/LEFT,TSL01,
13 148291 220168 150074328 SPRING,HINGE,DOOR,LH,BLACK. (BLUE) CARTRIDGE

Page 9 of 14 Date: 11-25-2019 1:10 pm

Item No. CCP Part# Mfg. Part# CONA Material# Description
NR 510072 871016 150007967 LIGHT ASSY VERTCL GDM35/49/72
NR 1068524 871012 150001290 LIGHT ASSY GDM45/49/69/72
NR 145552 2054930 150062033 LED,KIT,RETRO FIT,GDM43/GDM49
NR 146461 841083 150066223 LED,KIT,GDM49
NR 149256 200010 150077668 BACKSCREEN,KIT,GDM-49/F/HC
1 514115 801223 150007151 LAMPHOLDER,115V/208V,INTERIOR/SIG, SPRING LOADED
2 518508 801224 150005981 HOLDER LAMP STATIONARY
3 106476 842250 150026210 SWITCH,ROCKER,LIGHT
4 145421 914242 150061661 BALLAST,115V,QTP3X32T8/UNVISN-SC-PA
4.1 160643 995335 150080891 COVER,KIT,BALLAST BOX,GDM 49F
5 521139 29UY23 150005279 BULB, F28T8/SXL/SPX50/ECO,48 IN, SI NGLE BULB, PLS ORDER CCP 14336
5.1 113851 801101 150023278 LAMP,INTERIOR,T12,NON IDL,115V/208V F40D865
6 503609 91-1172-00 150009330 SLEEVE,SAFETY,F40 T12,CLEAR,24/CS, 48 IN
7 149034 777918A 150077428 LED,LIGHT STRIP,GDM49,4000K,WHITE, W/CONNECTOR

Page 10 of 14 Date: 11-25-2019 1:10 pm

Item No. CCP Part# Mfg. Part# CONA Material# Description
NR 514599 820344 150007013 NAMEPLATE TRUE/REFRIGERATOR
NR 106741 867567 150026075 EXTRUSION,GRILL,LEFT,GDM49/72
1 119273 352012 150020557 GRILLE,FRONT,GDM49,BLACK
1.1 133602 871662 150011376 GRILLE,GDM49 RL,SS,DR HINGE LT/RT,
1.2 521130 879380 150005283 GRILLE,GDM47 BLACK
1.3 146026 997791 150064337 GRILLE,ASM,GDM-49-HC-TSL01,BLACK
1.4 148051 973445 150072758 GRILLE,ASY,GDM-49HC-LD,BLACK
2 509986 831604 150008007 CLIP MOUNTING GRILL
3 504600 871625 150009113 SCREW HANGER GRILLE END
4 545141 871688 150003806 KIT MOUNTING GRILLE SWING 2DR
5 125310 827818 150016989 END,GRILL,BLACK,PLASTIC
6 543699 871321 150004056 FRAME SIGN GDM49/60 BLACK
6.1 501149 871302 150009851 FRAME SIGN GDM49 SS
7 105666 BE666501 150026510 FRAME,SIGN,END PIECE,LANDSCAPE
7.1 542021 909340 150004369 SIGN FRAME END PIECE SS
7.2 147642 997773 150072413 FRAME,SIGN,ASSY,GDM-49-HC TSL01

Page 11 of 14 Date: 11-25-2019 1:10 pm

 Grill and Sign Parts
Item No. CCP Part# Mfg. Part# CONA Material# Description
8 N/A 150072413 SHIELD RAIN GDM49 (CALL MFG FOR PART DETAILS)
9 134306 970816 150010936 FRAME,SIGN,GDM49,ASSY, FLAT
9.1 543701 871361 150004054 FRAME SIGN GDM49 LS
10 103654 DP-LX-DAS1-T47C 150027362 SIGNFACE,DASANI,GDM49,CURVED
10.1 131119 961190 150013047 HEADER,COKE DUNKIN DONUNTS,GDM49F
10.2 131120 961199 150013046 HEADER,COKE DUNKIN DONUTS,GDM49C
10.3 145781 145781 150064001 LABEL,DUNKIN,ECOTRAC,MINUTE MAID
10.4 149185 208526 150077592 SIGN,COKE 2016,GDM-49

Page 12 of 14 Date: 11-25-2019 1:10 pm

Item No. CCP Part# Mfg. Part# CONA Material# Description
1 513239 987790 150007395 SHELF STANDARD,47 3/8",STANDARD, CABINET SIDE,47 3/8" LONG
1.1 545140 987799 150003807 SHELF,STANDARD 52",CAB SIDE,WHITE
2 134196 910105 150011045 KIT,TRUETRAC 4,GDM49,1 LITER,IDL
2.1 503173 873951 150009421 TRUETRAC II GDM49/72 16OZ
2.2 514367 CC13193 150007075 SHELF,COOLER,GDM49, WHITE , 24.7 W X 22.3 D
3 520661 871809 150005419 SHIELD STANDARD GDM CENTER
4 521512 803553 150005216 BRACKET,SHELF STANDARD,TOP,GDM
5 518468 978651 150005994 SCREW,#8-32 X 9/16" KN SLTD
6 510168 CC13222 150007953 SHELF,COOLER,GDM49,W/NOTCHES,WHITE
6.1 514367 CC13193 150007075 SHELF,COOLER,GDM49, WHITE , 24.7 W X 22.3 D
7 510383 873774 150007899 STRIP FLAVOR 4FT. WHITE FOR SH
8 519938 200494 150005691 BRACKET SHELF STANDARD
9 500996 WB-831600 150009899 CLIP SHELF ALL TRUE MODELS
9.1 514833 810395 150006944 CLIP TRUE TRACK SHELF
10 115268 929825 150022721 GLIDE,KIT,TRUEFLEX,7-BOTTLE GDM49 (1 BOX = 1 KIT, DO NOT OPEN)
11 109926 892399 150024656 SLIDE,TRUETRAC 1,IDL

Page 13 of 14 Date: 11-25-2019 1:10 pm

Item No. CCP Part# Mfg. Part# CONA Material# Description
NR 509109 810612 150008215 CRAYON TOUCH UP RED
NR 509110 810619 150008214 CRAYON TOUCH UP BLACK
NR 509111 810648 150008213 CRAYON TOUCH UP WHITE
NR 509112 810650 150008212 CRAYON TOUCH UP BROWN
1 118364 886540 150021055 DECAL,CAB.END,SUBWAY,'05 GDM49 SP
2 N/A 150021055 PANEL, VANDAL, GDM49 (CALL MFG FOR PART DETAILS)
2.1 145432 3022014900 150061596 PANEL,BACK,GDM49
3 1067402 878818 150001803 KEY LOCK 7130 VANDAL PANEL
4 124483 831303 150017609 LOCK,VANDAL PANEL,BARREL STYLE
5 542069 872010 150004347 CASTER 1 EA 2 RAILS FRAMES CASTERE DIA 4 WIDTH 1.25 MOLDED PLASTIC
6 1066256 879281 150002298 CASTER KIT GDM 2 1/2 IN
7 520797 BPS-830275 150005379 CASTER 2 1/2IN 1/2IN STEM 4/ST
8 509896 830277 150008025 CASTER SET OF 4 1/2 STEM CASTER SET OF 4 1/2 STEM CASTER DIA: 3.87
9 511703 872051 150007540 SCREW LEVELING 1/2IN 4/SET
10 513897 872025 150007229 LEG,KIT,LEVELING,IDL,4/SET, ADJUSTS FROM 6" TO 7-1/2"
11 147569 930202 150071879 DISPLAY,LCD-5S-1TM,BLUE LED

Page 14 of 14 Date: 11-25-2019 1:10 pm
