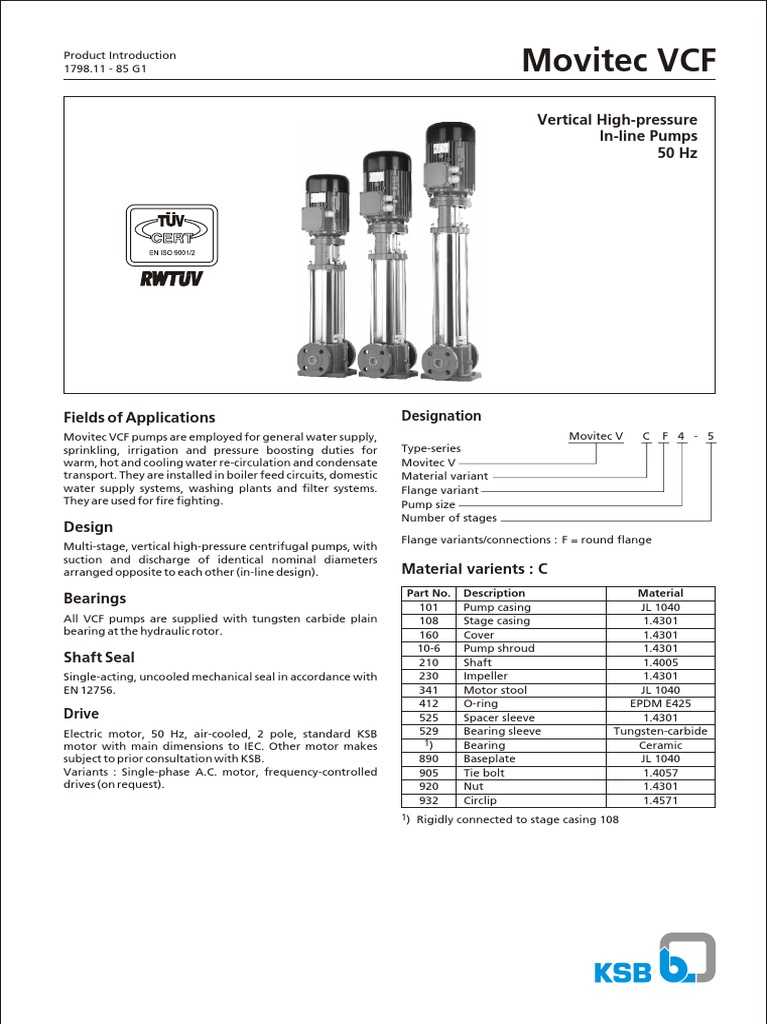

Product Introduction

1798.11 - 85 G1 Movitec VCF

Vertical High-pressure
In-line Pumps
50 Hz

Fields of Applications Designation

Movitec VCF pumps are employed for general water supply, Movitec V C F 4 - 5
sprinkling, irrigation and pressure boosting duties for Type-series
warm, hot and cooling water re-circulation and condensate Movitec V
transport. They are installed in boiler feed circuits, domestic Material variant
water supply systems, washing plants and filter systems. Flange variant
They are used for fire fighting. Pump size
Number of stages
Design
Flange variants/connections : F = round flange
Multi-stage, vertical high-pressure centrifugal pumps, with
suction and discharge of identical nominal diameters
arranged opposite to each other (in-line design). Material varients : C
Part No. Description Material
Bearings
101 Pump casing JL 1040
All VCF pumps are supplied with tungsten carbide plain 108 Stage casing 1.4301
bearing at the hydraulic rotor. 160 Cover 1.4301
10-6 Pump shroud 1.4301
Shaft Seal 210 Shaft 1.4005
Single-acting, uncooled mechanical seal in accordance with 230 Impeller 1.4301
EN 12756. 341 Motor stool JL 1040
412 O-ring EPDM E425
Drive 525 Spacer sleeve 1.4301
Electric motor, 50 Hz, air-cooled, 2 pole, standard KSB 529 Bearing sleeve Tungsten-carbide
motor with main dimensions to IEC. Other motor makes 1) Bearing Ceramic
subject to prior consultation with KSB. 890 Baseplate JL 1040
Variants : Single-phase A.C. motor, frequency-controlled 905 Tie bolt 1.4057
drives (on request). 920 Nut 1.4301
932 Circlip 1.4571
1) Rigidly connected to stage casing 108
 Movitec VCF

Selection Charts Operating Data

n = 2900 1/min Capacities Q 23.5 m3/hr.
5 US.gpm 10 20 30 40 50 100 200 300 Total heads h 228 m
4 5 IM. gpm 10 20 30 40 50 100 200
250 Pressure p 25 bar
20
Temperature t -15 to +1200C
500
VCF 10 400
10
VCF 18 300
VCF 2

VCF 4 200
50
40
VCF 65*
30 100

20

H 50
[m]
40
10 ft
30

7
1 Q [m3/h] 2 3 4 5 10 20 30 40 50 80
0.3 0.4 0.5 1 l/s 2 3 4 5 10 20

* on request

Design Features Movitec VCF

Universal high-pressure pump

up to 25 bar
Easy-to service, robust
• -150C to 1200C three-phase motor
• type of enclosure IP 55
Spacer-saving vertical design • insulation class F

Reliable, easy-to-service Leak-free and resistant

shaft seal to thermal shocks
• standardized • thanks to pump shroud
mechanical seal • due to confined O-rings
to EN 12756

Easy-to-fit shaft of high-alloy Corrosion-resistant :

steel with two flat faces for • hydraulic parts and pump
strong shaft/impeller shroud of high-alloy
construction stainless steel

Low noise, since the flow High operating reliability

noise is dampened by ensured by torsion-
water-filled shroud proof pump shroud
• only 2 seal elements

Simple installation
Highly wear-resistant and and piping layout
maintenance-free plain bearing of thanks to in-line design
tungsten carbide / ceramic • insusceptible to
lubricated by the medium outside nozzle
• self-cleaning by forced flushing forces and moments
