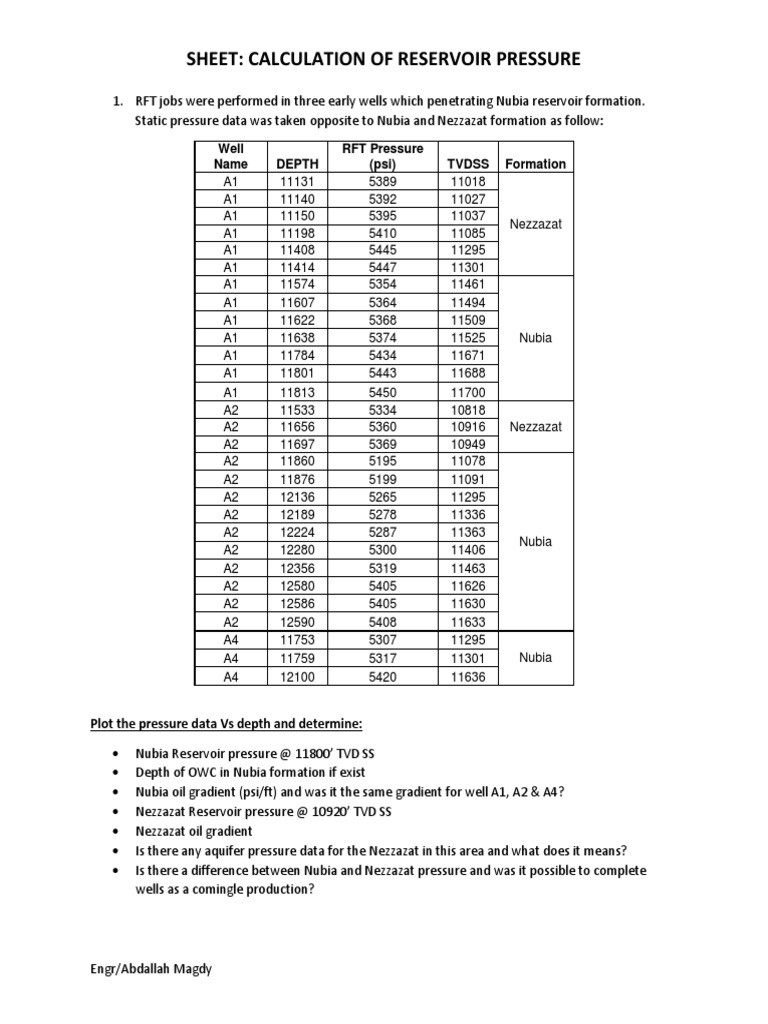

SHEET: CALCULATION OF RESERVOIR PRESSURE

1. RFT jobs were performed in three early wells which penetrating Nubia reservoir formation.
Static pressure data was taken opposite to Nubia and Nezzazat formation as follow:

Well RFT Pressure


Name DEPTH (psi) TVDSS Formation
A1 11131 5389 11018
A1 11140 5392 11027
A1 11150 5395 11037
Nezzazat
A1 11198 5410 11085
A1 11408 5445 11295
A1 11414 5447 11301
A1 11574 5354 11461
A1 11607 5364 11494
A1 11622 5368 11509
A1 11638 5374 11525 Nubia
A1 11784 5434 11671
A1 11801 5443 11688
A1 11813 5450 11700
A2 11533 5334 10818
A2 11656 5360 10916 Nezzazat
A2 11697 5369 10949
A2 11860 5195 11078
A2 11876 5199 11091
A2 12136 5265 11295
A2 12189 5278 11336
A2 12224 5287 11363
Nubia
A2 12280 5300 11406
A2 12356 5319 11463
A2 12580 5405 11626
A2 12586 5405 11630
A2 12590 5408 11633
A4 11753 5307 11295
A4 11759 5317 11301 Nubia
A4 12100 5420 11636

Plot the pressure data Vs depth and determine:

 Nubia Reservoir pressure @ 11800’ TVD SS


 Depth of OWC in Nubia formation if exist
 Nubia oil gradient (psi/ft) and was it the same gradient for well A1, A2 & A4?
 Nezzazat Reservoir pressure @ 10920’ TVD SS
 Nezzazat oil gradient
 Is there any aquifer pressure data for the Nezzazat in this area and what does it means?
 Is there a difference between Nubia and Nezzazat pressure and was it possible to complete
wells as a comingle production?

Engr/Abdallah Magdy
SHEET: CALCULATION OF RESERVOIR PRESSURE
2. An offshore well has the following static data collected from pressure Amerada (0-4000 psi)
during a static survey run to make 16 stops in a shut-in well for 48 hr.

Depth
stops
THF ORKB (TVD)
1 0 56 56
2 1000 1056 1051
3 2000 2056 2041
4 3000 3056 3041
5 4000 4056 3994
6 5000 5056 4885
7 6000 6056 5763
8 6500 6556 6212
9 7000 7056 6644
10 7500 7556 7074
11 8000 8056 7528
12 8500 8556 7983
13 9000 9056 8438
14 9500 9556 8892
15 10000 10056 9345
16 10120 10176 9455
• Plot & calculate the following with Amerada calibration equation (deflection* 2274) psi

– The fluids gradient


– Fluids contact
– SIWHP & Average reservoir pressure @ 9100' TVD (ORKB-MSL=90 ft)

Engr/Abdallah Magdy
1800

1589.19
1600
1537.51

Engr/Abdallah Magdy
1400 1381.46

1200
1233.1

1083.67
1000
930.99

800

Pressure, psi
780.84
748.4 755.89 763.05
718.58 733.59
600 668.93 685.32 702.9
652.15
memory gauge which recorded the following data

400

200

0
[Link] [Link] [Link] [Link] [Link] [Link] [Link] [Link] [Link] [Link]
Time (hrs)
SHEET: CALCULATION OF RESERVOIR PRESSURE
3. Repeat the same well and determine the same requirements but when used an electronic
SHEET: CALCULATION OF RESERVOIR PRESSURE

4. A static echo-meter survey was performed in order to determine the reservoir pressure
for an onshore well at 9700 FT- TVD S.S (subsea). the shut-in well head pressure is 800
psi, gas-gradient is 0.02 psi/ft and the oil API is 32. Calculate reservoir pressure if the
well has traces of water cut. (Hint: sonic velocity is 1150 ft/s) and what is your action if
bubble point pressure is 1000 psi?

Hint: Try to use Excel for drawing in order to save more time

Engr/Abdallah Magdy
