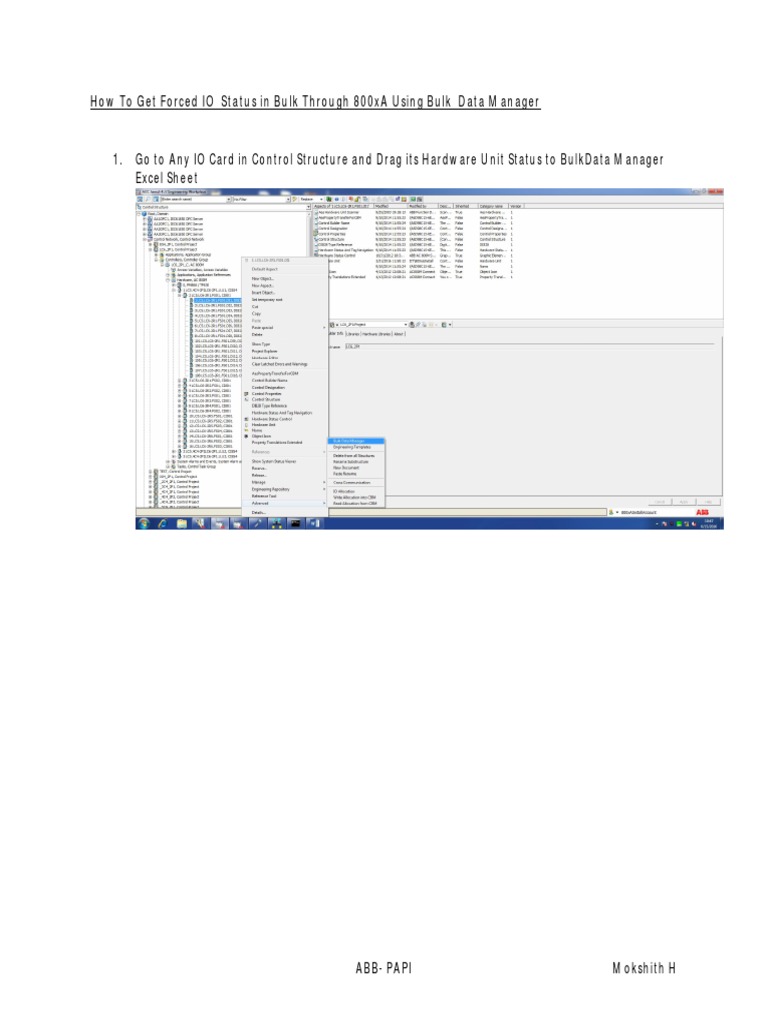

    How To Get Forced IO Status in Bulk Through 800xA Using Bulk Data Manager

    1. Go to Any IO Card in Control Structure and Drag its Hardware Unit Status to BulkData Manager
    Excel Sheet

    ABB- PAPI Mokshith H


    2.Drop to First Cell of BDM Excel Sheet
    Select All Channels Forced Bit.

    ABB- PAPI Mokshith H


    3.Drag Total CI801 or CI854 into Excel Sheet now

    Now BDM Will Read all Forced Signals in the Hardware Tree and Update it in the Excel Sheet.

    4.The Colums Which Showing TRUE Are forced channels and False are not the Forced Ones.

    ABB- PAPI Mokshith H


    ABB- PAPI Mokshith H
