Trees

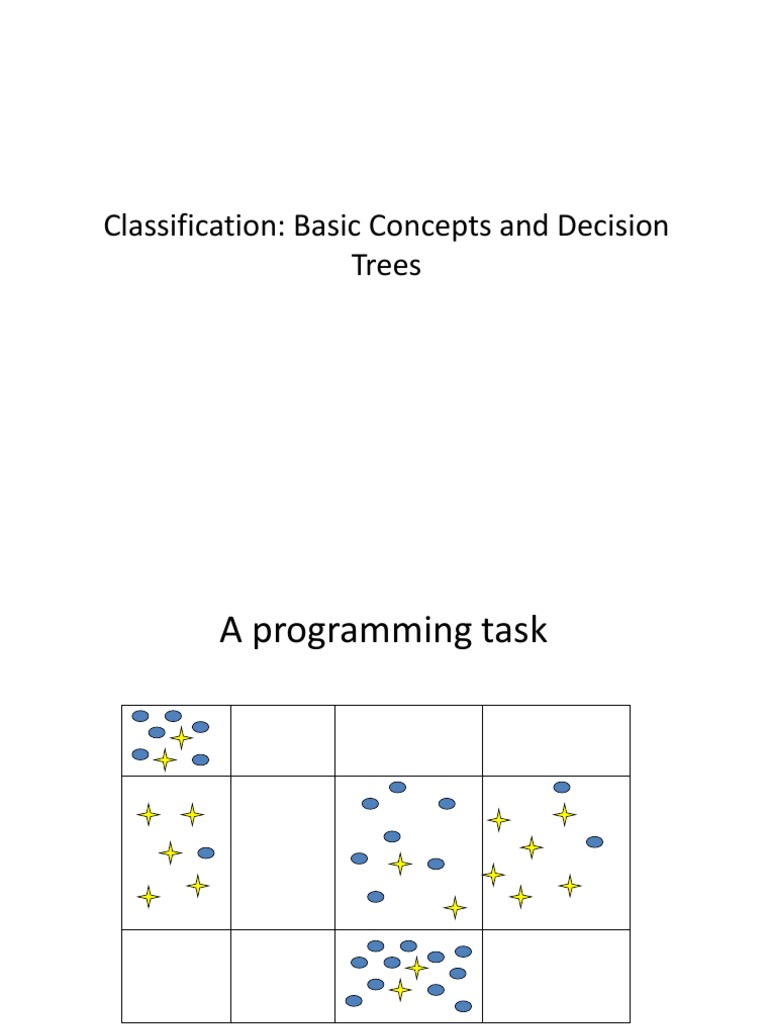

A programming task
Classification: Definition
• Given a collection of records (training set )
– Each record contains a set of attributes, one of the
attributes is the class.
• Find a model for class attribute as a function
of the values of other attributes.
• Goal: previously unseen records should be
assigned a class as accurately as possible.
– A test set is used to determine the accuracy of the
model. Usually, the given data set is divided into
training and test sets, with training set used to build the
model and test set used to validate it.
Illustrating Classification Task
Tid Attrib1 Attrib2 Attrib3 Class
1 Yes Large 125K No
2 No Medium 100K No
3 No Small 70K No
4 Yes Medium 120K No
5 No Large 95K Yes
6 No Medium 60K No
7 Yes Large 220K No Learn
8 No Small 85K Yes Model
9 No Medium 75K No
10 No Small 90K Yes
10
Apply
Tid Attrib1 Attrib2 Attrib3 Class Model
11 No Small 55K ?
12 Yes Medium 80K ?
13 Yes Large 110K ?
14 No Small 95K ?
15 No Large 67K ?
10
Examples of Classification Task
• Predicting tumor cells as benign or malignant
To classify a new image: find its nearest neighbor in the database (training set) and
return that label
Overall:
error rate = 6%
(on test set)
Question: what is
the error rate
for random
guessing?
What does it get wrong?
Who knows… but here’s a hypothesis:
Each digit corresponds to some connected region of R784. Some of the regions come
close to each other; problems occur at these boundaries.
R1 R2
Cons
Algorithmic: time consuming – with n training
points in Rd, time to label a new
point is O(nd)
Statistical: memorization, not learning!
no insight into the domain
would prefer a compact classifier
Prototype selection
A possible fix: instead of the entire training set, just keep a “representative
sample”
Voronoi
cells
“Decision boundary”
Prototype selection
A possible fix: instead of the entire training set, just keep a “representative
sample”
Voronoi
cells
“Decision boundary”
How to pick prototypes?
They needn’t be actual data points
Examples:
Error = 23%
Postscript: learning models
Batch learning On-line learning
Learning
Algorithm predict label
Classifier f See y
Update
test classifer
Example of a Decision Tree
Splitting Attributes
Tid Refund Marital Taxable
Status Income Cheat
MarSt Single,
Married Divorced
Tid Refund Marital Taxable
Status Income Cheat
NO Refund
1 Yes Single 125K No
Yes No
2 No Married 100K No
3 No Single 70K No NO TaxInc
4 Yes Married 120K No < 80K > 80K
5 No Divorced 95K Yes
NO YES
6 No Married 60K No
7 Yes Divorced 220K No
8 No Single 85K Yes
9 No Married 75K No There could be more than one tree that
10 No Single 90K Yes fits the same data!
10
Decision Tree Classification Task
Tid Attrib1 Attrib2 Attrib3 Class
1 Yes Large 125K No
2 No Medium 100K No
3 No Small 70K No
4 Yes Medium 120K No
5 No Large 95K Yes
6 No Medium 60K No
7 Yes Large 220K No Learn
8 No Small 85K Yes Model
9 No Medium 75K No
10 No Small 90K Yes
10
Apply Decision
Model Tree
Tid Attrib1 Attrib2 Attrib3 Class
11 No Small 55K ?
12 Yes Medium 80K ?
13 Yes Large 110K ?
14 No Small 95K ?
15 No Large 67K ?
10
Apply Model to Test Data
Test Data
Start from the root of tree. Refund Marital Taxable
Status Income Cheat
No Married 80K ?
Refund 10
Yes No
NO MarSt
Single, Divorced Married
TaxInc NO
< 80K > 80K
NO YES
Apply Model to Test Data
Test Data
Refund Marital Taxable
Status Income Cheat
No Married 80K ?
Refund 10
Yes No
NO MarSt
Single, Divorced Married
TaxInc NO
< 80K > 80K
NO YES
Apply Model to Test Data
Test Data
Refund Marital Taxable
Status Income Cheat
No Married 80K ?
Refund 10
Yes No
NO MarSt
Single, Divorced Married
TaxInc NO
< 80K > 80K
NO YES
Apply Model to Test Data
Test Data
Refund Marital Taxable
Status Income Cheat
No Married 80K ?
Refund 10
Yes No
NO MarSt
Single, Divorced Married
TaxInc NO
< 80K > 80K
NO YES
Apply Model to Test Data
Test Data
Refund Marital Taxable
Status Income Cheat
No Married 80K ?
Refund 10
Yes No
NO MarSt
Single, Divorced Married
TaxInc NO
< 80K > 80K
NO YES
Apply Model to Test Data
Test Data
Refund Marital Taxable
Status Income Cheat
No Married 80K ?
Refund 10
Yes No
NO MarSt
Single, Divorced Married Assign Cheat to “No”
TaxInc NO
< 80K > 80K
NO YES
Decision Tree Classification Task
Tid Attrib1 Attrib2 Attrib3 Class
1 Yes Large 125K No
2 No Medium 100K No
3 No Small 70K No
4 Yes Medium 120K No
5 No Large 95K Yes
6 No Medium 60K No
7 Yes Large 220K No Learn
8 No Small 85K Yes Model
9 No Medium 75K No
10 No Small 90K Yes
10
Apply Decision
Tid Attrib1 Attrib2 Attrib3 Class
Model Tree
11 No Small 55K ?
12 Yes Medium 80K ?
13 Yes Large 110K ?
14 No Small 95K ?
15 No Large 67K ?
10
Decision Tree Induction
• Many Algorithms:
– Hunt’s Algorithm (one of the earliest)
– CART
– ID3, C4.5
– SLIQ,SPRINT
General Structure of Hunt’s Algorithm
Tid Refund Marital Taxable
• Let Dt be the set of training Status Income Cheat
Don’t Cheat
Cheat
Tree Induction
• Greedy strategy.
– Split the records based on an attribute test that
optimizes certain criterion.
• Issues
– Determine how to split the records
• How to specify the attribute test condition?
• How to determine the best split?
– Determine when to stop splitting
Tree Induction
• Greedy strategy.
– Split the records based on an attribute test that
optimizes certain criterion.
• Issues
– Determine how to split the records
• How to specify the attribute test condition?
• How to determine the best split?
– Determine when to stop splitting
How to Specify Test Condition?
• Depends on attribute types
– Nominal
– Ordinal
– Continuous
CarType
Family Luxury
Sports
CarType OR CarType
{Sports, {Family,
Luxury} {Family} Luxury} {Sports}
Splitting Based on Ordinal Attributes
• Multi-way split: Use as many partitions as distinct values.
Size
Small Large
Medium
• Binary split: Divides values into two subsets.
Need to find optimal partitioning.
Size Size
{Small,
{Large}
OR {Medium,
{Small}
Medium} Large}
• What about this split?
Size
{Small,
Large} {Medium}
Splitting Based on Continuous Attributes
• Different ways of handling
– Discretization to form an ordinal categorical
attribute
• Static – discretize once at the beginning
• Dynamic – ranges can be found by equal interval
bucketing, equal frequency bucketing
(percentiles), or clustering.
• Issues
– Determine how to split the records
• How to specify the attribute test condition?
• How to determine the best split?
– Determine when to stop splitting
How to determine the Best Split
Before Splitting: 10 records of class 0,
10 records of class 1
Non-homogeneous, Homogeneous,
High degree of impurity Low degree of impurity
Measures of Node Impurity
• Gini Index
• Entropy
• Misclassification error
How to Find the Best Split
Before Splitting: C0 N00 M0
C1 N01
A? B?
Yes No Yes No
M1 M2 M3 M4
M12 M34
Gain = M0 – M12 vs M0 – M34
Measure of Impurity: GINI
• Gini Index for a given node t :
GINI (t ) 1 [ p ( j | t )]2
j
C1 0 C1 1 C1 2 C1 3
C2 6 C2 5 C2 4 C2 3
Gini=0.000 Gini=0.278 Gini=0.444 Gini=0.500
Examples for computing GINI
GINI (t ) 1 [ p ( j | t )]2
j
Parent
B? C1 6
Yes No C2 6
Gini = 0.500
Node N1 Node N2
Gini(N1)
= 1 – (5/6)2 – (2/6)2 N1 N2 Gini(Children)
= 0.194
C1 5 1 = 7/12 * 0.194 +
Gini(N2) C2 2 4 5/12 * 0.528
= 1 – (1/6)2 – (4/6)2 Gini=0.333 = 0.333
= 0.528
Categorical Attributes: Computing Gini Index
• For each distinct value, gather counts for each class in the
dataset
• Use the count matrix to make decisions
Multi-way split Two-way split
(find best partition of values)
and A v
10
No 0 7 1 6 2 5 3 4 3 4 3 4 3 4 4 3 5 2 6 1 7 0
Gini 0.420 0.400 0.375 0.343 0.417 0.400 0.300 0.343 0.375 0.400 0.420
Alternative Splitting Criteria based on INFO
• Entropy at a given node t:
Entropy (t ) p ( j | t ) log p ( j | t )
j
n
split i 1
GAIN n n
SplitINFO log
k
GainRATIO Split i i
SplitINFO
split
n n i 1
Gini(N1) N1 N2
= 1 – (3/3)2 – (0/3)2 Gini(Children)
C1 3 4 = 3/10 * 0
=0
C2 0 3 + 7/10 * 0.489
Gini(N2) = 0.342
= 1 – (4/7)2 – (3/7)2
= 0.489
Tree Induction
• Greedy strategy.
– Split the records based on an attribute test that
optimizes certain criterion.
• Issues
– Determine how to split the records
• How to specify the attribute test condition?
• How to determine the best split?
– Determine when to stop splitting
Stopping Criteria for Tree Induction
• Stop expanding a node when all the records
belong to the same class
• Missing Values
• Costs of Classification
Underfitting and Overfitting (Example)
Circular points:
0.5 sqrt(x12+x22) 1
Triangular points:
sqrt(x12+x22) > 0.5 or
sqrt(x12+x22) < 1
Underfitting and Overfitting
Overfitting
Underfitting: when model is too simple, both training and test errors are large
Overfitting due to Noise
Lack of data points in the lower half of the diagram makes it difficult
to predict correctly the class labels of that region
- Insufficient number of training records in the region causes the
decision tree to predict the test examples using other training
records that are irrelevant to the classification task
Notes on Overfitting
• Overfitting results in decision trees that are
more complex than necessary
A1 A4
A2 A3
– Optimistic error?
Don’t prune for both cases
C0: 11 C0: 2
C1: 3 C1: 4
– Pessimistic error?
Don’t prune case 1, prune case 2
C0: 14 C0: 2
C1: 3 C1: 2
Handling Missing Attribute Values
• Missing values affect decision tree
construction in three different ways:
– Affects how impurity measures are computed
– Affects how to distribute instance with missing
value to child nodes
– Affects how a test instance with missing value is
classified
Computing Impurity Measure
Tid Refund Marital Taxable Before Splitting:
Status Income Class Entropy(Parent)
= -0.3 log(0.3)-(0.7)log(0.7) = 0.8813
1 Yes Single 125K No
2 No Married 100K No Class Class
3 No Single 70K No = Yes = No
Refund=Yes 0 3
4 Yes Married 120K No
Refund=No 2 4
5 No Divorced 95K Yes
Refund=? 1 0
6 No Married 60K No
Split on Refund:
7 Yes Divorced 220K No
8 No Single 85K Yes Entropy(Refund=Yes) = 0
9 No Married 75K No Entropy(Refund=No)
10 ? Single 90K Yes = -(2/6)log(2/6) – (4/6)log(4/6) = 0.9183
10
Entropy(Children)
Missing = 0.3 (0) + 0.6 (0.9183) = 0.551
value
Gain = 0.9 (0.8813 – 0.551) = 0.3303
Distribute Instances
Tid Refund Marital Taxable
Status Income Class
Tid Refund Marital Taxable
1 Yes Single 125K No Status Income Class
2 No Married 100K No
10 ? Single 90K Yes
3 No Single 70K No 10
Learning
Algorithm predict label
Classifier f See y
Update
test classifer
Preprocessing step
Generative and Discriminative
Classifiers
Generative vs. Discriminative Classifiers
Training classifiers involves estimating f: X Y, or P(Y|X)
Generative classifiers
1. Assume some functional form for P(X|Y), P(X)
2. Estimate parameters of P(X|Y), P(X) directly from training data
3. Use Bayes rule to calculate P(Y|X= xi)
Bayes Formula
Generative Model
• Color
• Size
• Texture
• Weight
• …
Discriminative Model
• Logistic Regression
• Color
• Size
• Texture
• Weight
• …
Comparison
• Generative models
– Assume some functional form for P(X|Y), P(Y)
– Estimate parameters of P(X|Y), P(Y) directly from
training data
– Use Bayes rule to calculate P(Y|X= x)
• Discriminative models
– Directly assume some functional form for P(Y|X)
– Estimate parameters of P(Y|X) directly from
training data
Probability Basics
• Prior, conditional and joint probability for random
variables
– Prior probability: P(X)
– Conditional probability: P(X1 |X2 ), P(X2 |X1 )
– Joint probability: X (X1 , X2 ), P(X) P(X1 ,X2 )
– Relationship: P(X1 ,X2 ) P(X2 |X1 )P(X1 ) P(X1 |X2 )P(X2 )
– Independence: P(X2 |X1 ) P(X2 ), P(X1 |X2 ) P(X1 ), P(X1 ,X2 ) P(X1 )P(X2 )
• Bayesian Rule
P(X|C)P(C) Likelihood Prior
P(C|X) Posterior
P(X) Evidence
111
Probability Basics
• Quiz: We have two six-sided dice. When they are tolled, it could end up
with the following occurance: (A) dice 1 lands on side “3”, (B) dice 2 lands
on side “1”, and (C) Two dice sum to eight. Answer the following
questions:
1) P ( A ) ?
2) P(B) ?
3) P(C) ?
4) P ( A | B ) ?
5) P ( C | A ) ?
6) P ( A , B ) ?
7) P ( A , C ) ?
8) Is P ( A , C ) equals P(A) P(C) ?
112
Probabilistic Classification
• Establishing a probabilistic model for classification
– Discriminative model
P(C|X) C c1 , , cL , X (X1 , , Xn )
Discriminative
Probabilistic Classifier
x1 x2 xn
x ( x1 , x2 , , xn )
113
Probabilistic Classification
• Establishing a probabilistic model for classification
(cont.)
– Generative model
P(X|C) C c1 , , cL , X (X1 , , Xn )
x ( x1 , x2 , , xn )
114
Probabilistic Classification
• MAP classification rule
– MAP: Maximum A Posterior
– Assign x to c* if
P(C c* |X x) P(C c|X x) c c* , c c1 , , cL
• Generative classification with the MAP rule
– Apply Bayesian rule to convert them into posterior probabilities
P(X x|C ci )P(C ci )
P(C ci |X x)
P(X x)
P(X x|C ci )P(C ci )
for i 1,2, , L
– Then apply the MAP rule
115
Naïve Bayes
• Bayes classification
P(C|X) P(X|C)P(C) P(X1 , , Xn |C)P(C)
Difficulty: learning the joint probability P(X1 , , Xn |C)
• Naïve Bayes classification
– Assumption that all input attributes are conditionally
independent!
P(X1 , X2 , , Xn |C) P(X1 |X2 , , Xn ; C)P(X2 , , Xn |C)
P(X1 |C)P(X2 , , Xn |C)
P(X1 |C)P(X2 |C) P(Xn |C)
[Pˆ (a1 |c* ) Pˆ (an |c* )]Pˆ (c* ) [Pˆ (a1 |c) Pˆ (an |c)]Pˆ (c), c c* , c c1 , , cL
117
Example
• Example: Play Tennis
118
Example
• Learning Phase
Outlook Play=Yes Play=No Temperature Play=Yes Play=No
Sunny 2/9 3/5
Hot 2/9 2/5
Overcast 4/9 0/5
Mild 4/9 2/5
Rain 3/9 2/5
Cool 3/9 1/5
Humidity Play=Yes Play=No
Wind Play=Yes Play=No
119
Example
• Test Phase
– Given a new instance,
x’=(Outlook=Sunny, Temperature=Cool, Humidity=High, Wind=Strong)
– Look up tables
P(Outlook=Sunny|Play=Yes) = 2/9 P(Outlook=Sunny|Play=No) = 3/5
P(Temperature=Cool|Play=Yes) = 3/9 P(Temperature=Cool|Play==No) = 1/5
P(Huminity=High|Play=Yes) = 3/9 P(Huminity=High|Play=No) = 4/5
P(Wind=Strong|Play=Yes) = 3/9 P(Wind=Strong|Play=No) = 3/5
P(Play=Yes) = 9/14 P(Play=No) = 5/14
– MAP rule
P(Yes|x’): [P(Sunny|Yes)P(Cool|Yes)P(High|Yes)P(Strong|Yes)]P(Play=Yes) =
0.0053
P(No|x’): [P(Sunny|No) P(Cool|No)P(High|No)P(Strong|No)]P(Play=No) =
0.0206
– MAP rule
P(Yes|x’): [P(Sunny|Yes)P(Cool|Yes)P(High|Yes)P(Strong|Yes)]P(Play=Yes) =
0.0053
P(No|x’): [P(Sunny|No) P(Cool|No)P(High|No)P(Strong|No)]P(Play=No) =
0.0206
123
Conclusions
• Naïve Bayes based on the independence assumption
– Training is very easy and fast; just requiring considering each
attribute in each class separately
– Test is straightforward; just looking up tables or calculating
conditional probabilities with normal distributions
• A popular generative model
– Performance competitive to most of state-of-the-art classifiers even
in presence of violating independence assumption
– Many successful applications, e.g., spam mail filtering
– A good candidate of a base learner in ensemble learning
– Apart from classification, naïve Bayes can do more…
124
