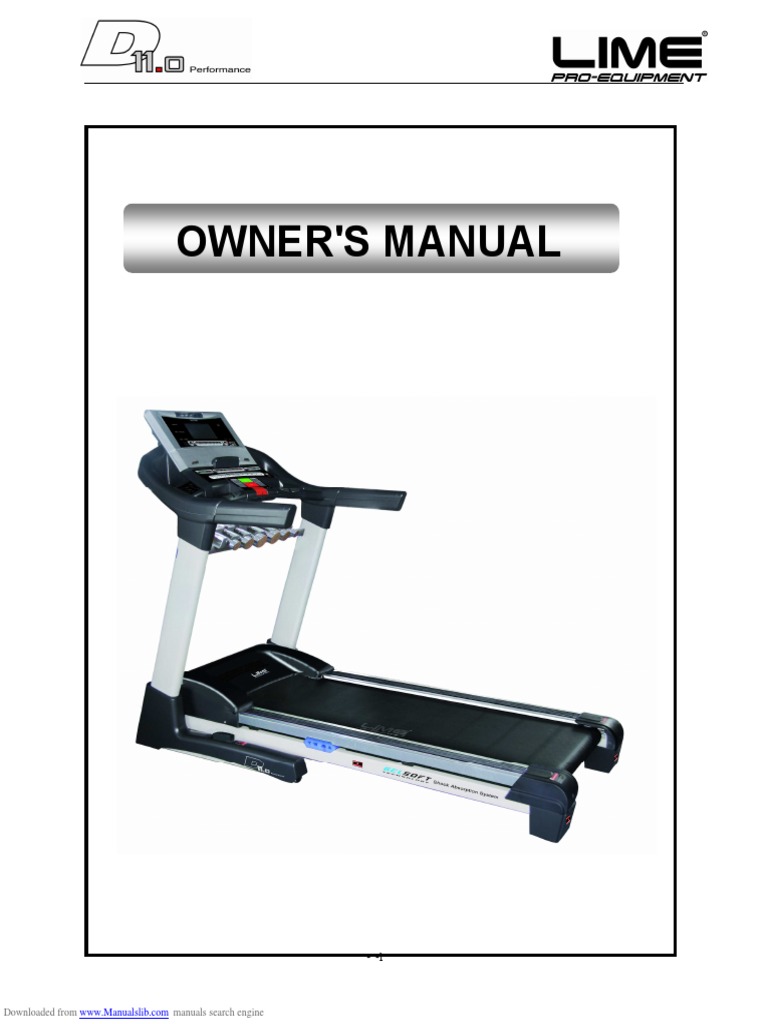

OWNER'S MANUAL

- -1

Downloaded from www.Manualslib.com manuals search engine

 CATALOG

CATALOG_____________________________________ 1
WARNING_____________________________________ 2
ATTENTION____________________________________ 2
IMPORTANT SAFETY PRECAUTIONS_______________ 3
ASSEMBLY INSTRUCTION________________________ 6
TECHNICAL PARAMETER________________________ 9
OPERATION GUIDE______________________________ 10
TROUBLESHOOTING GUIDE_______________________ 21
MAINTENANCE INSTRUCTIONS____________________ 23
EXPLODED DRAWING____________________________ 25
PARTS LIST_____________________________________ 26

- -2

Downloaded from www.Manualslib.com manuals search engine

 WARNING
Read all instruction carefully before use this product. Retain this owner’s manual for the future’s

reference.

----When using this treadmill,keep attaching the safety pull pin rope to your clothes.

----When you are running, keep your hand swinging natural,stare front,

never look at the bottom of your foot.

----Add the speed step by step when running,and await that you adapt the speed,then add it.

----When the emergency happens, pls put down the emergent stop press-button immediately.

----Leave the treadmill after the running belt stop stably.

Caution: read the assembly instruction carefully, assembly this treadmill follow it.

ATTENTION
Before starting any exercise program, consult with your physician or health professional.

1.- Check all the bolts locked.

2.- Never put treadmill in the wetness ai,otherwise,will cause troubles.

3.- We will take no responsibility for any troubles and hurts due to the reasons above.

4.- Dress sport clothes and shoes before you run.

5.- Do not do exercise in 40 minutes after dinner.

6.- To prevent hurts, pls warm up before exercise.

7.- Consult with doctor before exercise if have high blood pressure.

8.- This treadmill is only used for adults。

9.- Give the olds, children and handicapped the good care, guide and supervision.

10.- Don’t plug anything into any parts of this equipment,if not,will damage it.

11.- Don’t connect line in the middle of cables, lengthen cable, or change the cables plug; do not put

any heavy things on cables or put it near the heat source;forbid using the socket with several holes,

otherwise,will cause fire or be hurt by power.

12、- When don’t use the equipment,cut off the power. When cut off the power,don’t pull the power

supply line so as to keep the wire un broken.

- -3

Downloaded from www.Manualslib.com manuals search engine

 IMPORTANT SAFETY PRECAUTIONS
1. Plug the power cord of the treadmill directly into a dedicated grounded circuit carrying 10 amps.

Grounding Instructions:

This product must be grounded. If it should breakdown, grounding provides a path of least resistance for

electric current to reduce the risk of electric shock.

2.- Position the treadmill on a clear, level surface. Do not place the treadmill on thick carpet as it may

interfere with proper ventilation. Also, do not place the treadmill near water or outdoors.

3.- Position treadmill so that the wall plug is visible and accessible.

4.- Never start the treadmill while you are standing on the walking belt. After turning the power on and

adjusting the speed control, there may be a pause before the walking belt begins to move, always stand

on the foot rails on the sides of the frame until the belt is moving.

5.- Wear appropriate clothing when exercising on the treadmill. Do not wear long, loose fitting clothing that

could become caught in the treadmill. Always wear running or aerobic shoes with rubber soles.

6.- Always unplug the power cord before removing the treadmill motor cover.

7.- Keep small children away from the treadmill during operation.

8.- Always hold the handrails when initially walking or running on the treadmill, until you are comfortable

with the use of the treadmill.

9.- Always attach the safety pull pin rope to your clothing when using the treadmill. If the treadmill should

suddenly increase in speed due to an electronics failure or the speed being inadvertently increased, the

treadmill will come to a sudden stop when the pull pin is disengaged from the console.
10.- When the treadmill is not being used, the power cord should be unplugged and the safety pull pin
removed.
11.- Before starting any exercise program, consult with your physician or health professional. He or she can

help establish the exercise frequency, intensity (target heart zone) and time appropriate for your

particular age and condition. If you have any pain or tightness in your chest, an irregular heartbeat,

shortness of breath, feel faint or have any discomfort while you exercise, STOP! Consult your physician

before continuing.

12. The maximum user weight is limited 180 Kgs

13.- Please leave 2.00 mts X 1.00 mts, or 3 to 4 feet, as a safety area behind the equipment.

- -4

Downloaded from www.Manualslib.com manuals search engine

 14.- The power cable of treadmill is special. if the power cable is damaged, please don't change by yourself,

you must contact the local dealer ASAP.

15.- When the treadmill is not being used, please pull out the safety lock and store it in a safe location. In

order to avoid the unauthorized use by others, specifically children.

For your information, please note following electronical specification of Treadmill:
a. The rated power input is 1500W.
b. Power voltage supply is 110 V-127 V.
c. Rated frequency is 50-60 Hz.

- -5

Downloaded from www.Manualslib.com manuals search engine

 ASSEMBLY INSTRUCTIONS
When you open the carton, you will find the below spare parts:

SPARE PARTS LIST:

NO. DES. SPEC. QTY(pcs) NO. DES. SPEC. QTY(pcs)

1 MAIN FRAME 1 91 BOLT M5*10 2
LEFT UPRIGHT
3 1 102 SCREW ST4.2*12 4
TUBE
RIGHT UPRIGHT
4 1 126 DUMBBELL BRACKET 1
TUBE
5 COMPUTER 1 127 2LB DUMBBELL 2
LEFT
13 HANDLEBAR 1 128 3LB DUMBBELL 2
BOTTOM COVER
RIGHT
14 HANDLEBAR 1 129 4LB DUMBBELL 2
BOTTOM COVER
LEFT PLASTIC
38 1 152 SCREW ST4.2*19 4
BOTTOM COVER
RIGHT PLASTIC
39 1 153 BOLT M8*15 2
BOTTOM COVER
47 PEDAL COVER 1 5#ALLEN WRENCH 1
57 WASHER 10 14 ALLEN WRENCH 1
61 WASHER 8 2 WRENCH W/SCREW DRIVER 1
63 BOLT M10*25 14

FIXING TOOLS:
5#ALLEN WRENCH (5mm): 1pcs
6#ALLEN WRENCH (6mm): 1pcs
WRENCH W / SCREW DRIVER (S=13, 14, 15): 1pcs

- -6

Downloaded from www.Manualslib.com manuals search engine

 ASSEMBLY INSTRUCTION:

1. Open the carton; take out the spare parts,

STEP 1:
and put the MAIN FRAME (#1) on the ground.

STEP 2: 2. Connect the signal line (#145) at the end of the

LEFT UPRIGHT TUBE (#3) and the signal line
(#146) at the bottom of the MAIN FRAME (#1),
then insert the LEFT UPRIGHT TUBE (#3) into the
unit.
Notice: Don’t do assembly with strong force,
you may break the insulating layer of the
signal line, or the plug pins may be curved,
which would result in bad signal connections.
3. Put the BOLT (#63) and the WASHER (#57)
together,then lock the LEFT UPRIGHT TUBE (#3)
onto the MAIN FRAME (#1) with #6 ALLEN
WRENCH.

4. Connect the signal line (#111, #114) at the

STEP 3:
end of the RIGHT UPRIGHT TUBE (#4) and
the signal line (#112, #115) at the bottom of the
MAIN FRAME (#1); then insert the RIGHT
UPRIGHT TUBE (#4) into the unit.
Notice: Don’t do assembly with strong
force, you may break the insulating layer of
the signal line, or the plug pins may be
curved, which would result in bad signal
connections.
5. Put the BOLT (#63) and the WASHER (#57)
together, then lock the RIGHT UPRIGHT TUBE
(#4) onto the MAIN FRAME (#1) with #6
ALLEN WRENCH.

- -7

Downloaded from www.Manualslib.com manuals search engine

 STEP 4:
6. Insert the PLASTIC BOTTOM COVER
(#38, #39) into the UPRIGHT TUBE (#3, #4),
vertically.
Notice: Please do not tighten the bolts and
nuts until all the assembly steps are
completed.

STEP 5: 7. Insert the HANDLEBAR BOTTOM COVER (#13, #14)

into the UPRIGHT TUBE (3, 4) separately.

8. Connect the signal lines(#110, #113, #144) on both side

of the COMPUTER (#5) and the signal lines(#111a, #114a,
#145a) of the UPRIGHT TUBES (#3, #4); then insert the
COMPUTER (#5) into the left and right upright tube.

9. Put the BOLT (#63) and the WASHER (#57) together,

then lock the COMPUTER (#5) onto the UPRIGHT TUBES
(#3, #4) with #6 ALLEN WRENCH.
Notice: Please don’t tighten the bolts and nuts until all
the assembly steps are completed.
STEP 6:
10. Use WRENCH W / SCREW DRIVER to lock
the HANDLEBAR PLASTIC BOTTOM
COVER (#13, #14) onto the COMPUTER (#5)
with SCREW (#102) .

11. Lock the PLASTIC BOTTOM COVER (#38,

#39) onto the MAIN FRAME (#1) With the SCREW
(#152).

- -8

Downloaded from www.Manualslib.com manuals search engine

 STEP 7:
12. Put the BOLT (#153) and the WASHER (#61)
together, then lock the DUMBBELL BRACKET
(#126) onto the LEFT AND RIGHT UPRIGHT
TUBE (#3, #4) with #5 ALLEN WRENCH.

STEP 8:

13. Put the DUMBBELL (#127, #128, #129) on the

DUMBBELL BRACKET (#126).

STEP 9: 14. After complete the assembly

above,upright the treadmill (as the left
drawing), hook plastic bearing (51) of
the adjustable holding with the pedal
draw (49).
15. Put the pedal connecting piece (99)
under the pedal (47) on the back of the
pedal hook (49); use the WRENCH W / SCREW
DRIVE, to lock the BOLT (91) and pedal
connecting piece (99).
Notice: pedal draw must hook well.

- -9

Downloaded from www.Manualslib.com manuals search engine

 Notice: Please don’t tighten the bolts and nuts until all the assembly steps are completed.
The following operation is based on the good assembled of the above operation.

TECHNICAL PARAMETER

1950 X 920 X 1.0-20 Km/h

BUILT UP SIZE
SPEED RANGE
(mm) 1500 0.8-12 mph

1060 X 920 X
FOLDABLE
NET WEIGHT 140 Kg
SIZE (mm) 1680

RUNNING
BOARD SIZE 1420 X 515 INCLINE 0-12%
(mm)
MAX ALLOWED
180 Kg
WEIGHT
SPEED, TIME, DISTANCE, CALORIE, PULSE, INCLINE,
5 LED DISPLAY
WITH 7 INCH VIDEO DISPLAY.

- -10

Downloaded from www.Manualslib.com manuals search engine

 OPERATION GUIDE

1. Keys define:
1-1. Speed up: control the speed and input the data.
1-2. Speed down: control the speed and input the data.
1-3. Incline up: control the motorized incline up and input the data.
1-4. Incline down: control the motorized incline down and input the data.
1-5. Function mode / clear / program.
1-6. Start: Start the motor and operation system.
1-7. Stop : Stop the motor / Clear
1-8. Speed Quick Access Keys: 10 / 12 keys: Programmable.
1-9. Incline Quick Access Keys: 7 keys: Programmable.
1-10. FAN Key : Open / Close the fan
1-11. KM/M KEY; KM/M transformation function

2. System Memory Mapping and Option Setting Mode:

2-1. Options: Directly enter the MANUAL state after show 1 second, eg:
2-1-1. The main window display: Display with the circle of dummy playground (400M) when it is running;
Display with rolling “LIME” logo when it is in the standby mode.
2-1-2. Speed window display: min speed eg “1.0 KM or 0.8 M”
2-1-3. Incline window display: min incline eg.“0”
2-1-4. Dist window display: min DIST eg “0.00”.
2-1-5. The distance of each circle of the playground: 400m: 1 point / 20m.

- -11

Downloaded from www.Manualslib.com manuals search engine

 3. Program profile and setting
3-1. Manual profile: speed / incline. Default: min.
3-2. User Profile: Default: min. When the default is set, it will be stored; when the incline is regulated, it
will get back to default=min.
3-3. In the profile window, the speed and incline of each program will display automaticly, the
interval
time is 5s. The profile window is 8*8 dot matrix. It can only display 8 profile when the process is
carrying out. Therefore, when the quantity of the setting profile is beyond 8, it will adopt the
progressive display, namely the first line of the profile will flicker, then turn to the second line. The
first line will move automaticly and the second line will become the first line……the ninth line
become the eighth line, the window is full with lines until the final profile become the eighth line.
The profile will get back to its original state after the alarm of the end of the profile operation.
3-4. The window will be floating display from the first line under the stop state. The revolving lamp will
display and the window will show speed profile under the stop state. (The floating means are the
same as 3-3.)
3-5. Each Incline / Speed profile
P1
Incline profile 1
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 1 1 2 2 2 3 3 2 2 1 2 2 2 1 1 3 3 2 2 2
Speed profile 1
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 2.0 3.0 3.0 4.0 5.0 3.0 4.0 5.0 5.0 3.0 4.0 5.0 4.0 4.0 4.0 2.0 3.0 3.0 5.0 3.0
P2
Incline profile 2
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 1 2 2 2 2 3 3 2 2 2 2 2 3 3 3 4 4 3 2 2
Speed profile 2
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 2.0 4.0 4.0 5.0 6.0 4.0 6.0 6.0 6.0 4.0 5.0 6.0 4.0 4.0 4.0 2.0 2.0 5.0 4.0 2.0
P3
Incline profile 3
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 2 3 3 2 2 3 3 3 2 2 2 2 4 4 4 6 6 3 2 2

- -12

Downloaded from www.Manualslib.com manuals search engine

 Speed profile 3
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 2.0 4.0 4.0 6.0 6.0 4.0 7.0 7.0 7.0 4.0 7.0 7.0 4.0 4.0 4.0 2.0 4.0 5.0 3.0 2.0
P4
Incline profile 4
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 2 3 3 2 2 3 3 3 2 2 2 2 4 4 4 6 6 3 2 2
Speed profile 4
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 3.0 5.0 5.0 6.0 7.0 7.0 5.0 7.0 7.0 8.0 8.0 5.0 9.0 5.0 5.0 6.0 6.0 4.0 4.0 3.0
P5
Incline profile 5
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 3 5 5 5 4 4 4 3 3 3 3 4 4 4 3 3 3 4 3 2
Speed profile 5
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 2.0 4.0 4.0 4.0 5.0 6.0 8.0 8.0 6.0 7.0 8.0 8.0 6.0 4.0 4.0 2.0 5.0 4.0 3.0 2.0
P6
Incline profile 6
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 3 3 5 5 4 3 4 4 2 2 3 3 4 4 3 2 3 4 3 2
Speed profile 6
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 2.0 2.0 4.0 4.0 6.0 5.0 5.0 8.0 6.0 6.0 8.0 5.0 6.0 4.0 3.0 3.0 5.0 4.0 3.0 2.0
P7
Incline profile 7
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 4 4 4 4 3 3 6 6 6 7 7 8 8 9 9 6 6 5 3 3
Speed profile 7
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 2.0 3.0 3.0 3.0 4.0 5.0 3.0 4.0 5.0 3.0 4.0 5.0 3.0 3.0 3.0 6.0 6.0 5.0 3.0 3.0
P8
Incline profile 8
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 4 5 5 5 6 6 6 7 8 9 9 9 10 10 10 12 12 8 6 3
Speed profile 8
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 2.0 3.0 3.0 6.0 7.0 7.0 4.0 6.0 7.0 4.0 6.0 7.0 4.0 4.0 4.0 2.0 3.0 4.0 4.0 2.0
P9
Incline profile 9
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 5 6 6 6 7 5 8 8 4 4 4 5 5 8 8 10 10 8 6 3
Speed profile 9
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 2.0 4.0 5.0 6.0 7.0 5.0 4.0 6.0 8.0 8.0 6.0 6.0 5.0 4.0 4.0 2.0 4.0 4.0 3.0 3.0
P10
Incline profile 10
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 3 4 5 4 6 5 6 4 3 3 3 5 5 6 7 6 8 5 4 3

- -13

Downloaded from www.Manualslib.com manuals search engine

 Speed profile 10
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 2.0 3.0 3.0 6.0 7.0 5.0 4.0 5.0 7.0 8.0 6.0 7.0 5.0 5.0 6.0 3.0 4.0 4.0 3.0 2.0
P11
Incline profile 11
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 4 5 3 2 6 6 2 2 2 2 2 4 5 6 3 2 5 5 2 0
Speed profile 11
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 2.0 5.0 8.0 10.0 7.0 7.0 10.0 10.0 7.0 7.0 10.0 10.0 6.0 6.0 9.0 9.0 5.0 5.0 4.0 3.0

P12
Incline profile 12
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 1 2 3 2 3 5 5 0 0 2 3 5 7 3 3 5 6 5 3 3
Speed profile 12
Segment 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20
EEPROM 3.0 4.0 9.0 9.0 5.0 9.0 5.0 8.0 5.0 9.0 7.0 5.0 5.0 7.0 9.0 9.0 5.0 7.0 6.0 3.0
PS: Pls. Attention that the in above profile, the red documents of EEPROM are all display data, instead of
number: Moreover, the Speed is displayed in Mile data.
4. Keyboard:
4-1. Safety key: normal close / active open.
4-1-1. When we open the safety key, the hardware power off, the motor & incline motor will be stop at
once.
4-1-2. When it starts, it will return to the incline motor, the display default will choose the states of the
program.
4-2. Start / stop key:
4-2.1. When we press the “start key”, it will make a signal output as per the choosing program. The signal
is more adjustive.
4-2.2. When we press the “stop key”, the treadmill will stop immediately, the DC motor will decline slowly
to stop state and all of the data will clear.
4-3. Program Key: Press the key under the stop state, choosing the program which we want, 2 seconds
later, the LED will display the relative profile graph. The operation processes are as follows:
M→ P1→P2→ P3→ P4→P5→P6→P7→…P12→U1→U2→U3→M
When we choose P1~P12 or USER program, the dot matrix will firstly show the number of this
program, then show the profile of this program. For example, when we choose P12, the dot matrix
will firstly show 12, 2s later, the profile of the program will come out. If we continuously press the
Program Key to cycle the program, the dot matrix will only show the program number. The profile
will be never showed unless we release the press in 2s.
4-4. Clear key:
4-4.1- All the parameter will be clear when we press this key, whenever it is in the stand by state, setting
processes or we press the STOP key. The incline will get back to its original data and the system
will return to its stand by state. However, it will not be available when it is in the running state.
4-5. MODE key:
4-5.1. When it is in the MANUAL stand by state, press the mode key, choosing ordinally the item you
want, the sequence of the items will be as follows:
- -14

Downloaded from www.Manualslib.com manuals search engine

 Time → Calories → Distance
When we choose the other programs, except the MANUAL, press the MODE in its stand by
state, we can only set TIME, but CAL, DIST are not available.
4-5.2. Press the up, down key of the speed / Incline to change the data.
4-5.3. When we set the distance, the indicator light will be up, the data flicker, the default values of is
0.0, step 1. The set ranges are as follows:
0.0 → 1.0 → 2.0 → 3.0 →………→ 98.0 → 99.0 → 0.0
4-5.4. When we set the calories, the indicator light will be up, the data flicker, the default value is 0,
step 5. The set ranges are as follows:
0 → 5 → 10 → 15 → ……… → 990 → 995 → 0
4-5.5. If you can’t confirm in 20s when you are setting the program, it will automaticly set the final data.
4-6. Speed up key:
4-6-1. The parameter of the TIME or DIST or CAL can be adjustable in the setting state.
4-6-2. It can speed up in the start state.
4-7. Speed down:
4-7-1. The parameter of the TIME or DIST or CAL can be adjustable in the setting state.
4-7-2. It can speed down in the start state.
4-8. Incline up key:
4-8-1. The operation process is the same as the “speed up key” in the setting state.
4-8-2. It can incline up in the start state.
4-9. Incline down key
4-9-1. The operation process is the same as the “speed down key” in the setting state.
4-9-2. It can be incline down in the start state.
4-10. Quick access keys:
The setting of Speed key address, the
ITEM setting ranges Min ~ Max, default are
as follows:
Default 0 2 4 6 8 10 12
Key K1 K2 K3 K4 K5 K6 K7
The setting of Speed key address, the setting ranges Min ~ Max, default
ITEM
are as follows:
Mile Default 1 2 3 4 5 6 7 8 9 10 11 12
Key K1 K2 K3 K4 K5 K6 K7 K8 K 9 K 10 K 11 K 12

4-11. FAN Key: Open or close the fan.

4-12. KM/M KEY: We can press the key to have a KM/M transformation when it is under the stand by
state, the LED indicator light will change at the same time.
4-13. Compound KEY: KM/M KEY: We can press the key to have a KM/M transformation when it is
under the stand by state. The LED indicator light will change at the same time. The “K” or “M”
letters will display synchronously in the dot matrix.
5. The brief description of function
5-1. Open the treadmill, safety key on, When the LED display 1s, it will directly enter the MANUAL
state and the incline should be got back to the original data.
5-2. Whatever the manual, p1~p12, user are all in their stand by state, when we press the start key,
it will begin to count down in 3 seconds with the alarm “bi-bi-bi” and the letter of “GO” which

- -15

Downloaded from www.Manualslib.com manuals search engine

 are showed in the middle of dot matrix. The computer will be open too, the details are: 3 (bi) –
2 (bi) -GO - START.
5-3. Scan function:
5-3-1. In the START MODE, it will display cycledly “incline / speed profile, multi-data (incline / pulse,
cal / dist) for each 5s. The relative indicator light will be lighted when we choose the specific
function; when we press the incline key, the indicator light of the compound function will
transform into the function which the key will show.
5-4. Program function:
5-4-1. It will show a playground when it is in MANUAL state.
5-4-2. It will show profile in the dot matrix LED.
---Program, user display Incline / Speed profile. Incline / Speed profile are both sharing
window.
---User program take the use of speed/incline up, down key to adjust the incline / speed
profile.
---The exercise time which the program preset is 20 min. When the operating time is set,
the operating time per section is average. If it is not set, 1 min per section.
5-5. Speed:
5-5-1. Display maximum range as min / max speed options.
5-5-2. Speed up / down step ± 0.2 Km /±0.1 Mile.
5-6. TIME
5-6-1. Time is calculated by Count up & count down (goal), if time is set, it will be calculated by Count
down; if not, it will be calculated by Count up.

5-6-2. When time is calculated by Count up, the counting range under the manual is 0：00～99：59it

will stop when the operating time is up to 99:59, the speed window will display “End” and flicker
40 times, tweeting twice, 50s later, all the window will be clear into the stand by state. During
the 50s, if any keys be pressed, it will get back to the stand by state.1 min is preset per section
under the program of P1~P12, U1~U3. (1*20=20 min)
5-6-3. When time is calculated by Count down, the setting range is 05:00~99:00. When count down
to zero, alarming twelve times and data of the window will be flickering, everything will stop
and the motor will stop too.
5-7. Distance
5-7-1. Distance is calculated by Count up & Count down. Distance will be calculated by count down if
it is preset. It will be calculated by count up it isn’t preset.

5-7-2. When distance is calculated by Count up, the counting range is 0.00～99.9. It will be clear and

calculate once more if it is beyond the range.

5-7-3. When distance is calculated by Count down, the counting range is 1.00～99.0. When count

down to zero, alarming twelve times and data of the window will be flickering, everything will
stop, power is disable and motor stop.
5-7-4. Setting distance: press mode key, data flash.
5-8. Calories
5-8-1. Calories is calculated by Count up & Count down. Calories will be calculated by count down if
it is preset. It will be calculated by count up it isn’t preset.

- -16

Downloaded from www.Manualslib.com manuals search engine

 5-8-2. When calories is calculated by Count up, the counting range is 0～999, it will be clear and

calculate once more if it is beyond the range. When calories is calculated by Count down, the
setting range is 5.0~995, step ±5. When count down to zero, alarming twelve times and jump
to setting state, motor stop.

5-8-3. CAL=0.0049*speed*time*（1+?%）

Time unit: seconds; ?% is motor incline.

5-9:
5-9-1. It will display in Multi-data (incline, pulse) window. The motor incline will be up and down if you
press the incline up and down key.
5-9-2. Incline regulation: adopts manual into self-regulation program. Press INCLINE UP/DOWN
+STOP 5s simultaneously in the stand by state, it will directly enter the INCLINE self-
regulation.
Regulation process:
5-9-3. Display “Inc” (Speed window), “Hi” (Time window), the Max. data of incline VR (INC / PULSE
window) and the actual value of incline VR (CAL window) in the seven segment display
window.
5-9-4. Display “Inc” (Speed window), “Lo” (Time window), the Min. data of incline VR (INC / PULSE
window) and the actual value of incline VR (CAL window) in the seven segment display
window.
5-9-5. When e3 or e4 display in the regulation process, Pls. Open the safety key or restart the power
to leave the regulation process.
5-10. PULSE:
5-10-1. The window will be clear and display “P” if no any signal output for 8s.
5-10-2. If the input signal >240 and <40, the window will be clear and display “P” if it is continuing for
10s.
6. Profile setting and program control
6-1. Setting Bar + Loop mode; When we adjust work line with up, down key, it will enter display bar
mode, 5s later, it will get back to display loop mode.
6-2. The window will show loop “L “ when one loop is finished. The counting range is L1~L99.
Showing 3s later, It will display loop. If the loop display and work line adjustation are working
simultaneously, the main display is still loop, but the work line is adjusted at the same time.
When the loop display is over, it will display by bar, loop, loop/bar, etc 3 modes.
6-3. Manual revolving lamp

Anticlockwise and circular display. The lamp will be lighted ordinally from the first light when it is start, when
the first loop is over, the lamps will turn off, then begin once more with cycle.

- -17

Downloaded from www.Manualslib.com manuals search engine

 6-4. Manual playground: the distance of per loop is 400m. (1 point=20m)

6-5. Manual: The user can set all of the work line, the program will display M, the dot matrix will
show the revolving lamp.

6-6. The time default will show 0:00 if the user don’t press the mode key of the Manual or program.
When we press the start key, the program will begin to calculate the data and the signal will
output as per the program profile.

6-7. Profile takes the principle of the middle location and display mode by 8*8 dot matrix.

6-8. The working state when we choose the Program:

6-8-1. 3s before the newline of the profile, the data of the incline/speed window will be always
flickering until the next newline begins.
6-8-2. When we choose the program and press the start key, the orientation and control of
INC/Speed will carry out automatically as per the profile curve of program display on the LED
Bar. Meanwhile, INC/Speed will adjust and orientate automatically.
6-8-3. Each program has 20 segments, the practice time of every segment is 1min (when time is
showed with count up). 20 segments finished is 1 loop. Every data will be clear when we press
the stop key during practice of the program.
6-8-4. The practice time of each segment is the time set up / 20min if the time is set as count down
mode; when time count down to zero and restart, the practice time of each segment is 1min.
6-8-5. When the program is carrying out, we can press the speed up/down key to adjust the speed
data for each segment, the LED bar and speed will adjust simultaneously.
7. User program:
The Program display U “n” (n from number 1-3)
When process U1~U3 Program, Speed / incline Profile will display per 5s interval
7-1. Press “mode” key” to enter into the setting of models then the Profile display glittering.
Time→ Speed Profile 1~20 BAR → incline Profile 1~20 BAR → TIME
7-2. When user program have set, press “KM/M “key to exchange, all the programs the user set
before are clear off. The user must reset programs.
7-3. When not press mode key, the time default display 0:00; press start key, the program will
calculate all kinds of data, and output the message according to the profile chart.

7-4. Press mode key, the flash will present according to the segment, press up、down key to set

the profile, the graph won’t stop until all 20 programs finished setting, or press start key for
releasing from the setting mode, the profile set up will save to EEPROM in case take out the
database
7-5. When we choose the program and press the start key, the orientation and control of
incline/Speed will carry out automatically as per the profile curve of program display on the
LED Bar. Meanwhile, incline/Speed will adjust and orientate automatically.
7-6. A loop including 20 segments, press the “stop” key to stop it during it is running.
7-7. The next speed and incline will be flashed before 3s when it is newlining.
7-8. The practice time of each segment is the time set up /20min if the time is set as count down
mode; when time count down to zero, time count down is not set and restart, the practice time

- -18

Downloaded from www.Manualslib.com manuals search engine

 of each segment is 1min.
a) Manual profile display:

b) 8*8 profile area:

Error message: display on speed window.

8-1. E1: The program will stop automatically when press “start” key but no speed program input within
10s.
8-2. E2: Either the EEPROM nor the ID code is wrong, or can not reading; this action won’t accept
unless it last for 5s.
8-3. E3: Incline VR value is not changed when revise it in 6s in a row.
8-4. E4: Incline VR of A / D value is reverse when reversing.
To press the any key to exit when E1 appear

To press the enter key 2sec to exit when E3、E4 appear, then come back to stand by state.

9. Operation instructions for Multimedia player

Keys instruction:
There are 10 keys from this system, including “INPUT”, /ENTER, “GO BACK”, “VOL-“,
“VOL+”, ▼, ▲, , , ”MEDIA/POWER” .

9-1. The display will be in loading status when the treadmill is running. About 2 seconds later, the TFT
window will display two icons: Memory and Setup. You can insert the SD/MMC card into the card seat or
insert the Flash disk to the USB port. Thus, the screen will display four icons: SD, USD, Memory and Setup.
Pls refer to Picture 1.

Picture 1 Picture 2 Picture 3

9-2. You can choose SD, USD, Memory and Setup by , , confirm your choice by /ENTER, then it will

go to the son menu. As shown by Picture 2.

9-3. If you choose “Setup”, you can select the items circularly by ▲, ▼, these items includes “language->
- -19

Downloaded from www.Manualslib.com manuals search engine

 Picture displayed speed-> Picture displayed usage->Music repeating mode->Movie repeating mode->
Picture displayed proportion->Automatic player->Default setting” (See picture 3). You can choose or switch
the items by , , then press /ENTER to confirm.
I. If you select “language”, you can choose the “Sample Chinese->Espanol->English” circularly by ,

; then press /ENTER to confirm.

II. If you select “Picture displayed speed”, you can choose”3sec->5sec->15senc->1 min->15min->1

hour” circularly by , , then press /ENTER to confirm.

III. If you select “Picture displayed usage”, you can choose “Stochastic->Fade in & Fade out->Close-

>Down-Up->Up-Down->Left-Right->Right-Left->Sideways-Middle->Middle-Sideways->Interlude

horizontally->Interlude vertically” circularly by , , then press /ENTER to confirm.

IV. If you select “Music repeating mode”, you can choose “All repeat-> one repeat” circularly by , ,

then press /ENTER to confirm.

V. If you select “Movie repeating mode”, you can choose “All repeat-> one repeat” circularly by , ,

then press /ENTER to confirm.

VI. If you select “Picture displayed proportion”, you can choose “4:3->16:9” circularly by , , then

press /ENTER to confirm. PS: These two proportions are just applied for the pictures, however,

the playing of the video (eg: movie & music) will not be influenced.

VII. If you select “Automatic player”, you can choose”Close->Open”circularly by , ,then press

/ENTER to confirm.

VIII. If you select ”Default setting”, just press /ENTER to confirm.

Picture 4 Picture 5 Picture 6

9-4. If you select SD, USB, Memory (the relevant indicator light will lighten when one of them are

selected), you can choose “MOVIE”, “MUSIC”, “PHOTO” by , , then confirm by /ENTER.

9-5. If you select “MOVIE”, press the /ENTER to enter the “MOVIE” file. You can choose the

“MOVIE” files you want to play by ▲, ▼. As shown by Picture 4. Then press /ENTER to get a

full screen display. Also, you can press “GO BACK” to return to the former menu or the end menu,

as shown by Picture 1.

9-6. If you select “MUSIC”, press the /ENTER to enter the “MUSIC” file. You can choose the

“MUSIC” files you want to play by ▲, ▼. As shown by Picture 5. Then press /ENTER to get a

full screen display. Press “GO BACK” to return to the former menu or the end menu, as shown by

- -20

Downloaded from www.Manualslib.com manuals search engine

 Picture 1.

9-7. If you select “PHOTO”, press the /ENTER to preview the photos, as shown by Picture 6. Select

your favourite photos ▼, ▲, , ,then press /ENTER to get a full screen display of all the

“PHOTO” files. It also can be paused by /ENTER when it is playing, the toolbar will be shown

under the photos, you can choose the playing mode by , . Then, press “GO BACK”, the photos

display will stop and enter the picture preview. (Repress “GO BACK”, it will return to the end menu,

as shown by Picture 1.)

9-8. Press “INPUT” to switch the playing window of MP3 or AV. If there is DVD or MP3 accessed, the
screen will display the relevant contents. Press “INPUT” once again, it will return to the original
playing window.
9-9. Volume is controlled by “VOL+”, “VOL-“. These two keys can adjust the volume when it plays the

Video, SD card, USB Memory.

9-10. “MEDIA/POWER” is the switch key. It is used to open or cut off the power of the video system. (The

red indicated light will lighten when it is open)

9-11. Attention: If there is not any operation in the standby status, the screen will go into screen saver

status 30 seconds later. Press any key to go into the system operation window.

- -21

Downloaded from www.Manualslib.com manuals search engine

 TROUBLESHOOTING GUIDE:

TROUBLESHOOTING GUIDE

PROBLEM CAUSE CHECKING CORRECTION

1.If the plug and the line is 1. Checking the plug and
1. Insert the plug and the line well.
Treadmill loosen. the line is connected well.
will not 2. Checking the power
start. 2. Not plugged in. 2. Reset the power.
switch is opened.
1. Checking the line of the
1.The relative line of the
control motor is plugged 1. Insert the control motor wire.
control motor are abnormal.
well.
2. Checking the button is
2.Do not press START KEY. valid or not started the 2. Reset the START KEY to test.
The motor switch.
will not
3. Safety pull pin not 3. Checking the safety pull
work. 3. Insert safety pull pin.
inserted pin is plugged well.
4. Motor plug is loose or the 4. Test if the motor is
4. Change the motor
motor is badness. badness.
5. Power or controllar 5. To choose the correct
5. Check the specification.
specification is wrong. specification to reset the testing.
1. Checking the distance
and place between 1. Adjust the distance within 5m/m.
SENSOR and magnet.
No speed SENSOR do not touch well. 2. Checking the wire if
2. Change the wire or SENSOR
circuit breaker tripped.
3. Checking the wire tie-in
3. Reset to insert the wire tie-in.
if it is touched well.
Take apart the bottom
PA circuit board bolt do not
cover and press PA circuit Reset to put the connector and
PA circuit lock well or not put well the
board board to see if it is short lock the bolt.
connector.
circuit or loosen.

No hand 1. Checking the wire is

1. Change the wire or reset.
pulse short circuit or lossen.
SENSOR do not touch well. 2. Checking the wire and
computer if the tie-in is 2. Reset to insert the wire

connected well.

- -22

Downloaded from www.Manualslib.com manuals search engine

 3. Put the both hands to
The hand pulse do not touch
bedew a litter or scrub 3. Reset to test.
well
with both hands.
1. The connected wire is 1. Use the multimeter to test the
wrong. wire is stand or fall.
E1 Message failure 2. To test the outside and the
2. Power supply voltage
inside voltage is normal: DC 12 V
shortage
3. SCM is badness.

1. Power tube badness. 1. Change the power tube.

E2 Burst clash
2. Drivers defective. 2. Change the drivers.
3. Motor is failure 3. Change the motor.
1. Sensor wire badness 1. Change the sensor wire.
E3 No sensor signal 2. There is no use for the 2. Change the magnetic or reset
motor magnetic. the magnetic.
3. Drivers badness 3. Change the drivers.
1. Study failure. 1. To reset study.

2. Incline motor badness 2. Change the incline motor.

E4 Incline study failure 3. Change 24C02 or change the
3. Drivers badness
drivers.
4. Incline motor wire do
4. Insert the incline motor wire.
not connect well

- -23

Downloaded from www.Manualslib.com manuals search engine

 MAINTENANCE INSTRUCTIONS

WALKING BELT CENTERING AND TENSION ADJUSTMENT

The walking belt may occasionally need to be centered and tightened.
TO ADJUST WALING BELT TENSION:
● Run treadmill at approximately 3.5 mph.

● Using Allen wrench, turn both the right and left

adjustment bolts ONE full turn clockwise.

● If slipping continues during use, repeat above steps.

NOTE: It is recommended that the allen wrench clip

be attached to a convenient spot on the treadmill.

And the allen wrench kept in the clip.

DO NOT OVERTIGHTEN the walking belt. This may

cause reduced motor performance and excessive roller

wear.

NOTE: When properly tightened, the sides of belt can

be raised approximate 2-3 inches off the board.

TO CENTER WALKING BELT:
● Place treadmill on a level surface.

● Run treadmill at approximately 3.5 mph.

● If the belt has drifted to the right, turn the right adjusting bolt 1/2 turn clockwise and the left adjusting bolt 1/2

turn counterclockwise.

● If the belt has drifted to the left, turn the left adjusting bolt 1/2 turn clockwise and the right adjusting bolt 1/2 turn

clockwise and the right adjusting bolt 1/2 turn counterclockwise.

Picture A if the belt has drifted to the LEFT. Picture B if the belt has drifted to the RIGHT.

- -24

Downloaded from www.Manualslib.com manuals search engine

 WARNING: ALWAYS UNPLUG THE TREADMILL FROM THE ELECTRICAL OUTLET BEFORE CLEANING OR
SERVICING THE UNIT.

CLEANING

General cleaning or the unit will greatly prolong the treadmill.

Keep treadmill clean by dusting regularly. Be sure to clean the exposed part of the deck on either side of the

walking belt and also the side rails. This reduces the build up of foreign material underneath the walking belt.

The top of the belt may be cleaned with a wet, soapy cloth. Be careful to keep liquid away from inside the

motorized treadmill frame or from underneath the belt. Warning: Always unplug the treadmill from the

electrical outlet before removing the motor cover. At least once a year remove the motor cover and vacuum

under the motor cover.

WALKING BELT AND DECK LUBRICATION

This treadmill is equipped with a pre-lubricated, low maintenance deck system. The belt/ deck friction

may play a major role in the function and life of your treadmill, thus requiring periodic lubrication. We

recommend a periodic inspection of the deck.

We recommend lubrication of the deck according to the following timetable:

Light user (less than 3 hours/ week) annually

Medium user (3-5 hours/ week) every six months

Heavy user (more than 5 hours/ week) every three months

- -25

Downloaded from www.Manualslib.com manuals search engine

 EXPLODED DRAWING

- -26

Downloaded from www.Manualslib.com manuals search engine

 Part list
#. DESCRIPTION REMARK QTY #. DESCRIPTION REMARK QTY
1 MAIN FRAME 1 38 PLASTIC BOTTOM COVE(L) 1
2 BASE FRAME 1 39 PLASTIC BOTTOM COVE(R) 1
3 LEFT UPRIGHT 1 40 MAGNETIC SENSOR 1
4 RIGHT UPRIGHT 1 41 INCLINE MOTOR 1
5 DISPLAY BOARD 1 42 TAPER CUSHION 2
6 COMPUTER TOP COVER 1 43 ADJUST BRACKET 1
7 COMPUTER BOTTOM COVER 1 44 STRENGTH TUBE 1
8 LEFT COMPUTER COVER 1 45 SUPPORTING ASSEMBLY 1
9 RIGHT COMPUTER COVER 1 46 FLAT FOOT PAD ￠38*￠33*16 4
10 WRAPPING 2 47 PEDAL COVER 1
11 HANDLEBAR TOP COVER 1 48 PEDAL BUSHING 1
12 HANDLEBAR BOTTOM COVER 1 49 PEDAL DRAW 1
13 HANDLEBAR END COVER 1 50 SLIPPING SLICE 2
14 RIGHT HANDLEBAR END COVER 1 51 PLASTIC BEARING ￠45x￠18.1x44.5 2
15 LEFT HAND PULSE PIECE 2 52 MIDDLE EMPTY INNER END CAP ￠45x￠18.1x16.6 4
16 RIGHT HAND PULSE PIECE 2 53 SLIDE RAIL AXIS CORE ￠18*735 1
17 COMPUTER FRAME 1 54 LIMIT AXIS CORE ￠18*642 1
18 MOTOR COVER 1 55 HEX BOLT M8*30 2
19 MOTOR 1 56 HEX BOLT M10*62 1
20 MOTOR BRACKET 1 57 WASHER 10 17
21 CONTROL BOARD 1 58 BOLT M10*45 1
22 SOUND BOX NET 1 59 NUT M10 1
23 POWER CABLE 1 60 BOLT M8*25 4
24 SWITCH 1 61 WASHER 8 18
25 OVER LOADING PROTEC 1 62 NUT M8 8
26 SIDE RAIL 2 63 BOLT M10*25 14
27 RUNNING BOARD 1 64 BOLT M8*38 2
28 RUNNING BELT 1 65 BOLT M8*48 2
29 FRONT ROLLER 1 66 BOLT M8*50 2
30 BEHIND ROLLER 1 67 BOLT M8*20 4
31 RUBBER PAD 2 68 BOLT M6*45 2
32 MAGNETIC RING 1 69 SCREW M6*25 4
33 CUSHION 4 70 BOLT M8*65 2
34 AIR PRESSURE BAR 2 71 BOLT M8*40 1
35 MOVING WHEEL ￠51.5x￠9x22 4 72 SCREW M6*16 4
36 WHEEL ∮63*∮8.2*35 2 73 SCREW M6*12 10
37 END CAP 2 74 SCREW M5*6 7
75 FLAT WASHER 5 4 113 AMPLIFIER UPPER WIRE 1

- -27

Downloaded from www.Manualslib.com manuals search engine

 76 SCREW M5*8 3 114 AMPLIFIER MIDDLE WIRE 1
77 SCREW ST4.2*13 53 115 AMPLIFIER LOWER WIRE 1
78 SCREW ST4.2*13 17 116 SCREW ST4.2*16 12
79 SPRING WASHER 8 4 117 SAFETY LOCK 1
80 BOLT M8*45 1 118 BIG WASHER 8 2
81 BOLT M8*50 1 119 END CAP 2
82 SPRING φ1.5*34 1 120 SCREW 10 1
83 BIG WASHER 6 4 121 SCREW M10 1
84 BELT 1 122 FUNCTION PLAYING BOARD 1
85 OILINESS AXIS COVER 2 123 MINI HEADPHONES 1
86 AC SINGLE LINE 1 124 SCREW ST4.2*13 6
87 AC POWER WIRE 1 125 BOLT M3*14 4
88 CUSHION 4 126 DUMBBELL BRACKET 1
89 SCREW 1 127 2LB DUMBBELL 2
90 FAN TURNABLE PIECE 1 128 3LB DUMBBELL 2
91 BOLT M5*10 2 129 4LB DUMBBELL 2
92 LEFT DIRECTION LEAD DIRECT COVER 1 130 DUMMBELL JACKET 12

RIGHT DIRECTION LEAD DIRECT 131 HANDLEBAR EVA PLUG 4

93 1 132
COVE SINGLE EVA PAD 1
133 CONVEY WHELL BUSHING 4
94 FAN 1
134 SIDE RAIL FIXED BOARD 2
95 CONNECTING FRAME PIECE 1
135 PLASTIC SHELL 1 1
96 SMALL SOUND BOX BEHIND COVER 2
136 PLASTIC SHELL 2 1
97 BOOK SHELF 1
137 BOLT M5*12 2
COMPUTER
98 1 138 NUT M5 3
MANIBOARD
139 AV IN PCB BOARD 1
PEDAL CONNETING
99 140
PIECE 1 7’’ VIDEO DISPLAY 1
141 TFT FIXED BOARD 1
100 LEAD STRAP DRAW M6*28 2
142 TFT MAINBOARD 1
101 HEX BOLT M6 2
143 TFT MAINBOARD COVER 1
102 SCREW ST4.2*12 4
144 AV IN UPPER WIRE 1
103 SPEAKER 2
145 AV IN MIDDLE WIRE 1
SMALL SOUND BOX
104 AIRPROOF 2 146 AV IN LOWER WIRE 1
CIRCLE 147 SOUND BOX BACK 1
105 AMPLIFIER POWER BOARD 1 148 SEAL RING 1

106 FLAT WASHER 8 4 149 WOOFER 1

150 SEAL RING FOR WOOFER 1
107 HEX BOLT M8*30 2
108 SCREW ST2.9*40 2
109 SCREW ST2.9*9.5 24
COMPUTER UPPER
110 1
WIRE

- -28

Downloaded from www.Manualslib.com manuals search engine

 COMPUTER MIDDLE
111 1
WIRE
COMPUTER LOWER
112 1
WIRE
151 LEAD STRAP DRAW 2
152 SCREW ST4.2*19 6
153 BOLT M8*15 2
154 FOOT PAD 1
155 BOLT M5*25 1
156 WASHER 5 1

- - 29

Downloaded from www.Manualslib.com manuals search engine
