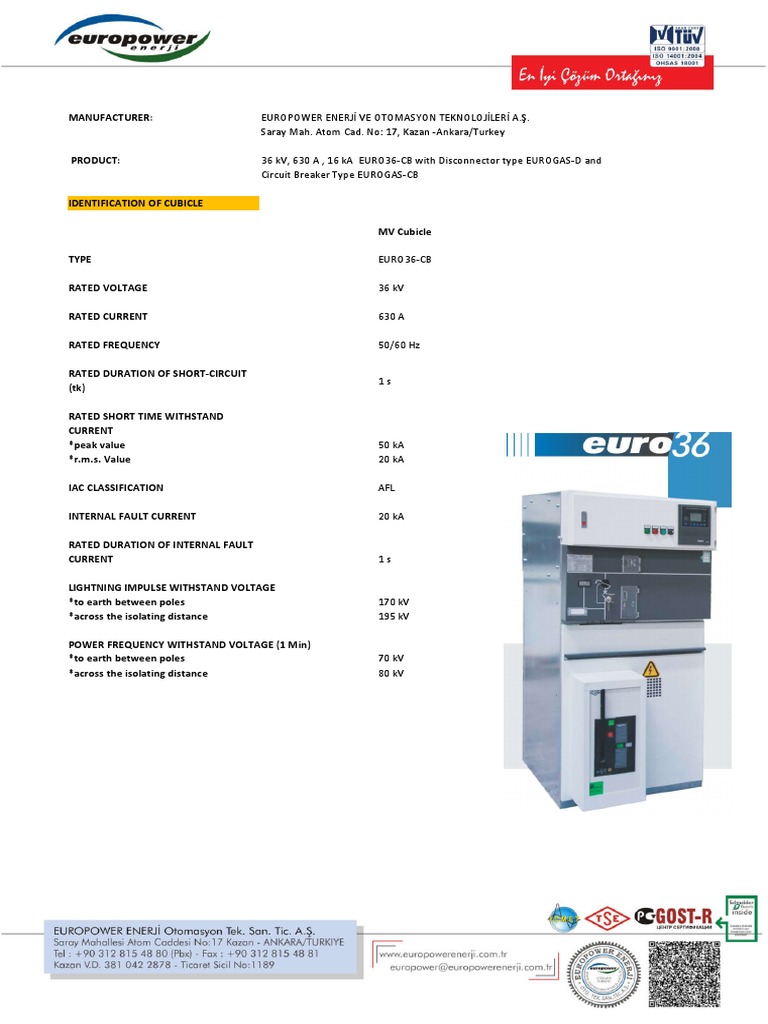

MANUFACTURER: EUROPOWER ENERJİ VE OTOMASYON TEKNOLOJİLERİ A.Ş.

Saray Mah. Atom Cad. No: 17, Kazan -Ankara/Turkey

PRODUCT: 36 kV, 630 A , 16 kA EURO36-CB with Disconnector type EUROGAS-D and


Circuit Breaker Type EUROGAS-CB

IDENTIFICATION OF CUBICLE

MV Cubicle

TYPE EURO36-CB

RATED VOLTAGE 36 kV

RATED CURRENT 630 A

RATED FREQUENCY 50/60 Hz

RATED DURATION OF SHORT-CIRCUIT


1s
(tk)

RATED SHORT TIME WITHSTAND


CURRENT
*peak value 50 kA
*r.m.s. Value 20 kA

IAC CLASSIFICATION AFL

INTERNAL FAULT CURRENT 20 kA

RATED DURATION OF INTERNAL FAULT


CURRENT 1s

LIGHTNING IMPULSE WITHSTAND VOLTAGE


*to earth between poles 170 kV
*across the isolating distance 195 kV

POWER FREQUENCY WITHSTAND VOLTAGE (1 Min)


*to earth between poles 70 kV
*across the isolating distance 80 kV
Circuit Breaker

TYPE EUROGAS-CB

NUMBER OF PHASES 3

CLASS E1-C2-M1

NUMBER OF POSITION 3 ( Opened-Closed-Earthed)

RATED OPERATION SEQUENCE O-0.3s-CO-3min-CO

FIRST POLE CLEAR FACTOR 1,5 p.u

CLOSING COIL 110 VDC

OPENING COIL 110 VDC

MOTOR SUPPLY 110 VDC

RATED VOLTAGE 36 kV

LIGHTNING IMPULSE WITHSTAND VOLTAGE


*to earth between poles 170 kV
*across the isolating distance 195 kV

POWER FREQUENCY WITHSTAND VOLTAGE (1 Min)


*to earth between poles 70 kV
*across the isolating distance 80 kV

RATED CURRENT 630 A

RATED FREQUENCY 50/60 Hz

RATED DURATION OF SHORT-CIRCUIT


3s
(tk)

RATED SHORT TIME WITHSTAND


CURRENT
*peak value 40 kA
*r.m.s. Value 16 kA

RATED VOLTAGE CONTROL 110VDC

RATED PRESSURE CONTROL at 20°C 2 BAR (abs)

MINUMUM WORKING GAS PRESSURE


at 20°C 1 BAR

DC COMPONENT MAX 35%
