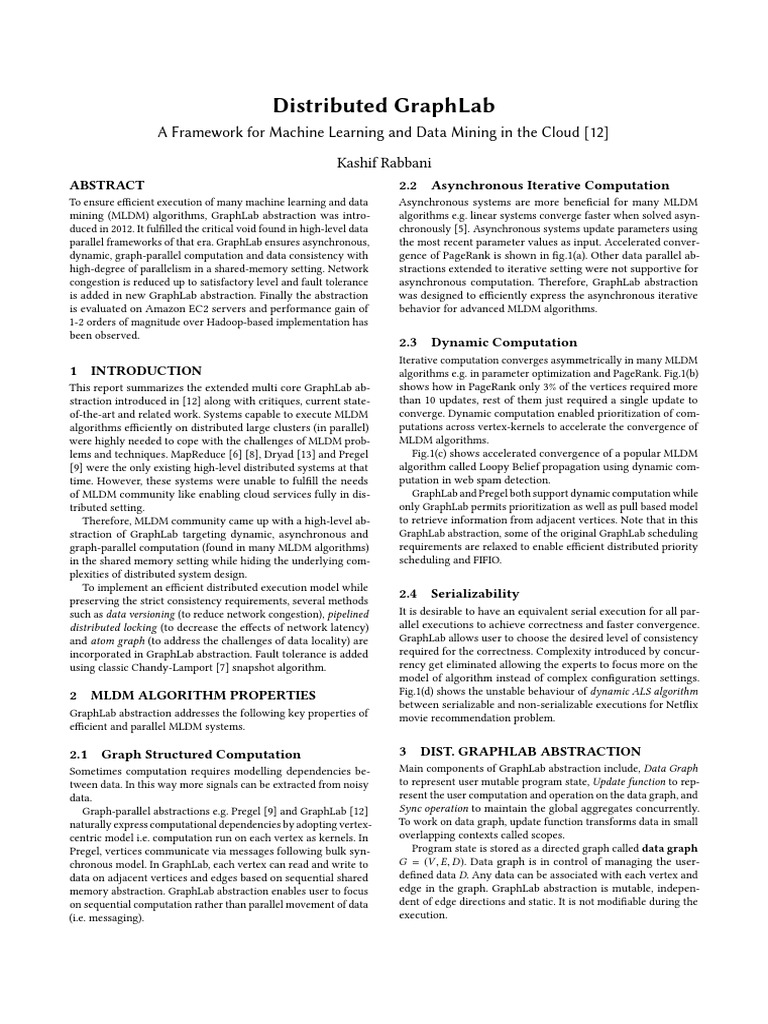

Distributed GraphLab
A Framework for Machine Learning and Data Mining in the Cloud [12]
Kashif Rabbani
ABSTRACT
To ensure efficient execution of many machine learning and data
mining (MLDM) algorithms, GraphLab abstraction was intro-
duced in 2012. It fulfilled the critical void found in high-level data
parallel frameworks of that era. GraphLab ensures asynchronous,
dynamic, graph-parallel computation and data consistency with
high-degree of parallelism in a shared-memory setting. Network
congestion is reduced up to satisfactory level and fault tolerance
is added in new GraphLab abstraction. Finally the abstraction
is evaluated on Amazon EC2 servers and performance gain of
1-2 orders of magnitude over Hadoop-based implementation has
been observed.
1 INTRODUCTION
This report summarizes the extended multi core GraphLab ab-
straction introduced in [12] along with critiques, current state-
of-the-art and related work. Systems capable to execute MLDM
algorithms efficiently on distributed large clusters (in parallel)
were highly needed to cope with the challenges of MLDM prob-
lems and techniques. MapReduce [6] [8], Dryad [13] and Pregel
[9] were the only existing high-level distributed systems at that
time. However, these systems were unable to fulfill the needs
of MLDM community like enabling cloud services fully in dis-
tributed setting.
Therefore, MLDM community came up with a high-level ab-
straction of GraphLab targeting dynamic, asynchronous and
graph-parallel computation (found in many MLDM algorithms)
in the shared memory setting while hiding the underlying com-
plexities of distributed system design.
To implement an efficient distributed execution model while
preserving the strict consistency requirements, several methods
such as data versioning (to reduce network congestion), pipelined
distributed locking (to decrease the effects of network latency)
and atom graph (to address the challenges of data locality) are
incorporated in GraphLab abstraction. Fault tolerance is added
using classic Chandy-Lamport [7] snapshot algorithm.
2 MLDM ALGORITHM PROPERTIES
GraphLab abstraction addresses the following key properties of
efficient and parallel MLDM systems.
2.1 Graph Structured Computation
Sometimes computation requires modelling dependencies be-
tween data. In this way more signals can be extracted from noisy
data.
Graph-parallel abstractions e.g. Pregel [9] and GraphLab [12]
naturally express computational dependencies by adopting vertex-
centric model i.e. computation run on each vertex as kernels. In
Pregel, vertices communicate via messages following bulk syn-
chronous model. In GraphLab, each vertex can read and write to
data on adjacent vertices and edges based on sequential shared
memory abstraction. GraphLab abstraction enables user to focus
on sequential computation rather than parallel movement of data
(i.e. messaging).
2.2 Asynchronous Iterative Computation
Asynchronous systems are more beneficial for many MLDM
algorithms e.g. linear systems converge faster when solved asyn-
chronously [5]. Asynchronous systems update parameters using
the most recent parameter values as input. Accelerated conver-
gence of PageRank is shown in fig.1(a). Other data parallel ab-
stractions extended to iterative setting were not supportive for
asynchronous computation. Therefore, GraphLab abstraction
was designed to efficiently express the asynchronous iterative
behavior for advanced MLDM algorithms.
2.3 Dynamic Computation
Iterative computation converges asymmetrically in many MLDM
algorithms e.g. in parameter optimization and PageRank. Fig.1(b)
shows how in PageRank only 3% of the vertices required more
than 10 updates, rest of them just required a single update to
converge. Dynamic computation enabled prioritization of com-
putations across vertex-kernels to accelerate the convergence of
MLDM algorithms.
Fig.1(c) shows accelerated convergence of a popular MLDM
algorithm called Loopy Belief propagation using dynamic com-
putation in web spam detection.
GraphLab and Pregel both support dynamic computation while
only GraphLab permits prioritization as well as pull based model
to retrieve information from adjacent vertices. Note that in this
GraphLab abstraction, some of the original GraphLab scheduling
requirements are relaxed to enable efficient distributed priority
scheduling and FIFIO.
2.4 Serializability
It is desirable to have an equivalent serial execution for all par-
allel executions to achieve correctness and faster convergence.
GraphLab allows user to choose the desired level of consistency
required for the correctness. Complexity introduced by concur-
rency get eliminated allowing the experts to focus more on the
model of algorithm instead of complex configuration settings.
Fig.1(d) shows the unstable behaviour of dynamic ALS algorithm
between serializable and non-serializable executions for Netflix
movie recommendation problem.
3 DIST. GRAPHLAB ABSTRACTION
Main components of GraphLab abstraction include, Data Graph
to represent user mutable program state, Update function to rep-
resent the user computation and operation on the data graph, and
Sync operation to maintain the global aggregates concurrently.
To work on data graph, update function transforms data in small
overlapping contexts called scopes.
Program state is stored as a directed graph called data graph
G = (V , E, D). Data graph is in control of managing the user-
defined data D. Any data can be associated with each vertex and
edge in the graph. GraphLab abstraction is mutable, indepen-
dent of edge directions and static. It is not modifiable during the
execution.
 Figure 1
Update Function is a stateless method having access to mod-
ify data within the scope of a vertex and schedule its future
execution on other vertices.
• Input: Vertex v and its scope Sv (data stored in v and its
all adjacent vertices and edges)
• Output: New version of the data in the scope and set of
vertices T
Update : f (v, Sv ) → (Sv ,T )
After execution of update function, modified data Sv is writ-
ten back to the data graph. GraphLab gives user the freedom to
read/write data from adjacent vertices and edges in a simple man-
ner by removing the complexity to manage the movement of data
like in message passing or data flow models [9][13]. Update func-
tion can efficiently express adaptive computation by controlling
its scheduling for the returned set of vertices T . Expressiveness
of dynamic computation actually differentiates the GraphLab
from Pregel. In Pregel, messages initiate the update functions
which can only access the data in the message while GraphLab
completely decouples the scheduling of future computation from
the data movement and naturally expresses the pull model.
Sync Operation & Global Values Many MLDM algorithms
require to maintain a global statistic to describe the data stored
in the data graph e.g. tracking of convergence estimators by
statistical inference algorithms. Therefore, GraphLab abstraction
defines global values that are written by sync operation and read
by update functions. Sync operation contains a finalization phase
to support normalization (common task in MLDM algorithms).
In order to maintain updated estimates of the global values, sync
operation needs to run continuously in the background which
makes serializability of the sync operation an expensive task.
Therefore, multiple consistency levels are available for update
functions along with choice of consistent or inconsistent Sync
operation.
3.1 GraphLab Execution Model
GraphLab execution model is based on a single loop semantics.
Input to the model is data graph G = (V , E, D), an update function
and initial set of verticesT to be executed. Each step takes a vertex
from T , update and add to the updated set of vertices T for future
computations. There is no specific order of execution of vertices
besides only one constraint that eventually all the vertices should
be executed. As GraphLab allows prioritization, therefore users
can assign priorities to vertices in T .
3.2 Consistency Models
An execution model automatically translated from sequential
to parallel in such a way that multiple processors are executing
2
the same loop on the same graph i.e. simultaneous addition and
execution of vertices is not considered as a risk-free model. Over-
lapping computation should not run simultaneously. Therefore,
to retain the original semantics of sequential execution several
consistency models are introduced to work on optimization of
parallel execution while maintaining the serializability.
GraphLab’ runtime ensures serializability in three different
ways mentioned below.
Full Consistency in which scope of concurrently updating
functions cannot overlap and it has full access to read/write
but limited potential parallelism (because concurrently updating
vertices must be at-least two vertices apart).
Edge Consistency has slightly overlapping scope having
read-only access to the adjacent vertices with full read/write
access on the vertex and adjacent edges. It increases the paral-
lelism and used by many MLDM algorithms e.g. PageRank.
Vertex Consistency allows read-only access to the adjacent
vertices and edges with write-only access to the vertex. Update
function can run simultaneously on all the vertices in this type
of consistency model.
4 DISTRIBUTED GRAPHLAB DESIGN
In this section, shared memory setting design of GraphLab is
extended to more challenging distributed settings to discuss the
various required techniques. Overview of distributed GraphLab
design is illustrated by
fig:??.
Figure 2: System Overview
4.1 Distributed Data Graph
The key to implement an efficient distributed data graph is com-
putation, communication, storage and an appropriate balance
between all of them. Therefore, a two-phased partitioning process
for load balancing the graph across arbitrary cluster sizes is devel-
oped. First phase partitions the graph into k parts (called atom)
where k is greater than the number of machines. Atom is a file con-
taining graph generating commands e.g. AddVertex(100,vdata),
AddEdge(2 -> 4,edata). Atom also stores the ghosts information.
Ghosts are set of vertices and edges that are adjacent to the parti-
tion boundary. Atom index file contains meta data (connectivity
structure and file location) for k atoms. Second phase partitions
this meta-graph over the physical machines.
4.2 Distributed GraphLab Engines
GraphLab engine is responsible for execution of Sync operation
and Update function. It also maintains the scheduling set of Ver-
tices T and ensure serializability w.r.t to different consistency
models. As discussed in section 3.2, performance and expressive-
ness of execution model is dependent on implementation of how
vertices get removed from T . Two type of engines are introduced
to evaluate this trade-off, Chromatic Engine to support partial
asynchronous execution of set of vertices T and Locking Engine
a fully asynchronous engine to allow vertex priorities..
4.2.1 Chromatic Engine. Vertex coloring is a classic technique
to achieve a serializable parallel execution of a set of dependent
tasks (vertices in a graph). It requires full communication barrier
between two color steps. Given a vertex coloring of the data
graph, edge consistency model can be satisfied by executing all
vertices of the same color before going to next color, and running
syn operation between these color steps. Changes made to ghost
vertices and edges are communicated asynchronously. Vertex
consistency can be achieved by assigning the same color to all
the vertices. And finally, full consistency can be achieved by
constructing second-order vertex coloring (no vertex shares the
same color as any of its distance two neighbors). As an example
in MLDM optimization problems, bipartite (two-color) graphs
are used.
4.2.2 Distributed Locking Engine. Chromatic engine can not al-
low sufficient scheduling flexibility. Therefore, Distributed lock-
ing engine extends mutual exclusion technique to overcome this
limitation. It associates reader-writer locks on each vertex. Only
the local vertices can be updated by each machine. Different con-
sistency models using different protocols can be implemented. All
lock and sync requests are pipelined to reduce network latency.
A pipeline of vertices is maintained by each machine for which
locks are requested but not granted yet. Once the lock acquisition
and data synchronization are completed, vertex is executed. It
has been observed in experiments that strong and nearly linear
scalability is provided by distributed locking systems. The more
the length of the pipeline, the less is the runtime.
4.3 Fault Tolerance
Fault tolerance in GraphLab abstraction is achieved by distributed
checkpointing in two modes, synchronous and asynchronous
checkpointing.
Synchronous checkpointing suspends computation to save
all modified data since the last checkpoint. While Asynchro-
nous checkpointing is based on Chandy-Lamport snapshot
algorithm [7]. The snapshot step becomes an update function
in the GraphLab abstraction and is proven to be better than
synchronous checkpointing.
4.4 System Design
Each machine runs one instance of GraphLab in a distributed
setting. GraphLab processes are symmetric and communicate
via remote procedural calls. First process acts as a master and
computes placement of atoms based on atom’ index. A local
scheduler is maintained by each process (for its vertices) and a
cache to access the remote data. Distributed consensus algorithm
decides when all the schedulers will become empty.
3
5 APPLICATIONS
GraphLab was evaluated using three state-of-the-art MLDM ap-
plications. Collaborative filtering for Netflix Movie Recommenda-
tion, Named Entity Recognition (NER) using Chromatic Engine
and Video Co-segmentation (CoSeg) using distributed Locking
Engine. It was find out that GraphLab’s performance is compara-
ble to tailored MPI implementations and it outperforms Hadoop
by 20-60x. Also Netflix, CoSeg and NER were more compactly
expressed by GraphLab abstraction as compared to MapReduce
or MPI. (Ref to [12] for details about datasets and clusters speci-
fications).
In Netflix Movie Recommendation, ALS [14] algorithm
takes a sparse U sers × Movies matrix as input. This matrix con-
tains movies ratings for every user. ALS algorithm computes
low-rank matrix factorization. Rank of the matrices is denoted
as d. Higher the rank, higher the accuracy with high computa-
tional cost. High speedup is achieved by varying the values of d
& corresponding number of cycles per update by adding more
machines in incremental order. A fair comparison with MPI im-
plementation and Hadoop for fixed value of d = 20 and varying
number of machines from 4 to 64 has shown the runtime of the
experiment in seconds in the following order:
Hadoop > MPI > GraphLab
GraphLab performs 40-60 times faster than Hadoop.
Video Co-segmentation automatically identify and cluster
spatio-temporal segments of a video using LBP [10]. It makes use
of the distributed locking engine pipelines. Experiments showed
that locking engine is capable of achieving high performance
and scalability on a large 10.5 million vertex graph (utilized by
application). It resulted in 10x speedup with 16x more machines.
Optimal weak scaling provided by locking engine states that,
increase in the size of a graph in proportion to the number of
machines does not influence the runtime. Experiments by vary-
ing the length of pipeline showed that the length of pipeline is
directly proportional to the performance and thus compensate
the poor partitioning.
It is concluded that distributed GraphLab abstraction provides
excellent performance for video CoSeg task by allowing dynamic
prioritized scheduling. Pipelining has been proven as an effective
way to minimize the latency and poor partitioning.
Named Entity Recognition (NER) is a technique of Natural
Language Processing and information extraction. In experiments,
large amount of web crawled data is used to count the number
of occurrences of noun-phrases in each context. NER problem
constructs two set of vertices corresponding to noun phrases and
their contexts. This can be mapped as a bipartite data graph, if
noun-phrase occurs in the context, an edge is drawn between
noun-phrase and its context.
Experiments showed that NER is not able to scale like CoSeg
and Netflix. It could only achieve a modest 3x improvement us-
ing 16x more machines. Such poor scaling is because of large
vertex data size (816 bytes), random cut partitioning strategy
and dense connectivity structure, resulting in high communica-
tion overhead in each iteration. Network analysis showed that
NER utilizes more network bandwidth than Netflix and CoSeg. It
saturates with each machine having sending rate over 100MBPS.
6 STRENGTHS AND LIMITATIONS
In this section, we summarize few strengths and limitations of
distributed GraphLab abstraction. Application oriented extensive
experiments are considered as main strength of this paper. It
naturally exhibits dynamic priority scheduling asynchronously.
Fault tolerance using snapshotting schemes is reducing large
amount of communication overhead. Use of distributed locking
engine pipelines hides the network latency up-to high extent.
Random vertex-cut partitioning can perform badly in some ap-
plications like NER. There is a self-edges issue in GraphLab, it is
possible to change GraphLab system to allow self-edges using
flags but it requires significant changes to GraphLab code [3].
7 CURRENT STATE-OF-THE-ART
Initially GraphLab was started in 2009 by Prof. Carlos Guestrin
of Carnegie Mellon University as a research project. Later on
it turned into a start-up company named Dato. Its name was
changed to Turi few years back and finally on August 05, 2016 it
was acquired by Apple for 200 millions dollars.
Currently Turi Create1 supports development of custom ma-
chine learning models. It claims that it is no specifically designed
for machine learning experts. Common ML tasks such as Rec-
ommender, Regression, Clustering and Classifiers can easily be
accomplished by Turi Create. It has built-in support for data
visualization and it is easy to deploy on cross-platforms.
8 RELATED WORK
In this section we will discuss related distributed graph process-
ing systems including those introduced after GraphLab. In Sec.2
while explaining the core properties of MLDM algorithms, few
comparisons of GraphLab with high-level parallel distributed
systems [6][13][9] are discussed.
MapReduce [6] framework simplifies parallel processing by
map & reduce semantics. It partitions data randomly across ma-
chines. MapReduce implementation is not suitable for iterative
Graph algorithms due to high I/O cost of data shuffling at every
iteration.
Pregel [9] differs from GraphLab in terms of expressiveness
of dynamic computations. Update function in Pregel is initiated
by messages and it can only access the data associated with
each message, while GraphLab decouples the data movement
from future scheduling completely. Also Pregel doesn’t support
asynchronous properties of MLDM algorithms.
Giraph [1] (An open source implementation of Pregel[9]) is a
vertex-centric BSP system. It uses edge-cut approach to partition
data randomly. Similar to GraphLab it keeps all data in memory.
Giraph API has a Compute function which updates the state of
the vertex based on its own or neighbour’s data. Giraph is found
to be very competitive with GraphLab, when GraphLab runs for
fixed number of iterations using random partitioning. GraphLab
wins Giraph over large clusters.
Dryad [13] construct a dataflow graph by combining com-
putational vertices with communication channels and runs the
dataflow by communicating through TCP pipes and shared-memory
FIFOs. It is not based on vertex-centric computations.
Graph structured databases like Neo4J [2] mainly focus on effi-
cient CRUD operations of graph structured data while GraphLab
focuses on iterative graph structured computation.
HaLoop [15] (A modified MapReduce System) minimizes data
shuffling and network utilization after the very first iteration. It
makes master node loop-aware to reduce network communica-
tion. Slave nodes contain a special module to cache (on disk) and
index loop-invariant data (used in iterations).
1 https://turi.com
An extended implementation of Spark abstraction known as
GraphX [11] is designed for iterative graph operations. Similar
to GraphLab abstraction it uses vertex-cut partitioning strategy.
It allows developer to decide on what data portions to cache.
GraphX is not efficient when experimenting on applications re-
quiring large number of iterations [3].
Vertica [4] is a relational graph processing system which is
not competitive to existing distributed graph processing systems
due to high I/O and network cost overhead. It is found that this
overhead increases with the increase in cluster size.
9 CONCLUSION
We summarized the distributed GraphLab abstraction and other
related distributed graph processing systems.
To address the key properties exhibited by most of the MLDM
algorithms shared memory GraphLab abstraction is extended to
the distributed setting by improving the execution model, relax-
ing some scheduling requirements, integrating new distributed
data graph, introducing new fault-tolerance schemes and execu-
tion engines.
Two stage partitioning scheme is introduced in distributed
data graph design to achieve efficient load-balancing and dis-
tributed ingress for varying size clusters. A partially synchronous
chromatic engine and a fully synchronous distributed locking
engine are designed.
Distributed GraphLab abstraction was implemented in C++
and evaluated on Netflix, Named Entity Recognition and Video
CoSegmentation using real data. It was found by extensive ex-
periments that distributed GraphLab abstraction outperforms
Hadoop (20-60x) and compete with other MPI implementations.
REFERENCES
[1] 2010. Giraph. http://giraph.apache.org
[2] 2011. Neo4j. https://neo4j.com
[3] 2018. Analysis of Distributed Graph Systems. https://arxiv.org/abs/1806.08082
[4] Malu Castellanos Meichun Hsu Alekh Jindal, Samuel Madden. [n. d.]. Graph
analytics using vertica relational database. IEEE ([n. d.]).
[5] D. P. Bertsekas and J. N. Tsitsiklis. 1989. Parallel and distributed computation:
numerical methods. Prentice-Hall Inc. (1989).
[6] Y.-A. Lin Y. Yu G. Bradski A. Y. Ng C.-T. Chu, S. K. Kim. 2006. Map-reduce for
machine learning on multicore. NIPS (2006), 281–288.
[7] K. M. Chandy and L. Lamport. 1985. Distributed Snapshots: Determining
global states of distributed systems. ACM Trans 3, 1 (1985), 63–75.
[8] J. Dean and S. Ghemawat. 2004. simplified data processing on large clusters.
OSDI (2004).
[9] A. J. Bik J. Dehnert I. Horn N. Leiser G. Malewicz, M. H. Austern and G.
Czajkowski. 2010. Pregel: a system for large-scale graph processing. SIGMOD
(November 2010), 135–146.
[10] Y. Low J. Gonzalez and C. Guestrin. 2009. Belief Propagation:Residual splash
for optimally parallelizing belief propagation. AISTATS 5 (2009), 177–184.
[11] Ankur Dave Daniel Crankshaw Michael J. Franklin Joseph E. Gonzalez,
Reynold S. Xin and Ion Stoica. 2014. Graph processing in a distributed dataflow
framework. Proc. 11th USENIX Symp (2014).
[12] GONZALEZ J. KYROLA A. BICKSON GUESTRIN C. LOW, Y. and J. M.
HELLERSTEIN. 2012. Distributed GraphLab: A Framework for Machine
Learning and Data Mining in the Cloud. PVLDB (2012).
[13] Y. Yu A. Birrell M. Isard, M. Budiu and D.Fetterly. 2007. distributed data-parallel
programs from sequential building blocks. EuroSys (2007), 59âĂŞ72.
[14] R. Schreiber Y. Zhou, D. Wilkinson and R.Pan. 2008. Large-scale parallel
collaborative filtering for the netflix prize. AAIM (2008), 337âĂŞ348.
[15] Magdalena Balazinska Yingyi Bu, Bill Howe and Michael D. Ernst. 2012. The
HaLoop approach to large-scale iterative data analysis. VLDB (2012), 169–190.
