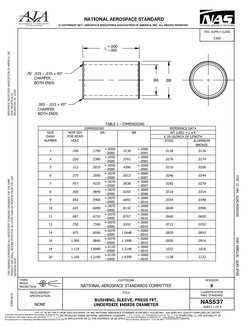

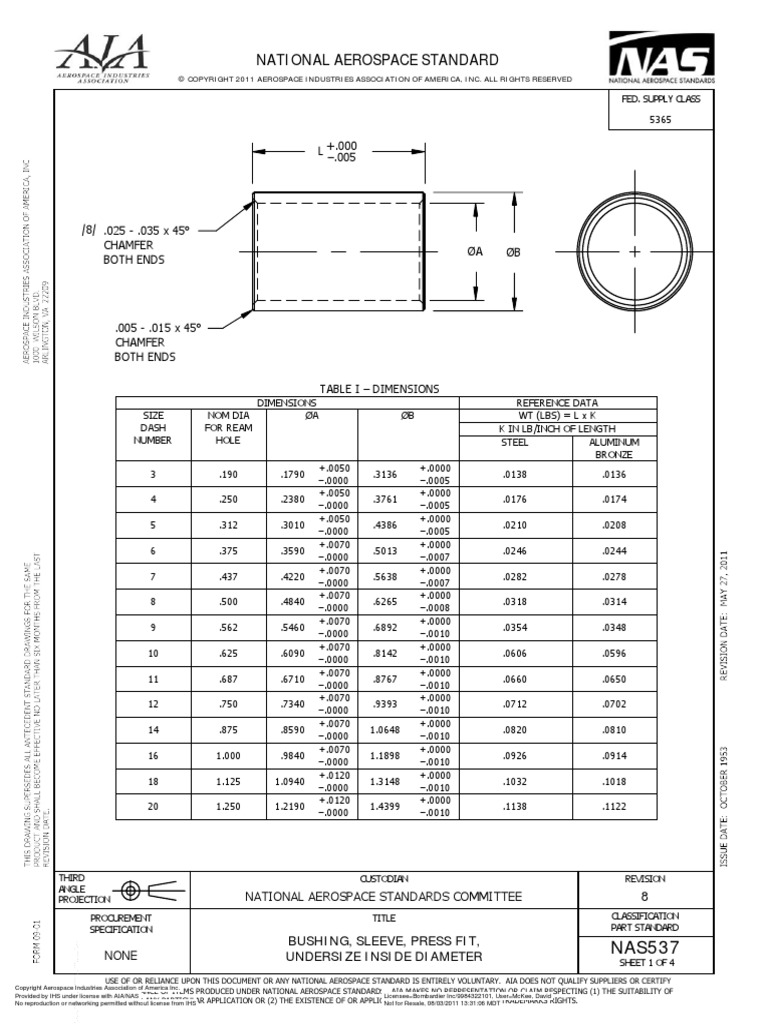

NATIONAL AEROSPACE STANDARD
© COPYRIGHT 2011 AEROSPACE INDUSTRIES ASSOCIATION OF AMERICA, INC. ALL RIGHTS RESERVED
FED. SUPPLY CLASS
5365
L +.000
.005
/8/ .025 - .035 x 45°
CHAMFER
ØA ØB
BOTH ENDS
.005 - .015 x 45°
CHAMFER
BOTH ENDS
TABLE I DIMENSIONS
DIMENSIONS REFERENCE DATA
SIZE NOM DIA ØA ØB WT (LBS) = L x K
DASH FOR REAM K IN LB/INCH OF LENGTH
NUMBER HOLE STEEL ALUMINUM
BRONZE
+.0050 +.0000
3 .190 .1790 .3136 .0138 .0136
.0000 .0005
+.0050 +.0000
4 .250 .2380 .3761 .0176 .0174
.0000 .0005
+.0050 +.0000
5 .312 .3010 .4386 .0210 .0208
.0000 .0005
+.0070 +.0000
6 .375 .3590 .5013 .0246 .0244
.0000 .0007
+.0070 +.0000
7 .437 .4220 .5638 .0282 .0278
.0000 .0007
+.0070 +.0000
8 .500 .4840 .6265 .0318 .0314
.0000 .0008
+.0070 +.0000
9 .562 .5460 .6892 .0354 .0348
.0000 .0010
+.0070 +.0000
10 .625 .6090 .8142 .0606 .0596
.0000 .0010
+.0070 +.0000
11 .687 .6710 .8767 .0660 .0650
.0000 .0010
+.0070 +.0000
12 .750 .7340 .9393 .0712 .0702
.0000 .0010
+.0070 +.0000
14 .875 .8590 1.0648 .0820 .0810
.0000 .0010
+.0070 +.0000
16 1.000 .9840 1.1898 .0926 .0914
.0000 .0010
+.0120 +.0000
18 1.125 1.0940 1.3148 .1032 .1018
.0000 .0010
+.0120 +.0000
20 1.250 1.2190 1.4399 .1138 .1122
.0000 .0010
THIRD CUSTODIAN REVISION
ANGLE
PROJECTION NATIONAL AEROSPACE STANDARDS COMMITTEE 8
PROCUREMENT TITLE CLASSIFICATION
SPECIFICATION PART STANDARD
BUSHING, SLEEVE, PRESS FIT,
NONE UNDERSIZE INSIDE DIAMETER
NAS537
SHEET 1 OF 4
USE OF OR RELIANCE UPON THIS DOCUMENT OR ANY NATIONAL AEROSPACE STANDARD IS ENTIRELY VOLUNTARY. AIA DOES NOT QUALIFY SUPPLIERS OR CERTIFY
Copyright Aerospace Industries Association of America Inc.
CONFORMANCE OF ITEMS PRODUCED UNDER NATIONAL AEROSPACE STANDARDS. AIA MAKES NO REPRESENTATION OR CLAIM RESPECTING (1) THE SUITABILITY OF
Provided by IHS under license with AIA/NAS Licensee=Bombardier Inc/9984322101, User=McKee, David
ITEMS without
No reproduction or networking permitted FOR ANY PARTICULAR
license from IHS APPLICATION OR (2) THE EXISTENCE OF OR APPLICABILITY THERETO
Not for Resale, OF PATENT
08/03/2011 OR TRADEMARKS RIGHTS.
13:31:06 MDT
NATIONAL AEROSPACE STANDARD
© COPYRIGHT 2011 AEROSPACE INDUSTRIES ASSOCIATION OF AMERICA, INC. ALL RIGHTS RESERVED

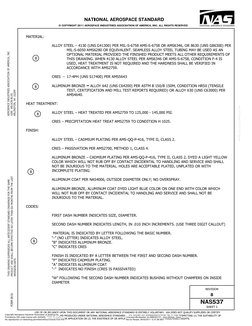

MATERIAL:
ALLOY STEEL 4130 (UNS G41300) PER MIL-S-6758 AMS-S-6758 OR AMS6346, OR 8630 (UNS G86300) PER
MIL-S-6050 AMS6280 OR EQUIVALENT. SEAMLESS ALLOY STEEL TUBING MAY BE USED AS AN
OPTIONAL MATERIAL PROVIDED THE FINISHED PRODUCT MEETS ALL OTHER REQUIREMENTS OF
8 THIS DRAWING. WHEN 4130 ALLOY STEEL PER AMS6346 OR AMS-S-6758, CONDITION F-4 IS
USED, HEAT TREATMENT IS NOT REQUIRED AND THE HARDNESS SHALL BE VERIFIED IN
ACCORDANCE WITH AMS2759.
CRES 17-4PH (UNS S17400) PER AMS5643
8 ALUMINUM BRONZE ALLOY 642 (UNS C64200) PER ASTM B 150/B 150M, CONDITION HR50 (TENSILE
TEST, CERTIFICATION AND MILL TEST REPORTS REQUIRED) OR ALLOY 630 (UNS C63000) PER
AMS4640.
HEAT TREATMENT:
8 ALLOY STEEL HEAT TREATED PER AMS2759 TO 125,000 - 145,000 PSI.
CRES PRECIPITATION HEAT TREAT AMS2759 TO CONDITION H 1025.
FINISH:
ALLOY STEEL CADMIUM PLATING PER AMS-QQ-P-416, TYPE II, CLASS 2.
CRES PASSIVATION PER AMS2700, METHOD 1, CLASS 4.
ALUMINUM BRONZE CADMIUM PLATING PER AMS-QQ-P-416, TYPE II, CLASS 2, DYED A LIGHT YELLOW
COLOR WHICH WILL NOT RUB OFF BY CONTACT INCIDENTAL TO HANDLING AND SERVICE AND SHALL
NOT BE INJURIOUS TO THE MATERIAL. HOLES ARE ACCEPTABLE PLATED, UNPLATED OR WITH
8 INCOMPLETE PLATING.
ALUMINUM COAT PER NAS4006, OUTSIDE DIAMETER ONLY; NO OVERSPRAY.
ALUMINUM BRONZE, ALUMINUM COAT DYED LIGHT BLUE COLOR ON ONE END WITH COLOR WHICH
WILL NOT RUB OFF BY CONTACT INCIDENTAL TO HANDLING AND SERVICE AND SHALL NOT BE
INJURIOUS TO THE MATERIAL.
CODES:
FIRST DASH NUMBER INDICATES SIZE, DIAMETER.
SECOND DASH NUMBER INDICATES LENGTH, IN .010 INCH INCREMENTS. (USE THREE DIGIT CALLOUT)
MATERIAL IS INDICATED BY LETTER FOLLOWING THE BASIC NUMBER.
(NO LETTER) INDICATES ALLOY STEEL.
8 INDICATES ALUMINUM BRONZE.
INDICATES CRES
FINISH IS INDICATED BY A LETTER BETWEEN THE FIRST AND SECOND DASH NUMBER.
INDICATES CADMIUM PLATING.
INDICATES ALUMINUM COAT
INDICATES NO FINISH (CRES IS PASSIVATED)
FOLLOWING THE SECOND DASH NUMBER INDICATES BUSHING WITHOUT CHAMFERS ON INSIDE
DIAMETER
REVISION
8
NAS537
SHEET 2
USE OF OR RELIANCE UPON THIS DOCUMENT OR ANY NATIONAL AEROSPACE STANDARD IS ENTIRELY VOLUNTARY. AIA DOES NOT QUALIFY SUPPLIERS OR CERTIFY
Copyright Aerospace Industries Association of America Inc.
CONFORMANCE OF ITEMS PRODUCED UNDER NATIONAL AEROSPACE STANDARDS. AIA MAKES NO REPRESENTATION OR CLAIM RESPECTING (1) THE SUITABILITY OF
Provided by IHS under license with AIA/NAS Licensee=Bombardier Inc/9984322101, User=McKee, David
ITEMS without
No reproduction or networking permitted FOR ANY PARTICULAR
license from IHS APPLICATION OR (2) THE EXISTENCE OF OR APPLICABILITY THERETO
Not for Resale, OF PATENT
08/03/2011 OR TRADEMARKS RIGHTS.
13:31:06 MDT
NATIONAL AEROSPACE STANDARD
© COPYRIGHT 2011 AEROSPACE INDUSTRIES ASSOCIATION OF AMERICA, INC. ALL RIGHTS RESERVED

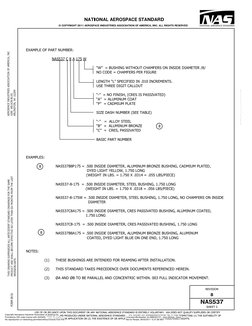

EXAMPLE OF PART NUMBER:
NAS537 C 8 A 175 W
= BUSHING WITHOUT CHAMFERS ON INSIDE DIAMETER /8/
NO CODE = CHAMFERS PER FIGURE
LENGTH SPECIFIED IN .010 INCREMENTS.
USE THREE DIGIT CALLOUT
= NO FINISH, (CRES IS PASSIVATED)
= ALUMINUM COAT
= CADMIUM PLATE
SIZE DASH NUMBER (SEE TABLE)
= ALLOY STEEL
= ALUMINUM BRONZE 8
= CRES, PASSIVATED
BASIC PART NUMBER
EXAMPLES:
8 NAS537B8P175 = .500 INSIDE DIAMETER, ALUMINUM BRONZE BUSHING, CADMIUM PLATED,
DYED LIGHT YELLOW, 1.750 LONG
(WEIGHT IN LBS. = 1.750 X .0314 = .055 LBS/PIECE)
NAS537-8-175 = .500 INSIDE DIAMETER, STEEL BUSHING, 1.750 LONG
(WEIGHT IN LBS. = 1.750 X .0318 = .056 LBS/PIECE)
NAS537-8-175W = .500 INSIDE DIAMETER, STEEL BUSHING, 1.750 LONG, NO CHAMFERS ON INSIDE
DIAMETER
NAS537C8A175 = .500 INSIDE DIAMETER, CRES PASSIVATED BUSHING, ALUMINUM COATED,
1.750 LONG
NAS537C8-175 = .500 INSIDE DIAMETER, CRES PASSIVATED BUSHING, 1.750 LONG
8 NAS537B8A175 = .500 INSIDE DIAMETER, ALUMINUM BRONZE BUSHING, ALUMINUM
COATED, DYED LIGHT BLUE ON ONE END, 1.750 LONG
NOTES:
(1) THESE BUSHINGS ARE INTENDED FOR REAMING AFTER INSTALLATION.
(2) THIS STANDARD TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN.
(3) ØA AND ØB TO BE PARALLEL AND CONCENTRIC WITHIN. 003 FULL INDICATOR MOVEMENT.
REVISION
8
NAS537
SHEET 3
USE OF OR RELIANCE UPON THIS DOCUMENT OR ANY NATIONAL AEROSPACE STANDARD IS ENTIRELY VOLUNTARY. AIA DOES NOT QUALIFY SUPPLIERS OR CERTIFY
Copyright Aerospace Industries Association of America Inc.
CONFORMANCE OF ITEMS PRODUCED UNDER NATIONAL AEROSPACE STANDARDS. AIA MAKES NO REPRESENTATION OR CLAIM RESPECTING (1) THE SUITABILITY OF
Provided by IHS under license with AIA/NAS Licensee=Bombardier Inc/9984322101, User=McKee, David
ITEMS without
No reproduction or networking permitted FOR ANY PARTICULAR
license from IHS APPLICATION OR (2) THE EXISTENCE OF OR APPLICABILITY THERETO
Not for Resale, OF PATENT
08/03/2011 OR TRADEMARKS RIGHTS.
13:31:06 MDT
NATIONAL AEROSPACE STANDARD
© COPYRIGHT 2011 AEROSPACE INDUSTRIES ASSOCIATION OF AMERICA, INC. ALL RIGHTS RESERVED

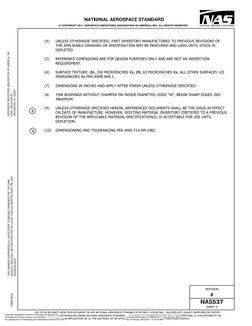

(4) UNLESS OTHERWISE SPECIFIED, PART INVENTORY MANUFACTURED TO PREVIOUS REVISIONS OF
THE APPLICABLE DRAWING OR SPECIFICATION MAY BE PROCURED AND USED UNTIL STOCK IS
DEPLETED.
(5) REFERENCE DIMENSIONS ARE FOR DESIGN PURPOSES ONLY AND ARE NOT AN INSPECTION
REQUIREMENT.
(6) SURFACE TEXTURE: ØA, 250 MICROINCHES Ra, ØB, 63 MICROINCHES Ra, ALL OTHER SURFACES 125
MICROINCHES Ra PER ASME B46.1.
(7) DIMENSIONS IN INCHES AND APPLY AFTER FINISH UNLESS OTHERWISE SPECIFIED.
/8/ FOR BUSHINGS WITHOUT CHAMFER ON INSIDE DIAMETER, CODE , BREAK SHARP EDGES .005
MAXIMUM.
(9) UNLESS OTHERWISE SPECIFIED HEREIN, REFERENCED DOCUMENTS SHALL BE THE ISSUE IN EFFECT
8 ON DATE OF MANUFACTURE. HOWEVER, EXISTING MATERIAL INVENTORY CERTIFIED TO A PREVIOUS
REVISION OF THE APPLICABLE MATERIAL SPECIFICATION(S) IS ACCEPTABLE FOR USE UNTIL
DEPLETION.
8 (10) DIMENSIONING AND TOLERANCING PER ANSI Y14.5M-1982.
REVISION
8
NAS537
SHEET 4
