Cisco CCNA – Spanning Tree Protocol(Root Bridge, Root/Designated/Blocked Ports)

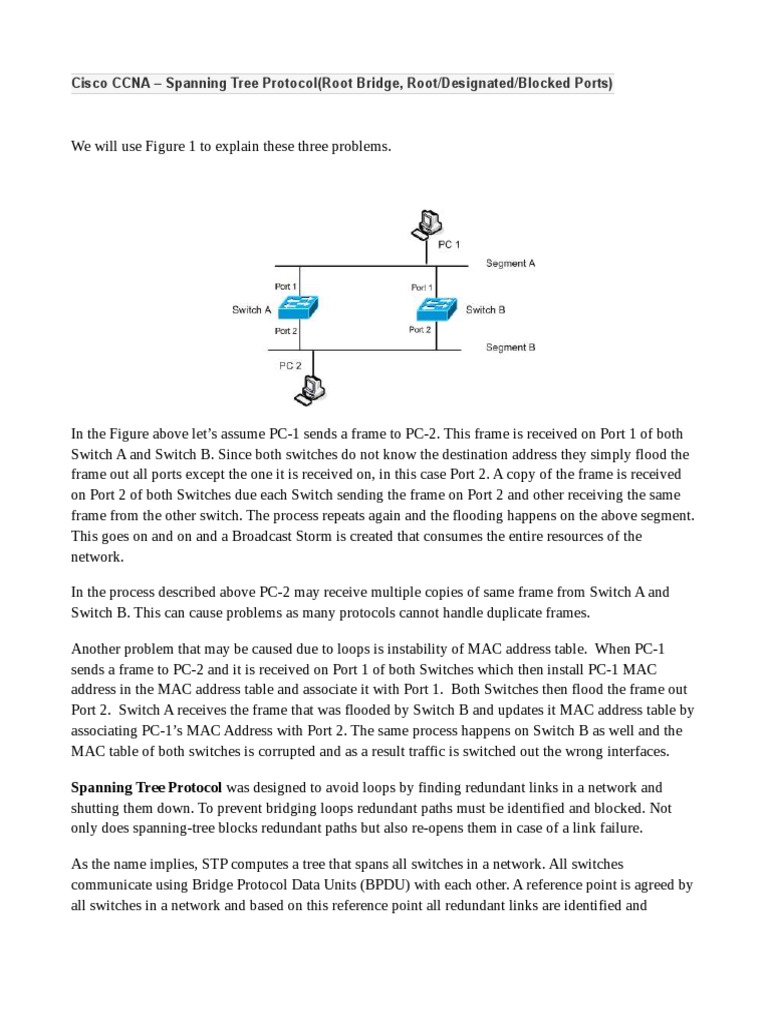

We will use Figure 1 to explain these three problems.

In the Figure above let’s assume PC-1 sends a frame to PC-2. This frame is received on Port 1 of both
Switch A and Switch B. Since both switches do not know the destination address they simply flood the
frame out all ports except the one it is received on, in this case Port 2. A copy of the frame is received
on Port 2 of both Switches due each Switch sending the frame on Port 2 and other receiving the same
frame from the other switch. The process repeats again and the flooding happens on the above segment.
This goes on and on and a Broadcast Storm is created that consumes the entire resources of the
network.

In the process described above PC-2 may receive multiple copies of same frame from Switch A and
Switch B. This can cause problems as many protocols cannot handle duplicate frames.

Another problem that may be caused due to loops is instability of MAC address table.  When PC-1
sends a frame to PC-2 and it is received on Port 1 of both Switches which then install PC-1 MAC
address in the MAC address table and associate it with Port 1.  Both Switches then flood the frame out
Port 2.  Switch A receives the frame that was flooded by Switch B and updates it MAC address table by
associating PC-1’s MAC Address with Port 2. The same process happens on Switch B as well and the
MAC table of both switches is corrupted and as a result traffic is switched out the wrong interfaces.

Spanning Tree Protocol was designed to avoid loops by finding redundant links in a network and
shutting them down. To prevent bridging loops redundant paths must be identified and blocked. Not
only does spanning-tree blocks redundant paths but also re-opens them in case of a link failure.

As the name implies, STP computes a tree that spans all switches in a network. All switches
communicate using Bridge Protocol Data Units (BPDU) with each other. A reference point is agreed by
all switches in a network and based on this reference point all redundant links are identified and
blocked and only one path is allowed to forward traffic. If a link that was previously forwarding fails
STP automatically enables one of redundant blocked links as the new active path.

Spanning Tree Workings

To obtain a loop-free topology STP uses three steps mentioned below

• Elect one Root Bridge

• Select one Root Port on the non-root bridges
• Select one Designated Port on each segment
We will use figure 2 in our explanations for these three steps

Electing a Root Bridge

A Root Bridge is a reference point for all switches in a spanning-tree topology. Across all connected
switches a process of election occurs and the Bridge with the Lowest Bridge ID is elected as the Root
Bridge. Bridge ID is an 8-byte Value that consists of 2-Byte Bridge Priority and 6-Byte System ID
which is the burned in MAC address of the Switch.
Initially all switches began advertising them selves as the Root Bride in BPDUs but once they receive a
superior BPDU, one which has a lower Bridge ID, they cease the messages and starts forwarding the
superior BPDUs .
In the above Figure all switches began with advertising themselves as the Root Bridge. When Switch B
receives the BPDU from Switch A it compares the Bridge ID of itself with that of Switch A. Since the
Priorities are same, the MAC address is used as the tie breaker and thus Switch A wins due to lower
MAC Address. Switch B stops sending its BPDU and forwards the BPDU from A. This Process repeats
on Switch C as well and it ceases the generation of BPDU and instead forwards BPDUs from A. Now a
single reference point for the network is elected which is Switch A, all other switches now forward STP
BPDUs received from Root Bridge.

Before we move on to next step we must know that every port in the Spanning-tree topology will end
up in one of three Port Roles

• Root Port
 • Designated Port
• Non-Designated/Blocking Port
 Select one Root Port on the non-root bridges

Once a Root Bridge is elected all non-root Bridges elect a Root Port. This is a port that has the lowest
cumulative path cost towards the Root Bridge. A Root Port is an upstream facing port that always
points towards the Current Root Bridge.

Table 1 lists the Default Port Costs according to the IEEE 802.1D

Link STP Cost

Bandwidth

4 Mbps 250

10 Mbps 100

100 Mbps 19

1 Gbps 4

10 Gbps 2

In Figure 2, as mentioned above Switch A will be the Root Bridge and it will send BPDUs out its
interfaces every 2 Seconds with Root Path Cost of 0 as all its ports are attached to itself. Upon the
receiving the BPDU Switch B and C will add the Path Cost of Port Gi0/0 which is 4. Both Switches
then forward the BPDU with Root Path Cost of 4 out of Gi0/1 Interface. They will then receive BPDU
from the other Switch on the Gi0/1 and add the Path Cost of 4.
Thus both Switches will have Root Path Cost of 4 on Gi0/0 and Root Path cost of 8 on Gi0/1 and as a
result Gi0/0 will be the Root Port on both Switch A and Switch B
Select one Designated Port on each segment

The final step is to select one Designated Port on each segment. The Port that advertises the lowest
Root Path Cost onto the segment is elected as Designated Port. Let’s Consider the Segment between
Switch B and Switch C. Both Switches advertise 4 as the Root Path Cost, now there is a tie.  Whenever
selecting Root Ports or Designated Ports if two or more ports report the same Root Path Cost then the
following tie breaker mechanism occurs

• Lowest Sender Bridge ID

• Lowest Sender Port Priority
• Lowest Sender Port Number
 Thus port Gi0/1 of Switch B will be selected as the Designated Port for the segment between Switch B
and Switch C as Switch B advertised lowest Bridge ID on to the Segment.

All ports of the Root Bridge are Designated Ports and any port that is not a Root Port or a Designated
Port becomes the Blocking Port and is blocked to prevent loops.

Figure 3(a) shows the final converged loop-free topology.  Port Gi0/1 of Switch C is put in the
Blocking State and the loop is effectively removed and we obtain a topology similar to one in Figure
3(b).

Note that if there are topological changes STP will re-converge. In case of a failure of the link between
Switch A and Switch B the blocked port of Switch C will be put in to forwarding state.

When ever a Port is enabled and the STP process starts or whenever STP re-converges to a stable
topology the Port has to transition different STP Port States. There are five STP Port states which are
mentioned below

• Disabled
• Blocking
• Listening
• Learning
• Forwarding
 All Ports when administratively shut down fall in the category of Disabled State. When a Port is
enabled it will start in Blocking State to prevent any loops and thus no forwarding of traffic will take
place neither the port will learn any MAC addresses.  A Blocked Port will only process received
BPDUs from neighboring switches.

A port that can be selected as Root Port or Designated Port will transition to Listening state. In this
state the port will be allowed to send BPDUs as well so that it can actively participate in Spanning-tree.
After a period of time called Forward Delay (15 Seconds by Default) the Port can transition to
Learning State in which it can learn MAC Addresses and send/receive BPDUs but still cannot forward
or receive traffic.

After another Forward Delay the port is transitioned to Forwarding state and now it can send and
receive traffic and is a fully functional port.
