01 CEMENT
MTC/
MORTH, Table:900-6
a. Compressive Strength HCC F 40 14 Once per each source/batch W R RI Min 53 MPa
IS:4031(Part-6)
27
MTC/
Consistency , Initial and Final Setting MORTH, Table:900-6
b. HCC F 40 14 Once per each source/batch W R RI Not specified
Time test IS:4031(Part-5)
50
MTC/
MORTH, Table:900-6
c. Fineness test by dry sieving HCC F 40 14 Once per each source/batch W R RI % retained on 90 m sieve = Max 10
IS:4031(Part-1)
49
MTC/
MORTH, Table:900-6
d. Soundness test HCC F 40 14 Once per each source/batch W R RI Le-Chatelier expansion (mm)-Max 10
IS:4031(Part-3)
51
e. Determination of Chemical properties IS-455;1989 External Lab Report As & when required R R RI As per IS: 455-1989
02 REINFORCEMENT (TMT-BAR)
MTC /
MORTH, Clause-1009 MTC /
a. Ultimate Tensile Strength Confirmity test as per R R RI For Fe: 415: Min 485 MPA
IS:1786 External Lab Report
Engr.
03 COARSE AGGREGATE
f. Flakiness index IS:2386 , Part-1 HCC F 40 14 10 1 per source /month W R IP Max 35%
g. Moisture content IS:2386 , Part-3 Internal Report Prior to concreting as required W R IP Not specified
I. Total of all Deleterious constituents IS: 2386-Part-2 External Lab Report External testing R R ST Max 5%
Page2

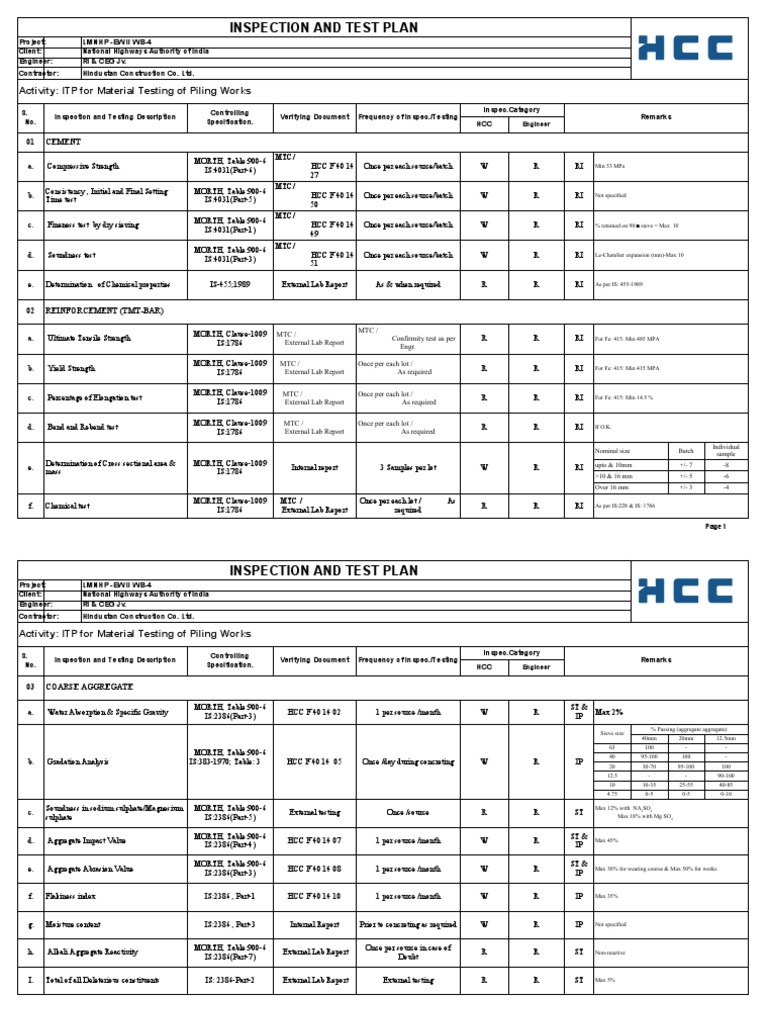

INSPECTION AND TEST PLAN
Project: LMNHP -EW II WB-4
Client: National Highways Authority of India
Engineer: RI & CEG Jv.
Contractor: Hindustan Construction Co. Ltd.
04 FINE AGGREGATE
% passing
Sieve size
Zone-I Zone-II Zone-III
b. Grading analysis IS: 383-1970 ; Table: 4 HCC F 40 14 04 1 per day during concrete W R IP 2.36 mm 60-95 75-100 85-100
d. Specific gravity IS: 2386-Part-3 HCC F 40 14 03 Once , as & when required W R IP Not specified
e. Water absorption IS: 2386-Part-3 HCC F 40 14 03 Once , as & when required W R IP Max 2%
h. Alkali aggregate reactivity IS: 2386-Part-7 External Lab Report once per source R R ST Non-reactive
I. Total of all Deleterious constituents IS: 2386-Part-2 External Lab Report Once per each source R R ST Max 5%
Page3
INSPECTION AND TEST PLAN
Project: LMNHP -EW II WB-4
Client: National Highways Authority of India
Engineer: RI & CEG Jv.
Contractor: Hindustan Construction Co. Ltd.
05 WATER
06 CONCRETE
MORTH MORTH
b. Compressive Strength of Concrete (Cubes) HCC F 40 14 25 W WR AT Min- 35mpa
Clause-1716 Table:1700-8
Page4
INSPECTION AND TEST PLAN
Project: LMNHP -EW II WB-4
Client: National Highways Authority of India
Engineer: RI & CEG Jv.
Contractor: Hindustan Construction Co. Ltd.
08 CONCRETE ADMIXTURES
MTC & External test as per MTC Verification & External Within 10% of the value or within 0.2% ,whichever is greater as
d. Chloride ion content IS 9103: 1999 Engineers discretion R R AT stated by the manufacturer
testing
09 BENTONITE
a. Silt content determination Clause 115.2.3 of MOST Internal Record As & when required W R ST Silt content = < 1%
HCC F 40 14 37
b Liquid Limit Clause 115.2.3 of MOST As & when required W R ST LL = < 400%
LEGEND: H: Hold Point; W: Witness S: Surviellance Inspection; R: Review of Reports; MTC: Manufacturer's Test Certificate;MORTH: Ministry of Road Transport & Highways
Note: Receiving Inspection: (RI) Visual Inspection and Verification of Manufacturer Test Certificate.
Acceptance Test: (AT) Accpetance of the activity, Material
Screening Test: (ST) Tests during Source / Material Approval
In-Process: (IP) Tests during the Process / execution of the work
Format No: HCC T 40 17 16, Rev No: 00, Rev Date: 28.08.06
