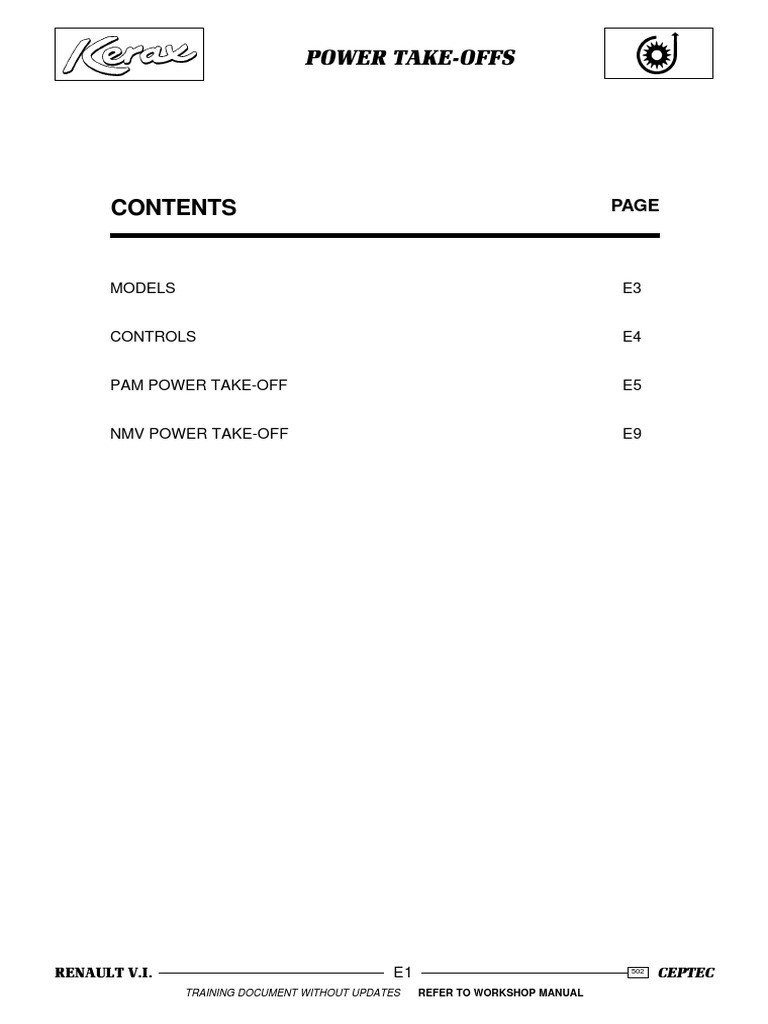

POWER TAKE-OFFS
CONTENTS PAGE
MODELS E3
CONTROLS E4
PAM POWER TAKE-OFF E5
NMV POWER TAKE-OFF E9
RENAULT V.I. E1 502 CEPTEC
TRAINING DOCUMENT WITHOUT UPDATES REFER TO WORKSHOP MANUAL
RENAULT V.I. E2 502 CEPTEC
TRAINING DOCUMENT WITHOUT UPDATES REFER TO WORKSHOP MANUAL
MODELS
Forward-mounted:
Optional pulley to drive air conditioning compressor.
POWER TAKE-OFF
Mounted behind engine:
Continuous-drive power take-offs
- PAM - 101 - 102 C (on 6x4 300 hp and 4x2 260 hp), output located at "1 o'clock"
- 121 - 122 C (on concrete/cement mixers and on 4x2 - 6x4 - 8x4 optionally)
output located at "12 o'clock"
Power take-offs with disengageable drive (on 4 x 2 - 6 x 4 - 8 x 4)
- NMV 221 (with ZF 16S151 gearbox and GMF Z 430 N clutch)
GEARBOX-MOUNTED POWER TAKE-OFF
GEARBOX-MOUNTED POWER TAKE-OFF
DIRECTION
MAXIMUM
GEARBOX PTO OUTPUT OF RATIO
TORQUE
ROTATION
N71-1C Internal spline Opposite 500 Nm 0.77
ZF 9S109
N109-10 * Flange Engine 540 Nm 1.16
N71-2B Flange Engine 300 Nm 1.01/1.21
ZF 16S151 N71-2C Internal spline Engine 300 Nm 1.01/1.21
N71-4C Internal spline Engine 400 Nm 1.01/1.21
EATON 2266B Flange Engine 400 Nm 1.07
8209 2266C Internal spline Engine 400 Nm 1.07
* continuous operation
RENAULT V.I. E3 502 CEPTEC
TRAINING DOCUMENT WITHOUT UPDATES REFER TO WORKSHOP MANUAL
CONTROLS
CONTROL FOR POWER TAKE-OFF
NMV 221
Watch out for engine speed !
The power take-off cannot be engaged
at speeds over :
- 2000 rpm (reduction ratio 0.98)
- 1300 rpm (reduction ratio 1.55)
1 Engagement control
2 Disengagement control
* maximum values varying depending on
equipment driven by the power take-off.
POWER TAKE-OFF CONTROL
Do not confuse the
controls for the engine-
and gearbox-mounted
power take-offs
RENAULT V.I. E4 502 CEPTEC
TRAINING DOCUMENT WITHOUT UPDATES REFER TO WORKSHOP MANUAL
PAM POWER TAKE-OFF
PAM
The drive is continuous
RENAULT V.I. E5 502 CEPTEC
TRAINING DOCUMENT WITHOUT UPDATES REFER TO WORKSHOP MANUAL
PAM POWER TAKE-OFF
PAM
Lubrication
from engine
300
How does it work ?
Clearance
0.01 to 0.06
103
PAM 101 C PAM 102 C
Output
600 mN 981 mN
torque
Ratio 1.04 1.04
Direction of
Engine Engine
rotation
Internal Flanged
Output
spline output
RENAULT V.I. E6 502 CEPTEC
TRAINING DOCUMENT WITHOUT UPDATES REFER TO WORKSHOP MANUAL
300
Lubrication
from
engine
Clearance : 0.01 to 0.06 mm
How
does it work ?
103
PAM 121 C PAM 122 C
Output
600 mN 1000 mN
torque
Ratio 1.04 1.04
Direction
Engine Engine
of rotation
Internal Flanged
Output
spline output
RENAULT V.I. E7 502 CEPTEC
TRAINING DOCUMENT WITHOUT UPDATES REFER TO WORKSHOP MANUAL
RENAULT V.I. E8 502 CEPTEC
TRAINING DOCUMENT WITHOUT UPDATES REFER TO WORKSHOP MANUAL
NMV 221 POWER TAKE-OFF
NMV 221
NMV schematic
1- Clutch with direct drive for NMV
2- Multi-disc clutch with hydraulic control
3- Pneumatically activated control valve
4- Oil pump
5- NMV output flange
6- Main gearbox input shaft
output torque : 2000 Nm
RENAULT V.I. E9 502 CEPTEC
TRAINING DOCUMENT WITHOUT UPDATES REFER TO WORKSHOP MANUAL
RENAULT V.I.
Pneumatic pilot-
A single oil pump control pressure
is used to lubricate the gearbox
and to control the Slide valve controlling
power take-off hydraulic pressure flow
to clutch
TRAINING DOCUMENT WITHOUT UPDATES
Oil pump
Aspiration circuit
LUBRICATION CIRCUIT
Pressurized circuit
Pressure control circuit
E10
REFER TO WORKSHOP MANUAL
Gearbox lubrication
Pressure control valve
Strainer
NMV 221
502
CEPTEC
*9 sets of discs
PRESENTATION
NMV 221
on the inside ?
What is there
RENAULT V.I. E11 502 CEPTEC
TRAINING DOCUMENT WITHOUT UPDATES REFER TO WORKSHOP MANUAL
RENAULT V.I.
ATTENTION
the emergency control A
was designed only to stop C
operations in progress :
(for example : draining
the concrete mixer)
TRAINING DOCUMENT WITHOUT UPDATES
EMERGENCY CONTROL
To activate emergency control
With engine at rest, remove screw C
and retainer A . Manoeuvre the
E12
output shaft whilst loosening hexagon
nut B by 3 complete turns so the
REFER TO WORKSHOP MANUAL
power take-off shaft can engage.
Refit retainer A and screw C .
NMV 221
502
CEPTEC
