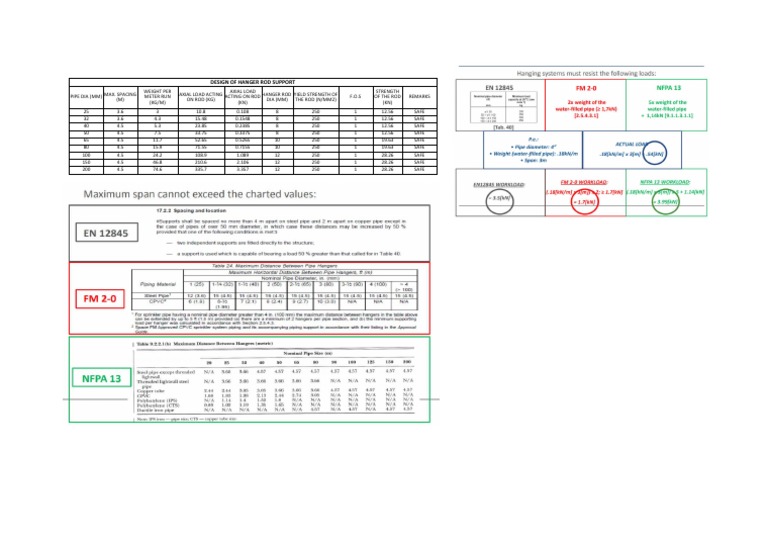

DESIGN OF HANGER ROD SUPPORT

WEIGHT PER AXIAL LOAD STRENGTH

MAX. SPACING AXIAL LOAD ACTING HANGER ROD YIELD STRENGTH OF
PIPE DIA (MM) METER RUN ACTING ON ROD F.O.S OF THE ROD REMARKS
(M) ON ROD (KG) DIA (MM) THE ROD (N/MM2)
(KG/M) (KN) (KN)
25 3.6 3 10.8 0.108 8 250 1 12.56 SAFE
32 3.6 4.3 15.48 0.1548 8 250 1 12.56 SAFE
40 4.5 5.3 23.85 0.2385 8 250 1 12.56 SAFE
50 4.5 7.5 33.75 0.3375 8 250 1 12.56 SAFE
65 4.5 11.7 52.65 0.5265 10 250 1 19.63 SAFE
80 4.5 15.9 71.55 0.7155 10 250 1 19.63 SAFE
100 4.5 24.2 108.9 1.089 12 250 1 28.26 SAFE
150 4.5 46.8 210.6 2.106 12 250 1 28.26 SAFE
200 4.5 74.6 335.7 3.357 12 250 1 28.26 SAFE
