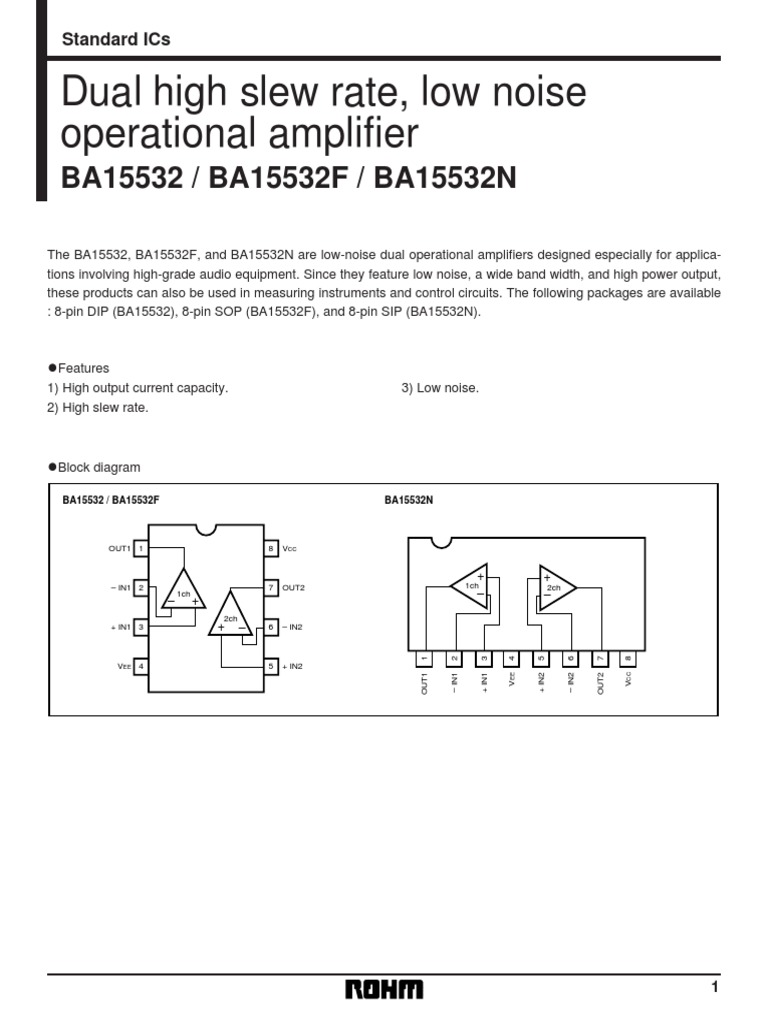

Standard ICs

Dual high slew rate, low noise


operational amplifier
BA15532 / BA15532F / BA15532N

The BA15532, BA15532F, and BA15532N are low-noise dual operational amplifiers designed especially for applica-
tions involving high-grade audio equipment. Since they feature low noise, a wide band width, and high power output,
these products can also be used in measuring instruments and control circuits. The following packages are available
: 8-pin DIP (BA15532), 8-pin SOP (BA15532F), and 8-pin SIP (BA15532N).

•1)Features
High output current capacity. 3) Low noise.
2) High slew rate.

•Block diagram
BA15532 / BA15532F BA15532N

OUT1 1 8 VCC

+ +
– IN1 2 7 OUT2 1ch 2ch
1ch – –
– +
2ch
+ IN1 3 + – 6 – IN2
1

VEE 4 5 + IN2
OUT1

– IN1

+ IN1

VEE

+ IN2

– IN2

OUT2

VCC

1
Standard ICs BA15532 / BA15532F / BA15532N
•Internal circuit configuration VCC

+ IN

– IN
OUT

VEE

•Absolute maximum ratings (Ta = 25°C)


Limits
Parameter Symbol Unit
BA15532 BA15532F BA15532N
Power supply voltage VCC ± 21 ± 21 ± 21 V
Power dissipation Pd 800∗ 550∗ 900∗ mW
Differential input voltage VID ± 0.5 ± 0.5 ± 0.5 V
Common-mode input voltage VI – VCC ~ VCC – VCC ~ VCC – VCC ~ VCC V
Operating temperature Topr – 20 ~ + 75 – 20 ~ + 75 – 20 ~ + 75 °C
Storage temperature Tstg – 55 ~ + 125 – 55 ~ + 125 – 55 ~ + 125 °C
∗ Refer to Pd characteristics diagram.
The values for the BA15532F are those when it is mounted on a glass epoxy board (50mm × 50mm × 1.6mm).

•Electrical characteristics (unless otherwise noted, Ta = 25°C, V CC = + 15V, VEE = - 15V)


Parameter Symbol Min. Typ. Max. Unit Conditions
Input offset voltage VIO — 0.5 4 mV RS = 50Ω, RL ⭌ 10kΩ
Input offset current IIO — 10 150 nA RL ⭌ 10kΩ
Input bias current IB — 200 800 nA RL ⭌ 10kΩ
High-amplitude voltage gain AV 80 94 — dB RL ⭌ 600Ω, VO = ± 10V
Common-mode input voltage VICM ± 12 ± 13 — V RL ⭌ 10kΩ
Maximum output voltage VOM ± 12 ± 13 — V RL ⭌ 600Ω
Maximum output voltage VOM ± 15 ± 16 — V RL ⭌ 600Ω, VCC = 18V, VEE = – 18V
Common-mode rejection ratio CMRR 70 100 — dB RL ⭌ 10kΩ
Power supply voltage rejection ratio PSRR 80 100 — dB RS = 50Ω, RL ⭌ 10kΩ
Quiescent current IQ — 8 16 mA RL = ∞, on All Op - Amps
Output short-circuit current IOS — 38 — mA
Slew rate S. R. — 8 — V / µs AV = 1, RL = 600Ω, CL = 100pF
Voltage gain band width GBW — 20 — MHz CL = 100pF, RL = 600Ω, f = 10kHz
Maximum frequency fT — 7 — MHz
Input conversion noise voltage Vn — 0.7 1.5 µV RIAA, RS = 100Ω, BW = 20Hz ~ 30kHz
Channel separation CS — 110 — dB RIAA, f = 1kHz

2
Standard ICs BA15532 / BA15532F / BA15532N

•Electrical characteristic curves 1200 10 120

OPEN LOOP VOLTAGE GAIN: Av (dB)


POWER DISSIPATION: Pd (mW)

QUIESCENT CURRENT: IQ (mA)


1000 100
BA15532N 8

800 80
BA15532 6

600 60
4
400 BA15532F 40

2
200 20

0 0 0
0 25 50 75 100 125 150 0 ± 10 ± 20 10 100 1k 10k 100k 1M 10M
±
AMBIENT TEMPERATURE: Ta (°C) POWER SUPPLY VOLTAGE: VCC (V) FREQUENCY: f (Hz)

Fig.1 Power dissipation vs. Fig.2 Quiescent current vs. Fig.3 Open loop voltage gain vs.
ambient temperature power supply voltage frequency

32 0.4 0.4
±
V = ± 15V
MAXIMUM OUTPUT VOLTAGE: VOM (V)

28 ±
V = ± 15V
INPUT BIAS CURRENT: IB (µA)

INPUT BIAS CURRENT: IB (µA)


24 0.3
0.3
20

16 0.2

12
0.2
8 0.1

0 0.1
100 1k 10k 100k 1M – 40 – 20 0 20 40 60 80 0 10 20 30 40
+
FREQUENCY: f (Hz) AMBIENT TEMPERATURE: Ta (°C) POWER SUPPLY VOLTAGE: V (V)

Fig.4 Maximum output voltage vs. Fig.5 Input bias current vs. Fig.6 Input bias current vs.
frequency ambient temperature power supply voltage

± 20
INPUT COMMON MORE VOLTAGE RANGE: VICM (V)
OUTPUT VOLTAGE

5
VOUT (V)

–5

± 10
INPUT VOLTAGE

5
VIN (V)

–5

0 2 4 6 8 0 ± 10 ± 20 ± 30
±
TIME (µs) POWER SUPPLY VOLTAGE: V (V)

Fig.7 Output response characteristics Fig.8 Common mode input voltage vs.
power supply voltage

3
Standard ICs BA15532 / BA15532F / BA15532N

•(1)Operation notes
Handling unused circuits
VCC

If there are any circuits which are not being used, we


recommend making connections as shown in Figure 9,

with the non-inverted input pin connected to the poten-
tial within the in-phase input voltage range (VICM). To potential +
in VICM

VEE

Fig.9 Unused circuit connections

•External dimensions (Units: mm)


BA15532 BA15532F
9.3 ± 0.3
5.0 ± 0.2
8 5
6.5 ± 0.3

8 5

6.2 ± 0.3
4.4 ± 0.2
1 4

0.15 ± 0.1
0.51Min.

7.62
3.2 ± 0.2 3.4 ± 0.3

1 4
1.5 ± 0.1

0.3 ± 0.1
0.11

1.27 0.4 ± 0.1 0.3Min.


2.54 0.5 ± 0.1 0° ~ 15°

0.15

DIP8 SOP8

BA15532N

19.3 ± 0.2 2.8 ± 0.2


5.8 ± 0.2
10.5 ± 0.5

1.2

1 8
3.5 ± 0.5

2.54 0.6 0.3 ± 0.1


0.8

1.3

SIP8
