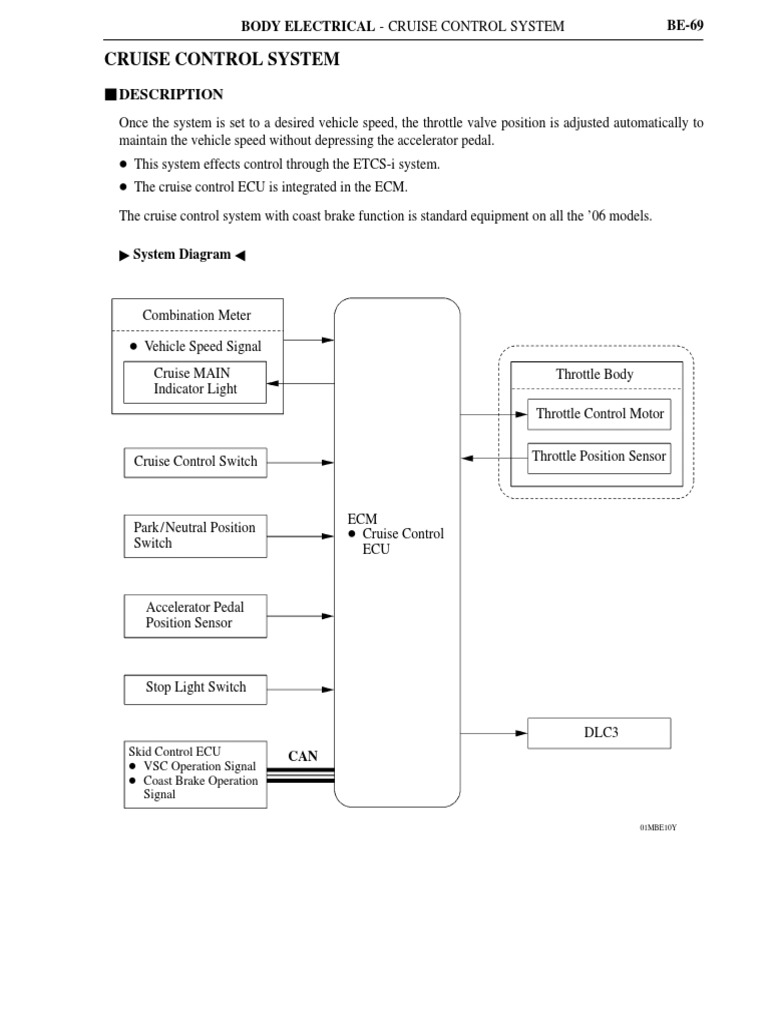

    BODY ELECTRICAL - CRUISE CONTROL SYSTEM BE-69

    CRUISE CONTROL SYSTEM


    DESCRIPTION
    Once the system is set to a desired vehicle speed, the throttle valve position is adjusted automatically to
    maintain the vehicle speed without depressing the accelerator pedal.
     This system effects control through the ETCS-i system.
     The cruise control ECU is integrated in the ECM.
    The cruise control system with coast brake function is standard equipment on all the ’06 models.

     System Diagram

    Combination Meter

     Vehicle Speed Signal


    Cruise MAIN Throttle Body
    Indicator Light
    Throttle Control Motor

    Cruise Control Switch Throttle Position Sensor

    ECM
    Park/Neutral Position  Cruise Control
    Switch ECU

    Accelerator Pedal
    Position Sensor

    Stop Light Switch

    DLC3
    Skid Control ECU CAN
     VSC Operation Signal
     Coast Brake Operation
    Signal

    01MBE10Y
