R-22

PACU Series
Rooftop Packaged
Air Conditioners

Range 2 TR to 6 TR
(7 kW to 21 kW)

facebook.com/skmuae www.skm.ae youtube.com/marketingskm

Sharjah Economic Excellence
Award winner

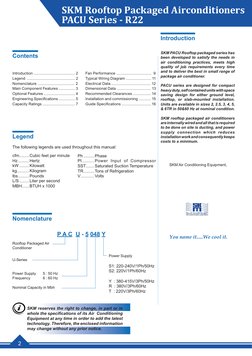

 SKM Rooftop Packaged Airconditioners
PACU Series - R22
Introduction

SKM PACU Rooftop packaged series has

Contents
Introduction ......................................... 2
Legend ................................................ 2
Nomenclature ..................................... 2
Main Component Features ................ 3
Optional Features ............................... 4
Engineering Specifications ................ 5

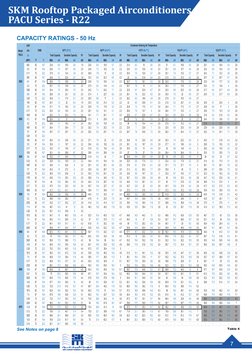

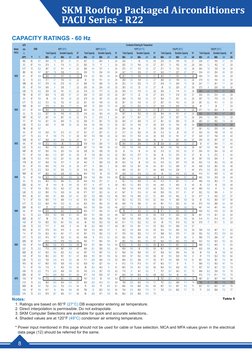

Capacity Ratings ................................ 7

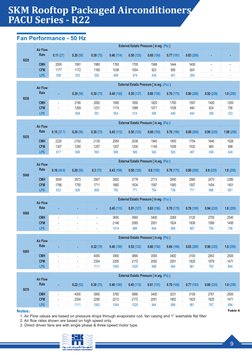

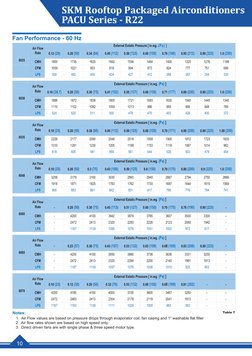

Fan Performance ................................... 9
Typical Wiring Diagram ......................... 11
Electrical Data ....................................... 12
Dimensional Data .................................. 13
Recommended Clearances .................. 14
Installation and commissioning ............ 15
Guide Specifications ............................. 16
been developed to satisfy the needs in
air conditioning practices, meets high
quality of job requirements every time
and to deliver the best in small range of
package air conditioner.
PACU series are designed for compact
heavy duty, self contained units with space
saving design for either ground level,
rooftop, or slab-mounted installation.
Units are available in sizes 2, 2.5, 3, 4, 5,
& 6TR in 50&60 Hz at nominal condition.

SKM rooftop packaged air conditioners

are internally wired and all that is required
to be done on site is ducting, and power
supply connection which reduces
Legend installation work and consequently keeps
costs to a minimum.
The following legends are used throughout this manual:

cfm......... Cubic feet per minute Ph.......... Phase

Hz.......... Hertz PI........... Power Input of Compressor
kW......... Kilowatt SST........ Saturated Suction Temperature SKM Air Conditioning Equipment,
kg........... Kilogram TR.......... Tons of Refrigeration
lbs.......... Pounds V............ Volts
L/S......... Liter per second
MBH....... BTUH x 1000

Nomenclature

P A C U - 5 048 Y You name it.....We cool it.

Rooftop Packaged Air
Conditioner

Power Supply
U-Series
S1: 220-240V/1Ph/50Hz
S2: 220V/1Ph/60Hz
Power Supply 5 : 50 Hz
Frequency 6 : 60 Hz
Y : 380-415V/3Ph/50Hz
Nominal Capacity in Mbh R : 380V/3Ph/60Hz
T : 220V/3Ph/60Hz

SKM reserves the right to change, in part or in

whole the specifications of its Air Conditioning
Equipment at any time in order to add the latest
technology. Therefore, the enclosed information
may change without any prior notice.

2

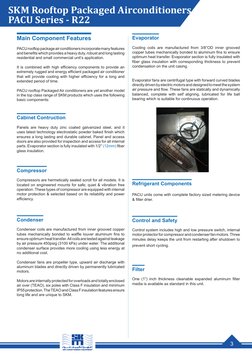

SKM Rooftop Packaged Airconditioners
PACU Series - R22
Main Component Features
PACU rooftop package air conditioners incorporate many features
and benefits which provides a heavy duty, robust and long lasting
residential and small commercial unit’s application.
It is combined with high efficiency components to provide an
extremely rugged and energy efficient packaged air conditioner
that will provide cooling with higher efficiency for a long and
extended period of time.
PACU rooftop Packaged Air conditioners are yet another model
in the top class range of SKM products which uses the following
basic components:
Evaporator
Cooling coils are manufactured from 3/8”OD inner grooved
copper tubes mechanically bonded to aluminum fins to ensure
optimum heat transfer. Evaporator section is fully insulated with
fiber glass insulation with corresponding thickness to prevent
condensation on the unit casing.
Evaporator fans are centrifugal type with forward curved blades
directly driven by electric motors and designed to meet the system
air pressure and flow. These fans are statically and dynamically
balanced, complete with self aligning, lubricated for life ball
bearing which is suitable for continuous operation.

Cabinet Contruction
Panels are heavy duty zinc coated galvanized steel, and it
uses latest technology electrostatic powder baked finish which
ensures a long lasting and durable cabinet. Panel and access
doors are also provided for inspection and access for all internal
parts. Evaporator section is fully insulated with 1/2” (12mm) fiber
glass insulation.

Compressor
Compressors are hermetically sealed scroll for all models. It is
located on engineered mounts for safe; quiet & vibration free Refrigerant Components
operation. These types of compressor are equipped with internal
motor protection & selected based on its reliability and power PACU units come with complete factory sized metering device
efficiency. & filter drier.

Condenser Control and Safety

Condenser coils are manufactured from inner grooved copper
tubes mechanically bonded to waffle louver aluminum fins to
ensure optimum heat transfer. All coils are tested against leakage
by air pressure 450psig (3100 kPa) under water. The additional
condenser surface provides more cooling using less energy at
no additional cost.
Control system includes high and low pressure switch, internal
motor protector for compressor and condenser fan motors. Three
minutes delay keeps the unit from restarting after shutdown to
prevent short cycling.

Condenser fans are propeller type, upward air discharge with

aluminum blades and directly driven by permanently lubricated
motors. Filter

Motors are internally protected for overloads and totally enclosed One (1”) inch thickness cleanable expanded aluminum filter
air over (TEAO), six poles with Class F insulation and minimum media is available as standard in this unit.
IP55 protection. The TEAO and Class F insulation features ensure
long life and are unique to SKM.

3
 SKM Rooftop Packaged Airconditioners
PACU Series - R22
Options and Accessories Double Skin Insulation (DSI)
Inner skin in the evaporator section is provided with foam
Electric Heater (HTR1) insulation.
The following heaters are available as optional accessories on
request. Components include electric heater elements, magnetic Voltage Monitoring Module (VMM)
contactor, thermal safety cut-out and air flow switch. Provide protection to the PACU –series 3 phase power supply
unit in the event of:
PACU
Number Of
Models - Phase burn out.
Heater Elements - Phase reversal.
50Hz 60Hz
- Under/over voltage on the incoming line voltage.
5025 6025 1 x 1.5
5030 6030 1 x 1 + 1.5 x 1.0
5035 6035 1 x 1 + 1.5 x 1.5
Voltage Monitoring Modules (DVM)
5048 6048 3 x 1.0 To meet DEWA regulations 3 phase power supply units
5060 6060 modified module and time delay relay. This option is available
For Dubai U.A.E. only.
5065 6065 3 x 1.5
5070 6070
Table 1 Low Voltage Thermostats (COTS/CHTS)
1 stage for wall mounting and for either cooling (COTS) or
High & Low Pressure Gauges (SDG1) cooling/heating (CHTS) operation.
Unit mounted for each compressor to monitor the high and
low operating side.
Rotalock Valves on compressors (RVC)
For additional facilitation of maintenance of unit.
2” (50mm) Flat Filter Section (FSIP2)
For heavy filtration need a section can be provided without or
with aluminium cleanable filter (2AF).

Liquid Line Sight Glass (RSG)

To monitor refrigerant charge and to provide visual indication
of moisture presence in the system.

Shut-Off Valve (SFV)

To fully isolate refrigerant filter drier; an additional shut-off
valve can be incorporated in the liquid line.

Alternative Evaporator Coil Material

Made of copper tubes and alternative fin material and/or
protective coats.
- for copper fins specify (EFC).
- for precoated aluminium fins specify (EFAP)
- for aluminium fins with aeris coat protection, specify
(EFAA).
- for copper fins with aeris coat protection, specify ( EFCA).

Alternative Condenser Material

- for copper fins specify (FC).
- for precoated aluminium fins specify (FAP).
- for aluminium fins with aeris coat protection, specify (FAA).
- for copper fins with aeris coat protection, specify (FCA).

Condenser Coil Guard (CGP)

Wire mesh guard; in painted finish for condenser coils.
Recommended on ground level installations where coil needs
to be protected against vandalism.

4
SKM Rooftop Packaged Airconditioners
PACU Series - R22

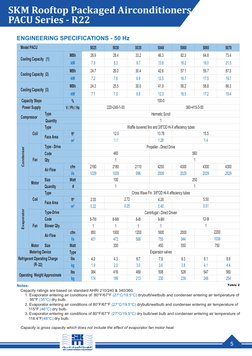

Engineering Specifications - 50Hz
ENGINEERING SPECIFICATIONS - 50 Hz
Model PACU 5025 5030 5035 5048 5060 5065 5070
MBh 26.9 28.4 33.2 46.3 62.3 64.8 73.4
Cooling Capacity (1)
kW 7.9 8.3 9.7 13.6 18.2 19.0 21.5
MBh 24.7 26.0 30.4 42.6 57.1 59.7 67.3
Cooling Capacity (2)
kW 7.2 7.6 8.9 12.5 16.7 17.5 19.7
MBh 24.3 25.5 30.0 41.9 56.2 58.8 66.3
Cooling Capacity (3)
kW 7.1 7.5 8.8 12.3 16.5 17.2 19.4
Capacity Steps % 100-0
Power Supply V / Ph / Hz 220~240-1-50 380~415-3-50
Type Hermetic Scroll
Compressor
Quantity 1
Type Waffle louvered fins and 3/8"OD Hi-X effeciency tubes
Coil ft² 12.0 13.78 15.5
Face Area
m² 1.1 1.28 1.4
Type - Drive Propeller - Direct Drive
Condenser

Code 460 560

Fan Qty 1 1
cfm 2180 2180 2110 4250 4300 4300 4300
Air Flow
l/s 1029 1029 996 2006 2029 2029 2029
Size Watt 100 250
Motor
Quantity # 1 1
Type Cross Wave Fin 3/8"OD Hi-X effeciency tubes
Coil ft² 2.33 2.72 4.28 5.50
Face Area
m² 0.22 0.25 0.40 0.51
Type-Drive
Evaporator

Centrifugal - Direct Driven

Code 8-7III 8-9III 8-8I 9-9III 12-9I
Fan Blower Qty. 1 1 1 1 1
cfm 850 1000 1200 1600 2000 2200
Air Flow
l/s 401 472 566 755 944 1038
Motor Size Watt 300 450 550 750
Metering Device Type Expansion valves
Refrigerant Operating Charge lbs 4.2 4.3 6.7 7.9 8.3 9.1 9.6
(R- 22) kg 1.9 2.0 3.0 3.6 3.8 4.1 4.4
lbs 384 416 469 508 528 547 560
Operating Weight Approximate
kg 174 189 213 230 239 248 254
Notes: Table 2
Capacity
(1) ratings are based on standard AHRI 210/240 & 340/360.
Note:1. Evaporator
The capacity ratingsair
entering areconditions
based on AHRI standard (27°C/19.5°C)
of 80°F/67°F 210/240 & 340/360.Evaporator
drybulb/wetbulbentering air conditions
and condenser of air temperature of
entering
temperature of 95°F
95°F (35°C) dry bulb. (35°C) drybulb.
2.(2)Evaporator
Evaporatorentering
enteringair
airconditions
conditionsofof 80°F/67°F
80°F/67°F (26.7°C/19.4°C) drybulb/wetbulb and
(27°C/19.5°C) drybulb/wetbulb and condenser
condenser entering air temperature of
115°F (46°C) dry bulb.
entering airentering
3. Evaporator temperature of 115°F (46°C)
air conditions drybulb.(27°C/19.5°C) dry bulb/wet bulb and condenser entering air temperature of
of 80°F/67°F
(3)118.4°F(48°C) dry bulb.
Evaporator entering air conditions of 80°F/67°F (26.7°C/19.4°C) drybulb/wetbulb and condenser
entering air temperature of 118.4°F (48°C) drybulb.
Capacity is gross capacity which does not include the effect of evaporator fan motor heat.
Capacity is gross capacity which does not include the effect of evaporator fan motor heat.

5
 SKM Rooftop Packaged Airconditioners
PACU Series - R22

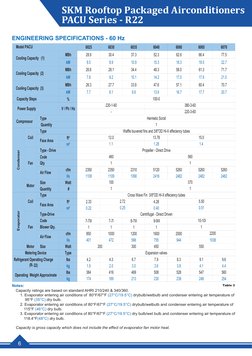

Engineering Specifications - 60Hz
ENGINEERING SPECIFICATIONS - 60 Hz
Model PACU 6025 6030 6035 6048 6060 6065 6070
MBh 28.9 30.4 37.3 52.3 62.6 66.4 77.5
Cooling Capacity (1)
kW 8.5 8.9 10.9 15.3 18.3 19.5 22.7
MBh 26.6 28.1 34.4 48.3 58.0 61.3 71.7
Cooling Capacity (2)
kW 7.8 8.2 10.1 14.2 17.0 17.9 21.0
MBh 26.3 27.7 33.9 47.6 57.1 60.4 70.7
Cooling Capacity (3)
kW 7.7 8.1 9.9 13.9 16.7 17.7 20.7
Capacity Steps % 100-0
220-1-60 380-3-60
Power Supply V / Ph / Hz
- 220-3-60
Type Hermetic Scroll
Compressor
Quantity 1
Type Waffle louvered fins and 3/8"OD Hi-X effeciency tubes
Coil ft² 12.0 13.78 15.5
Face Area
m² 1.1 1.28 1.4
Type - Drive Propeller - Direct Drive
Condenser

Code 460 560

Fan Qty 1 1
cfm 2350 2350 2310 5120 5260 5260 5260
Air Flow
l/s 1109 1109 1090 2416 2482 2482 2482
Size Watt 100 370
Motor
Quantity # 1 1
Type Cross Wave Fin 3/8"OD Hi-X effeciency tubes
Coil ft² 2.33 2.72 4.28 5.50
Face Area
m² 0.22 0.25 0.40 0.51
Type-Drive Centrifugal - Direct Driven
Evaporator

Code 7-7III 7-7I 8-7III 9-9III 10-10I

Fan Blower Qty. 1 1 1 1 1
cfm 850 1000 1200 1600 2000 2200
Air Flow
l/s 401 472 566 755 944 1038
Motor Size Watt 200 300 450 550
Metering Device Type Expansion valves
Refrigerant Operating Charge lbs 4.2 4.3 6.7 7.9 8.3 9.1 9.6
(R- 22) kg 1.9 2.0 3.0 3.6 3.8 4.1 4.4
lbs 384 416 469 508 528 547 560
Operating Weight Approximate
kg 174 189 213 230 239 248 254
Notes: Table 3
Capacity
(1) ratings are based on standard AHRI 210/240 & 340/360.

Note:1. Evaporator
The capacity ratings are based on AHRI standard 210/240 & 340/360.Evaporator entering air conditions of
entering air conditions of 80°F/67°F (27°C/19.5°C) drybulb/wetbulb and condenser entering air temperature of
95°F (35°C) dry 95°F
temperature of bulb.(35°C) drybulb.
(2)
Evaporator enteringair
2. Evaporator entering airconditions
conditions ofof 80°F/67°F
80°F/67°F (26.7°C/19.4°C) drybulb/wetbulb and
(27°C/19.5°C) drybulb/wetbulb and condenser
condenser entering air temperature of
115°F (46°C) dry bulb.
entering air temperature of 115°F (46°C) drybulb.
3. Evaporator entering air conditions of 80°F/67°F (27°C/19.5°C) dry bulb/wet bulb and condenser entering air temperature of
(3)
Evaporator entering
118.4°F(48°C) air conditions of 80°F/67°F (26.7°C/19.4°C) drybulb/wetbulb and condenser
dry bulb.
entering air temperature of 118.4°F (48°C) drybulb.
Capacity is gross capacity which does not include the effect of evaporator fan motor heat.
Capacity is gross capacity which does not include the effect of evaporator fan motor heat.

6
SKM Rooftop Packaged Airconditioners
PACU Series - R22
CAPACITY RATINGS - 50 Hz
AFR Condenser Entering Air Temperature
Model cfm EWB 95°F (35°C) 105°F (40.6°C) 115°F (46.1°C) 118.4°F (48°C) 125.6°F (52°C)
PACU l/s Total Capacity Sensible Capacity PI* Total Capacity Sensible Capacity PI* Total Capacity Sensible Capacity PI* Total Capacity Sensible Capacity PI* Total Capacity Sensible Capacity PI*
(BPF) °F °C MBh kW MBh kW kW MBh kW MBh kW kW MBh kW MBh kW kW MBh kW MBh kW kW MBh kW MBh kW kW
642 62 16.7 23.6 6.9 19.9 5.8 1.9 22.6 6.6 19.5 5.7 2.2 21.4 6.3 19 5.6 2.5 21 6.1 18.8 5.5 2.6 20.1 5.9 18.4 5.4 2.8
303 67 19.4 25.6 7.5 16.7 4.9 2.0 24.6 7.2 16.2 4.8 2.2 23.5 6.9 15.8 4.6 2.5 23.1 6.8 15.7 4.6 2.6 22.4 6.6 15.4 4.5 2.8
0.17 72 22.2 27.8 8.1 13.4 3.9 2.0 26.6 7.8 13 3.8 2.3 25.5 7.5 12.6 3.7 2.6 25.1 7.4 12.5 3.7 2.7 24.3 7.1 12.2 3.6 2.8
850 62 16.7 24.6 7.2 22.9 6.7 1.9 23.3 6.8 22.3 6.5 2.2 22 6.4 21.8 6.4 2.5 21.5 6.3 21.5 6.3 2.6 20.7 6.1 20.7 6.1 2.8
5025 401 67 19.4 26.9 7.9 18.9 5.5 2.0 25.8 7.6 18.5 5.4 2.3 24.7 7.2 18.1 5.3 2.6 24.3 7.1 17.9 5.3 2.6 23.5 6.9 17.7 5.2 2.8
0.2 72 22.2 29.1 8.5 14.8 4.3 2.0 27.9 8.2 14.4 4.2 2.3 26.7 7.8 14 4.1 2.6 26.3 7.7 13.9 4.1 2.7 25.5 7.5 13.6 4 2.8
1283 62 16.7 25.4 7.5 25.4 7.5 2.0 24.2 7.1 24.2 7.1 2.2 22.9 6.7 22.9 6.7 2.5 22.5 6.6 22.5 6.6 2.6 21.7 6.4 21.7 6.4 2.8
606 67 19.4 28.6 8.4 23.1 6.8 2.0 27.4 8 22.7 6.6 2.3 26.1 7.6 22.2 6.5 2.6 25.5 7.5 22 6.5 2.7 24.5 7.2 21.7 6.4 2.8
0.26 72 22.2 30.8 9 17.4 5.1 2.0 29.5 8.6 17 5 2.3 28.2 8.3 16.6 4.9 2.6 27.8 8.1 16.5 4.8 2.7 - - - - -
749 62 16.7 24.7 7.2 22 6.4 1.9 23.3 6.8 21.4 6.3 2.2 22 6.5 20.8 6.1 2.5 21.6 6.3 20.7 6.1 2.6 20.8 6.1 20.3 6 2.8
353 67 19.4 27.1 7.9 18.3 5.4 2.0 25.9 7.6 17.9 5.2 2.3 24.8 7.3 17.5 5.1 2.6 24.4 7.1 17.3 5.1 2.7 23.6 6.9 17 5 2.8
0.17 72 22.2 29.3 8.6 14.5 4.3 2.0 28.1 8.2 14.1 4.1 2.3 26.8 7.9 13.7 4 2.6 26.4 7.7 13.5 4 2.7 25.6 7.5 13.3 3.9 2.8
1000 62 16.7 25.3 7.4 25.3 7.4 2.0 24.1 7.1 24.1 7.1 2.2 22.8 6.7 22.8 6.7 2.5 22.4 6.6 22.4 6.6 2.6 21.6 6.3 21.6 6.3 2.8
5030 472 67 19.4 28.4 8.3 21 6.2 2.0 27.2 8 20.6 6 2.3 26 7.6 20.1 5.9 2.6 25.5 7.5 20 5.8 2.7 24.4 7.2 19.6 5.7 2.8
0.2 72 22.2 30.6 9 16.2 4.7 2.0 29.3 8.6 15.8 4.6 2.3 28 8.2 15.4 4.5 2.6 27.6 8.1 15.2 4.5 2.7 27.4 8 15.2 4.4 2.7
1497 62 16.7 26.4 7.7 26.4 7.7 2.0 25.2 7.4 25.2 7.4 2.2 23.9 7 23.9 7 2.5 23.5 6.9 23.5 6.9 2.6 22.6 6.6 22.6 6.6 2.8
707 67 19.4 29.7 8.7 25.7 7.5 2.0 28.2 8.3 25.1 7.4 2.3 26.7 7.8 24.6 7.2 2.6 26.2 7.7 24.4 7.2 2.7 25.2 7.4 24.1 7.1 2.8
0.26 72 22.2 - - - - - - - - - - - - - - - - - - - - - - - - -
749 62 16.7 28.3 8.3 23.6 6.9 2.2 27.1 7.9 23 6.7 2.5 25.8 7.6 22.5 6.6 2.8 25.3 7.4 22.2 6.5 3 24.2 7.1 21.8 6.4 3.2
353 67 19.4 30.6 9 19.7 5.8 2.2 29.4 8.6 19.2 5.6 2.5 28.1 8.2 18.7 5.5 2.9 27.7 8.1 18.6 5.4 3 26.8 7.9 18.2 5.3 3.2
0.17 72 22.2 33.2 9.7 15.9 4.7 2.2 31.9 9.3 15.4 4.5 2.6 30.5 8.9 15 4.4 2.9 30 8.8 14.8 4.3 3 29.2 8.5 14.5 4.2 3.2
1200 62 16.7 30.1 8.8 29.8 8.7 2.2 28.6 8.4 28.6 8.4 2.5 27 7.9 27 7.9 2.9 26.4 7.8 26.4 7.8 3 25.5 7.5 25.5 7.5 3.2
5035 566 67 19.4 33.2 9.7 24.5 7.2 2.2 31.9 9.3 24 7 2.6 30.4 8.9 23.5 6.9 2.9 30 8.8 23.3 6.8 3 29 8.5 23 6.7 3.2
0.23 72 22.2 35.9 10.5 18.9 5.5 2.3 34.4 10.1 18.4 5.4 2.6 32.9 9.6 17.9 5.3 3 32.4 9.5 17.8 5.2 3.1 31.4 9.2 17.5 5.1 3.3
1497 62 16.7 30.6 9 30.6 9 2.2 29.1 8.5 29.1 8.5 2.5 27.6 8.1 27.6 8.1 2.9 27.1 7.9 27.1 7.9 3 26.1 7.6 26.1 7.6 3.2
707 67 19.4 34.2 10 27.2 8 2.3 32.8 9.6 26.7 7.8 2.6 31.3 9.2 26.2 7.7 2.9 30.8 9 26 7.6 3 29.6 8.7 25.6 7.5 3.2
0.26 72 22.2 36.9 10.8 20.6 6 2.3 35.3 10.4 20.1 5.9 2.6 33.8 9.9 19.7 5.8 3 33.2 9.7 19.5 5.7 3.1 32.3 9.5 19.2 5.6 3.3
1176 62 16.7 40.6 11.9 35.3 10.3 2.9 38.8 11.4 34.5 10.1 3.2 36.7 10.8 33.6 9.9 3.6 36 10.6 33.3 9.8 3.8 34.7 10.2 32.8 9.6 4.1
555 67 19.4 44 12.9 29.4 8.6 2.9 42.4 12.4 28.7 8.4 3.3 40.6 11.9 28.1 8.2 3.7 40 11.7 27.8 8.2 3.8 38.8 11.4 27.4 8 4.1
0.17 72 22.2 47.5 13.9 23.3 6.8 3.0 45.7 13.4 22.7 6.7 3.3 43.7 12.8 22 6.5 3.8 43.1 12.6 21.8 6.4 3.9 41.7 12.2 21.3 6.3 4.2
1600 62 16.7 41.7 12.2 41.1 12 2.9 39.9 11.7 39.9 11.7 3.2 37.9 11.1 37.9 11.1 3.7 37.2 10.9 37.2 10.9 3.8 35.9 10.5 35.9 10.5 4.1
5048 755 67 19.4 46.3 13.6 33.9 9.9 2.9 44.5 13.1 33.2 9.7 3.3 42.6 12.5 32.5 9.5 3.7 41.9 12.3 32.3 9.5 3.9 40.5 11.9 31.8 9.3 4.2
0.2 72 22.2 49.8 14.6 26.2 7.7 3.0 47.8 14 25.5 7.5 3.4 45.7 13.4 24.8 7.3 3.8 44.9 13.2 24.6 7.2 4 43.5 12.7 24.1 7.1 4.3
2353 62 16.7 43.2 12.7 43.2 12.7 2.9 41.4 12.1 41.4 12.1 3.3 39.5 11.6 39.5 11.6 3.7 38.8 11.4 38.8 11.4 3.8 37.5 11 37.5 11 4.1
1110 67 19.4 48.7 14.3 41 12 3.0 46.3 13.6 40.2 11.8 3.3 43.9 12.9 39.4 11.5 3.8 43 12.6 39.1 11.5 3.9 41.4 12.1 38.5 11.3 4.2
0.26 72 22.2 52.1 15.3 30.6 9 3.0 - - - - - - - - - - - - - - - - - - - -
1513 62 16.7 54.7 16 46.5 13.6 4.1 52.5 15.4 45.5 13.3 4.7 49.6 14.5 44.3 13 5.3 48.6 14.2 43.8 12.8 5.5 46.7 13.7 43 12.6 5.8
714 67 19.4 59.3 17.4 38.9 11.4 4.2 57 16.7 37.9 11.1 4.7 54.5 16 37 10.8 5.3 53.7 15.7 36.6 10.7 5.5 52.1 15.3 36 10.6 5.9
0.17 72 22.2 64.1 18.8 31.1 9.1 4.3 61.6 18 30.2 8.8 4.8 59 17.3 29.3 8.6 5.4 58.1 17 29 8.5 5.6 56.4 16.5 28.4 8.3 6
2000 62 16.7 56.8 16.7 53.4 15.7 4.1 53.9 15.8 52.2 15.3 4.7 50.9 14.9 50.9 14.9 5.3 49.9 14.6 49.9 14.6 5.5 48.1 14.1 48.1 14.1 5.8
5060 944 67 19.4 62.3 18.2 44.1 12.9 4.2 59.7 17.5 43.2 12.7 4.8 57.1 16.7 42.2 12.4 5.4 56.2 16.5 41.9 12.3 5.6 54.6 16 41.3 12.1 5.9
0.2 72 22.2 67 19.6 34.3 10.1 4.3 64.2 18.8 33.4 9.8 4.9 61.5 18 32.5 9.5 5.5 60.6 17.8 32.2 9.4 5.7 58.7 17.2 31.6 9.3 6.1
3025 62 16.7 58.8 17.2 58.8 17.2 4.2 56 16.4 56 16.4 4.7 53.2 15.6 53.2 15.6 5.3 52.2 15.3 52.2 15.3 5.5 50.5 14.8 50.5 14.8 5.9
1428 67 19.4 65.8 19.3 53.9 15.8 4.3 63.1 18.5 52.9 15.5 4.9 59.8 17.5 51.8 15.2 5.5 58.7 17.2 51.4 15.1 5.7 56.5 16.6 50.7 14.8 6
0.26 72 22.2 70.2 20.6 40.3 11.8 4.4 67.3 19.7 39.4 11.6 5 - - - - - - - - - - - - - - -
1513 62 16.7 56.3 16.5 47.2 13.8 4.3 53.9 15.8 46.2 13.5 4.9 51.5 15.1 45.1 13.2 5.6 50.5 14.8 44.7 13.1 5.8 48.5 14.2 43.8 12.8 6.2
714 67 19.4 60.8 17.8 39.4 11.6 4.4 58.5 17.1 38.5 11.3 5 56.1 16.4 37.6 11 5.7 55.2 16.2 37.3 10.9 5.9 53.7 15.7 36.6 10.7 6.3
0.17 72 22.2 65.8 19.3 31.7 9.3 4.5 63.3 18.5 30.8 9 5.1 60.7 17.8 29.9 8.8 5.8 59.8 17.5 29.6 8.7 6 58.1 17 29 8.5 6.4
2200 62 16.7 59.1 17.3 56.8 16.6 4.3 56.2 16.5 55.6 16.3 5 53.2 15.6 53.2 15.6 5.6 52.3 15.3 52.3 15.3 5.8 50.5 14.8 50.5 14.8 6.2
5065 1038 67 19.4 64.8 19 46.7 13.7 4.5 62.3 18.3 45.8 13.4 5.1 59.7 17.5 44.8 13.1 5.7 58.8 17.2 44.5 13 6 57.1 16.7 43.9 12.9 6.3
0.21 72 22.2 70 20.5 36.3 10.6 4.6 67.1 19.7 35.4 10.4 5.2 64.2 18.8 34.4 10.1 5.9 63.1 18.5 34.1 10 6.1 61.2 17.9 33.5 9.8 6.5
3025 62 16.7 60.6 17.8 60.6 17.8 4.4 57.8 16.9 57.8 16.9 5 54.9 16.1 54.9 16.1 5.6 54 15.8 54 15.8 5.9 52.2 15.3 52.2 15.3 6.2
1428 67 19.4 67.7 19.9 54.5 16 4.5 65 19.1 53.6 15.7 5.2 62.1 18.2 52.6 15.4 5.8 60.9 17.8 52.1 15.3 6 58.6 17.2 51.4 15.1 6.4
0.26 72 22.2 72.8 21.3 41.2 12.1 4.7 69.7 20.4 40.2 11.8 5.3 66.5 19.5 39.2 11.5 6 65.4 19.2 38.8 11.4 6.2 - - - - -
1513 62 16.7 62.9 18.4 52.2 15.3 5.0 60.2 17.6 51 14.9 5.7 57.2 16.8 49.6 14.5 6.3 56 16.4 49.1 14.4 6.6 53.9 15.8 48.2 14.1 6.9
714 67 19.4 67.9 19.9 43.8 12.8 5.1 65.2 19.1 42.7 12.5 5.8 62.4 18.3 41.5 12.2 6.5 61.5 18 41.2 12.1 6.7 59.8 17.5 40.5 11.9 7.1
0.09 72 22.2 73.2 21.5 35.3 10.3 5.3 70.3 20.6 34.2 10 5.9 67.3 19.7 33.1 9.7 6.6 66.4 19.5 32.8 9.6 6.8 66.0 19.3 32.7 9.6 6.5
2200 62 16.7 66.3 19.4 63.3 18.5 5.1 63 18.5 61.9 18.1 5.7 59.8 17.5 59.8 17.5 6.4 58.7 17.2 58.7 17.2 6.6 56.8 16.6 56.8 16.6 7
5070 1038 67 19.4 73.3 21.5 52.5 15.4 5.3 70.3 20.6 51.3 15 5.9 67.2 19.7 50.2 14.7 6.6 66.2 19.4 49.8 14.6 6.8 65.9 19.3 49.7 14.5 6.4
0.12 72 22.2 78.6 23 40.7 11.9 5.4 75.3 22.1 39.6 11.6 6.1 71.9 21.1 38.5 11.3 6.7 70.9 20.8 38.1 11.2 7 70.5 20.6 38.0 11.1 6.7
3025 62 16.7 68.6 20.1 68.6 20.1 5.2 65.5 19.2 65.5 19.2 5.8 62.3 18.2 62.3 18.2 6.5 61.2 17.9 61.2 17.9 6.7 59.2 17.4 59.2 17.4 6.6
1428 67 19.4 76.9 22.6 61.7 18.1 5.4 73 21.4 60.3 17.7 6 69.1 20.3 58.9 17.3 6.6 67.9 19.9 58.5 17.1 6.8 67.4 19.7 58.3 17.1 6.5
0.14 72 22.2 82.1 24.1 46.5 13.6 5.5 - - - - - - - - - - - - - - - - - - - -
See Notes on page 8 Table 4

7
 SKM Rooftop Packaged Airconditioners
PACU Series - R22
CAPACITY RATINGS - 60 Hz
AFR Condenser Entering Air Temperature
Model cfm EWB 95°F (35°C) 105°F (40.6°C) 115°F (46.1°C) 118.4°F (48°C) 125.6°F (52°C)
PACU l/s Total Capacity Sensible Capacity PI* Total Capacity Sensible Capacity PI* Total Capacity Sensible Capacity PI* Total Capacity Sensible Capacity PI* Total Capacity Sensible Capacity PI*
(BPF) °F °C MBh kW MBh kW kW MBh kW MBh kW kW MBh kW MBh kW kW MBh kW MBh kW kW MBh kW MBh kW kW
642 62 16.7 25.5 7.5 20.7 6.1 2.1 24.7 7.2 20.4 6 2.4 23.8 7 20 5.9 2.6 23.5 6.9 19.9 5.8 2.7 22.8 6.7 19.6 5.7 2.9
303 67 19.4 27.4 8 17.4 5.1 2.1 26.5 7.8 17 5 2.4 25.5 7.5 16.6 4.9 2.7 25.1 7.4 16.5 4.8 2.8 24.4 7.2 16.2 4.7 2.9
0.17 72 22.2 29.7 8.7 14.1 4.1 2.2 28.6 8.4 13.7 4 2.4 27.5 8.1 13.3 3.9 2.7 27.1 7.9 13.2 3.9 2.8 26.4 7.8 12.9 3.8 2.9
850 62 16.7 26.7 7.8 23.8 7 2.1 25.8 7.6 23.4 6.9 2.4 24.7 7.2 22.9 6.7 2.7 24.2 7.1 22.7 6.7 2.7 23.4 6.9 22.4 6.6 2.9
6025 401 67 19.4 28.9 8.5 19.7 5.8 2.2 27.8 8.2 19.3 5.6 2.4 26.7 7.8 18.8 5.5 2.7 26.3 7.7 18.7 5.5 2.8 25.6 7.5 18.4 5.4 2.9
0.2 72 22.2 31.1 9.1 15.5 4.5 2.2 30 8.8 15.1 4.4 2.5 28.9 8.5 14.8 4.3 2.7 28.6 8.4 14.6 4.3 2.8 27.9 8.2 14.4 4.2 3.0
1283 62 16.7 27.9 8.2 27.9 8.2 2.1 26.6 7.8 26.6 7.8 2.4 25.3 7.4 25.3 7.4 2.7 24.9 7.3 24.9 7.3 2.8 24.1 7.1 24.1 7.1 2.9
606 67 19.4 30.6 9 23.8 7 2.2 29.5 8.6 23.4 6.9 2.5 28.3 8.3 23 6.7 2.7 28 8.2 22.9 6.7 2.8 27.3 8 22.6 6.6 3.0
0.26 72 22.2 32.9 9.6 18.1 5.3 2.2 31.8 9.3 17.7 5.2 2.5 30.9 9.1 17.5 5.1 2.8 30.6 9 17.4 5.1 2.8 30.5 8.9 17.3 5.1 2.9
749 62 16.7 26.8 7.9 22.9 6.7 2.1 25.9 7.6 22.5 6.6 2.4 24.7 7.2 22 6.4 2.7 24.3 7.1 21.8 6.4 2.7 23.4 6.9 21.4 6.3 2.9
353 67 19.4 29 8.5 19.1 5.6 2.2 27.9 8.2 18.7 5.5 2.4 26.8 7.8 18.2 5.3 2.7 26.4 7.7 18.1 5.3 2.8 25.7 7.5 17.8 5.2 2.9
0.17 72 22.2 31.3 9.2 15.2 4.5 2.2 30.1 8.8 14.8 4.3 2.5 29.1 8.5 14.5 4.2 2.7 28.7 8.4 14.3 4.2 2.8 28.1 8.2 14.1 4.1 3.0
1000 62 16.7 27.8 8.1 26.4 7.7 2.1 26.5 7.8 25.9 7.6 2.4 25.2 7.4 25.2 7.4 2.7 24.8 7.3 24.8 7.3 2.8 24 7 24 7 2.9
6030 472 67 19.4 30.4 8.9 21.8 6.4 2.2 29.3 8.6 21.3 6.3 2.5 28.1 8.2 20.9 6.1 2.7 27.7 8.1 20.8 6.1 2.8 27.1 7.9 20.5 6 3.0
0.2 72 22.2 32.7 9.6 16.9 4.9 2.2 31.6 9.3 16.5 4.8 2.5 30.7 9 16.2 4.8 2.8 30.4 8.9 16.1 4.7 2.8 30.2 8.8 16.1 4.7 2.9
1497 62 16.7 28.7 8.4 28.7 8.4 2.2 27.4 8 27.4 8 2.4 26.1 7.7 26.1 7.7 2.7 25.7 7.5 25.7 7.5 2.8 24.9 7.3 24.9 7.3 2.9
707 67 19.4 32.1 9.4 26.5 7.8 2.2 30.9 9.1 26.1 7.6 2.5 29.5 8.7 25.6 7.5 2.7 29.1 8.5 25.5 7.5 2.8 28.3 8.3 25.2 7.4 3.0
0.26 72 22.2 34.2 10 19.8 5.8 2.3 33.4 9.8 19.5 5.7 2.5 32.7 9.6 19.3 5.7 2.8 32.5 9.5 19.3 5.6 2.9 32.4 9.5 19.2 5.6 2.9
749 62 16.7 - - - - - 30.7 9 24.6 7.2 3.1 29.4 8.6 24 7 3.5 28.9 8.5 23.8 7 3.7 28.1 8.2 23.5 6.9 4.0
353 67 19.4 34.5 10.1 21.3 6.3 2.7 33.1 9.7 20.7 6.1 3.1 31.7 9.3 20.2 5.9 3.6 31.2 9.2 20 5.9 3.7 30.4 8.9 19.6 5.8 4.0
0.17 72 22.2 37 10.8 17.3 5.1 2.8 35.7 10.5 16.8 4.9 3.2 34.3 10.1 16.3 4.8 3.6 33.8 9.9 16.1 4.7 3.7 32.9 9.7 15.8 4.6 4.0
1200 62 16.7 34.5 10.1 31.6 9.3 2.7 33.1 9.7 31 9.1 3.1 31.6 9.3 30.4 8.9 3.6 31 9.1 30.1 8.8 3.7 29.9 8.8 29.7 8.7 4.0
6035 566 67 19.4 37.2 10.9 26 7.6 2.8 35.9 10.5 25.4 7.5 3.2 34.4 10.1 24.9 7.3 3.6 33.9 9.9 24.7 7.2 3.7 33 9.7 24.4 7.1 4.0
0.23 72 22.2 40.2 11.8 20.3 6 2.8 38.7 11.4 19.8 5.8 3.2 37.2 10.9 19.3 5.7 3.6 36.7 10.8 19.2 5.6 3.8 35.7 10.5 18.8 5.5 4.0
1497 62 16.7 35.5 10.4 35.3 10.4 2.8 33.8 9.9 33.8 9.9 3.2 32 9.4 32 9.4 3.6 31.5 9.2 31.5 9.2 3.7 30.4 8.9 30.4 8.9 4.0
707 67 19.4 38.4 11.3 28.7 8.4 2.8 37 10.8 28.2 8.3 3.2 35.5 10.4 27.7 8.1 3.6 35 10.3 27.5 8.1 3.7 34 10 27.2 8 4.0
0.26 72 22.2 41.5 12.2 22.1 6.5 2.8 39.9 11.7 21.6 6.3 3.2 38.3 11.2 21.1 6.2 3.6 37.8 11.1 20.9 6.1 3.8 36.7 10.8 20.6 6 4.0
1176 62 16.7 45.9 13.5 37.7 11 3.4 44.2 13 36.9 10.8 3.8 42.3 12.4 36 10.6 4.3 41.6 12.2 35.7 10.5 4.5 40.3 11.8 35.2 10.3 4.8
555 67 19.4 49.5 14.5 31.6 9.3 3.5 47.7 14 30.8 9 3.9 45.8 13.4 30.1 8.8 4.4 45.1 13.2 29.8 8.7 4.5 43.8 12.8 29.3 8.6 4.8
0.17 72 22.2 53.5 15.7 25.5 7.5 3.5 51.6 15.1 24.8 7.3 4 49.5 14.5 24.1 7.1 4.4 48.8 14.3 23.8 7 4.6 47.4 13.9 23.3 6.8 4.9
1600 62 16.7 48.3 14.2 43.8 12.8 3.4 46.4 13.6 43 12.6 3.9 43.9 12.9 41.9 12.3 4.3 43 12.6 41.6 12.2 4.5 41.4 12.1 40.9 12 4.8
6048 755 67 19.4 52.3 15.3 36.1 10.6 3.5 50.4 14.8 35.4 10.4 3.9 48.3 14.2 34.6 10.2 4.4 47.6 13.9 34.4 10.1 4.6 46.2 13.5 33.9 9.9 4.9
0.2 72 22.2 56.5 16.5 28.4 8.3 3.6 54.4 15.9 27.7 8.1 4 52.1 15.3 26.9 7.9 4.5 51.3 15 26.7 7.8 4.7 49.8 14.6 26.2 7.7 5.0
2353 62 16.7 50 14.6 50 14.6 3.5 47.7 14 47.7 14 3.9 45.3 13.3 45.3 13.3 4.4 44.5 13 44.5 13 4.5 43 12.6 43 12.6 4.8
1110 67 19.4 55.3 16.2 43.3 12.7 3.6 53.2 15.6 42.6 12.5 4 50.9 14.9 41.8 12.3 4.5 50.2 14.7 41.5 12.2 4.6 48.6 14.3 41 12 4.9
0.26 72 22.2 59.5 17.4 32.9 9.6 3.6 57.1 16.7 32.2 9.4 4.1 54.7 16 31.4 9.2 4.6 53.8 15.8 31.1 9.1 4.7 52.2 15.3 30.6 9 5.1
1513 62 16.7 54.8 16.1 46.6 13.6 4.1 52.7 15.5 45.6 13.4 4.6 50.4 14.8 44.6 13.1 5.1 49.5 14.5 44.2 13 5.3 47.7 14 43.5 12.7 5.7
714 67 19.4 59.5 17.4 38.9 11.4 4.2 57.4 16.8 38.1 11.2 4.7 55.2 16.2 37.2 10.9 5.2 54.4 16 36.9 10.8 5.4 53 15.5 36.4 10.7 5.8
0.17 72 22.2 64.5 18.9 31.2 9.2 4.3 62.3 18.3 30.4 8.9 4.8 59.9 17.6 29.6 8.7 5.4 59.1 17.3 29.3 8.6 5.5 57.5 16.8 28.8 8.4 5.9
2000 62 16.7 57 16.7 53.5 15.7 4.1 54.3 15.9 52.4 15.3 4.6 51.7 15.1 51.3 15 5.2 50.8 14.9 50.8 14.9 5.3 49.1 14.4 49.1 14.4 5.7
6060 944 67 19.4 62.6 18.3 44.2 13 4.2 60.3 17.7 43.4 12.7 4.7 58 17 42.5 12.5 5.3 57.1 16.7 42.2 12.4 5.5 55.6 16.3 41.6 12.2 5.8
0.2 72 22.2 67.8 19.9 34.6 10.1 4.3 65.3 19.1 33.8 9.9 4.9 62.7 18.4 32.9 9.6 5.4 61.8 18.1 32.6 9.6 5.6 60.1 17.6 32.1 9.4 6.0
3025 62 16.7 59 17.3 59 17.3 4.2 56.5 16.6 56.5 16.6 4.7 53.9 15.8 53.9 15.8 5.2 53.1 15.6 53.1 15.6 5.4 51.4 15.1 51.4 15.1 5.7
1428 67 19.4 66.5 19.5 54.1 15.9 4.3 64 18.8 53.3 15.6 4.8 61.1 17.9 52.2 15.3 5.4 60 17.6 51.8 15.2 5.6 57.9 17 51.1 15 5.9
0.26 72 22.2 71.7 21 40.8 12 4.4 69 20.2 39.9 11.7 4.9 66.1 19.4 39.1 11.4 5.5 65.2 19.1 38.8 11.4 5.7 - - - - -
1513 62 16.7 57.8 16.9 47.9 14 4.4 55.6 16.3 46.9 13.7 5 53.2 15.6 45.8 13.4 5.6 52.4 15.4 45.5 13.3 5.8 50.6 14.8 44.7 13.1 6.2
714 67 19.4 62.3 18.3 40.1 11.7 4.5 60.1 17.6 39.2 11.5 5.1 57.6 16.9 38.2 11.2 5.7 56.8 16.6 37.8 11.1 5.9 55.2 16.2 37.2 10.9 6.3
0.17 72 22.2 67.3 19.7 32.2 9.4 4.6 64.8 19 31.3 9.2 5.2 62.2 18.2 30.4 8.9 5.8 61.4 18 30.1 8.8 6 59.8 17.5 29.6 8.7 6.4
2200 62 16.7 61.2 17.9 57.6 16.9 4.5 58.2 17.1 56.4 16.5 5.1 55.2 16.2 55.2 16.2 5.7 54.2 15.9 54.2 15.9 5.8 52.3 15.3 52.3 15.3 6.2
6065 1038 67 19.4 66.4 19.5 47.3 13.9 4.6 63.9 18.7 46.4 13.6 5.2 61.3 18 45.4 13.3 5.8 60.4 17.7 45.1 13.2 6 58.8 17.2 44.5 13 6.3
0.21 72 22.2 71.3 20.9 36.7 10.8 4.7 68.6 20.1 35.8 10.5 5.3 65.9 19.3 35 10.3 5.9 65.1 19.1 34.7 10.2 6.1 63.5 18.6 34.2 10 6.4
3025 62 16.7 62.5 18.3 62.5 18.3 4.5 59.7 17.5 59.7 17.5 5.1 56.8 16.6 56.8 16.6 5.7 55.8 16.4 55.8 16.4 5.9 54 15.8 54 15.8 6.3
1428 67 19.4 69.2 20.3 55.1 16.1 4.7 66.6 19.5 54.1 15.9 5.2 63.9 18.7 53.2 15.6 5.8 63 18.5 52.9 15.5 6 61 17.9 52.2 15.3 6.4
0.26 72 22.2 73.8 21.6 41.5 12.2 4.8 71.1 20.8 40.6 11.9 5.3 68.5 20.1 39.8 11.7 5.9 67.7 19.8 39.5 11.6 6.1 66.1 19.4 39.1 11.4 6.5
1513 62 16.7 66.5 19.5 53.9 15.8 5.3 63.9 18.7 52.7 15.4 6 61.2 17.9 51.5 15.1 6.7 60.3 17.7 51 15 7 58.6 17.2 50.3 14.7 7.4
714 67 19.4 71.6 21 45.3 13.3 5.4 69 20.2 44.2 13 6.1 66.3 19.4 43.1 12.6 6.8 65.4 19.2 42.8 12.5 7.1 63.7 18.7 42.1 12.3 7.5
0.09 72 22.2 77.3 22.6 36.8 10.8 5.5 74.5 21.8 35.7 10.5 6.2 71.6 21 34.7 10.2 7 70.7 20.7 34.3 10.1 7.2 68.8 20.2 33.6 9.9 7.6
2200 62 16.7 71.1 20.8 65.3 19.1 5.4 67.7 19.8 63.9 18.7 6.1 64.3 18.9 62.5 18.3 6.8 63.3 18.5 62 18.2 7 61.2 17.9 61.1 17.9 7.5
6070 1038 67 19.4 77.5 22.7 54.1 15.8 5.5 74.7 21.9 53 15.5 6.3 71.7 21 51.9 15.2 7 70.7 20.7 51.5 15.1 7.2 68.7 20.1 50.7 14.9 7.6
0.12 72 22.2 83.5 24.5 42.4 12.4 5.7 80.3 23.5 41.3 12.1 6.4 76.9 22.5 40.2 11.8 7.1 75.7 22.2 39.8 11.7 7.4 75.2 22 39.6 11.6 7.5
3025 62 16.7 73.2 21.4 73.2 21.4 5.4 70 20.5 70 20.5 6.1 66.8 19.6 66.8 19.6 6.9 65.7 19.3 65.7 19.3 7.1 63.7 18.7 63.7 18.7 7.5
1428 67 19.4 81.7 24 63.4 18.6 5.6 78.6 23 62.3 18.2 6.4 74.9 21.9 60.9 17.9 7.1 73.5 21.6 60.5 17.7 7.3 71 20.8 59.6 17.5 7.7
0.14 72 22.2 87.6 25.7 48.3 14.1 5.8 84 24.6 47.1 13.8 6.5 80.2 23.5 45.9 13.4 7.3 - - - - - - - - - -

Notes: Table 5
1. Ratings are based on 80°F (27°C) DB evaporator entering air temperature.
2. Direct interpolation is permissible. Do not extrapolate.
3. SKM Computer Selections are available for quick and accurate selections..
4. Shaded values are at 120°F (49°C) condenser air entering temperature.

* Power input mentioned in this page should not be used for cable or fuse selection. MCA and MFA values given in the electrical
data page (12) should be referred for the same.

8
SKM Rooftop Packaged Airconditioners
PACU Series - R22
FAN PERFORMANCE DATA - 50hz
Fan Performance - 50 Hz
External Estatic Pressure [ in.wg. (Pa) ]
Air Flow
Rate 0.11 (27) 0.20 (50) 0.30 (75) 0.46 (114) 0.50 (125) 0.60 (150) 0.77 (191) 0.83 (206) - -
5025
CMH 2000 1991 1980 1760 1705 1568 1444 1400 - -
CFM 1177 1172 1165 1036 1004 923 850 824 - -
LPS 556 553 550 489 474 436 401 389 - -

External Estatic Pressure [ in.wg. (Pa) ]

Air Flow
Rate - 0.20 (50) 0.30 (75) 0.40 (100) 0.55 (137) 0.60 (150) 0.70 (175) 0.80 (200) 0.92 (228) 1.0 (250)
5030
CMH - 2190 2092 1995 1850 1820 1760 1597 1400 1200
CFM - 1289 1231 1174 1089 1071 1036 940 824 706
LPS - 608 581 554 514 506 489 444 389 333

External Estatic Pressure [ in.wg. (Pa) ]

Air Flow
Rate 0.15 (37.7) 0.20 (50) 0.30 (75) 0.45 (112) 0.50 (125) 0.60 (150) 0.76 (190) 0.80 (200) 0.90 (225) 1.00 (250)
5035
CMH 2220 2192 2135 2050 2038 1945 1800 1754 1640 1526
CFM 1307 1290 1257 1207 1200 1145 1059 1032 965 898
LPS 617 609 593 569 566 540 500 487 456 424

External Estatic Pressure [ in.wg. (Pa) ]

Air Flow
Rate 0.16 (40.6) 0.20 (50) 0.3 (75) 0.43 (108) 0.50 (125) 0.6 (150) 0.70 (175) 0.80 (200) 0.9 (225) 1.0 (250)
5048
CMH 3000 2973 2907 2820 2776 2713 2650 2560 2470 2380
CFM 1766 1750 1711 1660 1634 1597 1560 1507 1454 1401
LPS 833 826 808 783 771 754 736 711 686 661

External Estatic Pressure [ in.wg. (Pa) ]

Air Flow
Rate - - - 0.45 (113) 0.51 (127) 0.63 (156) 0.70 (175) 0.78 (195) 0.94 (235) 1.0 (250)
5060
CMH - - - 3650 3560 3400 3269 3120 2700 2540
CFM - - - 2148 2095 2001 1924 1836 1589 1495
LPS - - - 1014 989 944 908 867 750 706

External Estatic Pressure [ in.wg. (Pa) ]

Air Flow
Rate - - 0.32 (79) 0.40 (100) 0.53 (132) 0.60 (150) 0.68 (169) 0.83 (208) 0.90 (225) 1.0 (250)
5065
CMH - - 4000 3900 3690 3555 3400 3100 2853 2500
CFM - - 2354 2295 2172 2092 2001 1825 1679 1471
LPS - - 1111 1083 1025 988 944 861 793 694

External Estatic Pressure [ in.wg. (Pa) ]

Air Flow
Rate - 0.22 (53) 0.30 (75) 0.40 (100) 0.45 (112) 0.61 (151) 0.70 (169) 0.77 (193) 0.90 (225) 1.0 (250)
5070
CMH - 4000 3900 3760 3690 3400 3231 3100 2761 2500
CFM - 2354 2295 2213 2172 2001 1902 1825 1625 1471
LPS - 1111 1083 1044 1025 944 898 861 767 694
Notes:
Note: 1. Air flow values are based on internal pressure drops through cooling coil, fan casing and 1" washable flat filter. Table 6
1. Air2.Flow values
Air flow ratesare based
shown on pressure
are based on High drops through evaporator coil, fan casing and 1” washable flat filter
Speed only.
2. Air3.flow
Direct driven fan with single phase & three speedonly.
rates shown are based on high speed motor.
3. Direct driven fans are with single phase & three speed motor type.

9
 SKM Rooftop Packaged Airconditioners
PACU Series - R22
FAN PERFORMANCE DATA - 60hz
Fan Performance - 60 Hz
External Estatic Pressure [ in.wg. (Pa) ]
Air Flow
Rate 0.12 (29) 0.20 (50) 0.34 (84) 0.45 (112) 0.50 (125) 0.60 (150) 0.76 (190) 0.85 (212) 0.90 (225) 1.0 (250)
6025 CMH 1800 1735 1620 1562 1536 1484 1400 1320 1276 1188
CFM 1059 1021 953 919 904 873 824 777 751 699
LPS 500 482 450 434 427 412 389 367 354 330

External Estatic Pressure [ in.wg. (Pa) ]

Air Flow
Rate 0.16 (38.7) 0.20 (50) 0.30 (75) 0.41 (102) 0.55 (137) 0.60 (150) 0.71 (177) 0.80 (200) 0.90 (225) 1.0 (250)
6030
CMH 1886 1872 1838 1800 1721 1693 1630 1540 1440 1340
CFM 1110 1102 1082 1059 1013 996 959 906 848 789
LPS 524 520 511 500 478 470 453 428 400 372

External Estatic Pressure [ in.wg. (Pa) ]

Air Flow
Rate 0.10 (25) 0.20 (50) 0.38 (96) 0.45 (112) 0.50 (125) 0.60 (150) 0.70 (171) 0.80 (200) 0.90 (225) 1.00 (250)
6035
CMH 2226 2177 2090 2048 2018 1959 1900 1812 1723 1635
CFM 1310 1281 1230 1205 1188 1153 1118 1067 1014 962
LPS 618 605 581 569 561 544 528 503 479 454

External Estatic Pressure [ in.wg. (Pa) ]

Air Flow
Rate 0.10 (25) 0.20 (50) 0.3 (75) 0.43 (108) 0.50 (125) 0.6 (150) 0.70 (175) 0.80 (200) 0.9 (225) 1.0 (250)
6048
CMH 3258 3179 3100 3030 2993 2940 2867 2794 2750 2666
CFM 1918 1871 1825 1783 1762 1730 1687 1644 1619 1569
LPS 905 883 861 842 831 817 796 776 764 741

External Estatic Pressure [ in.wg. (Pa) ]

Air Flow
Rate - 0.20 (50) 0.30 (75) 0.45 (113) 0.51 (127) 0.60 (150) 0.70 (175) 0.76 (190) 0.90 (225) -
6060
CMH - 4200 4100 3942 3879 3785 3607 3500 3300 -
CFM - 2472 2413 2320 2283 2228 2123 2060 1942 -
LPS - 1167 1139 1095 1078 1051 1002 972 917 -

External Estatic Pressure [ in.wg. (Pa) ]

Air Flow
Rate - 0.23 (57) 0.30 (75) 0.43 (107) 0.53 (132) 0.63 (156) 0.68 (169) 0.83 (208) 0.90 (225) -
6065
CMH - 4200 4100 3950 3880 3738 3636 3331 3250 -
CFM - 2472 2413 2325 2284 2200 2140 1961 1913 -
LPS - 1167 1139 1097 1078 1038 1010 925 903 -

External Estatic Pressure [ in.wg. (Pa) ]

Air Flow
Rate 0.10 (25) 0.12 (30) 0.20 (50) 0.32 (79) 0.53 (132) 0.60 (150) 0.68 (169) 0.81 (202) - -
6070
CMH 4200 4185 4100 4000 3700 3600 3467 3250 - -
CFM 2472 2463 2413 2354 2178 2119 2041 1913 - -
LPS 1167 1163 1139 1111 1028 1000 963 903 - -
Notes: Table 7

Note: 1. Air
1. Air flow
Flow valuesare
values arebased
based on
oninternal pressure
pressure dropsdrops through
through cooling coil,
evaporator fanfan
coil, casing and and
casing 1" washable flat filter.
1” washable flat filter
2. Air flow rates shown are based on high speed
2. Air flow rates shown are based on High Speed only. only.
3. Direct driven
3. Direct fans
driven fanare
withwith single
single phasephase
& three& speed
threemotor.
speed motor type.

10
N N C R G Y

SKM Rooftop Packaged Airconditioners C1 C1

C2
C2
LEG E N D C2

PACU Series - R22

C CONTACTOR
CAP CAPACITOR
OL2 OL2
CF1 CR1 CR2 CCH CRANKCASEHEATER
CF1
TFR C C CF CONTROLFUSE
C C
CFMR CONDENSERFANMOTOR R C
Typical Wiring Diagram
C

220~240V
CM EFM
COMPRESSORMOTOR EFM

24V
R S
S R S R OL2R S
HPS S S
PACU Models - 5025, 5030, 5035 M CS CONTROLSWITCH
CM POWERCM SUPPLY CFM CFM EFM EVAPORATORFANMOTOR
**L
CCH

**NL POWER SUPPLY

HPS HIGHPRESSURE SWITCH
N RUN CAPACITOR RUN CAPACITOR CAPACITORLPS CAPACITOR LPS LOWPRESSURESWITCH
CAPACITOR CAPACITOR
C1 TDR
C2
TH THERMOSTAT
C1 C2

CF2 CF2 TDR TIME DELAYRELAY

OL2
CF1 OL2
OL OVERLOADRELAY
10
CF1 C
C CR CONTROLRELAY
C R C
C CS TFR CONTROLCS TRASFORMER
C1
CR1 CR2 R
C2 TDR C1 C
R EFM
C1 S S
TH (BY OTHERS/OPTIONAL)EFM S
R TH (BY OTHERS/OPTIONAL) FIELDWIRINGAND
S
CM
R
R
R CFM
S S -------
CONTROLCCIRCUITR G C Y G Y FIELDSUPPLIEDDEVICES
CM CFM C2
C2 LEG E N D LEG E N D
CONTACTOR C CONTACTOR
**
RUN CAPACITOR CAPACITOR CAPACITOR C N,
MODELS: PACU-5025,5030,5035 RUN CAPACITOR CAPACITOR
PR O V ID E O VE R C U R R EN T, EA R TH FA U LT PR OT EC TIO
CAPACITOR
SH O R T C IR C U IT A N D D IS C O N N EC T M EA N S A S R E Q U IR ED CAPACITOR
BY
CAP CAPACITOR
CAP
CCH CRANK CASEHEATER
CF2 L & N A TIO N A LCR2
LO C ACR1 R IC C O D E . CR2
E LEC TCR1 CCH CRANK CASEHEATER
TFR CF2 TFR CF CONTROLFUSE CF CONTROLFUSE
CFM CONDENSER FAN CFM CONDENSER FAN MOTOR
MOTOR
220~240V
CCH220~240V

CS CM COMPRESSORMOTOR CM COMPRESSORMOTOR
24V
24V

C1 TH (BY OTHERS/OPTIONAL) OL2CS HPS MOL2 HPS M

CS CONTROLSWITCH
CS CONTROLSWITCH
C1 EVAPORATOR FAN MOTOR
EFMMOTOR
R TH (BYGOTHERS/OPTIONAL) EFM EVAPORATOR FAN
CCH

POWER SUPPLY
C Y

**L1 HPS HIGHPRESSUREHPS

C R G Y C2 LEG E N D SWITCHHIGHPRESSURE SWITCH
C2 LC E G E CONTACTOR
ND
LPS LPS LOW PRESSURESWITCH LPS LOW PRESSURESWITCH
LPS TDR
CTDR CONTACTOR
CAP CAPACITOR TH THERMOSTAT TH THERMOSTAT
CCH CAPACITOR
CAP CRANK CASEHEATER
L2
CR1 CR2 TDR TIME DELAYRELAY
TFR CF CONTROLFUSE TDR TIME DELAYRELAY
CR1 CR2 CCH CRANK CASEHEATER
CFM CONTROLFUSE
CF OL OVER LOAD RELAY
CONDENSER FAN MOTOR OL OVER LOAD RELAY
TFR
220~240V

L3
1 0
CM 1CONDENSER
CFM 0
COMPRESSORMOTOR CR CONTROLRELAYCR CONTROLRELAY
FAN MOTOR
24V 24V
220~240V

OL2 HPS M
CR1 CR2 OL2 CR1 C2CR2 TDR
CS
C2CM CONTROLSWITCH
COMPRESSORMOTOR
C1 TDR TFR CONTROL
C1 TFR CONTROL TRASFORMER
TRASFORMER
N
HPS EFM CONTROLSWITCH MOTOR
EVAPORATOR FAN
CCHCCH

M CS FIELD WIRING AND

FIELD WIRING AND
-------
EFM HIGHPRESSURE
HPS EVAPORATOR FAN -------
SWITCH
MOTOR
CON TROL CI RCU IT CON TROL CI RCU IT
HPS SWITCH FIELDSUPPLIEDDEVICES
LOW PRESSURESWITCH
LPS HIGHPRESSURE FIELDSUPPLIEDDEVICES
LPS
TDR TH
LPS THERMOSTAT
LOW PRESSURESWITCH
LPS
C1
MODELS:
MODELS: PACU-5025,5030,5035 C2
PACU-5025,5030,5035 **
TDR TDR
PR O V ID E O VE RTH
TDR
SH O R T C IR C U IT
TIME
PR
D
R EN
OLA N TIME
OVER
SHDOIS
V
**
ODELAYRELAY
C U RTHERMOSTAT
T ,IDEA
LOAD
E O
DELAYRELAY
RT
RCTOCRELAY
NIR
NC
VE
EC
H RFC
UT
AUUR
IT MAEA
LRT EN
PRTOT
N DNDSISAC
, EA
ECRTTIO
SORNENQEC
H NF,A U L T PR OT EC T IO N ,
T ED
U IR M EA N S A S R E Q U IR ED B Y
BY
10
CR CONTROLRELAY
L O
OLN A OVER
L O C A L & N A T IO C A
L E LLOAD L &
EC TRELAY N A T IO N
R IC C O D E . A L E L EC T R IC C O DE .
CR1 CR2 C2 TDR
10
C1 TFR CONTROLRELAY
CR CONTROL TRASFORMER
CR1 CR2 C2 C1 FIELD WIRING
TFR CONTROL AND
TRASFORMER
TDR -------
CON TROL CI RCU IT FIELDSUPPLIEDDEVICES
FIELD WIRING AND
-------
CON TROL CI RCU IT
OL2 FIELDSUPPLIEDDEVICES

**L1 POWER SUPPLY POWER

MODELS: PACU-5025,5030,5035 SUPPLY
** PR O V ID E O VE R C U R R EN T , EA R T H F A U L T PR OT EC T IO N ,

**L1 MODELS: PACU-5025,5030,5035 **

SH O R T C IR C U IT A N D D IS C O N N EC T M EA N S A S R E Q U IR ED B Y
PR O V ID E O VE R C U R R EN T , EA R T H F A U L T PR OT EC T IO N ,
L O C A L & N A T IO N A L E L EC T R IC C O D E .
SH O R T C IR C U IT A N D D IS C O N N EC T M EA N S A S R E Q U IR ED B Y
L O C A L & N A T IO N A L E L EC T R IC C O D E .

PACU
L2 ModelsL2- 5048, 5060, 5065 & 5070
L3 L3
**L1 CF1
POWER SUPPLY R C
N **L1L2 N POWER SUPPLY
L2
CM CFM EFM
L3 C1 C1 C2 C2
L3
N
S
N
C1 C2
C1 C2 OL2 OL2

CF2 OL2
OL2

CF1 CF1 R C R C
CF1 CM CMCFM R C CFM EFM EFM
CF1 CM
CM
CFM
CFM
R EFM C
EFM S CS S MODELS:S
S
TH(BY OTHERS/OPTIONAL)
CR1 PACU- 5048,5060,5065,5070
YCF2
CF2CF2
C CF2
R G
C1 C2 TYP IC A L W IR IN G D IA G R A M IS FO R 50 H z P O W ER S U PP LY .
MODELS:
FOR 6 0H z P O W E R SU PP LY P LEA S E C O N SU LT SK M
CS
TH (BY OTHERS/OPTIONAL) MODELS: MODELS:
CS 5048,5060,5065,5070
PACU- CS CS MODELS:
CR1
C R
TH (BY OTHERS/OPTIONAL)
TH (BY OTHERS/OPTIONAL)
G Y CR1 PACU-
TH (BY OTHERS/OPTIONAL) 5048,5060,5065,5070
PACU- 5048,5060,5065,5070PACU- 5048,5060,5065
C1 C R G Y C2CR1 CR1
T YP IC A L W IR IN G D IA G R A M IS F O R 50 H z P O W ER S U PP L Y .
C R Y G Y F OR 6 0H z P O W E R SU PP L Y P L EA S E C O N SU L T SK M

C1
C1
C1
C R G CR2
C2 T YP IC A L W IR IN G D IA G R A M IS F O R 50 H z P O W ER S U PP L Y .
F OR 6 0H z P O W E R SU PP L Y P L EA S E C O N SU L T SK T
A L W IR IN G D IA G R A M ISWFIR
T YP ICC2 MYP IC A L
OIN
RG50DHIA
zPGORWAMERISS FUO
PPR L50
Y .H z
C2
TFR F OR 6 0H z P O W E R SUF OR
PP L6Y0HPzL P
EAOS
WEE C
ROSU PPLLTY SK
N SU P LM
EA S E C O N
CR2
TFR
220~240V

CR2
TFR
220~240V
24V

CR2 CR2
24V 24V

OL2OL2 HPS
CCH220~240V220~240V

HPS
TFR TFR MM
OL2 HPS
CCHCCH

M
220~240V
CCH

24V
24V

LPS
OL2 TDR HPS OL2 HPS M
M
LPS
TDR
CCH

LPS
TDR
10

CR1 CR2 C2 TDR

10
C1 LPS LPS
TDR TDR
CR1 CR2 C2 TDR C1
CON T ROL CIRCU I T

CON T ROL CIRCU I T

10
10 10

CR1 CR2
CR1 C2 CR1
CR2 TDR C2CR2 C1 TDR C2 C1 TDR C1

CON T ROL CIRCU I T CON T ROL CIRCU I T

11
CONTROL CIRCUIT
 SKM Rooftop Packaged Airconditioners
PACU Series - R22 Power Supply: 220-240V/1Ph/50Hz
Model Unit Characteristics Compressor Power Supply: 220-240V/1Ph/50Hz
Condenser Evaporator
PACU
ELECTRICAL
Model DATA
Unit Characteristics
MFA MCA RLACompressor LRA Motor
Power FLA 220-240V/1Ph/50Hz
Supply:
Condenser Motor FLA
Evaporator
Power Supply: 220-240V/1Ph/50Hz
PACU
5025
Model Unit
MFA Characteristics
MCA
40 Characteristics23 RLA Compressor LRA
13.2Compressor 65 Motor
0.9FLA 220-240V/1Ph/50Hz
Condenser Motor
3.7FLA
Evaporator
50Hz
Model Unit Power Supply:
Condenser Evaporator
PACU
5025
5030 MFA MCA
40 Characteristics23 RLA LRA
13.2 Compressor LRA
65 Motor FLA
0.9FLA Motor FLA
3.7FLA
PACU
Model Unit
MFA MCA RLA Motor
Condenser Motor
Evaporator
5025
5030
PACU
5035 40
50
MFA 23
27
MCA 13.2
16.4
RLA 65
82
LRA 0.9FLA
Motor 3.7FLA
Motor
5025 40 23 13.2 65 0.9 3.7
5030
5035
5025 40
50 23
27 13.2
16.4 65
82 0.9 3.7
5030 40 23 13.2 65 0.9 3.7
5035
5030 50
40 27
23 16.4
13.2 82
65 0.9
Power Supply:
0.9 3.7
380-415V/3Ph/50Hz
3.7
5035 50 27 16.4 82
5035
Model Unit
50 Characteristics27 16.4 Compressor 82 Power Supply:
Condenser
0.9 380-415V/3Ph/50Hz
Evaporator
3.7
PACU
Model Unit
MFA Characteristics
MCA RLACompressor LRA Motor
Power FLA
Supply:
Condenser Motor FLA
380-415V/3Ph/50Hz
Evaporator
Power Supply: 380-415V/3Ph/50Hz
PACU
5048
Model Unit
MFA Characteristics
25 CharacteristicsMCA
18 RLA Compressor LRA
8 Compressor 50 Motor
Power 0.75FLA 380-415V/3Ph/50Hz
Condenser
Supply: Motor5 FLA
Evaporator
Model Unit Condenser Evaporator
PACU
5048
5060 MFA
25
32 CharacteristicsMCA
18
20 RLA LRA
8 Compressor LRA
10 50
74 Motor FLA
0.75FLA Motor FLA
5 FLA
4.7
PACU
Model Unit
MFA MCA RLA Motor
Condenser Motor
Evaporator
5048
5060
PACU 25
32 18
20 8
10 50
74 0.75FLA
Motor 5
4.7
Motor
5065
5048 MFA
25 21
MCA
18 RLA
8 LRA
50 0.75 5 FLA
5.4
5060
5065
5070
5048 32
40
25 20
21
23
18 10
12
8 74
101
50 0.75
0.75
0.75 4.7
5.4
5
5060 32 20 10 74 4.7
5065
5070
5060 32
40 21
23
20 10
12 74
101 0.75 5.4
4.7
5065 32 21 10 74 0.75 5.4
5070 40 23 12 101 0.75
Power 5.4
5065
5070 32
40 21
23 10
12 74
101 0.75 Supply: 220V/1Ph/60Hz
5.4
5070
Model Unit
40 Characteristics 23 12 Compressor 101 Power
0.75 Supply: 220V/1Ph/60Hz
Condenser Evaporator
5.4 Table 8
60Hz PACU
Model Unit Characteristics
MFA MCA RLACompressor LRA Motor
PowerFLA
Condenser Motor FLA
Supply: 220V/1Ph/60Hz
Evaporator
Power Supply: 220V/1Ph/60Hz
PACU
6025
Model Unit
MFA Characteristics
40 CharacteristicsMCA
24 RLA Compressor LRA
14.3Compressor 61.5 Motor
0.9FLA
Condenser
Power Motor
2.6FLA
Evaporator
Supply: 220V/1Ph/60Hz
Model Unit Condenser Evaporator
PACU
6025
6030 MFA
40 CharacteristicsMCA
24 RLA LRA
14.3 Compressor LRA
61.5 Motor FLA
0.9FLA Motor FLA
2.6FLA
PACU
Model Unit
MFA MCA RLA Motor
Condenser Motor
Evaporator
6025
6030
PACU
6035 40
50
MFA 24
29
MCA 14.3
18.4
RLA 61.5
95
LRA 0.9FLA
Motor 2.6FLA
Motor
3.28
6025 40 24 14.3 61.5 0.9 2.6
6030
6035
6025 40
50
40 24
29
24 14.3
18.4
14.3 61.5
95
61.5 0.9
0.9 2.6
3.28
2.6
6030
6035 50 29 18.4 95 0.9
Power 3.28
6030
6035 40
50 24
29 14.3
18.4 61.5
95 0.9 Supply: 380V/3Ph/60Hz
2.6
3.28
6035
Model Unit
50 Characteristics 29 18.4 Compressor 95 Power Supply:
Condenser
0.9 380V/3Ph/60Hz
Evaporator
3.28
PACU
Model Unit Characteristics
MFA MCA RLACompressor LRA Motor
Power FLA
Supply:
Condenser Motor FLA
380V/3Ph/60Hz
Evaporator
Power Supply: 380V/3Ph/60Hz
PACU
6048
Model Unit
MFA Characteristics
32 CharacteristicsMCA
20 RLA Compressor LRA
9 Compressor 54 Motor
1.1FLA
Condenser
Power Motor
5.6FLA
Evaporator
Supply: 380V/3Ph/60Hz
Model Unit Condenser Evaporator
PACU
6048
6060 MFA
32 CharacteristicsMCA
20
22 RLA LRA
9 Compressor LRA
11 54
75 Motor FLA
1.1FLA Motor
5.6FLA
4.7FLA
PACU
Model Unit
MFA MCA RLA Motor
Condenser Motor
Evaporator
6048
6060
PACU
6065 32
32
MFA 20
22
MCA 9
11
RLA 54
75
64
LRA 1.1
Motor
1.1FLA 5.6FLA
4.7
Motor
6048 32 20 9 54 1.1 5.6
6060
6065
6070
6048 32
32 22
22
20 11
12
9 75
64
70
54 1.1
1.1 4.7
4.7
5.6
6060 32 22 11 75 1.1 4.7
6065
6070
6060 32 22 11
12 64
70
75 1.1
1.1 4.7
4.7
6065 32 22 11 64 1.1 4.7
6070 32 22 12 70 1.1
Power 4.7
6065
6070 32 22 11
12 64
70 1.1 Supply: 220V/3Ph/60Hz
1.1 4.7
4.7
6070
Model Unit
32 Characteristics 22 12 Compressor 70 Power
1.1 Supply: 220V/3Ph/60Hz
Condenser Evaporator
4.7
PACU
Model Unit Characteristics
MFA MCA RLACompressor LRA Motor
PowerFLA
Condenser Motor FLA
Supply: 220V/3Ph/60Hz
Evaporator
Power Supply: 220V/3Ph/60Hz
PACU
6048
Model Unit
MFA Characteristics
50 CharacteristicsMCA
31 RLA Compressor LRA
16 Compressor 91 Motor
2.5FLA
Condenser
Power Motor
5.6FLA
Evaporator
Supply: 220V/3Ph/60Hz
Model Unit Condenser Evaporator
PACU
6048
6060 MFA
50 CharacteristicsMCA
31 RLA
16 LRA
91
17 Compressor LRA
124 Motor
2.5FLA
2.5FLA Motor
5.6 FLA
4.7FLA
PACU
Model Unit
MFA MCA RLA Motor
Condenser Motor
Evaporator
6048
6060
PACU
6065 50
63
MFA 31
36
MCA 16
17
21
RLA 91
124
128
LRA 2.5
Motor
2.5FLA 5.6
Motor
4.7FLA
6048 50 31 16 91 2.5 5.6
6060
6065
6070
6048 50
63
50 31
36
31 17
21
16 124
128
156
91 2.5
2.5
2.5 4.7
4.7
5.6
6060 17 124 2.5 4.7
Legend6065
6070
6060: 63
50 36
31 21
17 128
156
124 2.5
2.5 4.7
4.7 Table 9
6065 63 36 21 128 2.5 4.7
6070
Legend
6065RLA Rated 63Load Amperes 36 21 156
128 2.5 4.7
6070 63 36 21 156 2.5 4.7
FLA Full Load Amperes
Legend
MFA
6070LRA izing),
Locked complies with NEC 36
63Rotor Amperes Article 440-22 & 430-52.
21 156 2.5 4.7
Legend
MFA
MCA MCA izing),
Minimum
wire complies
sizing), with NEC
Circuit Amperes
complies Articlearticle
(for
with NEC 440-22
wire & 430-52.
sizing).
440-33.
LegendMFA Maximum Fuse Amperes (for Fuse Sizing)
NotesMFA
MCA
RLA
:
Legend izing),
wire
Rated complies
sizing),
Load with NEC
complies
Amps. Articlearticle
with Article
NEC 440-22 & 430-52.
440-33.
MFA izing), complies with NEC 440-22 & 430-52.
MCA
RLA
LRA
Voltage
MFA wire
Rated
Locked
imbalance sizing),
Load
between
izing), complies
Amps.
Rotorcomplies
Amps
phases
complies with
withtoNEC NEC
be less article
than
Article 440-33.
2%.440-33.
440-22 & 430-52.
MCA wire sizing), with NEC article
RLA
LRA
FLA
MCA Rated
Locked Load
Rotor
Fullsizing),
wire Load Amps.
Amps with NEC article 440-33.
Amps
complies
RLA Rated Load Amps.
12LRA
FLA Locked Rotor
Full Load Amps
Amps
RLA
LRA Rated
Locked Load
Rotor Amps.
Amps
FLA Full Load Amps
SKM Rooftop Packaged Airconditioners
PACU Series - R22
Dimensional Data
PACU Models: 5025, 5030, 5035 & 6025, 6030, 6035
0.77 2
[19] [52] MOUNTING HOLES
Ø0.5 [13] x 4 NOS.
0.77 2
MODEL DIMENSIONS [19] [52] MOUNTING HOLES
4 Ø0.5 [13] x 4 NOS.
PACU-

[102]
BA C G J

4
5025 7.7 14.98 10.04 10.1
12 [196] DIMENSIONS
[380] [255] [256]
MODEL [305]
9.53 15.43 9.13 8.27 4 AIR IN
PACU-

[102]
6025 A B C G J
[242] [392] [232] [210]

4
5025 7.7
5.7 14.98
14 10.04
12.01 10.1
10.1
5030 [196] [380]
12 [146] [355] [305] [255] [256] 3
14
[305] 9.53 15.43 9.13
[256]
8.27 AIR IN
6025 [356] 7.64 [242] 15.43 9.13
[392] [232]
[232] 8.19
[210]
6030 [194] [392] [208]
5030 5.7 14 12.01 10.1 3
5035 5.7
[146] 14.35
[355] 11.30
[305] 10.1
[256]
14 [146] [364] [287] [256]
14
[356] 7.64 15.43 9.13
6030 [356] 8.19
5.7
[194] 14.98
[392] 10.04
[232] 10.1
[208]
6035 [146] [380] [255] [256]
5035 5.7 14.35 11.30 10.1 1
ALL DIMENSIONS
14 ARE [146] [364][mm]
IN INCHES [287] [256]
[356] 5.7 14.98 10.04 10.1
6035 40 [146] [380] [255] [256] 45
[1016] [1143] 1
ALL DIMENSIONS ARE IN INCHES [mm] 1 21 24
C G C [25] [534] [609]
40 45

[38]
1.5
[1016] 5 [1143]
1 21 24
C G C [25] [534] [609]

[38]
J 1.5
S/A 5

S/A

[821]
JB

32.3

[ 871]
34.3
2

[821]
AB

32.3
R/A

[ 871]
34.3
R/A 2
A

6 28 6 7 6 ACCESS CABLEENTRY
[25]
1

HOLEØ1 [25]x 2Nos.

[50]
[152] [711] [152]

2
DRAIN (WITH RUBBER GROMMET)
Ø1[25] x 2Nos.
6 28 6 7 6 ACCESS CABLEENTRY
[25]
1

HOLEØ1 [25]x 2Nos.

[50]
[152] [711] [152]

2
DRAIN (WITH RUBBER GROMMET)
PACU Models: 5048, 5060, 5065, 5070 & 6048, 6060,
0.77 6065, 6070 Ø1[25] x 2Nos.
2
[102] [102]
4

[19] [51] MOUNTING HOLES

Ø0.5 [13] x 4 NOS.
0.77 2
4

[19] [51] MOUNTING HOLES

LEGEND Ø0.5 [13] x 4 NOS.

1 CONTROL PANEL
4
2LEGEND
COMPRESSOR
CONTROL PANEL
3 1CONDENSER COIL
4 AIR IN
4 2CONDENSER
COMPRESSORFAN
3 CONDENSER
5 EVAPORATOR FAN COIL
AIR IN
6 4EVAPORATOR
CONDENSER COIL
FAN
7 51"EVAPORATOR FAN
THK. FLAT FILTER
[106]

6 EVAPORATOR COIL
[106] 4.2

7 1" THK. FLAT FILTER

4.2

44 L 1
[1118]
C G44 C 1 I L M
[1118] [25]
[38] [38]
1.5 1.5

C G C 1 I 5 M
[25]
5
S/A
J

S/A
J B

H1
H
B

H1

2
H

R/A
A

2
R/A
A
[50] [50]

D E F 7 6 ACCESS PANEL CABLE ENTRY

2 2

[50]

HOLE Ø1[25]x 2Nos.

[50] 2

D E F 7 ACCESS PANEL
6 DRAINØ1 CABLE
(WITHENTRY
RUBBER GROMMET)
[25] x 2Nos. HOLE Ø1[25]x 2Nos.
2

DRAINØ1[25] x 2Nos. (WITH RUBBER GROMMET)

MODEL DIMENSIONS
PACU-
MODEL L H H1 A B C DIMENSIONS
D E F G J I M
PACU- L H H1 A B C D E F G J I M
5048
55 34.3 32.3 14 4.5 16.1 8 28 8 11.8 10.3 27 28
5048 [1397] [871] [821] [356] [115] [409]
6048 55 34.3 32.3 14 4.5 16.1 [203]
8
[711]
28
[203] 11.8
8
[300] [262]
10.3 [686] [711]
27 28
[1397] [871] [821] [356] [115] [409] [203] [711] [203] [300] [262] [686] [711]
6048
5060 4.4 15.9 12.2 13.4
60 38.3 36.3 15 [112]
4.4 [404]
15.9 3 36 5 [309]
12.2 [341]
13.4 32 28
5060 [1524] [972] [922] [381] [112] [404] [76] [914] [127] [309] [341] [813] 28
[711]
6060 60 38.3 36.3 15 6.38 15.48 3 36 5 13.03 11.46 32
[1524] [972] [922] [381] [162]
6.38 [393]
15.48 [76] [914] [331]
[127] 13.03 [291]
11.46 [813] [711]
6060 [162] [393] [331] [291]
5065 4.4 15.9 12.2 13.4
60 38.3 36.3 15 [112]
4.4 [404]
15.9 3 36 5 [309]
12.2 [341]
13.4 32 28
5065
[1524]
60 [972]
38.3 [922]
36.3 [381]
15 [112]
6.38 [404]
15.48 [76]
3 [914]
36 [127]
5 [309]
13.03 [341]
11.46 [813] 28
32 [711]
6065 [1524] [972] [922] [381]
6065
[162]
6.38 15.48 [76] [914]
[393] [127] 13.03
[331] [291]
11.46 [813] [711]
[162]
4.4 [393]
15.9 [331]
12.2 [291]
13.4
5070
60 38.3 36.3 15 [112]
4.4 [404]
15.9 3 36 5 [309]
12.2 [341]
13.4 32 28
5070
[1524]
60 [972]
38.3 [922]
36.3 [381]
15 [112]
6.38 [404]
15.48 [76]
3 [914]
36 [127]
5 [309]
13.03 [341]
11.46 [813] 28
32 [711]
6070 [1524] [972] [922] [381] [813] [711]
6070
[162]
6.38 15.48 [76] [914]
[393] [127] 13.03
[331] [291]
11.46
[162] [393] [331] [291]
ALL DIMENSIONS ARE IN INCHES [mm]
ALL DIMENSIONS ARE IN INCHES [mm]

13
 SKM Rooftop Packaged Airconditioners
PACU Series - R22
Recommended Clearances

14
SKM Rooftop Packaged Airconditioners
PACU Series - R22
Installation and Commissioning
• Install the unit in such a location which is flat and strong enough to support its weight.

• Provide a trap of over 2" (50mm) in the drain piping for water seal.

• All field wiring must comply with applicable local and national codes.

• Connect supply and return ducts as shown.

• Service spacing should be provided as shown in the figure. If any obstacles are around the unit, distributed air is short-circuited.
In this scenario, unit stops working frequently and access to the unit is difficult during inspection and aftersales services.

INSTALLATION & COMMISSIONING

SPACING FOR AIRFLOW

No obstacle

SPACING FOR SERVICE

AIR IN
AIR OU T

AIR IN

L
A NE
O LP RY
N TR ENT
S.AIR CO BLE
CA

R.AIR

Hook

Sling

Protector

S.AIR

R .AIR

15
 SKM Rooftop Packaged Airconditioners
PACU Series - R22
GUIDE SPECIFICATIONS
GENERAL
Packaged air conditioners shall be composed of compressor;
condenser and evaporator coils with fans, refrigerant piping,
electrical components and enclosing cabinet in one piece. These
units shall be factory assembled, internally wired, fully refrigerant
charged with R-22, tested under strict quality standards & are
suitable for outdoor rooftop installation ground level.
COMPRESSOR(S)
Compressor(s) shall be hermetically sealed scroll type, refrigerant
gas cooled, furnished with internal motor protection and mounted
on engineering mounts for perfect vibration isolations.
FILTER
Cooling unit shall be provided with cleanable media, easy access,
and minimum 1” thick coarse filter having average extraction
efficiency of 54% as per ASHRAE standards 52.1 or equivalent.
CASING
Units casing shall be made of Zinc coated galvanized steel sheets,
which are then electro statically, powder coated to provide an
extremely tough, scratch resistance & excellent anti-corrosive
protection. Casing shall pass 1000 hours in 5% salt spray testing
at 95° F (35°C) and 95% relative humidity as per ASTM B117.

CONDENSER COIL
CONTROL PANEL
Condenser coils shall be air cooled with integral sub cooler,
The control panel shall contain electrical components, contactros,
constructed of special inner grooved seamless copper tubes 3/8”
overload relays, control relays, transformer, anti-recycle time relay
OD mechanically expanded into waffle louver aluminum cross
delay, control circuit disconnect switch. Power & control circuit
fins. These coils shall be tested against leakage by air pressure
terminal blocks & high and low pressure switch.
of 450 psig (3100 kPa) under water, cleaned & dehydrated at
the factory.

CONDENSER FANS & MOTORS

Condenser Fans shall be direct driven propeller type discharging
air vertically upward, equipped with statically & dynamically
balanced aluminum alloy blades, inherent corrosion resistant
shaft & PVC coated steel wire fan guard. Condenser fan motor(s)
shall be Totally Enclosed Air over (TEAO), 6 poles with class-F
insulation, minimum IP55 protection & wired to unit control
panel.

EVAPORATOR COIL
Evaporator coil shall be constructed of special innergrooved
copper tubes 3/8” OD mechanically bonded to aluminum fins.
Coil consists of headers of seamless copper tubing, refrigerant
control device & multi-circuited distributor(s). These coils shall
be tested against leakage by air pressure of 300 psig (2068
Kpa) under water, cleaned & dehydrated at the factory. Coil shall
conform to AHRI - 410.

EVAPORATOR FAN AND MOTOR

Fans of evaporator shall be forward curved, centrifugal type,
statically and dynamically balanced, mounted on a single heavy
duty shaft with permanently lubricated bearings which is directly
driven by electric motor. Motor shall be internally protected with
class. B insulation & IP 20 protection and wired to unit control panel.

16
 Spare Parts Division
Sharjah, United Arab Emirates
Tel: +971 6 5347347
Fax: +971 6 5349292
Email: spareparts@skm.ae
HEAD OFFICE
P.O Box: 6004 Service Centre
Sharjah, United Arab Emirates Sharjah, United Arab Emirates
Tel: +971 6 5347347 Tel: +971 6 5347347
Fax: +971 6 5349292 Fax: +971 6 5349292
Email: sales@skm.ae Email: aftersales@skm.ae

REGIONAL OFFICES
UAE Saudi Arabia
Abu Dhabi P.O Box: 27788 AL Messila HVAC Equipment Factory
Abu Dhabi, United Arab Emirates (Part of SKM A/C factory in
Saudi Arabia)
Tel: +971 2 6445223 Saudi Arabia, Eastern provenance
Fax: +971 2 6445145 AD Dammam
Email: abudhabisales@skm.ae 2nd industrial city
Al Ain Al Ain, United Arab Emirates Abqiq main road Hail Street
Tel: +966 13 8123332/ 4 / 5
Tel: +971 3 7619921 Fax: +966 13 8123337/+96613 8123092
Fax: +971 3 7619941
Email: alainsales@skm.ae Egypt
Dubai P.O Box: 98822 9 Mosadak Street,
3rd floor, Dokki, Giza, Egypt
Dubai, United Arab Emirates Tel: +20 2 37619617 / +20 2 37621974
Tel: +971 4 2940900 Fax: +20 2 37621973
Fax: +971 4 2940029 Email: egyptsales@skm.ae
Email: dubaisales@skm.ae
Algeria
Kuwait Aissat Idir ( EX-ENMA) City
P.O Box: 1215-PC 15463 Bldg1, Flat 2, Dar El Beida Algiers,
Dasman, Kuwait Algeria
Tel: +965 2 2492200 Tel: +213 21 508197
Fax: +965 2 2494400 Fax: +213 21 508197
Email: kuwaitsales@skm.ae Email: algeriasales@skm.ae

DISTRIBUTORS
Saudi Arabia Qatar
mdaqqa@fawaz.com Mannai Trading Co. WLL
P.O Box: 76
Dammam Doha, Qatar
Fawaz Ref. & Air Conditioning Co.
P.O Box: 1189 Tel: +974 4 4558787 / +974 4 4558788
Al Khobar, Saudi Arabia Fax: +974 4 4558781
Tel: +966 13 8598666 Email: dohasales@skm.ae
Fax: +966 13 8598520 HVAC@mannai.com.qa
Email: abarbarawi@fawaz.com
Jeddah Iraq
Fawaz Ref. & Air Conditioning Co. Al Rawbitt Al Iraqia Co.
P.O Box: 13218 Erbil – Bagdad – Basra
Jeddah, Saudi Arabia Tel: +964 7507441111
Tel: +966 12 6675704
Fax: +966 12 6608316 +964 7711117776
Email: jrabdu@fawaz.com +965 99608916
Email: info@alrawabitt.com
Riyadh
Fawaz Ref. & Air Conditioning Co. Kuwait (for Unitary Products Only)
P.O Box: 85123 British Link Kuwait (BLK)
Riyadh, Saudi Arabia P.O Box: 53054 Al Nuzha
Tel: +966 11 4794499 Tel: +965 1820099
Fax: +966 11 4785354 Fax: +965 22465005
Email: szaidan@fawaz.com Email: rawad@blk.com.kw
Jordan
Ideal A/C Systems Co. L.L.C Forest (Global Distributor for
Al Gardenz Street, Building 111, Minisplit, VRF & Window)
Al Bakri Complex Head Office- Kuwait
P.O Box 5502 Amman, Jordan 11953 Tel: +965 182 0099 - Ext 500
Tel: +962 6 5538640 Fax: +965 2249 6197
Fax: +962 6 5538641 Email: forest@forestunited.com
Email: tariq@idealac.com website: www.forestunited.com

027/2013
visit us at www.skm.ae Supersedes 027/2010
