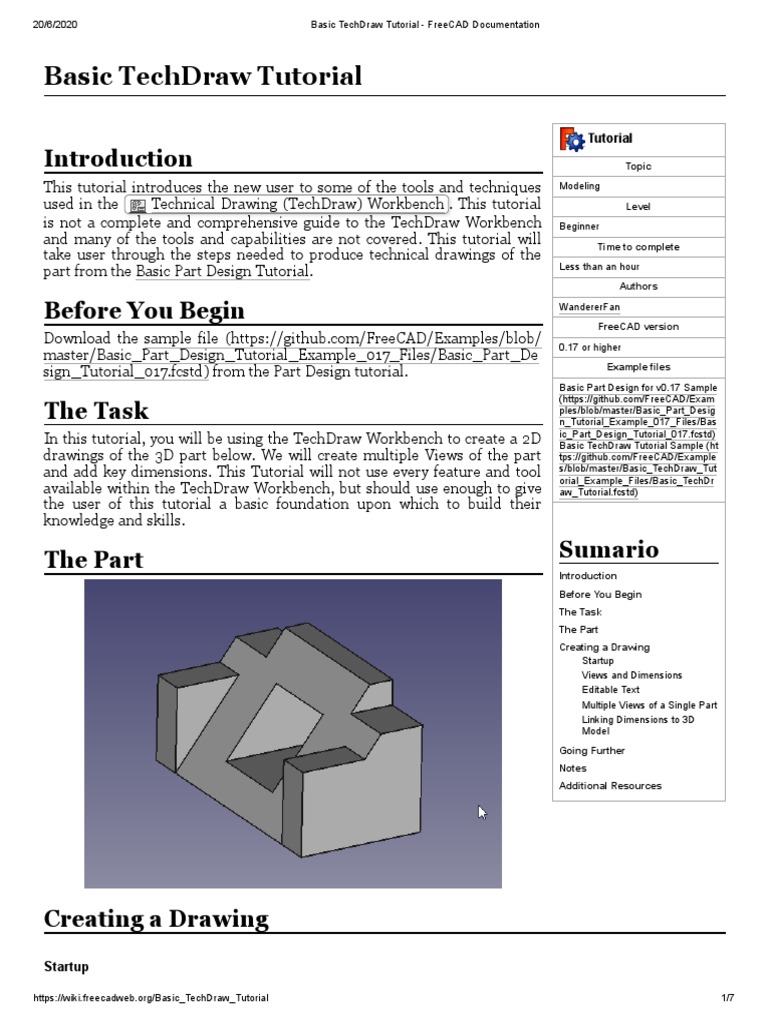

Basic TechDraw Tutorial

Tutorial
Introduction Topic

This tutorial introduces the new user to some of the tools and techniques Modeling
used in the Technical Drawing (TechDraw) Workbench . This tutorial Level
is not a complete and comprehensive guide to the TechDraw Workbench Beginner
and many of the tools and capabilities are not covered. This tutorial will Time to complete
take user through the steps needed to produce technical drawings of the
Less than an hour
part from the Basic Part Design Tutorial.
Authors

Before You Begin WandererFan

FreeCAD version
Download the sample file (https://github.com/FreeCAD/Examples/blob/ 0.17 or higher
master/Basic_Part_Design_Tutorial_Example_017_Files/Basic_Part_De
Example files
sign_Tutorial_017.fcstd) from the Part Design tutorial.
Basic Part Design for v0.17 Sample
(https://github.com/FreeCAD/Exam
The Task ples/blob/master/Basic_Part_Desig
n_Tutorial_Example_017_Files/Bas
ic_Part_Design_Tutorial_017.fcstd)
In this tutorial, you will be using the TechDraw Workbench to create a 2D Basic TechDraw Tutorial Sample (ht
drawings of the 3D part below. We will create multiple Views of the part tps://github.com/FreeCAD/Example
and add key dimensions. This Tutorial will not use every feature and tool s/blob/master/Basic_TechDraw_Tut
orial_Example_Files/Basic_TechDr
available within the TechDraw Workbench, but should use enough to give aw_Tutorial.fcstd)
the user of this tutorial a basic foundation upon which to build their
knowledge and skills.

The Part Sumario

Introduction
Before You Begin
The Task
The Part
Creating a Drawing
Startup
Views and Dimensions
Editable Text
Multiple Views of a Single Part
Linking Dimensions to 3D
Model
Going Further
Notes
Additional Resources

Creating a Drawing
Startup

https://wiki.freecadweb.org/Basic_TechDraw_Tutorial 1/7
20/6/2020 Basic TechDraw Tutorial - FreeCAD Documentation

You may wish to adjust your preference settings before beginning. See Note 1.
First open the file containing our 3D part. Then make sure you are in the TechDraw Workbench.
You will be selecting items in the Drawing window and/or the Combo panel. Selection in TechDraw
works the same as in the 3D window. Items turn yellow when the cursor is in position to select
them and turn green when selected. To select multiple items use the Ctrl key while clicking.

Views and Dimensions

All work in TechDraw begins with a Page. Pages are based on Templates and contain Views.

1. Click on New Page from default Template to create a new Page.

2. Click on Body in the 3D view or in the Combo view.

3. Click on Create new View. This will add the View to the page we just created.

Now we have a View on the Page looking down at the top of the Body. It is a little small, though.

1. Select Page in the Combo view and scroll to the Scale property on the Data tab.
2. Change the Scale from 1 to 2 and press Enter . The View will get bigger.
3. Drag the View away from the documentation block in the bottom right of the page.

https://wiki.freecadweb.org/Basic_TechDraw_Tutorial 2/7
20/6/2020 Basic TechDraw Tutorial - FreeCAD Documentation

Better, but a little boring. Let's add some Dimensions.

1. Select (LMB) the top-left Vertex (small dot), then also select ( Ctrl -LMB) on the bottom-left vertex.
2. Click on New Vertical Dimension. Drag the dimension text away from the Body.

3. Try that again with the top-left and top-right Vertices and New Horizontal Dimension.

Editable Text
We should add some documentation to our drawing.
1. Click on the small green square beside Title in the documentation block. You'll get a pop-up window where you can change Title to something more
meaningful.
2. Just for practice, put your name in the Designed by Name field the same way.

https://wiki.freecadweb.org/Basic_TechDraw_Tutorial 3/7
20/6/2020 Basic TechDraw Tutorial - FreeCAD Documentation

Getting better. Let's add some text to the page.

1. Click on New Annotation. A text block will appear in the middle of the page.

2. Drag the text block away from the main View.

3. Click on Annotation in the Combo view and scroll to the Text property on the Data tab.
4. Click in the data area, then click on the ellipsis at the right of the field. You'll get a pop-up window where you can change the text to something more
meaningful.

Before we leave this Page, let's see what it will look like when we print it.

1. Click on Toggle Frames. The Vertices and View frames will disappear. You can get them back by clicking Toggle again.

https://wiki.freecadweb.org/Basic_TechDraw_Tutorial 4/7
20/6/2020 Basic TechDraw Tutorial - FreeCAD Documentation

Multiple Views of a Single Part

Let's create a multiview drawing using a different Template as a starting point. We'll be using the First
Angle convention, but you can change to Third Angle if that is your local convention.

1. Click on New Pick. A file chooser dialog will appear. Select a template file. We're going to use "ANSIB.SVG". A new tab will appear.

2. Select "Body" and "Page001" (if you have more than one page in your document, you need to tell TechDraw which one to use).
3. Click on New Projection Group. The familiar small view in the middle of the page will appear and a dialog will appear in the Task panel.

4. Click on several boxes in the Secondary Views section of the dialog.

5. Drag the View labelled "Front". All the other Views move with it.
6. Change the Scale drop down box from Page to Custom and change the Custom Scale to 2:1. Press the OK button.

1. In the View labelled "TopLeftFront", select the two Vertices at the extreme ends of the front edge of the work piece.
2. Click on New Length. Drag the dimension text away from the Body.

https://wiki.freecadweb.org/Basic_TechDraw_Tutorial 5/7
20/6/2020 Basic TechDraw Tutorial - FreeCAD Documentation

Linking Dimensions to 3D Model

Do you notice a problem with the dimension we just created?

From the first part of this tutorial, we know that the work piece is 53 mm wide, but our new
dimensions reads 43.27. This is because "TopLeftFront" is an isometric projection (https://en.wikipedi
a.org/wiki/Isometric_projection), and our first drawing was an orthogonal (multiview) projection (htt
ps://en.wikipedia.org/wiki/Orthographic_projection). To get the right value, we need to link our
dimension directly to the 3D model.
1. Note the name of our faulty dimension in the Combo panel. We'll need it in a minute.
2. Change to the 3D tab and select the Vertices at the ends of the front edge of the work piece. Also select Page001.
3. Click on New Links. A dialog will open in the Task panel.

4. In the dialog, move our dimension from the Available column to the Selected column. Press OK .
5. Return to Page001. Our dimension should now read the correct value of 53. (if you still see 43.27, you may need to press the Recompute button
or drag the dimension value a bit until it changes.)

Going Further
In this tutorial you have learned enough about TechDraw to produce a drawing like this one (by
NormandC). See Note 2.

https://wiki.freecadweb.org/Basic_TechDraw_Tutorial 6/7
20/6/2020 Basic TechDraw Tutorial - FreeCAD Documentation

There is much more functionality in TechDraw for you to explore - Section Views, Detail Views, Svg
Symbols, Images, face hatching.

Notes
1. There is an excellent set of suggested preferences in this Forum post (https://www.forum.freecadweb.org/viewtopic.php?f=3&t=30083#p248189).
2. This drawing was produced in v0.18. It shows dimensions in the proper format for an isometric view. In v0.17 the extension lines will be
perpendicular to the edge rather than aligned with the axes.

Additional Resources
FreeCAD file of this exercise for comparison (made with 0.17) Download (https://github.com/FreeC
AD/Examples/blob/master/Basic_TechDraw_Tutorial_Example_Files/Basic_TechDraw_Tutorial.fcst
d)
