Oscilloscope Arduino-Processing
By RogerioBego (/member/RogerioBego/) in Circuits (/circuits/) > Arduino (/circuits/arduino/projects/) 100.916 139 69
Download Favorite
(https://content
auto=webp&frame=1&fit=bounds&md=fa3122fd06166172c8b1d3880c2196ce)
instructables com/ORIG/F0N/7TZS/J4G588IQ/F0N7TZSJ4G588IQ jpg?

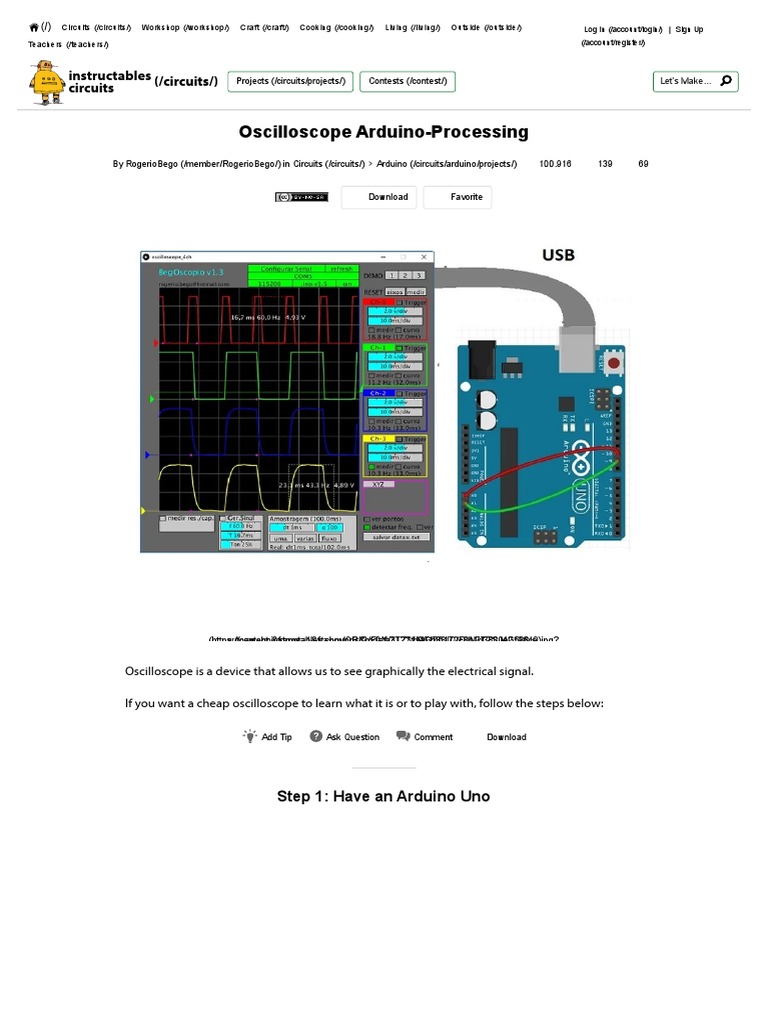

Oscilloscope is a device that allows us to see graphically the electrical signal.
If you want a cheap oscilloscope to learn what it is or to play with, follow the steps below:
 Add Tip V Ask Question | Comment Download
Step 1: Have an Arduino Uno

(https://content
auto=webp&frame=1&fit=bounds&md=896b0d249acb45efbb0d97d4bb5dc5b5)
instructables com/ORIG/F0E/BRQC/J1QP6WWX/F0EBRQCJ1QP6WWX jpg?
The price of Arduino Uno is around $ 20 in internet stores.
Step 2: Install the Arduino IDE and TimerOne.h Library
(https://content
auto=webp&frame=1&fit=bounds&md=42c0487acfab58bdc9239a25e3de3694)
instructables com/ORIG/FC4/0VS3/J1QP7A0W/FC40VS3J1QP7A0W pn
1. First, if you do not already have the Arduino IDE installed, install it from the site Arduino: click
here (https://www.arduino.cc/en/Main/Software)
2. Install the "TimerOne.h" library for the Arduino IDE, following the steps bellow
In the Arduino program click on "Sketch" (see the picture)
"Include Library ..."
"Manage Libraries ..."
On the line "Type: 'all' Topic: 'all'" has a blank search eld , type "TimerOne".
(Information about the library will appear )
click over that text and the "Install" button will appear.
click "Install"
Restart the program
Step 3: Download Arduino Program and Upload It to Arduino
(https://cdn
auto=webp&frame=1&fit=bounds&md=c9445512dd4fce0205f173cbc26
instructables com/ORIG/FXC/0RAK/J1QP7ACQ/FXC0RAKJ1QP
1. Download and unzip the Arduino program from this link: (oscilloscope_arduino.ino)
(https://github.com/rogeriobego/oscilloscope-arduino-
processing/ les/1109314/oscilloscope_arduino.zip)
2. Connect the Arduino to the computer via USB port
3. Run the Arduino IDE;
4. Open the downloaded program "oscilloscope_arduino.ino"
5. Adjust the COM port correctly (see picture)
6. Upload the program to Arduino.
Step 4: Download the Oscilloscope Processing Program

1. Download and unzip the Processing program to run on the computer. Choose the correct
one below:
- windows 32 (https://github.com/rogeriobego/oscilloscope-arduino-
processing/ les/1109317/application.windows32.zip)
- windows 64 (https://github.com/rogeriobego/oscilloscope-arduino-
processing/ les/1109316/application.windows64.zip)
- linux 32 (https://github.com/rogeriobego/oscilloscope-arduino-
processing/ les/1109315/application.linux32.zip)
- linux 64 (https://github.com/rogeriobego/oscilloscope-arduino-
processing/ les/1109313/application.linux64.zip)
2. Execute the Processing le (ex: Windows 64 bits => oscilloscope_4ch.exe)

Obs: lib\ folder is important, do not delete it
Java 8 needs to be installed
Step 5: If Oscilloscope_4ch.exe Doesn't Work...

(https://cdn
auto=webp&frame=1&fit=bounds&md=f36dd9182fe02558646f905bab32ff3d)
instructables com/ORIG/FJY/0CBU/J3EPSMXK/FJY0CBUJ3EPSMXK png?
If oscilloscope_4ch.exe doesn't work for any reason:
1. Install the Processing IDE (https://processing.org/download/).

2. Download and unzip the Processing source oscilloscope program
(https://github.com/rogeriobego/oscilloscope-arduino-
processing/ les/1052407/oscilloscope_4ch_processing_source.zip)
3. Run Processing IDE and open the oscilloscope source program
4. Execute the program clicking on the triangle icon
Step 6: Configure Serial Port to Connect Oscilloscope Program With Arduino

auto=webp&frame=1&width=1024&fit=bounds&md=de55754803a30c458594a7595f3b93ec)
(https://cdn instructables com/ORIG/FNO/163J/J4G58GX7/FNO163JJ4G58GX7 jpg?
1. You already have the oscilloscope program running and the Arduino connected to the
computer by USB port. Now you have to connect to each other by "serial".
2. In the "Con gurar a serial" (Con gure the Serial) box, click "select serial" until the COM where
the Arduino is connected appears.(if it did not appear, click "refresh" to update)
3. Click "select speed" until the speed 115200 appears.
4. Click "o " to switch to "on"
5. If everything is correct, the oscilloscope will show the 4 channels [A0 (ch-0), A1 (ch-1), A2 (ch-
2) and A3 (ch-3)]
obs: if nothing is connected you will see a noise.
Step 7: Connect the Output (~10) to Input (A0) and (~9) to (A1)
With wires connect the Arduino's digital output (~10) to analog input (A0) and digital output
(~9) to input (A1).
You will see appear a signal like the picture.

The out (~9) and (~10) are generated by the "Ger.Sinal" box:
(~9) is PWM of 10Hz (T = 100ms) with 25% ON.
(~10) is a square of period 2T (200ms)
You can adjust the values on that box dragging the edge or clicking around the control.
Step 8: Tips
(https://cdn
auto=webp&frame=1&fit=bounds&md=76623ab25b4eb7728712e4ca93bd6370)
instructables com/ORIG/FQF/R7DV/J1V7VXJ9/FQFR7DVJ1V7VXJ9 png? (https://content
auto=webp&frame=1&fit=bounds&md=01e2642d1f03d227751e332ad5230286)
instructables com/ORIG/FGR/5VBD/J20PH3M1/FGR5VBDJ20PH3M1 png?
1. Click "Trigger" at the Ch-0 (red) to stabilish the signals.
2. To not read the signals of Ch-2 and Ch-3, click on the names "Ch-2" and Ch-3 ".
3. To see the XY (Lissajous gures), click on the name "XYZ"
4. To detect the frequencies, click on "detect freq."
5. To measure voltage and time/frequency, click on "medir" (measure) of the desired channel
then click on a point on the graph and drag to the other desired point.
6. To change the dial control value click between vertical lines or drag the edge indicated by
the triangles. (see picture)
7. There is so much more! Explore!
Step 9: Aplication: Detecting Flash Frequency
(https://content
auto=webp&frame=1&fit=bounds&md=7855749e780d075f93af9f44f2cdd347)
instructables com/ORIG/FG3/3O3B/J26EY4MF/FG33O3BJ26EY4MF png?
You can nd out the frequency that the ashlight is blinking using a LDR and a resistor (see the
picture)
Step 10: Application: Detecting RPM of Fan
(https://cdn instructables com/ORIG/FVW/98GB/J26EY4GG/FVW98GBJ26EY4GG png?auto=webp&frame=1&fit=bounds&md=38a9f77b248d9db43f7d2750de706a5f)
To nd out the RPM of a fan use the circuit with LDR, resistor and a ashlight (not blinking).
Using the frequency value shown by the oscilloscope, apply the formula of the picture.
Step 11: Application: Analysing the Remote Control Signal

You can see the IR signal from remote control using the phototransistor TIL78.
Make the circuit of the picture, then follow the steps bellow:
1. Adjust "dt" to 2ms (see all signal) or 100us (see details)

2. Turn ch-0 trigger ON
3. Increase level of trigger tension
4. Click "UMA" (one): oscilloscope will stay waitting for the signal
5. Press any remote control key directing it to TIL-78
6. Analyse the graphic
Step 12: Application: Testing Components or Devices

We can use the oscilloscope to test electronic components or devices.
In this example we will test the little joystick for Arduino.
1. Make the circuit shown in the picture.

2. Connect the oscilloscope program to Arduino (con guring the Serial Port box)
3. Click on " uxo" ( ow) so the Arduino sends each point right after reading.
4. Adjust "dt" to 100ms to have a slow reading.
5. Turn o the "ch-3" clicking over the name
6. Adjust "v/div" to 5 (pressing the "shift" key to adjust all channels simultaneously)
7. Change the ch-0 to up, moving the little left triangle (pressing the "shift" key)
8. Turn on the XYZ channel and drag the "v/div", adjusting it to ll the free space.
9. Move the joystick to all directions and press the button some times.
10. See the curves.
Step 13: Measure Resistors and Capacitors

(https://cdn
auto=webp&frame=1&fit=bounds&md=b95aa371207bff9eafdce19659d2849e)
instructables com/ORIG/FYX/5E1H/J1WW29U7/FYX5E1HJ1WW29U7 png?
The "medir res./cap." (measure res./cap.) box is for measuring values of resistors and capacitors,
but it will only work if you make the circuit of the picture.
That function has the hability to discover by itself if the component connected is a capacitor or a
resistor, and to choose the better result using 3 scales (low, middle or high values)
Step 14: Do You Want More Fun?

You can download the entire project directly from the GitHub site clicking here
(https://github.com/rogeriobego/oscilloscope-arduino-processing)
Watch the video on Youtube (https://www.youtube.com/watch?v=aw_kyDAiNak)(turn on

closecaption and translate to english!)
Please, let me know if you liked that project or if you had any trouble to follow the steps.
I will apreciate any help to develop that project. Programmers, users, curious, dreammers, etc..,
will be welcome! ;)
