Robotics Unit4 Slides

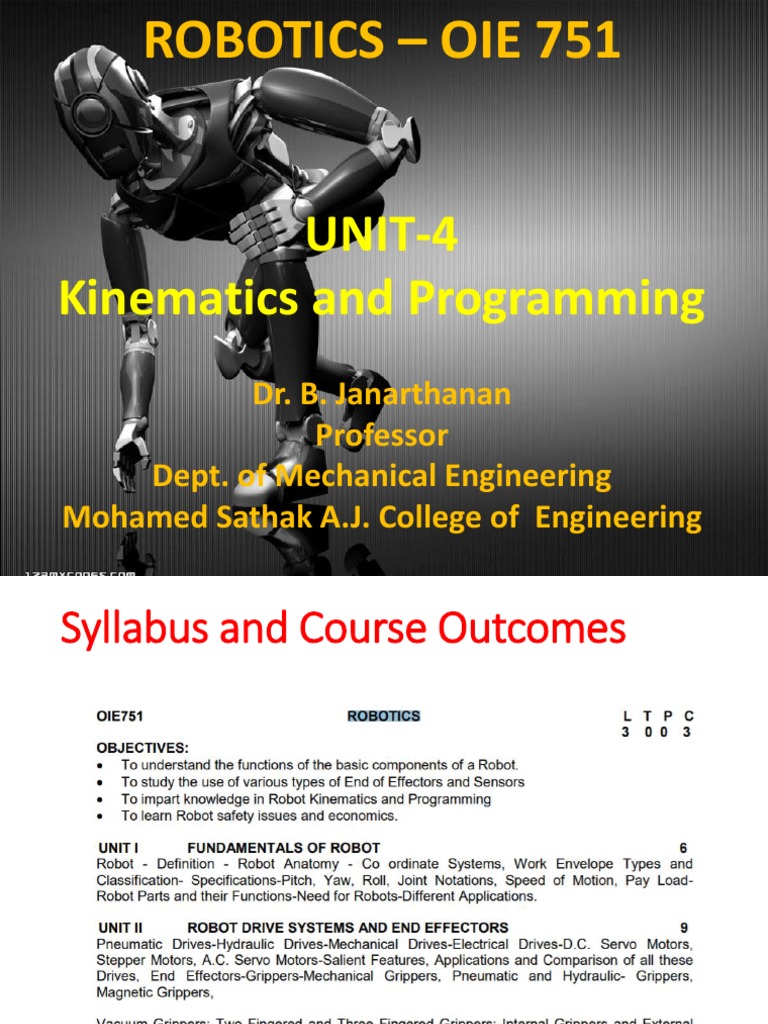

ROBOTICS – OIE 751
UNIT-4
Kinematics and Programming
Dr. B. Janarthanan
Professor
Dept. of Mechanical Engineering
Mohamed Sathak A.J. College of Engineering
Syllabus and Course Outcomes
13-10-2020 B. Janarthanan Robotics 2



Robot kinematics (mechanics of
robots)
• Robot consists of links which move about joints
• The joints could be sliding or revolute type
• In case of sliding type, the linear displacement is
called joint offset
• In case of revolute type, the angular movement is
known as joint angle

Two basic joints

Kinematics
• A typical robots state is represented by joint
variables like joint offset and joint angles
• Kinematics means the study of motion without
considering the forces and moments which cause
the motion (with respect to a fixed reference
coordinate system)
• It refers to the study of geometric and time based
quantities like position, velocity and acceleration of
every point of the robot

Joint labelling

Forward and Inverse kinematics
• Direct (also forward) kinematics –
• Given are joint relations (rotations, translations) for the
robot arm.
• Task: What is the orientation and position of the end
effector?
• Inverse kinematics –
• Given is desired end effector position and orientation.
• Task: What are the joint rotations and orientations to
achieve this?

Position representation

Forward and reverse kinematics

Forward kinematics of a 2 DOF arm




Reverse transformation of the 2-DOF
arm

arm

arm

arm

A 3 DOF arm in two dimensions



3 DOF arm in two dimensions



4 DOF manipulator in three dimensions



Homogeneous transformation
• The approach used in the previous section becomes
quite cumbersome when a manipulator with many
joints must be analysed
• Another more general method for solving the kinematic
equations of a robot arm makes use of homogeneous
transformation
𝑥
𝑦
• The point (x,y,z) is represented as the vector
𝑧
𝑤
• where w is a weighting factor.

• Vectors of the above form can be used to define end-of-
arm position for a robot manipulator
• A vector can be translated or rotated in space by means
of a transformation
• The transformation is accomplished by a 4×4 matrix H
• For instance the vector 𝑣Ԧ is transformed into the vector
𝑢 by the following matrix operation
𝑢 = H 𝑣Ԧ

Translation
• Suppose that you know the location of a point in one
coordinate frame and you want to know its location in
another frame
• How do you do it? We will start with a very simple case, and
then move into more complex examples.
• Let’s begin by considering the two coordinate systems in
Figure 14, world coordinates and robot coordinates.
• Notice that the only difference between the two coordinate
frames is that the robot frame has been translated by 3
units along the y axis from the world coordinate frame.
• Figure 15 is a table of some sample points in world
coordinates, and their corresponding values in robot
coordinates. For the moment, ignore the third column of
Figure 15, and just look at the first two columns.
Translation

Translation

Translation

Rotation

Rotation
• Consider the two frames depicted in Figure 19.
• To transform the k coordinate frame into the j
coordinate frame,
• we perform a rotation about k’s z axis by -90°.

Rotation

Homogeneous transformation (summary)


1. For vector 𝑣Ԧ = 25Ԧ𝑖 + 10Ԧ𝑗 + 20𝑘 perform a
translation by a distance of 8 in the x direction, 5
in y direction and 0 in the z direction
2. Rotate the vector 𝑣Ԧ = 5Ԧ𝑖 + 3Ԧ𝑗 + 8𝑘 by an angle
of 90° about x-axis
3. A vector 𝑣Ԧ = 3Ԧ𝑖 + 2Ԧ𝑗 + 7𝑘 is rotated by an angle
of 60° about z-axis of the reference frame. It is
then rotated by 30° about x-axis of the reference
frame. Find the rotation transformation
of 30° about x-axis of the reference frame. It is
then rotated by 60° about z-axis of the reference
frame. Find the rotation transformation

of 60° about z-axis and translated by 3,4 and 5
units in the x, y and z directions respectively. Find
the vector with reference to the reference frame.

Robot programming
• In earlier chapter we have discussed about three broad
classes of industrial automation
1. Fixed automation
2. Programmable automation
3. Flexible automation
• Robotics coincides most closely with programmable
automation

Methods of Robot programming
Robot Programming
According to the consistent performance by the robots in

industries, the robot programming can be divided in two
common types such as:
• Leadthrough Programming Method

• Textual Robot Languages

Lead through Programming Method
• During this programming method, the traveling of
robots is based on the desired movements, and it is
stored in the external controller memory.
• There are two modes of a control system in this
method such as a run mode and teach mode.
• The program is taught in the teach mode, and it is
executed in the run mode.
• The leadthrough programming method can be done
by two methods namely:
1. Powered Leadthrough Method
2. Manual Leadthrough Method

Powered Leadthrough Method
• The powered leadthrough is the common programming
method in the industries.
• A teach pendant is incorporated in this method for
controlling the motors available in the joints.
• It is also used to operate the robot wrist and arm through
a sequence of points.
• The playback of an operation is
done by recording these points.
• The control of complex geometric moves is difficult to
perform in the teach pendant.
• As a result, this method is good for point to point
movements.
• Some of the key applications are spot welding, machine
loading & unloading, and part transfer process.

Manual Leadthrough Method
• In this method, end-effector is moved by the
programmer at the desired movements.
• Sometimes, it may be difficult to move large robot
arm manually.
• To get rid of it a teach button is implemented in the
wrist for special programming.
• The manual leadthrough method is also known
as Walk Through method.
• It is mainly used to perform continuous path
movements.
• This method is best for spray painting and arc
welding operations.
Textual Robot Languages
• In 1973, WAVE language was developed, and it is the first
textual robot language as well.
• It is used to interface the machine vision system with the
robot.
• Then AL language was introduced in 1974 for controlling
multiple robot arms during arm coordination.
• VAL was nvented in 1979, and it is the common textual robot
language.
• Later, this language was dated in 1984, and called as VAL II.
• The IBM Corporation has established their two own
languages such as AML and AUTOPASS, which is used for
the assembly operations.
• Other important textual robot languages are Manufacturing
Control Language (MCL), RAIL, and Automatic
Programmed Tooling (APT) languages.

Teach pendant
• A control box for programming the motions of
a robot
• Teach pendant programming provides an
intuitive way to interact with industrial robots.
• It involves usage of a hand held control
terminal called teach pendant that is used to
control the motion of a robot.
• It provides a very convenient method
to teach trajectories to the robot.
• Teach pendants are typically handheld
devices and may be wired or wireless.
Teach pendant

Teach pendant
Major areas of teach pendant are
• Data entry buttons – Used to input data normally in
response to prompts that appear on the pendant
display
• Emergency stop switch – Halts program execution and
turns off power
• User LED: – When it is not lit, none of the predefined
functions are being used – When it is lit application
program is being in use
• Mode control buttons: – When it is in manual mode,
these buttons select which robot joint will move, or the
co-ordinate axis along which the robot will move
Teach pendant
• Manual state LED’s: – Indicated the type of manual
motion that has been selected
• Speed bars: – Used to control robot’s speed and
direction
• Slow button: – Selects between two different
speed ranges of speed bars
• Pre-defined function button: – display of co-
ordinates, clear error etc.,
• Programmable function button: – Used in custom
application programs
• Soft button: – Depends on application program
being run, or the selection made from the
A Robot program as a path in space
• The locus of points along the path defines the
sequence of positions through which the robot will
move its wrist
• In most applications, an end effector is attached to
he wrist and the program can be considered to be
the path in space through which the end effector is
to be moved by the robot

Methods of defining positions in space
1. Joint movements
2. x-y-z coordinate motions (also called world
coordinates)
3. Tool coordinate motions

WAIT, SIGNAL and DELAY commands



Interpolation schemes
• Joint interpolation
• Straight line interpolation
• Circular interpolation
• Irregular smooth motions

Joint interpolation
• The controller determines how far each joint must
move to get from the first point defined in the
programme to the next.
• It then selects the joint that requires the longest
time. This determines the amount of movement for
other axes such that all the axes start and stop at
the same time.
• Joint interpolation is the default procedure for
many commercial robots.

Straight line interpolation
• In this interpolation, the robot controller computes
the straight-line path between two points and
develops the sequence of addressable point along
the path for the robot to pass through.

Circular interpolation
• This requires the programmer to define a circle in
the robot’s workspace.
• This is done by specifying three points that lie along
the circle.
• The controller constructs the circle by selecting a
series of points that lie closer to the circle.
• These movements are actually small straight lines.
If the addressable points are dense then the linear
approximation becomes very much like circle.

Irregular smooth motions
• When the manipulator wrist is moved by the
programmer to teach, the movements consist of
combination of smooth motion segments.
• These segments are sometimes approximately
straight lines or curves or back and forth motions.
• These movements are referred as irregular smooth
motions and an interpolation is involved to achieve
them

Generations of Robot programming
languages
First Generation Language: (combination of command
statements and teach pendant procedures)
• This type of language provides an off-line
programming in combination with the programming
through the robot teach pendant.
• Its capability is limited in handling of sensory data and
communication with other components.
• The programming instructions can be used to define
the motion sequence of the manipulator (MOVE),
they have input/output capabilities (WAIT, SIGNAL)
and they can be used to write subroutines (BRANCH).
• Example: VAL (Versatile Algorithmic Language)

languages
Second Generation Language:
• These are structured programming languages performing
complete tasks.
• They can generate complex motions; can handle both
analog and digital signals besides the binary signals.
• These languages have the added advantage of better
interfacing facilities with other computers.
• Data processing, file management and keeping all the
records of events happening in the work cell can be done
more efficiently.
• Example: AML (A Manufacturing Language), RAIL (Robotic
Automatix Incorporated Language), MCL (Manufacturing
Control Language), VAL (Variable Assembly Language) etc.
languages
Word Modeling and task-oriented object level
language:
• A more advanced future language is word modeling.
Here, a task is defined through a command (Say
“TIGHTEN THE NUT”). In such a case intelligence is
required and the robot should be capable of making
decision.
• Future generation robot languages involve technology
of artificial intelligence and hierarchical control
system

Robot programming languages
AL:
• The AL (Assembly Language) was developed at the
robotic research centre of Stanford University.
• Its characteristics are:
• High level language with features of ALGOL and PASCAL.
• It is compiled into low-level language and interpreted on a
real time control machine.
• It could be used to control multiple arms in tasks requiring
arm coordination.
• It supports for word modeling

AML:
• A Manufacturing Language (AML) was developed by IBM.
• It is the control language for the IBM RS-1 robot.
• RS-1 robot is a Cartesian manipulator with 6 degrees of
freedom. Its first three joints are prismatic and the last
three joints are rotary. Its characteristics are:
• Provides an environment where different user interface can be
built.
• Supports features of LISP like and APL-like constructs.
• Supports data aggregation
• Supports joint space trajectory planning subject to position and
velocity constraints.
• Provides absolute and relative motions
• Provides sensor monitoring
RAIL:
• Robotic Automatix Incorporated Language (RAIL) was
developed by Automatix for the use of robots and vision
system.
• It is an interpreter loosely based on PASCAL.
• Several constructs have been incorporated into RAIL to
support inspection and arc-welding systems, which are a
major product of Automatix.
• The central processor of RAIL is Motorola 68000.
• Peripherals include a terminal and a teach box.
• RAIL is being supplied with three different systems:
i. Vision only, no arm
ii. A custom designed Cartesian arm for assembly tasks
iii. A Hitachi process robot for arc welding

VAL:
• It was the first commercially available robot textual language
and originally was introduced by Unimation Inc. for its use
with PUMA robots.
• Its stated purpose is to provide the ability to define robot
tasks easily.
• The intended user of VAL will typically be the manufacturing
engineer responsible for implementing the robot in a desired
application.
• It has the structure of BASIC, with many new command words
added for robot programming. It also has its own operating
system, called VAL monitor, which contains the user interface,
editor and file manager.
• It has been released for use with all PUMA robots and with
the Unimate 2000 and 4000 series.

MCL
• MCL stands for Machine Control Language developed by Douglas.
• The language is based on the APT and NC language. Designed
control complete manufacturing cell.
• MCL is enhancement of APT which possesses additional options
and features needed to do off-line programming of robotic work
cell.
• Additional vocabulary words were developed to provide the
supplementary capabilities intended to be covered by the MCL.
These capability include Vision, Inspection and Control of signals
• MCL also permits the user to define MACROS like statement that
would be convenient to use for specialized applications.
• MCL program is needed to compile to produce CLFILE.
• Some commands of MCL programming languages are DEVICE,
SEND, RECEIV, WORKPT, ABORT, TASK, REGION, LOCATE etc.
Motion commands
• MOVE A
• MOVES A
• APPRO A1,50
• MOVES A1
• DEPART 50
• APPROS
• DEPARTS
• DMOVE
• SPEED 60 IPS
• SPPED 75

End effector and sensor commands
• SIGNAL 5
• SIGNAL 6
• OPEN
• CLOSE
• OPENI
• CLOSEI
• CLOSE 40MM
• OPEN 40MM
• CLOSE 3.0 LB
• CENTRE

Contact
Dr. B. Janarthanan
Professor
Department of Mechanical Engineering
Mohamed Sathak A.J. College of Engineering
Email :
vbjana@gmail.com,
mech.janarthanan@msajce-edu.in
13 October 2020 B. Janarthanan Dynamics of Machines 72

Robotics Unit4 Slides

Uploaded by

Document Information

Original Description:

Original Title

Copyright

Available Formats

Share this document

Share or Embed Document

Sharing Options

Did you find this document useful?

Is this content inappropriate?

Copyright:

Available Formats

Robotics Unit4 Slides

Uploaded by

Copyright:

Available Formats

ROBOTICS – OIE 751

13-10-2020 B. Janarthanan Robotics 2

13-10-2020 B. Janarthanan Robotics 3

13-10-2020 B. Janarthanan Robotics 4

13-10-2020 B. Janarthanan Robotics 5

13-10-2020 B. Janarthanan Robotics 6

13-10-2020 B. Janarthanan Robotics 7

13-10-2020 B. Janarthanan Robotics 8

13-10-2020 B. Janarthanan Robotics 9

13-10-2020 B. Janarthanan Robotics 10

13-10-2020 B. Janarthanan Robotics 11

13-10-2020 B. Janarthanan Robotics 12

13-10-2020 B. Janarthanan Robotics 13

13-10-2020 B. Janarthanan Robotics 14

13-10-2020 B. Janarthanan Robotics 15

13-10-2020 B. Janarthanan Robotics 16

13-10-2020 B. Janarthanan Robotics 17

13-10-2020 B. Janarthanan Robotics 18

13-10-2020 B. Janarthanan Robotics 19

13-10-2020 B. Janarthanan Robotics 20

13-10-2020 B. Janarthanan Robotics 21

13-10-2020 B. Janarthanan Robotics 22

13-10-2020 B. Janarthanan Robotics 23

13-10-2020 B. Janarthanan Robotics 24

13-10-2020 B. Janarthanan Robotics 25

13-10-2020 B. Janarthanan Robotics 26

13-10-2020 B. Janarthanan Robotics 27

13-10-2020 B. Janarthanan Robotics 28

13-10-2020 B. Janarthanan Robotics 29

13-10-2020 B. Janarthanan Robotics 30

13-10-2020 B. Janarthanan Robotics 32

13-10-2020 B. Janarthanan Robotics 33

13-10-2020 B. Janarthanan Robotics 34

13-10-2020 B. Janarthanan Robotics 35

13-10-2020 B. Janarthanan Robotics 36

13-10-2020 B. Janarthanan Robotics 37

13-10-2020 B. Janarthanan Robotics 38

13-10-2020 B. Janarthanan Robotics 39

13-10-2020 B. Janarthanan Robotics 40

13-10-2020 B. Janarthanan Robotics 41

13-10-2020 B. Janarthanan Robotics 42

According to the consistent performance by the robots in

• Leadthrough Programming Method

13-10-2020 B. Janarthanan Robotics 43

13-10-2020 B. Janarthanan Robotics 44

13-10-2020 B. Janarthanan Robotics 45

13-10-2020 B. Janarthanan Robotics 47

13-10-2020 B. Janarthanan Robotics 49

13-10-2020 B. Janarthanan Robotics 52

13-10-2020 B. Janarthanan Robotics 53

13-10-2020 B. Janarthanan Robotics 54

13-10-2020 B. Janarthanan Robotics 55

13-10-2020 B. Janarthanan Robotics 56

13-10-2020 B. Janarthanan Robotics 57

13-10-2020 B. Janarthanan Robotics 58

13-10-2020 B. Janarthanan Robotics 59

13-10-2020 B. Janarthanan Robotics 60

13-10-2020 B. Janarthanan Robotics 61

13-10-2020 B. Janarthanan Robotics 62

13-10-2020 B. Janarthanan Robotics 64

13-10-2020 B. Janarthanan Robotics 65

13-10-2020 B. Janarthanan Robotics 67
