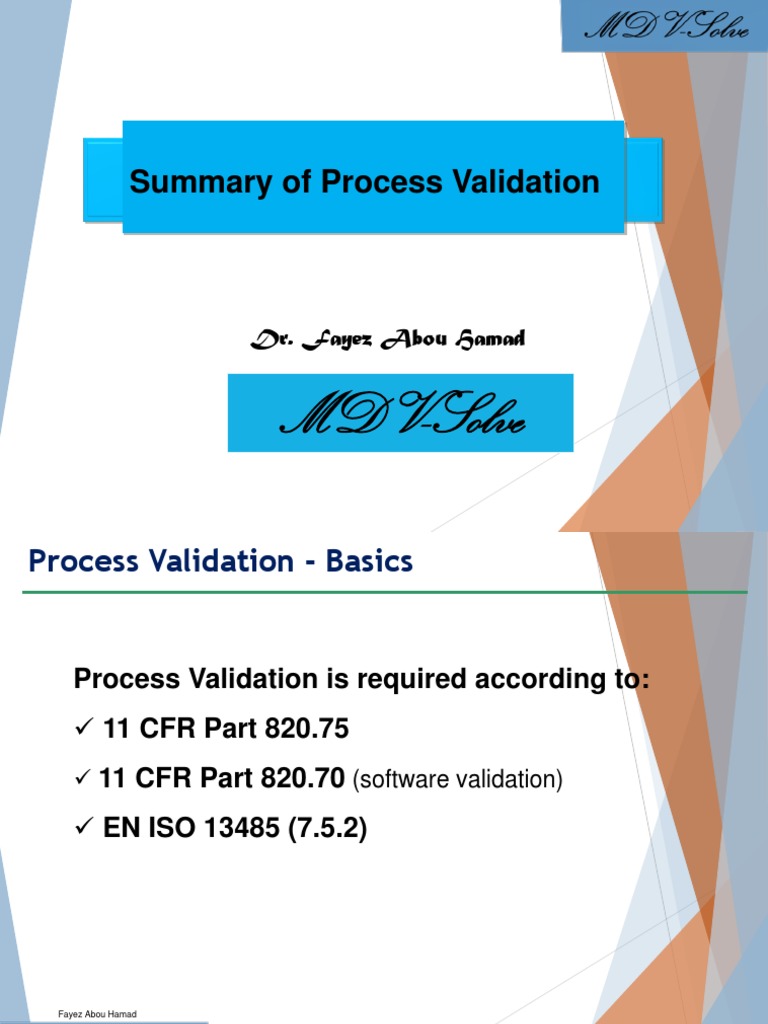

4/1/2020

Summary of Process Validation

Dr. Fayez Abou Hamad

MDV-Solve
Process Validation - Basics

Process Validation is required according to:

✓ 11 CFR Part 820.75
✓ 11 CFR Part 820.70 (software validation)

✓ EN ISO 13485 (7.5.2)

Fayez Abou Hamad

Dr. Fayez Abou Hamad 2

Process Validation - Basics

Definition:
“Where the result of a process cannot be fully verified
by subsequent inspection and test, the process shall
be validated with a high degree of assurance and
approved according to established procedures.”

Fayez Abou Hamad

Dr. Fayez Abou Hamad 3

 Process Validation - Basics

S Redesign product
or process

Is process output N Redesign product Y

fully verifiable ? or process possible ?

Is verification sufficient N N
& Cost effective ?
Y
Verify and Control Validate
the process the process

> Quality Controle > Quality Assurance

Fayez Abou Hamad

MDV-Solve 4
Process Validation - Basics

✓Definition
Establish documented evidence which provides a high
degree of assurance that a specific process will
consistently produce a product meeting its
predetermined specifications and quality attributes.

Establish (21CFR820.3(k)) :
- define : Prepare a validation protocol
- implement : Execute the protocol
- document : Gather evidence

Fayez Abou Hamad

MDV-Solve 5
Process Validation - Basics

✓Definition
Establish documented evidence which provides a high
degree of assurance that a specific process will
consistently produce a product meeting its
predetermined specifications and quality attributes.

Evidence :
- “What’s not documented is not done...”
- ...but what’s not documented properly is useless...

Fayez Abou Hamad

MDV-Solve 6
Process Validation - Basics

✓Definition
Establish documented evidence which provides a high
degree of assurance that a specific process will
consistently produce a product meeting its
predetermined specifications and quality attributes.

A high degree of assurance :

- 100% proof is not possible
- identify / quantify potential risks
- quantify impact of the risks
> “Risk based approach” !!
Fayez Abou Hamad

MDV-Solve 7
Process Validation - Basics

✓Definition
Establish documented evidence which provides a high
degree of assurance that a specific process will
consistently produce a product meeting its
predetermined specifications and quality attributes.

consistently produce :
- Based on statistics
- Gauss-curve

Fayez Abou Hamad

MDV-Solve 8
Process Validation - Basics

✓Definition
Establish documented evidence which provides a high
degree of assurance that a specific process will
consistently produce a product meeting its
predetermined specifications and quality attributes.

predetermined specifications :
- Process description
- Critical process parameters
- Acceptance criteria

Fayez Abou Hamad

MDV-Solve 9
Process Validation - Basics

 Perform criticality assessment where all process steps are

summarized from the product standard and corresponding
process flow.

 Process steps are compared with the risk analysis of the

product and all process steps are divided into criticality
category

Fayez Abou Hamad

Dr. Fayez Abou Hamad 10

Process Validation - Basics
 Process steps - criticality classifications:
 category I: processes linked in the risk analysis to high
moderate harm & servility.
 category II: processes linked in the risk analysis to high low &
servility.
 category III: All remaining process steps, without non impact
product changes. This category includes also processes which
are fully (100%) verified by consequent inspection and testing
 Processes business risk, can be included in any category
rigidness the severity

Fayez Abou Hamad

Dr. Fayez Abou Hamad 11

Process Validation - Basics
Process Validation - phases
 Installation qualification (IQ): establishing by objective evidence that all key aspects
of the process equipment and ancillary system installation adhere to the
manufacturer’s approved specification and that the recommendations of the
supplier of the equipment are suitably considered.

 Operational qualification (OQ): establishing by objective evidence process control

limits and action levels which result in product that meets all predetermined
requirements.

 Performance qualification (PQ): establishing by objective evidence that the process,

under anticipated conditions, consistently produces a product which meets all
predetermined requirements.

PRE- APPROVED PROTOCOLS

Fayez Abou Hamad

Dr. Fayez Abou Hamad 12

Process Validation - Basics

Installation qualification (IQ) – Static

 IQ means is it installed correctly -- VERIFY:
 Equipment design features (i.e. materials of construction
cleanability, etc.)
 Installation conditions (wiring, utilities, functionality, etc.)
 Calibration, preventative maintenance, cleaning schedules, Spare
parts list
 Safety features
 Supplier documentation, prints, drawings and manuals
 Software documentation
 Environmental conditions (such as clean room requirements,
temperature, humidity)

Fayez Abou Hamad

Dr. Fayez Abou Hamad 13

Process Validation - Basics

Operational Qualification (OQ)

 Process control limits (time, temperature, pressure, lines
peed, setup conditions, etc.)
 Software parameters
 Raw material specifications
 Process operating procedures, Process change control
 Training
 Short term stability and capability of the process (control
charts) - Also under worst-case conditions

Fayez Abou Hamad

Dr. Fayez Abou Hamad 14

Process Validation - Basics
Performance Qualification - (PQ)
 key objective is to demonstrate the process will
consistently produce acceptable product under normal
operating conditions.
 PQ include at least 3 consecutive production run:
▪ Actual product and process parameters and procedures
established in OQ
▪ Acceptability of the product
▪ Assurance of process capability as established in OQ
▪ Process repeatability, long term process stability

Fayez Abou Hamad

Dr. Fayez Abou Hamad 15

Process Validation - Basics

Statistical tools for process validation

 Capability study:
 Measures the ability of the process to consistently meet the
specifications.
 Testing should be performed not only at nominal, but also
under worst-case conditions.
 Acceptance sampling plans can be useful in optimizing the
number of samples to be tested and to demonstrate
conformance to specification.

Fayez Abou Hamad

Dr. Fayez Abou Hamad 16

Process Validation - Basics

 Stable processes produce a consistent level of

performance.
 The total variation is reduced.
 The process is more predictable
 Once a consistent performance has been achieved,
the remaining variation must be made to safely fit
within the upper and lower specification limits.
 Such a process is then said to be stable and capable.

Fayez Abou Hamad

Dr. Fayez Abou Hamad 17

Process Validation - Basics

Normal curve applied to histogram

Average - 3 Std. Dev. Average Average + 3 Std. Dev.

99.73%

The standard deviation represents the typical distance a unit is from the average
For the normal curve, 99.73% of the units fall within  3 standard deviations of the average.

Fayez Abou Hamad

Dr. Fayez Abou Hamad 18

Process Validation - Basics

Histogram of data
LSL USL
3
Number
2

0
95 100 105
Length (cm)

The width of the histogram represents the variation. interest is whether the histogram is
properly centered and whether the histogram is narrow enough to easily fit within the
specification limits. The center of the histogram is estimated by calculating the average of
the 12 readings

Fayez Abou Hamad

Dr. Fayez Abou Hamad 19

Process Validation - Basics

Example:
one operation involves cutting wire into 100 cm lengths. The tolerance is
100  5 cm. A sample of 12 wires is selected at random and the
following results obtained:
98.7, 99.3,100.4,97.6,101.4,102.0, 100.2, 96.4,
103.4,102.0,98.0,100.5

Fayez Abou Hamad

Dr. Fayez Abou Hamad 20

Process Validation - Basics

UNSTABLE PROCESS
Total
Variation

e
m
Ti
Example unstable process. The process is constantly changing. The average shifts up and
down. The variation increases and decreases. The total variation increases due to the
shifting.

Fayez Abou Hamad

MDV-Solve 21
Process Validation - Basics

STABLE PROCESS
Total
Variation

e
m
Ti
Example stable process. Stable processes produce a consistent level of performance. The
total variation is reduced. The process is more predictable

Fayez Abou Hamad

MDV-Solve 22
Process Validation - Basics

P R O C E SS C A P A B IL ITY

CA P AB LE

NOT Spec
L im its
C A P A B LE

e
m
Ti
Once a consistent performance has been achieved, the remaining variation
must be made to safely fit within the upper and lower specification limits.
Such a process is then said to be stable and capable.

Fayez Abou Hamad

MDV-Solve 23
Process Validation - Basics

Control Chart

Once a consistent performance has been achieved, the remaining variation

must be made to safely fit within the upper and lower specification limits.
Such a process is then said to be stable and capable.

Fayez Abou Hamad

MDV-Solve 24
Process Validation - Basics

Final report
 At the conclusion of validation activities, a final
report should be prepared.
 summarize and reference all protocols and results.
 derive conclusions regarding the validation status of the
process.
 The final report should be reviewed and approved by the
validation team and appropriate management

Fayez Abou Hamad

Dr. Fayez Abou Hamad 25

Process Validation - Basics
Maintaining a state of validation
 Monitor and control
 Process trending monitored to ensure the process remains within the established
parameters.

 When monitoring data on quality characteristics demonstrates a negative trend,

the cause should be investigated, corrective action may be taken and revalidation
considered.

 Changes in processes and/or product

 Any changes in the process and /or product including changes in procedures,
equipment, personnel, etc. should be evaluated to determine the affects of those
changes and the extent of revalidation considered.

Fayez Abou Hamad

Dr. Fayez Abou Hamad 26

Process Validation - Basics

Sample protocols

01/04/202
Fayez Abou Hamad 27
0

Dr. Fayez Abou Hamad 27

 QUESTIONS

THANK YOU
