-1/2-

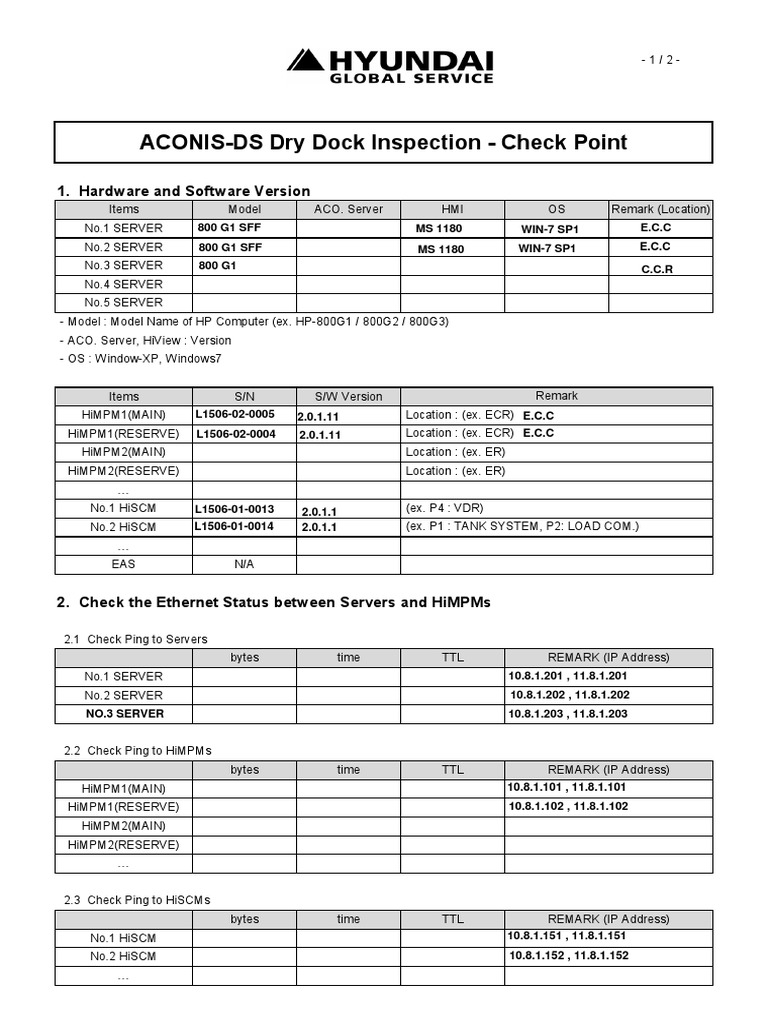

ACONIS-DS Dry Dock Inspection - Check Point

1. Hardware and Software Version

Items Model ACO. Server HMI OS Remark (Location)
No.1 SERVER 800 G1 SFF MS 1180 WIN-7 SP1 E.C.C
No.2 SERVER 800 G1 SFF MS 1180 WIN-7 SP1 E.C.C
No.3 SERVER 800 G1 C.C.R
No.4 SERVER
No.5 SERVER
- Model : Model Name of HP Computer (ex. HP-800G1 / 800G2 / 800G3)
- ACO. Server, HiView : Version
- OS : Window-XP, Windows7

Items S/N S/W Version Remark

HiMPM1(MAIN) L1506-02-0005 2.0.1.11 Location : (ex. ECR) E.C.C
HiMPM1(RESERVE) L1506-02-0004 2.0.1.11 Location : (ex. ECR) E.C.C
HiMPM2(MAIN) Location : (ex. ER)
HiMPM2(RESERVE) Location : (ex. ER)
4
No.1 HiSCM L1506-01-0013 2.0.1.1 (ex. P4 : VDR)
No.2 HiSCM L1506-01-0014 2.0.1.1 (ex. P1 : TANK SYSTEM, P2: LOAD COM.)
4
EAS N/A

2. Check the Ethernet Status between Servers and HiMPMs

2.1 Check Ping to Servers

bytes time TTL REMARK (IP Address)
No.1 SERVER 10.8.1.201 , 11.8.1.201
No.2 SERVER 10.8.1.202 , 11.8.1.202
4
NO.3 SERVER 10.8.1.203 , 11.8.1.203

2.2 Check Ping to HiMPMs

bytes time TTL REMARK (IP Address)
HiMPM1(MAIN) 10.8.1.101 , 11.8.1.101
HiMPM1(RESERVE) 10.8.1.102 , 11.8.1.102
HiMPM2(MAIN)
HiMPM2(RESERVE)
4

2.3 Check Ping to HiSCMs

bytes time TTL REMARK (IP Address)
No.1 HiSCM 10.8.1.151 , 11.8.1.151
No.2 HiSCM 10.8.1.152 , 11.8.1.152
4
3. System Safety Check -2/2-

Items Result Remark

Check the cable connection of Workstation SATISFACTORY
Check the Ship's Information (Hull no, Ship's Name, IMO no.)
Check the terminating resistor which is installed at RS-485 line
Check the Base Modules firm installation each other
Check the firm installation status between Base Modules and HiMPM & I/O Cards
Check the System alarm on Alarm History page
Check the power cable and communication cable connection
The match of All Workstation's UTC & Local Time & Time gap SAME
Check the backup DB in Back up folder
Check the output power of Power Supply Unit (Should be over 25V) 26.78 V (ex. 26.93V)
Check the alarm generation and power supply by battery when the Power Supply
unit is power off
Check the EAS Buzzer by test button
Check the workstation operation (PC is freezing or slowing)
Check the same display value on ALL Workstations SATISFACTORY

1) All cables connected to Workstation should have enough room for preventing vibration.
2) It should be checked whether Ship's Number and Ship's name and HMI and Sysinfo.ini are matched or not.
3) If system alarms are recorded on History page, the cause of system alarm should be figured out and clarified.
4) As per battery test, if battery is not working, the replacement for battery should be recommended.

4. Function Check

Items Result Remark

Analog Display & Alarm Function SATISFACTORY
Digital Point Display & Alarm Function SATISFACTORY
Alarm Summary Page Save Function SATISFACTORY
Alarm History Save Function SATISFACTORY
Alarm Printer Function SATISFACTORY
Log Printer Function SATISFACTORY
Trend Display Function SATISFACTORY
EAS, Extended alarm to duty engineer room function SATISFACTORY
Engineer Calling Function SATISFACTORY

5. Interface Check

Items Result Remark

Cargo Tank System
Tank Level System
Loading Computer
VDR

- End of Document -
