Project: Basement + G.

Flr +7 Floor Building


Location Plot 297/Mulk (2520 & 2522/Minha) Muweieh,Sharjah

Client: Mrs. Muna Mahmud

Consultant: New Form Consultnats

Date: 1/18/2021 6:41

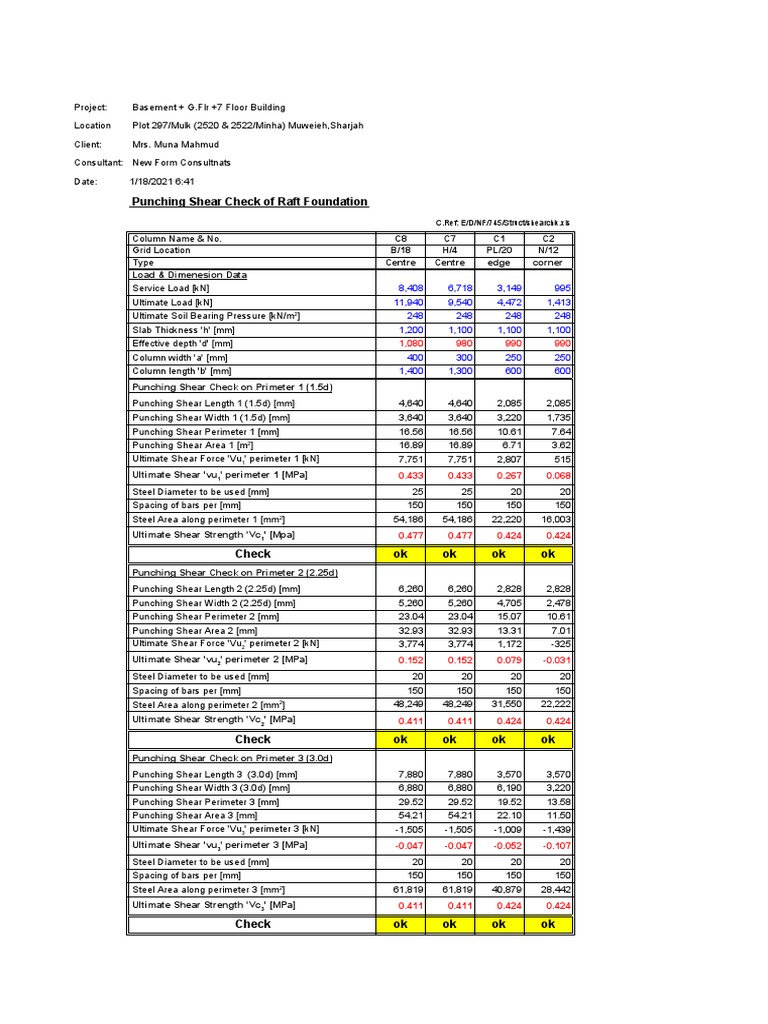

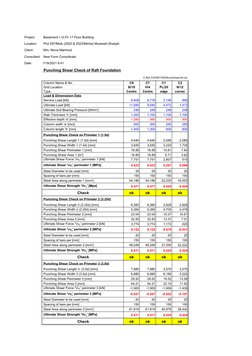

Punching Shear Check of Raft Foundation


C.Ref: E/D/NF/745/Struct/shearchk.xls

Column Name & No. C8 C7 C1 C2


Grid Location B/18 H/4 PL/20 N/12
Type Centre Centre edge corner
Load & Dimenesion Data
Service Load [kN] 8,408 6,718 3,149 995
Ultimate Load [kN] 11,940 9,540 4,472 1,413
Ultimate Soil Bearing Pressure [kN/m2] 248 248 248 248
Slab Thickness 'h' [mm] 1,200 1,100 1,100 1,100
Effective depth 'd' [mm] 1,080 980 990 990
Column width 'a' [mm] 400 300 250 250
Column length 'b' [mm] 1,400 1,300 600 600
Punching Shear Check on Primeter 1 (1.5d)
Punching Shear Length 1 (1.5d) [mm] 4,640 4,640 2,085 2,085
Punching Shear Width 1 (1.5d) [mm] 3,640 3,640 3,220 1,735
Punching Shear Perimeter 1 [mm] 16.56 16.56 10.61 7.64
Punching Shear Area 1 [m2] 16.89 16.89 6.71 3.62
Ultimate Shear Force 'Vu1' perimeter 1 [kN] 7,751 7,751 2,807 515
Ultimate Shear 'vu1' perimeter 1 [MPa] 0.433 0.433 0.267 0.068
Steel Diameter to be used [mm] 25 25 20 20
Spacing of bars per [mm] 150 150 150 150
Steel Area along perimeter 1 [mm2] 54,186 54,186 22,220 16,003
Ultimate Shear Strength 'Vc1' [Mpa] 0.477 0.477 0.424 0.424

Check ok ok ok ok
Punching Shear Check on Primeter 2 (2.25d)
Punching Shear Length 2 (2.25d) [mm] 6,260 6,260 2,828 2,828
Punching Shear Width 2 (2.25d) [mm] 5,260 5,260 4,705 2,478
Punching Shear Perimeter 2 [mm] 23.04 23.04 15.07 10.61
Punching Shear Area 2 [mm] 32.93 32.93 13.31 7.01
Ultimate Shear Force 'Vu2' perimeter 2 [kN] 3,774 3,774 1,172 -325
Ultimate Shear 'vu2' perimeter 2 [MPa] 0.152 0.152 0.079 -0.031
Steel Diameter to be used [mm] 20 20 20 20
Spacing of bars per [mm] 150 150 150 150
Steel Area along perimeter 2 [mm2] 48,249 48,249 31,550 22,222
Ultimate Shear Strength 'Vc2' [MPa] 0.411 0.411 0.424 0.424

Check ok ok ok ok
Punching Shear Check on Primeter 3 (3.0d)
Punching Shear Length 3 (3.0d) [mm] 7,880 7,880 3,570 3,570
Punching Shear Width 3 (3.0d) [mm] 6,880 6,880 6,190 3,220
Punching Shear Perimeter 3 [mm] 29.52 29.52 19.52 13.58
Punching Shear Area 3 [mm] 54.21 54.21 22.10 11.50
Ultimate Shear Force 'Vu3' perimeter 3 [kN] -1,505 -1,505 -1,009 -1,439
Ultimate Shear 'vu3' perimeter 3 [MPa] -0.047 -0.047 -0.052 -0.107
Steel Diameter to be used [mm] 20 20 20 20
Spacing of bars per [mm] 150 150 150 150
Steel Area along perimeter 3 [mm2] 61,819 61,819 40,879 28,442
Ultimate Shear Strength 'Vc3' [MPa] 0.411 0.411 0.424 0.424

Check ok ok ok ok
