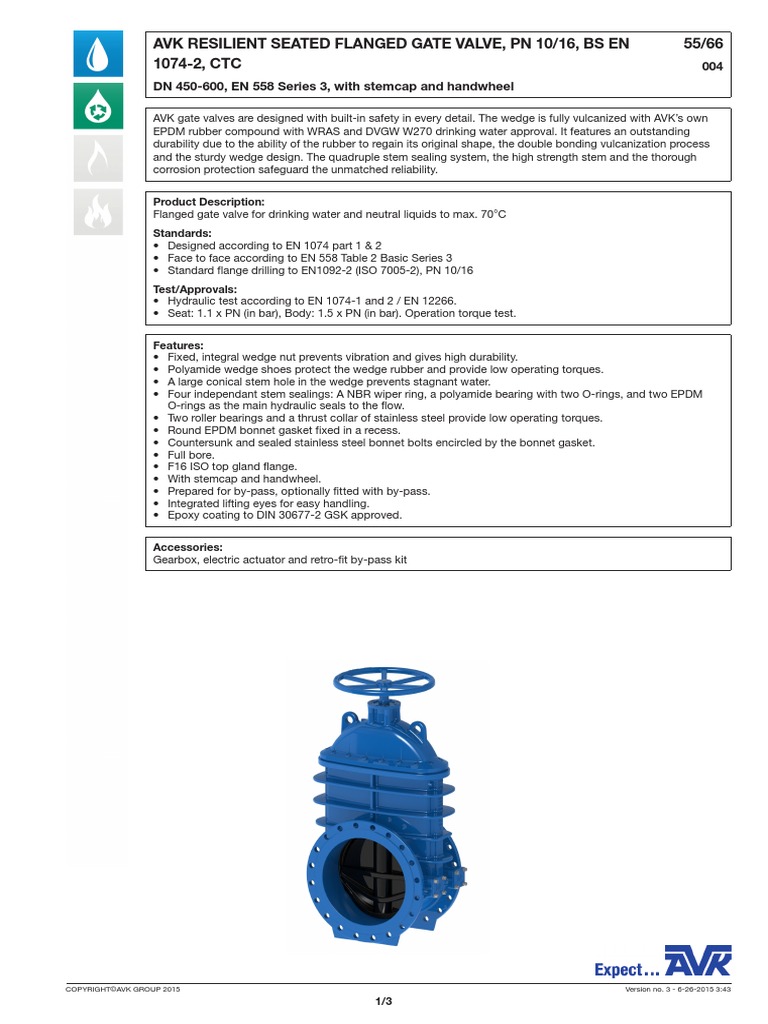

AVK RESILIENT SEATED FLANGED GATE VALVE, PN 10/16, BS EN 55/66

1074-2, CTC 004


DN 450-600, EN 558 Series 3, with stemcap and handwheel

AVK gate valves are designed with built-in safety in every detail. The wedge is fully vulcanized with AVK’s own
EPDM rubber compound with WRAS and DVGW W270 drinking water approval. It features an outstanding
durability due to the ability of the rubber to regain its original shape, the double bonding vulcanization process
and the sturdy wedge design. The quadruple stem sealing system, the high strength stem and the thorough
corrosion protection safeguard the unmatched reliability.

Product Description:
Flanged gate valve for drinking water and neutral liquids to max. 70°C
Standards:
• Designed according to EN 1074 part 1 & 2
• Face to face according to EN 558 Table 2 Basic Series 3
• Standard flange drilling to EN1092-2 (ISO 7005-2), PN 10/16
Test/Approvals:
• Hydraulic test according to EN 1074-1 and 2 / EN 12266.
• Seat: 1.1 x PN (in bar), Body: 1.5 x PN (in bar). Operation torque test.

Features:
• Fixed, integral wedge nut prevents vibration and gives high durability.
• Polyamide wedge shoes protect the wedge rubber and provide low operating torques.
• A large conical stem hole in the wedge prevents stagnant water.
• Four independant stem sealings: A NBR wiper ring, a polyamide bearing with two O-rings, and two EPDM
O-rings as the main hydraulic seals to the flow.
• Two roller bearings and a thrust collar of stainless steel provide low operating torques.
• Round EPDM bonnet gasket fixed in a recess.
• Countersunk and sealed stainless steel bonnet bolts encircled by the bonnet gasket.
• Full bore.
• F16 ISO top gland flange.
• With stemcap and handwheel.
• Prepared for by-pass, optionally fitted with by-pass.
• Integrated lifting eyes for easy handling.
• Epoxy coating to DIN 30677-2 GSK approved.

Accessories:
Gearbox, electric actuator and retro-fit by-pass kit

COPYRIGHT©AVK GROUP 2015 Version no. 3 - 6-26-2015 3:43


1/3
AVK RESILIENT SEATED FLANGED GATE VALVE, PN 10/16, BS EN 1074-2, CTC 55/66
DN 450-600, EN 558 Series 3, with stemcap and handwheel 004

D
18
13
29 14

30 15 B 19

20
12

21

16 11 22

23
H

10 24
17
9
H3

25
8
7
26
6
5 DETAIL B 27
A A
4 28
3
2
1

L W1
W
SECTION A-A

Component List:

1. Body DI EN 1563; GJS-500-7 2. Washer Grade A2-70


3. Bolt Grade A2-70 4. Clip for Wedge Brass EN 12165 CW612N
5. Blanking Plate DI EN 1563; GJS-500-7 6. Wedge shoe Ultramid A3k (PA 6.6)black
7. Wedge rubber EPDM, EN 681-1 8. Wedge core DI EN 1563; GJS-500-7
9. Wedge nut Bronze CW626N 10. Stem SS EN 10088-1; (W 1.4021)
11. Bonnet gasket EPDM, EN 681-1 12. Bonnet DI EN 1563; GJS-500-7
13. Bolt Grade A2-70 14. Stem cap DI EN 1563; GJS-500-7
15. Bolt Grade A2-70 16. Bolt Grade A2-70
17. Slotted pin SS EN 10088-1; (W 1.4404) 18. Key Grade A2-70
19. Gland Flange DI EN 1563; GJS-500-7 20. Wiper ring NBR, DIN 3535-3
21. O-ring EPDM (WRC) 22. Bearing shell PA 6.6 (Polyamid)
23. O-ring EPDM (WRC) 24. Roller bearing Alloy Steel
25. Thrust collar SS EN 10088-1; (W 1.4404) 26. Thrust washer SS EN 10088-1; (W 1.4104)
27. Oring EPDM (WRC) 28. O-ring EPDM (WRC)
29. Handwheel Grey iron 30. Washer Grade A2-70
Components may be substituted with equivalent or higher class materials without prior notification.

Reference Nos. and Dimensions:


Theoretic.
DN Flange L D W W1 H H3
AVK ref. nos weight
mm drilling mm mm mm mm mm mm
kg
55-450-66-004640C 450 PN10 432 500 791 396 1104 1481 459
55-450-66-014640C 450 PN16 432 500 791 396 1104 1494 505
55-500-66-004640C 500 PN10 457 500 806 411 1129 1534 476
55-500-66-014640C 500 PN16 457 500 847 431 1129 1556 540
55-600-66-004640C 600 PN10 508 640 926 461 1266 1735 674
The designs, materials and specifications shown are subject to change without notice. This is due to the continuous development of our product programme.

Version no. 3 - 6-26-2015 3:43


2/3
Theoretic.
DN Flange L D W W1 H H3
AVK ref. nos weight
mm drilling mm mm mm mm mm mm
kg
55-600-66-014640C 600 PN16 508 640 966 491 1280 1779 773

The designs, materials and specifications shown are subject to change without notice. This is due to the continuous development of our product programme.

Version no. 3 - 6-26-2015 3:43


3/3
