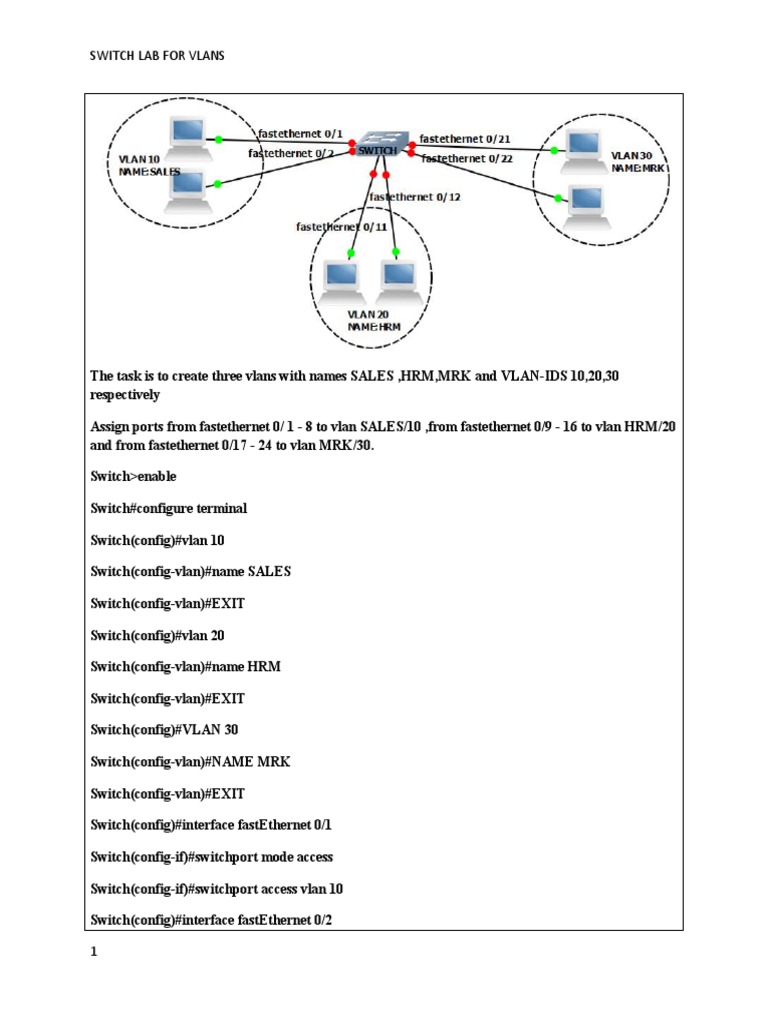

SWITCH LAB FOR VLANS

The task is to create three vlans with names SALES ,HRM,MRK and VLAN-IDS 10,20,30
respectively

Assign ports from fastethernet 0/ 1 - 8 to vlan SALES/10 ,from fastethernet 0/9 - 16 to vlan HRM/20
and from fastethernet 0/17 - 24 to vlan MRK/30.

Switch>enable

Switch#configure terminal

Switch(config)#vlan 10

Switch(config-vlan)#name SALES

Switch(config-vlan)#EXIT

Switch(config)#vlan 20

Switch(config-vlan)#name HRM

Switch(config-vlan)#EXIT

Switch(config)#VLAN 30

Switch(config-vlan)#NAME MRK

Switch(config-vlan)#EXIT

Switch(config)#interface fastEthernet 0/1

Switch(config-if)#switchport mode access

Switch(config-if)#switchport access vlan 10

Switch(config)#interface fastEthernet 0/2

1
SWITCH LAB FOR VLANS

Switch(config-if)#switchport mode access

Switch(config-if)#switchport access vlan 10

Switch(config-if)#exit

USING RANGE COMMAND TO ASSIGN MUTLIPLE PORTS TO VLAN ONE TIME

Switch(config)#interface range fastEthernet 0/3 - 8

Switch(config-if-range)#switchport mode access

Switch(config-if-range)#switchport access vlan 10

Switch(config-if-range)#exit

Switch(config)#interface range fastEthernet 0/9

Switch(config-if-range)#switchport mode access

Switch(config-if-range)#switchport access vlan 20

Switch(config-if-range)#exit

Switch(config)#interface range fastEthernet 0/10 - 15

Switch(config-if-range)#switchport mode access

Switch(config-if-range)#switchport access vlan 20

Switch(config-if-range)#exit

Switch(config)#interface fastEthernet 0/16

Switch(config-if)#switchport mode access

Switch(config-if)#switchport access vlan 30

USING RANGE COMMAND TO ASSIGN MUTLIPLE PORTS TO VLAN ONE TIME

Switch(config)#interface range fastEthernet 0/17 - 24

Switch(config-if-range)#switchport mode access

Switch(config-if-range)#switchport access vlan 30

Switch(config-if-range)#exit

Switch(config)#exit

Switch#write memory
