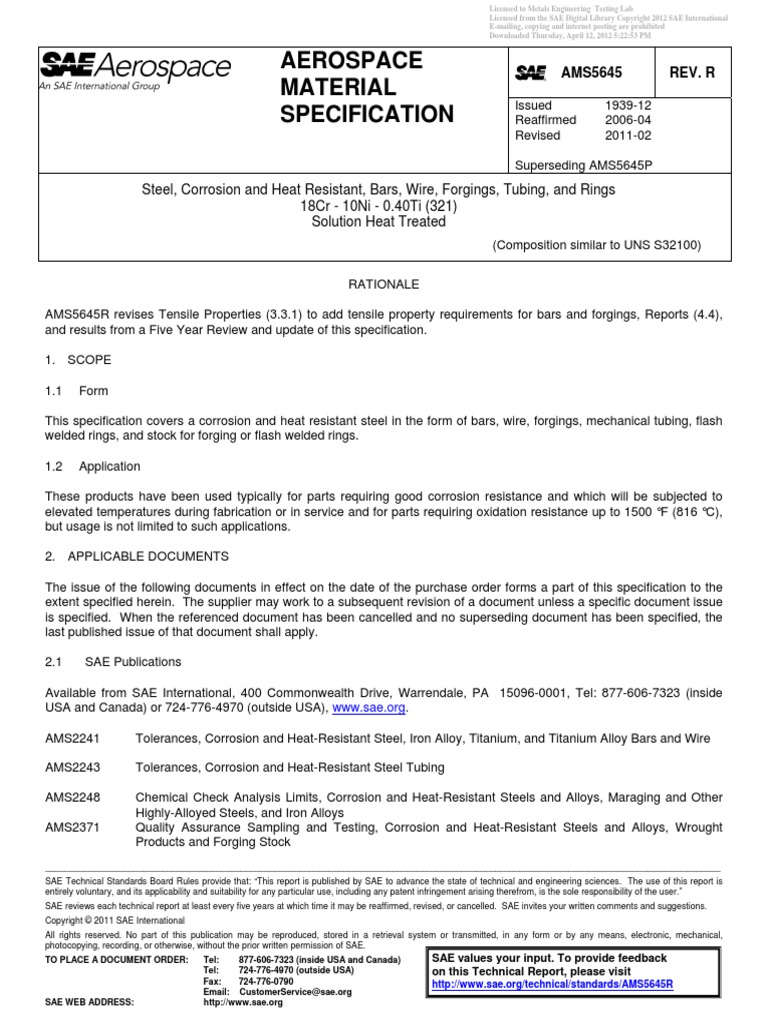

AEROSPACE AMS5645 REV. R

MATERIAL
Issued 1939-12
SPECIFICATION Reaffirmed 2006-04
Revised 2011-02

Superseding AMS5645P
Steel, Corrosion and Heat Resistant, Bars, Wire, Forgings, Tubing, and Rings
18Cr - 10Ni - 0.40Ti (321)
Solution Heat Treated
(Composition similar to UNS S32100)

RATIONALE

AMS5645R revises Tensile Properties (3.3.1) to add tensile property requirements for bars and forgings, Reports (4.4),
and results from a Five Year Review and update of this specification.

1. SCOPE

1.1 Form

This specification covers a corrosion and heat resistant steel in the form of bars, wire, forgings, mechanical tubing, flash
welded rings, and stock for forging or flash welded rings.

1.2 Application

These products have been used typically for parts requiring good corrosion resistance and which will be subjected to
elevated temperatures during fabrication or in service and for parts requiring oxidation resistance up to 1500 °F (816 °C),
but usage is not limited to such applications.

2. APPLICABLE DOCUMENTS

The issue of the following documents in effect on the date of the purchase order forms a part of this specification to the
extent specified herein. The supplier may work to a subsequent revision of a document unless a specific document issue
is specified. When the referenced document has been cancelled and no superseding document has been specified, the
last published issue of that document shall apply.

2.1 SAE Publications

Available from SAE International, 400 Commonwealth Drive, Warrendale, PA 15096-0001, Tel: 877-606-7323 (inside
USA and Canada) or 724-776-4970 (outside USA), www.sae.org.

AMS2241 Tolerances, Corrosion and Heat-Resistant Steel, Iron Alloy, Titanium, and Titanium Alloy Bars and Wire

AMS2243 Tolerances, Corrosion and Heat-Resistant Steel Tubing

AMS2248 Chemical Check Analysis Limits, Corrosion and Heat-Resistant Steels and Alloys, Maraging and Other
Highly-Alloyed Steels, and Iron Alloys
AMS2371 Quality Assurance Sampling and Testing, Corrosion and Heat-Resistant Steels and Alloys, Wrought
Products and Forging Stock
__________________________________________________________________________________________________________________________________________
SAE Technical Standards Board Rules provide that: “This report is published by SAE to advance the state of technical and engineering sciences. The use of this report is
entirely voluntary, and its applicability and suitability for any particular use, including any patent infringement arising therefrom, is the sole responsibility of the user.”
SAE reviews each technical report at least every five years at which time it may be reaffirmed, revised, or cancelled. SAE invites your written comments and suggestions.
Copyright © 2011 SAE International
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without the prior written permission of SAE.
TO PLACE A DOCUMENT ORDER: Tel: 877-606-7323 (inside USA and Canada) SAE values your input. To provide feedback
Tel: 724-776-4970 (outside USA) on this Technical Report, please visit
Fax: Author:Gilligan-SID:13722-GUID:62466983-67.88.143.35
724-776-0790 http://www.sae.org/technical/standards/AMS5645R
Email: CustomerService@sae.org
SAE WEB ADDRESS: http://www.sae.org
 Licensed to Metals Engineering Testing Lab
Licensed from the SAE Digital Library Copyright 2012 SAE International
E-mailing, copying and internet posting are prohibited
Downloaded Thursday, April 12, 2012 5:22:53 PM

SAE AMS5645R Page 2 of 6

AMS2374 Quality Assurance Sampling and Testing, Corrosion and Heat-Resistant Steel and Alloy Forgings

AMS2806 Identification, Bars, Wire, Mechanical Tubing, and Extrusions, Carbon and Alloy Steels and Corrosion
and Heat-Resistant Steels and Alloys

AMS2808 Identification, Forgings

AMS7490 Rings, Flash Welded, Corrosion and Heat-Resistant Austenitic Steels, Austenitic-Type Iron, Nickel, or
Cobalt Alloys, or Precipitation-Hardenable Alloys

2.2 ASTM Publications

Available from ASTM International, 100 Barr Harbor Drive, P.O. Box C700, West Conshohocken, PA 19428-2959,
Tel: 610-832-9585, www.astm.org.

ASTM A 262 Detecting Susceptibility to Intergranular Attack in Austenitic Stainless Steels

ASTM A 276 Stainless Steel Bars and Shapes

ASTM A 370 Mechanical Testing of Steel Products

ASTM E 353 Chemical Analysis of Stainless, Heat-Resisting, Maraging, and Other Similar Chromium-Nickel-Iron
Alloys

3. TECHNICAL REQUIREMENTS

3.1 Composition

Shall conform to the percentages by weight shown in Table 1, determined by wet chemical methods in accordance with
ASTM E 353, by spectrochemical methods, or by other analytical methods acceptable to purchaser.

TABLE 1 - COMPOSITION
Element min max
Carbon -- 0.08
Manganese -- 2.00
Silicon -- 1.00
Phosphorus -- 0.040
Sulfur -- 0.030
Chromium 17.00 19.00
Nickel 8.00 12.00
Titanium 5x(C+N) 0.70
Molybdenum -- 0.75
Copper -- 0.75
Nitrogen -- 0.10

3.1.1 Check Analysis

Composition variations shall meet the applicable requirements of AMS2248.

3.2 Condition

The product shall be supplied in the following condition:

Author:Gilligan-SID:13722-GUID:62466983-67.88.143.35
 Licensed to Metals Engineering Testing Lab
Licensed from the SAE Digital Library Copyright 2012 SAE International
E-mailing, copying and internet posting are prohibited
Downloaded Thursday, April 12, 2012 5:22:53 PM

SAE AMS5645R Page 3 of 6

3.2.1 Bars, Wire, Forgings, Mechanical Tubing, and Flash Welded Rings

Solution heat treated.

3.2.1.1 Bars and Wire

3.2.1.1.1 All hexagons regardless of size, and other bars 2.750 inches (69.85 mm) and under in nominal diameter or
least distance between parallel sides, and wire shall be cold finished.

3.2.1.1.2 Bars, other than hexagons, over 2.750 inches (69.85 mm) in nominal diameter or least distance between
parallel sides shall be hot finished or cold finished.

3.2.1.2 Mechanical Tubing

Shall be cold finished.

3.2.1.3 Flash Welded Rings

Shall not be supplied unless specified or permitted on purchaser's part drawing. When supplied, rings shall be
manufactured in accordance with AMS7490.

3.2.2 Stock for Forging or Flash Welded Rings

As ordered by the forging or flash welded ring manufacturer.

3.3 Properties

The product shall conform to the following requirements; hardness and tensile testing shall be performed in accordance
with ASTM A 370:

3.3.1 Tensile Properties

3.3.1.1 Bars and Forgings Over 0.50 Inch (12.7 mm) in Nominal Diameter or Least Distance Between Parallel Sides

Shall be as shown in Table 2.

TABLE 2 - MINIMUM TENSILE PROPERTIES

Property Value
Tensile Strength 75 ksi (517 MPa)
Yield Strength at 0.2% Offset 30.0 ksi (206.8 MPa)
Elongation in 4D 30%
Reduction of Area 40%
Note: Minimum tensile properties for bars and forgings have been taken directly from ASTM A 276
(See 8.5)

3.3.1.2 Wire shall have tensile strength of 85 to 125 ksi (586 to 862 MPa).

3.3.2 Hardness

3.3.2.1 Bars

Shall be as shown in Table 3, or equivalent (See 8.2), determined approximately at mid-radius or quarter thickness.

Author:Gilligan-SID:13722-GUID:62466983-67.88.143.35
 Licensed to Metals Engineering Testing Lab
Licensed from the SAE Digital Library Copyright 2012 SAE International
E-mailing, copying and internet posting are prohibited
Downloaded Thursday, April 12, 2012 5:22:53 PM

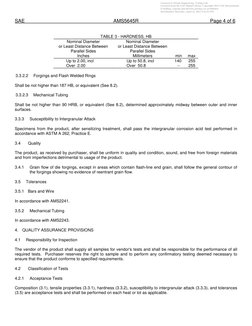

SAE AMS5645R Page 4 of 6

TABLE 3 - HARDNESS, HB
Nominal Diameter Nominal Diameter
or Least Distance Between or Least Distance Between
Parallel Sides Parallel Sides
Inches Millimeters min max
Up to 2.00, incl Up to 50.8, incl 140 255
Over 2.00 Over 50.8 -- 255

3.3.2.2 Forgings and Flash Welded Rings

Shall be not higher than 187 HB, or equivalent (See 8.2).

3.3.2.3 Mechanical Tubing

Shall be not higher than 90 HRB, or equivalent (See 8.2), determined approximately midway between outer and inner
surfaces.

3.3.3 Susceptibility to Intergranular Attack

Specimens from the product, after sensitizing treatment, shall pass the intergranular corrosion acid test performed in
accordance with ASTM A 262, Practice E.

3.4 Quality

The product, as received by purchaser, shall be uniform in quality and condition, sound, and free from foreign materials
and from imperfections detrimental to usage of the product.

3.4.1 Grain flow of die forgings, except in areas which contain flash-line end grain, shall follow the general contour of
the forgings showing no evidence of reentrant grain flow.

3.5 Tolerances

3.5.1 Bars and Wire

In accordance with AMS2241.

3.5.2 Mechanical Tubing

In accordance with AMS2243.

4. QUALITY ASSURANCE PROVISIONS

4.1 Responsibility for Inspection

The vendor of the product shall supply all samples for vendor's tests and shall be responsible for the performance of all
required tests. Purchaser reserves the right to sample and to perform any confirmatory testing deemed necessary to
ensure that the product conforms to specified requirements.

4.2 Classification of Tests

4.2.1 Acceptance Tests

Composition (3.1), tensile properties (3.3.1), hardness (3.3.2), susceptibility to intergranular attack (3.3.3), and tolerances
(3.5) are acceptance tests and shall be performed on each heat or lot as applicable.

Author:Gilligan-SID:13722-GUID:62466983-67.88.143.35
 Licensed to Metals Engineering Testing Lab
Licensed from the SAE Digital Library Copyright 2012 SAE International
E-mailing, copying and internet posting are prohibited
Downloaded Thursday, April 12, 2012 5:22:53 PM

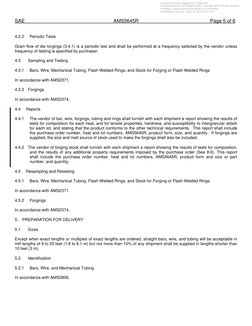

SAE AMS5645R Page 5 of 6

4.2.2 Periodic Tests

Grain flow of die forgings (3.4.1) is a periodic test and shall be performed at a frequency selected by the vendor unless
frequency of testing is specified by purchaser.

4.3 Sampling and Testing

4.3.1 Bars, Wire, Mechanical Tubing, Flash Welded Rings, and Stock for Forging or Flash Welded Rings

In accordance with AMS2371.

4.3.2 Forgings

In accordance with AMS2374.

4.4 Reports

4.4.1 The vendor of bar, wire, forgings, tubing and rings shall furnish with each shipment a report showing the results of
tests for composition for each heat, and for tensile properties, hardness, and susceptibility to intergranular attack
for each lot, and stating that the product conforms to the other technical requirements. This report shall include
the purchase order number, heat and lot numbers, AMS5645R, product form, size, and quantity. If forgings are
supplied, the size and melt source of stock used to make the forgings shall also be included.

4.4.2 The vendor of forging stock shall furnish with each shipment a report showing the results of tests for composition,
and the results of any additional property requirements imposed by the purchase order (See 8.6). This report
shall include the purchase order number, heat and lot numbers, AMS5645R, product form and size or part
number, and quantity.

4.5 Resampling and Retesting

4.5.1 Bars, Wire, Mechanical Tubing, Flash Welded Rings, and Stock for Forging or Flash Welded Rings

In accordance with AMS2371.

4.5.2 Forgings

In accordance with AMS2374.

5. PREPARATION FOR DELIVERY

5.1 Sizes

Except when exact lengths or multiples of exact lengths are ordered, straight bars, wire, and tubing will be acceptable in
mill lengths of 6 to 20 feet (1.8 to 6.1 m) but not more than 10% of any shipment shall be supplied in lengths shorter than
10 feet (3 m).

5.2 Identification

5.2.1 Bars, Wire, and Mechanical Tubing

In accordance with AMS2806.

Author:Gilligan-SID:13722-GUID:62466983-67.88.143.35
 Licensed to Metals Engineering Testing Lab
Licensed from the SAE Digital Library Copyright 2012 SAE International
E-mailing, copying and internet posting are prohibited
Downloaded Thursday, April 12, 2012 5:22:53 PM

SAE AMS5645R Page 6 of 6

5.2.2 Forgings

In accordance with AMS2808.

5.2.3 Flash Welded Rings and Stock for Forging or Flash Welded Rings

As agreed upon by purchaser and vendor.

5.3 Packaging

The product shall be prepared for shipment in accordance with commercial practice and in compliance with applicable
rules and regulations pertaining to the handling, packaging, and transportation of the product to ensure carrier acceptance
and safe delivery.

6. ACKNOWLEDGMENT

A vendor shall mention this specification number and its revision letter in all quotations and when acknowledging
purchase orders.

7. REJECTIONS

Product not conforming to this specification, or to modifications authorized by purchaser, will be subject to rejection.

8. NOTES

8.1 A change bar (l) located in the left margin is for the convenience of the user in locating areas where technical
revisions, not editorial changes, have been made to the previous issue of this document. An (R) symbol to the left of
the document title indicates a complete revision of the document, including technical revisions. Change bars and
(R) are not used in original publications, nor in documents that contain editorial changes only.

8.2 Hardness conversion tables for metals are presented in ASTM E 140.

8.3 Terms used in AMS are clarified in ARP1917.

8.4 Dimensions and properties in inch/pound units and the Fahrenheit temperatures are primary; dimensions and
properties in SI units and the Celsius temperatures are shown as the approximate equivalents of the primary units
and are presented only for information.

8.5 Tensile properties shown in Table 2 for bars and forgings have been taken directly from ASTM A 276, and have not
been statistically substantiated in accordance with Aerospace Materials Division policy.

8.6 Purchase documents should specify not less than the following:

AMS5645R
Product form and size or part number of product desired
Quantity of product desired
If forging stock, specify any additional property requirements beyond those reported in 4.4.2 and provide details of how to
obtain the desired samples.

8.7 Similar Specifications

Federal QQ-S-763, Class 321, Condition A, is listed for information only and shall not be construed as an acceptable
alternate unless all requirements of this AMS are met.

PREPARED BY AMS COMMITTEE "F"
