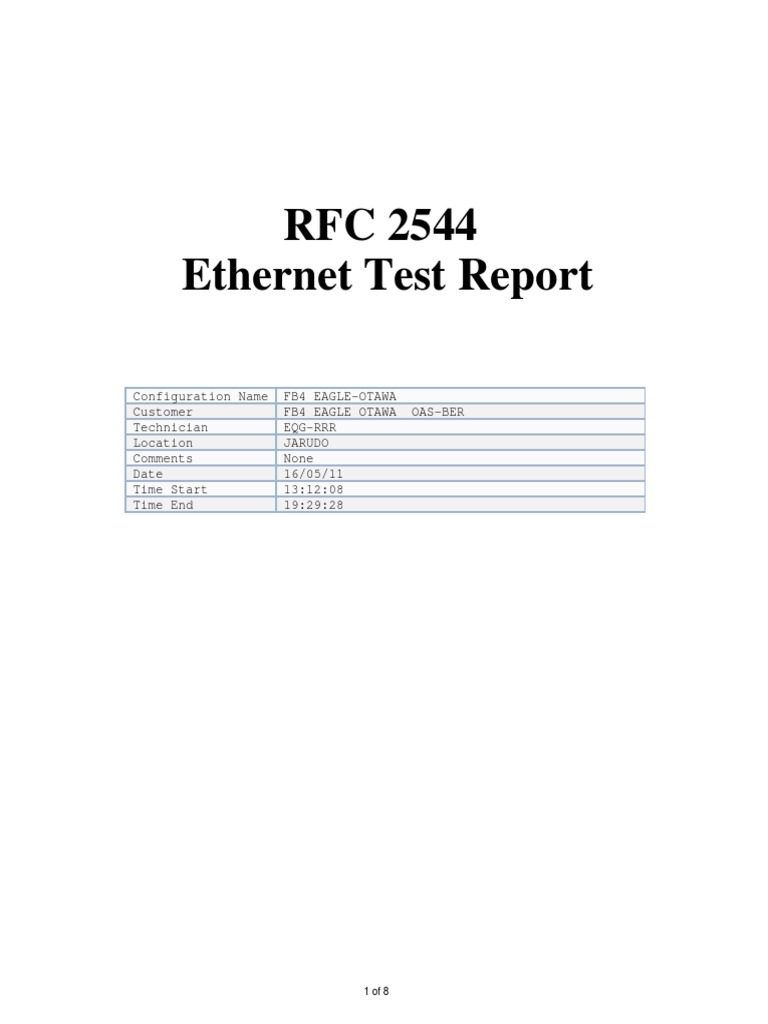

RFC 2544

Ethernet Test Report

Configuration Name FB4 EAGLE-OTAWA

Customer FB4 EAGLE OTAWA OAS-BER
Technician EQG-RRR
Location JARUDO
Comments None
Date 16/05/11
Time Start 13:12:08
Time End 19:29:28

1 of 8
RFC 2544 Ethernet Test Report

Overall Test Result: FAIL

Test Results per Frame Length:

Throughput Round Trip Time
Threshold: 4.0% Threshold: 100000 µs
Frame Measured Result Measured Result
Length Rate (PASS/FAIL) Delay (PASS/FAIL)
(Bytes) (%) (µs)
64 4.000 PASS 5949 PASS
128 4.001 PASS 6770 PASS
256 4.001 PASS 8428 PASS
512 4.001 PASS 11753 PASS
1024 3.900 FAIL 18403 PASS
1280 3.505 FAIL 21737 PASS
1518 3.802 FAIL 24593 PASS

2 of 8
RFC 2544 Ethernet Test Report

Test Set Setup

Termination 10/100/1000 L2 Traffic Term
Auto Negotiation Off
Speed 100
Duplex Full
Flow Control Off
Framing 802.3
VLAN Tagging Non-tagged
Source Address 00:80:16:8A:06:DB
Destination Address 00:80:16:8C:11:08

Test Configuration
Tests to Run Throughput Test
Round Trip Time Test
Frame Loss Rate Test
Maximum Test Bandwidth 4%
Frame Lengths 64
128
256
512
1024
1280
1518
Bandwidth Measurement Accuracy To within .1%
Throughput Frame Loss Tolerance 0.00%
Throughput Trial Duration 720 seconds
Throughput Pass Threshold 4.0%
Number of Round Trip Time Trials 10 trials
Round Trip Time Trial Duration 120 seconds
Round Trip Time Pass Threshold 100000 µs
Frame Loss Trial Duration 120 seconds
Frame Loss Bandwidth Granularity 10%

3 of 8
RFC 2544 Ethernet Test Report

Throughput Test Results:

Frame Cfg Measured Measured Measured Pause

Length Rate Rate Rate Rate Detected
(Bytes) (Mbps) (Mbps) (%) (frms/sec)
64 4.0 4.0 4.000 5953 No
128 4.0 4.0 4.001 3379 No
256 4.0 4.0 4.001 1812 No
512 4.0 4.0 4.001 940 No
1024 3.9 3.9 3.900 467 No
1280 3.5 3.5 3.505 337 No
1518 3.8 3.8 3.802 309 No

4 of 8
RFC 2544 Ethernet Test Report

Round Trip Time Test Results:

Frame Delay Measured Measured Measured Pause

Length (µs) Rate Rate Rate Detected
(Bytes) (Mbps) (%) (frms/sec)
64 5949 4.0 4.000 5953 No
128 6770 4.0 4.001 3379 No
256 8428 4.0 4.001 1812 No
512 11753 4.0 4.001 940 No
1024 18403 3.9 3.900 467 No
1280 21737 3.5 3.505 337 No
1518 24593 3.8 3.802 309 No

Frame Loss Test Results:

Cfg Throughput Frame Loss Frames Pause

Rate Rate Rate Lost Detected
(%) (%) (%)
4 4.00 0.00 0 No
5 of 8
RFC 2544 Ethernet Test Report

Cfg Throughput Frame Loss Frames Pause

Rate Rate Rate Lost Detected
(%) (%) (%)
4 4.00 0.00 0 No

Cfg Throughput Frame Loss Frames Pause

Rate Rate Rate Lost Detected
(%) (%) (%)
4 4.00 0.00 0 No

6 of 8
RFC 2544 Ethernet Test Report

Cfg Throughput Frame Loss Frames Pause

Rate Rate Rate Lost Detected
(%) (%) (%)
4 4.00 0.00 0 No

Cfg Throughput Frame Loss Frames Pause

Rate Rate Rate Lost Detected
(%) (%) (%)
4 4.00 0.00 0 No

7 of 8
RFC 2544 Ethernet Test Report

Cfg Throughput Frame Loss Frames Pause

Rate Rate Rate Lost Detected
(%) (%) (%)
4 4.00 0.00 0 No

Cfg Throughput Frame Loss Frames Pause

Rate Rate Rate Lost Detected
(%) (%) (%)
4 4.01 0.00 0 No

8 of 8
