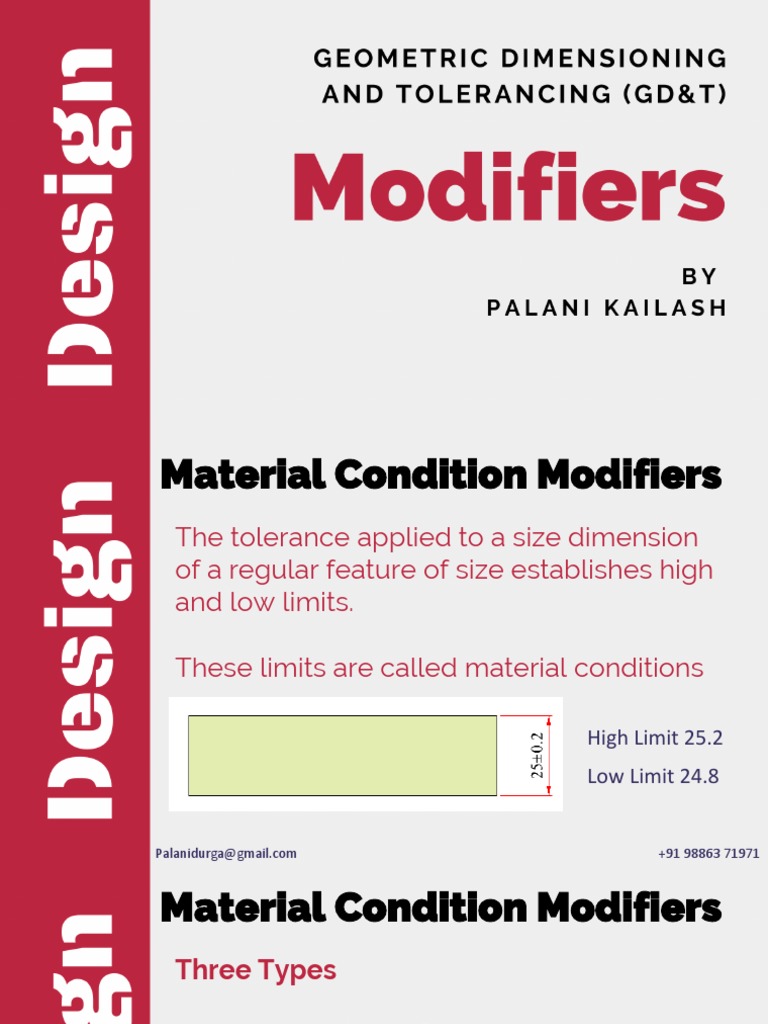

Material Condition Modifiers

The tolerance applied to a size dimension

of a regular feature of size establishes high
and low limits.

These limits are called material conditions

High Limit 25.2

Low Limit 24.8

Palanidurga@gmail.com +91 98863 71971

Material Condition Modifiers
Three Types

Maximum Material Condition

Least Material Condition
Regardless of Feature Size

Palanidurga@gmail.com +91 98863 71971

Maximum Material Condition
Maximum Material Condition (MMC)
Is the condition in which a feature of size
contains the maximum amount of material
within the stated limits of size

For External FOS – MMC is largest limit of size

For Internal FOS – MMC is smallest limit of size

Symbol for MMC - 

Palanidurga@gmail.com +91 98863 71971

Maximum Material Condition
9.8

20.25
70.25

Palanidurga@gmail.com +91 98863 71971

Least Material Condition
Least Material Condition (LMC)
Is the condition in which a feature of size
contains the least amount of material within
the stated limits of size

For External FOS – LMC is smallest limit of size

For Internal FOS – LMC is largest limit of size

Symbol for LMC - 

Palanidurga@gmail.com +91 98863 71971

Least Material Condition
10.2

19.75
69.75

Palanidurga@gmail.com +91 98863 71971

Regardless of Feature Size
Regardless of Feature Size (RFS)
Indicates that a geometric tolerance applies at
any increment of size of the feature of size

RFS is a condition that is used when the geometric

tolerance on the feature needs to be independent of
feature of size

Symbol for RFS - 


Palanidurga@gmail.com +91 98863 71971
Regardless of Feature Size

Palanidurga@gmail.com +91 98863 71971

Question of the Day
What is the MMC and LMC of dimensions
labelled A, B & C

Leave your answer

in comment session

Palanidurga@gmail.com +91 98863 71971

 For Video Explanation of this Presentation visit

https://youtu.be/xbhRJTRaRzI

Or Scan the QR Code
