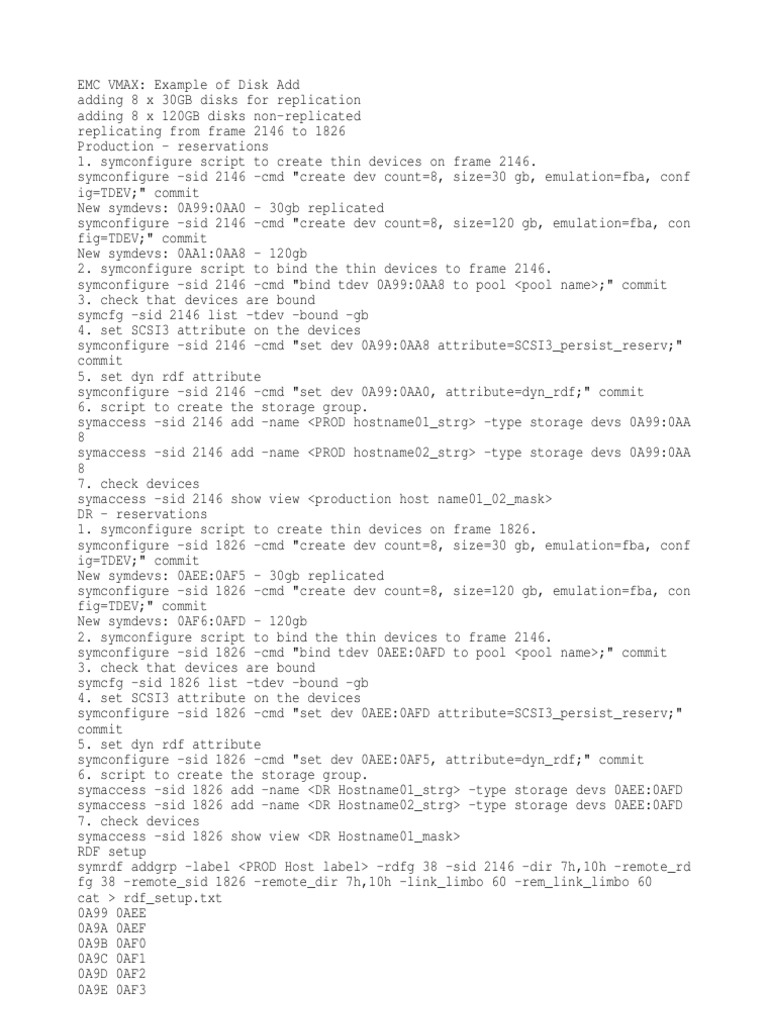

EMC VMAX: Example of Disk Add

adding 8 x 30GB disks for replication

adding 8 x 120GB disks non-replicated
replicating from frame 2146 to 1826
Production - reservations
1. symconfigure script to create thin devices on frame 2146.
symconfigure -sid 2146 -cmd "create dev count=8, size=30 gb, emulation=fba, conf
ig=TDEV;" commit
New symdevs: 0A99:0AA0 - 30gb replicated
symconfigure -sid 2146 -cmd "create dev count=8, size=120 gb, emulation=fba, con
fig=TDEV;" commit
New symdevs: 0AA1:0AA8 - 120gb
2. symconfigure script to bind the thin devices to frame 2146.
symconfigure -sid 2146 -cmd "bind tdev 0A99:0AA8 to pool <pool name>;" commit
3. check that devices are bound
symcfg -sid 2146 list -tdev -bound -gb
4. set SCSI3 attribute on the devices
symconfigure -sid 2146 -cmd "set dev 0A99:0AA8 attribute=SCSI3_persist_reserv;"
commit
5. set dyn rdf attribute
symconfigure -sid 2146 -cmd "set dev 0A99:0AA0, attribute=dyn_rdf;" commit
6. script to create the storage group.
symaccess -sid 2146 add -name <PROD hostname01_strg> -type storage devs 0A99:0AA
8
symaccess -sid 2146 add -name <PROD hostname02_strg> -type storage devs 0A99:0AA
8
7. check devices
symaccess -sid 2146 show view <production host name01_02_mask>
DR - reservations
1. symconfigure script to create thin devices on frame 1826.
symconfigure -sid 1826 -cmd "create dev count=8, size=30 gb, emulation=fba, conf
ig=TDEV;" commit
New symdevs: 0AEE:0AF5 - 30gb replicated
symconfigure -sid 1826 -cmd "create dev count=8, size=120 gb, emulation=fba, con
fig=TDEV;" commit
New symdevs: 0AF6:0AFD - 120gb
2. symconfigure script to bind the thin devices to frame 2146.
symconfigure -sid 1826 -cmd "bind tdev 0AEE:0AFD to pool <pool name>;" commit
3. check that devices are bound
symcfg -sid 1826 list -tdev -bound -gb
4. set SCSI3 attribute on the devices
symconfigure -sid 1826 -cmd "set dev 0AEE:0AFD attribute=SCSI3_persist_reserv;"
commit
5. set dyn rdf attribute
symconfigure -sid 1826 -cmd "set dev 0AEE:0AF5, attribute=dyn_rdf;" commit
6. script to create the storage group.
symaccess -sid 1826 add -name <DR Hostname01_strg> -type storage devs 0AEE:0AFD
symaccess -sid 1826 add -name <DR Hostname02_strg> -type storage devs 0AEE:0AFD
7. check devices
symaccess -sid 1826 show view <DR Hostname01_mask>
RDF setup
symrdf addgrp -label <PROD Host label> -rdfg 38 -sid 2146 -dir 7h,10h -remote_rd
fg 38 -remote_sid 1826 -remote_dir 7h,10h -link_limbo 60 -rem_link_limbo 60
cat > rdf_setup.txt
0A99 0AEE
0A9A 0AEF
0A9B 0AF0
0A9C 0AF1
0A9D 0AF2
0A9E 0AF3
0A9F 0AF4
0AA0 0AF5
symrdf -sid 2146 -file rdf_setup.txt -rdfg 38 query
symrdf -sid 2146 -file rdf_setup.txt -rdfg 38 set mode acp_disk
symrdf -sid 2146 -file rdf_setup.txt -rdfg 38 set mode async
symrdf -sid 2146 -file rdf_setup.txt -rdfg 38 set mode enable
BCV Setup
DR servers plus Dev needs access to clones
DR Server 01, DR Server 02
DEV Server 01
symconfigure -sid 1826 -cmd "create dev count=8, size=30 gb, emulation=fba, conf
ig=TDEV;" commit
New symdevs: 0AFE:0B05
symconfigure -sid 1826 -cmd "bind tdev 0AFE:0B05 to pool r5_fc15k_gp1;" commit
symaccess -sid 1826 add -name <DR Server 01_strg> -type storage devs 0AFE:0B05
symaccess -sid 1826 add -name <DR Server 02_strg> -type storage devs 0AFE:0B05
symaccess -sid 1826 add -name <DEV Server 01_strg> -type storage devs 0AFE:0B05
cat > clone_devs.txt
0AFE
0AFF
0B00
0B01
0B02
0B03
0B04
0B05
symrdf -sid 1826 -g werner_IB -rdfg 38 query
cat clone_devs.txt | while read line
do
symld -g werner_IB add dev $line -tgt
done
symclone -g werner_IB create DEV001 sym ld TGT001 -precopy -differential -noprom
pt
symclone -g werner_IB create DEV002 sym ld TGT002 -precopy -differential -noprom
pt
symclone -g werner_IB create DEV003 sym ld TGT003 -precopy -differential -noprom
pt
symclone -g werner_IB create DEV004 sym ld TGT004 -precopy -differential -noprom
pt
symclone -g werner_IB create DEV005 sym ld TGT005 -precopy -differential -noprom
pt
symclone -g werner_IB create DEV006 sym ld TGT006 -precopy -differential -noprom
pt
symclone -g werner_IB create DEV007 sym ld TGT007 -precopy -differential -noprom
pt
symclone -g werner_IB create DEV008 sym ld TGT008 -precopy -differential -noprom
pt
symclone -g werner_IB query
symclone -g werner_IB activate -tgt
symclone -g werner_IB recreate -precopy -tgt
###Terminate the relationship - do not need to run normally
symclone -g clone1 terminate DEV001 sym ld TGT001 -noprompt
