ALLISON MD/B 300/B 400 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

?
1

;;;
2
3
7

;;;
8

;;;
9
6
10
4
11

5 12

13

18 14

19
20 16
22
21 23 17
24
25
27

28
15
29
30
26 31
21

33

34

32 35

V03940.02

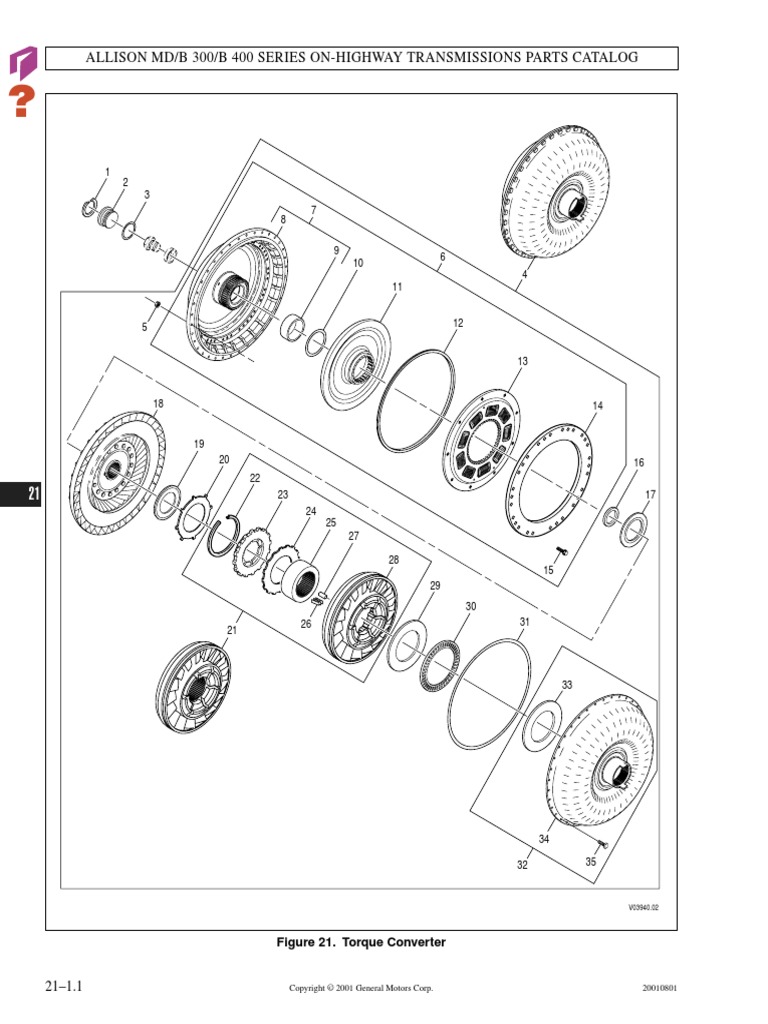

Figure 21. Torque Converter

21–1.1 Copyright © 2001 General Motors Corp. 20010801

 ALLISON MD/B 300/B 400 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP 21-725
Torque Converter, Figure 21
TC 411, 2.71:1 Stall Torque Ratio
RECOMMENDED
REF PART SPARES FOR UNITS
NO. NOMENCLATURE NO. REQ 1–25 26–50 51–200
1 Ring, Retaining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29503209 1 4 8 16
2 Plug, Converter End . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29509732 1 2 4 8
3 O-ring, 34.6 mm ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29503208 1 4 8 16
4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535591 ** 1
5 Nut, M8 x 1.25 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29501339 36 72 144 216
6 Cover Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29514802 ** 1
7 Cover Assembly. Starting With S/N 6510165560, Replace
29535239 Cover Assembly With 29535595. Use
29535581 Torque Converter Plug With 29535595 Cover
Assembly. Cover And Plug Kit 29535935 Is Available
For Servicing Cover Assembly 29535595.
See SPI 21-WT-98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535595 1 2 4 8
8 Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29537726 * 1
9 Bushing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29503196 1 2 4 8
10 Sealring, Lockup Piston, 86.87 mm ID . . . . . . . . . . . . . . . . . . 29503197 1 2 4 8
11 Piston Assembly, Lockup . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29500939 1 2 4 8
12 Sealring, Lockup Piston, 279.9 mm ID . . . . . . . . . . . . . . . . . . 23046868 1 2 4 8
13 Damper Assembly. 29535008 Damper Assembly Is Used To
Service 23046236 Damper Assembly. . . . . . . . . . . . . . . 29535008 1 2 4 8
14 Backplate, Lockup-Clutch. See SPI 26-WT-94. . . . . . . . . . . . 29514804 1 2 4 8 21
15 Bolt, M8 x 1.25 x 20. Used Prior To S/N 6510024410.
See SPI 26-WT-94. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29500667 20 20 40 80
15 Bolt, M8 x 1.25 x 20. Used Starting With S/N 6510024410.
See SPI 26-WT-94. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29514805 30 60 120 240
16 Sealring, External, 61.43 mm OD . . . . . . . . . . . . . . . . . . . . . . . . . 29500025 1 2 4 8
17 Bearing Assembly, Thrust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23046228 1 2 4 8
18 Turbine Assembly, Complete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29503979 1 1 2 4
19 Bearing Assembly, Thrust Bearing No. 2 . . . . . . . . . . . . . . . . . . . . 29500768 1 2 4 8
20 Washer, Tanged, Thrust Bearing No. 2 . . . . . . . . . . . . . . . . . . . . . 29505617 1 2 4 8
21 Stator Assembly Converter, Complete . . . . . . . . . . . . . . . . . . . . . . 29506447 ** 1
22 Ring, Retaining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29503239 1 2 4 8
23 Plate Assembly, Stator Thrust . . . . . . . . . . . . . . . . . . . . . . . . 29503980 1 2 4 8
24 Washer, Stator Thrust, Front . . . . . . . . . . . . . . . . . . . . . . . . . 29500066 1 2 4 8
25 Race, Stator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29500068 1 2 4 8
26 Spring, Stator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29500064 13 26 52 104
27 Roller, Stator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29500063 13 13 26 52
28 Stator And Cam Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 29506446 1 1 2 4
29 Shim, Converter, Selective, 0.254 mm (0.010 inch) . . . . . . . . . . . 29502277 AR 2 4 8
29 Shim, Converter, Selective, 0.485 mm (0.019 inch) . . . . . . . . . . . 29502276 AR 2 4 8
29 Shim, Converter, Selective, 0.715 mm (0.028 inch) . . . . . . . . . . . 29502275 AR 2 4 8
30 Bearing Assembly, Thrust Pump . . . . . . . . . . . . . . . . . . . . . . . . . . 23045918 1 2 4 8
31 O-ring, 368.8 mm ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23049377 1 4 8 16
32 Pump Assembly, Converter, Complete. Used Prior To
S/N 6510024410. See SPI 28-WT-94. . . . . . . . . . . . . . . . . . . 29511377 1 1 2 4

(continued on next page)

* Serviced Only As An Assembly — Not Available As A Detail Part.

** Not Serviced As An Assembly — Order Detail Parts.

20010801 Copyright © 2001 General Motors Corp. 21–2.1

 ALLISON MD/B 300/B 400 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP 21-725
Torque Converter, Figure 21
(cont’d)

TC 411, 2.71:1 Stall Torque Ratio

RECOMMENDED
REF PART SPARES FOR UNITS
NO. NOMENCLATURE NO. REQ 1–25 26–50 51–200
32 Pump Assembly, Converter, Complete. Used Starting With
S/N 6510024410. When Replacing 29511377 Converter
Pump Assembly With 29514787 Converter Pump
Assembly, Also Replace 23049376 Cycloidal Gear Set
And 29501145 Pump Housing With 29514537 Cycloidal
Gear Set, 29514800 Pump Housing, 145651 Ball,
29507709 Spring, And 29516030 Pin.
See SPI 28-WT-94. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29514787 1 1 2 4
33 Washer, Pump Thrust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29500908 1 2 4 8
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29514792 * 1
35 Bolt, T-Head, M8 x 1.25 x 25 . . . . . . . . . . . . . . . . . . . . . . . . . 29500616 36 72 144 216

GROUP 21-726
Torque Converter, Figure 21
TC 413, 2.44:1 Stall Torque Ratio
Same As Group 21-725, Except For Parts Listed Below.
21 4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535590 ** 1
32 Pump Assembly, Converter, Complete. Used Prior To
S/N 6510024410. See SPI 28-WT-94. . . . . . . . . . . . . . . . . . . 29511380 1 1 2 4
32 Pump Assembly, Converter, Complete. Used Starting With
S/N 6510024410. When Replacing 29511380 Converter
Pump Assembly With 29514788 Converter Pump
Assembly, Also Replace 23049376 Cycloidal Gear Set
And 29501145 Pump Housing With 29514537 Cycloidal
Gear Set, 29514800 Pump Housing, 145651 Ball,
29507709 Spring, And 29516030 Pin.
See SPI 28-WT-94. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29514788 1 1 2 4
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29514793 * 1

GROUP 21-727
Torque Converter, Figure 21
TC 415, 2.35:1 Stall Torque Ratio
Same As Group 21-725, Except For Parts Listed Below.
4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535589 ** 1
32 Pump Assembly, Converter, Complete. Used Prior To
S/N 6510024410. See SPI 28-WT-94. . . . . . . . . . . . . . . . . . . 29511383 1 1 2 4

(continued on next page)

* Serviced Only As An Assembly — Not Available As A Detail Part.

** Not Serviced As An Assembly — Order Detail Parts.

21–2.2 Copyright © 2001 General Motors Corp. 20010801

 ALLISON MD/B 300/B 400 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP 21-727
Torque Converter, Figure 21
(cont’d)

TC 415, 2.35:1 Stall Torque Ratio

Same As Group 21-725, Except For Parts Listed Below.
RECOMMENDED
REF PART SPARES FOR UNITS
NO. NOMENCLATURE NO. REQ 1–25 26–50 51–200
32 Pump Assembly, Converter, Complete. Used Starting With
S/N 6510024410. When Replacing 29511383 Converter
Pump Assembly, Complete With 29514789 Converter Pump
Assembly, Complete, Also Replace 23049376 Cycloidal Gear
Set Assembly And 29501145 Pump Housing With
29514537 Cycloidal Gear Set Assembly, 29514800 Pump
Housing, 145651 Ball, 29507709 Spring, And 29516030 Pin.
See SPI 28-WT-94. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29514789 1 1 2 4
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29514794 * 1

GROUP 21-727A
Torque Converter, Figure 21
TC 415, 2.35:1 Stall Torque Ratio
Early Lead Unit
Same As Group 21-725, Except For Parts Listed Below.
1 Ring, Retaining, Internal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23049420 1 4 8 16 21
2 Plug, Converter End . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23046247 1 2 4 8
3 O-ring, 34.6 mm ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29503208 1 4 8 16
4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29522251 ** 1
6 Cover Assembly, Complete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29500656 ** 1
7 Cover, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29500657 1 2 4 8
9 Bushing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23046242 1 2 4 8
10 Sealring, Lockup Piston, 86.87 mm ID . . . . . . . . . . . . . . . . . . 23049280 1 2 4 8
18 Turbine Assembly, Complete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29500941 1 1 2 4
19 Bearing Assembly, Thrust Bearing No. 2 . . . . . . . . . . . . . . . . . . . . 29500942 1 2 4 8
20 Not Used In This Group.
21 Stator Assembly, Converter Complete . . . . . . . . . . . . . . . . . . . . . . 29500943 ** 1
22 Ring, Retaining, Internal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29500067 1 2 4 8
23 Plate Assembly, Stator Thrust . . . . . . . . . . . . . . . . . . . . . . . . 29500065 1 2 4 8
29 Shim, Converter, 0.27 mm (0.010 inch). If 29502364 Shim
Must Be Replaced, Order Items 5–6 From Group 21-727
In This Section. Discard The Same Item Numbers From
This Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29502364 *** AR
29 Shim, Converter, 0.54 mm (0.021 inch). If 29502247 Shim Must Be
Replaced, See Information Above. . . . . . . . . . . . . . . . . . . . . . . 29502247 *** AR
29 Shim, Converter, 0.81 mm (0.032 inch). If 29502248 Shim Must Be
Replaced, See Information Above. . . . . . . . . . . . . . . . . . . . . . . 29502248 *** AR
32 Pump Assembly, Converter, Complete . . . . . . . . . . . . . . . . . . . . . 29500099 1 1 2 4
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29500602 * 1

* Serviced Only As An Assembly — Not Available As A Detail Part.

** Not Serviced As An Assembly — Order Detail Parts.
*** No Longer Available From ATD.
20010801 Copyright © 2001 General Motors Corp. 21–2.3
 ALLISON MD/B 300/B 400 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP 21-728
Torque Converter, Figure 21
TC 417, 2.20:1 Stall Torque Ratio
Same As Group 21-725, Except For Parts Listed Below.
RECOMMENDED
REF PART SPARES FOR UNITS
NO. NOMENCLATURE NO. REQ 1–25 26–50 51–200
4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535588 ** 1
32 Pump Assembly, Converter, Complete. Used Prior To
S/N 6510024410. See SPI 28-WT-94. . . . . . . . . . . . . . . . . . . 29511386 1 1 2 4
32 Pump Assembly, Converter, Complete. Used Starting With
S/N 6510024410. When Replacing 29511386 Converter
Pump Assembly, Complete With 29514790 Converter Pump
Assembly, Complete, Also Replace 23049376 Cycloidal
Gear Set Assembly And 29501145 Pump Housing With
29514537 Cycloidal Gear Set Assembly, 29514800 Pump
Housing, 145651 Ball, 29507709 Spring, And 29516030 Pin.
See SPI 28-WT-94. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29514790 1 1 2 4
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29514795 * 1

GROUP 21-728A
Torque Converter, Figure 21
TC 417, 2.20:1 Stall Torque Ratio
21
Early Lead Unit
Same As Group 21-725, Except For Parts Listed Below.
1 Ring, Retaining, Internal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23049420 1 4 8 16
2 Plug, Converter End . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23046247 1 2 4 8
3 O-ring, 34.6 mm ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29503208 1 4 8 16
4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29522252 ** 1
6 Cover Assembly, Complete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29500656 ** 1
7 Cover, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29500657 1 2 4 8
9 Bushing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23046242 1 2 4 8
10 Sealring, Lockup Piston, 86.87 mm ID . . . . . . . . . . . . . . . . . . 23049280 1 2 4 8
18 Turbine Assembly, Complete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29500941 1 1 2 4
19 Bearing Assembly, Stator Thrust . . . . . . . . . . . . . . . . . . . . . . . . . . 29500942 1 2 4 8
20 Not Used In This Group.
21 Stator Assembly, Converter Complete . . . . . . . . . . . . . . . . . . . . . . 29500943 ** 1
22 Ring, Retaining, Internal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29500067 1 2 4 8
23 Plate Assembly, Stator Thrust . . . . . . . . . . . . . . . . . . . . . . . . . 29500065 1 2 4 8
29 Shim, Converter, 0.27 mm (0.010 inch). If 29502364 Shim
Must Be Replaced, Order Items 5–6 From Group 21-728
In This Section. Discard The Same Item Numbers From
This Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29502364 *** AR
29 Shim, Converter, 0.54 mm (0.021 inch). If 29502247 Shim
Must Be Replaced, See Information Above. . . . . . . . . . . . . . . . 29502247 *** AR
29 Shim, Converter, 0.81 mm (0.032 inch). If 29502248 Shim
Must Be Replaced, See Information Above. . . . . . . . . . . . . . . . 29502248 *** AR

(continued on next page)

* Serviced Only As An Assembly — Not Available As A Detail Part.

** Not Serviced As An Assembly — Order Detail Parts.
*** No Longer Available From ATD.
21–2.4 Copyright © 2001 General Motors Corp. 20010801
 ALLISON MD/B 300/B 400 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP 21-728A
Torque Converter, Figure 21
(cont’d)

TC 417, 2.20:1 Stall Torque Ratio

Early Lead Unit
Same As Group 21-725, Except For Parts Listed Below.
RECOMMENDED
REF PART SPARES FOR UNITS
NO. NOMENCLATURE NO. REQ 1–25 26–50 51–200
32 Pump Assembly, Converter, Complete . . . . . . . . . . . . . . . . . . . . . 29500604 1 1 2 4
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29500605 * 1

GROUP 21-729
Torque Converter, Figure 21
TC 419, 2.02:1 Stall Torque Ratio
Same As Group 21-725, Except For Parts Listed Below.
4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535587 ** 1
32 Pump Assembly, Converter, Complete. Used Prior To
S/N 6510024410. See SPI 28-WT-94. . . . . . . . . . . . . . . . . . . 29511390 1 1 2 4
32 Pump Assembly, Converter, Complete. Used Starting With
S/N 6510024410. When Replacing 29511390 Converter
Pump Assembly, Complete With 29514791 Converter Pump
Assembly, Complete, Also Replace 23049376 Cycloidal Gear
Set Assembly And 29501145 Pump Housing With 21
29514537 Cycloidal Gear Set Assembly, 29514800 Pump
Housing, 145651 Ball, 29507709 Spring, And 29516030 Pin.
See SPI 28-WT-94. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29514791 1 1 2 4
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29514796 * 1

GROUP 21-750
Torque Converter, Figure 21
TC 421, 1.77:1 Stall Torque Ratio
Same As Group 21-725, Except For Parts Listed Below.
4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535592 ** 1
21 Stator Assembly, Converter, Complete . . . . . . . . . . . . . . . . . . . . . 29503982 ** 1
28 Stator And Cam Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 29505852 1 1 2 4
32 Pump Assembly, Converter, Complete. Used Prior To
S/N 6510024410. See SPI 28-WT-94. . . . . . . . . . . . . . . . . . . 29511390 1 1 2 4
32 Pump Assembly, Converter, Complete. Used Starting With
S/N 6510024410. When Replacing 29511390 Converter
Pump Assembly, Complete With 29514791 Converter Pump
Assembly, Complete, Also Replace 23049376 Cycloidal Gear
Set Assembly And 29501145 Pump Housing With
29514537 Cycloidal Gear Set Assembly, 29514800 Pump
Housing, 145651 Ball, 29507709 Spring, And 29516030 Pin.
See SPI 28-WT-94. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29514791 1 1 2 4

(continued on next page)

* Serviced Only As An Assembly — Not Available As A Detail Part.

** Not Serviced As An Assembly — Order Detail Parts.

20010801 Copyright © 2001 General Motors Corp. 21–2.5

 ALLISON MD/B 300/B 400 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP 21-750
Torque Converter, Figure 21
(cont’d)

TC 421, 1.77:1 Stall Torque Ratio

Same As Group 21-725, Except For Parts Listed Below.
RECOMMENDED
REF PART SPARES FOR UNITS
NO. NOMENCLATURE NO. REQ 1–25 26–50 51–200
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29514796 * 1

GROUP 21-754
Torque Converter, Figure 21
TC 418, 1.98:1 Stall Torque Ratio
Same As Group 21-725, Except For Parts Listed Below.
4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535593 ** 1
21 Stator Assembly, Converter, Complete . . . . . . . . . . . . . . . . . . . . . 29503983 ** 1
28 Stator And Cam Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 29503633 1 1 2 4
32 Pump Assembly, Converter, Complete. Used Prior To
S/N 6510024410. See SPI 28-WT-94. . . . . . . . . . . . . . . . . . . 29511386 1 1 2 4
32 Pump Assembly, Converter, Complete. Used Starting With
S/N 6510024410. When Replacing 29511386 Converter
Pump Assembly, Complete With 29514790 Converter Pump
Assembly, Complete, Also Replace 23049376 Cycloidal Gear
21 Set Assembly And 29501145 Pump Housing With
29514537 Cycloidal Gear Set Assembly, 29514800 Pump
Housing, 145651 Ball, 29507709 Spring, And 29516030 Pin.
See SPI 28-WT-94. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29514790 1 1 2 4
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29514795 * 1

GROUP 21-754A
Torque Converter, Figure 21
TC 418, 1.98:1 Stall Torque Ratio
Early Lead Unit
Same As Group 21-725, Except For Parts Listed Below.
1 Ring, Retaining, Internal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23049420 1 4 8 16
2 Plug, Converter End . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23046247 1 2 4 8
4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29522253 ** 1
6 Cover Assembly, Complete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29500910 ** 1
7 Cover, Converter. If 29500086 Converter Cover Must Be
Replaced, Order Items 5–6 From Group 21-754 In
This Section. Discard The Same Item Numbers From
This Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29500086 *** 1
9 Bushing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23046242 1 2 4 8
10 Sealring, Lockup Piston, 86.87 mm ID . . . . . . . . . . . . . . . . . . 23049280 1 2 4 8

(continued on next page)

* Serviced Only As An Assembly — Not Available As A Detail Part.

** Not Serviced As An Assembly — Order Detail Parts.
*** No Longer Available From ATD.
21–2.6 Copyright © 2001 General Motors Corp. 20010801
 ALLISON MD/B 300/B 400 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP 21-754A
Torque Converter, Figure 21
(cont’d)

TC 418, 1.98:1 Stall Torque Ratio

Early Lead Unit
Same As Group 21-725, Except For Parts Listed Below.
RECOMMENDED
REF PART SPARES FOR UNITS
NO. NOMENCLATURE NO. REQ 1–25 26–50 51–200
14 Backplate, Lockup-Clutch. If 29500084 Backplate Must
Be Replaced, Order Items 5–6 From Group 21-754
In This Section. Discard The Same Item Numbers
From This Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29500084 *** 1
NI Gasket. If 29500090 Gasket Must Be Replaced, Order
Items 5–6 From Group 21-754 In This Section. Discard
The Same Item Numbers From This Group. . . . . . . . . . . 29500090 *** 1
15 Not Used In This Group.
18 Turbine Assembly, Complete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29500941 1 1 2 4
19 Bearing Assembly, Thrust Bearing No. 2 . . . . . . . . . . . . . . . . . . . . 29500942 1 2 4 8
20 Not Used In This Group.
21 Stator Assembly, Converter Complete . . . . . . . . . . . . . . . . . . . . . . 29503575 ** 1
23 Plate Assembly, Stator Thrust . . . . . . . . . . . . . . . . . . . . . . . . 29500065 1 2 4 8
28 Stator And Cam Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 29501080 1 2 4 8
29 Shim, Converter, 0.27 mm (0.010 inch). If 29502364 Shim
Must Be Replaced, Order Items 5–6 From Group 21-754
In This Section. Discard The Same Item Numbers From
This Group. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29502364 *** AR
21
29 Shim, Converter, 0.54 mm (0.021 inch). If 29502247 Shim Must
Be Replaced, See Information Above. . . . . . . . . . . . . . . . . . . . 29502247 *** AR
29 Shim, Converter, 0.81 mm (0.032 inch). If 29502248 Shim Must
Be Replaced, See Information Above. . . . . . . . . . . . . . . . . . . . 29502248 *** AR
32 Pump Assembly, Converter, Complete . . . . . . . . . . . . . . . . . . . . . 29500604 1 1 2 4
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29500605 * 1

GROUP 21-807
Torque Converter, Figure 21
TC 414, 2.46:1 Stall Torque Ratio
Same As Group 21-725, Except For Parts Listed Below.
4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29522220 ** 1
19–20 Not Used In This Group.
21 Stator Assembly, Converter, Complete . . . . . . . . . . . . . . . . . . . . . 29503983 ** 1
28 Stator And Cam Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 29503633 1 1 2 4
32 Pump Assembly, Converter, Complete. Used Prior To
S/N 6510024410. See SPI 28-WT-94. . . . . . . . . . . . . . . . . . . 29511380 1 1 2 4

(continued on next page)

* Serviced Only As An Assembly — Not Available As A Detail Part.

** Not Serviced As An Assembly — Order Detail Parts.
*** No Longer Available From ATD.
NI Not Illustrated.
20010801 Copyright © 2001 General Motors Corp. 21–2.7
 ALLISON MD/B 300/B 400 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP 21-807
Torque Converter, Figure 21
(cont’d)

TC 414, 2.46:1 Stall Torque Ratio

Same As Group 21-725, Except For Parts Listed Below.
RECOMMENDED
REF PART SPARES FOR UNITS
NO. NOMENCLATURE NO. REQ 1–25 26–50 51–200
32 Pump Assembly, Converter, Complete. Used Starting With
S/N 6510024410. When Replacing 29511380 Converter
Pump Assembly With 29514788 Converter Pump Assembly,
Also Replace 23049376 Cycloidal Gear Set And
29501145 Pump Housing With 29514537 Cycloidal
Gear Set, 29514800 Pump Housing, 145651 Ball,
29507709 Spring, And 29516030 Pin. See SPI 28-WT-94. . . 29514788 1 1 2 4
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29514793 * 1

GROUP 21-917
Torque Converter, Figure 21
TC 423, 1.50:1 Stall Torque Ratio
Same As Group 21-725, Except For Parts Listed Below.
1 Not Used In This Group.
2 Plug, Converter End. See SPI 21-WT-98. . . . . . . . . . . . . . . . . . . . . . . . 29535581 1 2 4 8
21 4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535594 ** 1
13 Damper Assembly. 23046236 Was Used Prior To S/N
6510141464. Use 29535008 to Service 23046236.
See SPI 8-WT-98.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535008 1 2 4 8
13 Damper Assembly. Used Starting With S/N 6510141464.
See SPI 8-WT-98.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29530092 1 2 4 8
21 Stator Assembly Converter, Complete . . . . . . . . . . . . . . . . . . . . . . 29530086 ** 1
28 Stator And Cam Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 29530087 1 1 2 4
32 Pump Assembly, Converter, Complete. Used Prior To
S/N 6510024410. See SPI 28-WT-94. . . . . . . . . . . . . . . . . . . 29511390 1 1 2 4
32 Pump Assembly, Converter, Complete. Used Starting With
S/N 6510024410. When Replacing 29511390 Converter
Pump Assembly With 29514791 Converter Pump Assembly,
Also Replace 23049376 Cycloidal Gear Set And
29501145 Pump Housing With 29514537 Cycloidal
Gear Set, 29514800 Pump Housing, 145651 Ball,
29507709 Spring, And 29516030 Pin. See SPI 28-WT-94. . . 29514791 1 1 2 4
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29514796 * 1

* Serviced Only As An Assembly — Not Available As A Detail Part.

** Not Serviced As An Assembly — Order Detail Parts.

21–2.8 Copyright © 2001 General Motors Corp. 20010801

 ALLISON MD/B 300/B 400 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP 21-919
Torque Converter, Figure 21
TC 411, 2.71:1 Stall Torque Ratio
Same As Group 21-725, Except For Parts Listed Below.
RECOMMENDED
REF PART SPARES FOR UNITS
NO. NOMENCLATURE NO. REQ 1–25 26–50 51–200
1 Not Used In This Group.
2 Plug, Converter End. See SPI 21-WT-98. . . . . . . . . . . . . . . . . . . . . . . . 29535581 1 2 4 8
13 Damper Assembly. 23046236 Was Used Prior To S/N
6510141464. Use 29535008 to Service 23046236.
See SPI 8-WT-98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535008 1 2 4 8
13 Damper Assembly. Used Starting With S/N 6510141464.
See SPI 8-WT-98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29530092 1 2 4 8

GROUP 21-920
Torque Converter, Figure 21
TC 413, 2.44:1 Stall Torque Ratio
Same As Group 21-725, Except For Parts Listed Below.
1 Not Used In This Group.
2 Plug, Converter End. See SPI 21-WT-98. . . . . . . . . . . . . . . . . . . . . . . . 29535581 1 2 4 8
4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535590 ** 1
13 Damper Assembly. 23046236 Was Used Prior To S/N
6510141464. Use 29535008 to Service 23046236.
21
See SPI 8-WT-98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535008 1 2 4 8
13 Damper Assembly. Used Starting With S/N 6510141464.
See SPI 8-WT-98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29530092 1 2 4 8
32 Pump Assembly, Converter, Complete. Used Prior To
S/N 6510024410. See SPI 28-WT-94. . . . . . . . . . . . . . . . . . . 29511380 1 1 2 4
32 Pump Assembly, Converter, Complete. Used Starting With
S/N 6510024410. When Replacing 29511380 Converter
Pump Assembly With 29514788 Converter Pump Assembly,
Also Replace 23049376 Cycloidal Gear Set And
29501145 Pump Housing With 29514537 Cycloidal
Gear Set, 29514800 Pump Housing, 145651 Ball,
29507709 Spring, And 29516030 Pin. See SPI 28-WT-94. . . 29514788 1 1 2 4
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29514793 * 1

GROUP 21-921
Torque Converter, Figure 21
TC 415, 2.35:1 Stall Torque Ratio
Same As Group 21-725, Except For Parts Listed Below.
1 Not Used In This Group.
2 Plug, Converter End. See SPI 21-WT-98. . . . . . . . . . . . . . . . . . . . . . . . 29535581 1 2 4 8
4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535589 ** 1

(continued on next page)

* Serviced Only As An Assembly — Not Available As A Detail Part.

** Not Serviced As An Assembly — Order Detail Parts.

20010801 Copyright © 2001 General Motors Corp. 21–2.9

 ALLISON MD/B 300/B 400 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP 21-921
Torque Converter, Figure 21
(cont’d)

TC 415, 2.35:1 Stall Torque Ratio

Same As Group 21-725, Except For Parts Listed Below.
RECOMMENDED
REF PART SPARES FOR UNITS
NO. NOMENCLATURE NO. REQ 1–25 26–50 51–200
13 Damper Assembly. 23046236 Was Used Prior To S/N
6510141464. Use 29535008 to Service 23046236.
See SPI 8-WT-98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535008 1 2 4 8
13 Damper Assembly. Used Starting With S/N 6510141464.
See SPI 8-WT-98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29530092 1 2 4 8
32 Pump Assembly, Converter, Complete. Used Prior To
S/N 6510024410. See SPI 28-WT-94. . . . . . . . . . . . . . . . . . . 29511383 1 1 2 4
32 Pump Assembly, Converter, Complete. Used Starting With
S/N 6510024410. When Replacing 29511383 Converter
Pump Assembly With 29514789 Converter Pump Assembly,
Also Replace 23049376 Cycloidal Gear Set And
29501145 Pump Housing With 29514537 Cycloidal
Gear Set, 29514800 Pump Housing, 145651 Ball,
29507709 Spring, And 29516030 Pin. See SPI 28-WT-94. . . 29514789 1 1 2 4
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29514794 * 1

GROUP 21-922
21
Torque Converter, Figure 21
TC 417, 2.20:1 Stall Torque Ratio
Same As Group 21-725, Except For Parts Listed Below.
1 Not Used In This Group.
2 Plug, Converter End. See SPI 21-WT-98. . . . . . . . . . . . . . . . . . . . . . . . 29535581 1 2 4 8
4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535588 ** 1
13 Damper Assembly. 23046236 Was Used Prior To S/N
6510141464. Use 29535008 to Service 23046236.
See SPI 8-WT-98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535008 1 2 4 8
13 Damper Assembly. Used Starting With S/N 6510141464.
See SPI 8-WT-98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29530092 1 2 4 8
32 Pump Assembly, Converter, Complete. Used Prior To
S/N 6510024410. See SPI 28-WT-94. . . . . . . . . . . . . . . . . . . 29511386 1 1 2 4
32 Pump Assembly, Converter, Complete. Used Starting With
S/N 6510024410. When Replacing 29511386 Converter
Pump Assembly With 29514790 Converter Pump Assembly,
Also Replace 23049376 Cycloidal Gear Set And
29501145 Pump Housing With 29514537 Cycloidal
Gear Set, 29514800 Pump Housing, 145651 Ball,
29507709 Spring, And 29516030 Pin. See SPI 28-WT-94. . . 29514790 1 1 2 4
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29514795 * 1

* Serviced Only As An Assembly — Not Available As A Detail Part.

** Not Serviced As An Assembly — Order Detail Parts.

21–2.10 Copyright © 2001 General Motors Corp. 20010801

 ALLISON MD/B 300/B 400 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP 21-923
Torque Converter, Figure 21
TC 418, 1.98:1 Stall Torque Ratio
Same As Group 21-725, Except For Parts Listed Below.
RECOMMENDED
REF PART SPARES FOR UNITS
NO. NOMENCLATURE NO. REQ 1–25 26–50 51–200
1 Not Used In This Group.
2 Plug, Converter End. See SPI 21-WT-98. . . . . . . . . . . . . . . . . . . . . . . . 29535581 1 2 4 8
4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535593 ** 1
13 Damper Assembly. 23046236 Was Used Prior To S/N
6510141464. Use 29535008 to Service 23046236.
See SPI 8-WT-98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535008 1 2 4 8
13 Damper Assembly. Used Starting With S/N 6510141464.
See SPI 8-WT-98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29530092 1 2 4 8
21 Stator Assembly Converter, Complete . . . . . . . . . . . . . . . . . . . . . . 29503983 ** 1
28 Stator And Cam Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 29503633 1 1 2 4
32 Pump Assembly, Converter, Complete. Used Prior To
S/N 6510024410. See SPI 28-WT-94. . . . . . . . . . . . . . . . . . . 29511386 1 1 2 4
32 Pump Assembly, Converter, Complete. Used Starting With
S/N 6510024410. When Replacing 29511386 Converter
Pump Assembly With 29514790 Converter Pump Assembly,
Also Replace 23049376 Cycloidal Gear Set And
29501145 Pump Housing With 29514537 Cycloidal
Gear Set, 29514800 Pump Housing, 145651 Ball,
29507709 Spring, And 29516030 Pin. See SPI 28-WT-94. . . 29514790 1 1 2 4 21
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29514795 * 1

GROUP 21-924
Torque Converter, Figure 21
TC 419, 2.02:1 Stall Torque Ratio
Same As Group 21-725, Except For Parts Listed Below.
1 Not Used In This Group.
2 Plug, Converter End. See SPI 21-WT-98. . . . . . . . . . . . . . . . . . . . . . . . 29535581 1 2 4 8
4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535587 ** 1
13 Damper Assembly. 23046236 Was Used Prior To S/N
6510141464. Use 29535008 to Service 23046236.
See SPI 8-WT-98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535008 1 2 4 8
13 Damper Assembly. Used Starting With S/N 6510141464.
See SPI 8-WT-98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29530092 1 2 4 8
32 Pump Assembly, Converter, Complete. Used Prior To
S/N 6510024410. See SPI 28-WT-94. . . . . . . . . . . . . . . . . . . 29511390 1 1 2 4
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29514796 * 1

* Serviced Only As An Assembly — Not Available As A Detail Part.

** Not Serviced As An Assembly — Order Detail Parts.

20010801 Copyright © 2001 General Motors Corp. 21–2.11

 ALLISON MD/B 300/B 400 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP 21-925
Torque Converter, Figure 21
TC 421, 1.77:1 Stall Torque Ratio
Same As Group 21-725, Except For Parts Listed Below.
RECOMMENDED
REF PART SPARES FOR UNITS
NO. NOMENCLATURE NO. REQ 1–25 26–50 51–200
1 Not Used In This Group.
2 Plug, Converter End. See SPI 21-WT-98. . . . . . . . . . . . . . . . . . . . . . . . 29535581 1 2 4 8
4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535592 ** 1
13 Damper Assembly. 23046236 Was Used Prior To S/N
6510141464. Use 29535008 to Service 23046236.
See SPI 8-WT-98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535008 1 2 4 8
13 Damper Assembly. Used Starting With S/N 6510141464.
See SPI 8-WT-98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29530092 1 2 4 8
21 Stator Assembly Converter, Complete . . . . . . . . . . . . . . . . . . . . . . 29503982 ** 1
28 Stator And Cam Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 29505852 1 1 2 4
32 Pump Assembly, Converter, Complete. Used Prior To
S/N 6510024410. See SPI 28-WT-94. . . . . . . . . . . . . . . . . . . 29511390 1 1 2 4
32 Pump Assembly, Converter, Complete. Used Starting With
S/N 6510024410. When Replacing 29511390 Converter
Pump Assembly With 29514791 Converter Pump Assembly,
Also Replace 23049376 Cycloidal Gear Set And
29501145 Pump Housing With 29514537 Cycloidal
Gear Set, 29514800 Pump Housing, 145651 Ball,
21 29507709 Spring, And 29516030 Pin. See SPI 28-WT-94. . . 29514791 1 1 2 4
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29514796 * 1

GROUP 21-931
Torque Converter, Figure 21
TC 419, 2.02:1 Stall Torque Ratio
Same As Group 21-725, Except For Parts Listed Below.
1 Not Used In This Group.
2 Plug, Converter End. See SPI 21-WT-98. . . . . . . . . . . . . . . . . . . . . . . . 29535581 1 2 4 8
4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535587 ** 1
13 Damper Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29530092 1 2 4 8
32 Pump Assembly, Converter, Complete. . . . . . . . . . . . . . . . . . . . . . 29514791 1 1 2 4
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29514796 * 1

GROUP 21-932
Torque Converter, Figure 21
TC 417, 2.20:1 Stall Torque Ratio
Same As Group 21-725, Except For Parts Listed Below.
1 Not Used In This Group.
2 Plug, Converter End. See SPI 21-WT-98. . . . . . . . . . . . . . . . . . . . . . . . 29535581 1 2 4 8
4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535588 ** 1

(continued on next page)

* Serviced Only As An Assembly — Not Available As A Detail Part.

** Not Serviced As An Assembly — Order Detail Parts.

21–2.12 Copyright © 2001 General Motors Corp. 20010801

 ALLISON MD/B 300/B 400 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP 21-932
Torque Converter, Figure 21
(cont’d)

TC 417, 2.20:1 Stall Torque Ratio

Same As Group 21-725, Except For Parts Listed Below.
RECOMMENDED
REF PART SPARES FOR UNITS
NO. NOMENCLATURE NO. REQ 1–25 26–50 51–200
13 Damper Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29530092 1 2 4 8
32 Pump Assembly, Converter, Complete . . . . . . . . . . . . . . . . . . . . . 29514790 1 1 2 4
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29514795 * 1

GROUP 21-933
Torque Converter, Figure 21
TC 415, 2.35:1 Stall Torque Ratio
Same As Group 21-725, Except For Parts Listed Below.
1 Not Used In This Group.
2 Plug, Converter End. See SPI 21-WT-98. . . . . . . . . . . . . . . . . . . . . . . . 29535581 1 2 4 8
4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535589 ** 1
13 Damper Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29530092 1 2 4 8
32 Pump Assembly, Converter, Complete . . . . . . . . . . . . . . . . . . . . . 29514789 1 1 2 4
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29514794 * 1

GROUP 21-934 21
Torque Converter, Figure 21
TC 413, 2.44:1 Stall Torque Ratio
Same As Group 21-725, Except For Parts Listed Below.
1 Not Used In This Group.
2 Plug, Converter End. See SPI 21-WT-98. . . . . . . . . . . . . . . . . . . . . . . . 29535581 1 2 4 8
4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535590 ** 1
13 Damper Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29530092 1 2 4 8
32 Pump Assembly, Converter, Complete . . . . . . . . . . . . . . . . . . . . . 29514788 1 1 2 4
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29514793 * 1

GROUP 21-935
Torque Converter, Figure 21
TC 411, 2.71:1 Stall Torque Ratio
Same As Group 21-725, Except For Parts Listed Below.
1 Not Used In This Group.
2 Plug, Converter End. See SPI 21-WT-98. . . . . . . . . . . . . . . . . . . . . . . . 29535581 1 2 4 8
13 Damper Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29530092 1 2 4 8

* Serviced Only As An Assembly — Not Available As A Detail Part.

** Not Serviced As An Assembly — Order Detail Parts.

20010801 Copyright © 2001 General Motors Corp. 21–2.13

 ALLISON MD/B 300/B 400 SERIES ON-HIGHWAY TRANSMISSIONS PARTS CATALOG

? GROUP 21-936
Torque Converter, Figure 21
TC 421, 1.77:1 Stall Torque Ratio
Same As Group 21-725, Except For Parts Listed Below.
RECOMMENDED
REF PART SPARES FOR UNITS
NO. NOMENCLATURE NO. REQ 1–25 26–50 51–200
1 Not Used In This Group.
2 Plug, Converter End. See SPI 21-WT-98. . . . . . . . . . . . . . . . . . . . . . . . 29535581 1 2 4 8
4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535592 ** 1
13 Damper Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29530092 1 2 4 8
21 Stator Assembly Converter, Complete . . . . . . . . . . . . . . . . . . . . . . 29503982 ** 1
28 Stator And Cam Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 29505852 1 1 2 4
32 Pump Assembly, Converter, Complete . . . . . . . . . . . . . . . . . . . . . 29514791 1 1 2 4
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29514796 * 1

GROUP 21-937
Torque Converter, Figure 21
TC 418, 1.98:1 Stall Torque Ratio
Same As Group 21-725, Except For Parts Listed Below.
1 Not Used In This Group.
2 Plug, Converter End. See SPI 21-WT-98. . . . . . . . . . . . . . . . . . . . . . . . 29535581 1 2 4 8
4 Torque Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29535593 ** 1
21 13 Damper Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29530092 1 2 4 8
21 Stator Assembly Converter, Complete . . . . . . . . . . . . . . . . . . . . . . 29503983 ** 1
28 Stator And Cam Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 29503633 1 1 2 4
32 Pump Assembly, Converter, Complete . . . . . . . . . . . . . . . . . . . . . 29514790 1 1 2 4
34 Pump Assembly, Converter . . . . . . . . . . . . . . . . . . . . . . . . . . 29514795 * 1

* Serviced Only As An Assembly — Not Available As A Detail Part.

** Not Serviced As An Assembly — Order Detail Parts.

21–2.14 Copyright © 2001 General Motors Corp. 20010801
