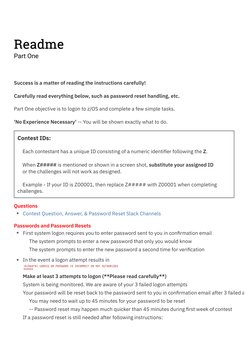

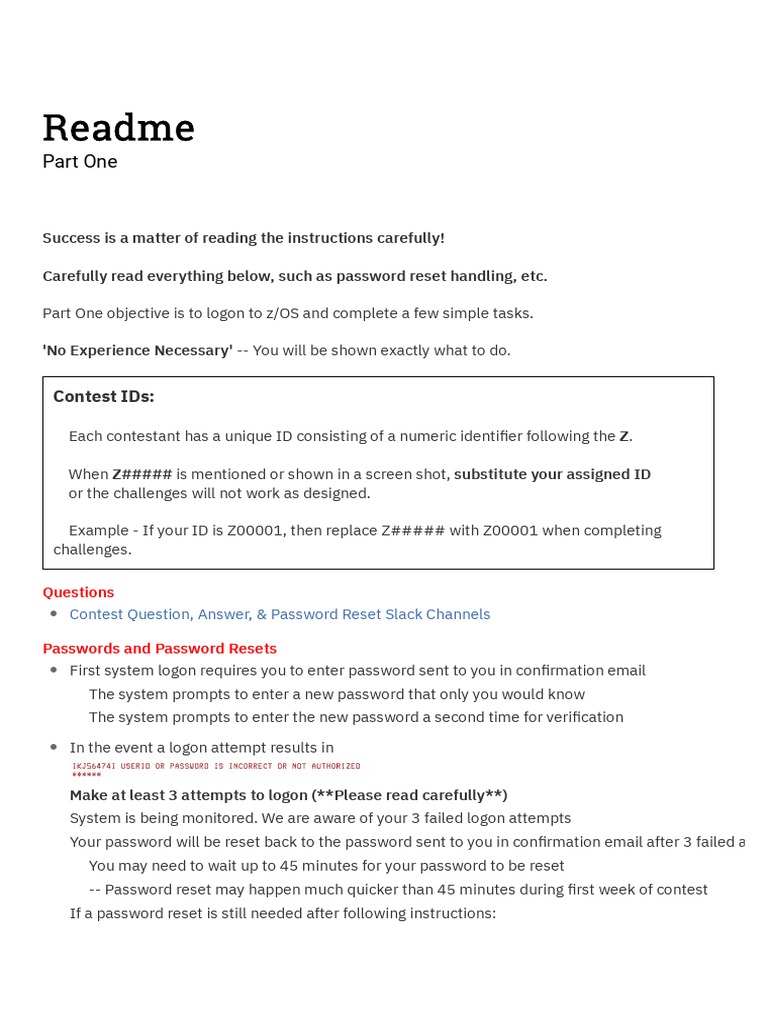

Part One
Part One objective is to logon to z/OS and complete a few simple tasks.
Contest IDs:
Example - If your ID is Z00001, then replace Z##### with Z00001 when completing
challenges.
Questions
• Contest Question, Answer, & Password Reset Slack Channels
Passwords and Password Resets
• First system logon requires you to enter password sent to you in confirmation email
The system prompts to enter a new password that only you would know
The system prompts to enter the new password a second time for verification

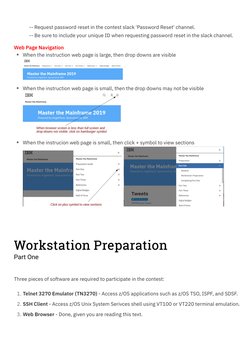

• When the instruction web page is small, then the drop downs may not be visible
• When the instrucion web page is small, then click + symbol to view sections
Workstation Preparation
Part One
1. Telnet 3270 Emulator (TN3270) - Access z/OS applications such as z/OS TSO, ISPF, and SDSF.
2. SSH Client - Access z/OS Unix System Serivces shell using VT100 or VT220 terminal emulation.

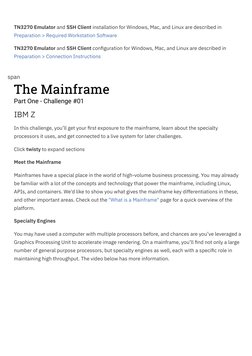

TN3270 Emulator and SSH Client configuration for Windows, Mac, and Linux are described in
Preparation > Connection Instructions
span
The Mainframe
Part One - Challenge #01
IBM Z
In this challenge, you’ll get your first exposure to the mainframe, learn about the specialty
processors it uses, and get connected to a live system for later challenges.
Mainframes have a special place in the world of high-volume business processing. You may already
be familiar with a lot of the concepts and technology that power the mainframe, including Linux,
APIs, and containers. We'd like to show you what gives the mainframe key differentiations in these,
and other important areas. Check out the "What is a Mainframe" page for a quick overview of the
platform.
Specialty Engines
You may have used a computer with multiple processors before, and chances are you’ve leveraged a
Graphics Processing Unit to accelerate image rendering. On a mainframe, you’ll find not only a large
number of general purpose processors, but specialty engines as well, each with a specific role in
maintaining high throughput. The video below has more information.

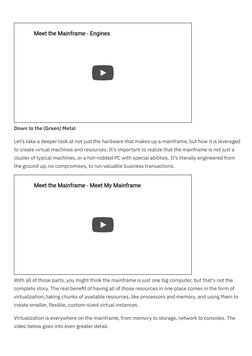

Down to the (Green) Metal
Let’s take a deeper look at not just the hardware that makes up a mainframe, but how it is leveraged
to create virtual machines and resources. It’s important to realize that the mainframe is not just a
cluster of typical machines, or a hot-rodded PC with special abilities. It’s literally engineered from
the ground up, no compromises, to run valuable business transactions.
With all of those parts, you might think the mainframe is just one big computer, but that’s not the
complete story. The real benefit of having all of those resources in one place comes in the form of
virtualization; taking chunks of available resources, like processors and memory, and using them to
create smaller, flexible, custom-sized virtual instances.
Virtualization is everywhere on the mainframe, from memory to storage, network to consoles. The
video below goes into even greater detail.

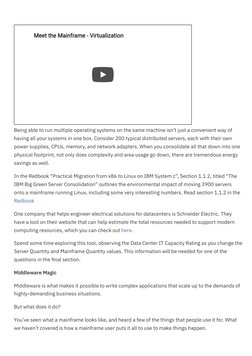

Being able to run multiple operating systems on the same machine isn’t just a convenient way of
having all your systems in one box. Consider 200 typical distributed servers, each with their own
power supplies, CPUs, memory, and network adapters. When you consolidate all that down into one
physical footprint, not only does complexity and area usage go down, there are tremendous energy
savings as well.
In the Redbook “Practical Migration from x86 to Linux on IBM System z”, Section 1.1.2, titled “The
IBM Big Green Server Consolidation” outlines the environmental impact of moving 3900 servers
onto a mainframe running Linux, including some very interesting numbers. Read section 1.1.2 in the
Redbook
One company that helps engineer electrical solutions for datacenters is Schneider Electric. They
have a tool on their website that can help estimate the total resources needed to support modern
computing resources, which you can check out here.
Spend some time exploring this tool, observing the Data Center IT Capacity Rating as you change the
Server Quantity and Mainframe Quantity values. This information will be needed for one of the
questions in the final section.
Middleware Magic
Middleware is what makes it possible to write complex applications that scale up to the demands of
highly-demanding business situations.
You’ve seen what a mainframe looks like, and heard a few of the things that people use it for. What
we haven’t covered is how a mainframe user puts it all to use to make things happen.

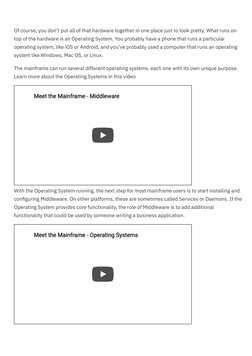

Of course, you don’t put all of that hardware together in one place just to look pretty. What runs on
top of the hardware is an Operating System. You probably have a phone that runs a particular
operating system, like iOS or Android, and you’ve probably used a computer that runs an operating
system like Windows, Mac OS, or Linux.
The mainframe can run several different operating systems, each one with its own unique purpose.
Learn more about the Operating Systems in this video
With the Operating System running, the next step for most mainframe users is to start installing and
configuring Middleware. On other platforms, these are sometimes called Services or Daemons. If the
Operating System provides core functionality, the role of Middleware is to add additional
functionality that could be used by someone writing a business application.

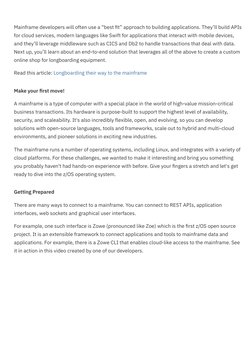

Mainframe developers will often use a “best fit” approach to building applications. They’ll build APIs
for cloud services, modern languages like Swift for applications that interact with mobile devices,
and they’ll leverage middleware such as CICS and Db2 to handle transactions that deal with data.
Next up, you’ll learn about an end-to-end solution that leverages all of the above to create a custom
online shop for longboarding equipment.
A mainframe is a type of computer with a special place in the world of high-value mission-critical
business transactions. Its hardware is purpose-built to support the highest level of availability,
security, and scaleability. It's also incredibly flexible, open, and evolving, so you can develop
solutions with open-source languages, tools and frameworks, scale out to hybrid and multi-cloud
environments, and pioneer solutions in exciting new industries.
The mainframe runs a number of operating systems, including Linux, and integrates with a variety of
cloud platforms. For these challenges, we wanted to make it interesting and bring you something
you probably haven't had hands-on experience with before. Give your fingers a stretch and let's get
ready to dive into the z/OS operating system.
Getting Prepared
There are many ways to connect to a mainframe. You can connect to REST APIs, application
interfaces, web sockets and graphical user interfaces.
For example, one such interface is Zowe (pronounced like Zoe) which is the first z/OS open source
project. It is an extensible framework to connect applications and tools to mainframe data and
applications. For example, there is a Zowe CLI that enables cloud-like access to the mainframe. See
it in action in this video created by one of our developers.

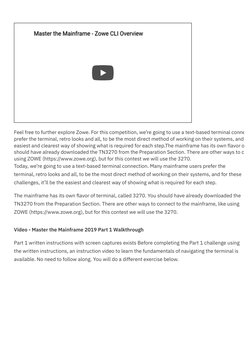

Feel free to further explore Zowe. For this competition, we’re going to use a text-based terminal connectio
prefer the terminal, retro looks and all, to be the most direct method of working on their systems, and for
easiest and clearest way of showing what is required for each step.The mainframe has its own flavor of te
should have already downloaded the TN3270 from the Preparation Section. There are other ways to conn
using ZOWE (https://www.zowe.org), but for this contest we will use the 3270.
Today, we’re going to use a text-based terminal connection. Many mainframe users prefer the
terminal, retro looks and all, to be the most direct method of working on their systems, and for these
challenges, it’ll be the easiest and clearest way of showing what is required for each step.
The mainframe has its own flavor of terminal, called 3270. You should have already downloaded the
TN3270 from the Preparation Section. There are other ways to connect to the mainframe, like using
ZOWE (https://www.zowe.org), but for this contest we will use the 3270.
Part 1 written instructions with screen captures exists Before completing the Part 1 challenge using
the written instructions, an instruction video to learn the fundamentals of navigating the terminal is
available. No need to follow along. You will do a different exercise below.
Connect to the Mainframe
• Session started
Logon to the Time Sharing Option (TSO) environment using 3270 emulator software as instructed.
The screen below will appear as a result of starting a successfully configured 3270 emulator
session.
If the screen below fails to appear, see the Preparation drop down.
Logon to the Time Sharing Option (TSO) environment using 3270 emulator software as instructed.

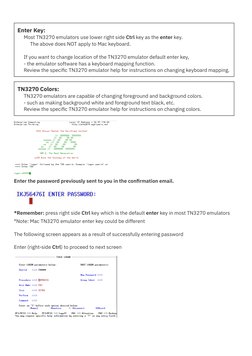

The input cursor is positioned in the lower left - waiting for logon z##### to be typed followed by
enter key - lower right Ctrl key.
If you want to change location of the TN3270 emulator default enter key,
- the emulator software has a keyboard mapping function.
Review the specific TN3270 emulator help for instructions on changing keyboard mapping.
TN3270 Colors:
TN3270 emulators are capable of changing foreground and background colors.
- such as making background white and foreground text black, etc.
Review the specific TN3270 emulator help for instructions on changing colors.
*Remember: press right side Ctrl key which is the default enter key in most TN3270 emulators
*Note: Mac TN3270 emulator enter key could be different
Password Rules:
• Less than or equal to 8 characters in length.
If you receive an authorization error, retype the password again making sure that you are entering it
correctly.
If a mistake is made during this process, system will prompt again for the correct password format
until requirements are met.
Observe cursor position is in the *New Password ===> data entry field.
Reenter the new password in the NEW PASSWORD field for verification.
When system accepts new password your selected, then logon to z/OS proceeds as follows:
Below - notice the three asterisks *** to the left of the cursor?
z/OS is waiting for enter key to continue.
Press the enter key (Ctrl) and you're on your way!
Mac enter key is an exception.
The screen below will appear with the ISPF Primary Option Menu.
You can use other F keys in ISPF to move around, such as:
From the home screen, navigate to Utilities (Option 2), then from the Utilities screen, jump to Data
Set Utilities (Option 2). To get back to the home screen, we have two options:
• Press F3 twice
One more trick, we can navigate directly to Data Set Utilities by typing 3.2, which indicates a 3
followed by a 2. This will put us directly into Data Set Utilities without requiring a stopover at the
main Utilities screen.
By entering an = at the beginning of a command, we are telling the system “Regardless of where I
am, enter this as if I am on the home screen”, so even if we are in option 6, we can type =3.2 and get
to Data Set Utilities without needing to first go back to the home screen.
ISPF Primary Option Menu Settings option 0 worth exploring. Many Settings exist that you may
prefer. Take a look at the settings and the drop downs.
ISPF Primary Option Menu Settings includes preference to place ISPF command line at bottom or
top.
You’re logged in, you know how to drive this thing now let’s grab some
data sets and get started.
We don’t have to worry about a lot of those details for this specific
challenge, as we will be running a pre-written job.
Now we are going to run a job that creates the data sets (we’ll learn
about data sets later) that will be used throughout this contest.
**Big hint to avoid typing: Copy and Paste works - copy from
instructions and paste into TN3270
Ctrl-c (copy) and Ctrl-v (paste) works for many (but not all)
workstations.
Note the spaces, single-quotes, and parenthesis. You can enter the
text in upper or lower-case, either will work as long as everything
else is correct.
The code 404 is just a simple way of representing a type of error with
a number. z/OS has a series of condition codes to represent something
similar.
If you get a condition code 0 (or 0000) that means that everything ran
exactly as expected. There were no errors, no warnings, and as long as
the program itself is doing what you expect it to, you’re in good shape.
A condition code of 4 means that your job ran and finished, but some
warnings were detected along the way, and you should check your job
output to make sure it did what you think it should have.
Error codes 8, 12, and others typically mean that an error was
detected, and the job did not complete. Common causes of these
errors are missing commas or spaces in the job definitions,
filesystems running out of space, incorrect permissions, or attempted
use of unsupported functions. Either way, you’ll want to look into your
job’s output to determine exactly what caused the program to stop,
and what you can do to fix it.
ISPF Primary Option Menu selection 3 displays more options, then option 4 is the target Data Set
List panel. 3.4 jumps directly to the Data Set List panel.
The ISPF Primary Option Menu is displayed, then type 3.4 -enter- as shown
The ISPF Data Set List Utility panel is displayed.
Type your assigned ID in the Dsname Level field, then -enter- as shown:
** Remember to replace z##### with your ID.
The Unix operating system started as an internal project at Bell Labs, and has gone on to be the
basis of Linux, Android, MacOS, and countless other computing platforms. It is in fact so prevalent in
the world of IT that many users wished they could somehow combine the two so they didn’t have to
have two sets of computers to work on both platforms.
Unix System Services (USS) was developed on IBM Z so that users familiar with Unix could have
access to a Unix-style interface without having to leave the mainframe. Today, USS is used not only
by developers and systems programmers, but leveraged by the core z/OS operating system to
provide functionality and scripting ability.
You will learn about the differences between unix files and data sets in the contest challenges.
The result is z/OS UNIX Directory List for Pathname /z/z#### which is empty.
Your next step is to create a UNIX file in your directory.
Enter date as shown below so you can see the time and date. This output will be used in the next
few steps.
The output of unix command date is displayed,
then enter date > p1 to redirect date command output to unix file p1
In Unix, the cat command is used to view the contents of a file. Enter cat p1 to view what we just
wrote into p1.
The unix file, p1, consisting of date output is written to the display.
Copy unix file p1 into a partitioned data set name, pds.data, with member name p1 using the unix
cp command.
Enter cp p1 '//pds.data(p1)'
Enter cat '//pds.data(p1)' to write the output of partitioned data set, pds.data, member name
p1 to the display.
Data set name pds.data member name p1 is written to the display.
Let's make sure the P1 was copied to the partitioned data set.
Tab to the left of Z#####.PDS.DATA, then enter e in the Command column as shown
Below - observe EDIT in the upper left corner indicating Z#####.PDS.DATA is in EDIT mode.
Tab to the left of member named P1 and enter s to select member P1 as shown
Enter return to terminate ISPF edit and return to ISPF Primary Option Menu
3. The mainframe is unique in that it has a large amount of ________ in one place.
4. According to Esmeralda, why does the mainframe need another computer within its
frame?
5. In the “The IBM Big Green Server Consolidation” section of the linked Redbook, an effort
to migrate 3900 servers onto 30 IBM Z mainframes. By using mainframes instead of
servers, they were able to use ____ less energy.
7. In the Schneider Electric electrical calculation tool, start with 1000 servers and no
mainframes, and observe the total IT Capacity Rating, keeping all other settings default.
Now, replace 500 servers with one mainframe and observe the change. What happens to
the total number of kW?
9. z/VM doesn’t need to run on another Operating System to provide virtualization, so it can
be referred to as a Type ___ Hypervisor.
11. Which Transaction Manager did the 17 year-old van der Wal twins use to build their
custom end-to-end solution?
Example below is the first quiz question with multiple choice answers.
Select the best answer.
A message You have successfully completed Part 1 is displayed.
Enter to proceed in response to ***
If the Specify Disposition of Log Data Set panel appears as seen below, select
Process Option .... 2 to Delete data set without printing
While there are many ways to interact with z/OS, learning 3270 TSO/ISPF accelerates mastery of
other web based z/OS interfaces.
Brag to your friends about completing Part 1 by posting a message to your social media networks.
Tweet
Like Share 6.5K people like this. Be the first of your friends.
