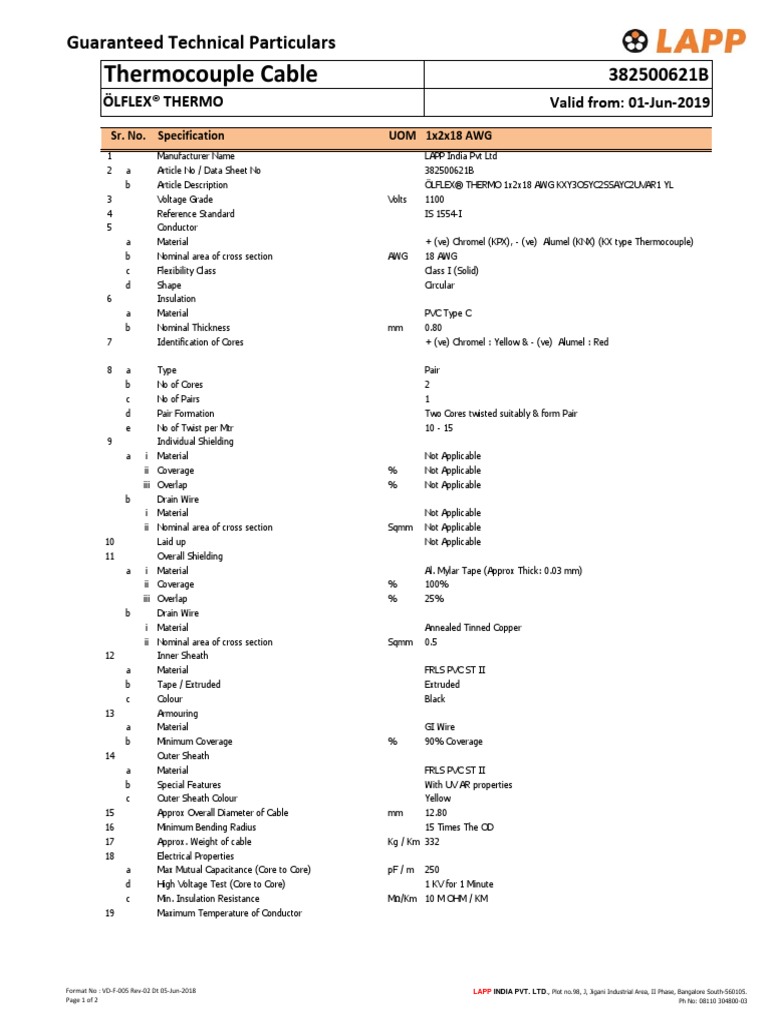

Guaranteed Technical Particulars

Thermocouple Cable 382500621B

ÖLFLEX® THERMO Valid from: 01-Jun-2019
Sr. No. Specification UOM 1x2x18 AWG
1 Manufacturer Name LAPP India Pvt Ltd
2 a Article No / Data Sheet No 382500621B
b Article Description ÖLFLEX® THERMO 1x2x18 AWG KXY3OSYC2SSAYC2UVAR1 YL
3 Voltage Grade Volts 1100
4 Reference Standard IS 1554-I
5 Conductor
a Material + (ve) Chromel (KPX), - (ve) Alumel (KNX) (KX type Thermocouple)
b Nominal area of cross section AWG 18 AWG
c Flexibility Class Class I (Solid)
d Shape Circular
6 Insulation
a Material PVC Type C
b Nominal Thickness mm 0.80
7 Identification of Cores + (ve) Chromel : Yellow & - (ve) Alumel : Red

8 a Type Pair
b No of Cores 2
c No of Pairs 1
d Pair Formation Two Cores twisted suitably & form Pair
e No of Twist per Mtr 10 - 15
9 Individual Shielding
a i Material Not Applicable
ii Coverage % Not Applicable
iii Overlap % Not Applicable
b Drain Wire
i Material Not Applicable
ii Nominal area of cross section Sqmm Not Applicable
10 Laid up Not Applicable
11 Overall Shielding
a i Material Al. Mylar Tape (Approx Thick: 0.03 mm)
ii Coverage % 100%
iii Overlap % 25%
b Drain Wire
i Material Annealed Tinned Copper
ii Nominal area of cross section Sqmm 0.5
12 Inner Sheath
a Material FRLS PVC ST II
b Tape / Extruded Extruded
c Colour Black
13 Armouring
a Material GI Wire
b Minimum Coverage % 90% Coverage
14 Outer Sheath
a Material FRLS PVC ST II
b Special Features With UV AR properties
c Outer Sheath Colour Yellow
15 Approx Overall Diameter of Cable mm 12.80
16 Minimum Bending Radius 15 Times The OD
17 Approx. Weight of cable Kg / Km 332
18 Electrical Properties
a Max Mutual Capacitance (Core to Core) pF / m 250
d High Voltage Test (Core to Core) 1 KV for 1 Minute
c Min. Insulation Resistance MΩ/Km 10 M OHM / KM
19 Maximum Temperature of Conductor

Format No : VD-F-005 Rev-02 Dt 05-Jun-2018 LAPP INDIA PVT. LTD., Plot no.98, J, Jigani Industrial Area, II Phase, Bangalore South-560105.
Page 1 of 2 Ph No: 08110 304800-03
Guaranteed Technical Particulars
Thermocouple Cable 382500621B
ÖLFLEX® THERMO Valid from: 01-Jun-2019
Sr. No. Specification UOM 1x2x18 AWG
a For Continuous Operation ⁰C 85°C
b Under Short Circuit Condition ⁰C 160°C
20 Printing on the Cable =| LAPP KABEL STUTTGART ÖLFLEX® THERMO 1x2x18 AWG
KXY3OSYC2SSAYC2UVAR1 <METER MARKING>

21 a Standard Packing Length Mtrs 500 / 1000 Mtrs

b Packing Drum Wooden Drum
c Tolerance
i On Packing Length ±5%
ii On Overall Order Qty ±5%
23 FRLS Properties
a Flame Retardant IEC 60332-3 CAT C
b Min. Oxygen Index (ASTM D 2863) 29%
c Min. Temperature Index (ASTM D 2863) 250°C
d HCL Gas Emission (IEC 60754-1) Max 20% by Weight
e Max. Smoke Density (ASTM D 2843) 60%

Revision No : 01
Revision Date : 1-Jun-19
Details of Changes : Format revised & Design Revalidated
Prepared by : Design Engineer
Approved by : Head Engineering

Note:
This GTP supersedes all other previous revisions released so far.
This GTP is a design document & is not valid for inspection without QAP. QAP is must incase of customer inspection

Electronically generated Document. No signature required

Format No : VD-F-005 Rev-02 Dt 05-Jun-2018 LAPP INDIA PVT. LTD., Plot no.98, J, Jigani Industrial Area, II Phase, Bangalore South-560105.
Page 2 of 2 Ph No: 08110 304800-03
