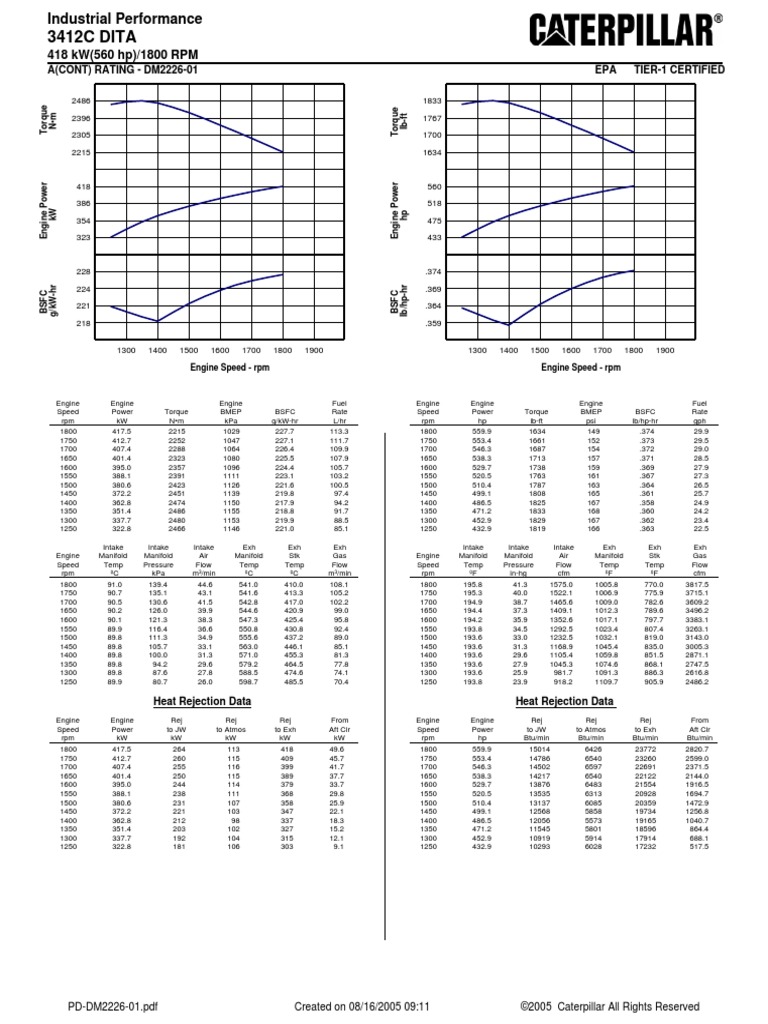

Industrial Performance

3412C DITA
418 kW(560 hp)/1800 RPM
A(CONT) RATING - DM2226-01 EPA TIER-1 CERTIFIED

2486 1833
Torque

Torque
N•m

lb-ft
2396 1767
2305 1700
2215 1634
Engine Power

Engine Power
418 560
386 518
kW

hp
354 475
323 433

228 .374
g/kW-hr

lb/hp-hr
224 .369
BSFC

BSFC
221 .364
218 .359

1300 1400 1500 1600 1700 1800 1900 1300 1400 1500 1600 1700 1800 1900

Engine Speed - rpm Engine Speed - rpm

Engine Engine Engine Fuel Engine Engine Engine Fuel

Speed Power Torque BMEP BSFC Rate Speed Power Torque BMEP BSFC Rate
rpm kW N•m kPa g/kW-hr L/hr rpm hp lb-ft psi lb/hp-hr gph
1800 417.5 2215 1029 227.7 113.3 1800 559.9 1634 149 .374 29.9
1750 412.7 2252 1047 227.1 111.7 1750 553.4 1661 152 .373 29.5
1700 407.4 2288 1064 226.4 109.9 1700 546.3 1687 154 .372 29.0
1650 401.4 2323 1080 225.5 107.9 1650 538.3 1713 157 .371 28.5
1600 395.0 2357 1096 224.4 105.7 1600 529.7 1738 159 .369 27.9
1550 388.1 2391 1111 223.1 103.2 1550 520.5 1763 161 .367 27.3
1500 380.6 2423 1126 221.6 100.5 1500 510.4 1787 163 .364 26.5
1450 372.2 2451 1139 219.8 97.4 1450 499.1 1808 165 .361 25.7
1400 362.8 2474 1150 217.9 94.2 1400 486.5 1825 167 .358 24.9
1350 351.4 2486 1155 218.8 91.7 1350 471.2 1833 168 .360 24.2
1300 337.7 2480 1153 219.9 88.5 1300 452.9 1829 167 .362 23.4
1250 322.8 2466 1146 221.0 85.1 1250 432.9 1819 166 .363 22.5

Intake Intake Intake Exh Exh Exh Intake Intake Intake Exh Exh Exh
Engine Manifold Manifold Air Manifold Stk Gas Engine Manifold Manifold Air Manifold Stk Gas
Speed Temp Pressure Flow Temp Temp Flow Speed Temp Pressure Flow Temp Temp Flow
rpm ºC kPa m³/min ºC ºC m³/min rpm ºF in-hg cfm ºF ºF cfm
1800 91.0 139.4 44.6 541.0 410.0 108.1 1800 195.8 41.3 1575.0 1005.8 770.0 3817.5
1750 90.7 135.1 43.1 541.6 413.3 105.2 1750 195.3 40.0 1522.1 1006.9 775.9 3715.1
1700 90.5 130.6 41.5 542.8 417.0 102.2 1700 194.9 38.7 1465.6 1009.0 782.6 3609.2
1650 90.2 126.0 39.9 544.6 420.9 99.0 1650 194.4 37.3 1409.1 1012.3 789.6 3496.2
1600 90.1 121.3 38.3 547.3 425.4 95.8 1600 194.2 35.9 1352.6 1017.1 797.7 3383.1
1550 89.9 116.4 36.6 550.8 430.8 92.4 1550 193.8 34.5 1292.5 1023.4 807.4 3263.1
1500 89.8 111.3 34.9 555.6 437.2 89.0 1500 193.6 33.0 1232.5 1032.1 819.0 3143.0
1450 89.8 105.7 33.1 563.0 446.1 85.1 1450 193.6 31.3 1168.9 1045.4 835.0 3005.3
1400 89.8 100.0 31.3 571.0 455.3 81.3 1400 193.6 29.6 1105.4 1059.8 851.5 2871.1
1350 89.8 94.2 29.6 579.2 464.5 77.8 1350 193.6 27.9 1045.3 1074.6 868.1 2747.5
1300 89.8 87.6 27.8 588.5 474.6 74.1 1300 193.6 25.9 981.7 1091.3 886.3 2616.8
1250 89.9 80.7 26.0 598.7 485.5 70.4 1250 193.8 23.9 918.2 1109.7 905.9 2486.2

Heat Rejection Data Heat Rejection Data

Engine Engine Rej Rej Rej From Engine Engine Rej Rej Rej From
Speed Power to JW to Atmos to Exh Aft Clr Speed Power to JW to Atmos to Exh Aft Clr
rpm kW kW kW kW kW rpm hp Btu/min Btu/min Btu/min Btu/min
1800 417.5 264 113 418 49.6 1800 559.9 15014 6426 23772 2820.7
1750 412.7 260 115 409 45.7 1750 553.4 14786 6540 23260 2599.0
1700 407.4 255 116 399 41.7 1700 546.3 14502 6597 22691 2371.5
1650 401.4 250 115 389 37.7 1650 538.3 14217 6540 22122 2144.0
1600 395.0 244 114 379 33.7 1600 529.7 13876 6483 21554 1916.5
1550 388.1 238 111 368 29.8 1550 520.5 13535 6313 20928 1694.7
1500 380.6 231 107 358 25.9 1500 510.4 13137 6085 20359 1472.9
1450 372.2 221 103 347 22.1 1450 499.1 12568 5858 19734 1256.8
1400 362.8 212 98 337 18.3 1400 486.5 12056 5573 19165 1040.7
1350 351.4 203 102 327 15.2 1350 471.2 11545 5801 18596 864.4
1300 337.7 192 104 315 12.1 1300 452.9 10919 5914 17914 688.1
1250 322.8 181 106 303 9.1 1250 432.9 10293 6028 17232 517.5

PD-DM2226-01.pdf Created on 08/16/2005 09:11 ©2005 Caterpillar All Rights Reserved
