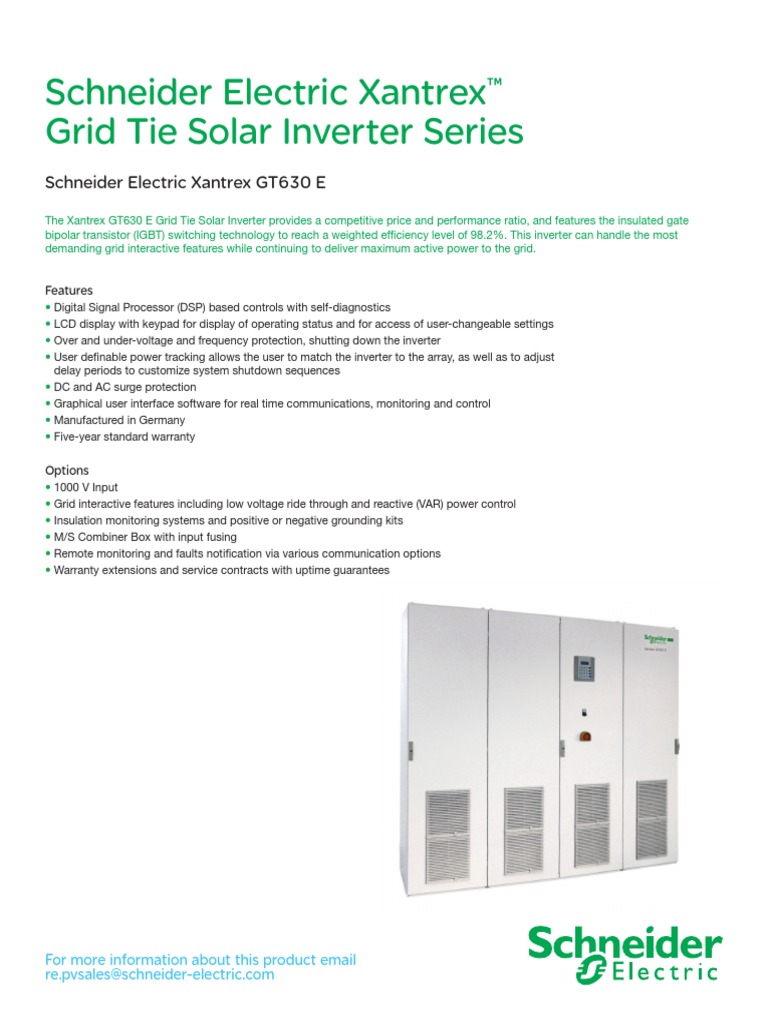

Schneider Electric Xantrex™

Grid Tie Solar Inverter Series

Schneider Electric Xantrex GT630 E
The Xantrex GT630 E Grid Tie Solar Inverter provides a competitive price and performance ratio, and features the insulated gate
bipolar transistor (IGBT) switching technology to reach a weighted efficiency level of 98.2%. This inverter can handle the most
demanding grid interactive features while continuing to deliver maximum active power to the grid.

Features
• Digital Signal Processor (DSP) based controls with self-diagnostics
• LCD display with keypad for display of operating status and for access of user-changeable settings
• Over and under-voltage and frequency protection, shutting down the inverter
• User definable power tracking allows the user to match the inverter to the array, as well as to adjust
delay periods to customize system shutdown sequences
• DC and AC surge protection
• Graphical user interface software for real time communications, monitoring and control
• Manufactured in Germany
• Five-year standard warranty

Options
• 1000 V Input
• Grid interactive features including low voltage ride through and reactive (VAR) power control
• Insulation monitoring systems and positive or negative grounding kits
• M/S Combiner Box with input fusing
• Remote monitoring and faults notification via various communication options
• Warranty extensions and service contracts with uptime guarantees

For more information about this product email

re.pvsales@schneider-electric.com
Xantrex™ GT630 E
Device short name GT630 E (630 KVA) GT630 E (675 KVA)

Electrical specifications
Input (DC)
Recommended photovoltaic power 705 kW 756 kW
Input voltage range, MPPT 520 to 880 V (reduced current above 820 V) 560 to 880 V (reduced current above 820 V)
Max. input voltage, open circuit 930 V (1000V optional) 930 V (1000V optional)
Max. input current 1250 A 1250 A
Output (AC)
Nominal output power 630 kVA 675 kVA
Output voltage 360 V three phase 375 V three phase
Frequency 50 Hz, optional 60 Hz 50 Hz, optional 60 Hz
Nominal output current 1040 A 1040 A
Power factor 0.8 leading to 0.8 lagging 0.8 leading to 0.8 lagging
Harmonic distortion < 3% at rated power < 3% at rated power

Efficiency
European 98.2% 98.2%

General specifications
Power consumption, night time < 100 W < 100 W
IP degree of protection IP20 IP20
Enclosure material Steel Steel
Product weight 1770 kg (3902.18 lb) 1770 kg (3902.18 lb)
(without 1000 V option) (without 1000 V option)
Product dimensions (H x W x D) 211.2 x 240.6 x 60.5 cm 211.2 x 240.6 x 60.5 cm
(83.15 x 94.72 x 23.82 in) (83.15 x 94.72 x 23.82 in)
(without 1000 V option) (without 1000 V option)
Ambient air temperature for operation -10ºC to 45ºC (14ºF to 113ºF) -10ºC to 45ºC (14ºF to 113ºF)
Operating altitude Full power up to 1500 m (4921 ft) Full power up to 1500 m (4921 ft)
with power derating above 1500 m with power derating above 1500 m
Relative humidity 0 to 95% non-condensing 0 to 95% non-condensing

Features and options

Type of cooling Temperature-dependent forced convection cooling
Display type LCD, 4 lines 20 digits with keypad
Protective functions AC over / under-voltage, AC over / under-frequency, over-temperature, AC and DC over-current, DC over-voltage
AC/DC disconnect Integral to inverter assembly
Combiner boxes Optional feature (information on request)
Container solution Optional feature (information on request)

Specifications are subject to change without notice.
