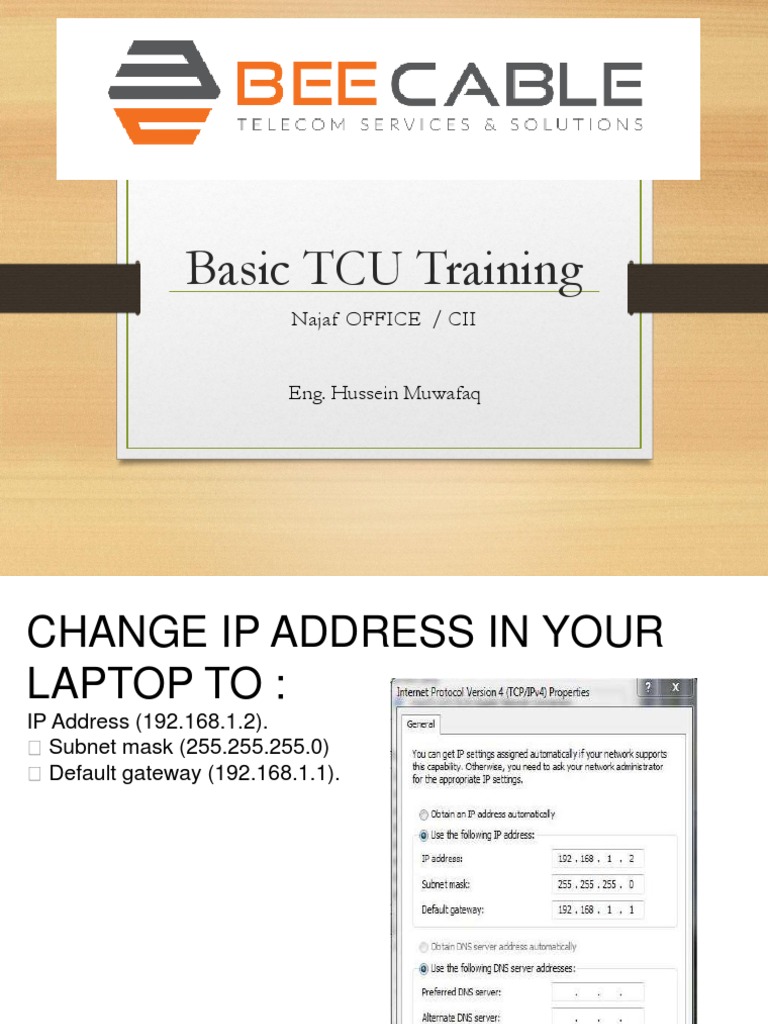

Basic TCU Training

Najaf OFFICE / CII

Eng. Hussein Muwafaq

CHANGE IP ADDRESS IN YOUR
LAPTOP TO :
IP Address (192.168.1.2).
Subnet mask (255.255.255.0)
Default gateway (192.168.1.1).
 SOFTWARE NEED :-

1- freeFTPd program for TCU SW transfer .

2-Tera-term for configure TCU .

3-You need site Script and TCU

SW files .
HARDWARE WORK :-

Power cable

E1 cable from DUG

LAN Cable from NPU

TO TND
Connect to TCU through LMT port in TCU
Create new folder in “C” name it “TCU” and
put TCU SW and SCRIPT INSIDE IT.
TCU SW and SCRIPT
Open freeftpd program and perform the following
steps as print screens .
Then select home directory :-
Then select SFTP root directory from “C”
Now SFTP server is running .
Let “free FTPd program running and open Tera –term
and change IP and service as shown in print.
Tera- term login
Tera- term login
Tera- term login
Now open TCU SW upgrade procedure

Select item and past it in Tera Term

TCU will restart after

this comment
copy site script name and past it in TCU SW
upgrade procedure
This comment according to site script name :
After COMPLETE COMMANDS , PING TO (PGW) IP
• Call to B.O BSS for halt site
• NOW connect to OMT and change transmission
parameters as attached print .

Note :- if you have two

DUG you should make
new IDB to change
transmission parameters
in both .
Some commands for TCU
maintenance :

- “getalarmlist” to check TCU alarms .

-”traceroute 10.39.4.3” will show you IP route .
-”restart” to restart TCU .
-”collectDCGInformation” to collect TCU log and go to file
and save log
.
Note 1:-if you want to stop Ping press CTRL+C .
Note 2 :- you can past command to tera term by pressing
Right click .
THANK YOU
