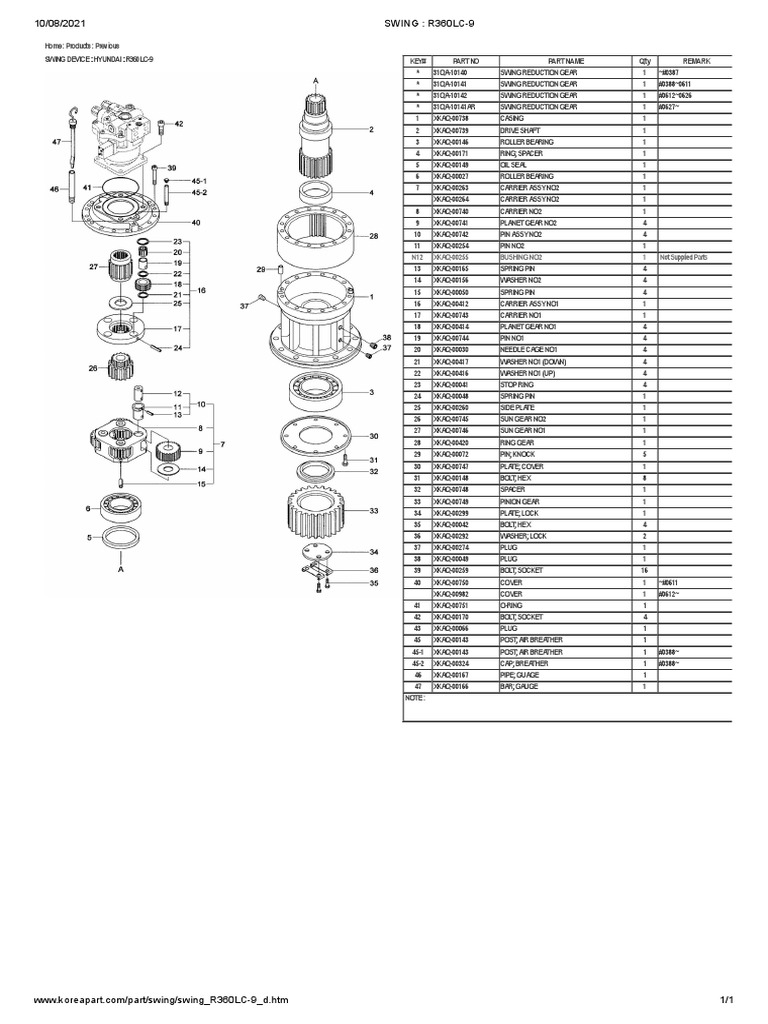

SWING DEVICE : HYUNDAI : R360LC-9 KEY# PART NO PART NAME Q'ty REMARK

* 31QA-10140 SWING REDUCTION GEAR 1 ~#0387
* 31QA-10141 SWING REDUCTION GEAR 1 #0388~0611
* 31QA-10142 SWING REDUCTION GEAR 1 #0612~0626
* 31QA-10141AR SWING REDUCTION GEAR 1 #0627~
1 XKAQ-00738 CASING 1
2 XKAQ-00739 DRIVE SHAFT 1
3 XKAQ-00146 ROLLER BEARING 1
4 XKAQ-00171 RING; SPACER 1
5 XKAQ-00149 OIL SEAL 1
6 XKAQ-00027 ROLLER BEARING 1
7 XKAQ-00263 CARRIER ASSY NO2 1
  XKAQ-00264 CARRIER ASSY NO2 1
8 XKAQ-00740 CARRIER NO2 1
9 XKAQ-00741 PLANET GEAR NO2 4
10 XKAQ-00742 PIN ASSY NO2 4
11 XKAQ-00254 PIN NO2 1
N12 XKAQ-00255 BUSHING NO2 1  Not Supplied Parts
13 XKAQ-00165 SPRING PIN 4
14 XKAQ-00156 WASHER NO2 4
15 XKAQ-00050 SPRING PIN 4
16 XKAQ-00412 CARRIER ASSY NO1 1
17 XKAQ-00743 CARRIER NO1 1
18 XKAQ-00414 PLANET GEAR NO1 4
19 XKAQ-00744 PIN NO1 4
20 XKAQ-00030 NEEDLE CAGE NO1 4
21 XKAQ-00417 WASHER NO1 (DOWN) 4
22 XKAQ-00416 WASHER NO1 (UP) 4
23 XKAQ-00041 STOP RING 4
24 XKAQ-00048 SPRING PIN 1
25 XKAQ-00260 SIDE PLATE 1
26 XKAQ-00745 SUN GEAR NO2 1
27 XKAQ-00746 SUN GEAR NO1 1
28 XKAQ-00420 RING GEAR 1
29 XKAQ-00072 PIN; KNOCK 5
30 XKAQ-00747 PLATE; COVER 1
31 XKAQ-00148 BOLT; HEX 8
32 XKAQ-00748 SPACER 1
33 XKAQ-00749 PINION GEAR 1
34 XKAQ-00299 PLATE; LOCK 1
35 XKAQ-00042 BOLT; HEX 4
36 XKAQ-00292 WASHER; LOCK 2
37 XKAQ-00274 PLUG 1
38 XKAQ-00049 PLUG 1
39 XKAQ-00259 BOLT; SOCKET 16
40 XKAQ-00750 COVER 1 ~#0611
  XKAQ-00982 COVER 1 #0612~
41 XKAQ-00751 O-RING  1
42 XKAQ-00170 BOLT; SOCKET  4
43 XKAQ-00066 PLUG  1
45 XKAQ-00143 POST; AIR BREATHER  1
 45-1 XKAQ-00143 POST; AIR BREATHER  1 #0388~
 45-2 XKAQ-00324 CAP; BREATHER  1 #0388~
 46 XKAQ-00167 PIPE; GUAGE  1
 47 XKAQ-00166 BAR; GAUGE 1
 NOTE :
