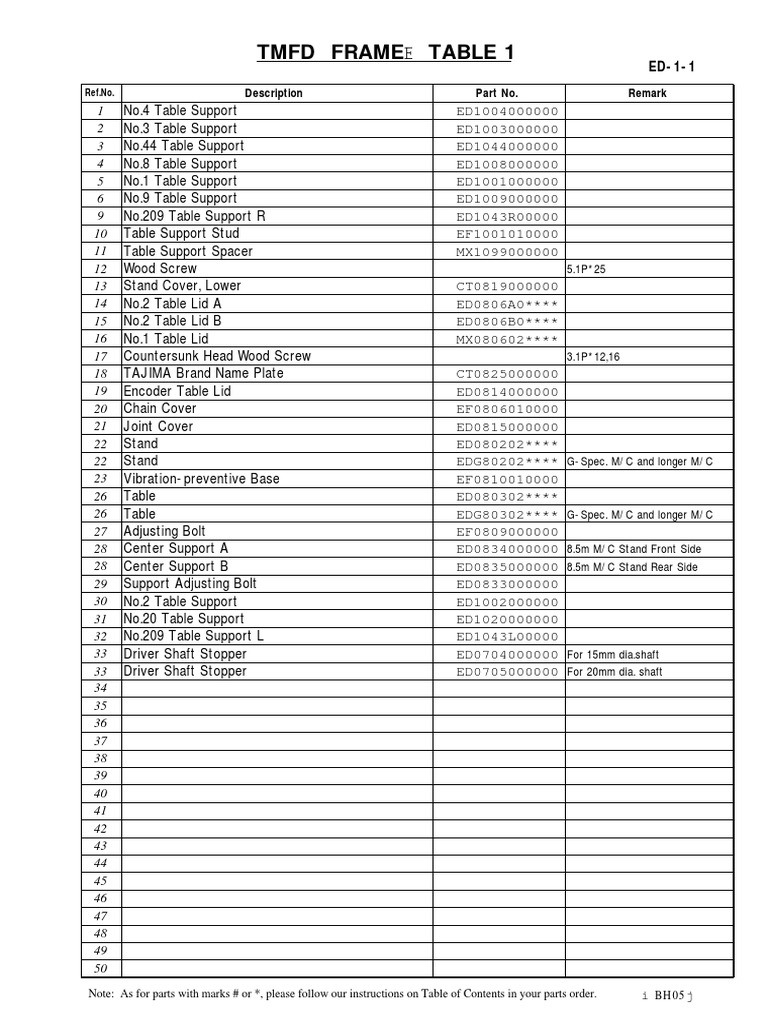

TMFD FRAMEE TABLE 1

ED-1-1
Ref.No. Description Part No. Remark
1 No.4 Table Support ED1004000000
2 No.3 Table Support ED1003000000
3 No.44 Table Support ED1044000000
4 No.8 Table Support ED1008000000
5 No.1 Table Support ED1001000000
6 No.9 Table Support ED1009000000
9 No.209 Table Support R ED1043R00000
10 Table Support Stud EF1001010000
11 Table Support Spacer MX1099000000
12 Wood Screw 5.1P*25
13 Stand Cover, Lower CT0819000000
14 No.2 Table Lid A ED0806A0****
15 No.2 Table Lid B ED0806B0****
16 No.1 Table Lid MX080602****
17 Countersunk Head Wood Screw 3.1P*12,16
18 TAJIMA Brand Name Plate CT0825000000
19 Encoder Table Lid ED0814000000
20 Chain Cover EF0806010000
21 Joint Cover ED0815000000
22 Stand ED080202****
22 Stand EDG80202**** G-Spec. M/C and longer M/C
23 Vibration-preventive Base EF0810010000
26 Table ED080302****
26 Table EDG80302**** G-Spec. M/C and longer M/C
27 Adjusting Bolt EF0809000000
28 Center Support A ED0834000000 8.5m M/C Stand Front Side
28 Center Support B ED0835000000 8.5m M/C Stand Rear Side
29 Support Adjusting Bolt ED0833000000
30 No.2 Table Support ED1002000000
31 No.20 Table Support ED1020000000
32 No.209 Table Support L ED1043L00000
33 Driver Shaft Stopper ED0704000000 For 15mm dia.shaft
33 Driver Shaft Stopper ED0705000000 For 20mm dia. shaft
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

Note: As for parts with marks # or *, please follow our instructions on Table of Contents in your parts order. i BH05j
