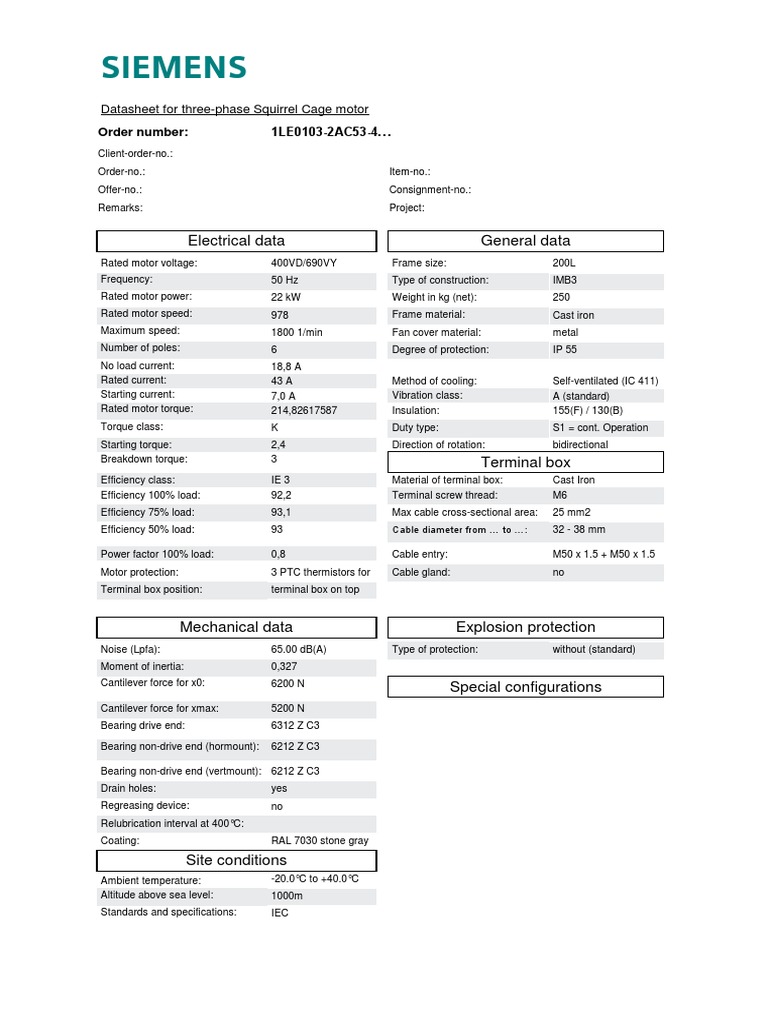

SIEMENS

Datasheet for three-phase Squirrel Cage motor


Order number: 1LE0103-2AC53-4…
Client-order-no.:
Order-no.: Item-no.:
Offer-no.: Consignment-no.:
Remarks: Project:

Electrical data General data


Rated motor voltage: 400VD/690VY Frame size: 200L
Frequency: 50 Hz Type of construction: IMB3
Rated motor power: 22 kW Weight in kg (net): 250
Rated motor speed: 978 Frame material: Cast iron
Maximum speed: 1800 1/min Fan cover material: metal
Number of poles: 6 Degree of protection: IP 55
No load current: 18,8 A
Rated current: 43 A Method of cooling: Self-ventilated (IC 411)
Starting current: 7,0 A Vibration class: A (standard)
Rated motor torque: 214,82617587 Insulation: 155(F) / 130(B)
Torque class: K Duty type: S1 = cont. Operation
Starting torque: 2,4 Direction of rotation: bidirectional
Breakdown torque: 3 Terminal box
Efficiency class: IE 3 Material of terminal box: Cast Iron
Efficiency 100% load: 92,2 Terminal screw thread: M6
Efficiency 75% load: 93,1 Max cable cross-sectional area: 25 mm2
Efficiency 50% load: 93 Cable diameter from … to …: 32 - 38 mm

Power factor 100% load: 0,8 Cable entry: M50 x 1.5 + M50 x 1.5
Motor protection: 3 PTC thermistors for Cable gland: no
Terminal box position: terminal box on top

Mechanical data Explosion protection


Noise (Lpfa): 65.00 dB(A) Type of protection: without (standard)
Moment of inertia: 0,327
Cantilever force for x0: 6200 N Special configurations
Cantilever force for xmax: 5200 N
Bearing drive end: 6312 Z C3

Bearing non-drive end (hormount): 6212 Z C3

Bearing non-drive end (vertmount): 6212 Z C3


Drain holes: yes
Regreasing device: no
Relubrication interval at 400°C:
Coating: RAL 7030 stone gray

Site conditions
Ambient temperature: -20.0°C to +40.0°C
Altitude above sea level: 1000m
Standards and specifications: IEC
