Based on Eurocode

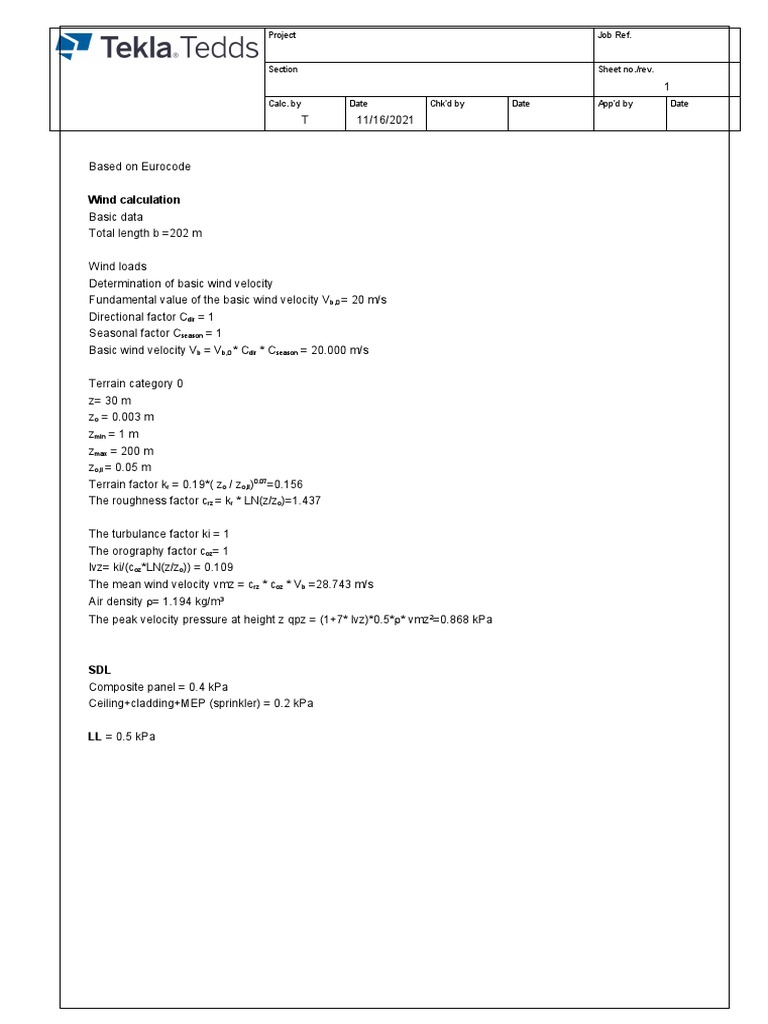

Wind calculation
Basic data
Total length b =202 m

Wind loads
Determination of basic wind velocity
Fundamental value of the basic wind velocity Vb,0 = 20 m/s
Directional factor Cdir = 1
Seasonal factor Cseason = 1
Basic wind velocity Vb = Vb,0 * Cdir * Cseason = 20.000 m/s

Terrain category 0
z= 30 m
zo = 0.003 m
zmin = 1 m
zmax = 200 m
zo,ii = 0.05 m
Terrain factor kr = 0.19*( zo / zo,ii)0.07=0.156
The roughness factor crz = kr * LN(z/zo)=1.437

The turbulance factor ki = 1

The orography factor coz= 1
lvz= ki/(coz*LN(z/zo)) = 0.109
The mean wind velocity vmz = crz * coz * Vb =28.743 m/s
Air density = 1.194 kg/m3
The peak velocity pressure at height z qpz = (1+7* lvz)*0.5** vmz2=0.868 kPa

SDL
Composite panel = 0.4 kPa
Ceiling+cladding+MEP (sprinkler) = 0.2 kPa

LL = 0.5 kPa
