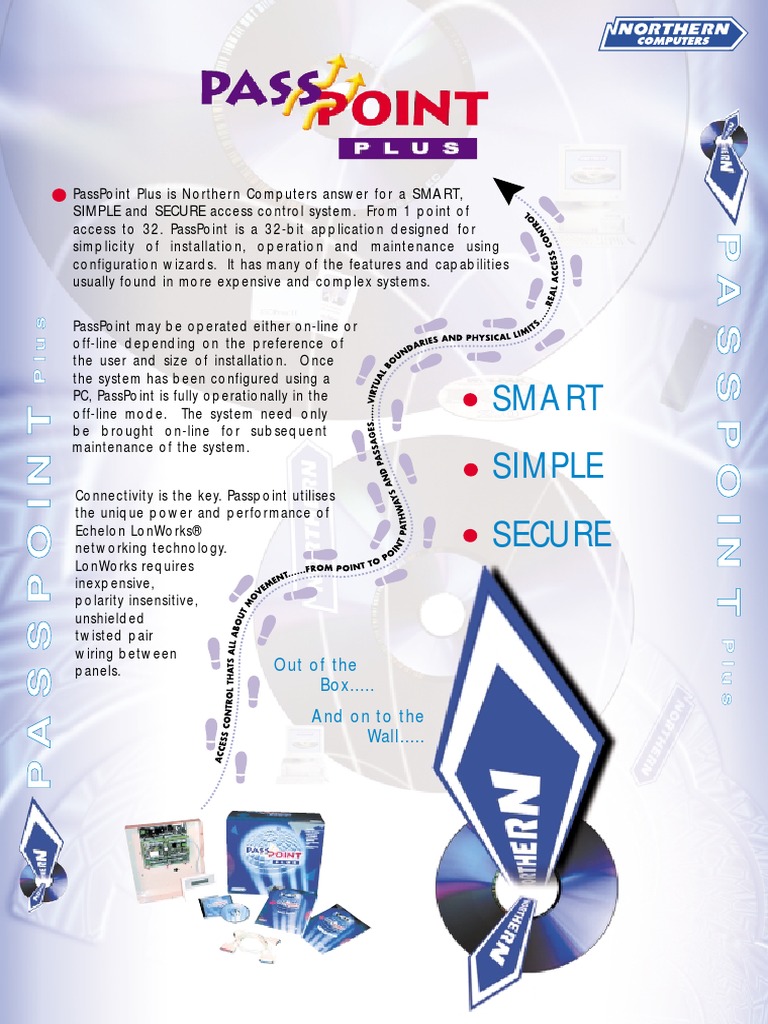

PassPoint Plus is Northern Computers answer for a SMART,

SIMPLE and SECURE access control system. From 1 point of

access to 32. PassPoint is a 32-bit application designed for

PASSPOINT
simplicity of installation, operation and maintenance using
configuration wizards. It has many of the features and capabilities
usually found in more expensive and complex systems.
Plus

PassPoint may be operated either on-line or

off-line depending on the preference of
the user and size of installation. Once
the system has been configured using a
PC, PassPoint is fully operationally in the
SMART
PASSPOINT

off-line mode. The system need only

be brought on-line for subsequent
maintenance of the system.
SIMPLE
Connectivity is the key. Passpoint utilises
the unique power and performance of
Echelon LonWorks®
networking technology. SECURE
LonWorks requires
inexpensive,
polarity insensitive,
unshielded
twisted pair

Plus
wiring between
panels. Out of the
Box.....
And on to the
Wall.....
 PassPoint provides access control with an easy to use interface that is simple to set-up and easy to
maintain. PassPoint provides the security you need by limiting specific door access, protection from
unauthorised access, providing methods to locate employees and photo ID badging to create cost effective
identification. PassPoint Plus is the answer for the evryday and advanced markets

Features
PASSPOINT PLUS

• PassPoint software - 32 Bit application compatible with Windows 95, 98, 2000 or NT4.0.
• Configuration “wizards” for simple, out-of-the-box installation.
• Help - an extensive easy to use context sensitive, hyper-linked help utility.
Plus

• Manage up to 32 separate accounts - Each with up to 2000 card holders and 32 access points in
either 1 or 2 reader configurations, 8 zone input modules (ZIM) and 8 quad relay modules (QRM).
• Card holder records - Detailed information of the card holder and 8 user defined data fields.
Migration of card holder data from one account to another.
• Operators - Password assigned and customised privileges.
PASSPOINT

• Report Builder - A library of reports is provided which can be modified or new ones added.
Reports may be scheduled to print at a pre-defined time.
• Integration with E-mail and Pager systems- Alarms and reports can be configured to be sent via
e-mail and pager.
• Alarm Reporting and Control - Monitor, report and record alarms of various types and classes.
• History logging and reporting - all events are logged to the history log.
• Built-in floor plan designer - Optional views in 2D and 3D.
• Dynamic graphical display - Provides a graphical representation of the hardware and their
status, allowing the operator to control system resources by point and click functionality.
• Communications - Options include, directly connected, dial-up via modem and network
communication via Lan/Wan.
• Integrates with the Ademco Vista 128 series intruder panels.
• Non-volatile FLASH memory - Upload all data from the panel in the event of a catastrophe.
• Access Cards - Cards can be bulk added, deleted and edited, eliminating tedious repetitive data
modification.
• Duress mode - Activated by entering a pre-selected digit sequence at a keypad.
• Card and PIN modes - Configuration of an access point for Card only, PIN only, Card or PIN, Card
plus PIN and PIN plus Card modes. Time schedule or Event/Action can change modes
automatically.
• Multiple cards may be assigned to a cardholder.
• Cardholders may be assigned an ”action” which is initiated when access is granted and a further
”action” when the card is denied access.
• Photo ID pop-up based on an event.
• Timed ant-passback - shall prevent a card from been used consecutively at the same access point
within a specified time.
• Access areas - 127 access areas used to separate protected areas.
• Access groups - 128 access groups that define access privileges (a combination of access points
and time schedules).
• Time schedules - 64 weekly time schedules are available to programme access privileges and
Event/Action programmes.
• Remote dial-up - Diagnose and pinpoint problems via modem.
• Custom photo ID badge design software and twain compatibility.
 BSK
BASIC STARTER KIT

Your starter kit contains the basic equipment you’ll need Features
to install and operate a one of two door PassPoint access BSK CONTAINS
control system. When it comes to reader technologies,

PASSPOINT
•1 x PassPoint Plus Windows-based software package
PassPoint uses convenient proximity card readers and you
have the option of purchasing sets of pre-encoded cards. •1 x PassPoint System Quick-Start Guide

•1 x System enclosure - including cam-lock

Installation and set- •1 x Intelligent distributed power supply
up is quick and
•1 x Main Logic Board (MLB)
easy. Follow the
quick-start guide to •1 x Door Control Module (DCM)
a successful •1 x Ademco 6139 keypad
installation of a two
•1 x RS232 Cable for PC connection (6ft)
reader access
control system.

DEK
DOOR EXPANSION KIT

The DEK includes the materials you need to expand your Features
existing PassPoint Access Control System. Each single kit
DEK CONTAINS
provides the basic equipment for an additional one
or two-door installation. It •1 x System enclosure - including cam-lock
contains a PassPoint DCM •1 x Door Control Module (DCM)
and power supply
•1 x Intelligent distributed power supply
combination that is pre-
mounted in a metal
enclosure.

Plus
BSK DEK

6139

Lonwork® Network
(Unshielded twisted pair)
To another expansion board

PassPoint Plus
Software in PC

PR-OMNI-10 PR-OMNI-10

PR-OMNI-10 PR-OMNI-10
 QRM
QUAD RELAY MODULE

The Quad Relay Module (QRM) provides additional output

functions for the PassPoint access control system. It has four
form C, supervised output relays and also provides four
trigger outputs. Passpont supports a total of 8 QRM’s per
system.

PASSPOINT
ZIM
ZONE INPUT MODULE

The Zone Input Module (ZIM) allows for additional inputs

into the PassPoint access control system. It provides
Plus

locations for 8 individual zone input points. Each zone point

is capable of accepting either a 2, 3 or 4 state supervised
/unsupervised configuration.
PASSPOINT

SOFTWARE

The PassPoint access control software may be operated

either on-line or off-line depending on the preference of the
user and the size of installation. Once the system has been
configured using a PC, PassPoint is fully operational in the
off-line mode. The system need only be brought on-line for
95, 98 or NT4.0
subsequent card enrollments or time schedule adjustments.

PASSPOINT

• IBM Compatible
Pentium II-300
• 16 Megabytes of
RAM memory

Plus
• 20MB free hard
disk space
• Microsoft Windows

ECHELON LONWORKS¤

• For quick and easy service near access points (Doors) LonWorks allow modules to be conveniently
distributed throughout the facility
• LonWorks requires inexpensive, polarity insensitive, unshielded twisted pair wiring between panels
• Using BUS topology
• Up to 4,000 ft using 18 AWG-2 conductor wiring
• Up to 8,000 ft using 16 AWG-2 conductor wiring
• Using FREE Topology (star, loop or Loop/BUS combination)
• Upto 1,500 ft using 20-22 AWG-2 conductor wiring
• New modules are enrolled using a plug and play type of operation (no dip switches)
• Major reduction of installation costs for cable, labour, equipment and programming
