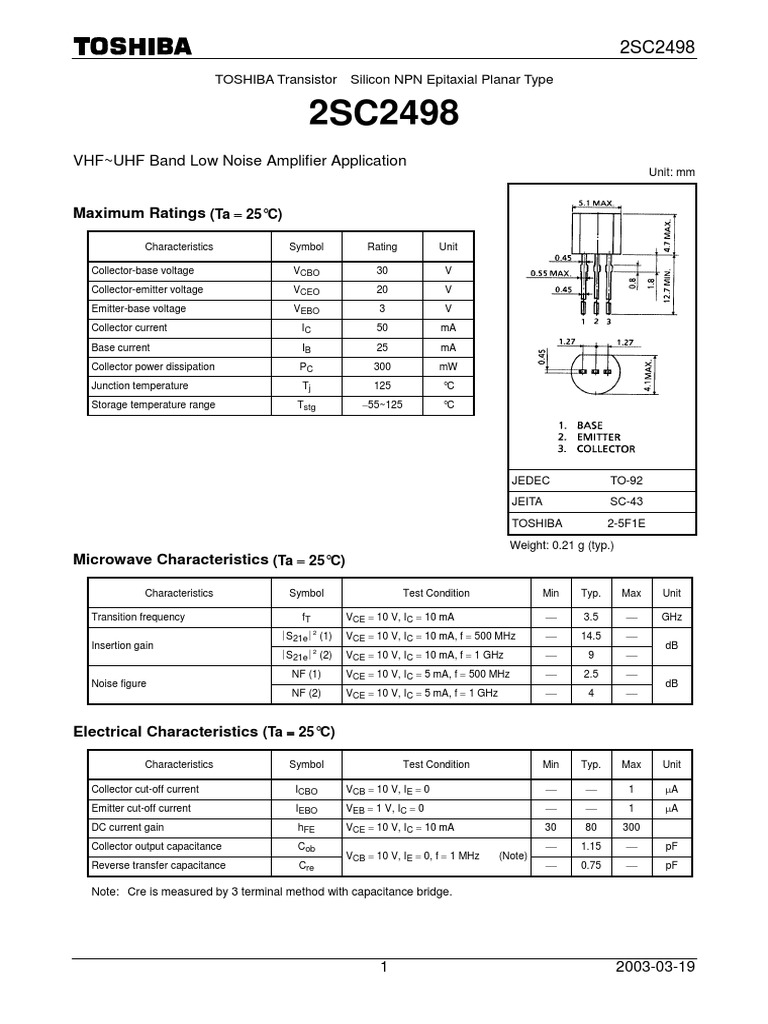

2SC2498
TOSHIBA Transistor Silicon NPN Epitaxial Planar Type
2SC2498
VHF~UHF Band Low Noise Amplifier Application
Unit: mm
Maximum Ratings (Ta = 25°C)
Characteristics Symbol Rating Unit
Collector-base voltage VCBO 30 V
Collector-emitter voltage VCEO 20 V
Emitter-base voltage VEBO 3 V
Collector current IC 50 mA
Base current IB 25 mA
Collector power dissipation PC 300 mW
Junction temperature Tj 125 °C
Storage temperature range Tstg -55~125 °C
JEDEC TO-92
JEITA SC-43
TOSHIBA 2-5F1E
Weight: 0.21 g (typ.)
Microwave Characteristics (Ta = 25°C)
Characteristics Symbol Test Condition Min Typ. Max Unit
Transition frequency fT VCE = 10 V, IC = 10 mA ¾ 3.5 ¾ GHz
ïS21eï (1)
2
VCE = 10 V, IC = 10 mA, f = 500 MHz ¾ 14.5 ¾
Insertion gain dB
ïS21eï (2)
2
VCE = 10 V, IC = 10 mA, f = 1 GHz ¾ 9 ¾
NF (1) VCE = 10 V, IC = 5 mA, f = 500 MHz ¾ 2.5 ¾
Noise figure dB
NF (2) VCE = 10 V, IC = 5 mA, f = 1 GHz ¾ 4 ¾
Electrical Characteristics (Ta = 25°C)
Characteristics Symbol Test Condition Min Typ. Max Unit
Collector cut-off current ICBO VCB = 10 V, IE = 0 ¾ ¾ 1 mA
Emitter cut-off current IEBO VEB = 1 V, IC = 0 ¾ ¾ 1 mA
DC current gain hFE VCE = 10 V, IC = 10 mA 30 80 300
Collector output capacitance Cob ¾ 1.15 ¾ pF
VCB = 10 V, IE = 0, f = 1 MHz (Note)
Reverse transfer capacitance Cre ¾ 0.75 ¾ pF
Note: Cre is measured by 3 terminal method with capacitance bridge.
1 2003-03-19
2SC2498
2 2003-03-19
2SC2498
3 2003-03-19
2SC2498
Common Emitter Small Signal S-Parameters of 2SC2498.
VCE = 10 V, IC = 10 mA
4 2003-03-19
