The content of this document is the property of Airbus. It is supplied in confidence and commercial security
on its contents must be maintained. It must not be used for any purpose other than that for which it is
supplied, nor may any information contained in it be disclosed to unauthorized persons. It must not be
reproduced in whole or in part without permission in writing from the owners of the copyright.
© AIRBUS 2005. All rights reserved.
AIRBUS S.A.S
CUSTOMER SERVICE DIRECTORATE
31707 BLAGNAC CEDEX
FRANCE

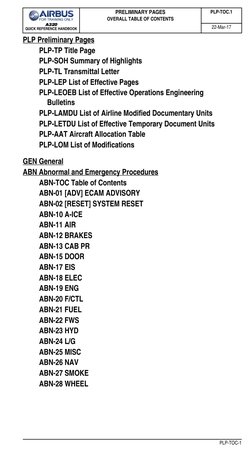

GEN General
ABN Abnormal and Emergency Procedures
ABN-TOC Table of Contents
ABN-01 [ADV] ECAM ADVISORY
ABN-02 [RESET] SYSTEM RESET
ABN-10 A-ICE
ABN-11 AIR
ABN-12 BRAKES
ABN-13 CAB PR
ABN-15 DOOR
ABN-17 EIS
ABN-18 ELEC
ABN-19 ENG
ABN-20 F/CTL
ABN-21 FUEL
ABN-22 FWS
ABN-23 HYD
ABN-24 L/G
ABN-25 MISC
ABN-26 NAV
ABN-27 SMOKE
ABN-28 WHEEL
PLP-TOC-1

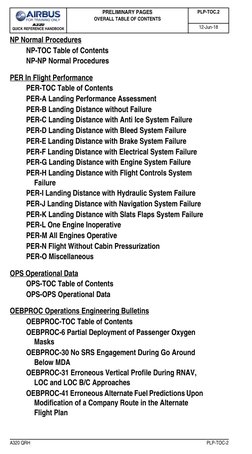

PRELIMINARY PAGES PLP-TOC.2
OVERALL TABLE OF CONTENTS
A320
QUICK REFERENCE HANDBOOK 12-Jun-18
NP Normal Procedures
NP-TOC Table of Contents
NP-NP Normal Procedures
BC Back Cover

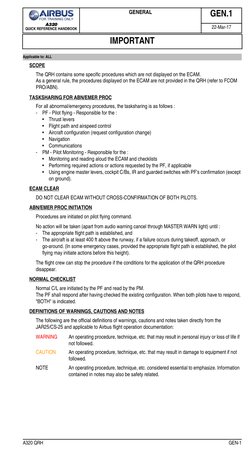

IMPORTANT
Applicable to: ALL
SCOPE
The QRH contains some specific procedures which are not displayed on the ECAM.
As a general rule, the procedures displayed on the ECAM are not provided in the QRH (refer to FCOM
PRO/ABN).
TASKSHARING FOR ABN/EMER PROC
For all abnormal/emergency procedures, the tasksharing is as follows :
- PF - Pilot flying - Responsible for the :
• Thrust levers
• Flight path and airspeed control
• Aircraft configuration (request configuration change)
• Navigation
• Communications
- PM - Pilot Monitoring - Responsible for the :
• Monitoring and reading aloud the ECAM and checklists
• Performing required actions or actions requested by the PF, if applicable
• Using engine master levers, cockpit C/Bs, IR and guarded switches with PF's confirmation (except
on ground).
ECAM CLEAR
DO NOT CLEAR ECAM WITHOUT CROSS-CONFIRMATION OF BOTH PILOTS.
ABN/EMER PROC INITIATION
Procedures are initiated on pilot flying command.
No action will be taken (apart from audio warning cancel through MASTER WARN light) until :
- The appropriate flight path is established, and
- The aircraft is at least 400 ft above the runway, if a failure occurs during takeoff, approach, or
go-around. (In some emergency cases, provided the appropriate flight path is established, the pilot
flying may initiate actions before this height).
The flight crew can stop the procedure if the conditions for the application of the QRH procedure
disappear.
NORMAL CHECKLIST
Normal C/L are initiated by the PF and read by the PM.
The PF shall respond after having checked the existing configuration. When both pilots have to respond,
"BOTH" is indicated.
DEFINITIONS OF WARNINGS, CAUTIONS AND NOTES
The following are the official definitions of warnings, cautions and notes taken directly from the
JAR25/CS-25 and applicable to Airbus flight operation documentation:
WARNING An operating procedure, technique, etc. that may result in personal injury or loss of life if
not followed.
CAUTION An operating procedure, technique, etc. that may result in damage to equipment if not
followed.
NOTE An operating procedure, technique, etc. considered essential to emphasize. Information
contained in notes may also be safety related.
GENERAL INFORMATION
Applicable to: ALL
ABN-10 A-ICE
Double AOA Heat Failure ......................................................10.1
ABN-11 AIR
Engine 1+2 Bleed Fault..........................................................11.1
ABN-12 BRAKES
Asymmetric Braking ..............................................................12.1
Residual Braking....................................................................12.1
ABN-13 CAB PR
Cabin Overpressure...............................................................13.1
ABN-15 DOOR
Cockpit Door Fault .................................................................15.1
ABN-17 EIS
Display Unit Failure................................................................17.1
ABN-18 ELEC
█ ELEC EMER CONFIG Summary █....................................18.1
ELEC EMER CONFIG Sys Remaining ..................................18.3
C/B Tripped.............................................................................18.8
Flight on Batteries Only.........................................................18.8
ABN-19 ENG
█ ALL ENG FAIL █ ................................................................19.1
█ ENG DUAL FAILURE - FUEL REMAINING █....................19.8
█ ENG DUAL FAILURE - NO FUEL REMAINING █ ...........19.15
ENG RELIGHT IN FLIGHT ....................................................19.20
Engine Stall ..........................................................................19.27
Engine Tailpipe Fire .............................................................19.30
HIGH ENGINE VIBRATION...................................................19.31
ABN-20 F/CTL
Landing with Slats or Flaps Jammed.................................. 20.1
Rudder Jam ........................................................................... 20.2
Stabilizer Jam ........................................................................ 20.3
ABN-21 FUEL
Fuel Imbalance ...................................................................... 21.1
Fuel Leak................................................................................ 21.2
Gravity Fuel Feeding............................................................. 21.5
ABN-22 FWS
Multiple Undue ECAM Alerts................................................ 22.1
ABN-23 HYD
█ HYD B + Y SYS LO PR Summary █................................. 23.1
█ HYD G + B SYS LO PR Summary █................................. 23.2
█ HYD G + Y SYS LO PR Summary █................................. 23.3
ABN-24 L/G
Landing with Abnormal L/G ................................................. 24.1
L/G Gravity Extension........................................................... 24.4
ABN-25 MISC
█ Ditching █.......................................................................... 25.1
█ EMER Descent █............................................................... 25.3
█ Forced Landing █ ............................................................. 25.4
Bomb on Board ..................................................................... 25.6
Cockpit Windshield / Window Arcing.................................. 25.8
Cockpit Windshield / Window Cracked............................... 25.9
Overweight Landing............................................................ 25.10
Severe Turbulence .............................................................. 25.17
Tailstrike .............................................................................. 25.22
Volcanic Ash Encounter..................................................... 25.23
ABN-26 NAV
█ ALL ADR OFF █ ................................................................ 26.1
ABN-27 SMOKE
█ Smoke / Fumes / AVNCS Smoke █ ..................................27.1
█ Removal of Smoke / Fumes █ .......................................27.10
Smoke / Fire from Lithium Battery .....................................27.12
ABN-28 WHEEL
Wheel Tire Damage Suspected.............................................28.1
IDG OIL TEMP ≥ 147 °C Reduce IDG load, if possible (GALLEY or GEN OFF).
If required, restore when the temperature has dropped.
ELEC
Restrict generator use to a short time, if the temperature rises again
excessively.
■ On ground:
Reset ECU (CFM) or EEC (IAE) or EIU only when engine shut down.
Reset BSCU only when aircraft stopped.
Reset ELAC or SEC only when listed in the System Reset Table.
Other Systems not listed in the System Reset Table can be reset following the guidelines described
above.
Refer to System Reset Table
■ In flight:
WARNING The flight crew can attempt a system reset only when:
- An ECAM/OEB/FCOM/QRH procedure requests to reset the system, or
- The System Reset Table permits.
■ On ground:
Reset ECU (CFM) or EEC (IAE) or EIU only when engine shut down.
Reset BSCU only when aircraft stopped.
Reset ELAC or SEC only when listed in the System Reset Table.
Other Systems not listed in the System Reset Table can be reset following the guidelines described
above.
Refer to System Reset Table
■ In flight:
WARNING The flight crew can attempt a system reset only when:
- An ECAM/OEB/FCOM/QRH procedure requests to reset the system, or
- The System Reset Table permits.
■ On ground:
Reset ECU (CFM) or EEC (IAE) or EIU only when engine shut down.
Reset BSCU only when aircraft stopped.
Reset ELAC or SEC only when listed in the System Reset Table.
Other Systems not listed in the System Reset Table can be reset following the guidelines described
above.
Refer to System Reset Table
■ In flight:
WARNING The flight crew can attempt a system reset only when:
- An ECAM/OEB/FCOM/QRH procedure requests to reset the system, or
- The System Reset Table permits.
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
ANTI ICE L(R) On ground:
If the air conditioning packs are OFF with the OAT above 40 °C, and/or the
WINDSHIELD(WIN
windshield is under direct sunlight, a spurious ANTI ICE L(R)
DOW)
(WHC)
WINDSHIELD(WINDOW) may trigger.
A-ICE
In that case, select both air conditioning packs to ON and wait at least 5 minutes for
the cockpit temperature to decrease. After, pull, then push the C/B of the affected
WHC:
- X13 on 122VU (WHC1)
- W13 on 122VU (WHC2).
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
WING A.ICE SYS When setting the WAI pb-sw to ON above FL 310, the air bleed pressure might not
FAULT be sufficient, and the WING A.ICE SYS FAULT alert can trigger:
A-ICE (WAI) - After ECAM application, another WAI selection attempt can be performed below
FL 310
- If the ECAM triggers again, apply ECAM.
Applicable to: ALL
- Check that the affected Engine Bleed Valve is closed on the BLEED SD PAGE.
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
AIR ENG 1(2) Note: Do not attempt more than one reset. However, if the first reset is
unsuccessful and if the AIR ENG 1(2) BLEED FAULT alert occurred after
BLEED FAULT or takeoff with APU bleed ON, a second reset may be attempted when flight
AIR ENG 1(2) conditions permit and when the aircraft is stabilized in level flight.
BLEED ABNORM On ground or in flight:
PR If the PACK (non-affected side) is operative, and If the Wing Anti-Ice is OFF:
- Set ENG BLEED pb-sw (affected side) to OFF
(Engine Bleed Supply
If ENG BLEED pb-sw FAULT light (affected side) is on:
System)
- Delay application of the reset until FAULT light extinguishes.
If ENG BLEED pb-sw FAULT light (affected side) is off:
- Set X BLEED selector to AUTO
- Set PACK pb-sw (affected side) to ON
- Set ENG BLEED pb-sw (affected side) to ON
- Check that the affected Engine Bleed Valve is open on the BLEED
SD PAGE.
• If AIR ENG (AFFECTED) BLEED FAULT alert or AIR ENG
(AFFECTED) BLEED ABNORM PR alert reoccur, or
AIR If Engine Bleed Valve (affected side) is not open on the BLEED
SD PAGE:
- Set ENG BLEED pb-sw(affected side) to OFF
- Set X BLEED selector to OPEN.
Note: Record the ENG BLEED reset in the logbook (successful or
unsuccessful).
AIR ENG 1(2) Note: Do not attempt more than one reset.
- Check that the affected Engine Bleed Valve is closed on the BLEED SD PAGE.
Note: Record the ENG BLEED reset in the logbook (successful or
unsuccessful).
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
AIR PACK 1(2) On ground only:
- Pull C/Bs W21 and W22 on 122VU
REGUL FAULT - Pull C/Bs X21 and X22 on 122VU
(ACSC) - Pull C/Bs Y18, Y20 and Y21 on 122VU
- Pull C/B D8 on 49VU
- Wait 5 s before pushing all the C/Bs.
Note: During the reset, a small increase of the engine thrust may be observed
(N1 or EPR, as applicable). If the parking brake is set, vibrations can
occur.
AIR ENG 1(2) Note: Do not attempt more than one reset. However, if the first reset is
unsuccessful and if the AIR ENG 1(2) BLEED FAULT alert occurred after
BLEED FAULT or takeoff with APU bleed ON, a second reset may be attempted when flight
AIR ENG 1(2) conditions permit and when the aircraft is stabilized in level flight.
BLEED ABNORM On ground or in flight:
PR If the PACK (non-affected side) is operative, and If the Wing Anti-Ice is OFF:
- Set ENG BLEED pb-sw (affected side) to OFF
(Engine Bleed Supply
If ENG BLEED pb-sw FAULT light (affected side) is on:
System)
- Delay application of the reset until FAULT light extinguishes.
If ENG BLEED pb-sw FAULT light (affected side) is off:
- Set X BLEED selector to AUTO
- Set PACK pb-sw (affected side) to ON
AIR - Set ENG BLEED pb-sw (affected side) to ON
- Check that the affected Engine Bleed Valve is open on the BLEED
SD PAGE.
• If AIR ENG (AFFECTED) BLEED FAULT alert or AIR ENG
(AFFECTED) BLEED ABNORM PR alert reoccur, or
If Engine Bleed Valve (affected side) is not open on the BLEED
SD PAGE:
- Set ENG BLEED pb-sw(affected side) to OFF
- Set X BLEED selector to OPEN.
Note: Record the ENG BLEED reset in the logbook (successful or
unsuccessful).
AIR ENG 1(2) Note: Do not attempt more than one reset.
- Check that the affected Engine Bleed Valve is closed on the BLEED SD PAGE.
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
AUTO FLT FCU In flight:
- Pull the C/B B05 on 49VU for FCU 1, or M21 on 121VU for FCU 2
1(2) FAULT - Push it after 5 s
(FCU) - Check the displayed targets and the barometer reference, and correct them if
necessary.
On ground:
- Pull the C/B B05 on 49VU for FCU 1, or M21 on 121VU for FCU 2
- Push it after 5 s
- If AUTO FLT FCU 1(2) FAULT disappears, check the displayed
targets and barometer reference, and correct them if necessary (RESET
successful)
- If AUTO FLT FCU 1(2) FAULT remains, pull both C/Bs B05 on
49VU and M21 on 121VU
- Push them after 7 min, with a delay of less than 5 s between side 1 and 2
- Wait at least 30 s for FCU 1 and FCU 2 safety tests completion
- CHECK the displayed targets and barometer reference, and correct them if
necessary (RESET successful).
AUTO FLT FCU In flight:
- Pull the C/B B05 on 49VU for FCU 1, and then M21 on 121VU for FCU 2
1+2 FAULT - Push them after 5 s
(FCU) - Check the displayed targets and the barometer reference, and correct them if
necessary.
On ground:
AUTO FLT - Pull the C/B B05 on 49VU for FCU 1, and then M21 on 121VU for FCU 2
- Push them after 5 s
- If AUTO FLT FCU 1+2 FAULT disappears, check the displayed
targets and barometer reference, and correct them if necessary (RESET
successful)
- If AUTO FLT FCU 1+2 FAULT remains, pull again both C/Bs B05
on 49VU and M21 on 121VU
- Push them after 7 min, with a delay of less than 5 s between side 1 and 2
- Wait for at least 30 s for FCU 1 and FCU 2 safety tests completion
- Check the displayed targets and barometer reference, and correct them if
necessary (RESET successful).
FCU targets are synchronized on current aircraft values, and displayed as selected
targets.
- Re-enter the barometer altimeter setting value, if necessary.
AUTO FLT YAW In flight:
If AP is inoperative:
DAMPER 1(2) - Set FAC 1(2) pb to OFF
FAULT - Wait 3 s
(FAC 1(2)) - Set FAC 1(2) pb to ON.
One MCDU locked, or blank On ground, or in fligth:
(MCDU) - Pull the C/B for the locked or blanck MCDU and push it back after 10 s. The
circuit breakers for the MCDU's are:
• AUTO FLT/MCDU 1 B1 ON 49VU (Overhead Panel)
• AUTO FLT/MCDU 2 N20 ON 121VU (Right Rear Maintenance Panel)
• AUTO FLT/MCDU 3 N21 ON 121VU (Right Rear Maintenance Panel) .
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
Both MCDU locked, or blank, On ground:
or FMGC malfunction - Apply external power or APU generator power
(FMGC) - Wait 2 min before resetting the FMGC circuit breakers
- FD 1(2) OFF
- Pull the C/B of the affected FMGC and reset it after 10 s. The circuit breakers for
the FMGC's are:
• AUTO FLT/FMGC 1 B2 ON 49VU (Overhead Panel)
• AUTO FLT/FMGC 2 M17 ON 121VU (Right Rear Maintenance Panel).
AUTO FLT Note: Due to electrical transient, MANUAL FMGS RESET procedure may be
unsuccessful. If so, the flight crew may attempt the same procedure with
engines not running.
In flight:
- FD 1(2) OFF
- Pull the C/B of the affected FMGC and reset it after 10 s. The circuit breakers for
the FMGC's are:
• AUTO FLT/FMGC 1 B2 ON 49VU (Overhead Panel)
• AUTO FLT/FMGC 2 M17 ON 121VU (Right Rear Maintenance Panel).
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
AUTO FLT FCU In flight:
- Pull the C/B B05 on 49VU for FCU 1, or M21 on 121VU for FCU 2
1(2) FAULT - Push it after 5 s
(FCU) - Check the displayed targets and the barometer reference, and correct them if
necessary.
On ground:
- Pull the C/B B05 on 49VU for FCU 1, or M21 on 121VU for FCU 2
- Push it after 5 s
AUTO FLT - If AUTO FLT FCU 1(2) FAULT disappears, check the displayed
targets and barometer reference, and correct them if necessary (RESET
successful)
- If AUTO FLT FCU 1(2) FAULT remains, pull both C/Bs B05 on
49VU and M21 on 121VU
- Push them after 7 min, with a delay of less than 5 s between side 1 and 2
- Wait at least 30 s for FCU 1 and FCU 2 safety tests completion
- CHECK the displayed targets and barometer reference, and correct them if
necessary (RESET successful).
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
AUTO FLT FCU In flight:
- Pull the C/B B05 on 49VU for FCU 1, and then M21 on 121VU for FCU 2
1+2 FAULT - Push them after 5 s
(FCU) - Check the displayed targets and the barometer reference, and correct them if
necessary.
On ground:
- Pull the C/B B05 on 49VU for FCU 1, and then M21 on 121VU for FCU 2
- Push them after 5 s
- If AUTO FLT FCU 1+2 FAULT disappears, check the displayed
targets and barometer reference, and correct them if necessary (RESET
successful)
- If AUTO FLT FCU 1+2 FAULT remains, pull again both C/Bs B05
on 49VU and M21 on 121VU
- Push them after 7 min, with a delay of less than 5 s between side 1 and 2
- Wait for at least 30 s for FCU 1 and FCU 2 safety tests completion
- Check the displayed targets and barometer reference, and correct them if
necessary (RESET successful).
FCU targets are synchronized on current aircraft values, and displayed as selected
targets.
- Re-enter the barometer altimeter setting value, if necessary.
AUTO FLT YAW On ground, or in flight:
In order to perform a reset, use the associated FAC pushbutton:
DAMPER 1(2) - Set FAC 1(2) pb to OFF
FAULT - Wait 3 s
(FAC 1(2)) - Set FAC 1(2) pb to ON.
One MCDU locked, or blank On ground, or in fligth:
(MCDU) - Pull the C/B for the locked or blanck MCDU and push it back after 10 s. The
circuit breakers for the MCDU's are:
AUTO FLT
• AUTO FLT/MCDU 1 B1 ON 49VU (Overhead Panel)
• AUTO FLT/MCDU 2 N20 ON 121VU (Right Rear Maintenance Panel)
• AUTO FLT/MCDU 3 N21 ON 121VU (Right Rear Maintenance Panel) .
Both MCDU locked, or blank, On ground:
or FMGC malfunction - Apply external power or APU generator power
(FMGC) - Wait 2 min before resetting the FMGC circuit breakers
- FD 1(2) OFF
- Pull the C/B of the affected FMGC and reset it after 10 s. The circuit breakers for
the FMGC's are:
• AUTO FLT/FMGC 1 B2 ON 49VU (Overhead Panel)
• AUTO FLT/FMGC 2 M17 ON 121VU (Right Rear Maintenance Panel).
In flight:
- FD 1(2) OFF
- Pull the C/B of the affected FMGC and reset it after 10 s. The circuit breakers for
the FMGC's are:
• AUTO FLT/FMGC 1 B2 ON 49VU (Overhead Panel)
• AUTO FLT/FMGC 2 M17 ON 121VU (Right Rear Maintenance Panel).
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
AUTO FLT FCU In flight:
- Pull the C/B B05 on 49VU for FCU 1, or M21 on 121VU for FCU 2
1(2) FAULT - Reset it after 5 s
(FCU) - Check the displayed targets and the barometer reference, and correct them if
necessary.
On ground:
- Pull the C/B B05 on 49VU for FCU 1, or M21 on 121VU for FCU 2
- Reset it after 5 s
- If AUTO FLT FCU 1(2) FAULT disappears, check the displayed
targets and barometer reference, and correct them if necessary (RESET
successful)
- If AUTO FLT FCU 1(2) FAULT remains, pull both C/Bs B05 on
49VU and M21 on 121VU
- Reset them after 7 min, with a delay of less than 5 s between side 1 and 2
- Wait at least 30 s for FCU 1 and FCU 2 safety tests completion
- Check the displayed targets and barometer reference, and correct them if
necessary (RESET successful).
AUTO FLT FCU In flight:
- Pull the C/B B05 on 49VU for FCU 1, and then M21 on 121VU for FCU 2
1+2 FAULT - Reset them after 5 s
(FCU) - Check the displayed targets and the barometer reference, and correct them if
necessary.
On ground:
AUTO FLT - Pull the C/B B05 on 49VU for FCU 1, and then M21 on 121VU for FCU 2
- Reset them after 5 s
- If AUTO FLT FCU 1+2 FAULT disappears, check the displayed
targets and barometer reference, and correct them if necessary (RESET
successful)
- If AUTO FLT FCU 1+2 FAULT remains, pull again both C/Bs B05
on 49VU and M21 on 121VU
- Reset them after 7 min, with a delay of less than 5 s between side 1 and 2
- Wait for at least 30 s for FCU 1 and FCU 2 safety tests completion
- Check the displayed targets and barometer reference, and correct them if
necessary (RESET successful).
FCU targets are synchronized on current aircraft values, and displayed as selected
targets:
- Re-enter the barometer altimeter setting value, if necessary.
AUTO FLT YAW In flight:
If AP is inoperative:
DAMPER 1(2) - Set FAC 1(2) pb to OFF
FAULT - Wait 3 s
(FAC 1(2)) - Set FAC 1(2) pb to ON.
One MCDU locked, or blank On ground, or in flight:
(MCDU) - Pull the C/B for the locked or blank MCDU and push it back after 10 s.
The circuit breakers for the MCDU's are:
• AUTO FLT/MCDU 1 B1 ON 49 VU (Overhead Panel)
• AUTO FLT/MCDU 2 N20 ON 121 VU (Right Rear Maintenance Panel)
• AUTO FLT/MCDU 3 N21 ON 121 VU (Right Rear Maintenance Panel) .
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
Both MCDU locked, or blank, The circuit breakers for the FMGC's are:
or FMGC malfunction • AUTO FLT/FMGC 1 B2 ON 49 VU (Overhead Panel),
(FMGC) • AUTO FLT/FMGC 2 M17 ON 121 VU (Right Rear Maintenance Panel).
In flight:
- FD 1(2) OFF
- Pull the C/B of the affected FMGC
AUTO FLT - Reset it after 10 s.
In flight:
- FD 1(2) OFF
- Pull the C/B of the affected FMGC
- Reset it after 15 min.
Note: Consider a long FMGC reset only if a short FMGC reset has no effect.
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
BRAKES SYS 1(2) On ground:
- STOP aircraft
FAULT - Set PARK BRK handle to ON
or - Confirm that towing bar is disconnected
BRAKES BSCU - Set A/SKID & N/W STRG sw to OFF
- Set A/SKID & N/W STRG sw to ON.
CH 1(2) FAULT
(BSCU) • IF UNSUCCESSFUL:
- Pull C/Bs M33 and M34 on 121VU for BSCU channel 1
- Pull C/Bs M36 and M35 on 121VU for BSCU channel 2
- Push C/Bs.
In flight:
When landing gear is up only:
- Set A/SKID & N/W STRG sw to OFF
- Set A/SKID & N/W STRG sw to ON
- If required, rearm the autobrake.
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
COM CIDS 1+2 On ground, or in flight:
- Pull the C/Bs in the following order:
FAULT G02 on 49VU, M05 on 121VU
(CIDS) - Wait 10 s, then
- Push the C/B in the following order:
M05, G02
- After CIDS reset, wait approximately 4 min, before recovering normal operation.
Uncommanded EVAC horn On ground, or in flight:
activation Press the EVAC HORN SHUT OFF pb. Set the EVAC CAPT & PURS CAPT sw to
(CIDS) the CAPT only position. Wait for 3 s.
• IF UNSUCCESSFUL:
- Pull the C/Bs in the following order: G02 on 49VU, M05 on 121VU
- Wait for 1 min, then
- Push the C/Bs in the following order: M05, G02
- After CIDS reset, wait approximately 4 min, before recovering normal
COM operation.
Frozen RMP On ground, or in flight:
(RPM) The flight crew must reset all the RMPs one after the other via the RMP control
panel:
- Set RMP ON/OFF sw to OFF position
- Wait 5 s
- Set RMP ON/OFF sw to ON position.
FAP freezing On ground, or in flight:
(FAP or Tape reproducer - Pull C/B M14 (or Q14 ) of the FAP in the 121VU
PRAM) - Wait 10 s before pushing the C/B.
• IF UNSUCCESSFUL:
- Pull the tape reproducer/PRAM C/B D01 or E01 or F07 on 2000VU (cabin)
- Wait 10 s before pushing the C/B.
Failure messages on the On ground, or in flight:
CIDS FAP in the cabin - Pull C/B A06 or B06 on 2001VU, aft cabin
(VSC) - Wait 30 s, then push the C/B.
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
COM CIDS 1+2 On ground, or in flight:
- Pull theC/Bs in the following order:
FAULT and/or Loss of P13 and P14 on 121VU
Passenger Address and/or G01 and G02 on 49VU
Loss of Cabin Interphone M05 and M06 on 121VU
(CIDS) - Wait 10 s, then
- Push the C/Bs in the following order:
M05, M06, G01, G02, P13 , P14
- After CIDS reset, wait approximately 4 min, before recovering normal operation.
Uncommanded EVAC horn On ground, or in flight:
activation Press the EVAC HORN SHUT OFF pb. Set the EVAC CAPT & PURS CAPT sw to
(CIDS) the CAPT only position. Wait for 3 s.
• IF UNSUCCESSFUL:
- Pull the C/Bs for DIR 2 in the following order: G02 on 49VU, M06 on 121VU.
• IF UNSUCCESSFUL:
- Pull the C/Bs for DIR 1 in the following order: G01 on 49VU, M05 on 121VU
COM
- Wait for 1 min, then
- Push the C/Bs for DIR 2 in the following order: M06, G02
- After CIDS reset, wait approximately 4 min, before recovering normal
operation.
Frozen RMP On ground, or in flight:
(RMP) The flight crew must reset all the RMPs one after the other via the RMP control
panel:
- Set RMP ON/OFF sw to OFF position
- Wait 5 s
- Set RMP ON/OFF sw to ON position.
FAP freezing On ground, or in flight:
(FAP) - Pull the C/Bs in the following order:
H01 on 49VU, Q14 on 121VU
- Wait 10 s, then
- Push the C/Bs in the following order:
Q14, H01.
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
COM CIDS 1+2 Confirm if spurious:
- Check PA function
FAULT and/or Loss of - Check Cabin Interphone function
Passenger Address and/or - Check Cabin Lighting function.
Loss of Cabin Interphone
(CIDS) If spurious, reset the CIDS when aircraft is self powered (APU or engine).
On ground or in flight:
- Pull the C/Bs in the following order:
P13 and P14 on 121VU
G01 and G02 on 49VU
M05 and, M06 on 121VU
- Wait 10 s, then
- Push the C/B in the following order:
M05, M06, G01, G02, P13 , P14
- After CIDS reset, wait approximately 4 min before recovering normal operation.
Uncommanded EVAC horn On ground, or in flight:
activation Press the EVAC HORN SHUT OFF pb. Set the EVAC CAPT & PURS CAPT sw to
(CIDS) the CAPT only position. Wait for 3 s.
• IF UNSUCCESSFUL:
COM
- Pull the C/Bs for DIR 2 in the following order: G02 on 49VU, M06 on 121VU.
• IF UNSUCCESSFUL:
- Pull the C/Bs for DIR 1 in the following order: G01 on 49VU, M05 on 121VU
- Wait for 1 min, then
- Push the C/Bs for DIR 2 in the following order: M06, G02
- After CIDS reset, wait approximately 4 min, before recovering normal
operation.
Frozen RMP On ground, or in flight:
(RMP) The flight crew must reset all the RMPs one after the other via the RMP control
panel:
- Set RMP ON/OFF sw to OFF position
- Wait 5 s
- Set RMP ON/OFF sw to ON position.
FAP freezing On ground, or in flight:
(FAP) - Pull the C/Bs in the following order:
H01 on 49VU, Q14 on 121VU
- Wait 10 s, then
- Push the C/Bs in the following order:
Q14, H01.
Temporary DU: 00021037.0001001
Applicable to: ALL
Note: During the reset, a small increase of the engine thrust may be observed
(N1 or EPR, as applicable). If the parking brake is set, vibrations can
occur.
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
ATSU The ATSU reset should be attempted, only if:
- "INVALID DATA" is displayed on the DCDU, or
- Key selection has no effect on the DCDU or any of the MCDU ATSU DATALINK
submenus, or
- ADS-C, CPDLC or AOC are inoperative
When the ATSU is reset, the following connections are no longer active:
- CPDLC:
• The flight crew should send a notification to the ATC center to re-establish the
DATALINK CPDLC connection
- ADS-C:
• As no ADS-C disconnect message is sent, the ATC center(s) assumes that
the ADS-C connection is still alive
• The flight crew must check that ADS-C is ARMED or ON.
On ground or in flight:
- Pull the C/Bs in the following order: L16, L15 on 121VU
- Wait 5 s, then
- Push the C/Bs in the following order: L15, L16.
Temporary DU: 00013739.0001001
Applicable to: ALL
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
ENG 1(2) FADEC On ground only:
If this alert triggers at engine start, apply the following procedure:
A(B) FAULT - Set ENG MASTER (affected) pb-sw to OFF
(FADEC) - Wait until N2 speed below 5 %
ENG
- Pull C/B A04 or A05 on 49VU for ENG 1(2) FADEC channel A
- Pull C/B R41 or Q40 on 121VU for ENG 1(2) FADEC channel B
- Wait 5 s before pushing the C/Bs
- After ECU power-up sequence, the Flight Crew can restart the engine.
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
F/CTL ELAC 1 In flight:
- Not authorized.
PITCH FAULT
(ELAC) On ground:
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
F/CTL AIL SERVO In flight:
- Not authorized.
FAULT
(ELAC) On ground:
Note: Record the ELAC 1 and ELAC 2 resets in the logbook (successful or
F/CTL unsuccessful).
Note: Record the SEC 1, SEC 2 and SEC 3 resets in the logbook (successful or
unsuccessful).
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
Loss of fuel quantity On ground, or in flight:
indication or Simultaneous - Pull the three C/Bs:
triggering of FUEL L • Channel 1 (A13 on 49VU)
• Channel 2 (M27 on 121VU)
OUTER XFR • Channel 1 and 2 (L26 on 121VU).
CLOSED and - Wait 5 s, before pushing the three C/Bs.
FUEL R OUTER Note: The fuel quantity indication will be re-established within 1 min.
XFR CLOSED
FUEL although FUEL SD indicates CAUTION The FUEL AUTO FEED FAULT caution will be
no anomaly. lost for the remainder of the flight.
(FQIC)
In flight:
- If center tank is not empty, while one inner tank contains
less than 5 000 kg (11 000 lb) of fuel:
• FUEL MODE SEL (MAN)
- When center tank is empty:
• CTR TK PUMP 1 and 2 (OFF)
• FUEL MODE SEL (MAN)
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
Loss of fuel quantity On ground, or in flight:
indication or Simultaneous - Pull the three C/Bs:
triggering of FUEL L • Channel 1 (A13 on 49VU)
• Channel 2 (M27 on 121VU)
OUTER XFR • Channel 1 and 2 (L26 on 121VU).
FUEL
CLOSED and - Wait 5 s, before pushing the three C/Bs.
FUEL R OUTER Note: 1. The fuel quantity indication will be re-established within 1 min
XFR CLOSED 2. The fuel leak detection function will be lost for the remainder of the
flight. The flight crew must monitor the fuel quantity.
although FUEL SD indicates
no anomaly.
(FQIC)
Applicable to: ALL
In flight:
Pull, then push, the C/B of the affected FWC:
- FWC 1 (F01 on 49VU)
- FWC 2 (Q7 on 121VU).
L/G LGCIU 1(2) On ground only:
The flight crew must depressurize the green hydraulic system before resetting the
FAULT LGCIU:
(LGCIU 1(2)) - ENG 1 PUMP OFF
- PTU OFF.
When there is no green hydraulic pressure:
- To reset LGCIU 1:
L/G
• Pull C/B Q34 on 121VU, then C09 on 49VU
• Wait for 15 s, then push the C/Bs.
- To reset LGCIU 2:
• Pull C/B Q35 on 121VU
• Wait for 15 s, then push the C/B.
After the LGCIU reset, restore green hydraulic pressure (ENG 1 PUMP ON, PTU
AUTO).
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
NAV GPWS On ground, or in flight:
Perform the following reset when both alerts are displayed at the same time:
FAULT and - Pull C/B P07 on 121VU
NAV GPWS TERR - Set GPWS SYS pb and GPWS TERR pb to ON
- Wait 5 s, then push the C/B.
DET FAULT
(EGPWS)
NAV TCAS FAULT On ground only:
- Pull C/B K10 on 121VU
(TCAS)
- Wait 5 s, then push the C/B.
NAV
ISIS malfunction On ground only:
(ISIS) With aircraft not moving:
- Pull C/B F12 on 49VU
- Wait 5 s, then push the C/B
- Normal operation is expected after approximately 2 min.
Note: In the case of small aircraft motion during the C/B reset (refueling, cargo
loading conditions, etc.), the ATT red flag may appear on the ISIS. In this
case, press the RST P/B for 2 s, and wait 2 min to recover normal
operation.
Applicable to: ALL
Note: In the case of small aircraft motion during the C/B reset (refueling, cargo
loading conditions, etc.), the ATT red flag may appear on the ISIS. In this
case, press the RST P/B for 2 s, and wait 2 min to recover normal
operation.
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
NAV TCAS FAULT On ground only:
(TCAS) - Pull C/B K7 on 121VU
- Wait 5 s, then push the C/B.
ISIS malfunction On ground only:
(ISIS) With aircraft not moving:
- Pull C/B F12 on 49VU
NAV - Wait 5 s, then push the C/B
- Normal operation is expected after approximately 2 min.
Note: In the case of small aircraft motion during the C/B reset (refueling, cargo
loading conditions, etc.), the ATT red flag may appear on the ISIS. In this
case, press the RST P/B for 2 s, and wait 2 min to recover normal
operation.
Applicable to: ALL
System malfunction or
ECAM System ECAM Alert Reset Procedure
(Affected System)
SMOKE DET On ground only:
- Pull C/B C06 on 49VU, and C/B T18 on 122VU
SMOKE FAULT - Wait 10 s before pushing both C/Bs.
(SDCU)
Applicable to: ALL
WHEEL Case B
In all other cases, including in case of doubt on the above conditions,
troubleshooting must be performed before continuing the flight, even if the ECAM
alert disappears after the reset. For a return to the gate :
- Apply the below reset procedure
- The taxi speed must not exceed 10 kt.
Reset Procedure:
- STOP aircraft
- Set PARK BRK handle to ON
- Confirm that towing bar is disconnected
- Set A/SKID & N/W STRG sw to OFF
- Set A/SKID & N/W STRG sw to ON.
● At ANY TIME of the procedure, if CAB PR EXCESS CAB ALT alert triggers:
APPLY ECAM PROC
■ If AIR ENG 1 BLEED FAULT alert or AIR ENG 1 BLEED ABNORM PR alert
and
If AIR ENG 2 BLEED FAULT alert or AIR ENG 2 BLEED ABNORM PR alert:
X BLEED ......................................................................................................SHUT
ENG 1 BLEED ............................................................................... OFF THEN ON
ENG 2 BLEED ............................................................................... OFF THEN ON
● If reset unsuccessful (NO engine bleed recovered):
DESCENT TO FL 100 / MEA-MORA .................................................INITIATE
ENG 1 BLEED........................................................................................... OFF
ENG 2 BLEED........................................................................................... OFF
APU BLEED .............................................................................................. OFF
APU .......................................................................................................START
WING A.ICE .............................................................................................. OFF
AVOID ICING CONDITIONS
■ If APU available:
● When at or below FL 200:
KEEP WING A.ICE OFF
APU BLEED ...................................................................................... ON
■ If APU bleed available:
MAX FL: 200
ENG 1 BLEED ............................................................................. ON
ENG 2 BLEED ............................................................................. ON
APU BLEED............................................................................... OFF
● If no engine bleed recovered:
APU BLEED............................................................................ ON
ENG 1 BLEED ...................................................................... OFF
ENG 2 BLEED ...................................................................... OFF
WING A.ICE NOT AVAILABLE
● If PACK 1 inoperative:
X BLEED ...................................................................... OPEN
■ If APU bleed not available:
CONTINUE DESCENT TO FL 100 / MEA-MORA
APU BLEED............................................................................... OFF
● When at or below FL 100 / MEA-MORA:
ENG 1 BLEED ........................................................................ ON
● At ANY TIME of the procedure, if CAB PR EXCESS CAB ALT alert triggers:
APPLY ECAM PROC
CONTINUE DESCENT TO FL 100 / MEA-MORA
KEEP WING A.ICE OFF
AVOID ICING CONDITIONS
RCL pb............................................................................................................PRESS
This action enables to recover the subtitle (if any) associated with the AIR ENG 1+2 BLEED FAULT
alert.
■ If no subtitle with AIR ENG 1+2 BLEED FAULT alert
and
If both engine bleeds lost NOT due to engine fire NOR Start Air Valve failed
open:
APU............................................................................................................ START
■ If APU available:
● When at or below FL 200:
KEEP WING A.ICE OFF
APU BLEED ...........................................................................................ON
● If PACK 1 available:
PACK 2............................................................................................OFF
■ If APU bleed available:
MAX FL: 200
PACK 1..............................................................................................ON
PACK 2..............................................................................................ON
ENG 1 BLEED...................................................................................ON
ENG 2 BLEED...................................................................................ON
APU BLEED ....................................................................................OFF
● If no engine bleed recovered:
APU BLEED .................................................................................ON
● If PACK 1 available:
PACK 2 .................................................................................OFF
ENG 1 BLEED............................................................................OFF
ASYMMETRIC BRAKING
Applicable to: ALL
Apply this procedure when all brakes of one gear are released.
RESIDUAL BRAKING
Applicable to: ALL
● In flight:
BRAKE PEDALS ..........................................................PRESS SEVERAL TIMES
● If residual pressure remains:
A/SKID & N/W STRG sel.................................................................. KEEP ON
● For landing:
AUTO/BRK.......................................................................................... MED
● If autobrake not available:
APPLY BRAKING JUST AFTER TOUCHDOWN
POSSIBLE BRAKING ASYMMETRY
Note: If tire damage is suspected after landing, refer to FCOM-LIM-LG Landing Gear-Taxi with
Deflated or damaged Tires.
CABIN OVERPRESSURE
Applicable to: ALL
■ If DU flashes:
■ If captain PFD, ND, ECAM DUs or MCDU 1 affected:
GEN 1........................................................................................................ OFF
■ If DUs flash continues:
GEN 1..................................................................................................... ON
■ If DUs flash stops:
KEEP GEN 1 OFF
RUD TRIM..........................................................................CHECK/RESET
Use the sideslip indication to reset the rudder trim if necessary.
APU START ............................................................................. CONSIDER
■ If first officer PFD, ND, lower ECAM or MCDU 2 affected:
GEN 2........................................................................................................ OFF
■ If DUs flash continues:
GEN 2..................................................................................................... ON
■ If DUs flash stops:
KEEP GEN 2 OFF
RUD TRIM..........................................................................CHECK/RESET
Use the sideslip indication to reset the rudder trim if necessary.
APU START ............................................................................. CONSIDER
■ If DU blank (with or without large amber “F”), or distorted, or brightness
reduced to minimum:
DU brightness knob (affected DU)................................................. OFF THEN ON
Display recovers after 10 s.
● If unsuccessful:
DU brightness knob (affected DU).................................................... AS RQRD
CONSIDER ECAM/ND XFR
CONSIDER PFD/ND XFR
■ If INVALID DISPLAY UNIT message displayed:
WAIT AT LEAST 40 s FOR AUTOMATIC DU RECOVERY
● If DU not recovered:
DU brightness knob (affected DU).................................................... AS RQRD
■ If INVALID DATA message displayed (not on all DUs):
CONSIDER EIS DMC SWITCHING
● If unsuccessful:
DU brightness knob (affected DU)............................................ OFF THEN ON
Note: Reduce ND range, or deselect WPT or CSTR, and the ND display may automatically
recover, after about 30 s.
■ If DU flashes:
■ If captain PFD, ND, ECAM DUs or MCDU 1 affected:
GEN 1 ........................................................................................................OFF
■ If DUs flash continues:
GEN 1.....................................................................................................ON
■ If DUs flash stops:
KEEP GEN 1 OFF
RUD TRIM ..........................................................................CHECK/RESET
Use the sideslip indication to reset the rudder trim if necessary.
APU START ............................................................................. CONSIDER
■ If first officer PFD, ND, lower ECAM or MCDU 2 affected:
GEN 2 ........................................................................................................OFF
■ If DUs flash continues:
GEN 2.....................................................................................................ON
■ If DUs flash stops:
KEEP GEN 2 OFF
RUD TRIM ..........................................................................CHECK/RESET
Use the sideslip indication to reset the rudder trim if necessary.
APU START ............................................................................. CONSIDER
■ If DU flashes:
■ If captain PFD, ND, Upper ECAM or MCDU 1 affected:
GEN 1 ........................................................................................................OFF
■ If DUs flash continues:
GEN 1.....................................................................................................ON
■ If DUs flash stops:
KEEP GEN 1 OFF
RUD TRIM ..........................................................................CHECK/RESET
Use the sideslip indication to reset the rudder trim if necessary.
APU START ............................................................................. CONSIDER
■ If first officer PFD, ND, lower ECAM or MCDU 2 affected:
GEN 2 ........................................................................................................OFF
■ If DUs flash continues:
GEN 2.....................................................................................................ON
■ If DUs flash stops:
KEEP GEN 2 OFF
RUD TRIM ..........................................................................CHECK/RESET
Use the sideslip indication to reset the rudder trim if necessary.
APU START ............................................................................. CONSIDER
■ If DU blank or display distorted:
DU brightness knob (affected DU) .........................................................AS RQRD
CONSIDER ECAM/ND XFR
CONSIDER PFD/ND XFR
■ If diagonal line on affected DU:
CONSIDER EIS DMC SWITCHING
● If unsuccessful:
DU brightness knob (affected DU)............................................OFF THEN ON
Note: Reduce ND range, or deselect WPT or CSTR, and the ND display may automatically
recover, after about 30 s.
CRUISE
Applicable to: ALL
APPROACH
Applicable to: ALL
CAT 2 INOP
MINIMUM RAT SPEED 140 KT
SLATS / FLAPS SLOW
FOR LANDING : USE FLAP 3
● At 1000 FT AGL:
L/G................................................................................................................................................ DOWN
● When L/G down: BATTERIES ONLY
USE MAN PITCH TRIM (DIRECT LAW)
CAT 2 INOP
MINIMUM RAT SPEED 140 KT
SLATS / FLAPS SLOW
FOR LANDING : USE FLAP 3
● When L/G down: USE MAN PITCH TRIM (DIRECT LAW)
LANDING
Applicable to: ALL
GO-AROUND
Applicable to: ALL
GO-AROUND
Applicable to: ALL
BAT ONLY
ELEC EMER CONFIG SYS REMAINING EMER GEN RUNNING
IN FLIGHT ON THE GROUND
WING A.ICE Norm Inop Inop
ENG A. ICE VALVE Open Open Open
ICE - RAIN CAPT PITOT Norm Norm Norm(1)
CAPT AOA Norm Inop Inop
RAIN REPELLENT (CAPT) Norm Norm Norm
(1) Lost, when speed is below 50 kt.
BAT ONLY
ELEC EMER CONFIG SYS REMAINING EMER GEN RUNNING
IN FLIGHT ON THE GROUND
PRESS AUTO SYS 1 Norm Norm Norm
MAN PRESS CTL Inop Inop Inop(1)
AIR COND RAM AIR Norm Norm Norm
PRESS PACK VALVE 1 Norm Closure Inop Closure Inop
PACK VALVE 2 Closure Inop Closure Inop Closure Inop(1)
AVIONIC VENT Norm Norm Partial
(1) Restored, when speed is below 100 kt.
BAT ONLY
ELEC EMER CONFIG SYS REMAINING EMER GEN RUNNING
IN FLIGHT ON THE GROUND
VHF 1 Norm Norm Norm
HF1 Norm Inop Inop
RMP 1 Norm Norm Norm
ACP (Capt, F/O) Norm Norm Norm
COM
CIDS Norm Norm Norm
INTERPHONE Norm Norm Norm
CVR Norm Inop Inop
LOUDSPEAKER 1 Norm Norm Norm
Applicable to: ALL
BAT ONLY
ELEC EMER CONFIG SYS REMAINING EMER GEN RUNNING
IN FLIGHT ON THE GROUND
ELAC N° 1 only N° 1+ N° 2 N°1+ N°2(2)
SEC N° 1 only N° 1 N° 1(2)
FLT CTL FCDC N° 1 only Inop Inop
SFCC N° 1 only N° 1 only N° 1 only
Flaps POS ind Norm Norm Norm(1)
(1) Lost, when speed is below 50 kt.
(2) Lost 30 s after last engine shutdown.
BAT ONLY
ELEC EMER CONFIG SYS REMAINING EMER GEN RUNNING
IN FLIGHT ON THE GROUND
LGCIU SYS 1 Norm Norm Norm
ABCU Norm Norm Norm
L/G
BRK PRESS IND Norm Norm Norm
PARK BRK Norm Norm Norm
Applicable to: ALL
BAT ONLY
ELEC EMER CONFIG SYS REMAINING EMER GEN RUNNING
IN FLIGHT ON THE GROUND
IR N° 1 only(2) N° 1 only(2) N° 1 only(2)
ADR N° 1 only N° 1 only N° 1 only
ADF N° 1 only Inop Inop
VOR N° 1 only N° 1 only N° 1 only(1)
NAV
MMR N° 1 only N° 1 only N° 1 only(1)
DME N° 1 only Inop Inop
ATC N° 1 only Inop Inop
ISIS Norm Norm Norm
(1) Lost, when speed is below 50 kt.
(2) IR2 and IR3 are lost 5 min after failure of the main generators. But, if IR3 replaces IR1 (ATT-HDG selector at CAPT3),
IR3 remains supplied
C/B TRIPPED
Applicable to: ALL
■ On ground:
Do not reengage the circuit breaker (C/B) of the fuel pump(s) of any tank. For all other C/B, if the flight
crew coordinates the action with maintenance, the flight crew may reengage a tripped C/B, provided that
the cause is identified.
■ In flight:
Do not reengage a circuit breaker (C/B), unless the captain judges it necessary to do so for the safe
continuation of the flight. Only one reengagement should be attempted.
LAND ASAP
EMER ELEC PWR MAN ON pb ..................................................................... PRESS
OPTIMUM RELIGHT SPEED ....................................................................... 300/0.77
Applicable to: ALL
LAND ASAP
EMER ELEC PWR MAN ON pb ..................................................................... PRESS
OPTIMUM RELIGHT SPEED ....................................................................... 270/0.77
Applicable to: ALL
DIVERSION ..................................................................................................INITIATE
VHF1/HF1 /ATC1 .......................................................................................... USE
ATC................................................................................................................ NOTIFY
CABIN CREW................................................................................................ NOTIFY
SIGNS.................................................................................................................... ON
● If ditching anticipated:
Apply QRH 19.5
● If forced landing anticipated:
Apply QRH 19.6
● If ditching anticipated:
MIN RAT SPEED : 140 KT
GPWS SYS .................................................................................................... OFF
GPWS TERR.................................................................................................. OFF
● At appropriate altitude (above 3 000 ft AGL), configure aircraft for
ditching:
FOR LANDING : USE FLAP 2
KEEP LANDING GEAR UP
VAPP........................................................................................... DETERMINE
● At 2 000 ft AGL:
CABIN CREW........................................................... NOTIFY FOR DITCHING
DITCHING pb ..............................................................................................ON
Ditch the aircraft parallel to the swell. If that causes a strong crosswind, ditch the aircraft into the
wind.
● At 500 ft AGL:
BRACE FOR IMPACT ......................................................................... ORDER
TOUCH DOWN AT MIN V/S
TARGET PITCH ATT 11 °
● At touchdown:
ALL ENG MASTERS .................................................................................OFF
APU MASTER SW.....................................................................................OFF
● After ditching:
ATC (VHF 1) ........................................................................................NOTIFY
ALL FIRE pb (ENGs & APU) .................................................................. PUSH
ALL AGENT (ENGs & APU) .................................................................. DISCH
EVACUATION ................................................................................... INITIATE
● If forced landing anticipated:
DESCENT SLOPE (CONF 2, L/G DOWN) : 1.6 NM / 1000 FT (600 FT/NM)
MIN RAT SPEED: 140 KT
GPWS SYS.....................................................................................................OFF
GPWS TERR ..................................................................................................OFF
● At appropriate altitude (above 3 000 ft AGL), configure aircraft for
landing:
FOR LANDING : USE FLAP 2
Only slats extend, and slowly.
VAPP ........................................................................................... DETERMINE
Gross Weight
40 50 60 70 80 90 95
(1000 kg)
VAPP (kt) 150 150 163 173 183 193 198
LAND ASAP
EMER ELEC PWR MAN ON pb......................................................................PRESS
THR LEVERS...................................................................................................... IDLE
FAC 1 ..................................................................................................OFF THEN ON
ENG MODE sel .....................................................................................................IGN
OPTIMUM RELIGHT SPD ...............................................................................300 KT
PITCH TARGET In case of speed indication failure:
Gross Weight Pitch (°)
At or below 50 000 kg/110 000 lb -4.5
60 000 kg/132 000 lb -3.5
70 000 kg/154 000 lb -2.5
AVERAGE GLIDING DISTANCE: 2 NM / 1000 FT (300kt NO WIND)
● If unsuccessful:
CREW OXY MASKS (above FL 100) ...............................................................ON
● When below FL 250:
APU (IF AVAIL)..................................................................................... START
● When below FL 200:
WING ANTI ICE.........................................................................................OFF
APU BLEED.................................................................................................ON
ENG MASTERS (one at a time) ............................................... OFF 30 S / ON
Between each attempt to relight the same engine, wait at least 30 s with the associated ENG
MASTER lever set to OFF.
Applicable to: ALL
LAND ASAP
EMER ELEC PWR MAN ON pb......................................................................PRESS
THR LEVERS...................................................................................................... IDLE
FAC 1 ..................................................................................................OFF THEN ON
ENG MODE sel .....................................................................................................IGN
OPTIMUM RELIGHT SPD ...............................................................................280 KT
Note: In the case of an ″ENG DUAL FAILURE″ during high power operations (i.e. climb, cruise), it
is mandatory to fly at or above the optimum relight speed in order to prevent engine core lock.
● For approach:
FOR LANDING : USE FLAP 3
SLATS AVAIL ONLY
● For approach:
FOR LANDING : USE FLAP 3
Continued on the next page
● If ditching anticipated:
● For approach:
FOR LANDING : USE FLAP 3
SLATS AVAIL ONLY
● At 2 000 ft AGL:
CABIN CREW .......................................................... NOTIFY FOR DITCHING
DITCHING pb .............................................................................................. ON
● At 500 ft AGL:
BRACE FOR IMPACT......................................................................... ORDER
● At touchdown:
ENG MASTERS ........................................................................................ OFF
APU MASTER SW .................................................................................... OFF
● After ditching:
ATC (VHF 1)........................................................................................ NOTIFY
FIRE pb (ENGs & APU).......................................................................... PUSH
AGENT (ENGs & APU) ......................................................................... DISCH
EVACUATION ....................................................................................INITIATE
ELT ..............................................................................CHECK EMITTING
If not, switch on the transmitter.
Applicable to: ALL
● If ditching anticipated:
● For approach:
FOR LANDING : USE FLAP 3
SLATS AVAIL ONLY
● At 2 000 ft AGL:
CABIN CREW........................................................... NOTIFY FOR DITCHING
DITCHING pb ..............................................................................................ON
● At 500 ft AGL:
BRACE FOR IMPACT ......................................................................... ORDER
● At touchdown:
ENG MASTERS.........................................................................................OFF
APU MASTER SW.....................................................................................OFF
● After ditching:
ATC (VHF 1) ........................................................................................NOTIFY
FIRE pb (ENGs & APU).......................................................................... PUSH
AGENT (ENGs & APU).......................................................................... DISCH
EVACUATION ................................................................................... INITIATE
ELT ............................................................................. CHECK EMITTING
If not, switch on the transmitter.
● For approach:
FOR LANDING : USE FLAP 3
SLATS AVAIL ONLY
● For approach:
FOR LANDING : USE FLAP 3
SLATS AVAIL ONLY
● If ditching anticipated:
● For approach:
FOR LANDING : USE FLAP 3
SLATS AVAIL ONLY
MIN APPR SPEED : 150 kt
VAPP ........................................................................................... DETERMINE
Gross Weight (1 000 kg) 40 44 48 52 56 60 64 68 72 76 78
Vapp 150 150 150 150 150 155 159 163 167 171 173
● At 2 000 ft AGL:
CABIN CREW .......................................................... NOTIFY FOR DITCHING
DITCHING pb .............................................................................................. ON
● At 500 ft AGL:
BRACE FOR IMPACT......................................................................... ORDER
● At touchdown:
ENG MASTERS ........................................................................................ OFF
● After ditching:
ATC (VHF 1)........................................................................................ NOTIFY
EVACUATION ....................................................................................INITIATE
ELT ..............................................................................CHECK EMITTING
If not, switch on the transmitter
Applicable to: ALL
● If ditching anticipated:
● For approach:
FOR LANDING : USE FLAP 3
SLATS AVAIL ONLY
MIN APPR SPEED : 150 kt
VAPP........................................................................................... DETERMINE
Gross Weight (1 000 kg) 40 44 48 52 56 60 64 68 72 76 78
Vapp 150 150 150 150 150 154 159 163 167 171 172
● At 2 000 ft AGL:
CABIN CREW .......................................................... NOTIFY FOR DITCHING
DITCHING pb .............................................................................................. ON
● At 500 ft AGL:
BRACE FOR IMPACT......................................................................... ORDER
● At touchdown:
ENG MASTERS ........................................................................................ OFF
ENG RELIGHT
IN FLIGHT
Applicable to: ALL
ENG RELIGHT
IN FLIGHT (CONT'D)
■ When idle reached (ENG AVAIL):
ENG MODE sel .......................................................................................... NORM
TCAS MODE sel..........................................................................................TA/RA
X BLEED ..................................................................................................... AUTO
Affected SYS ........................................................................................ RESTORE
■ If no relight
ENG MASTER (affected engine).................................................................... OFF
ENG RELIGHT
IN FLIGHT
Applicable to: ALL
FL 300
250
200
150
100 1 3
50
2
0
80 100 150 200 250 300 350
IAS (kt)
STARTER ASSISTED STABILIZED
RELIGHT WINDMILL QUICK RELIGHT
1 Above FL200 N2<15% 2 if N2 > 12% 3 WINDMILL
Below FL200 N2<12% RELIGHT
ENG RELIGHT
IN FLIGHT (CONT'D)
ENG PARAMETERS (N2, EGT) ................................................................ MONITOR
Engine light up should be achieved within 30 s after fuel flow increases.
AUTOMATIC START ABORT NOT AVAIL
● If ENG 1(2) START FAULT or ENG 1(2) STALL triggers, and ENG parameters
normal:
DISREGARD ECAM ALERT
■ When idle reached:
ENG MODE sel........................................................................................... NORM
TCAS MODE sel ..........................................................................................TA/RA
X BLEED...................................................................................................... AUTO
Affected SYS.........................................................................................RESTORE
■ If no relight :
ENG MASTER (affected engine) ....................................................................OFF
ENG RELIGHT
IN FLIGHT
Applicable to: ALL
FL 300
250
200
150
100
1 3
50
2
0
80 100 150 200 250 300 350
IAS (kt)
STARTER STABILIZED
ASSISTED WINDMILL QUICK RELIGHT
1 RELIGHT 2 if N2 > 18%
3 WINDMILL
N2 < 18% RELIGHT
ENG RELIGHT
IN FLIGHT
Applicable to: ALL
FL 250
200
150
1 3
100
50 2
0
100 150 200 250 300 350
IAS (kt)
STARTER ASSISTED RELIGHT WINDMILL STABILIZED
QUICK
1 Above FL200 N2<15% (Engine Bleed) 2 RELIGHT 3 WINDMILL
Below FL200 N2<12% (APU or Engine Bleed) RELIGHT
if N2 > 12%
ENG RELIGHT
IN FLIGHT (CONT'D)
■ If no relight :
ENG MASTER (affected engine).................................................................... OFF
ENG RELIGHT
IN FLIGHT
Applicable to: ALL
FL 300
250
200
150
100 1 3
50
2
0
80 100 150 200 250 300 350
IAS (kt)
STARTER ASSISTED STABILIZED
RELIGHT WINDMILL QUICK RELIGHT
1 Above FL200 N2<15% 2 if N2 > 12% 3 WINDMILL
Below FL200 N2<12% RELIGHT
ENG RELIGHT
IN FLIGHT (CONT'D)
● If ENG 1(2) START FAULT - ENG STALL triggers, and ENG parameters
normal:
DISREGARD ECAM ALERT
■ When idle reached (ENG AVAIL) :
ENG MODE sel........................................................................................... NORM
TCAS MODE sel ..........................................................................................TA/RA
X BLEED...................................................................................................... AUTO
Affected SYS.........................................................................................RESTORE
■ If no relight :
ENG MASTER (affected engine) ....................................................................OFF
ENG RELIGHT
IN FLIGHT
Applicable to: ALL
FL 250
200
150
1 3
100
50 2
0
100 150 200 250 300 350
IAS (kt)
STARTER ASSISTED RELIGHT WINDMILL STABILIZED
QUICK
1 Above FL200 N2<15% (Engine Bleed) 2 RELIGHT 3 WINDMILL
Below FL200 N2<12% (APU or Engine Bleed) RELIGHT
if N2 > 12%
ENG RELIGHT
IN FLIGHT (CONT'D)
THR LEVER (affected engine)............................................................................ IDLE
ENG MODE sel..................................................................................................... IGN
X BLEED........................................................................................................... OPEN
WING ANTI-ICE (for starter assist)...................................................................... OFF
ENG MASTER (affected engine) ........................................................................... ON
ENG PARAMETERS (N2, EGT)................................................................ MONITOR
Engine light up should be achieved within 30 s after fuel flow increases.
AUTOMATIC START ABORT NOT AVAIL
ENGINE STALL
Applicable to: ALL
■ On Ground:
THR LEVER (affected engine)....................................................................... IDLE
ENG MASTER (affected engine).................................................................... OFF
■ In Flight:
THR LEVER (affected engine)....................................................................... IDLE
ENG PARAMETERS (affected engine) .....................................................CHECK
■ If abnormal ENG parameters:
ENG MASTER (affected engine)............................................................... OFF
ASSOCIATED PROCEDURES
ENGINE STALL
Applicable to: ALL
ASSOCIATED PROCEDURES
ASSOCIATED PROCEDURES
ENGINE STALL
Applicable to: ALL
■ On ground :
THR LEVER (affected engine)....................................................................... IDLE
ENG MASTER (affected engine).................................................................... OFF
■ In flight :
THR LEVER (affected engine)....................................................................... IDLE
ENG PARAMETERS (affected engine) .....................................................CHECK
■ If abnormal ENG parameters:
ENG MASTER (affected engine)............................................................... OFF
ASSOCIATED PROCEDURES
ENGINE STALL
Applicable to: ALL
■ On Ground:
THR LEVER (affected engine)....................................................................... IDLE
ENG MASTER (affected engine) ....................................................................OFF
■ In Flight:
THR LEVER (affected engine)....................................................................... IDLE
ENG PARAMETERS (affected engine) .....................................................CHECK
■ If abnormal ENG parameters:
ENG MASTER (affected engine) ...............................................................OFF
ASSOCIATED PROCEDURES
CAUTION External fire agents can cause severe corrosive damage. Consider the
use of external fire agents only if the following procedure does not stop
engine tailpipe fire.
ENG PARAMETERS.......................................................................................CHECK
■ If icing suspected:
A/THR .............................................................................................................OFF
THRUST (one engine at a time) .................... IDLE THEN INCREASE N1 > 70 %
Reduce thrust to idle if flight conditions permit.
If ENG ANTI ICE is OFF, switch it ON at idle fan speed, one engine after the other with approximately
30 s interval.
To shed ice, it may be necessary to perform several thrust variations between idle and a thrust
compatible with the flight phase.
MAXIMUM WEIGHT FOR CIRCLING IN CONF 3 WITH GEAR DOWN (1000 KG)
OAT AIRPORT ELEVATION (feet)
(°C) 0 2 000 4 000 6 000 8 000 10 000 12 000 14 000
0 80.0 80.0 80.0 78.0 76.0 73.0 70.0 63.0
5 80.0 80.0 80.0 78.0 76.0 73.0 67.0 60.0
10 80.0 80.0 80.0 78.0 75.0 69.0 64.0 56.0
15 80.0 80.0 80.0 76.0 71.0 65.0 60.0 53.0
20 80.0 80.0 78.0 72.0 67.0 62.0 57.0 51.0
25 80.0 80.0 74.0 69.0 64.0 59.0 54.0 48.0
30 80.0 76.0 70.0 65.0 60.0 56.0 51.0
35 77.0 72.0 67.0 62.0 58.0 53.0
40 73.0 69.0 64.0 59.0
45 69.0 65.0 61.0
50 66.0 62.0
55 63.0
● If aircraft weight above maximum weight for circling in CONF 3 with gear
down:
DELAY GEAR EXTENSION TO MAINTAIN LEVEL FLIGHT
FOR LANDING: USE FLAP 3
GPWS LDG FLAP 3 ......................................................................................... ON
Note: - If circling below 750 ft RA, the “L/G GEAR NOT DOWN” alert will trigger.
The pilot can cancel the aural warning by pressing the EMER CANC pb.
- If the landing gear is not downlocked at 500 ft RA, GPWS ”TOO LOW GEAR” aural alert will
trigger.
MAXIMUM WEIGHT FOR CIRCLING IN CONF 3 WITH GEAR DOWN (1000 KG)
OAT AIRPORT ELEVATION (feet)
(°C) 0 2 000 4 000 6 000 8 000 10 000 12 000 14 000
0 77.0 74.0 66.0 64.0 54.0 51.0 48.0 41.0
5 77.0 74.0 66.0 64.0 54.0 51.0 48.0 41.0
10 77.0 74.0 66.0 64.0 54.0 51.0 48.0 41.0
15 77.0 74.0 66.0 64.0 54.0 51.0 48.0 41.0
20 77.0 74.0 66.0 64.0 54.0 51.0 48.0 41.0
25 77.0 73.0 66.0 64.0 54.0 51.0 48.0 41.0
30 75.0 71.0 66.0 61.0 54.0 51.0 43.0
35 73.0 68.0 63.0 58.0 54.0 49.0
40 71.0 66.0 61.0 56.0
45 68.0 63.0 59.0
50 66.0 61.0
55 63.0
● If aircraft weight above maximum weight for circling in CONF 3 with gear
down:
DELAY GEAR EXTENSION TO MAINTAIN LEVEL FLIGHT
FOR LANDING: USE FLAP 3
GPWS LDG FLAP 3..........................................................................................ON
Note: - If circling below 750 ft RA, the “L/G GEAR NOT DOWN” alert will trigger.
The pilot can cancel the aural warning by pressing the EMER CANC pb.
- If the landing gear is not downlocked at 500 ft RA, GPWS ”TOO LOW GEAR” aural alert will
trigger.
MAXIMUM WEIGHT FOR CIRCLING IN CONF 3 WITH GEAR DOWN (1000 KG)
OAT AIRPORT ELEVATION (feet)
(°C) 0 2 000 4 000 6 000 8 000 10 000 12 000 14 000
0 70.0 69.0 68.0 67.0 65.0 64.0 62.0 57.0
5 70.0 69.0 68.0 67.0 65.0 64.0 60.0 55.0
10 70.0 69.0 68.0 67.0 65.0 61.0 57.0 52.0
15 70.0 69.0 68.0 66.0 63.0 59.0 54.0 50.0
20 70.0 69.0 66.0 64.0 61.0 56.0 52.0 48.0
25 70.0 67.0 64.0 62.0 58.0 54.0 50.0 46.0
30 67.0 65.0 63.0 60.0 56.0 51.0 47.0
35 65.0 62.0 60.0 57.0 53.0 49.0
40 62.0 60.0 58.0 54.0
45 59.0 57.0 55.0
50 56.0 54.0
55 53.0
● If aircraft weight above maximum weight for circling in CONF 3 with gear
down:
DELAY GEAR EXTENSION TO MAINTAIN LEVEL FLIGHT
FOR LANDING: USE FLAP 3
GPWS LDG FLAP 3 ......................................................................................... ON
Note: - If circling below 750 ft RA, the “L/G GEAR NOT DOWN” alert will trigger.
The pilot can cancel the aural warning by pressing the EMER CANC pb.
- If the landing gear is not downlocked at 500 ft RA, GPWS ”TOO LOW GEAR” aural alert will
trigger.
MAXIMUM WEIGHT FOR CIRCLING IN CONF 3 WITH GEAR DOWN (1000 KG)
OAT AIRPORT ELEVATION (feet)
(°C) 0 2 000 4 000 6 000 8 000 10 000 12 000 14 000
0 75.5 73.0 70.5 68.0 65.0 63.0 60.5 56.0
5 75.5 73.0 70.5 68.0 65.0 63.0 58.5 54.0
10 75.5 73.0 70.5 68.0 64.5 60.5 56.0 51.5
15 75.5 73.0 70.5 67.0 62.5 58.0 53.5 49.0
20 75.5 73.0 69.0 64.5 60.0 55.0 51.0 46.5
25 75.0 71.5 67.0 62.0 57.0 53.0 48.5 44.0
30 73.5 69.5 64.5 59.5 55.0 50.5 46.0
35 72.0 67.0 62.0 57.0 52.5 48.5
40 69.5 64.5 59.5 55.0
45 67.0 62.0 57.5
50 64.5 59.5
55 61.5
● If aircraft weight above maximum weight for circling in CONF 3 with gear
down:
DELAY GEAR EXTENSION TO MAINTAIN LEVEL FLIGHT
FOR LANDING: USE FLAP 3
GPWS LDG FLAP 3..........................................................................................ON
Note: - If circling below 750 ft RA, the “L/G GEAR NOT DOWN” alert will trigger.
The pilot can cancel the aural warning by pressing the EMER CANC pb.
- If the landing gear is not downlocked at 500 ft RA, GPWS ”TOO LOW GEAR” aural alert will
trigger.
■ If SLATS FAULT:
● For circuit:
MAINTAIN SLATS/FLAPS CONFIGURATION
Recommended speed: MAX SPEED - 10 kt
● For diversion:
SELECT CLEAN CONFIGURATION
Recommended speed for flaps retraction: between MAX SPEED - 10 kt
and MAX SPEED
Recommended speed for diversion: MAX SPEED - 10 kt.
INCREASED FUEL CONSUMPTION
■ If FLAPS FAULT:
● For circuit:
MAINTAIN SLATS/FLAPS CONFIGURATION
Recommended speed: MAX SPEED - 10 kt
● For diversion:
■ If FLAPS jammed at 0:
SELECT CLEAN CONFIGURATION
RUDDER JAM
Applicable to: ALL
● For approach:
AVOID LANDING WITH CROSSWIND FROM THE SIDE WHERE THE
RUDDER IS DEFLECTED
MAX XWIND FOR LDG: 15 kt
AUTO BRK.......................................................................................DO NOT USE
FOR LANDING ................................................................... USE NORMAL CONF
SPEED AND TRAJECTORY .....................................................STABILIZE ASAP
LDG DIST PROC ........................................................................................APPLY
● For landing:
DIFFERENTIAL BRAKING .................................................................. USE ASAP
REVERSER: SYMMETRIC USE ONLY
Use nosewheel steering handle below 70 kt.
STABILIZER JAM
Applicable to: ALL
AP ........................................................................................................................ OFF
MAN PITCH TRIM ..........................................................................................CHECK
The pitch trim wheel may not be fully jammed, the force needed may be higher than usual.
● If MAN PITCH TRIM available:
TRIM FOR NEUTRAL ELEV
● If MAN PITCH TRIM not available:
FOR LANDING: USE FLAP 3
GPWS LDG FLAP 3 ......................................................................................... ON
CAT 1 ONLY
FUEL IMBALANCE
Applicable to: ALL
FOB ................................................................................................................CHECK
FUEL X FEED........................................................................................................ ON
● On lighter side and in center tank:
FUEL PUMPS................................................................................................. OFF
● When fuel balanced:
FUEL PUMPS................................................................................................... ON
FUEL X FEED................................................................................................. OFF
FUEL IMBALANCE
Applicable to: ALL
FOB ................................................................................................................CHECK
FUEL X FEED........................................................................................................ ON
CTR TK L XFR..................................................................................................... OFF
CTR TK R XFR .................................................................................................... OFF
● On lighter side:
FUEL PUMPS................................................................................................. OFF
● When fuel balanced:
FUEL PUMPS................................................................................................... ON
CTR TK L XFR ................................................................................................. ON
CTR TK R XFR................................................................................................. ON
FUEL X FEED................................................................................................. OFF
FUEL LEAK
Applicable to: ALL
LAND ASAP
■ Leak from engine/pylon confirmed by excessive fuel flow or visual check:
THR LEVER (affected engine)....................................................................... IDLE
ENG MASTER (affected engine) ....................................................................OFF
FUEL X FEED........................................................................................AS RQRD
DO NOT RESTART AFFECTED ENGINE
■ Leak from engine/pylon not confirmed or leak not located:
FUEL X FEED....................................................................... MAINTAIN CLOSED
CTR TK PUMP 1.............................................................................................OFF
CTR TK PUMP 2.............................................................................................OFF
INNER TANK FUEL QUANTITIES ....................................................... MONITOR
■ If one inner tank depletes faster than other by at least 300 kg (660 lb) in
less than 30 min:
THR LEVER (engine on leaking side) ...................................................... IDLE
ENG MASTER (engine on leaking side)....................................................OFF
CTR TK PUMP 1 .........................................................................................ON
CTR TK PUMP 2 .........................................................................................ON
FUEL LEAK ..................................................................................... MONITOR
■ If leak stops:
ENGINE LEAK CONFIRMED
FUEL LEAK
Applicable to: ALL
LAND ASAP
■ Leak from engine/pylon confirmed by excessive fuel flow or visual check:
THR LEVER (affected engine)....................................................................... IDLE
ENG MASTER (affected engine).................................................................... OFF
FUEL X FEED........................................................................................ AS RQRD
DO NOT RESTART AFFECTED ENGINE
■ Leak from engine/pylon not confirmed or leak not located:
FUEL X FEED....................................................................... MAINTAIN CLOSED
CTR TK PUMP 1 ............................................................................................ OFF
CTR TK PUMP 2 ............................................................................................ OFF
INNER TANK FUEL QUANTITIES ....................................................... MONITOR
■ If one inner tank depletes faster than other by at least 300 kg (660 lb) in
less than 30 min:
THR LEVER (engine on leaking side) ...................................................... IDLE
ENG MASTER (engine on leaking side).................................................... OFF
CTR TK PUMP 1 ......................................................................................... ON
CTR TK PUMP 2 ......................................................................................... ON
FUEL LEAK ..................................................................................... MONITOR
■ If leak stops:
ENGINE LEAK CONFIRMED
FUEL LEAK
Applicable to: ALL
LAND ASAP
■ Leak from engine/pylon confirmed by excessive fuel flow or visual check:
THR LEVER (affected engine)....................................................................... IDLE
ENG MASTER (affected engine) ....................................................................OFF
FUEL X FEED........................................................................................AS RQRD
DO NOT RESTART AFFECTED ENGINE
■ Leak from engine/pylon not confirmed or leak not located:
FUEL X FEED....................................................................... MAINTAIN CLOSED
CTR TK L XFR................................................................................................OFF
CTR TK R XFR ...............................................................................................OFF
INNER TANK FUEL QUANTITIES ....................................................... MONITOR
■ If one inner tank depletes faster than other by at least 300 kg (660 lb) in
less than 30 min:
THR LEVER (engine on leaking side) ...................................................... IDLE
ENG MASTER (engine on leaking side)....................................................OFF
FUEL LEAK ..................................................................................... MONITOR
■ If leak stops:
ENGINE LEAK CONFIRMED
APPROACH
CAT 2 INOP
SLATS SLOW/FLAPS SLOW
● L/G gravity extension:
GRVTY GEAR EXTN handcrank ................................................................................PULL AND TURN
(Rotate the handle clockwise 3 turns until mechanical stop)
L/G LEVER................................................................................................................................... DOWN
GEAR DOWN indications............................................................................................................CHECK
LANDING
GO-AROUND
Applicable to: ALL
NO GEAR RETRACTION
FUEL: Increased fuel consumption (Refer to OPS-OPS Use of Fuel Penalty Factor Tables)
GO-AROUND
Applicable to: ALL
APPROACH
CAT 2 INOP
SLATS JAMMED/FLAPS SLOW
ATHR.......................................................................................................................................................OFF
FOR LANDING : USE FLAP 3
GPWS LDG FLAP 3 ..................................................................................................................................ON
● For Flaps extension:
SPD SEL....................................................................................................................... VFE NEXT - 5 kt
● When SPD 200 kt:
● L/G gravity extension:
GRVTY GEAR EXTN handcrank ......................................................................... PULL AND TURN
(Rotate the handle clockwise 3 turns until mechanical stop)
L/G LEVER.............................................................................................................................DOWN
GEAR DOWN....................................................................................................................... CHECK
● When L/G down: USE MAN PITCH TRIM
● When in landing CONF and in final approach: DECELERATE TO CALCULATED VAPP
LANDING
Applicable to: ALL
FLARE: Only one ELEV and two spoilers per wing. No ailerons.
A/C slightly sluggish – Direct law
SPOILERS: Only 2 per wing
REVERSER: Only N°2
BRAKING: ALTERNATE
NO NOSE WHEEL STEERING
LANDING
Applicable to: ALL
FLARE: Only one ELEV and two spoilers per wing. No ailerons.
A/C slightly sluggish – Direct law
SPOILERS: Only 2 per wing
REVERSER: Only N°2
BRAKING: ALTERNATE
NO GEAR RETRACTION
FUEL: Increased fuel consumption (Refer to OPS-OPS Use of Fuel Penalty Factor Tables)
● For circuit:
MAINTAIN SLATS/FLAPS CONFIGURATION
Recommended speed: MAX SPD - 10 kt
● For diversion:
SELECT CLEAN CONFIGURATION
■ If Slats jammed at zero:
Normal operating speeds (MAX SPEED = 250 kt )
■ If Slats jammed above zero:
Recommended speed: MAX SPD - 10 kt
GO-AROUND
Applicable to: ALL
CAT 2 INOP
SLATS SLOW / FLAPS JAMMED
FOR LANDING : USE FLAP 3
GPWS FLAP MODE................................................................................................................................OFF
● For Flaps extension:
SPD SEL....................................................................................................................... VFE NEXT - 5 kt
● When in CONF 3:
DECELERATE TO CALCULATED VAPP
● When in CONF 3 and VAPP:
Stabilize at VAPP before L/G down, to be trimmed for approach.
● L/G gravity extension:
GRVTY GEAR EXTN handcrank ......................................................................... PULL AND TURN
(Rotate the handle clockwise 3 turns until mechanical stop)
L/G LEVER.............................................................................................................................DOWN
GEAR DOWN....................................................................................................................... CHECK
Disregard "USE MANUAL PITCH TRIM".
MAN TRIM Unusable
LANDING
GO-AROUND
NO GEAR RETRACTION
FUEL: Increased fuel consumption (Refer to OPS-OPS Use of Fuel Penalty Factor Tables)
● For circuit:
MAINTAIN SLATS/FLAPS CONFIGURATION
Maintain speed close to VAPP (due to pitch trim unusable)
● For diversion:
■ If Flaps jammed at zero:
SELECT CLEAN CONFIGURATION
Maintain at least the higher of VAPP or VLS (due to pitch trim unusable)
■ If Flaps jammed above zero:
MAINTAIN SLATS/FLAPS CONFIGURATION
Maintain speed close to VAPP (due to pitch trim unusable)
CAUTION Do not apply this procedure if at least one green triangle is displayed on
each landing gear on the WHEEL SD PAGE. This is sufficient to confirm
that the landing gear is downlocked. Disregard any possible GPWS
"TOO LOW GEAR" aural alert.
CAUTION Do not apply this procedure if at least one green triangle is displayed on
each landing gear on the WHEEL SD PAGE. This is sufficient to confirm
that the landing gear is downlocked. Disregard any possible GPWS
"TOO LOW GEAR" aural alert.
CAUTION Do not apply this procedure if at least one green triangle is displayed on
each landing gear on the WHEEL SD PAGE. This is sufficient to confirm
that the landing gear is downlocked. Disregard any possible GPWS
"TOO LOW GEAR" aural alert.
■ If successful:
DO NOT RESET GRAVITY GEAR EXTN handcrank
■ If unsuccessful:
LDG WITH ABNORMAL L/G PROC ...........................................................APPLY
Refer to ABN-24 Landing with Abnormal L/G.
CAUTION Do not apply this procedure if at least one green triangle is displayed on
each landing gear on the WHEEL SD PAGE. This is sufficient to confirm
that the landing gear is downlocked. Disregard any possible GPWS
"TOO LOW GEAR" aural alert.
DITCHING
Applicable to: ALL
ATC................................................................................................................ NOTIFY
ATC XPDR 7700...................................................................................... CONSIDER
PREPARE CABIN AND COCKPIT
- Loose equipment secured
- Survival equipment prepared
- Belts and shoulder harness locked.
● At 2 000 ft AGL:
CAB PRESS MODE SEL ...............................................................CHECK AUTO
ALL BLEEDS (ENGs & APU) ......................................................................... OFF
CABIN CREW................................................................ NOTIFY FOR DITCHING
DITCHING pb ................................................................................................... ON
● At 500 ft AGL:
BRACE FOR IMPACT .............................................................................. ORDER
● At touchdown:
ALL ENG MASTERS ...................................................................................... OFF
APU MASTER SW ......................................................................................... OFF
● After ditching:
ATC (VHF 1)............................................................................................. NOTIFY
ALL FIRE pb (ENGs & APU) ....................................................................... PUSH
ALL AGENTS (ENGs & APU)..................................................................... DISCH
EVACUATION .........................................................................................INITIATE
DITCHING
Applicable to: ALL
ATC................................................................................................................NOTIFY
ATC XPDR 7700 ...................................................................................... CONSIDER
PREPARE CABIN AND COCKPIT
- Loose equipment secured
- Survival equipment prepared
- Belts and shoulder harness locked.
● At 2 000 ft AGL:
CAB PRESS MODE SEL................................................................CHECK AUTO
ALL BLEEDS (ENGs & APU)..........................................................................OFF
CABIN CREW ................................................................ NOTIFY FOR DITCHING
DITCHING pb....................................................................................................ON
● At 500 ft AGL:
BRACE FOR IMPACT .............................................................................. ORDER
● At touchdown:
ALL ENG MASTERS ......................................................................................OFF
APU MASTER SW..........................................................................................OFF
● After ditching:
ATC (VHF 1) .............................................................................................NOTIFY
ALL FIRE pb (ENGs & APU)........................................................................ PUSH
ALL AGENTS (ENGs & APU) ..................................................................... DISCH
EVACUATION......................................................................................... INITIATE
EMER DESCENT
Applicable to: ALL
FORCED LANDING
Applicable to: ALL
ATC................................................................................................................NOTIFY
ATC XPDR 7700 ...................................................................................... CONSIDER
PREPARE CABIN AND COCKPIT
- Loose equipment secured
- Survival equipment prepared
- Belts and shoulder harness locked.
● At 2 000 ft AGL:
CABIN CREW ................................................................. NOTIFY FOR LANDING
● At 500 ft AGL:
BRACE FOR IMPACT .............................................................................. ORDER
● At touchdown:
ALL ENG MASTERS ......................................................................................OFF
APU MASTER SW..........................................................................................OFF
BRAKES ON ACCU ONLY
● When aircraft stopped:
PARKING BRK .................................................................................................ON
ATC (VHF 1) .............................................................................................NOTIFY
ALL FIRE pb (ENGs & APU)........................................................................ PUSH
ALL AGENTS (ENGs & APU) ..................................................................... DISCH
■ If evacuation required:
EVACUATION ................................................................................... INITIATE
■ If evacuation not required:
CABIN CREW and PASSENGERS (PA).............................................NOTIFY
FORCED LANDING
Applicable to: ALL
ATC................................................................................................................ NOTIFY
ATC XPDR 7700...................................................................................... CONSIDER
PREPARE CABIN AND COCKPIT
- Loose equipment secured
- Survival equipment prepared
- Belts and shoulder harness locked.
● At 2 000 ft AGL:
CABIN CREW..................................................................NOTIFY FOR LANDING
● At 500 ft AGL:
BRACE FOR IMPACT .............................................................................. ORDER
● At touchdown:
ALL ENG MASTERS ...................................................................................... OFF
APU MASTER SW ......................................................................................... OFF
BRAKES ON ACCU ONLY
● When aircraft stopped:
PARKING BRK ................................................................................................. ON
ATC (VHF 1)............................................................................................. NOTIFY
ALL FIRE pb (ENGs & APU) ....................................................................... PUSH
ALL AGENTS (ENGs & APU)..................................................................... DISCH
■ If evacuation required:
EVACUATION ....................................................................................INITIATE
BOMB ON BOARD
Applicable to: ALL
BOMB AIRCRAFT
DISCOVERY ALTITUDE
USE MANUAL
CABIN PRESSURE CABIN ALTITUDE + 2500 Ft
CONTROL
1PSI 1PSI
CABIN P=0
ALTITUDE 1PSI
BOMB ON BOARD
Applicable to: ALL
BOMB AIRCRAFT
DISCOVERY ALTITUDE
USE MANUAL
CABIN PRESSURE CABIN ALTITUDE + 2500 Ft
CONTROL
1PSI 1PSI
CABIN P=0
ALTITUDE 1PSI
OVERWEIGHT LANDING
Applicable to: ALL
SEVERE TURBULENCE
Applicable to: ALL
SEVERE TURBULENCE
Applicable to: ALL
TAILSTRIKE
Applicable to: ALL
LAND ASAP
MAX FL: 100 / MEA-MORA
RAM AIR ................................................................................................................ON
PACK 1 ................................................................................................................OFF
PACK 2 ................................................................................................................OFF
● For approach:
SPEED ......................................................................................FLY THE GREEN
FOR LANDING: USE FLAP 3
GPWS LDG FLAP 3 ......................................................................................... ON
LDG DIST PROC........................................................................................APPLY
APPR SPEED: BUSS TARGET SPEED
During approach, BUSS TARGET SPEED (green triangle) indicates VAPP.
● When flap 2:
LDG GEAR GRVTY EXTN handcrank .................................PULL AND TURN
● When landing gear downlocked:
L/G lever................................................................................................ DOWN
GEAR DOWN indications.....................................................................CHECK
L/G DOORS REMAIN OPEN
● To level off:
AP ...................................................................................................................OFF
A/THR .............................................................................................................OFF
FD ...................................................................................................................OFF
SPEEDBRAKES .................................................................CHECK RETRACTED
■ Below FL 250:
BKUP SPD/ALT pb ....................................................................................USE
This action is reversible.
SPEED..................................................................................FLY THE GREEN
Note: If the BUSS does not react to longitudinal stick input when flying the green area of the
speed scale, the flight crew must disregard the BUSS and use pitch/thrust tables.
■ Above FL 250:
PITCH/THRUST TABLE ........................................................................APPLY
PITCH / THRUST FOR LEVEL OFF
70 t 60 t 50 t
155 000 lb 130 000 lb 110 000 lb
PITCH FL THRUST % N1 (Resultant speed)
3° 300 80% (265 kt) 76% (245 kt) 72% (225 kt)
above 350 84% (255 kt) 80% (240 kt) 76% (220 kt)
FL250 400 / 86% (235 kt) 80% (220 kt)
FLYING TECHNIQUE TO STABILIZE SPEED
Stabilize the altitude. When altitude is stabilized:
- If the pitch is above the target pitch, increase the thrust and maintain the altitude.
- If the pitch is below the target pitch, decrease the thrust and maintain the altitude.
When the pitch reaches the target pitch, adjust the thrust to keep this target pitch.
● To level off:
AP................................................................................................................... OFF
A/THR............................................................................................................. OFF
FD................................................................................................................... OFF
SPEEDBRAKES.................................................................CHECK RETRACTED
PITCH/THRUST TABLE.............................................................................APPLY
PITCH / THRUST FOR LEVEL OFF
70 t 60 t 50 t
155 000 lb 130 000 lb 110 000 lb
SLATS / FLAPS EXTENDED
CONF PITCH THRUST % N1 (Resultant speed)
3 7° 62% (155 kt) 58% (140 kt) 54% (130 kt)
2 5.5° 62% (175 kt) 58% (160 kt) 54% (145 kt)
1+F 5° 62% (190 kt) 58% (175 kt) 54% (160 kt)
1 6.5° 60% (205 kt) 56% (190 kt) 52% (175 kt)
CLEAN
PITCH FL THRUST % N1 (Resultant speed)
4° 100 60% (245 kt) 56% (225 kt) 52% (205 kt)
at or below FL250 200 68% (245 kt) 66% (225 kt) 60% (205 kt)
3° 300 76% (265 kt) 74% (245 kt) 70% (225 kt)
above 350 80% (255 kt) 76% (240 kt) 74% (225 kt)
FL250 400 / 82% (235 kt) 78% (220 kt)
FLYING TECHNIQUE TO STABILIZE SPEED
Stabilize the altitude. When altitude is stabilized:
- If the pitch is above the target pitch, increase the thrust and maintain the altitude.
- If the pitch is below the target pitch, decrease the thrust and maintain the altitude.
When the pitch reaches the target pitch, adjust the thrust to keep this target pitch.
Applicable to: ALL
● To level off:
AP................................................................................................................... OFF
A/THR............................................................................................................. OFF
FD................................................................................................................... OFF
SPEEDBRAKES.................................................................CHECK RETRACTED
PITCH/THRUST TABLE.............................................................................APPLY
● To level off:
AP ...................................................................................................................OFF
A/THR .............................................................................................................OFF
FD ...................................................................................................................OFF
SPEEDBRAKES .................................................................CHECK RETRACTED
PITCH/THRUST TABLE .............................................................................APPLY
PITCH / THRUST FOR LEVEL OFF
70 t 60 t 50 t
155 000 lb 130 000 lb 110 000 lb
SLATS / FLAPS EXTENDED
CONF PITCH THRUST % N1 (Resultant speed)
3 7° 56% (150 kt) 52% (140 kt) 48% (125 kt)
2 5.5° 54% (165 kt) 52% (155 kt) 46% (140 kt)
1+F 5° 54% (180 kt) 50% (170 kt) 46% (155 kt)
1 6.5° 54% (200 kt) 50% (185 kt) 46% (170 kt)
CLEAN
PITCH FL THRUST % N1 (Resultant speed)
4° 100 56% (240 kt) 52% (220 kt) 48% (200 kt)
at or below FL250 200 64% (240 kt) 60% (220 kt) 56% (200 kt)
3° 300 76% (255 kt) 72% (240 kt) 68% (220 kt)
above 350 80% (250 kt) 76% (235 kt) 72% (215 kt)
FL250 400 / 82% (225 kt) 78% (215 kt)
FLYING TECHNIQUE TO STABILIZE SPEED
Stabilize the altitude. When altitude is stabilized:
- If the pitch is above the target pitch, increase the thrust and maintain the altitude.
- If the pitch is below the target pitch, decrease the thrust and maintain the altitude.
When the pitch reaches the target pitch, adjust the thrust to keep this target pitch.
● To level off:
AP................................................................................................................... OFF
A/THR............................................................................................................. OFF
FD................................................................................................................... OFF
SPEEDBRAKES.................................................................CHECK RETRACTED
■ Below FL 250:
BKUP SPD/ALT pb.................................................................................... USE
This action is reversible.
SPEED .................................................................................FLY THE GREEN
Note: If the BUSS does not react to longitudinal stick input when flying the green area of the
speed scale, the flight crew must disregard the BUSS and use pitch/thrust tables.
■ Above FL 250:
PITCH/THRUST TABLE........................................................................APPLY
PITCH / THRUST FOR LEVEL OFF
70 t 60 t 50 t
155 000 lb 130 000 lb 110 000 lb
PITCH FL THRUST % N1 (Resultant speed)
3° 300 76% (255 kt) 72% (240 kt) 68% (220 kt)
above 350 80% (250 kt) 76% (235 kt) 72% (215 kt)
FL250 400 / 82% (225 kt) 78% (215 kt)
FLYING TECHNIQUE TO STABILIZE SPEED
Stabilize the altitude. When altitude is stabilized:
- If the pitch is above the target pitch, increase the thrust and maintain the altitude.
- If the pitch is below the target pitch, decrease the thrust and maintain the altitude.
When the pitch reaches the target pitch, adjust the thrust to keep this target pitch.
Applicable to: ALL
■ Above FL 250:
FLIGHT PATH ................................................................... KEEP STABILIZED
RESPECT STALL WARNING
CLIMB
CLIMB IN CLEAN CONFIGURATION
70 t 60 t 50 t
155 000 lb 130 000 lb 110 000 lb
THRUST FL PITCH (Resultant speed)
50 11° (235 kt) 13° (215 kt) 15° (195 kt)
100 10° (235 kt) 12° (215 kt) 14° (195 kt)
CLB 200 7° (235 kt) 8° (220 kt) 10° (200 kt)
300 5° (235 kt) 6° (220 kt) 7° (200 kt)
400 / 4° (215 kt) 5° (195 kt)
CRUISE
FLYING TECHNIQUE TO STABILIZE SPEED
Stabilize the altitude. When altitude is stabilized:
- If the pitch is above the target pitch, increase the thrust and maintain the altitude.
- If the pitch is below the target pitch, decrease the thrust and maintain the altitude.
When the pitch reaches the target pitch, adjust the thrust to keep this target pitch.
DESCENT
DESCENT IN CLEAN CONFIGURATION
70 t 60 t 50 t
155 000 lb 130 000 lb 110 000 lb
THRUST PITCH Resultant speed
IDLE 1° 255 kt 235 kt 215 kt
CLIMB
CLIMB IN CLEAN CONFIGURATION
70 t 60 t 50 t
155 000 lb 130 000 lb 110 000 lb
THRUST FL PITCH (Resultant speed)
50 11° (235 kt) 13° (215 kt) 16° (195 kt)
100 10° (235 kt) 12° (215 kt) 14° (195 kt)
CLB 200 7° (235 kt) 8° (220 kt) 10° (195 kt)
300 5° (235 kt) 6° (220 kt) 7° (200 kt)
400 / 4° (215 kt) 5° (195 kt)
CRUISE
FLYING TECHNIQUE TO STABILIZE SPEED
Stabilize the altitude. When altitude is stabilized:
- If the pitch is above the target pitch, increase the thrust and maintain the altitude.
- If the pitch is below the target pitch, decrease the thrust and maintain the altitude.
When the pitch reaches the target pitch, adjust the thrust to keep this target pitch.
DESCENT
DESCENT IN CLEAN CONFIGURATION
70 t 60 t 50 t
155 000 lb 130 000 lb 110 000 lb
THRUST PITCH Resultant speed
IDLE 1° 245 kt 230 kt 210 kt
CLIMB
CLIMB IN CLEAN CONFIGURATION
70 t 60 t 50 t
155 000 lb 130 000 lb 110 000 lb
THRUST FL PITCH (Resultant speed)
50 12° (225 kt) 14° (210 kt) 18° (185 kt)
100 11° (225 kt) 13° (210 kt) 16° (185 kt)
CLB 200 9° (230 kt) 10° (210 kt) 12° (190 kt)
300 6° (230 kt) 7° (210 kt) 8° (190 kt)
400 / 4° (210 kt) 5° (190 kt)
CRUISE
FLYING TECHNIQUE TO STABILIZE SPEED
Stabilize the altitude. When altitude is stabilized:
- If the pitch is above the target pitch, increase the thrust and maintain the altitude.
- If the pitch is below the target pitch, decrease the thrust and maintain the altitude.
When the pitch reaches the target pitch, adjust the thrust to keep this target pitch.
In case of triple ADR failure, ECAM only displays dual ADR alerts.
ALL ADR pbs ....................................................................................................... OFF
STBY INST .......................................................................................................... USE
DISREGARD ECAM ACTIONS FOR AIR DATA SWTG AND ATC
TCAS & ATC ALT RPTG INOP
Applicable to: ALL
In case of triple ADR failure, ECAM only displays dual ADR alerts.
ALL ADR pbs ....................................................................................................... OFF
WHEN ALL ADR OFF BOTH FMS LOST
● For approach:
CAT 1 ONLY
A/C HEADING...........................................................................................INSERT
ENT key .....................................................................................................PRESS
CROSSCHECK HEADING REGULARLY WITH STBY COMPASS AND UPDATE
AS REQUIRED
A/C POS..........................................................................................................CHECK
■ During climb, cruise, or descent:
FMS PROG page..................................................................................... SELECT
■ If ESTIMATED ACCUR below REQUIRED ACCUR:
CONSIDER NAV MODE AND ND ARC/ROSE NAV
■ If ESTIMATED ACCUR above REQUIRED ACCUR:
HDG/TRK MODE................................................................................ SELECT
USE RAW DATA
CONSIDER SWITCHING OFF GPWS TERRAIN FUNCTIONS
FMS POSITION MONITOR page ............................................................ SELECT
■ If one FM position agrees with onside GPIRS position:
USE ASSOCIATED AP/FD
■ If both FM positions DO NOT agree with onside GPIRS position:
GPS ............................................................................................... DESELECT
USE RAW DATA
■ During ILS/LOC/GLS approach:
NAV MODE: DO NOT USE
CONTINUE APPROACH
■ During RNAV GNSS, or RNAV RNP approach:
● If visual references not sufficient:
GO AROUND
■ During VOR, VOR-DME, NDB, or NDB-DME approach:
HDG/TRK MODE ..................................................................................... SELECT
USE RAW DATA
LAND ASAP
IF PERCEPTIBLE SMOKE APPLY IMMEDIATELY:
CREW OXY MASKS (if required) ......USE/100%/EMER
VENTILATION BLOWER..................................... OVRD
VENTILATION EXTRACT.................................... OVRD
CAB FANS ...............................................................OFF
GALLEY ...................................................................OFF
SIGNS....................................................................... ON
CKPT / CABIN COM ................................... ESTABLISH
● If smoke source immediately obvious,
accessible, and extinguishable:
FAULTY EQPT............................................ISOLATE
● If smoke source not immediately isolated:
DIVERSION ................................................ INITIATE
DESCENT TO FL 100 / MEA-MORA .......... INITIATE
● At ANY TIME of the procedure, if SMOKE /
FUMES becomes the GREATEST THREAT :
REMOVAL OF SMOKE / FUMES ...........CONSIDER
Refer to ABN-27 Removal of Smoke / Fumes
ELEC EMER CONFIG ............................CONSIDER
Refer to the end of the procedure to set ELEC EMER
CONFIG
● At ANY TIME of the procedure, if situation
becomes UNMANAGEABLE :
IMMEDIATE LANDING ...........................CONSIDER
Continued on the next page
LAND ASAP
IF PERCEPTIBLE SMOKE APPLY IMMEDIATELY:
CREW OXY MASKS (if required) ....USE/100%/EMERG
VENTILATION BLOWER .....................................OVRD
VENTILATION EXTRACT ....................................OVRD
CAB FANS............................................................... OFF
GALY & CAB ........................................................... OFF
SIGNS .......................................................................ON
CKPT / CAB COM ...................................... ESTABLISH
● If smoke source immediately obvious,
accessible, and extinguishable:
FAULTY EQPT ........................................... ISOLATE
● If smoke source not immediately isolated:
DIVERSION ................................................ INITIATE
DESCENT TO FL 100 / MEA-MORA.......... INITIATE
● At ANY TIME of the procedure, if SMOKE /
FUMES becomes the GREATEST THREAT :
REMOVAL OF SMOKE / FUMES........... CONSIDER
Refer to ABN-27 Removal of Smoke / Fumes
ELEC EMER CONFIG ............................ CONSIDER
Refer to the end of the procedure to set ELEC EMER
CONFIG.
Continued on the next page
PF PM
* WHEEL CHOCKS.................................................CHECK
* L/G DOORS........................................CHECK POSITION
* APU AREA............................................................CHECK
PF PM
ENG MASTERS 1, 2 ........................................................ OFF
ENG MODE selector .................................................... NORM
* WEATHER RADAR ................................................... OFF
L/G lever....................................................................... DOWN
Both WIPER selectors...................................................... OFF
BAT ................................................................CHECK / AUTO
EXT PWR pb-sw ..................................................... AS RQRD
APU FIRE........................................................CHECK / TEST
APU..............................................................................START
When the APU is AVAIL:
PF PM
* ECAM OXY PRESS / HYD QTY / ENG OIL QTY .............
.................................................................................... CHECK
FLAPS ...................................................... CHECK POSITION
* SPD BRK lever.................CHECK RET AND DISARMED
* PARKING BRAKE handle ............................................ON
* ACCU/BRAKES PRESS ...................................... CHECK
EMER EQPT .............................................................. CHECK
RAIN REPELLENT .............................................. CHECK
C/B PANELS .............................................................. CHECK
* GEAR PINS and COVERS................................................
.............................................. CHECK ONBOARD / STOWED
* EXTERIOR WALKAROUND ........................... PERFORM
PF PM
ENG MASTERS 1, 2 ........................................................OFF
ENG MODE selector ....................................................NORM
* WEATHER RADAR....................................................OFF
L/G lever .......................................................................DOWN
Both WIPER selectors ......................................................OFF
BAT................................................................ CHECK / AUTO
EXT PWR pb-sw......................................................AS RQRD
APU FIRE ....................................................... CHECK / TEST
APU ............................................................................. START
When the APU is AVAIL:
PF PM
* ECAM OXY PRESS / HYD QTY / ENG OIL QTY.............
....................................................................................CHECK
FLAPS.......................................................CHECK POSITION
* SPD BRK lever ................ CHECK RET AND DISARMED
* PARKING BRAKE handle............................................ ON
* ACCU/BRAKES PRESS.......................................CHECK
ALTN BRAKING..........................................................CHECK
EMER EQPT...............................................................CHECK
RAIN REPELLENT ..............................................CHECK
C/B PANELS...............................................................CHECK
* GEAR PINS and COVERS ...............................................
..............................................CHECK ONBOARD / STOWED
* EXTERIOR WALKAROUND........................... PERFORM
COCKPIT PREPARATION
Applicable to: ALL
PF PM
OVERHEAD PANEL
* ALL WHITE LIGHTS....................................EXTINGUISH
* RCDR GND CTL pb-sw............................................... ON
CVR TEST pb ............................................................. PRESS
CAPT & PURS / CAPT sw...................................... AS RQRD
* ALL IR MODE selector .............................................. NAV
EXTERIOR LIGHTS .........................................................SET
* SIGNS ........................................................................SET
PROB/WINDOW HEAT .................................................AUTO
LDG ELEV .....................................................................AUTO
* PACK FLOW .................................................... AS RQRD
ELEC panel................................................................. CHECK
BAT............................................................................. CHECK
ENG FIRE.......................................................CHECK / TEST
AUDIO SWITCH ...........................................................NORM
VENT panel ................................................................ CHECK
PA (3rd occupant)..................................................... RECEPT
MAINT panel............................................................... CHECK
CTR INSTRUMENT PANEL
* STBY INSTRUMENTS ......................................... CHECK
* CLOCK ....................................................... CHECK / SET
* A/SKID & N/W STRG sw ............................................. ON
PEDESTAL
ACP ............................................................................ CHECK
SWITCHING PANEL ....................................................NORM
* THRUST LEVERS....................................... CHECK IDLE
* ENG MASTERS ...........................................CHECK OFF
* ENG MODE selector ................................ CHECK NORM
* PARK BRK ....................................................... AS RQRD
GRAVITY GEAR EXTN ............................. CHECK STOWED
* ATC ......................................................................... STBY
RMP..................................................................................SET
* NAV CHARTS CLIPBOARD............................ PREPARE * NAV CHARTS CLIPBOARD ............................PREPARE
* FMS ................................................................. PREPARE
* FMS PREPARATION ........................................... CHECK
•When both flight crewmembers are seated:
GLARESHIELD GLARESHIELD
* BAROMETRIC REFERENCE ....................................SET * BAROMETRIC REFERENCE .................................... SET
* FD...................................................................CHECK ON * FD...................................................................CHECK ON
* LS/ILS............................................................... AS RQRD * LS/ILS................................................................AS RQRD
* ND mode and range ......................................... AS RQRD * ND mode and range ..........................................AS RQRD
* VOR / ADF selector .......................................... AS RQRD * VOR / ADF selector...........................................AS RQRD
* FCU ............................................................................SET
LATERAL CONSOLE LATERAL CONSOLE
OXY MASK .................................................................... TEST OXY MASK.....................................................................TEST
INSTRUMENT PANEL INSTRUMENT PANEL
PFD-ND brightness................................................. AS RQRD PFD-ND brightness .................................................AS RQRD
LOUDSPEAKER knob ......................................................SET LOUDSPEAKER knob...................................................... SET
* PFD-ND ................................................................ CHECK * PFD-ND................................................................ CHECK
* LDG ELEV (ECAM) ................................... CHECK AUTO * IRS ALIGN............................................................ CHECK
* ECAM STATUS .................................................... CHECK
* TAKEOFF BRIEFING ......................................PERFORM
COCKPIT PREPARATION
Applicable to: ALL
PF PM
OVERHEAD PANEL
* ALL WHITE LIGHTS ................................... EXTINGUISH
* RCDR GND CTL pb-sw ...............................................ON
CVR TEST pb..............................................................PRESS
CAPT & PURS / CAPT sw ......................................AS RQRD
* ALL IR MODE selector...............................................NAV
EXTERIOR LIGHTS ......................................................... SET
* SIGNS ........................................................................ SET
PROB/WINDOW HEAT................................................. AUTO
LDG ELEV..................................................................... AUTO
* PACK FLOW .....................................................AS RQRD
ELEC panel ................................................................ CHECK
BAT ............................................................................ CHECK
ENG FIRE ...................................................... CHECK / TEST
AUDIO SWITCH........................................................... NORM
VENT panel ................................................................ CHECK
PA (3rd occupant) .................................................... RECEPT
MAINT panel .............................................................. CHECK
CTR INSTRUMENT PANEL
* ISIS ...................................................................... CHECK
* CLOCK....................................................... CHECK / SET
* A/SKID & N/W STRG sw..............................................ON
PEDESTAL
ACP ............................................................................ CHECK
SWITCHING PANEL .................................................... NORM
* THRUST LEVERS ...................................... CHECK IDLE
* ENG MASTERS ........................................... CHECK OFF
* ENG MODE selector ................................ CHECK NORM
* PARK BRK ........................................................AS RQRD
GRAVITY GEAR EXTN..............................CHECK STOWED
* ATC ..........................................................................STBY
PF PM
FINAL LOADSHEET................................................... CHECK FINAL LOADSHEET .................................................. CHECK
FOB ............................................................................ CHECK FOB ............................................................................ CHECK
•If takeoff conditions changed:
FINAL T.O PERF DATA .............................RECOMPUTE FINAL T.O PERF DATA .............................RECOMPUTE
FMS T.O DATA.....................................................REVISE
FMS FINAL T.O PERF DATA ..................CROSSCHECK
EFB/MCDU GREEN DOT ...............................COMPARE
ENGINE START
Applicable to: ALL
PF PM
ENG MODE selector............................................ IGN/START
ENG 2 START .................................................... ANNOUNCE
ENG MASTER 2 ................................................................ ON
ENG IDLE PARAMETERS ......................................... CHECK
ENG 1 START .................................................... ANNOUNCE
REPEAT THE START SEQUENCE
AFTER START
Applicable to: ALL
PF PM
ENG MODE selector..................................................... NORM
APU BLEED pb-sw ........................................................... OFF GND SPOILERS.............................................................ARM
ENG ANTI ICE pb-sw .............................................. AS RQRD RUD TRIM ....................................................................ZERO
WING ANTI ICE pb-sw ............................................ AS RQRD FLAPS ............................................................................. SET
APU MASTER SW................................................... AS RQRD PITCH TRIM .................................................................... SET
ECAM STATUS ...........................................................CHECK ECAM STATUS ......................................................... CHECK
N/W STEER DISC MEMO ............. CHECK NOT DISPLAYED
CLEAR TO DISCONNECT ..................................ANNOUNCE
AFTER START C/L...............................................COMPLETE AFTER START C/L............................................. COMPLETE
TAXI
Applicable to: ALL
PF PM
•Taxi clearance obtained:
EXTERIOR LIGHTS ......................................................... SET TAXI CLEARANCE .................................................... OBTAIN
PARKING BRAKE handle ................................................OFF BRAKES PRESSURE................................ CHECK AT ZERO
THRUST LEVERS...................................................AS RQRD
BRAKES..................................................................... CHECK
TILLER or RUDDER PEDALS........................ USE AS RQRD
FLT CTL ..................................................................... CHECK FLT CTL ......................................................................CHECK
•ATC clearance obtained:
ATC CLEARANCE ..................................................CONFIRM
•If takeoff conditions changed:
FINAL T.O PERF DATA ............................. RECOMPUTE FINAL T.O PERF DATA............................. RECOMPUTE
FMS T.O DATA.................................................... REVISE
FMS REVISED T.O PERF DATA.............CROSSCHECK
EFB/MCDU GREEN DOT ...............................COMPARE
FLAPS lever....................................... AS APPROPRIATE
TAXI
Applicable to: ALL
PF PM
•Taxi clearance obtained:
EXTERIOR LIGHTS .........................................................SET TAXI CLEARANCE.....................................................OBTAIN
PARKING BRAKE handle................................................ OFF BRAKES PRESSURE ................................CHECK AT ZERO
THRUST LEVERS .................................................. AS RQRD
BRAKES ..................................................................... CHECK BRAKES PRESSURE ................................CHECK AT ZERO
TILLER or RUDDER PEDALS ........................USE AS RQRD
FLT CTL...................................................................... CHECK FLT CTL ..................................................................... CHECK
•ATC clearance obtained:
ATC CLEARANCE ................................................. CONFIRM
•If takeoff conditions changed:
FINAL T.O PERF DATA .............................RECOMPUTE FINAL T.O PERF DATA .............................RECOMPUTE
FMS T.O DATA ....................................................REVISE
FMS REVISED T.O PERF DATA ............ CROSSCHECK
EFB/MCDU GREEN DOT............................... COMPARE
FLAPS lever .......................................AS APPROPRIATE
FMS F-PLAN / SPD.................................................... CHECK
FCU ALT/HDG..................................................................SET
BOTH FD..............................................................CHECK ON
PFD/ND ...................................................................... CHECK PFD/ND ...................................................................... CHECK
TAKEOFF BRIEFING .............................................CONFIRM
RADAR ...............................................................................ON
PREDICTIVE WINDSHEAR SYSTEM ...................AUTO
ATC CODE / MODE ........... CONFIRM / SET FOR TAKEOFF
TERR ON ND .................................................. AS RQRD TERR ON ND ...................................................AS RQRD
AUTO BRK ...................................................................... MAX
T.O CONFIG pb..............................................................TEST
T.O MEMO .................................................CHECK NO BLUE
CABIN REPORT......................................................RECEIVE CABIN REPORT...................................................... RECEIVE
BEFORE TAKEOFF C/L down to the line............COMPLETE BEFORE TAKEOFF C/L down to the line ........... COMPLETE
BEFORE TAKEOFF
Applicable to: ALL
PF PM
BRAKE TEMP (if brake fan running)................... CHECK
BRAKE FAN pb-sw (if brake fan running) .................OFF
LINE-UP CLEARANCE ..............................................OBTAIN
EXTERIOR LIGHTS .........................................................SET
TCAS Mode selector ....................................TA or TA/RA
APPROACH PATH .......................... CLEARED OF TRAFFIC APPROACH PATH...........................CLEARED OF TRAFFIC
CABIN CREW.............................................................ADVISE
ENG MODE selector ...............................................AS RQRD
SLIDING TABLE ....................................................STOW SLIDING TABLE .................................................... STOW
ALL EFB TRANSMITTING MODE.......................... AS RQRD ALL EFB TRANSMITTING MODE ..........................AS RQRD
ALL EFB (with no mounted equipment)........................STOW ALL EFB (with no mounted equipment)........................ STOW
THRUST BUMP ............................................... AS RQRD
TAKEOFF RUNWAY ..............................................CONFIRM TAKEOFF RUNWAY .............................................. CONFIRM
PACKS 1+2 .............................................................AS RQRD
BEFORE TAKEOFF C/L below the line...............COMPLETE BEFORE TAKEOFF C/L below the line............... COMPLETE
TAKEOFF
Applicable to: ALL
PF PM
TAKEOFF CLEARANCE............................................ OBTAIN
EXTERIOR LIGHTS ......................................................... SET
TAKEOFF........................................................... ANNOUNCE
BRAKES................................................................. RELEASE
THRUST LEVERS............................................. FLX or TOGA CHRONO .....................................................................START
The Captain places hand on thrust levers until V1
DIRECTIONAL CONTROL.............................. USE RUDDER
FMA.................................................................... ANNOUNCE PFD/ND.................................................................. MONITOR
•BELOW 80 kt: N1 (EPR).....................................................................CHECK
THRUST SET......................................................ANNOUNCE
PFD and ENG indications ...................................... MONITOR
•AT 100 kt: ONE HUNDRED KNOTS ....................................ANNOUNCE
100 kt.......................................................................... CHECK
•AT V1: V1........................................................................ANNOUNCE
•AT VR: ROTATION................................................................. ORDER
ROTATION............................................................ PERFORM
•WHEN POSITIVE CLIMB: POSITIVE CLIMB................................................ANNOUNCE
L/G UP........................................................................ ORDER L/G ...................................................................... SELECT UP
AP............................................................................AS RQRD
•AT THR RED ALT:
THRUST LEVERS.............................................................. CL PACK 1+2 (if applicable).................................................... ON
•AT F SPEED:
FLAPS 1 ..................................................................... ORDER FLAPS 1.................................................................... SELECT
•AT S SPEED:
FLAPS 0 ..................................................................... ORDER FLAPS 0.................................................................... SELECT
GND SPLRS ............................................................. DISARM
EXTERIOR LIGHTS......................................................... SET
AFTER TAKEOFF
Applicable to: ALL
PF PM
APU BLEED pb-sw .................................................. AS RQRD
APU MASTER SW................................................... AS RQRD
ENG MODE selector................................................AS RQRD
TCAS Mode selector ..............................................TA/RA
ANTI ICE pb-sw ....................................................... AS RQRD
AFTER TAKEOFF / CLIMB C/L down to the line ................... AFTER TAKEOFF / CLIMB C/L down to the line.....................
............................................................................COMPLETE ..............................................................................COMPLETE
CLIMB
Applicable to: ALL
PF PM
MCDU .................................................................... PERF CLB MCDU............................................................................F-PLN
FCU / FMGS .................................................... SET IF AP ON FCU / FMGS...................................................SET IF AP OFF
•At transition altitude:
BAROMETRIC REFERENCE................ SET STD / XCHECK BAROMETRIC REFERENCE ................SET STD / XCHECK
AFTER TAKEOFF / CLIMB C/L below the line ........................ AFTER TAKEOFF / CLIMB C/L below the line........................
.............................................................................COMPLETE ............................................................................. COMPLETE
RADAR ..................................... ADJUST AS APPROPRIATE ENG ANTI ICE.........................................................AS RQRD
•At 10 000 ft:
LAND LIGHTS selector ..........................................RETRACT
SEAT BELTS sw .....................................................AS RQRD
EFIS OPTION ......................................................... AS RQRD EFIS OPTION..........................................................AS RQRD
ECAM MEMO ............................................................REVIEW
NAVAIDS..................................................................... CLEAR
SEC F-PLN..............................................................AS RQRD
OPT / MAX ALT.......................................................... CHECK
CLIMB
Applicable to: ALL
PF PM
MCDU .................................................................... PERF CLB MCDU............................................................................F-PLN
FCU / FMGS .................................................... SET IF AP ON FCU / FMGS...................................................SET IF AP OFF
•At transition altitude:
BAROMETRIC REFERENCE................ SET STD / XCHECK BAROMETRIC REFERENCE ................SET STD / XCHECK
AFTER TAKEOFF / CLIMB C/L below the line ........................ AFTER TAKEOFF / CLIMB C/L below the line........................
.............................................................................COMPLETE ............................................................................. COMPLETE
RADAR ..................................... ADJUST AS APPROPRIATE ENG ANTI ICE.........................................................AS RQRD
•At 10 000 ft:
LAND LIGHTS selector ..........................................RETRACT
SEAT BELTS sw .....................................................AS RQRD
EFIS OPTION ......................................................... AS RQRD EFIS OPTION..........................................................AS RQRD
ECAM MEMO ............................................................REVIEW
NAVAIDS..................................................................... CLEAR
SEC F-PLN..............................................................AS RQRD
OPT / MAX ALT.......................................................... CHECK
CRUISE
Applicable to: ALL
PF PM
ECAM MEMO / SD PAGES...................................... REVIEW
FLIGHT PROGRESS.................................................. CHECK
FUEL.......................................................................MONITOR
NAVIGATION ACCURACY ....................................MONITOR
RADAR ..................................... ADJUST AS APPROPRIATE
CRUISE
Applicable to: ALL
PF PM
ECAM MEMO / SD PAGES ......................................REVIEW
FLIGHT PROGRESS ................................................. CHECK
FUEL ...................................................................... MONITOR
NAVIGATION ACCURACY .................................... MONITOR
RADAR......................................ADJUST AS APPROPRIATE
DESCENT PREPARATION
Applicable to: ALL
PF PM
WEATHER AND LANDING INFORMATION ............. OBTAIN
NAV CHARTS CLIPBOARD ..................................PREPARE NAV CHARTS CLIPBOARD .................................. PREPARE
LDG PERFO........................................................... CONFIRM LDG PERFO ...............................................................CHECK
FMS........................................................................PREPARE FMS PREPARATION..................................................CHECK
GPWS LDG FLAP 3................................................ AS RQRD
LDG ELEV.................................................................. CHECK
AUTO BRK ..............................................................AS RQRD
APPR BRIEFING................................................... PERFORM
TERR ON ND ...................................................AS RQRD TERR ON ND .................................................. AS RQRD
RADAR......................................ADJUST AS APPROPRIATE
ENG ANTI ICE pb-sw.............................................. AS RQRD
WING ANTI ICE pb-sw............................................ AS RQRD
DESCENT CLEARANCE ........................................... OBTAIN
CLEARED ALTITUDE ON FCU ....................................... SET
DESCENT
Applicable to: ALL
PF PM
DESCENT ................................................................ INITIATE
MCDU.............................................PROG / PERF DESCENT MCDU ...........................................................................F-PLN
DESCENT ............................................. MONITOR / ADJUST
•When the aircraft approaches the transition level, and
when cleared for an altitude:
BAROMETRIC REFERENCE ........................ SET / XCHECK BAROMETRIC REFERENCE........................ SET / XCHECK
ECAM STATUS...........................................................CHECK
•At 10 000 ft:
LAND LIGHTS selector .................................................... SET
SEAT BELTS sw ................................................................ ON
EFIS option pb............................................................... CSTR EFIS option pb ...............................................................CSTR
ILS pb ......................................................................AS RQRD ILS pb...................................................................... AS RQRD
RADIO NAV .................................................SELECT / IDENT
ENG MODE selector ............................................... AS RQRD
•If GPS PRIMARY not available:
NAV ACCY ................................................................. CHECK
APPROACH C/L.................................................. COMPLETE APPROACH C/L ..................................................COMPLETE
DESCENT
Applicable to: ALL
PF PM
DESCENT.................................................................INITIATE
MCDU ............................................ PROG / PERF DESCENT MCDU............................................................................F-PLN
DESCENT..............................................MONITOR / ADJUST
•When the aircraft approaches the transition level, and
when cleared for an altitude:
BAROMETRIC REFERENCE.........................SET / XCHECK BAROMETRIC REFERENCE ........................ SET / XCHECK
ECAM STATUS .......................................................... CHECK
•At 10 000 ft:
LAND LIGHTS selector .................................................... SET
SEAT BELTS sw ................................................................ON
EFIS option pb ...............................................................CSTR EFIS option pb............................................................... CSTR
LS pb ...................................................................... AS RQRD LS pb .......................................................................AS RQRD
RADIO NAV................................................. SELECT / IDENT
ENG MODE selector ...............................................AS RQRD
•If GPS PRIMARY not available:
NAV ACCY ................................................................. CHECK
APPROACH C/L ..................................................COMPLETE APPROACH C/L.................................................. COMPLETE
DESCENT
Applicable to: ALL
PF PM
DESCENT.................................................................INITIATE
MCDU ............................................ PROG / PERF DESCENT MCDU............................................................................F-PLN
DESCENT..............................................MONITOR / ADJUST
•When the aircraft approaches the transition level, and
when cleared for an altitude:
BAROMETRIC REFERENCE.........................SET / XCHECK BAROMETRIC REFERENCE ........................ SET / XCHECK
ECAM STATUS .......................................................... CHECK
•At 10 000 ft:
LAND LIGHTS selector .................................................... SET
SEAT BELTS sw ................................................................ON
EFIS option pb ...............................................................CSTR EFIS option pb............................................................... CSTR
ILS pb ..................................................................... AS RQRD ILS pb ......................................................................AS RQRD
RADIO NAV................................................. SELECT / IDENT
ENG MODE selector ...............................................AS RQRD
•If GPS PRIMARY not available:
NAV ACCY ................................................................. CHECK
APPROACH C/L ..................................................COMPLETE APPROACH C/L.................................................. COMPLETE
DESCENT
Applicable to: ALL
PF PM
DESCENT ................................................................ INITIATE
MCDU.............................................PROG / PERF DESCENT MCDU ...........................................................................F-PLN
DESCENT ............................................. MONITOR / ADJUST
•When the aircraft approaches the transition level, and
when cleared for an altitude:
BAROMETRIC REFERENCE ........................ SET / XCHECK BAROMETRIC REFERENCE........................ SET / XCHECK
ECAM STATUS...........................................................CHECK
•At 10 000 ft:
LAND LIGHTS sw ............................................................ SET
SEAT BELTS sw ................................................................ ON
EFIS option pb............................................................... CSTR EFIS option pb ...............................................................CSTR
LS pb .......................................................................AS RQRD LS pb....................................................................... AS RQRD
RADIO NAV .................................................SELECT / IDENT
ENG MODE selector ............................................... AS RQRD
•If GPS PRIMARY not available:
NAV ACCY ................................................................. CHECK
APPROACH C/L.................................................. COMPLETE APPROACH C/L ..................................................COMPLETE
PF PM
INITIAL APPROACH
F-PLN SEQUENCING .............................................ADJUST
•Approx 15 NM from touchdown:
APPR PHASE .......................... ACTIVATE or set green dot(1)
MANAGED SPEED................................................... CHECK
FLIGHT PATH.......................................................MONITOR NAV ACCURACY .....................................................MONITOR
SPEED BRAKES lever ......................................... AS RQRD
RADAR ................................... ADJUST AS APPROPRIATE
INTERMEDIATE / FINAL APPROACH
•At green dot:
FLAPS 1 ...................................................................ORDER FLAPS 1 ......................................................................SELECT
S SPEED...................................................CHECK OR SET(1)
TCAS ..............................................................TA or TA/RA
•At 2 000 ft AGL minimum:
FLAPS 2 ...................................................................ORDER FLAPS 2 ......................................................................SELECT
F SPEED...................................................CHECK OR SET(1)
•When FLAPS 2:
L/G DOWN................................................................ORDER L/G...................................................................SELECT DOWN
AUTO BRAKE .......................................................... CONFIRM
GRND SPLRS ...................................................................ARM
EXTERIOR LIGHTS ........................................................... SET
•When L/G down:
FLAPS 3 ...................................................................ORDER FLAPS 3 ......................................................................SELECT
ECAM WHEEL PAGE .................................................. CHECK
•When FLAPS 3:
FLAPS FULL.............................................................ORDER FLAPS FULL ...............................................................SELECT
SPEED TARGET ......................................CHECK OR SET(1)
A/THR.......................................................CHECK SPD or OFF
WING A. ICE (if not required) .............................................OFF
SLIDING TABLE ..................................................STOW SLIDING TABLE ...................................................... STOW
ALL EFB (with no mounted equipment)......................STOW ALL EFB (with no mounted equipment).......................... STOW
LDG MEMO ..................................................CHECK NO BLUE
CABIN REPORT....................................................RECEIVE CABIN REPORT........................................................ RECEIVE
CABIN CREW...............................................................ADVISE
LDG C/L.............................................................COMPLETE LDG C/L................................................................. COMPLETE
ANNOUNCE ANY FMA MODIFICATION FLT PARAMETERS .................................................MONITOR
Announce any deviation in excess of:
• V/S: 1 000 ft/min
• IAS: speed target + 10 kt; speed target - 5 kt
• PITCH: 2.5 ° nose down; 10 ° nose up
• BANK: 7 °
(1) PF if AP is ON, PM if AP is OFF. The PF may request that this action is performed by the PM depending on the situation.
PF PM
DESCENT PREPARATION
APPROACH MINIMUM ......................................DETERMINE
APPROACH BRIEFING ........................................ PERFORM
INITIAL / INTERMEDIATE APPROACH
APPR pb on FCU ........................................................PRESS
BOTH AP..................................................................ENGAGE
LOC .............................................................. CHECK ARMED
G/S ............................................................... CHECK ARMED
LOC CAPTURE...................................................... MONITOR
G/S CAPTURE ....................................................... MONITOR
GO AROUND................................................................ SET(1)
FINAL APPROACH
FLT PARAMETERS ............................................... MONITOR
Announce any deviation in excess of:
• LOC: ½ dot
• GLIDE: ½ dot
•At 350 ft :
LAND mode......................CHECK ENGAGED / ANNOUNCE
For CATI, CATII and CATIII with DH approach:
•At minimum +100 ft:
ONE HUNDRED ABOVE ........... MONITOR OR ANNOUNCE
•At minimum:
CONTINUE OR GO-AROUND............... ANNOUNCE MINIMUM................................... MONITOR OR ANNOUNCE
For CATIII with no DH approach:
•At 100 ft RA:
If no failure detected
CONTINUE ............................................ ANNOUNCE
(1) PF if AP is ON, PM if AP is OFF. The PF may request that this action is performed by the PM depending on the situation.
PF PM
DESCENT PREPARATION
WEATHER AND LANDING INFO ..............................OBTAIN
F-PLN A Page............................................................. CHECK F-PLN A Page ............................................................ CHECK
PROG Page......................................................... COMPLETE PROG Page ........................................................ COMPLETE
GO AROUND STRATEGY ........................................REVIEW
DESCENT
•At 10 000 ft:
NAV ACCURACY ....................................................... CHECK
•For RNAV(GNSS):
GPS PRIMARY ............................................... CHECK
BARO REF ....................................................................... SET
INITIAL / INTERMEDIATE / FINAL APPROACH
POSITION............................................................... MONITOR
APPR pb on FCU.........................................................PRESS
APP NAV ............................... CHECK ARMED or ENGAGED
FINAL............................................................ CHECK ARMED
•At Final Descent Point:
FINAL APP .............................................. CHECK ENGAGED
GO AROUND ALT.................................................................... SET(1)
FLT PARAMETERS ...............................................MONITOR
Announce any deviation in excess of:
• XTK > 0.1 NM
• V/DEV > ½ dot
•At minimum +100 ft: ONE HUNDRED ABOVE ...........MONITOR OR ANNOUNCE
•At minimum:
CONTINUE OR GO-AROUND ........................... ANNOUNCE MINIMUM ...................................MONITOR OR ANNOUNCE
(1) PF if AP is ON, PM if AP is OFF. The PF may request that this action is performed by the PM depending on the situation.
PF PM
DESCENT PREPARATION
WEATHER AND LANDING INFO............................... OBTAIN
NAVAID ............................................................... DESELECT
PROG Page ....................................................... COMPLETE PROG Page..........................................................COMPLETE
GO AROUND STRATEGY....................................... REVIEW
DESCENT
GPS PRIMARY ON BOTH FMS ................................CHECK
GPS 1+2.............................................CHECK BOTH IN NAV
TERR on ND ..........................................................AS RQRD
INITIAL / INTERMEDIATE / FINAL APPROACH
BARO REF / ALTIMETER..........................................CHECK
FD or AP/FD...................................... USE FOR APPROACH
L/DEV ....................................................CHECK DISPLAYED
APPR pb on FCU ....................................................... PRESS
APP NAV...............................CHECK ARMED or ENGAGED
FINAL ...........................................................CHECK ARMED
•At the Final Descent Point:
FINAL APP ..............................................CHECK ENGAGED
GO AROUND ALT......................................................... SET(1)
FLT PARAMETERS................................................ MONITOR
Announce any deviation in excess of:
• L/DEV : 1 dot or XTK : ½ RNP (whichever occurs first)
• V/DEV > ½ dot
•At minimum +100 ft: ONE HUNDRED ABOVE............ MONITOR OR ANNOUNCE
•At minimum:
CONTINUE OR GO-AROUND...........................ANNOUNCE MINIMUM.................................... MONITOR OR ANNOUNCE
(1) PF if AP is ON, PM if AP is OFF. The PF may request that this action is performed by the PM depending on the situation.
PF PM
DESCENT PREPARATION
WEATHER AND LANDING INFO............................... OBTAIN
NAVAID ............................................................... DESELECT
PROG Page ....................................................... COMPLETE PROG Page..........................................................COMPLETE
GO AROUND STRATEGY....................................... REVIEW
DESCENT
GPS PRIMARY ON BOTH FMS ................................CHECK
GPS 1+2.............................................CHECK BOTH IN NAV
TERR on ND ..........................................................AS RQRD
INITIAL / INTERMEDIATE / FINAL APPROACH
BARO REF / ALTIMETER..........................................CHECK
FD or AP/FD...................................... USE FOR APPROACH
APPR pb on FCU ....................................................... PRESS
APP NAV...............................CHECK ARMED or ENGAGED
FINAL ...........................................................CHECK ARMED
•At the Final Descent Point:
FINAL APP ..............................................CHECK ENGAGED
GO AROUND ALT......................................................... SET(1)
FLT PARAMETERS................................................ MONITOR
Announce any deviation in excess of:
• XTK > 0.1 NM
• V/DEV > ½ dot
•At minimum +100 ft: ONE HUNDRED ABOVE............ MONITOR OR ANNOUNCE
•At minimum:
CONTINUE OR GO-AROUND...........................ANNOUNCE MINIMUM.................................... MONITOR OR ANNOUNCE
(1) PF if AP is ON, PM if AP is OFF. The PF may request that this action is performed by the PM depending on the situation.
PF PM
DESCENT PREPARATION
WEATHER AND LANDING INFO ...............................OBTAIN
NAVAID ...............................................................DESELECT
PROG Page........................................................ COMPLETE PROG Page ......................................................... COMPLETE
GO AROUND STRATEGY .......................................REVIEW
DESCENT
GPS PRIMARY ON BOTH FMS................................ CHECK
GPS 1+2 ............................................ CHECK BOTH IN NAV
TERR on ND.......................................................... AS RQRD
INITIAL / INTERMEDIATE / FINAL APPROACH
BARO REF / ALTIMETER ......................................... CHECK
FD or AP/FD ......................................USE FOR APPROACH
L/DEV ................................................... CHECK DISPLAYED
APPR pb on FCU........................................................PRESS
APP NAV .............................. CHECK ARMED or ENGAGED
FINAL........................................................... CHECK ARMED
•At the Final Descent Point:
FINAL APP ............................................. CHECK ENGAGED
GO AROUND ALT .........................................................SET(1)
FLT PARAMETERS ................................................MONITOR
Announce any deviation in excess of:
• L/DEV : 1 dot or XTK > 0.1 NM
• V/DEV > ½ dot
•At minimum +100 ft: ONE HUNDRED ABOVE ............MONITOR OR ANNOUNCE
•At minimum:
CONTINUE OR GO-AROUND .......................... ANNOUNCE MINIMUM ....................................MONITOR OR ANNOUNCE
(1) PF if AP is ON, PM if AP is OFF. The PF may request that this action is performed by the PM depending on the situation.
PF PM
DESCENT PREPARATION
F-PLN A Page ............................................................ CHECK F-PLN A Page .............................................................CHECK
PROG Page ........................................................ COMPLETE PROG Page .........................................................COMPLETE
GO AROUND STRATEGY........................................REVIEW
DESCENT
•At 10 000 ft:
NAV ACCURACY....................................................... CHECK
•For RNAV(GNSS):
GPS PRIMARY............................................... CHECK
INITIAL / INTERMEDIATE / FINAL APPROACH
LATERAL GUIDANCE MODE............ SET FOR APPROACH
•For LOC ONLY and ILS G/S OUT
LOC pb-sw.......................................................PRESS
LOC .................................................. CHECK ARMED
•For back course localizer approaches:
TRK FPA MODE.....................USE FOR APPROACH
LATERAL path ....................................................INTERCEPT
TRK FPA (Bird) ......................................................... SELECT
FPA FOR FINAL APPROACH ......................................... SET
•At 0.3 NM from the Final Descent Point:
FPA selector................................................................... PULL
FPA ......................................................... CHECK ENGAGED
POSITION / FLT PATH ......................... MONITOR / ADJUST
GO AROUND ALT....................................................................SET(1)
FLT PARAMETERS ............................................... MONITOR
Announce any deviation in excess of:
• Approach using NAV MODE : XTK > 0.1 NM
• Approach using LOC MODE : LOC ½ dot
• Approach using TRK MODE :
VOR: ½ dot or 2.5 °
NDB: 5 °
•At minimum +100 ft: ONE HUNDRED ABOVE ........... MONITOR OR ANNOUNCE
•At minimum:
CONTINUE OR GO-AROUND........................... ANNOUNCE MINIMUM................................... MONITOR OR ANNOUNCE
(1) PF if AP is ON, PM if AP is OFF. The PF may request that this action is performed by the PM depending on the situation.
PF PM
DESCENT PREPARATION
F-PLN A Page............................................................. CHECK F-PLN A Page ............................................................ CHECK
PROG Page.........................................................COMPLETE PROG Page......................................................... COMPLETE
GO AROUND STRATEGY ....................................... REVIEW
DESCENT
•At 10 000 ft:
NAV ACCURACY ....................................................... CHECK
•For RNAV(GNSS):
GPS PRIMARY ............................................... CHECK
INITIAL / INTERMEDIATE / FINAL APPROACH
LATERAL GUIDANCE MODE ............SET FOR APPROACH
•For LOC ONLY, ILS G/S OUT and back course localizer
approaches:
LOC pb-sw ...................................................... PRESS
LOC / LOC B/C ................................. CHECK ARMED
LATERAL path.................................................... INTERCEPT
TRK FPA (Bird)..........................................................SELECT
FPA FOR FINAL APPROACH..........................................SET
•At 0.3 NM from the Final Descent Point:
FPA selector ...................................................................PULL
FPA.......................................................... CHECK ENGAGED
POSITION / FLT PATH..........................MONITOR / ADJUST
GO AROUND ALT ................................................................... SET(1)
FLT PARAMETERS ...............................................MONITOR
Announce any deviation in excess of:
• Approach using NAV MODE : XTK > 0.1 NM
• Approach using LOC or LOC B/C MODE : LOC ½ dot
• Approach using TRK MODE :
VOR: ½ dot or 2.5 °
NDB: 5 °
•At minimum +100 ft: ONE HUNDRED ABOVE ...........MONITOR OR ANNOUNCE
•At minimum:
CONTINUE OR GO-AROUND ........................... ANNOUNCE MINIMUM ...................................MONITOR OR ANNOUNCE
(1) PF if AP is ON, PM if AP is OFF. The PF may request that this action is performed by the PM depending on the situation.
MANUAL LANDING
Applicable to: ALL
PF PM
•In stabilized approach conditions, at approx. 30 ft:
FLARE ...................................................................PERFORM ATTITUDE ..............................................................MONITOR
THRUST LEVERS ...........................................................IDLE
•At touchdown:
DEROTATION ..........................................................INITIATE
BOTH THRUST LEVERS ..................REV MAX or REV IDLE GRND SPLRS .....................................CHECK / ANNOUNCE
REVERSERS ......................................CHECK / ANNOUNCE
DIRECTIONAL CONTROL .......................................ENSURE DIRECTIONAL CONTROL.....................................MONITOR
BRAKES ................................................................. AS RQRD DECELERATION.................................CHECK / ANNOUNCE
•At 70 kt:
BOTH THRUST LEVERS ....................................... REV IDLE SEVENTY KNOTS ............................................. ANNOUNCE
•At taxi speed:
REVERSERS................................................................STOW
•Before 20 kt:
AUTOBRK ......................................................... DISENGAGE
AUTOLAND
Applicable to: ALL
PF PM
•At 350 ft RA
ILS/GLS /MLS COURSE ON PFD ................ CHECK
Monitor auto callout
•At 40 ft RA
FLARE mode.................... CHECK ENGAGED / ANNOUNCE
•At 30 ft RA
THRUST IDLE mode...................................................CHECK
•At 10 ft RA : autocallout "RETARD"
BOTH THRUST LEVERS................................................ IDLE
LATERAL GUIDANCE ........................................... MONITOR
•At TOUCH DOWN
ROLL OUT mode ............. CHECK ENGAGED / ANNOUNCE
BOTH THRUST LEVERS................ REV MAX OR REV IDLE
GRND SPLRS..................................... CHECK / ANNOUNCE
REVERSERS...................................... CHECK / ANNOUNCE
DIRECTIONAL CONTROL................... MONITOR / ENSURE DIRECTIONAL CONTROL .................................... MONITOR
BRAKES..................................................................AS RQRD
DECELERATION ................................ CHECK / ANNOUNCE
•At 70 kt :
SEVENTY KNOTS..............................................ANNOUNCE
BOTH THRUST LEVERS........................................REV IDLE
•Before 20 kt:
AUTO BRK .........................................................DISENGAGE
•End of roll out
REVERSERS ............................................................... STOW
AP.....................................................................................OFF
GO AROUND
Applicable to: ALL
PF PM
THRUST LEVERS..............................TOGA THEN FLX/MCT
ROTATION............................................................ PERFORM
GO-AROUND ..................................................... ANNOUNCE FLAPS lever ............................................. SELECT AS RQRD
FMA.................................................................... ANNOUNCE
POSITIVE CLIMB................................................ANNOUNCE
L/G UP........................................................................ ORDER L/G ...................................................................... SELECT UP
AP............................................................................AS RQRD
NAV or HDG mode..................................................AS RQRD
•AT GA THR RED ALT:
THRUST LEVERS.............................................................. CL
•AT GA ACCEL ALT:
SPEED ................................................................... MONITOR
•AT F SPEED:
FLAPS 1 ..................................................................... ORDER FLAPS 1.................................................................... SELECT
•AT S SPEED:
FLAPS 0 ..................................................................... ORDER FLAPS 0.................................................................... SELECT
GND SPLRS ............................................................. DISARM
EXTERIOR LIGHTS......................................................... SET
AFTER TAKEOFF C/L down to the line .............. COMPLETE AFTER TAKEOFF C/L down to the line ...............COMPLETE
GO AROUND
Applicable to: ALL
PF PM
THRUST LEVERS ........................................................ TOGA
ROTATION ............................................................PERFORM
GO-AROUND ..................................................... ANNOUNCE FLAPS lever .............................................SELECT AS RQRD
FMA .................................................................... ANNOUNCE
POSITIVE CLIMB............................................... ANNOUNCE
L/G UP ........................................................................ORDER L/G.......................................................................SELECT UP
AP ........................................................................... AS RQRD
NAV or HDG mode ................................................. AS RQRD
•AT GA THR RED ALT:
THRUST LEVERS .............................................................. CL
•AT GA ACCEL ALT:
SPEED....................................................................MONITOR
•AT F SPEED:
FLAPS 1 .....................................................................ORDER FLAPS 1 ....................................................................SELECT
•AT S SPEED:
FLAPS 0 .....................................................................ORDER FLAPS 0 ....................................................................SELECT
GND SPLRS..............................................................DISARM
EXTERIOR LIGHTS ......................................................... SET
AFTER TAKEOFF C/L down to the line...............COMPLETE AFTER TAKEOFF C/L down to the line .............. COMPLETE
AFTER LANDING
Applicable to: ALL
PF PM
GRND SPLRS ...........................................................DISARM
EXTERIOR LIGHTS .........................................................SET
RADAR .............................................................................OFF
PREDICTIVE WINDSHEAR ......................................OFF
ENG MODE selector ....................................................NORM
FLAPS ....................................................................RETRACT
TCAS .......................................................................STBY
ATC .........................................................................AS RQRD
APU ............................................................................. START
ANTI ICE .................................................................AS RQRD
BRAKE TEMP ............................................................ CHECK
AFTER LDG C/L ..................................................COMPLETE AFTER LDG C/L.................................................. COMPLETE
PARKING
Applicable to: ALL
PF PM
ACCU PRESS ............................................................ CHECK ANTI-ICE .......................................................................... OFF
PARKING BRAKE handle ................................................. ON APU BLEED pb-sw............................................................. ON
ALL ENG MASTERS........................................................OFF
SLIDES................................................... CHECK DISARMED
SEAT BELTS sw ..............................................................OFF
FUEL PUMPS / CTR XFR VALVES................................. OFF
EXTERIOR LIGHTS .........................................................SET ATC ................................................................................ STBY
GROUND CONTACT .......................................... ESTABLISH IRS PERFORMANCE .................................................CHECK
FUEL QTY...................................................................CHECK
STATUS ......................................................................CHECK
PARKING BRK....................................................... AS RQRD BRAKE FAN .............................................................. OFF
DUs .................................................................................. DIM DUs ...................................................................................DIM
ALL EFB TRANSMITTING MODE ......................... AS RQRD ALL EFB TRANSMITTING MODE .......................... AS RQRD
PARKING C/L...................................................... COMPLETE PARKING C/L.......................................................COMPLETE
•If performing transit stop: •If performing transit stop:
eQRH My Aircraft/ FLIGHT .........................................CLEAR eQRH My Aircraft/ FLIGHT ......................................... CLEAR
PARKING
Applicable to: ALL
PF PM
ACCU PRESS ............................................................ CHECK ANTI-ICE .......................................................................... OFF
PARKING BRAKE handle ................................................. ON APU BLEED pb-sw............................................................. ON
ALL ENG MASTERS........................................................OFF
SLIDES................................................... CHECK DISARMED
SEAT BELTS sw ..............................................................OFF
FUEL PUMPS .................................................................. OFF
EXTERIOR LIGHTS .........................................................SET ATC ................................................................................ STBY
GROUND CONTACT .......................................... ESTABLISH IRS PERFORMANCE .................................................CHECK
FUEL QTY...................................................................CHECK
STATUS ......................................................................CHECK
PARKING BRK....................................................... AS RQRD BRAKE FAN .............................................................. OFF
DUs .................................................................................. DIM DUs ...................................................................................DIM
ALL EFB TRANSMITTING MODE ......................... AS RQRD ALL EFB TRANSMITTING MODE .......................... AS RQRD
PARKING C/L...................................................... COMPLETE PARKING C/L.......................................................COMPLETE
•If performing transit stop: •If performing transit stop:
eQRH My Aircraft/ FLIGHT .........................................CLEAR eQRH My Aircraft/ FLIGHT ......................................... CLEAR
PF PM
PARKING BRK .....................................................CHECK ON
ALL IR MODE selectors....................................................OFF OXY CREW SUPPLY pb..................................................OFF
EXTERIOR LIGHTS.........................................................OFF
MAINT BUS SW ......................................................AS RQRD
APU BLEED pb-sw...........................................................OFF
APU MASTER SW ...........................................................OFF
EMER EXIT LT sw ...........................................................OFF
SIGNS sw.........................................................................OFF
EXT PWR pb...........................................................AS RQRD
BAT 1+2 ...........................................................................OFF
SECURING THE A/C C/L .................................... COMPLETE SECURING THE A/C C/L.................................... COMPLETE
EFB applications..........................................................CLOSE EFB applications .........................................................CLOSE
ALL EFB ............................................................SWITCH OFF ALL EFB............................................................SWITCH OFF
PER-O Miscellaneous
Ground Distance / Air Distance Conversion ........................O.1
IAS / MACH Conversion..........................................................O.2
ISA Temperature and Pressure Altitude Correction ............O.3
Wind Component ....................................................................O.4
Use the following method to determine the runway landing performance level, the FLAPS lever position for
landing, the VAPP, and the Factored Landing Distance (FLD):
VAPP
Determine the VAPP.
X
MEL LANDING PENALTY FACTOR
Multiply LD by the landing penalty factor specified in the MEL, if any.
X
SAFETY MARGIN
Add a margin, as per airline policy.
Airbus recommends a 15% margin. Under exceptional circumstances, the flight crew
may disregard this margin.
Use the following method to determine the runway landing performance level, the FLAPS lever position for
landing, the VAPP, and the Factored Landing Distance (FLD):
VAPP
Determine the VAPP using the highest VREF.
+
DETERMINE THE EFFECT OF THE OTHER FAILURE ( LD)
1 - Identify the [REF DIST with failure] of the other failure (no correction)**
2 - Calculate LD = [REF DIST with failure] - [REF DIST without failure].
** Use the FLAPS lever position selected for landing. If not available, use FLAPS 3.
X
MEL LANDING PENALTY FACTOR
Multiply LD by the landing penalty factor specified in the MEL, if any.
X
SAFETY MARGIN
Add a margin, as per airline policy.
Airbus recommends a 15% margin. Under exceptional circumstances, the flight crew
may disregard this margin.
The FMGS performs the following VAPP computation for landing in normal configuration (CONF 3 or
CONF FULL).
VLS
Weight (T) 40 45 50 55 60 65 70 75 80
VLS CONF FULL (kt) CG < 25% 116 116 116 120 125 130 135 139 143
(=VREF) CG > 25% 116 116 116 119 124 129 134 139 143
CG < 25% 116 118 124 130 136 141 146 151 155
VLS CONF 3 (kt)
CG > 25% 116 116 123 129 134 140 145 150 155
+
APPR oach COR rection
VAPP
VAPP = VLS + APPR COR
Note: In case of strong or gusty crosswind greater than 20kt, VAPP should be at
least VLS + 5 kt. The 5kt increment above VLS may be increased up to 15kt
at the flight crew's discretion.
VLS
Weight (T) 40 42 46 50 54 58 62 66 70 74 78
VLS CONF FULL (kt) CG < 25% 110 112 116 121 125 130 134 138 142 146 150
(=VREF) CG > 25% 108 110 114 119 123 128 132 136 140 144 148
CG < 25% 112 115 120 125 129 135 139 143 147 151 155
VLS CONF 3 (kt)
CG > 25% 110 113 118 123 127 133 137 141 145 149 153
+
APPR oach COR rection
VAPP
VAPP = VLS + APPR COR
Note: In case of strong or gusty crosswind greater than 20kt, VAPP should be at
least VLS + 5 kt. The 5kt increment above VLS may be increased up to 15kt
at the flight crew's discretion.
VLS
Weight (T) 40 42 46 50 54 58 62 66 70 74 78
VLS CONF FULL (kt) CG < 25% 108 111 116 121 125 130 134 138 142 146 150
(=VREF) CG > 25% 106 109 114 119 123 128 132 136 140 144 148
CG < 25% 112 115 119 125 129 135 139 143 147 151 155
VLS CONF 3 (kt)
CG > 25% 110 113 117 123 127 133 137 141 145 149 153
+
APPR oach COR rection
VAPP
VAPP = VLS + APPR COR
Note: In case of strong or gusty crosswind greater than 20kt, VAPP should be at
least VLS + 5 kt. The 5kt increment above VLS may be increased up to 15kt
at the flight crew's discretion.
The FMGS performs the following VAPP computation for landing in normal configuration (CONF 3 or
CONF FULL).
VLS
Weight (T) 40 42 46 50 54 58 62 66 70 74 78
VLS CONF FULL (kt) CG < 25% 108 111 116 121 125 129 134 138 142 146 149
(=VREF) CG > 25% 106 109 114 119 123 127 132 136 140 144 147
CG < 25% 111 114 119 124 128 133 137 142 146 150 154
VLS CONF 3 (kt)
CG > 25% 109 112 117 122 126 131 135 140 144 148 152
+
APPR oach COR rection
VAPP
VAPP = VLS + APPR COR
Note: In case of strong or gusty crosswind greater than 20kt, VAPP should be at
least VLS + 5 kt. The 5kt increment above VLS may be increased up to 15kt
at the flight crew's discretion.
VREF
Weight (T) 40 45 50 55 60 65 70 75 80
VREF CG < 25% 116 116 116 120 125 130 135 139 143
= VLS CONF FULL (kt) CG > 25% 116 116 116 119 124 129 134 139 143
+
VREF
Refer to the applicable Landing Distance table
+
APPR oach COR rection
5kt in case of A/THR ON
5kt in case of Ice Accretion in CONF FULL
APPR COR = Highest of 10kt in case of Ice Accretion in CONF 3
VREF 15 kt 1/3 Headwind component
(excluding gust - maximum 15 kt)
APPR COR + VREF must be limited to 25kt
APPR COR = 1/3 Headwind component (excluding gust - maximum 10 kt)
15 kt < VREF < 25 kt
APPR COR + VREF must be limited to 25kt
VAPP
VAPP = VREF + VREF + APPR COR
Any extra pilot approach speed increment must be added to VAPP, and
must be taken into account in SPD column for Landing Distance computation.
CAUTION
If N/A is displayed in the SPD column of the Landing Distance table, do not
add any extra pilot approach speed increment.
VREF
Weight (T) 40 42 46 50 54 58 62 66 70 74 78
VREF CG < 25% 108 111 116 121 125 130 134 138 142 146 150
= VLS CONF FULL (kt) CG > 25% 106 109 114 119 123 128 132 136 140 144 148
+
VREF
Refer to the applicable Landing Distance table
+
APPR oach COR rection
5kt in case of A/THR ON
5kt in case of Ice Accretion in CONF FULL
APPR COR = Highest of 10kt in case of Ice Accretion in CONF 3
VREF 10 kt 1/3 Headwind component
(excluding gust - maximum 15 kt)
APPR COR + VREF must be limited to 20kt
APPR COR = 1/3 Headwind component (excluding gust - maximum 10 kt)
10 kt < VREF < 20 kt
APPR COR + VREF must be limited to 20kt
VAPP
VAPP = VREF + VREF + APPR COR
Any extra pilot approach speed increment must be added to VAPP, and
must be taken into account in SPD column for Landing Distance computation.
CAUTION
If N/A is displayed in the SPD column of the Landing Distance table, do not
add any extra pilot approach speed increment.
VREF
Weight (T) 40 42 46 50 54 58 62 66 70 74 78
VREF CG < 25% 108 111 116 121 125 130 134 138 142 146 149
= VLS CONF FULL (kt) CG > 25% 106 109 114 119 123 128 132 136 140 144 147
+
VREF
Refer to the applicable Landing Distance table
+
APPR oach COR rection
5kt in case of A/THR ON
5kt in case of Ice Accretion in CONF FULL
APPR COR = Highest of 10kt in case of Ice Accretion in CONF 3
VREF 10 kt 1/3 Headwind component
(excluding gust - maximum 15 kt)
APPR COR + VREF must be limited to 20kt
APPR COR = 1/3 Headwind component (excluding gust - maximum 10 kt)
10 kt < VREF < 20 kt
APPR COR + VREF must be limited to 20kt
VAPP
VAPP = VREF + VREF + APPR COR
Any extra pilot approach speed increment must be added to VAPP, and
must be taken into account in SPD column for Landing Distance computation.
CAUTION
If N/A is displayed in the SPD column of the Landing Distance table, do not
add any extra pilot approach speed increment.
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine
reverse thrust, manual landing(1), VAPP=VLS without APPR COR.
6 - DRY
Corrections on Landing Distance (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
(m)
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
68T 68T Slope Operative applied
SL ISA
FULL 1 060 + 50 + 70 + 40 + 130 + 30 + 20 0 + 910
Maximum MANUAL
3 1 210 + 50 + 80 + 50 + 130 + 40 + 30 - 10 + 1 080
FULL 1 330 + 30 + 90 + 50 + 140 + 40 + 10 0 + 220
AUTOBRAKE MED
3 1 510 + 40 + 100 + 50 + 140 + 50 + 10 0 + 230
FULL 1 860 + 40 + 130 + 70 + 200 + 70 + 30 0 + 210
AUTOBRAKE LOW
3 2 160 + 50 + 140 + 80 + 220 + 70 + 30 - 10 + 230
(1) Automatic Landing correction: if CONF FULL, add 280m. If CONF 3, add 250m.
(2) Weight correction: subtract 10m per 1T below 68T.
5 - GOOD
Corrections on Landing Distance
(m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
68T 68T Slope Operative applied
SL ISA
FULL 1 320 + 50 + 110 + 70 + 200 + 60 + 50 - 20 + 710
Maximum MANUAL
3 1 570 + 60 + 120 + 80 + 230 + 70 + 60 - 30 + 810
FULL 1 380 + 50 + 110 + 70 + 200 + 60 + 50 0 + 200
AUTOBRAKE MED
3 1 630 + 50 + 120 + 80 + 230 + 70 + 60 - 20 + 290
FULL 1 860 + 40 + 130 + 70 + 200 + 70 + 30 0 + 210
AUTOBRAKE LOW
3 2 160 + 50 + 140 + 80 + 220 + 70 + 30 - 10 + 230
(1) Automatic Landing correction: if CONF FULL, add 320m. If CONF 3, add 300m.
(2) Weight correction: if CONF FULL, subtract 10m per 1T below 68T. If CONF 3, subtract 20m per 1T below 68T.
4 - GOOD TO MEDIUM
Corrections on Landing Distance
(m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
68T 68T Slope Operative applied
SL ISA
FULL 1 570 + 40 + 100 + 60 + 190 + 60 + 70 - 50 + 800
Maximum MANUAL
3 1 820 + 50 + 100 + 70 + 200 + 70 + 80 - 80 + 930
FULL 1 620 + 40 + 100 + 60 + 190 + 60 + 80 - 60 + 200
AUTOBRAKE MED
3 1 870 + 40 + 100 + 70 + 200 + 70 + 90 - 90 + 280
FULL 1 880 + 40 + 130 + 70 + 210 + 60 + 50 - 10 + 210
AUTOBRAKE LOW
3 2 170 + 50 + 140 + 80 + 220 + 80 + 60 - 30 + 230
(1) Automatic Landing correction: if CONF FULL, add 320m. If CONF 3, add 300m.
(2) Weight correction: if CONF FULL, subtract 10m per 1T below 68T. If CONF 3, subtract 20m per 1T below 68T.
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
68T 68T Slope Operative applied
SL ISA
FULL 1 760 + 40 + 100 + 70 + 220 + 60 + 110 - 90 + 750
Maximum MANUAL
3 2 050 + 50 + 110 + 80 + 240 + 70 + 120 - 130 + 880
FULL 1 810 + 40 + 110 + 70 + 230 + 60 + 110 - 100 + 200
AUTOBRAKE MED
3 2 100 + 50 + 110 + 80 + 240 + 70 + 130 - 140 + 300
FULL 1 960 + 40 + 130 + 70 + 240 + 70 + 100 - 40 + 230
AUTOBRAKE LOW
3 2 270 + 50 + 140 + 80 + 250 + 80 + 110 - 70 + 260
(1) Automatic Landing correction: if CONF FULL, add 330m. If CONF 3, add 310m.
(2) Weight correction: if CONF FULL, subtract 10m per 1T below 68T. If CONF 3, subtract 20m per 1T below 68T.
2 - MEDIUM TO POOR
Corrections on Landing Distance (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
(m)
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
68T 68T Slope Operative applied
SL ISA
FULL 1 930 + 70 + 170 + 110 + 350 + 100 + 150 - 110 + 480
Maximum MANUAL
3 2 380 + 80 + 170 + 140 + 410 + 120 + 200 - 150 + 580
FULL 1 960 + 70 + 160 + 110 + 360 + 90 + 150 - 110 + 230
AUTOBRAKE MED
3 2 400 + 80 + 170 + 140 + 410 + 120 + 200 - 160 + 310
FULL 2 000 + 70 + 160 + 120 + 360 + 90 + 150 - 40 + 220
AUTOBRAKE LOW
3 2 430 + 80 + 180 + 140 + 400 + 130 + 210 - 80 + 290
(1) Automatic Landing correction: add 380m.
(2) Weight correction: if CONF FULL, subtract 10m per 1T below 68T. If CONF 3, subtract 30m per 1T below 68T.
1 - POOR
Corrections on Landing Distance (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
(m)
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
68T 68T Slope Operative applied
SL ISA
FULL 2 760 + 60 + 140 + 110 + 430 + 110 + 460 - 370 + 550
Maximum MANUAL
3 3 250 + 70 + 150 + 130 + 470 + 130 + 550 - 490 + 660
FULL 2 790 + 60 + 130 + 110 + 440 + 100 + 470 - 380 + 230
AUTOBRAKE MED
3 3 280 + 70 + 150 + 130 + 470 + 120 + 560 - 490 + 310
FULL 2 830 + 60 + 140 + 110 + 440 + 110 + 470 - 380 + 220
AUTOBRAKE LOW
3 3 330 + 70 + 140 + 130 + 470 + 120 + 560 - 500 + 290
(1) Automatic Landing correction: if CONF FULL, add 360m. If CONF 3, add 350m.
(2) Weight correction: if CONF FULL, subtract 20m per 1T below 68T. If CONF 3, subtract 30m per 1T below 68T.
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 1 090 + 50 + 70 + 40 + 120 + 30 + 20 - 10 + 780
Maximum MANUAL
3 1 170 + 50 + 80 + 40 + 130 + 40 + 20 - 10 + 940
FULL 1 370 + 30 + 90 + 50 + 130 + 50 + 10 0 + 230
AUTOBRAKE MED
3 1 450 + 40 + 100 + 50 + 140 + 50 + 10 0 + 250
FULL 1 950 + 40 + 140 + 70 + 200 + 70 + 30 - 10 + 260
AUTOBRAKE LOW
3 2 090 + 50 + 140 + 80 + 210 + 70 + 20 - 10 + 290
(1) Automatic Landing correction: if CONF FULL, add 280m. If CONF 3, add 300m.
(2) Weight correction: subtract 10m per 1T below 66T.
5 - GOOD
Corrections on Landing Distance
(m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 1 410 + 50 + 110 + 70 + 210 + 60 + 50 - 40 + 620
Maximum MANUAL
3 1 550 + 50 + 120 + 80 + 230 + 70 + 60 - 40 + 750
FULL 1 460 + 50 + 110 + 70 + 210 + 60 + 50 - 10 + 220
AUTOBRAKE MED
3 1 610 + 50 + 120 + 80 + 230 + 70 + 60 - 30 + 240
FULL 1 950 + 40 + 140 + 70 + 200 + 70 + 30 - 10 + 260
AUTOBRAKE LOW
3 2 090 + 50 + 140 + 80 + 210 + 70 + 20 - 10 + 280
(1) Automatic Landing correction: if CONF FULL, add 310m. If CONF 3, add 330m.
(2) Weight correction: if CONF FULL, subtract 10m per 1T below 66T. If CONF 3, subtract 20m per 1T below 66T.
4 - GOOD TO MEDIUM
Corrections on Landing Distance
(m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 1 660 + 40 + 90 + 60 + 190 + 60 + 70 - 70 + 690
Maximum MANUAL
3 1 810 + 40 + 100 + 70 + 200 + 60 + 80 - 80 + 840
FULL 1 720 + 40 + 90 + 60 + 200 + 50 + 70 - 90 + 210
AUTOBRAKE MED
3 1 870 + 40 + 100 + 70 + 200 + 70 + 90 - 110 + 210
FULL 1 960 + 40 + 140 + 70 + 210 + 70 + 50 - 20 + 260
AUTOBRAKE LOW
3 2 100 + 50 + 140 + 80 + 220 + 70 + 60 - 30 + 290
(1) Automatic Landing correction: if CONF FULL, add 310m. If CONF 3, add 320m.
(2) Weight correction: if CONF FULL, subtract 10m per 1T below 66T. If CONF 3, subtract 20m per 1T below 66T.
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 1 860 + 40 + 100 + 70 + 220 + 60 + 110 - 90 + 660
Maximum MANUAL
3 2 030 + 50 + 110 + 80 + 230 + 80 + 120 - 110 + 800
FULL 1 920 + 40 + 100 + 70 + 230 + 60 + 110 - 120 + 210
AUTOBRAKE MED
3 2 100 + 40 + 110 + 80 + 240 + 80 + 130 - 150 + 220
FULL 2 060 + 40 + 130 + 80 + 240 + 70 + 90 - 60 + 250
AUTOBRAKE LOW
3 2 220 + 50 + 140 + 80 + 240 + 80 + 110 - 80 + 270
(1) Automatic Landing correction: if CONF FULL, add 320m. If CONF 3, add 330m.
(2) Weight correction: subtract 20m per 1T below 66T.
2 - MEDIUM TO POOR
Corrections on Landing Distance (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
(m)
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 2 080 + 70 + 160 + 110 + 360 + 110 + 150 - 100 + 480
Maximum MANUAL
3 2 380 + 80 + 180 + 140 + 410 + 130 + 200 - 130 + 570
FULL 2 110 + 70 + 160 + 120 + 370 + 110 + 160 - 130 + 240
AUTOBRAKE MED
3 2 390 + 80 + 200 + 140 + 420 + 130 + 210 - 170 + 280
FULL 2 140 + 70 + 160 + 120 + 370 + 100 + 160 - 60 + 250
AUTOBRAKE LOW
3 2 420 + 80 + 190 + 140 + 420 + 130 + 210 - 120 + 290
(1) Automatic Landing correction: if CONF FULL, add 350m. If CONF 3, add 370m.
(2) Weight correction: if CONF FULL, subtract 20m per 1T below 66T. If CONF 3, subtract 30m per 1T below 66T.
1 - POOR
Corrections on Landing Distance (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
(m)
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 3 450 + 70 + 150 + 130 + 560 + 160 + 920 - 320 + 480
Maximum MANUAL
3 3 970 + 80 + 160 + 150 + 610 + 180 + 1 150 - 430 + 570
FULL 3 510 + 70 + 140 + 130 + 570 + 160 + 930 - 380 + 240
AUTOBRAKE MED
3 4 020 + 80 + 170 + 150 + 610 + 180 + 1 150 - 520 + 280
FULL 3 540 + 70 + 140 + 130 + 580 + 150 + 940 - 390 + 250
AUTOBRAKE LOW
3 4 040 + 80 + 170 + 150 + 610 + 190 + 1 150 - 520 + 290
(1) Automatic Landing correction: if CONF FULL, add 350m. If CONF 3, add 360m.
(2) Weight correction: if CONF FULL, subtract 30m per 1T below 66T. If CONF 3, subtract 40m per 1T below 66T.
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine
reverse thrust, manual landing(1), VAPP=VLS without APPR COR.
6 - DRY
Corrections on Landing Distance (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
(ft)
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (ft) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 3 570 + 140 + 230 + 130 + 390 + 110 + 60 - 50 + 2 540
Maximum MANUAL
3 3 830 + 150 + 250 + 140 + 390 + 130 + 70 - 50 + 3 080
FULL 4 490 + 100 + 300 + 150 + 420 + 140 + 30 0 + 750
AUTOBRAKE MED
3 4 760 + 110 + 310 + 160 + 440 + 150 + 30 0 + 800
FULL 6 400 + 140 + 450 + 230 + 660 + 220 + 80 - 30 + 850
AUTOBRAKE LOW
3 6 840 + 150 + 470 + 250 + 680 + 230 + 80 - 30 + 930
(1) Automatic Landing correction: if CONF FULL, add 920ft. If CONF 3, add 970ft.
(2) Weight correction: if CONF FULL, subtract 30ft per 1T below 66T. If CONF 3, subtract 40ft per 1T below 66T.
5 - GOOD
Corrections on Landing Distance
(ft) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (ft) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 4 620 + 140 + 350 + 220 + 670 + 200 + 150 - 120 + 2 030
Maximum MANUAL
3 5 080 + 170 + 390 + 250 + 730 + 230 + 190 - 150 + 2 440
FULL 4 790 + 140 + 360 + 230 + 680 + 200 + 150 - 50 + 730
AUTOBRAKE MED
3 5 270 + 160 + 410 + 260 + 740 + 230 + 190 - 110 + 780
FULL 6 400 + 140 + 450 + 230 + 660 + 220 + 80 - 30 + 850
AUTOBRAKE LOW
3 6 840 + 150 + 470 + 250 + 680 + 230 + 80 - 30 + 910
(1) Automatic Landing correction: if CONF FULL, add 1 020ft. If CONF 3, add 1 060ft.
(2) Weight correction: if CONF FULL, subtract 60ft per 1T below 66T. If CONF 3, subtract 70ft per 1T below 66T.
4 - GOOD TO MEDIUM
Corrections on Landing Distance
(ft) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (ft) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 5 440 + 120 + 300 + 190 + 610 + 190 + 230 - 220 + 2 260
Maximum MANUAL
3 5 910 + 130 + 330 + 210 + 630 + 210 + 270 - 270 + 2 740
FULL 5 620 + 110 + 300 + 200 + 620 + 190 + 240 - 300 + 670
AUTOBRAKE MED
3 6 140 + 120 + 320 + 220 + 650 + 200 + 280 - 370 + 690
FULL 6 420 + 140 + 450 + 230 + 670 + 220 + 160 - 70 + 850
AUTOBRAKE LOW
3 6 880 + 140 + 460 + 250 + 700 + 230 + 190 - 100 + 930
(1) Automatic Landing correction: if CONF FULL, add 1 010ft. If CONF 3, add 1 050ft.
(2) Weight correction: subtract 60ft per 1T below 66T.
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (ft) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 6 090 + 130 + 330 + 220 + 710 + 210 + 340 - 300 + 2 150
Maximum MANUAL
3 6 670 + 140 + 360 + 240 + 750 + 240 + 390 - 360 + 2 610
FULL 6 280 + 120 + 320 + 230 + 730 + 210 + 340 - 400 + 680
AUTOBRAKE MED
3 6 890 + 130 + 360 + 250 + 760 + 240 + 410 - 500 + 710
FULL 6 740 + 140 + 420 + 240 + 760 + 230 + 290 - 200 + 810
AUTOBRAKE LOW
3 7 270 + 150 + 450 + 260 + 790 + 260 + 350 - 260 + 880
(1) Automatic Landing correction: if CONF FULL, add 1 040ft. If CONF 3, add 1 070ft.
(2) Weight correction: subtract 70ft per 1T below 66T.
2 - MEDIUM TO POOR
Corrections on Landing Distance (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
(ft)
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (ft) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 6 820 + 220 + 510 + 370 + 1 170 + 350 + 500 - 340 + 1 560
Maximum MANUAL
3 7 790 + 260 + 600 + 440 + 1 340 + 420 + 660 - 430 + 1 860
FULL 6 910 + 220 + 520 + 370 + 1 190 + 350 + 510 - 440 + 780
AUTOBRAKE MED
3 7 840 + 260 + 630 + 450 + 1 370 + 410 + 680 - 570 + 920
FULL 7 000 + 220 + 530 + 370 + 1 200 + 340 + 520 - 220 + 800
AUTOBRAKE LOW
3 7 930 + 260 + 630 + 450 + 1 370 + 410 + 690 - 420 + 950
(1) Automatic Landing correction: if CONF FULL, add 1 130ft. If CONF 3, add 1 210ft.
(2) Weight correction: if CONF FULL, subtract 90ft per 1T below 66T. If CONF 3, subtract 110ft per 1T below 66T.
1 - POOR
Corrections on Landing Distance (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
(ft)
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (ft) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 11 320 + 220 + 480 + 430 + 1 830 + 520 + 3 000 - 1 050 + 1 560
Maximum MANUAL
3 13 000 + 250 + 550 + 500 + 1 960 + 610 + 3 720 - 1 410 + 1 860
FULL 11 510 + 220 + 460 + 430 + 1 860 + 510 + 3 020 - 1 260 + 790
AUTOBRAKE MED
3 13 180 + 250 + 550 + 500 + 1 980 + 590 + 3 760 - 1 690 + 920
FULL 11 590 + 220 + 460 + 440 + 1 860 + 510 + 3 030 - 1 270 + 800
AUTOBRAKE LOW
3 13 260 + 250 + 550 + 500 + 1 990 + 590 + 3 770 - 1 700 + 950
(1) Automatic Landing correction: if CONF FULL, add 1 150ft. If CONF 3, add 1 180ft.
(2) Weight correction: if CONF FULL, subtract 110ft per 1T below 66T. If CONF 3, subtract 130ft per 1T below 66T.
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine
reverse thrust, manual landing(1), VAPP=VLS without APPR COR.
6 - DRY
Corrections on Landing Distance (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
(m)
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 1 090 + 50 + 70 + 40 + 120 + 30 + 20 - 10 + 780
Maximum MANUAL
3 1 170 + 50 + 80 + 40 + 130 + 40 + 20 - 10 + 940
FULL 1 370 + 30 + 90 + 50 + 130 + 50 + 10 0 + 230
AUTOBRAKE MED
3 1 450 + 40 + 100 + 50 + 140 + 50 + 10 0 + 250
FULL 1 950 + 40 + 140 + 70 + 200 + 70 + 30 - 10 + 260
AUTOBRAKE LOW
3 2 090 + 50 + 140 + 80 + 210 + 70 + 20 - 10 + 290
(1) Automatic Landing correction: if CONF FULL, add 280m. If CONF 3, add 300m.
(2) Weight correction: subtract 10m per 1T below 66T.
5 - GOOD
Corrections on Landing Distance
(m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 1 410 + 50 + 110 + 70 + 210 + 60 + 50 - 30 + 620
Maximum MANUAL
3 1 550 + 50 + 120 + 80 + 230 + 70 + 60 - 40 + 750
FULL 1 460 + 50 + 110 + 70 + 210 + 60 + 50 - 10 + 220
AUTOBRAKE MED
3 1 610 + 50 + 120 + 80 + 230 + 70 + 60 - 30 + 240
FULL 1 950 + 40 + 140 + 70 + 200 + 70 + 30 - 10 + 260
AUTOBRAKE LOW
3 2 090 + 50 + 140 + 80 + 210 + 70 + 20 - 10 + 280
(1) Automatic Landing correction: if CONF FULL, add 310m. If CONF 3, add 330m.
(2) Weight correction: if CONF FULL, subtract 10m per 1T below 66T. If CONF 3, subtract 20m per 1T below 66T.
4 - GOOD TO MEDIUM
Corrections on Landing Distance
(m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 1 660 + 40 + 90 + 60 + 190 + 60 + 70 - 70 + 690
Maximum MANUAL
3 1 810 + 40 + 100 + 70 + 200 + 60 + 80 - 80 + 840
FULL 1 720 + 40 + 90 + 60 + 200 + 50 + 70 - 90 + 210
AUTOBRAKE MED
3 1 870 + 40 + 100 + 70 + 200 + 70 + 90 - 110 + 210
FULL 1 960 + 40 + 140 + 70 + 210 + 70 + 50 - 20 + 260
AUTOBRAKE LOW
3 2 100 + 50 + 140 + 80 + 220 + 70 + 60 - 30 + 290
(1) Automatic Landing correction: if CONF FULL, add 310m. If CONF 3, add 320m.
(2) Weight correction: if CONF FULL, subtract 10m per 1T below 66T. If CONF 3, subtract 20m per 1T below 66T.
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 1 860 + 40 + 100 + 70 + 220 + 60 + 110 - 90 + 660
Maximum MANUAL
3 2 030 + 50 + 110 + 80 + 230 + 80 + 120 - 110 + 800
FULL 1 920 + 40 + 100 + 70 + 230 + 60 + 110 - 120 + 210
AUTOBRAKE MED
3 2 100 + 40 + 110 + 80 + 240 + 80 + 130 - 150 + 220
FULL 2 060 + 40 + 130 + 80 + 240 + 70 + 90 - 60 + 250
AUTOBRAKE LOW
3 2 220 + 50 + 140 + 80 + 240 + 80 + 110 - 80 + 270
(1) Automatic Landing correction: if CONF FULL, add 320m. If CONF 3, add 330m.
(2) Weight correction: subtract 20m per 1T below 66T.
2 - MEDIUM TO POOR
Corrections on Landing Distance (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
(m)
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 2 080 + 70 + 160 + 110 + 360 + 110 + 150 - 100 + 480
Maximum MANUAL
3 2 380 + 80 + 180 + 140 + 410 + 130 + 200 - 130 + 570
FULL 2 110 + 70 + 160 + 120 + 370 + 110 + 160 - 130 + 240
AUTOBRAKE MED
3 2 390 + 80 + 200 + 140 + 420 + 130 + 210 - 170 + 280
FULL 2 140 + 70 + 160 + 120 + 370 + 100 + 160 - 60 + 250
AUTOBRAKE LOW
3 2 420 + 80 + 190 + 140 + 420 + 130 + 210 - 120 + 290
(1) Automatic Landing correction: if CONF FULL, add 350m. If CONF 3, add 370m.
(2) Weight correction: if CONF FULL, subtract 20m per 1T below 66T. If CONF 3, subtract 30m per 1T below 66T.
1 - POOR
Corrections on Landing Distance (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
(m)
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 3 450 + 70 + 150 + 130 + 560 + 160 + 920 - 320 + 480
Maximum MANUAL
3 3 970 + 80 + 160 + 150 + 610 + 180 + 1 150 - 430 + 570
FULL 3 510 + 70 + 140 + 130 + 570 + 160 + 930 - 380 + 240
AUTOBRAKE MED
3 4 020 + 80 + 170 + 150 + 610 + 180 + 1 150 - 510 + 280
FULL 3 540 + 70 + 140 + 130 + 580 + 150 + 940 - 380 + 250
AUTOBRAKE LOW
3 4 040 + 80 + 170 + 150 + 610 + 190 + 1 150 - 520 + 290
(1) Automatic Landing correction: if CONF FULL, add 350m. If CONF 3, add 360m.
(2) Weight correction: if CONF FULL, subtract 30m per 1T below 66T. If CONF 3, subtract 40m per 1T below 66T.
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine
reverse thrust, manual landing(1), VAPP=VLS without APPR COR.
6 - DRY
Corrections on Landing Distance (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
(m)
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 1 080 + 40 + 60 + 40 + 130 + 30 + 20 - 20 + 760
Maximum MANUAL
3 1 130 + 50 + 80 + 50 + 120 + 40 + 20 - 20 + 990
FULL 1 360 + 30 + 90 + 50 + 130 + 40 + 10 0 + 230
AUTOBRAKE MED
3 1 420 + 40 + 100 + 50 + 140 + 50 + 10 0 + 250
FULL 1 930 + 50 + 130 + 80 + 200 + 60 + 20 - 10 + 260
AUTOBRAKE LOW
3 2 030 + 50 + 150 + 80 + 210 + 70 + 30 - 10 + 290
(1) Automatic Landing correction: if CONF FULL, add 190m. If CONF 3, add 260m.
(2) Weight correction: subtract 10m per 1T below 66T.
5 - GOOD
Corrections on Landing Distance
(m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 1 370 + 50 + 100 + 70 + 200 + 60 + 40 - 50 + 600
Maximum MANUAL
3 1 480 + 50 + 120 + 80 + 220 + 70 + 60 - 60 + 790
FULL 1 420 + 50 + 110 + 70 + 200 + 60 + 40 - 10 + 220
AUTOBRAKE MED
3 1 540 + 50 + 120 + 80 + 220 + 70 + 60 - 30 + 240
FULL 1 930 + 50 + 130 + 80 + 200 + 60 + 20 - 10 + 260
AUTOBRAKE LOW
3 2 030 + 50 + 150 + 80 + 210 + 70 + 30 - 10 + 270
(1) Automatic Landing correction: if CONF FULL, add 230m. If CONF 3, add 310m.
(2) Weight correction: if CONF FULL, subtract 10m per 1T below 66T. If CONF 3, subtract 20m per 1T below 66T.
4 - GOOD TO MEDIUM
Corrections on Landing Distance
(m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 1 600 + 40 + 80 + 70 + 180 + 50 + 60 - 90 + 670
Maximum MANUAL
3 1 720 + 40 + 100 + 70 + 190 + 60 + 70 - 110 + 880
FULL 1 650 + 40 + 90 + 60 + 190 + 60 + 70 - 110 + 200
AUTOBRAKE MED
3 1 790 + 40 + 100 + 70 + 200 + 60 + 80 - 140 + 210
FULL 1 930 + 50 + 130 + 80 + 210 + 60 + 40 - 10 + 260
AUTOBRAKE LOW
3 2 030 + 50 + 150 + 80 + 210 + 70 + 50 - 20 + 280
(1) Automatic Landing correction: if CONF FULL, add 230m. If CONF 3, add 310m.
(2) Weight correction: if CONF FULL, subtract 10m per 1T below 66T. If CONF 3, subtract 20m per 1T below 66T.
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 1 770 + 40 + 90 + 80 + 210 + 60 + 90 - 110 + 640
Maximum MANUAL
3 1 920 + 50 + 110 + 80 + 220 + 60 + 110 - 140 + 840
FULL 1 820 + 40 + 100 + 80 + 210 + 70 + 90 - 140 + 210
AUTOBRAKE MED
3 1 990 + 40 + 110 + 80 + 230 + 70 + 110 - 180 + 220
FULL 1 990 + 50 + 130 + 80 + 230 + 70 + 70 - 40 + 240
AUTOBRAKE LOW
3 2 120 + 50 + 140 + 90 + 240 + 70 + 90 - 70 + 270
(1) Automatic Landing correction: if CONF FULL, add 240m. If CONF 3, add 320m.
(2) Weight correction: subtract 20m per 1T below 66T.
2 - MEDIUM TO POOR
Corrections on Landing Distance (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
(m)
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 1 950 + 70 + 140 + 120 + 330 + 90 + 130 - 120 + 460
Maximum MANUAL
3 2 200 + 80 + 180 + 150 + 380 + 110 + 170 - 160 + 600
FULL 1 980 + 70 + 150 + 120 + 330 + 100 + 130 - 160 + 230
AUTOBRAKE MED
3 2 230 + 80 + 180 + 150 + 390 + 110 + 180 - 210 + 280
FULL 2 020 + 70 + 150 + 120 + 340 + 90 + 130 - 40 + 230
AUTOBRAKE LOW
3 2 250 + 80 + 180 + 150 + 390 + 110 + 180 - 90 + 280
(1) Automatic Landing correction: if CONF FULL, add 280m. If CONF 3, add 390m.
(2) Weight correction: if CONF FULL, subtract 20m per 1T below 66T. If CONF 3, subtract 30m per 1T below 66T.
1 - POOR
Corrections on Landing Distance (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
(m)
Per Per
REF DIST Per 1T Per 1% Per Thrust If OVW
LDG 1000ft Per 5kt 10°C
Braking Mode (m) for above Per 5kt Down Reverser PROC
CONF above TW above
66T 66T Slope Operative applied
SL ISA
FULL 2 950 + 70 + 140 + 190 + 490 + 120 + 530 - 230 + 470
Maximum MANUAL
3 3 380 + 80 + 170 + 220 + 530 + 140 + 690 - 330 + 600
FULL 3 020 + 70 + 130 + 190 + 490 + 120 + 540 - 300 + 230
AUTOBRAKE MED
3 3 450 + 80 + 170 + 220 + 530 + 140 + 690 - 430 + 280
FULL 3 040 + 70 + 130 + 190 + 490 + 120 + 540 - 290 + 230
AUTOBRAKE LOW
3 3 480 + 80 + 170 + 220 + 540 + 140 + 700 - 430 + 280
(1) Automatic Landing correction: if CONF FULL, add 280m. If CONF 3, add 380m.
(2) Weight correction: if CONF FULL, subtract 30m per 1T below 66T. If CONF 3, subtract 40m per 1T below 66T.
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
6 - DRY
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
WING ANTI ICE SYS FULL 10 1 210 + 40 + 80 + 40 + 120 + 50 + 30 - 10 + 740
FAULT with Ice Accretion 3 22 1 410 + 50 N/A + 50 + 120 + 50 + 30 - 10 + 920
(1) Automatic Landing correction: add 150m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 060m
5 - GOOD
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
WING ANTI ICE SYS FULL 10 1 540 + 50 + 120 + 80 + 210 + 70 + 60 - 20 + 530
FAULT with Ice Accretion 3 22 1 840 + 50 N/A + 90 + 230 + 80 + 70 - 50 + 650
(1) Automatic Landing correction: add 170m - (2) Weight correction: subtract 20m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 320m
4 - GOOD TO MEDIUM
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
WING ANTI ICE SYS FULL 10 1 780 + 40 + 100 + 70 + 190 + 60 + 80 - 60 + 640
FAULT with Ice Accretion 3 22 2 060 + 40 N/A + 80 + 200 + 70 + 90 - 90 + 790
(1) Automatic Landing correction: add 170m - (2) Weight correction: subtract 20m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 570m
3 - MEDIUM
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
WING ANTI ICE SYS FULL 10 1 990 + 40 + 110 + 80 + 230 + 70 + 110 - 90 + 590
FAULT with Ice Accretion 3 22 2 320 + 50 N/A + 90 + 240 + 80 + 130 - 140 + 730
(1) Automatic Landing correction: add 180m - (2) Weight correction: subtract 20m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 760m
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
2 - MEDIUM TO POOR
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
WING ANTI ICE SYS FULL 10 2 270 + 70 + 160 + 120 + 370 + 110 + 170 - 110 + 360
FAULT with Ice Accretion 3 22 2 770 + 80 N/A + 150 + 410 + 140 + 220 - 180 + 460
(1) Automatic Landing correction: add 200m - (2) Weight correction: subtract 30m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 930m
1 - POOR
Corrections on (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
Landing Distance (m)
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
WING ANTI ICE SYS FULL 10 3 060 + 60 + 130 + 120 + 450 + 110 + 480 - 320 + 420
FAULT with Ice Accretion 3 22 3 610 + 70 N/A + 140 + 470 + 130 + 560 - 440 + 540
(1) Automatic Landing correction: add 190m - (2) Weight correction: subtract 30m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 2 760m
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
6 - DRY
Corrections on
Landing Distance (ft) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(ft) for above TW above
for LDG 66T Slope Operative applied
66T SL ISA
WING ANTI ICE SYS FULL 10 4 110 + 130 + 250 + 140 + 390 + 140 + 70 - 60 + 1 970
FAULT with Ice Accretion 3 16 4 480 + 140 + 250 + 150 + 390 + 150 + 80 - 70 + 2 520
(1) Automatic Landing correction: add 430ft - (2) Weight correction: subtract 40ft per 1T below 66T
REF DIST without failure (valid for all FLAPS LEVER positions) = 3 570ft
5 - GOOD
Corrections on
Landing Distance (ft) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(ft) for above TW above
for LDG 66T Slope Operative applied
66T SL ISA
WING ANTI ICE SYS FULL 10 5 370 + 150 + 360 + 260 + 710 + 230 + 180 - 150 + 1 480
FAULT with Ice Accretion 3 16 5 960 + 170 + 400 + 300 + 760 + 270 + 220 - 200 + 1 860
(1) Automatic Landing correction: add 450ft - (2) Weight correction: subtract 70ft per 1T below 66T
REF DIST without failure (valid for all FLAPS LEVER positions) = 4 620ft
BLEED SYSTEM
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
6 - DRY
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
The following ECAM alerts FULL 10 1 210 + 40 + 80 + 40 + 120 + 50 + 30 - 10 + 740
with Ice Accretion:
-DUAL BLEED FAULT
-WING or ENG BLEED
LEAK
-X BLEED FAULT
-APU BLEED LEAK
3 22 1 410 + 50 N/A + 50 + 120 + 50 + 30 - 10 + 920
-ENG 1 (2) BLEED HI
TEMP
-ENG 1 (2) BLEED LO
TEMP
-ENG 1+2 BLEED LO
TEMP
(1) Automatic Landing correction: add 150m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 060m
5 - GOOD
Corrections on (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
Landing Distance (m)
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
The following ECAM alerts FULL 10 1 540 + 50 + 120 + 80 + 210 + 70 + 60 - 20 + 530
with Ice Accretion:
-DUAL BLEED FAULT
-WING or ENG BLEED
LEAK
-X BLEED FAULT
-APU BLEED LEAK
3 22 1 840 + 50 N/A + 90 + 230 + 80 + 70 - 50 + 650
-ENG 1 (2) BLEED HI
TEMP
-ENG 1 (2) BLEED LO
TEMP
-ENG 1+2 BLEED LO
TEMP
(1) Automatic Landing correction: add 170m - (2) Weight correction: subtract 20m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 320m
BLEED SYSTEM
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
4 - GOOD TO MEDIUM
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
The following ECAM alerts FULL 10 1 780 + 40 + 100 + 70 + 190 + 60 + 80 - 60 + 640
with Ice Accretion:
-DUAL BLEED FAULT
-WING or ENG BLEED
LEAK
-X BLEED FAULT
-APU BLEED LEAK
3 22 2 060 + 40 N/A + 80 + 200 + 70 + 90 - 90 + 790
-ENG 1 (2) BLEED HI
TEMP
-ENG 1 (2) BLEED LO
TEMP
-ENG 1+2 BLEED LO
TEMP
(1) Automatic Landing correction: add 170m - (2) Weight correction: subtract 20m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 570m
3 - MEDIUM
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
The following ECAM alerts FULL 10 1 990 + 40 + 110 + 80 + 230 + 70 + 110 - 90 + 590
with Ice Accretion:
-DUAL BLEED FAULT
-WING or ENG BLEED
LEAK
-X BLEED FAULT
-APU BLEED LEAK
3 22 2 320 + 50 N/A + 90 + 240 + 80 + 130 - 140 + 730
-ENG 1 (2) BLEED HI
TEMP
-ENG 1 (2) BLEED LO
TEMP
-ENG 1+2 BLEED LO
TEMP
(1) Automatic Landing correction: add 180m - (2) Weight correction: subtract 20m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 760m
BLEED SYSTEM
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
2 - MEDIUM TO POOR
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
The following ECAM alerts FULL 10 2 270 + 70 + 160 + 120 + 370 + 110 + 170 - 110 + 360
with Ice Accretion:
-DUAL BLEED FAULT
-WING or ENG BLEED
LEAK
-X BLEED FAULT
-APU BLEED LEAK
3 22 2 770 + 80 N/A + 150 + 410 + 140 + 220 - 180 + 460
-ENG 1 (2) BLEED HI
TEMP
-ENG 1 (2) BLEED LO
TEMP
-ENG 1+2 BLEED LO
TEMP
(1) Automatic Landing correction: add 200m - (2) Weight correction: subtract 30m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 930m
1 - POOR
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
The following ECAM alerts FULL 10 3 060 + 60 + 130 + 120 + 450 + 110 + 480 - 320 + 420
with Ice Accretion:
-DUAL BLEED FAULT
-WING or ENG BLEED
LEAK
-X BLEED FAULT
-APU BLEED LEAK
3 22 3 610 + 70 N/A + 140 + 470 + 130 + 560 - 440 + 540
-ENG 1 (2) BLEED HI
TEMP
-ENG 1 (2) BLEED LO
TEMP
-ENG 1+2 BLEED LO
TEMP
(1) Automatic Landing correction: add 190m - (2) Weight correction: subtract 30m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 2 760m
BLEED SYSTEM
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
6 - DRY
Corrections on
Landing Distance (ft) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(ft) for above TW above
for LDG 66T Slope Operative applied
66T SL ISA
The following ECAM alerts FULL 10 4 110 + 130 + 250 + 140 + 390 + 140 + 70 - 60 + 1 970
with Ice Accretion:
-DUAL BLEED FAULT
-WING or ENG BLEED
3 16 4 480 + 140 + 250 + 150 + 390 + 150 + 80 - 70 + 2 520
LEAK
-X BLEED FAULT
-ENG BLEED LO TEMP
(1) Automatic Landing correction: add 430ft - (2) Weight correction: subtract 40ft per 1T below 66T
REF DIST without failure (valid for all FLAPS LEVER positions) = 3 570ft
5 - GOOD
Corrections on (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
Landing Distance (ft)
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(ft) for above TW above
for LDG 66T Slope Operative applied
66T SL ISA
The following ECAM alerts FULL 10 5 370 + 150 + 360 + 260 + 710 + 230 + 180 - 150 + 1 480
with Ice Accretion:
-DUAL BLEED FAULT
-WING or ENG BLEED
3 16 5 960 + 170 + 400 + 300 + 760 + 270 + 220 - 200 + 1 860
LEAK
-X BLEED FAULT
-ENG BLEED LO TEMP
(1) Automatic Landing correction: add 450ft - (2) Weight correction: subtract 70ft per 1T below 66T
REF DIST without failure (valid for all FLAPS LEVER positions) = 4 620ft
4 - GOOD TO MEDIUM
Corrections on
Landing Distance (ft) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(ft) for above TW above
for LDG 66T Slope Operative applied
66T SL ISA
The following ECAM alerts FULL 10 6 120 + 110 + 300 + 220 + 630 + 210 + 250 - 270 + 1 720
with Ice Accretion:
-DUAL BLEED FAULT
-WING or ENG BLEED
3 16 6 700 + 120 + 320 + 240 + 650 + 230 + 290 - 320 + 2 190
LEAK
-X BLEED FAULT
-ENG BLEED LO TEMP
(1) Automatic Landing correction: add 450ft - (2) Weight correction: subtract 60ft per 1T below 66T
REF DIST without failure (valid for all FLAPS LEVER positions) = 5 440ft
BRAKE SYSTEM
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
6 - DRY
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
FULL 0 1 710 + 60 + 100 + 60 + 190 + 50 + 80 - 40 + 770
ANTISKID FAULT
3 12 1 990 + 70 + 110 + 70 + 200 + 70 + 90 - 70 + 900
FULL 0 1 230 + 50 + 90 + 50 + 150 + 50 + 40 - 10 + 830
ONE BRK RELEASED
3 12 1 460 + 50 + 90 + 60 + 150 + 50 + 40 - 20 + 990
FULL 0 1 530 + 60 + 110 + 60 + 200 + 50 + 70 - 30 + 750
TWO BRK RELEASED
3 12 1 820 + 70 + 110 + 70 + 200 + 70 + 90 - 50 + 900
ALTN L(R) RELEASED (if FULL 0 1 550 + 60 + 100 + 60 + 190 + 50 + 70 - 40 + 760
NORM BRK FAULT) 3 12 1 830 + 70 + 110 + 70 + 200 + 70 + 80 - 70 + 910
ALTN L(R) RELEASED (if FULL 0 1 690 + 60 + 110 + 60 + 190 + 60 + 80 - 100 + 790
G SYS LO PR) 3 12 1 940 + 70 + 110 + 80 + 200 + 70 + 90 - 130 + 940
FULL 0 1 130 + 40 + 80 + 40 + 120 + 40 + 30 - 10 + 930
NORM BRK FAULT
3 12 1 310 + 40 + 70 + 50 + 130 + 40 + 20 - 20 + 1 070
FULL 0 1 710 + 60 + 100 + 60 + 190 + 50 + 80 - 40 + 770
NORM + ALTN FAULT
3 12 1 990 + 70 + 110 + 70 + 200 + 70 + 90 - 70 + 900
(1) Automatic Landing correction: add 190m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 060m
5 - GOOD
Corrections on (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
Landing Distance (m)
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
FULL 0 1 710 + 60 + 110 + 70 + 210 + 60 + 90 - 40 + 700
ANTISKID FAULT
3 12 1 990 + 70 + 120 + 90 + 230 + 80 + 100 - 70 + 790
FULL 0 1 550 + 50 + 130 + 80 + 240 + 70 + 70 - 40 + 590
ONE BRK RELEASED
3 12 1 890 + 60 + 130 + 100 + 280 + 80 + 90 - 70 + 670
FULL 0 1 860 + 60 + 140 + 100 + 310 + 90 + 120 - 80 + 500
TWO BRK RELEASED
3 12 2 270 + 70 + 150 + 120 + 340 + 110 + 160 - 130 + 570
ALTN L(R) RELEASED (if FULL 0 1 990 + 70 + 140 + 110 + 330 + 90 + 150 - 100 + 470
NORM BRK FAULT) 3 12 2 420 + 80 + 160 + 130 + 370 + 120 + 190 - 160 + 530
ALTN L(R) RELEASED (if FULL 0 2 230 + 70 + 170 + 120 + 370 + 100 + 200 - 220 + 430
G SYS LO PR) 3 12 2 690 + 90 + 190 + 150 + 420 + 130 + 260 - 290 + 520
FULL 0 1 460 + 50 + 120 + 80 + 220 + 60 + 60 - 30 + 620
NORM BRK FAULT
3 12 1 770 + 50 + 120 + 100 + 250 + 80 + 70 - 50 + 700
FULL 0 1 710 + 60 + 110 + 70 + 210 + 60 + 90 - 40 + 700
NORM + ALTN FAULT
3 12 1 990 + 70 + 120 + 90 + 230 + 80 + 100 - 70 + 790
(1) Automatic Landing correction: add 210m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 320m
BRAKE SYSTEM
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
4 - GOOD TO MEDIUM
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
FULL 0 1 720 + 60 + 100 + 60 + 200 + 60 + 80 - 70 + 770
ANTISKID FAULT
3 12 2 010 + 70 + 100 + 80 + 210 + 60 + 90 - 90 + 890
FULL 0 1 870 + 40 + 110 + 70 + 230 + 70 + 120 - 90 + 700
ONE BRK RELEASED
3 12 2 200 + 50 + 110 + 90 + 250 + 80 + 140 - 130 + 810
FULL 0 2 300 + 50 + 120 + 90 + 320 + 80 + 230 - 180 + 600
TWO BRK RELEASED
3 12 2 710 + 60 + 130 + 110 + 330 + 100 + 260 - 240 + 700
ALTN L(R) RELEASED (if FULL 0 2 300 + 50 + 120 + 90 + 320 + 80 + 230 - 180 + 600
NORM BRK FAULT) 3 12 2 710 + 60 + 130 + 110 + 330 + 100 + 260 - 240 + 700
ALTN L(R) RELEASED (if FULL 0 2 560 + 60 + 150 + 100 + 340 + 100 + 290 - 330 + 570
G SYS LO PR) 3 12 3 000 + 60 + 150 + 120 + 360 + 110 + 340 - 420 + 690
FULL 0 1 620 + 40 + 100 + 60 + 190 + 60 + 70 - 50 + 760
NORM BRK FAULT
3 12 1 900 + 40 + 100 + 70 + 200 + 70 + 90 - 80 + 870
FULL 0 1 720 + 60 + 100 + 60 + 200 + 60 + 80 - 70 + 770
NORM + ALTN FAULT
3 12 2 010 + 70 + 100 + 80 + 210 + 60 + 90 - 90 + 890
(1) Automatic Landing correction: add 210m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 570m
3 - MEDIUM
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
FULL 0 1 890 + 40 + 110 + 70 + 230 + 60 + 110 - 90 + 720
ANTISKID FAULT
3 12 2 210 + 50 + 110 + 90 + 240 + 70 + 130 - 130 + 850
FULL 0 2 100 + 50 + 120 + 80 + 280 + 80 + 170 - 140 + 640
ONE BRK RELEASED
3 12 2 480 + 50 + 120 + 100 + 300 + 90 + 200 - 190 + 750
FULL 0 2 580 + 60 + 130 + 100 + 380 + 100 + 330 - 240 + 540
TWO BRK RELEASED
3 12 3 060 + 60 + 140 + 130 + 400 + 110 + 390 - 320 + 640
ALTN L(R) RELEASED (if FULL 0 2 580 + 60 + 130 + 100 + 380 + 100 + 330 - 240 + 540
NORM BRK FAULT) 3 12 3 060 + 60 + 140 + 130 + 400 + 110 + 390 - 320 + 640
ALTN L(R) RELEASED (if FULL 0 2 890 + 60 + 160 + 120 + 410 + 110 + 430 - 450 + 510
G SYS LO PR) 3 12 3 390 + 70 + 170 + 140 + 430 + 130 + 500 - 560 + 630
FULL 0 1 820 + 40 + 100 + 70 + 230 + 60 + 110 - 80 + 700
NORM BRK FAULT
3 12 2 140 + 40 + 110 + 80 + 240 + 70 + 120 - 120 + 810
FULL 0 1 890 + 40 + 110 + 70 + 230 + 60 + 110 - 90 + 720
NORM + ALTN FAULT
3 12 2 210 + 50 + 110 + 90 + 240 + 70 + 130 - 130 + 850
(1) Automatic Landing correction: add 210m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 760m
BRAKE SYSTEM
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
2 - MEDIUM TO POOR
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
FULL 0 2 030 + 70 + 160 + 120 + 360 + 100 + 160 - 100 + 430
ANTISKID FAULT
3 12 2 510 + 80 + 180 + 140 + 410 + 130 + 210 - 150 + 520
FULL 0 2 300 + 80 + 170 + 130 + 410 + 120 + 230 - 150 + 370
ONE BRK RELEASED
3 12 2 840 + 90 + 190 + 160 + 470 + 150 + 300 - 220 + 450
FULL 0 2 770 + 90 + 180 + 150 + 520 + 130 + 410 - 260 + 300
TWO BRK RELEASED
3 12 3 400 + 100 + 200 + 180 + 590 + 170 + 520 - 360 + 380
ALTN L(R) RELEASED (if FULL 0 2 770 + 90 + 180 + 150 + 520 + 130 + 410 - 260 + 300
NORM BRK FAULT) 3 12 3 400 + 100 + 200 + 180 + 590 + 170 + 520 - 360 + 380
ALTN L(R) RELEASED (if FULL 0 3 110 + 100 + 220 + 170 + 580 + 150 + 550 - 490 + 280
G SYS LO PR) 3 12 3 820 + 120 + 240 + 220 + 670 + 200 + 700 - 630 + 370
FULL 0 2 020 + 70 + 160 + 120 + 360 + 100 + 160 - 100 + 410
NORM BRK FAULT
3 12 2 510 + 80 + 170 + 150 + 410 + 120 + 210 - 150 + 500
FULL 0 2 030 + 70 + 160 + 120 + 360 + 100 + 160 - 100 + 430
NORM + ALTN FAULT
3 12 2 510 + 80 + 180 + 140 + 410 + 130 + 210 - 150 + 520
(1) Automatic Landing correction: add 230m - (2) Weight correction: subtract 20m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 930m
1 - POOR
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
FULL 0 2 850 + 60 + 140 + 110 + 440 + 110 + 470 - 310 + 510
ANTISKID FAULT
3 12 3 380 + 70 + 150 + 140 + 470 + 120 + 560 - 410 + 620
FULL 0 3 280 + 70 + 150 + 130 + 550 + 130 + 870 - 450 + 440
ONE BRK RELEASED
3 12 3 910 + 80 + 160 + 150 + 590 + 150 + 1 030 - 580 + 530
FULL 0 Landing Distance greater than 6 000 m for all conditions
TWO BRK RELEASED
3 12 Landing Distance greater than 6 000 m for all conditions
ALTN L(R) RELEASED (if FULL 0 Landing Distance greater than 6 000 m for all conditions
NORM BRK FAULT) 3 12 Landing Distance greater than 6 000 m for all conditions
ALTN L(R) RELEASED (if FULL 0 Landing Distance greater than 6 000 m for all conditions
G SYS LO PR) 3 12 Landing Distance greater than 6 000 m for all conditions
FULL 0 2 840 + 60 + 130 + 120 + 440 + 100 + 470 - 310 + 490
NORM BRK FAULT
3 12 3 370 + 70 + 150 + 140 + 470 + 120 + 560 - 410 + 590
FULL 0 2 850 + 60 + 140 + 110 + 440 + 110 + 470 - 310 + 510
NORM + ALTN FAULT
3 12 3 380 + 70 + 150 + 140 + 470 + 120 + 560 - 410 + 620
(1) Automatic Landing correction: add 220m - (2) Weight correction: subtract 20m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 2 760m
BRAKE SYSTEM
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
6 - DRY
Corrections on
Landing Distance (ft) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(ft) for above TW above
for LDG 66T Slope Operative applied
66T SL ISA
FULL 0 6 140 + 210 + 310 + 210 + 630 + 200 + 260 - 220 + 2 150
ANTISKID FAULT
3 6 6 770 + 230 + 350 + 230 + 660 + 230 + 300 - 260 + 2 580
FULL 0 4 240 + 150 + 290 + 160 + 460 + 160 + 110 - 80 + 2 350
ONE BRK RELEASED
3 6 4 670 + 170 + 300 + 170 + 480 + 160 + 120 - 100 + 2 860
FULL 0 5 270 + 200 + 330 + 200 + 610 + 200 + 220 - 160 + 2 180
TWO BRK RELEASED
3 6 5 860 + 220 + 350 + 220 + 630 + 210 + 260 - 190 + 2 640
ALTN L(R) RELEASED (if FULL 0 5 280 + 200 + 320 + 200 + 610 + 190 + 220 - 200 + 2 180
NORM BRK FAULT) 3 6 5 870 + 220 + 350 + 220 + 630 + 210 + 260 - 240 + 2 640
ALTN L(R) RELEASED (if FULL 0 5 710 + 190 + 360 + 210 + 620 + 200 + 260 - 260 + 2 260
G SYS LO PR) 3 6 6 180 + 220 + 380 + 230 + 640 + 220 + 300 - 300 + 2 740
FULL 0 3 860 + 130 + 220 + 120 + 370 + 120 + 70 - 60 + 2 530
NORM BRK FAULT
3 6 4 140 + 140 + 230 + 140 + 400 + 120 + 70 - 80 + 3 000
FULL 0 6 140 + 210 + 310 + 210 + 630 + 200 + 260 - 220 + 2 150
NORM + ALTN FAULT
3 6 6 770 + 230 + 350 + 230 + 660 + 230 + 300 - 260 + 2 580
(1) Automatic Landing correction: add 570ft - (2) Weight correction: subtract 40ft per 1T below 66T
REF DIST without failure (valid for all FLAPS LEVER positions) = 3 570ft
5 - GOOD
Corrections on (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
Landing Distance (ft)
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(ft) for above TW above
for LDG 66T Slope Operative applied
66T SL ISA
FULL 0 6 140 + 200 + 340 + 230 + 710 + 220 + 280 - 220 + 1 950
ANTISKID FAULT
3 6 6 780 + 220 + 380 + 270 + 770 + 250 + 330 - 270 + 2 320
FULL 0 5 440 + 170 + 400 + 270 + 810 + 240 + 240 - 190 + 1 720
ONE BRK RELEASED
3 6 6 100 + 190 + 450 + 310 + 900 + 290 + 300 - 250 + 2 040
FULL 0 6 520 + 200 + 450 + 330 + 1 010 + 300 + 410 - 330 + 1 520
TWO BRK RELEASED
3 6 7 410 + 230 + 520 + 380 + 1 130 + 370 + 530 - 420 + 1 780
ALTN L(R) RELEASED (if FULL 0 6 920 + 210 + 460 + 350 + 1 100 + 330 + 480 - 380 + 1 450
NORM BRK FAULT) 3 6 7 900 + 240 + 540 + 410 + 1 230 + 390 + 630 - 500 + 1 690
ALTN L(R) RELEASED (if FULL 0 7 760 + 240 + 570 + 400 + 1 230 + 390 + 680 - 530 + 1 430
G SYS LO PR) 3 6 8 810 + 270 + 660 + 480 + 1 380 + 460 + 870 - 690 + 1 690
FULL 0 5 100 + 150 + 380 + 250 + 730 + 230 + 200 - 160 + 1 810
NORM BRK FAULT
3 6 5 700 + 170 + 430 + 290 + 820 + 260 + 240 - 200 + 2 140
FULL 0 6 140 + 200 + 340 + 230 + 710 + 220 + 280 - 220 + 1 950
NORM + ALTN FAULT
3 6 6 780 + 220 + 380 + 270 + 770 + 250 + 330 - 270 + 2 320
(1) Automatic Landing correction: add 630ft - (2) Weight correction: subtract 70ft per 1T below 66T
REF DIST without failure (valid for all FLAPS LEVER positions) = 4 620ft
ELECTRICAL SYSTEM
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
6 - DRY
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (m) for above TW above
68T Slope Operative applied
LDG 68T SL ISA
FULL 0 1 100 + 40 + 80 + 40 + 120 + 40 + 20 - 10 + 910
AC BUS 1 FAULT
3 12 1 280 + 50 + 80 + 50 + 130 + 40 + 30 - 20 + 1 060
FULL 0 1 210 + 40 + 80 + 40 + 120 + 30 + 30 - 40 + 970
DC BUS 2 FAULT
3 12 1 360 + 50 + 80 + 50 + 130 + 50 + 30 - 40 + 1 100
FULL 0 1 830 + 70 + 110 + 70 + 210 + 60 + 100 INOP + 860
DC BUS 1+2 FAULT
3 12 2 140 + 80 + 120 + 80 + 220 + 70 + 120 INOP + 1 010
DC ESS BUS FAULT with FULL 0 1 100 + 40 + 80 + 40 + 120 + 40 + 30 - 10 + 910
no Ice Accretion 3 12 1 280 + 50 + 80 + 50 + 130 + 50 + 30 - 20 + 1 060
DC ESS BUS FAULT with FULL 10 1 230 + 40 + 80 + 50 + 130 + 40 + 30 - 10 + 750
Ice Accretion 3 22 1 420 + 50 N/A + 50 + 130 + 50 + 30 - 20 + 940
DC ESS SHED BUS with FULL 10 1 210 + 40 + 80 + 40 + 120 + 50 + 30 - 10 + 740
Ice Accretion 3 22 1 410 + 50 N/A + 50 + 120 + 50 + 30 - 10 + 920
DC EMER CONFIG FULL 0 / 140kt 1 980 + 50 + 120 + 80 + 210 + 70 + 110 INOP + 730
(Calculated with 140kt min) 3 12 / 140kt 2 150 + 80 + 120 + 80 + 230 + 70 + 120 INOP + 1 010
ELEC EMER CONFIG
3 15 / 140kt 2 180 + 80 + 120 + 80 + 210 + 70 + 110 INOP + 970
(Calculated with 140kt min)
(1) Automatic Landing correction: add 200m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 060m
5 - GOOD
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (m) for above TW above
68T Slope Operative applied
LDG 68T SL ISA
FULL 0 1 410 + 50 + 120 + 80 + 210 + 60 + 50 - 30 + 660
AC BUS 1 FAULT
3 12 1 710 + 50 + 120 + 90 + 240 + 70 + 70 - 60 + 750
FULL 0 1 630 + 60 + 160 + 90 + 260 + 80 + 90 - 110 + 620
DC BUS 2 FAULT
3 12 1 940 + 60 + 170 + 110 + 290 + 100 + 110 - 120 + 740
FULL 0 1 880 + 70 + 160 + 100 + 280 + 80 + 130 INOP + 660
DC BUS 1+2 FAULT
3 12 2 210 + 80 + 180 + 120 + 300 + 100 + 150 INOP + 790
DC ESS BUS FAULT with FULL 0 1 420 + 50 + 120 + 80 + 220 + 60 + 50 - 30 + 660
no Ice Accretion 3 12 1 710 + 50 + 130 + 100 + 250 + 80 + 70 - 60 + 740
DC ESS BUS FAULT with FULL 10 1 600 + 50 + 120 + 90 + 230 + 70 + 60 - 40 + 520
Ice Accretion 3 22 1 910 + 60 N/A + 100 + 250 + 90 + 70 - 80 + 640
DC ESS SHED BUS with FULL 10 1 540 + 50 + 120 + 80 + 210 + 70 + 60 - 20 + 530
Ice Accretion 3 22 1 840 + 50 N/A + 90 + 230 + 80 + 70 - 50 + 650
DC EMER CONFIG FULL 0 / 140kt 2 080 + 30 + 170 + 110 + 300 + 90 + 150 INOP + 530
(Calculated with 140kt min) 3 12 / 140kt 2 220 + 80 + 170 + 120 + 300 + 100 + 150 INOP + 790
ELEC EMER CONFIG
3 15 / 140kt 2 270 + 80 + 160 + 120 + 290 + 90 + 140 INOP + 760
(Calculated with 140kt min)
(1) Automatic Landing correction: add 210m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 320m
ELECTRICAL SYSTEM
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
4 - GOOD TO MEDIUM
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (m) for above TW above
68T Slope Operative applied
LDG 68T SL ISA
FULL 0 1 670 + 40 + 100 + 60 + 200 + 60 + 80 - 80 + 770
AC BUS 1 FAULT
3 12 1 950 + 40 + 110 + 80 + 210 + 70 + 90 - 110 + 880
FULL 0 1 930 + 40 + 140 + 80 + 220 + 70 + 130 - 190 + 740
DC BUS 2 FAULT
3 12 2 220 + 40 + 130 + 90 + 230 + 80 + 130 - 210 + 890
FULL 0 2 000 + 50 + 140 + 80 + 230 + 70 + 140 INOP + 770
DC BUS 1+2 FAULT
3 12 2 290 + 60 + 150 + 90 + 240 + 80 + 150 INOP + 950
DC ESS BUS FAULT with FULL 0 1 690 + 40 + 100 + 70 + 200 + 60 + 90 - 100 + 770
no Ice Accretion 3 12 1 980 + 40 + 100 + 80 + 220 + 70 + 100 - 140 + 880
DC ESS BUS FAULT with FULL 10 1 860 + 40 + 110 + 70 + 210 + 70 + 90 - 100 + 630
Ice Accretion 3 22 2 150 + 40 N/A + 80 + 210 + 80 + 100 - 150 + 790
DC ESS SHED BUS with FULL 10 1 780 + 40 + 100 + 70 + 190 + 60 + 80 - 60 + 640
Ice Accretion 3 22 2 060 + 40 N/A + 80 + 200 + 70 + 90 - 90 + 790
DC EMER CONFIG FULL 0 / 140kt 2 190 + 20 + 150 + 90 + 240 + 80 + 150 INOP + 640
(Calculated with 140kt min) 3 12 / 140kt 2 300 + 60 + 150 + 90 + 240 + 80 + 150 INOP + 950
ELEC EMER CONFIG
3 15 / 140kt 2 340 + 60 + 130 + 90 + 230 + 80 + 140 INOP + 910
(Calculated with 140kt min)
(1) Automatic Landing correction: add 210m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 570m
3 - MEDIUM
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (m) for above TW above
68T Slope Operative applied
LDG 68T SL ISA
FULL 0 1 870 + 40 + 110 + 70 + 230 + 70 + 120 - 120 + 710
AC BUS 1 FAULT
3 12 2 200 + 50 + 110 + 90 + 240 + 80 + 130 - 170 + 820
FULL 0 2 190 + 50 + 160 + 90 + 270 + 90 + 180 - 270 + 680
DC BUS 2 FAULT
3 12 2 530 + 50 + 150 + 110 + 280 + 90 + 200 - 300 + 830
FULL 0 2 250 + 50 + 160 + 100 + 280 + 80 + 210 INOP + 710
DC BUS 1+2 FAULT
3 12 2 590 + 50 + 160 + 110 + 290 + 100 + 220 INOP + 890
DC ESS BUS FAULT with FULL 0 1 910 + 40 + 110 + 80 + 250 + 70 + 130 - 150 + 710
no Ice Accretion 3 12 2 240 + 40 + 120 + 90 + 260 + 80 + 150 - 210 + 820
DC ESS BUS FAULT with FULL 10 2 100 + 40 + 110 + 90 + 250 + 70 + 140 - 160 + 580
Ice Accretion 3 22 2 440 + 50 N/A + 100 + 260 + 80 + 150 - 230 + 730
DC ESS SHED BUS with FULL 10 1 990 + 40 + 110 + 80 + 230 + 70 + 110 - 90 + 590
Ice Accretion 3 22 2 320 + 50 N/A + 90 + 240 + 80 + 130 - 140 + 730
DC EMER CONFIG FULL 0 / 140kt 2 460 + 10 + 170 + 110 + 280 + 90 + 220 INOP + 580
(Calculated with 140kt min) 3 12 / 140kt 2 600 + 50 + 160 + 110 + 290 + 90 + 220 INOP + 890
ELEC EMER CONFIG
3 15 / 140kt 2 620 + 50 + 150 + 110 + 270 + 90 + 200 INOP + 850
(Calculated with 140kt min)
(1) Automatic Landing correction: add 220m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 760m
ELECTRICAL SYSTEM
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
2 - MEDIUM TO POOR
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (m) for above TW above
68T Slope Operative applied
LDG 68T SL ISA
FULL 0 2 090 + 70 + 180 + 120 + 370 + 110 + 170 - 140 + 410
AC BUS 1 FAULT
3 12 2 600 + 80 + 190 + 150 + 430 + 130 + 230 - 210 + 510
FULL 0 2 490 + 90 + 260 + 170 + 480 + 150 + 310 - 320 + 350
DC BUS 2 FAULT
3 12 3 090 + 100 + 270 + 210 + 550 + 180 + 410 - 380 + 480
FULL 0 2 530 + 90 + 270 + 180 + 520 + 150 + 330 INOP + 330
DC BUS 1+2 FAULT
3 12 3 140 + 100 + 280 + 230 + 590 + 190 + 450 INOP + 470
DC ESS BUS FAULT with FULL 0 2 130 + 70 + 190 + 140 + 410 + 120 + 200 - 180 + 370
no Ice Accretion 3 12 2 660 + 90 + 200 + 170 + 480 + 140 + 260 - 250 + 470
DC ESS BUS FAULT with FULL 10 2 410 + 80 + 180 + 150 + 420 + 120 + 210 - 190 + 330
Ice Accretion 3 22 2 950 + 90 N/A + 180 + 480 + 150 + 280 - 300 + 430
DC ESS SHED BUS with FULL 10 2 270 + 70 + 160 + 120 + 370 + 110 + 170 - 110 + 360
Ice Accretion 3 22 2 770 + 80 N/A + 150 + 410 + 140 + 220 - 180 + 460
DC EMER CONFIG FULL 0 / 140kt 2 840 + 40 + 260 + 200 + 530 + 160 + 370 INOP + 290
(Calculated with 140kt min) 3 12 / 140kt 3 150 + 100 + 280 + 230 + 600 + 190 + 450 INOP + 470
ELEC EMER CONFIG
3 15 / 140kt 3 180 + 100 + 250 + 200 + 520 + 170 + 390 INOP + 500
(Calculated with 140kt min)
(1) Automatic Landing correction: add 250m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 930m
1 - POOR
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (m) for above TW above
68T Slope Operative applied
LDG 68T SL ISA
FULL 0 2 940 + 60 + 150 + 120 + 450 + 110 + 510 - 440 + 500
AC BUS 1 FAULT
3 12 3 490 + 70 + 160 + 140 + 480 + 140 + 600 - 580 + 590
FULL 0 3 620 + 70 + 210 + 160 + 550 + 150 + 900 - 870 + 440
DC BUS 2 FAULT
3 12 4 250 + 70 + 220 + 190 + 590 + 170 + 1 030 - 1 030 + 580
FULL 0 3 790 + 50 + 230 + 190 + 630 + 160 + 1 170 INOP + 430
DC BUS 1+2 FAULT
3 12 4 450 + 60 + 230 + 230 + 660 + 180 + 1 320 INOP + 590
DC ESS BUS FAULT with FULL 0 3 160 + 50 + 170 + 150 + 560 + 130 + 800 - 730 + 470
no Ice Accretion 3 12 3 750 + 50 + 180 + 180 + 600 + 160 + 930 - 910 + 570
DC ESS BUS FAULT with FULL 10 3 410 + 50 + 160 + 160 + 570 + 140 + 810 - 740 + 400
Ice Accretion 3 22 4 020 + 50 N/A + 190 + 600 + 160 + 940 - 960 + 510
DC ESS SHED BUS with FULL 10 3 060 + 60 + 130 + 120 + 450 + 110 + 480 - 320 + 420
Ice Accretion 3 22 3 610 + 70 N/A + 140 + 470 + 130 + 560 - 440 + 540
DC EMER CONFIG FULL 0 / 140kt 4 070 + 10 + 230 + 200 + 640 + 170 + 1 190 INOP + 370
(Calculated with 140kt min) 3 12 / 140kt 4 450 + 60 + 240 + 230 + 660 + 190 + 1 310 INOP + 580
ELEC EMER CONFIG
3 15 / 140kt 4 210 + 80 + 200 + 170 + 530 + 160 + 860 INOP + 600
(Calculated with 140kt min)
(1) Automatic Landing correction: add 240m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 2 760m
ELECTRICAL SYSTEM
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
6 - DRY
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (m) for above TW above
66T Slope Operative applied
LDG 66T SL ISA
FULL 0 1 140 + 40 + 70 + 40 + 130 + 40 + 20 - 10 + 780
AC BUS 1 FAULT
3 6 1 230 + 50 + 80 + 40 + 120 + 50 + 30 - 20 + 930
FULL 0 1 250 + 40 + 90 + 40 + 120 + 40 + 30 - 20 + 820
DC BUS 2 FAULT
3 6 1 320 + 40 + 90 + 50 + 130 + 40 + 30 - 30 + 970
FULL 0 2 040 + 80 + 110 + 70 + 210 + 70 + 110 INOP + 740
DC BUS 1+2 FAULT
3 6 2 240 + 80 + 120 + 80 + 230 + 70 + 120 INOP + 880
DC ESS BUS FAULT with FULL 0 1 140 + 40 + 70 + 40 + 130 + 40 + 20 - 10 + 780
no Ice Accretion 3 6 1 230 + 50 + 90 + 50 + 120 + 50 + 30 - 20 + 930
DC ESS BUS FAULT with FULL 10 1 270 + 50 + 80 + 50 + 130 + 40 + 20 - 20 + 610
Ice Accretion 3 16 1 380 + 50 + 80 + 50 + 130 + 40 + 30 - 20 + 780
DC ESS SHED BUS with FULL 10 1 260 + 40 + 70 + 50 + 130 + 40 + 20 - 10 + 600
Ice Accretion 3 16 1 370 + 50 + 80 + 50 + 120 + 40 + 30 - 20 + 770
DC EMER CONFIG FULL 0 / 140kt 2 130 + 70 + 110 + 70 + 220 + 70 + 110 INOP + 670
(Calculated with 140kt min) 3 6 / 140kt 2 250 + 80 + 120 + 80 + 230 + 70 + 120 INOP + 880
ELEC EMER CONFIG
3 10 / 140kt 2 280 + 80 + 120 + 80 + 220 + 80 + 110 INOP + 820
(Calculated with 140kt min)
(1) Automatic Landing correction: add 180m - (2) Weight correction: subtract 10m per 1T below 66T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 090m
5 - GOOD
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (m) for above TW above
66T Slope Operative applied
LDG 66T SL ISA
FULL 0 1 510 + 50 + 120 + 70 + 220 + 70 + 60 - 40 + 580
AC BUS 1 FAULT
3 6 1 680 + 50 + 130 + 90 + 240 + 80 + 70 - 60 + 690
FULL 0 1 750 + 60 + 170 + 100 + 270 + 80 + 100 - 80 + 580
DC BUS 2 FAULT
3 6 1 920 + 60 + 180 + 110 + 290 + 100 + 110 - 90 + 700
FULL 0 2 120 + 70 + 160 + 100 + 290 + 90 + 150 INOP + 600
DC BUS 1+2 FAULT
3 6 2 340 + 80 + 180 + 110 + 310 + 100 + 170 INOP + 720
DC ESS BUS FAULT with FULL 0 1 520 + 50 + 120 + 80 + 230 + 60 + 60 - 50 + 570
no Ice Accretion 3 6 1 690 + 50 + 140 + 90 + 250 + 80 + 70 - 60 + 680
DC ESS BUS FAULT with FULL 10 1 700 + 50 + 130 + 90 + 240 + 80 + 70 - 60 + 450
Ice Accretion 3 16 1 900 + 60 + 130 + 100 + 260 + 80 + 80 - 80 + 560
DC ESS SHED BUS with FULL 10 1 640 + 50 + 110 + 80 + 220 + 70 + 60 - 40 + 450
Ice Accretion 3 16 1 820 + 50 + 120 + 90 + 240 + 80 + 70 - 60 + 570
DC EMER CONFIG FULL 0 / 140kt 2 230 + 60 + 160 + 110 + 300 + 90 + 150 INOP + 530
(Calculated with 140kt min) 3 6 / 140kt 2 350 + 80 + 180 + 110 + 310 + 100 + 170 INOP + 710
ELEC EMER CONFIG
3 10 / 140kt 2 390 + 80 + 170 + 110 + 300 + 110 + 160 INOP + 670
(Calculated with 140kt min)
(1) Automatic Landing correction: add 190m - (2) Weight correction: subtract 10m per 1T below 66T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 410m
ENGINE SYSTEM
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
6 - DRY
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
3 15 1 290 + 40 + 80 + 50 + 120 + 50 + 30 - 10 + 990
REV UNLOCK with buffet
1 40 1 680 + 50 N/A + 60 + 130 + 60 + 30 - 20 + 780
SHUTDOWN with ENG FULL 10 1 200 + 40 + 80 + 50 + 120 + 40 + 20 - 10 + 730
FIRE pushbutton pushed
3 22 1 390 + 50 N/A + 50 + 120 + 50 + 30 - 10 + 910
and Ice Accretion
The following ECAM alerts FULL 10 1 210 + 40 + 80 + 40 + 120 + 50 + 30 - 10 + 740
with Ice Accretion:
3 22 1 410 + 50 N/A + 50 + 120 + 50 + 30 - 10 + 920
- START VALVE FAULT
(1) Automatic Landing correction: add 150m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 060m
5 - GOOD
Corrections on (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
Landing Distance (m)
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
3 15 1 670 + 50 + 120 + 90 + 220 + 80 + 60 - 40 + 690
REV UNLOCK with buffet
1 40 2 230 + 60 N/A + 120 + 260 + 100 + 80 - 100 + 570
SHUTDOWN with ENG FULL 10 1 510 + 50 + 110 + 80 + 210 + 70 + 50 - 20 + 520
FIRE pushbutton pushed
3 22 1 800 + 50 N/A + 90 + 220 + 80 + 60 - 50 + 630
and Ice Accretion
The following ECAM alerts FULL 10 1 540 + 50 + 120 + 80 + 210 + 70 + 60 - 20 + 530
with Ice Accretion:
3 22 1 840 + 50 N/A + 90 + 230 + 80 + 70 - 50 + 650
- START VALVE FAULT
(1) Automatic Landing correction: add 170m - (2) Weight correction: subtract 20m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 320m
4 - GOOD TO MEDIUM
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
3 15 1 900 + 40 + 90 + 70 + 200 + 60 + 80 - 90 + 830
REV UNLOCK with buffet
1 40 2 390 + 40 N/A + 90 + 210 + 80 + 100 - 160 + 700
SHUTDOWN with ENG FULL 10 1 740 + 40 + 90 + 70 + 190 + 60 + 70 - 60 + 620
FIRE pushbutton pushed
3 22 2 010 + 40 N/A + 70 + 200 + 70 + 80 - 100 + 770
and Ice Accretion
The following ECAM alerts FULL 10 1 780 + 40 + 100 + 70 + 190 + 60 + 80 - 60 + 640
with Ice Accretion:
3 22 2 060 + 40 N/A + 80 + 200 + 70 + 90 - 90 + 790
- START VALVE FAULT
(1) Automatic Landing correction: add 170m - (2) Weight correction: subtract 20m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 570m
ENGINE SYSTEM
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
3 - MEDIUM
Corrections on (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
Landing Distance (m)
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
3 15 2 120 + 40 + 110 + 80 + 230 + 80 + 120 - 130 + 770
REV UNLOCK with buffet
1 40 2 680 + 50 N/A + 100 + 250 + 90 + 140 - 220 + 660
SHUTDOWN with ENG FULL 10 1 930 + 40 + 100 + 70 + 220 + 70 + 110 - 90 + 580
FIRE pushbutton pushed
3 22 2 250 + 50 N/A + 90 + 230 + 70 + 120 - 140 + 720
and Ice Accretion
The following ECAM alerts FULL 10 1 990 + 40 + 110 + 80 + 230 + 70 + 110 - 90 + 590
with Ice Accretion:
3 22 2 320 + 50 N/A + 90 + 240 + 80 + 130 - 140 + 730
- START VALVE FAULT
(1) Automatic Landing correction: add 180m - (2) Weight correction: subtract 20m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 760m
2 - MEDIUM TO POOR
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
3 15 2 480 + 80 + 170 + 140 + 380 + 130 + 190 - 170 + 460
REV UNLOCK with buffet
1 40 3 380 + 100 N/A + 180 + 440 + 160 + 270 - 360 + 430
SHUTDOWN with ENG FULL 10 2 190 + 70 + 150 + 120 + 350 + 100 + 160 - 110 + 340
FIRE pushbutton pushed
3 22 2 660 + 80 N/A + 140 + 380 + 130 + 200 - 190 + 440
and Ice Accretion
The following ECAM alerts FULL 10 2 270 + 70 + 160 + 120 + 370 + 110 + 170 - 110 + 360
with Ice Accretion:
3 22 2 770 + 80 N/A + 150 + 410 + 140 + 220 - 180 + 460
- START VALVE FAULT
(1) Automatic Landing correction: add 200m - (2) Weight correction: subtract 30m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 930m
1 - POOR
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
3 15 3 240 + 70 + 140 + 130 + 430 + 120 + 460 - 430 + 540
REV UNLOCK with buffet
1 40 4 120 + 90 N/A + 160 + 460 + 160 + 560 - 670 + 490
SHUTDOWN with ENG FULL 10 2 890 + 70 + 130 + 120 + 410 + 100 + 400 - 320 + 400
FIRE pushbutton pushed
3 22 3 400 + 70 N/A + 130 + 430 + 130 + 460 - 460 + 510
and Ice Accretion
The following ECAM alerts FULL 10 3 060 + 60 + 130 + 120 + 450 + 110 + 480 - 320 + 420
with Ice Accretion:
3 22 3 610 + 70 N/A + 140 + 470 + 130 + 560 - 440 + 540
- START VALVE FAULT
(1) Automatic Landing correction: add 190m - (2) Weight correction: subtract 30m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 2 760m
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
6 - DRY
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
ONE SPLR FAULT with FULL 0 1 120 + 40 + 80 + 40 + 120 + 40 + 30 - 10 + 930
no SPOILER runaway
3 12 1 290 + 40 + 80 + 50 + 130 + 40 + 20 - 20 + 1 060
suspected
ONE SPLR FAULT with
SPOILER runaway 3 15 1 330 + 50 + 80 + 50 + 130 + 40 + 30 - 20 + 1 030
suspected
TWO SPLR FAULT/ FULL 0 1 170 + 40 + 80 + 40 + 120 + 30 + 20 - 20 + 970
GND SPLR 1+2(3+4)
3 12 1 330 + 50 + 70 + 50 + 130 + 40 + 20 - 30 + 1 110
FAULT
FULL 0 1 220 + 40 + 90 + 40 + 120 + 40 + 30 - 40 + 980
THREE SPLR FAULT
3 12 1 380 + 40 + 80 + 50 + 130 + 40 + 20 - 40 + 1 110
FULL 0 1 340 + 40 + 120 + 50 + 130 + 50 + 40 - 70 + 980
ALL SPLR FAULT
3 12 1 500 + 40 + 100 + 60 + 140 + 50 + 30 - 60 + 1 140
FULL 0 1 340 + 40 + 120 + 50 + 130 + 50 + 40 - 70 + 980
GND SPLR FAULT
3 12 1 500 + 40 + 100 + 60 + 140 + 50 + 30 - 60 + 1 140
FULL 0 1 120 + 40 + 80 + 40 + 120 + 40 + 30 - 10 + 950
SEC 1 or SEC 3 FAULT
3 12 1 300 + 50 + 80 + 50 + 130 + 40 + 20 - 20 + 1 080
FULL 0 1 100 + 40 + 80 + 40 + 120 + 40 + 20 - 10 + 910
SEC 2 FAULT
3 12 1 280 + 50 + 80 + 50 + 130 + 40 + 30 - 20 + 1 060
FULL 0 1 200 + 40 + 90 + 40 + 120 + 40 + 30 - 30 + 970
SEC 2+3 FAULT
3 12 1 360 + 40 + 80 + 50 + 130 + 50 + 30 - 30 + 1 100
FULL 0 1 270 + 40 + 100 + 50 + 120 + 40 + 30 - 60 + 960
SEC 1+3 FAULT
3 12 1 430 + 40 + 90 + 50 + 130 + 50 + 30 - 50 + 1 110
FULL 0 1 150 + 40 + 80 + 40 + 120 + 40 + 30 - 20 + 970
SEC 1+2 FAULT
3 12 1 330 + 50 + 70 + 50 + 130 + 40 + 20 - 30 + 1 100
FULL 0 1 210 + 50 + 110 + 60 + 150 + 50 + 40 - 10 + 750
RUDDER JAM
3 12 1 480 + 60 + 110 + 70 + 160 + 60 + 50 - 20 + 900
SEC 1+2+3 FAULT 3 15 1 550 + 40 + 100 + 60 + 130 + 50 + 30 INOP + 1 100
L(R) ELEV FAULT 3 25 1 450 + 50 N/A + 50 + 120 + 50 + 30 - 10 + 890
ALTN LAW/
DIRECT LAW/
ELAC 1+2 FAULT/ 3 15 1 310 + 50 + 80 + 50 + 130 + 50 + 30 - 10 + 1 010
L+R ELEV FAULT/
STAB JAM
(1) Automatic Landing correction: add 210m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 060m
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
5 - GOOD
Corrections on (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
Landing Distance (m)
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
ONE SPLR FAULT with FULL 0 1 460 + 50 + 130 + 80 + 220 + 70 + 60 - 40 + 640
no SPOILER runaway
3 12 1 750 + 60 + 130 + 100 + 250 + 80 + 70 - 60 + 740
suspected
ONE SPLR FAULT with
SPOILER runaway 3 15 1 810 + 60 + 130 + 100 + 240 + 90 + 80 - 60 + 700
suspected
TWO SPLR FAULT/ FULL 0 1 560 + 50 + 150 + 90 + 240 + 80 + 80 - 60 + 660
GND SPLR 1+2(3+4)
3 12 1 870 + 60 + 150 + 110 + 270 + 90 + 90 - 80 + 770
FAULT
FULL 0 1 660 + 60 + 170 + 90 + 260 + 80 + 90 - 90 + 630
THREE SPLR FAULT
3 12 1 970 + 60 + 180 + 110 + 290 + 100 + 110 - 110 + 760
FULL 0 1 920 + 70 + 250 + 120 + 320 + 110 + 160 - 190 + 610
ALL SPLR FAULT
3 12 2 270 + 80 + 240 + 150 + 350 + 120 + 180 - 180 + 790
FULL 0 1 920 + 70 + 250 + 120 + 320 + 110 + 160 - 190 + 610
GND SPLR FAULT
3 12 2 270 + 80 + 240 + 150 + 350 + 120 + 180 - 180 + 790
FULL 0 1 480 + 50 + 130 + 80 + 230 + 70 + 60 - 40 + 670
SEC 1 or SEC 3 FAULT
3 12 1 790 + 60 + 140 + 100 + 260 + 80 + 80 - 70 + 760
FULL 0 1 410 + 50 + 120 + 80 + 210 + 60 + 50 - 30 + 660
SEC 2 FAULT
3 12 1 710 + 50 + 120 + 90 + 240 + 70 + 70 - 50 + 750
FULL 0 1 630 + 60 + 160 + 90 + 260 + 70 + 90 - 80 + 630
SEC 2+3 FAULT
3 12 1 930 + 60 + 170 + 110 + 280 + 100 + 100 - 100 + 740
FULL 0 1 760 + 60 + 190 + 100 + 280 + 90 + 120 - 170 + 610
SEC 1+3 FAULT
3 12 2 090 + 70 + 200 + 120 + 310 + 110 + 130 - 170 + 750
FULL 0 1 540 + 50 + 140 + 90 + 240 + 70 + 70 - 70 + 670
SEC 1+2 FAULT
3 12 1 860 + 60 + 150 + 110 + 270 + 90 + 90 - 100 + 760
FULL 0 1 560 + 60 + 140 + 100 + 260 + 70 + 80 - 40 + 500
RUDDER JAM
3 12 1 940 + 70 + 160 + 120 + 290 + 100 + 110 - 80 + 570
SEC 1+2+3 FAULT 3 15 2 370 + 80 + 250 + 150 + 350 + 130 + 190 INOP + 750
L(R) ELEV FAULT 3 25 1 900 + 60 N/A + 100 + 230 + 80 + 70 - 50 + 620
ALTN LAW/
DIRECT LAW/
ELAC 1+2 FAULT/ 3 15 1 710 + 50 + 120 + 90 + 230 + 80 + 60 - 40 + 710
L+R ELEV FAULT/
STAB JAM
(1) Automatic Landing correction: add 270m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 320m
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
4 - GOOD TO MEDIUM
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
ONE SPLR FAULT with FULL 0 1 730 + 40 + 110 + 70 + 200 + 60 + 90 - 80 + 740
no SPOILER runaway
3 12 2 000 + 40 + 110 + 80 + 210 + 70 + 100 - 110 + 880
suspected
ONE SPLR FAULT with
SPOILER runaway 3 15 2 060 + 40 + 110 + 80 + 210 + 70 + 100 - 110 + 850
suspected
TWO SPLR FAULT/ FULL 0 1 850 + 40 + 120 + 80 + 210 + 60 + 110 - 120 + 770
GND SPLR 1+2(3+4)
3 12 2 130 + 40 + 120 + 80 + 220 + 80 + 120 - 140 + 910
FAULT
FULL 0 1 950 + 40 + 140 + 80 + 220 + 70 + 130 - 160 + 750
THREE SPLR FAULT
3 12 2 240 + 50 + 140 + 90 + 230 + 80 + 140 - 180 + 900
FULL 0 2 250 + 50 + 210 + 100 + 250 + 90 + 200 - 290 + 740
ALL SPLR FAULT
3 12 2 550 + 50 + 190 + 110 + 260 + 100 + 200 - 280 + 940
FULL 0 2 250 + 50 + 210 + 100 + 250 + 90 + 200 - 290 + 740
GND SPLR FAULT
3 12 2 550 + 50 + 190 + 110 + 260 + 100 + 200 - 280 + 940
FULL 0 1 750 + 40 + 110 + 70 + 210 + 60 + 90 - 90 + 770
SEC 1 or SEC 3 FAULT
3 12 2 050 + 40 + 110 + 80 + 220 + 70 + 100 - 120 + 900
FULL 0 1 670 + 40 + 100 + 60 + 200 + 60 + 80 - 70 + 770
SEC 2 FAULT
3 12 1 950 + 40 + 110 + 80 + 210 + 70 + 90 - 100 + 880
FULL 0 1 920 + 40 + 140 + 80 + 220 + 70 + 120 - 150 + 740
SEC 2+3 FAULT
3 12 2 200 + 40 + 130 + 90 + 230 + 80 + 130 - 160 + 890
FULL 0 2 070 + 50 + 160 + 80 + 240 + 80 + 150 - 270 + 730
SEC 1+3 FAULT
3 12 2 370 + 50 + 150 + 100 + 240 + 80 + 160 - 270 + 900
FULL 0 1 820 + 40 + 120 + 70 + 210 + 60 + 100 - 140 + 780
SEC 1+2 FAULT
3 12 2 130 + 40 + 120 + 90 + 220 + 70 + 120 - 170 + 910
FULL 0 1 820 + 50 + 130 + 90 + 240 + 70 + 110 - 80 + 600
RUDDER JAM
3 12 2 210 + 50 + 130 + 110 + 260 + 80 + 130 - 130 + 700
SEC 1+2+3 FAULT 3 15 2 640 + 50 + 190 + 110 + 260 + 100 + 200 INOP + 900
L(R) ELEV FAULT 3 25 2 120 + 40 N/A + 80 + 210 + 70 + 90 - 100 + 760
ALTN LAW/
DIRECT LAW/
ELAC 1+2 FAULT/ 3 15 1 950 + 40 + 100 + 70 + 200 + 70 + 90 - 90 + 850
L+R ELEV FAULT/
STAB JAM
(1) Automatic Landing correction: add 270m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 570m
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
3 - MEDIUM
Corrections on (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
Landing Distance (m)
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
ONE SPLR FAULT with FULL 0 1 940 + 40 + 120 + 80 + 230 + 70 + 130 - 120 + 690
no SPOILER runaway
3 12 2 260 + 50 + 120 + 90 + 250 + 80 + 140 - 160 + 820
suspected
ONE SPLR FAULT with
SPOILER runaway 3 15 2 320 + 50 + 120 + 90 + 250 + 80 + 140 - 160 + 790
suspected
TWO SPLR FAULT/ FULL 0 2 090 + 50 + 140 + 80 + 250 + 80 + 160 - 170 + 710
GND SPLR 1+2(3+4)
3 12 2 420 + 50 + 140 + 100 + 270 + 90 + 170 - 200 + 850
FAULT
FULL 0 2 210 + 50 + 160 + 90 + 260 + 90 + 180 - 220 + 690
THREE SPLR FAULT
3 12 2 550 + 50 + 160 + 110 + 270 + 90 + 200 - 240 + 840
FULL 0 2 580 + 60 + 230 + 110 + 300 + 100 + 290 - 380 + 680
ALL SPLR FAULT
3 12 2 930 + 60 + 220 + 120 + 300 + 120 + 300 - 370 + 880
FULL 0 2 580 + 60 + 230 + 110 + 300 + 100 + 290 - 380 + 680
GND SPLR FAULT
3 12 2 930 + 60 + 220 + 120 + 300 + 120 + 300 - 370 + 880
FULL 0 1 970 + 40 + 120 + 80 + 240 + 70 + 130 - 130 + 720
SEC 1 or SEC 3 FAULT
3 12 2 310 + 50 + 130 + 90 + 250 + 80 + 150 - 170 + 840
FULL 0 1 870 + 40 + 110 + 70 + 230 + 70 + 120 - 100 + 710
SEC 2 FAULT
3 12 2 200 + 50 + 110 + 90 + 240 + 80 + 130 - 140 + 820
FULL 0 2 170 + 50 + 150 + 90 + 260 + 80 + 170 - 200 + 680
SEC 2+3 FAULT
3 12 2 500 + 50 + 150 + 100 + 270 + 90 + 190 - 230 + 830
FULL 0 2 350 + 50 + 180 + 100 + 280 + 90 + 220 - 360 + 660
SEC 1+3 FAULT
3 12 2 700 + 50 + 170 + 110 + 290 + 100 + 230 - 380 + 840
FULL 0 2 060 + 50 + 130 + 80 + 250 + 70 + 150 - 200 + 720
SEC 1+2 FAULT
3 12 2 410 + 50 + 140 + 100 + 260 + 90 + 170 - 250 + 850
FULL 0 2 040 + 50 + 130 + 100 + 280 + 80 + 150 - 120 + 540
RUDDER JAM
3 12 2 470 + 60 + 140 + 120 + 310 + 90 + 190 - 180 + 640
SEC 1+2+3 FAULT 3 15 3 040 + 60 + 210 + 130 + 310 + 110 + 300 INOP + 840
L(R) ELEV FAULT 3 25 2 370 + 50 N/A + 90 + 240 + 80 + 130 - 140 + 710
ALTN LAW/
DIRECT LAW/
ELAC 1+2 FAULT/ 3 15 2 190 + 40 + 110 + 90 + 240 + 80 + 120 - 130 + 790
L+R ELEV FAULT/
STAB JAM
(1) Automatic Landing correction: add 280m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 760m
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
2 - MEDIUM TO POOR
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
ONE SPLR FAULT with FULL 0 2 170 + 80 + 180 + 130 + 390 + 110 + 190 - 140 + 400
no SPOILER runaway
3 12 2 680 + 90 + 190 + 160 + 440 + 140 + 250 - 190 + 500
suspected
ONE SPLR FAULT with
SPOILER runaway 3 15 2 770 + 90 + 190 + 160 + 440 + 140 + 260 - 200 + 480
suspected
TWO SPLR FAULT/ FULL 0 2 370 + 90 + 230 + 150 + 440 + 130 + 250 - 200 + 400
GND SPLR 1+2(3+4)
3 12 2 950 + 100 + 240 + 180 + 500 + 160 + 340 - 250 + 520
FAULT
FULL 0 2 530 + 90 + 250 + 160 + 480 + 140 + 310 - 260 + 380
THREE SPLR FAULT
3 12 3 150 + 110 + 260 + 200 + 540 + 170 + 410 - 300 + 510
FULL 0 3 060 + 120 + 380 + 220 + 620 + 190 + 590 - 440 + 330
ALL SPLR FAULT
3 12 3 830 + 130 + 400 + 270 + 690 + 240 + 800 - 480 + 530
FULL 0 3 060 + 120 + 380 + 220 + 620 + 190 + 590 - 440 + 330
GND SPLR FAULT
3 12 3 830 + 130 + 400 + 270 + 690 + 240 + 800 - 480 + 530
FULL 0 2 220 + 80 + 200 + 130 + 410 + 120 + 200 - 160 + 410
SEC 1 or SEC 3 FAULT
3 12 2 770 + 90 + 210 + 170 + 460 + 150 + 280 - 210 + 510
FULL 0 2 090 + 70 + 180 + 120 + 370 + 110 + 170 - 120 + 410
SEC 2 FAULT
3 12 2 600 + 80 + 190 + 150 + 430 + 130 + 230 - 170 + 510
FULL 0 2 460 + 90 + 240 + 160 + 450 + 140 + 280 - 240 + 380
SEC 2+3 FAULT
3 12 3 050 + 100 + 250 + 190 + 520 + 170 + 380 - 280 + 500
FULL 0 2 710 + 100 + 290 + 180 + 520 + 150 + 380 - 430 + 350
SEC 1+3 FAULT
3 12 3 380 + 120 + 300 + 220 + 590 + 190 + 520 - 490 + 500
FULL 0 2 340 + 80 + 220 + 150 + 440 + 130 + 240 - 240 + 410
SEC 1+2 FAULT
3 12 2 930 + 100 + 240 + 180 + 490 + 160 + 330 - 320 + 520
FULL 0 2 230 + 80 + 180 + 150 + 410 + 110 + 210 - 140 + 300
RUDDER JAM
3 12 2 810 + 100 + 200 + 180 + 480 + 150 + 300 - 220 + 380
SEC 1+2+3 FAULT 3 15 4 010 + 140 + 390 + 280 + 690 + 240 + 830 INOP + 520
L(R) ELEV FAULT 3 25 2 850 + 80 N/A + 150 + 410 + 140 + 220 - 190 + 450
ALTN LAW/
DIRECT LAW/
ELAC 1+2 FAULT/ 3 15 2 590 + 80 + 170 + 150 + 410 + 130 + 210 - 160 + 490
L+R ELEV FAULT/
STAB JAM
(1) Automatic Landing correction: add 320m - (2) Weight correction: subtract 20m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 930m
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
1 - POOR
Corrections on (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
Landing Distance (m)
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
ONE SPLR FAULT with FULL 0 3 050 + 70 + 150 + 130 + 460 + 110 + 550 - 390 + 470
no SPOILER runaway
3 12 3 600 + 70 + 160 + 150 + 490 + 130 + 640 - 480 + 590
suspected
ONE SPLR FAULT with
SPOILER runaway 3 15 3 680 + 70 + 160 + 150 + 490 + 140 + 640 - 500 + 570
suspected
TWO SPLR FAULT/ FULL 0 3 360 + 70 + 190 + 140 + 490 + 130 + 680 - 510 + 480
GND SPLR 1+2(3+4)
3 12 3 960 + 80 + 200 + 160 + 520 + 150 + 790 - 610 + 620
FAULT
FULL 0 3 580 + 80 + 210 + 150 + 510 + 140 + 790 - 600 + 460
THREE SPLR FAULT
3 12 4 210 + 80 + 220 + 180 + 540 + 160 + 910 - 700 + 600
FULL 0 4 340 + 90 + 310 + 180 + 580 + 170 + 1 270 - 940 + 430
ALL SPLR FAULT
3 12 5 070 + 100 + 310 + 210 + 610 + 200 + 1 410 - 1 030 + 630
FULL 0 4 340 + 90 + 310 + 180 + 580 + 170 + 1 270 - 940 + 430
GND SPLR FAULT
3 12 5 070 + 100 + 310 + 210 + 610 + 200 + 1 410 - 1 030 + 630
FULL 0 3 140 + 70 + 160 + 130 + 470 + 120 + 590 - 420 + 500
SEC 1 or SEC 3 FAULT
3 12 3 730 + 80 + 170 + 150 + 500 + 140 + 690 - 530 + 600
FULL 0 2 940 + 60 + 150 + 120 + 450 + 110 + 510 - 350 + 500
SEC 2 FAULT
3 12 3 490 + 70 + 160 + 140 + 480 + 140 + 600 - 450 + 590
FULL 0 3 480 + 80 + 200 + 140 + 500 + 140 + 740 - 560 + 460
SEC 2+3 FAULT
3 12 4 090 + 80 + 210 + 170 + 530 + 160 + 850 - 660 + 590
FULL 0 3 830 + 80 + 240 + 160 + 530 + 150 + 930 - 980 + 430
SEC 1+3 FAULT
3 12 4 510 + 90 + 250 + 190 + 570 + 170 + 1 070 - 1 140 + 600
FULL 0 3 310 + 70 + 180 + 140 + 480 + 130 + 660 - 650 + 490
SEC 1+2 FAULT
3 12 3 940 + 80 + 190 + 160 + 520 + 150 + 780 - 810 + 610
FULL 0 3 060 + 80 + 160 + 150 + 510 + 120 + 550 - 360 + 360
RUDDER JAM
3 12 3 710 + 90 + 180 + 180 + 560 + 160 + 690 - 480 + 440
SEC 1+2+3 FAULT 3 15 Landing Distance greater than 6 000 m for all conditions
L(R) ELEV FAULT 3 25 3 680 + 70 N/A + 150 + 470 + 140 + 560 - 440 + 520
ALTN LAW/
DIRECT LAW/
ELAC 1+2 FAULT/ 3 15 3 440 + 70 + 140 + 140 + 470 + 130 + 560 - 420 + 570
L+R ELEV FAULT/
STAB JAM
(1) Automatic Landing correction: add 300m - (2) Weight correction: subtract 20m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 2 760m
HYDRAULIC SYSTEM
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
6 - DRY
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (m) for above TW above
68T Slope Operative applied
LDG 68T SL ISA
FULL 0 1 220 + 30 + 80 + 40 + 120 + 40 + 30 - 30 + 940
G SYS LO PR
3 12 1 390 + 40 + 70 + 50 + 130 + 40 + 30 - 30 + 1 090
FULL 0 1 100 + 40 + 80 + 40 + 120 + 40 + 20 - 10 + 910
B SYS LO PR
3 12 1 280 + 50 + 80 + 50 + 130 + 40 + 30 - 20 + 1 060
FULL 0 1 130 + 40 + 80 + 40 + 120 + 40 + 20 - 20 + 950
Y SYS LO PR
3 12 1 310 + 50 + 70 + 50 + 130 + 40 + 20 - 20 + 1 090
G SYS LO PR with B SYS FULL 0 / 140kt 1 380 + 10 + 90 + 50 + 130 + 40 + 40 - 70 + 800
supplied by the RAT
3 30 / 140kt 1 690 + 40 N/A + 60 + 130 + 50 + 40 - 70 + 890
(Calculated with 140kt min)
Y SYS LO PR with B SYS FULL 0 / 140kt 1 290 + 20 + 90 + 50 + 120 + 40 + 30 - 50 + 840
supplied by the RAT
3 25 / 140kt 1 530 + 50 N/A + 60 + 130 + 50 + 30 - 50 + 970
(Calculated with 140kt min)
G+B 3 30 1 680 + 40 N/A + 60 + 130 + 50 + 40 - 60 + 890
G+Y 3 30 2 490 + 90 N/A + 90 + 220 + 80 + 120 INOP + 810
FULL 0 1 180 + 40 + 80 + 40 + 120 + 30 + 20 - 30 + 980
B+Y
3 25 1 520 + 50 N/A + 60 + 130 + 50 + 30 - 40 + 970
(1) Automatic Landing correction: add 170m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 060m
5 - GOOD
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (m) for above TW above
68T Slope Operative applied
LDG 68T SL ISA
FULL 0 1 620 + 50 + 140 + 90 + 250 + 70 + 80 - 80 + 590
G SYS LO PR
3 12 1 940 + 60 + 150 + 110 + 280 + 90 + 100 - 110 + 690
FULL 0 1 410 + 50 + 120 + 80 + 210 + 60 + 50 - 30 + 660
B SYS LO PR
3 12 1 710 + 50 + 120 + 90 + 240 + 70 + 70 - 50 + 750
FULL 0 1 490 + 50 + 130 + 80 + 230 + 70 + 70 - 50 + 670
Y SYS LO PR
3 12 1 810 + 60 + 140 + 100 + 260 + 80 + 80 - 80 + 760
G SYS LO PR with B SYS FULL 0 / 140kt 1 890 + 20 + 170 + 110 + 280 + 90 + 110 - 230 + 480
supplied by the RAT
3 30 / 140kt 2 500 + 70 N/A + 140 + 310 + 120 + 140 - 220 + 540
(Calculated with 140kt min)
Y SYS LO PR with B SYS FULL 0 / 140kt 1 780 + 20 + 160 + 100 + 260 + 80 + 90 - 190 + 540
supplied by the RAT
3 25 / 140kt 2 250 + 70 N/A + 120 + 280 + 110 + 120 - 200 + 630
(Calculated with 140kt min)
G+B 3 30 2 490 + 70 N/A + 140 + 310 + 120 + 140 - 220 + 540
G+Y 3 30 2 700 + 90 N/A + 130 + 310 + 120 + 170 INOP + 590
FULL 0 1 580 + 60 + 160 + 90 + 250 + 80 + 80 - 90 + 660
B+Y
3 25 2 250 + 70 N/A + 120 + 290 + 100 + 120 - 170 + 630
(1) Automatic Landing correction: add 200m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 320m
HYDRAULIC SYSTEM
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
4 - GOOD TO MEDIUM
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (m) for above TW above
68T Slope Operative applied
LDG 68T SL ISA
FULL 0 1 790 + 40 + 120 + 70 + 210 + 60 + 100 - 120 + 730
G SYS LO PR
3 12 2 070 + 40 + 120 + 80 + 220 + 70 + 110 - 150 + 870
FULL 0 1 670 + 40 + 100 + 60 + 200 + 60 + 80 - 70 + 770
B SYS LO PR
3 12 1 950 + 40 + 110 + 80 + 210 + 70 + 90 - 100 + 880
FULL 0 1 760 + 40 + 120 + 70 + 200 + 60 + 100 - 110 + 780
Y SYS LO PR
3 12 2 070 + 40 + 110 + 80 + 220 + 70 + 110 - 150 + 900
G SYS LO PR with B SYS FULL 0 / 140kt 2 050 + 10 + 130 + 80 + 220 + 70 + 120 - 260 + 620
supplied by the RAT
3 30 / 140kt 2 550 + 50 N/A + 100 + 230 + 90 + 130 - 250 + 700
(Calculated with 140kt min)
Y SYS LO PR with B SYS FULL 0 / 140kt 2 050 + 10 + 140 + 80 + 220 + 70 + 120 - 260 + 650
supplied by the RAT
3 25 / 140kt 2 480 + 50 N/A + 100 + 230 + 80 + 140 - 270 + 770
(Calculated with 140kt min)
G+B 3 30 2 540 + 50 N/A + 100 + 230 + 90 + 140 - 250 + 710
G+Y 3 30 2 730 + 60 N/A + 100 + 240 + 90 + 160 INOP + 730
FULL 0 1 870 + 40 + 130 + 80 + 210 + 70 + 110 - 160 + 770
B+Y
3 25 2 470 + 50 N/A + 100 + 230 + 80 + 140 - 250 + 780
(1) Automatic Landing correction: add 200m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 570m
3 - MEDIUM
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (m) for above TW above
68T Slope Operative applied
LDG 68T SL ISA
FULL 0 2 010 + 40 + 130 + 80 + 240 + 80 + 140 - 180 + 670
G SYS LO PR
3 12 2 340 + 50 + 130 + 90 + 260 + 80 + 160 - 220 + 810
FULL 0 1 870 + 40 + 110 + 70 + 230 + 70 + 120 - 100 + 710
B SYS LO PR
3 12 2 200 + 50 + 110 + 90 + 240 + 80 + 130 - 140 + 820
FULL 0 1 990 + 40 + 130 + 80 + 240 + 70 + 140 - 160 + 720
Y SYS LO PR
3 12 2 340 + 50 + 130 + 90 + 260 + 80 + 160 - 210 + 840
G SYS LO PR with B SYS FULL 0 / 140kt 2 300 + 20 + 150 + 90 + 260 + 90 + 170 - 340 + 570
supplied by the RAT
3 30 / 140kt 2 880 + 50 N/A + 110 + 270 + 100 + 190 - 340 + 660
(Calculated with 140kt min)
Y SYS LO PR with B SYS FULL 0 / 140kt 2 310 + 20 + 150 + 90 + 260 + 90 + 170 - 340 + 600
supplied by the RAT
3 25 / 140kt 2 810 + 50 N/A + 110 + 270 + 100 + 200 - 370 + 720
(Calculated with 140kt min)
G+B 3 30 2 870 + 50 N/A + 110 + 270 + 100 + 190 - 340 + 660
G+Y 3 30 3 050 + 60 N/A + 120 + 280 + 110 + 230 INOP + 680
FULL 0 2 120 + 50 + 140 + 90 + 250 + 80 + 160 - 220 + 710
B+Y
3 25 2 800 + 50 N/A + 110 + 270 + 100 + 200 - 340 + 720
(1) Automatic Landing correction: add 210m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 760m
HYDRAULIC SYSTEM
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
2 - MEDIUM TO POOR
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (m) for above TW above
68T Slope Operative applied
LDG 68T SL ISA
FULL 0 2 260 + 80 + 200 + 140 + 410 + 120 + 220 - 210 + 380
G SYS LO PR
3 12 2 790 + 90 + 210 + 170 + 460 + 150 + 290 - 270 + 490
FULL 0 2 090 + 70 + 180 + 120 + 370 + 110 + 170 - 120 + 410
B SYS LO PR
3 12 2 600 + 80 + 190 + 150 + 430 + 130 + 230 - 170 + 510
FULL 0 2 250 + 80 + 200 + 140 + 410 + 120 + 210 - 190 + 410
Y SYS LO PR
3 12 2 810 + 90 + 220 + 170 + 470 + 150 + 290 - 270 + 510
G SYS LO PR with B SYS FULL 0 / 140kt 2 670 + 40 + 220 + 160 + 450 + 140 + 280 - 430 + 330
supplied by the RAT
3 30 / 140kt 3 600 + 110 N/A + 200 + 510 + 180 + 390 - 500 + 420
(Calculated with 140kt min)
Y SYS LO PR with B SYS FULL 0 / 140kt 2 710 + 40 + 230 + 170 + 460 + 140 + 300 - 460 + 350
supplied by the RAT
3 25 / 140kt 3 540 + 110 N/A + 210 + 520 + 180 + 420 - 550 + 460
(Calculated with 140kt min)
G+B 3 30 3 590 + 110 N/A + 200 + 510 + 180 + 390 - 500 + 420
G+Y 3 30 3 820 + 110 N/A + 220 + 540 + 190 + 470 INOP + 420
FULL 0 2 420 + 90 + 240 + 150 + 450 + 140 + 270 - 270 + 400
B+Y
3 25 3 530 + 110 N/A + 210 + 520 + 180 + 420 - 490 + 460
(1) Automatic Landing correction: add 240m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 930m
1 - POOR
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (m) for above TW above
68T Slope Operative applied
LDG 68T SL ISA
FULL 0 3 180 + 70 + 170 + 130 + 470 + 120 + 610 - 570 + 460
G SYS LO PR
3 12 3 750 + 80 + 180 + 150 + 500 + 140 + 700 - 710 + 580
FULL 0 2 940 + 60 + 150 + 120 + 450 + 110 + 510 - 350 + 500
B SYS LO PR
3 12 3 490 + 70 + 160 + 140 + 480 + 140 + 600 - 450 + 590
FULL 0 3 180 + 70 + 160 + 130 + 470 + 120 + 610 - 510 + 500
Y SYS LO PR
3 12 3 780 + 80 + 180 + 160 + 510 + 140 + 720 - 670 + 600
G SYS LO PR with B SYS FULL 0 / 140kt 3 620 + 30 + 190 + 150 + 500 + 140 + 710 - 790 + 390
supplied by the RAT
3 30 / 140kt 4 550 + 90 N/A + 180 + 530 + 170 + 820 - 920 + 480
(Calculated with 140kt min)
Y SYS LO PR with B SYS FULL 0 / 140kt 3 690 + 30 + 200 + 150 + 510 + 140 + 740 - 840 + 420
supplied by the RAT
3 25 / 140kt 4 530 + 90 N/A + 180 + 530 + 170 + 860 - 1 000 + 530
(Calculated with 140kt min)
G+B 3 30 4 540 + 90 N/A + 180 + 530 + 170 + 820 - 960 + 480
G+Y 3 30 4 810 + 90 N/A + 190 + 550 + 180 + 920 INOP + 490
FULL 0 3 430 + 70 + 200 + 140 + 500 + 140 + 720 - 670 + 490
B+Y
3 25 4 520 + 90 N/A + 180 + 530 + 170 + 860 - 950 + 530
(1) Automatic Landing correction: add 230m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 2 760m
HYDRAULIC SYSTEM
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
6 - DRY
Corrections on
Landing Distance (ft) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (ft) for above TW above
66T Slope Operative applied
LDG 66T SL ISA
FULL 0 4 140 + 110 + 260 + 130 + 380 + 130 + 90 - 90 + 2 600
G SYS LO PR
3 6 4 400 + 120 + 260 + 140 + 390 + 130 + 90 - 100 + 3 110
FULL 0 3 730 + 130 + 230 + 140 + 400 + 110 + 60 - 50 + 2 540
B SYS LO PR
3 6 4 040 + 140 + 260 + 140 + 400 + 140 + 70 - 60 + 3 030
FULL 0 3 860 + 130 + 240 + 130 + 390 + 120 + 70 - 60 + 2 630
Y SYS LO PR
3 6 4 120 + 140 + 260 + 150 + 400 + 130 + 80 - 70 + 3 130
G SYS LO PR with B SYS FULL 0 / 140kt 4 490 + 80 + 290 + 140 + 400 + 140 + 110 - 110 + 2 380
supplied by the RAT
3 6 / 140kt 4 550 + 120 + 280 + 150 + 400 + 140 + 100 - 150 + 3 130
(Calculated with 140kt min)
Y SYS LO PR with B SYS FULL 0 / 140kt 4 210 + 100 + 280 + 140 + 390 + 140 + 90 - 80 + 2 440
supplied by the RAT
3 6 / 140kt 4 300 + 140 + 280 + 150 + 400 + 140 + 90 - 130 + 3 190
(Calculated with 140kt min)
G+B 3 25 5 460 + 120 N/A + 180 + 410 + 160 + 120 - 150 + 2 220
G+Y 3 25 8 630 + 250 N/A + 300 + 680 + 290 + 430 INOP + 1 930
FULL 0 4 010 + 130 + 270 + 130 + 380 + 130 + 80 - 70 + 2 700
B+Y
3 6 4 280 + 140 + 270 + 150 + 410 + 130 + 80 - 90 + 3 200
(1) Automatic Landing correction: add 540ft - (2) Weight correction: subtract 10ft per 1T below 66T
REF DIST without failure (valid for all FLAPS LEVER positions) = 3 570ft
5 - GOOD
Corrections on
Landing Distance (ft) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (ft) for above TW above
66T Slope Operative applied
LDG 66T SL ISA
FULL 0 5 650 + 170 + 480 + 290 + 830 + 270 + 280 - 240 + 1 780
G SYS LO PR
3 6 6 260 + 190 + 530 + 330 + 910 + 310 + 340 - 290 + 2 140
FULL 0 4 940 + 150 + 390 + 240 + 710 + 220 + 180 - 140 + 1 900
B SYS LO PR
3 6 5 490 + 170 + 440 + 280 + 780 + 260 + 220 - 180 + 2 250
FULL 0 5 230 + 160 + 440 + 270 + 760 + 240 + 220 - 180 + 1 940
Y SYS LO PR
3 6 5 820 + 180 + 500 + 310 + 840 + 280 + 270 - 230 + 2 300
G SYS LO PR with B SYS FULL 0 / 140kt 6 290 + 130 + 520 + 330 + 900 + 300 + 350 - 450 + 1 630
supplied by the RAT
3 6 / 140kt 6 580 + 200 + 590 + 360 + 970 + 330 + 400 - 500 + 2 170
(Calculated with 140kt min)
Y SYS LO PR with B SYS FULL 0 / 140kt 5 900 + 120 + 510 + 310 + 840 + 290 + 300 - 390 + 1 780
supplied by the RAT
3 6 / 140kt 6 210 + 190 + 580 + 330 + 910 + 320 + 340 - 450 + 2 340
(Calculated with 140kt min)
G+B 3 25 8 260 + 220 N/A + 430 + 1 010 + 400 + 490 - 490 + 1 520
G+Y 3 25 9 420 + 280 N/A + 440 + 1 030 + 410 + 630 INOP + 1 580
FULL 0 5 560 + 180 + 520 + 290 + 820 + 270 + 280 - 220 + 1 980
B+Y
3 6 6 190 + 190 + 570 + 340 + 910 + 310 + 340 - 280 + 2 340
(1) Automatic Landing correction: add 600ft - (2) Weight correction: subtract 10ft per 1T below 66T
REF DIST without failure (valid for all FLAPS LEVER positions) = 4 620ft
NAVIGATION SYSTEM
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
6 - DRY
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
IR 1+2+3 FAULT 3 15 2 240 + 50 + 160 + 90 + 210 + 80 + 10 - 10 + 660
DUAL IR FAULT/
DUAL ADR FAULT/ 3 15 1 310 + 50 + 80 + 50 + 130 + 50 + 30 - 10 + 1 010
DUAL RA FAULT
ALL ADR OFF 3 N/A 1 310 + 50 + 80 + 50 + 130 + 50 + 30 - 10 + 1 010
(1) Automatic Landing correction: add 150m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 060m
5 - GOOD
Corrections on (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
Landing Distance (m)
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
IR 1+2+3 FAULT 3 15 2 250 + 50 + 150 + 90 + 210 + 80 + 10 - 10 + 640
DUAL IR FAULT/
DUAL ADR FAULT/ 3 15 1 710 + 50 + 120 + 90 + 230 + 80 + 60 - 40 + 710
DUAL RA FAULT
ALL ADR OFF 3 N/A 1 710 + 50 + 120 + 90 + 230 + 80 + 60 - 40 + 710
(1) Automatic Landing correction: add 150m - (2) Weight correction: subtract 20m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 320m
4 - GOOD TO MEDIUM
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
IR 1+2+3 FAULT 3 15 2 260 + 50 + 160 + 90 + 220 + 80 + 40 - 20 + 650
DUAL IR FAULT/
DUAL ADR FAULT/ 3 15 1 950 + 40 + 100 + 70 + 200 + 70 + 90 - 90 + 850
DUAL RA FAULT
ALL ADR OFF 3 N/A 1 950 + 40 + 100 + 70 + 200 + 70 + 90 - 90 + 850
(1) Automatic Landing correction: add 150m - (2) Weight correction: subtract 20m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 570m
NAVIGATION SYSTEM
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
3 - MEDIUM
Corrections on (2)
WGT SPD ALT WIND TEMP SLOPE REV OVW
Landing Distance (m)
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
IR 1+2+3 FAULT 3 15 2 360 + 50 + 160 + 90 + 250 + 80 + 90 - 50 + 650
DUAL IR FAULT/
DUAL ADR FAULT/ 3 15 2 190 + 40 + 110 + 90 + 240 + 80 + 120 - 130 + 790
DUAL RA FAULT
ALL ADR OFF 3 N/A 2 190 + 40 + 110 + 90 + 240 + 80 + 120 - 130 + 790
(1) Automatic Landing correction: add 150m - (2) Weight correction: subtract 20m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 760m
2 - MEDIUM TO POOR
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
IR 1+2+3 FAULT 3 15 2 590 + 80 + 170 + 150 + 410 + 130 + 210 - 60 + 490
DUAL IR FAULT/
DUAL ADR FAULT/ 3 15 2 590 + 80 + 170 + 150 + 410 + 130 + 210 - 160 + 490
DUAL RA FAULT
ALL ADR OFF 3 N/A 2 590 + 80 + 170 + 150 + 410 + 130 + 210 - 160 + 490
(1) Automatic Landing correction: add 150m - (2) Weight correction: subtract 30m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 930m
1 - POOR
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
REF Per Per
FLAPS Per 1T Per 1% Per Thrust If OVW
DIST 1000ft Per 5kt 10°C
FAILURE LEVER ∆VREF above Per 5kt Down Reverser PROC
(m) for above TW above
for LDG 68T Slope Operative applied
68T SL ISA
IR 1+2+3 FAULT 3 15 3 440 + 70 + 150 + 140 + 470 + 130 + 550 - 360 + 570
DUAL IR FAULT/
DUAL ADR FAULT/ 3 15 3 440 + 70 + 140 + 140 + 470 + 130 + 560 - 420 + 570
DUAL RA FAULT
ALL ADR OFF 3 N/A 3 440 + 70 + 140 + 140 + 470 + 130 + 560 - 420 + 570
(1) Automatic Landing correction: add 140m - (2) Weight correction: subtract 30m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 2 760m
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
6 - DRY
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (m) for above TW above
68T Slope Operative applied
LDG 68T SL ISA
FLAPS<1 3 30 1 600 + 50 N/A + 60 + 130 + 50 + 30 - 20 + 950
1≤FLAPS<2 3 15 1 350 + 50 + 80 + 50 + 130 + 50 + 30 - 20 + 1 070
FLAPS
2≤FLAPS<3 3 10 1 260 + 50 + 80 + 50 + 130 + 40 + 30 - 20 + 1 100
FAULT
FLAPS=3 3 10 1 240 + 40 + 80 + 50 + 130 + 50 + 30 - 20 + 1 070
FLAPS>3 FULL 5 1 150 + 40 + 80 + 40 + 120 + 40 + 30 - 10 + 810
SLATS<1 3 25 1 460 + 50 N/A + 50 + 130 + 50 + 30 - 10 + 890
SLATS
1≤SLATS≤3 3 10 1 240 + 40 + 80 + 50 + 130 + 40 + 30 - 10 + 1 070
FAULT
SLATS>3 3 5 1 180 + 40 + 80 + 50 + 130 + 40 + 20 - 10 + 1 150
FLAPS AND SLATS AT 0 1 55 1 990 + 60 N/A + 70 + 140 + 60 + 40 - 30 + 710
SLATS<1 3 50 1 920 + 60 N/A + 60 + 140 + 60 + 40 - 30 + 750
FLAPS<1
SLATS≥1 3 30 1 600 + 50 N/A + 60 + 130 + 50 + 30 - 20 + 950
SLATS<1 3 30 1 570 + 50 N/A + 60 + 130 + 50 + 30 - 20 + 890
1≤FLAPS<2
SLATS≥1 3 15 1 350 + 50 + 80 + 50 + 130 + 50 + 30 - 20 + 1 070
SLATS<1 3 25 1 480 + 50 N/A + 50 + 130 + 40 + 30 - 20 + 910
2≤FLAPS<3
SLATS≥1 3 10 1 260 + 50 + 80 + 50 + 130 + 40 + 30 - 20 + 1 100
SLATS<1 3 25 1 460 + 50 N/A + 50 + 130 + 50 + 30 - 10 + 890
FLAPS=3 1≤SLATS≤3 3 10 1 250 + 40 + 80 + 50 + 130 + 50 + 30 - 20 + 1 070
SLATS>3 3 5 1 180 + 40 + 80 + 50 + 130 + 40 + 20 - 20 + 1 150
1≤SLATS≤3 FULL 10 1 230 + 40 + 80 + 50 + 130 + 40 + 20 - 10 + 730
FLAPS>3
SLATS>3 FULL 5 1 150 + 40 + 80 + 40 + 120 + 40 + 30 - 10 + 810
(1) Automatic Landing correction: add 160m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 060m
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
5 - GOOD
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (m) for above TW above
68T Slope Operative applied
LDG 68T SL ISA
FLAPS<1 3 30 2 110 + 60 N/A + 120 + 280 + 100 + 80 - 100 + 760
1≤FLAPS<2 3 15 1 780 + 60 + 130 + 100 + 250 + 90 + 70 - 60 + 790
FLAPS
2≤FLAPS<3 3 10 1 640 + 50 + 120 + 90 + 240 + 80 + 60 - 40 + 800
FAULT
FLAPS=3 3 10 1 630 + 50 + 120 + 90 + 240 + 70 + 60 - 40 + 760
FLAPS>3 FULL 5 1 460 + 50 + 120 + 80 + 220 + 70 + 50 - 20 + 590
SLATS<1 3 25 1 910 + 60 N/A + 100 + 240 + 80 + 70 - 50 + 620
SLATS
1≤SLATS≤3 3 10 1 620 + 50 + 120 + 90 + 230 + 70 + 60 - 40 + 770
FAULT
SLATS>3 3 5 1 540 + 50 + 120 + 80 + 230 + 70 + 60 - 40 + 830
FLAPS AND SLATS AT 0 1 55 2 700 + 70 N/A + 150 + 310 + 130 + 120 - 150 + 580
SLATS<1 3 50 2 590 + 70 N/A + 150 + 310 + 120 + 110 - 140 + 610
FLAPS<1
SLATS≥1 3 30 2 110 + 60 N/A + 120 + 280 + 100 + 80 - 100 + 760
SLATS<1 3 30 2 090 + 60 N/A + 110 + 270 + 100 + 80 - 80 + 650
1≤FLAPS<2
SLATS≥1 3 15 1 780 + 60 + 130 + 100 + 250 + 90 + 70 - 60 + 790
SLATS<1 3 25 1 920 + 60 N/A + 100 + 250 + 90 + 70 - 60 + 640
2≤FLAPS<3
SLATS≥1 3 10 1 640 + 50 + 120 + 90 + 240 + 80 + 60 - 40 + 800
SLATS<1 3 25 1 910 + 60 N/A + 100 + 240 + 90 + 70 - 60 + 610
FLAPS=3 1≤SLATS≤3 3 10 1 630 + 50 + 130 + 90 + 240 + 80 + 60 - 40 + 760
SLATS>3 3 5 1 540 + 50 + 120 + 80 + 240 + 70 + 60 - 40 + 830
1≤SLATS≤3 FULL 10 1 560 + 50 + 110 + 80 + 230 + 70 + 60 - 20 + 530
FLAPS>3
SLATS>3 FULL 5 1 460 + 50 + 120 + 80 + 220 + 70 + 50 - 20 + 590
(1) Automatic Landing correction: add 180m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 320m
4 - GOOD TO MEDIUM
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (m) for above TW above
68T Slope Operative applied
LDG 68T SL ISA
FLAPS<1 3 30 2 320 + 40 N/A + 90 + 220 + 80 + 110 - 170 + 890
1≤FLAPS<2 3 15 2 040 + 40 + 110 + 80 + 220 + 80 + 100 - 130 + 930
FLAPS
2≤FLAPS<3 3 10 1 900 + 40 + 100 + 80 + 210 + 70 + 90 - 100 + 940
FAULT
FLAPS=3 3 10 1 890 + 40 + 100 + 80 + 210 + 70 + 90 - 100 + 900
FLAPS>3 FULL 5 1 720 + 40 + 100 + 70 + 200 + 60 + 80 - 70 + 690
SLATS<1 3 25 2 120 + 40 N/A + 80 + 200 + 70 + 90 - 100 + 760
SLATS
1≤SLATS≤3 3 10 1 870 + 40 + 100 + 70 + 200 + 60 + 90 - 80 + 900
FAULT
SLATS>3 3 5 1 790 + 40 + 100 + 70 + 200 + 60 + 80 - 80 + 960
FLAPS AND SLATS AT 0 1 55 2 800 + 50 N/A + 110 + 240 + 90 + 120 - 210 + 690
SLATS<1 3 50 2 700 + 50 N/A + 100 + 230 + 100 + 120 - 200 + 730
FLAPS<1
SLATS≥1 3 30 2 320 + 40 N/A + 90 + 220 + 80 + 110 - 170 + 890
SLATS<1 3 30 2 310 + 40 N/A + 90 + 220 + 80 + 100 - 150 + 790
1≤FLAPS<2
SLATS≥1 3 15 2 040 + 40 + 110 + 80 + 220 + 80 + 100 - 130 + 930
SLATS<1 3 25 2 150 + 40 N/A + 80 + 210 + 70 + 100 - 130 + 790
2≤FLAPS<3
SLATS≥1 3 10 1 900 + 40 + 100 + 80 + 210 + 70 + 90 - 100 + 940
SLATS<1 3 25 2 150 + 40 N/A + 80 + 210 + 70 + 90 - 120 + 760
FLAPS=3 1≤SLATS≤3 3 10 1 900 + 40 + 100 + 80 + 210 + 70 + 90 - 100 + 900
SLATS>3 3 5 1 810 + 40 + 100 + 70 + 210 + 60 + 90 - 90 + 960
1≤SLATS≤3 FULL 10 1 810 + 40 + 100 + 70 + 210 + 60 + 90 - 70 + 630
FLAPS>3
SLATS>3 FULL 5 1 720 + 40 + 100 + 70 + 200 + 60 + 80 - 70 + 690
(1) Automatic Landing correction: add 180m - (2) Weight correction: subtract 10m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 570m
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
3 - MEDIUM
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (m) for above TW above
68T Slope Operative applied
LDG 68T SL ISA
FLAPS<1 3 30 2 650 + 50 N/A + 110 + 270 + 100 + 160 - 240 + 840
1≤FLAPS<2 3 15 2 330 + 50 + 120 + 100 + 260 + 80 + 150 - 190 + 870
FLAPS
2≤FLAPS<3 3 10 2 160 + 40 + 110 + 90 + 260 + 80 + 140 - 160 + 880
FAULT
FLAPS=3 3 10 2 140 + 40 + 110 + 90 + 250 + 80 + 140 - 150 + 840
FLAPS>3 FULL 5 1 940 + 40 + 110 + 80 + 240 + 70 + 120 - 110 + 640
SLATS<1 3 25 2 380 + 50 N/A + 90 + 240 + 80 + 130 - 140 + 710
SLATS
1≤SLATS≤3 3 10 2 100 + 40 + 110 + 80 + 240 + 80 + 120 - 120 + 840
FAULT
SLATS>3 3 5 2 020 + 40 + 110 + 80 + 240 + 70 + 120 - 120 + 900
FLAPS AND SLATS AT 0 1 55 3 200 + 50 N/A + 130 + 290 + 110 + 190 - 300 + 660
SLATS<1 3 50 3 090 + 50 N/A + 130 + 280 + 110 + 190 - 290 + 700
FLAPS<1
SLATS≥1 3 30 2 650 + 50 N/A + 110 + 270 + 100 + 160 - 240 + 840
SLATS<1 3 30 2 620 + 50 N/A + 110 + 270 + 90 + 160 - 220 + 740
1≤FLAPS<2
SLATS≥1 3 15 2 330 + 50 + 120 + 100 + 260 + 80 + 150 - 190 + 870
SLATS<1 3 25 2 430 + 50 N/A + 100 + 250 + 90 + 150 - 190 + 740
2≤FLAPS<3
SLATS≥1 3 10 2 160 + 40 + 110 + 90 + 260 + 80 + 140 - 160 + 880
SLATS<1 3 25 2 420 + 50 N/A + 100 + 250 + 90 + 140 - 170 + 710
FLAPS=3 1≤SLATS≤3 3 10 2 150 + 40 + 110 + 90 + 260 + 70 + 140 - 150 + 840
SLATS>3 3 5 2 050 + 40 + 110 + 90 + 250 + 70 + 130 - 140 + 900
1≤SLATS≤3 FULL 10 2 040 + 40 + 100 + 80 + 250 + 70 + 130 - 120 + 580
FLAPS>3
SLATS>3 FULL 5 1 940 + 40 + 110 + 80 + 240 + 70 + 120 - 110 + 640
(1) Automatic Landing correction: add 180m - (2) Weight correction: subtract 20m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 760m
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
2 - MEDIUM TO POOR
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (m) for above TW above
68T Slope Operative applied
LDG 68T SL ISA
FLAPS<1 3 30 3 520 + 110 N/A + 230 + 570 + 200 + 390 - 370 + 580
1≤FLAPS<2 3 15 2 860 + 90 + 210 + 190 + 510 + 160 + 300 - 240 + 530
FLAPS
2≤FLAPS<3 3 10 2 550 + 80 + 200 + 170 + 460 + 150 + 250 - 190 + 510
FAULT
FLAPS=3 3 10 2 500 + 80 + 190 + 160 + 450 + 140 + 230 - 170 + 480
FLAPS>3 FULL 5 2 190 + 70 + 170 + 130 + 400 + 110 + 180 - 130 + 350
SLATS<1 3 25 2 860 + 80 N/A + 150 + 410 + 140 + 220 - 190 + 450
SLATS
1≤SLATS≤3 3 10 2 450 + 80 + 180 + 140 + 410 + 130 + 200 - 140 + 520
FAULT
SLATS>3 3 5 2 320 + 80 + 180 + 140 + 410 + 120 + 200 - 140 + 540
FLAPS AND SLATS AT 0 1 55 4 470 + 120 N/A + 280 + 620 + 230 + 490 - 550 + 470
SLATS<1 3 50 4 300 + 120 N/A + 270 + 610 + 230 + 480 - 520 + 490
FLAPS<1
SLATS≥1 3 30 3 520 + 110 N/A + 230 + 570 + 200 + 390 - 370 + 580
SLATS<1 3 30 3 320 + 100 N/A + 210 + 520 + 180 + 330 - 310 + 460
1≤FLAPS<2
SLATS≥1 3 15 2 860 + 90 + 210 + 190 + 510 + 160 + 300 - 240 + 530
SLATS<1 3 25 2 980 + 90 N/A + 180 + 470 + 160 + 270 - 250 + 450
2≤FLAPS<3
SLATS≥1 3 10 2 550 + 80 + 200 + 170 + 460 + 150 + 250 - 190 + 510
SLATS<1 3 25 2 920 + 90 N/A + 180 + 450 + 150 + 250 - 220 + 420
FLAPS=3 1≤SLATS≤3 3 10 2 510 + 80 + 190 + 160 + 450 + 130 + 230 - 170 + 470
SLATS>3 3 5 2 350 + 80 + 200 + 160 + 440 + 130 + 220 - 170 + 500
1≤SLATS≤3 FULL 10 2 320 + 70 + 170 + 140 + 400 + 120 + 190 - 130 + 330
FLAPS>3
SLATS>3 FULL 5 2 190 + 70 + 170 + 130 + 400 + 110 + 180 - 130 + 350
(1) Automatic Landing correction: add 210m - (2) Weight correction: subtract 20m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 1 930m
1 - POOR
Corrections on
Landing Distance (m) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (m) for above TW above
68T Slope Operative applied
LDG 68T SL ISA
FLAPS<1 3 30 4 650 + 60 N/A + 220 + 640 + 190 + 1 120 - 920 + 660
1≤FLAPS<2 3 15 4 000 + 50 + 180 + 200 + 610 + 160 + 1 010 - 750 + 630
FLAPS
2≤FLAPS<3 3 10 3 640 + 50 + 180 + 180 + 590 + 150 + 900 - 640 + 620
FAULT
FLAPS=3 3 10 3 560 + 50 + 170 + 170 + 590 + 150 + 870 - 600 + 580
FLAPS>3 FULL 5 3 160 + 50 + 150 + 150 + 560 + 130 + 740 - 480 + 430
SLATS<1 3 25 3 690 + 70 N/A + 150 + 470 + 130 + 560 - 440 + 520
SLATS
1≤SLATS≤3 3 10 3 320 + 70 + 150 + 130 + 470 + 130 + 560 - 400 + 610
FAULT
SLATS>3 3 5 3 200 + 70 + 150 + 130 + 460 + 120 + 550 - 390 + 640
FLAPS AND SLATS AT 0 1 55 5 520 + 70 N/A + 260 + 680 + 220 + 1 230 - 1 090 + 530
SLATS<1 3 50 5 370 + 60 N/A + 250 + 670 + 220 + 1 220 - 1 070 + 550
FLAPS<1
SLATS≥1 3 30 4 650 + 60 N/A + 220 + 640 + 190 + 1 120 - 920 + 660
SLATS<1 3 30 4 410 + 60 N/A + 210 + 620 + 180 + 1 020 - 810 + 540
1≤FLAPS<2
SLATS≥1 3 15 4 000 + 50 + 180 + 200 + 610 + 160 + 1 010 - 750 + 630
SLATS<1 3 25 4 030 + 50 N/A + 190 + 600 + 160 + 900 - 700 + 530
2≤FLAPS<3
SLATS≥1 3 10 3 640 + 50 + 180 + 180 + 590 + 150 + 900 - 640 + 620
SLATS<1 3 25 3 950 + 50 N/A + 190 + 590 + 150 + 870 - 640 + 500
FLAPS=3 1≤SLATS≤3 3 10 3 570 + 50 + 170 + 170 + 590 + 140 + 870 - 600 + 580
SLATS>3 3 5 3 430 + 50 + 170 + 170 + 580 + 140 + 860 - 590 + 610
1≤SLATS≤3 FULL 10 3 280 + 50 + 150 + 150 + 560 + 140 + 740 - 490 + 400
FLAPS>3
SLATS>3 FULL 5 3 160 + 50 + 150 + 150 + 560 + 130 + 740 - 480 + 430
(1) Automatic Landing correction: add 200m - (2) Weight correction: subtract 20m per 1T below 68T
REF DIST without failure (valid for all FLAPS LEVER positions) = 2 760m
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
The Reference Distance (REF DIST) considers : Sea Level (SL), ISA, no wind, no slope, no engine reverse thrust, manual
landing(1), maximum manual braking, VAPP = VREF+∆VREF without APPR COR.
6 - DRY
Corrections on
Landing Distance (ft) WGT(2) SPD ALT WIND TEMP SLOPE REV OVW
FLAPS REF Per Per
Per 1T Per 1% Per Thrust If OVW
LEVER DIST 1000ft Per 5kt 10°C
FAILURE ∆VREF above Per 5kt Down Reverser PROC
for (ft) for above TW above
66T Slope Operative applied
LDG 66T SL ISA
FLAPS<1 3 25 5 130 + 160 N/A + 170 + 410 + 160 + 100 - 70 + 4 420
1≤FLAPS<2 3 15 4 540 + 150 + 260 + 160 + 410 + 150 + 90 - 60 + 3 530
FLAPS
2≤FLAPS<3 3 10 4 260 + 140 + 270 + 150 + 400 + 150 + 80 - 60 + 3 270
FAULT
FLAPS=3 3 10 4 200 + 140 + 270 + 150 + 400 + 150 + 80 - 60 + 2 790
FLAPS>3 FULL 5 3 900 + 130 + 250 + 140 + 390 + 130 + 70 - 50 + 2 220
SLATS<1 3 25 4 920 + 150 N/A + 160 + 400 + 150 + 90 - 70 + 2 140
SLATS
1≤SLATS≤3 3 10 4 200 + 140 + 260 + 150 + 400 + 140 + 80 - 60 + 2 790
FAULT
SLATS>3 3 5 3 990 + 140 + 260 + 140 + 400 + 140 + 70 - 60 + 3 040
FLAPS AND SLATS AT 0 1 50 6 380 + 190 N/A + 200 + 430 + 190 + 120 - 100 + 3 340
SLATS<1 3 45 6 130 + 180 N/A + 200 + 420 + 190 + 120 - 90 + 3 520
FLAPS<1
SLATS≥1 3 25 5 130 + 160 N/A + 170 + 410 + 160 + 100 - 70 + 4 420
SLATS<1 3 30 5 240 + 160 N/A + 170 + 410 + 160 + 100 - 80 + 2 960
1≤FLAPS<2
SLATS≥1 3 15 4 540 + 150 + 260 + 160 + 410 + 150 + 90 - 60 + 3 530
SLATS<1 3 25 4 970 + 150 N/A + 170 + 400 + 150 + 90 - 70 + 2 680
2≤FLAPS<3
SLATS≥1 3 10 4 260 + 140 + 270 + 150 + 400 + 150 + 80 - 60 + 3 270
SLATS<1 3 25 4 930 + 150 N/A + 160 + 400 + 150 + 90 - 80 + 2 140
FLAPS=3 1≤SLATS≤3 3 10 4 230 + 140 + 270 + 150 + 400 + 150 + 80 - 60 + 2 780
SLATS>3 3 5 3 970 + 140 + 260 + 140 + 400 + 140 + 70 - 60 + 3 040
1≤SLATS≤3 FULL 10 4 140 + 140 + 250 + 150 + 390 + 140 + 80 - 60 + 1 960
FLAPS>3
SLATS>3 FULL 5 3 900 + 130 + 250 + 140 + 390 + 130 + 70 - 50 + 2 220
(1) Automatic Landing correction: add 500ft - (2) Weight correction: subtract 40ft per 1T below 66T
REF DIST without failure (valid for all FLAPS LEVER positions) = 3 570ft
CEILINGS
Applicable to: ALL
CEILINGS
Applicable to: ALL
CEILINGS
Applicable to: ALL
CEILINGS
Applicable to: ALL
IN CRUISE QUICK CHECK FROM ANY MOMENT IN CRUISE TO LANDING - 1 ENGINE OUT
CRUISE : LONG RANGE - DESCENT : M.78/300KT/250KT
IMC PROCEDURE : 120 KG (6 MIN)
REF. INITIAL WEIGHT = 55000 KG ISA FUEL CONSUMED (KG)
HIGH AIR CONDITIONING CG=33.0%
ANTI ICE OFF TIME (H.MIN)
CORRECTION ON
FUEL CONSUMPTION
AIR FLIGHT LEVEL (KG/1000KG)
DIST. FL100 FL200 FL240
(NM) 100 150 200 220 240 250 FL150 FL220 FL250
1206 1080 969 930 893 874 8 7 5
200
0.50 0.47 0.45 0.43 0.42 0.42
1810 1640 1490 1439 1387 1360 14 13 11
300
1.12 1.07 1.05 1.01 1.00 1.00
2410 2197 2006 1945 1878 1843 19 19 16
400
1.35 1.28 1.25 1.20 1.18 1.18
3006 2750 2519 2448 2366 2324 25 25 22
500
1.58 1.49 1.45 1.39 1.36 1.36
3599 3300 3029 2948 2852 2802 30 30 27
600
2.20 2.10 2.05 1.57 1.54 1.54
4189 3847 3537 3446 3335 3278 36 36 33
700
2.43 2.31 2.26 2.16 2.12 2.12
4776 4391 4041 3935 3816 3751 42 42 38
800
3.06 2.52 2.46 2.35 2.30 2.30
5359 4932 4543 4421 4293 4222 47 48 43
900
3.29 3.13 3.06 2.54 2.48 2.48
5939 5469 5042 4904 4768 4690 53 55 49
1000
3.52 3.34 3.27 3.13 3.07 3.06
6516 6003 5539 5383 5240 5156 58 61 55
1100
4.14 3.55 3.47 3.32 3.25 3.24
7089 6534 6032 5859 5710 5619 64 67 60
1200
4.37 4.17 4.07 3.51 3.43 3.42
7659 7063 6523 6336 6177 6079 69 73 65
1300
5.00 4.39 4.27 4.10 4.02 4.00
8226 7588 7011 6815 6641 6537 74 78 70
1400
5.23 5.01 4.47 4.29 4.21 4.18
CORRECTIONS ENGINE ANTI ICE ON TOTAL ANTI ICE ON
FUEL +1% + 8.5 %
ALL ENGINES
M 0.78
ALL ENGINES
ALL ENGINES
ALL ENGINES
ALL ENGINES
FL
390 MAX
MA n= IMU
XIM 1.4
MAX MA n=
U MA IMU g LTIT 1.3
ND MA U DE g
370 OPT LTIT ( IS
IMU UDE A+
MA (ISA 10)
LTIT +
UDE 15)
350 (ISA
+ 20
)
330
OPTIMUM ALTITUDE ( ISA + 15)
310
M.78
(1000 lb)
125 130 135 140 145 150 155 160 165 170
290
56 58 60 62 64 66 68 70 72 74 76 78
WEIGHT (1000 kg)
FL
390 MAX
MAX IMU
MAX
IMU IMU MA
MA MA LTIT
ND LTIT UDE
370 OPT UDE ( IS
IMU (ISA A+
MA + 10)
LTIT 15)
UDE
350 (ISA
+ 20
)
310
LONG RANGE
(1000 lb)
125 130 135 140 145 150 155 160 165 170
290
56 58 60 62 64 66 68 70 72 74 76 78
WEIGHT (1000 kg)
IN CRUISE QUICK CHECK FROM ANY MOMENT IN CRUISE TO LANDING - ALL ENGINES
CRUISE : M.78 - DESCENT : M.78/300KT/250KT
IMC PROCEDURE : 120 KG (6 MIN)
REF. INITIAL WEIGHT = 60000 KG ISA FUEL CONSUMED (KG)
NORMAL AIR CONDITIONING CG=33.0%
ANTI ICE OFF TIME (H.MIN)
CORRECTION ON
FUEL CONSUMPTION
AIR FLIGHT LEVEL (KG/1000KG)
DIST. FL290 FL330 FL370
(NM) 290 310 330 350 370 390 FL310 FL350 FL390
870 812 767 726 691 661 0 0 1
200
0.36 0.36 0.36 0.36 0.36 0.36
1381 1288 1217 1154 1102 1061 2 6 10
300
0.49 0.49 0.49 0.49 0.50 0.50
1890 1763 1665 1581 1511 1459 4 11 17
400
1.02 1.02 1.02 1.03 1.03 1.03
2399 2238 2113 2006 1919 1855 7 16 25
500
1.15 1.15 1.16 1.16 1.16 1.16
2908 2712 2559 2430 2326 2249 9 21 32
600
1.28 1.28 1.29 1.29 1.30 1.30
3416 3185 3004 2854 2731 2642 11 26 39
700
1.41 1.41 1.42 1.43 1.43 1.43
3923 3658 3448 3276 3135 3033 14 30 46
800
1.54 1.54 1.55 1.56 1.57 1.57
4430 4131 3890 3696 3537 3422 16 34 52
900
2.07 2.07 2.08 2.09 2.10 2.10
4936 4603 4332 4116 3938 3810 19 38 58
1000
2.20 2.21 2.22 2.23 2.23 2.23
5442 5074 4773 4535 4338 4197 22 42 64
1100
2.32 2.34 2.35 2.36 2.37 2.37
5947 5545 5212 4952 4737 4582 25 49 70
1200
2.45 2.47 2.48 2.49 2.50 2.50
6451 6015 5651 5368 5134 4965 27 55 79
1300
2.58 3.00 3.01 3.03 3.04 3.04
6955 6485 6089 5784 5530 5347 30 59 88
1400
3.11 3.13 3.14 3.16 3.17 3.17
7459 6954 6527 6198 5925 5728 32 62 94
1500
3.24 3.26 3.28 3.29 3.30 3.30
7962 7422 6964 6610 6319 6107 37 65 99
1600
3.37 3.39 3.41 3.43 3.44 3.44
CORRECTIONS LOW AIR CONDITIONING ENGINE ANTI ICE ON TOTAL ANTI ICE ON
FUEL - 0.5 % +2% +8%
IN CRUISE QUICK CHECK FROM ANY MOMENT IN CRUISE TO LANDING - ALL ENGINES
IN CRUISE QUICK CHECK FROM ANY MOMENT IN CRUISE TO LANDING - ALL ENGINES
CRUISE : M.78 - DESCENT : M.78/300KT/250KT
IMC PROCEDURE : 120 KG (6 MIN)
REF. INITIAL WEIGHT = 60000 KG ISA FUEL CONSUMED (KG)
NORMAL AIR CONDITIONING CG=33.0%
ANTI ICE OFF TIME (H.MIN)
CORRECTION ON
FUEL CONSUMPTION
AIR FLIGHT LEVEL (KG/1000KG)
DIST. FL290 FL330 FL370
(NM) 290 310 330 350 370 390 FL310 FL350 FL390
974 915 863 818 782 758 0 1 4
200
0.35 0.35 0.36 0.36 0.36 0.36
2147 2023 1913 1822 1756 1727 5 9 16
400
1.01 1.02 1.02 1.03 1.03 1.03
3315 3124 2957 2818 2720 2682 10 16 33
600
1.27 1.28 1.28 1.29 1.29 1.29
4477 4218 3993 3806 3674 3622 15 23 45
800
1.53 1.54 1.55 1.56 1.56 1.56
5634 5306 5023 4787 4617 4549 20 30 56
1000
2.19 2.20 2.21 2.22 2.23 2.23
6786 6387 6045 5759 5551 5463 24 37 67
1200
2.45 2.46 2.48 2.49 2.50 2.50
7933 7464 7062 6724 6475 6365 29 43 77
1400
3.11 3.13 3.14 3.16 3.17 3.17
9076 8537 8075 7683 7392 7256 33 49 86
1600
3.37 3.39 3.41 3.42 3.43 3.43
10214 9604 9081 8636 8302 8135 34 54 95
1800
4.03 4.05 4.07 4.09 4.10 4.10
11347 10665 10083 9582 9203 9004 41 60 103
2000
4.29 4.31 4.33 4.36 4.37 4.37
12475 11721 11078 10521 10098 9863 45 65 111
2200
4.55 4.57 5.00 5.02 5.04 5.04
13599 12775 12068 11454 10984 10711 49 70 118
2400
5.21 5.23 5.26 5.29 5.31 5.31
14718 13824 13052 12382 11863 11550 52 74 125
2600
5.47 5.50 5.53 5.56 5.57 5.57
15833 14869 14030 13305 12739 12382 55 79 131
2800
6.13 6.16 6.19 6.22 6.24 6.24
16944 15909 15002 14222 13608 13211 58 83 137
3000
6.39 6.42 6.45 6.49 6.51 6.51
CORRECTIONS LOW AIR CONDITIONING ENGINE ANTI ICE ON TOTAL ANTI ICE ON
FUEL - 0.5 % +3% +6%
ALL ENGINES
ALL ENGINES
ALL ENGINES
For a quick determination of the CILRC, use:
- CILRC = 25 kg/min in the FMGC, for aircraft in metric units.
or
- CILRC = 35 (100 lb/h) in the FMGC, for aircraft in US units.
ALL ENGINES
For a quick determination of the CILRC, use:
- CILRC = 40 kg/min in the FMGC, for aircraft in metric units.
or
- CILRC = 55 (100 lb/h) in the FMGC, for aircraft in US units.
STANDARD DESCENT
Applicable to: ALL
STANDARD DESCENT
Applicable to: ALL
ALL ENGINES
STANDARD DESCENT
Applicable to: ALL
ALL ENGINES
STANDARD DESCENT
Applicable to: ALL
ALL ENGINES
40
560 2
60
0.17
689 697 3
80
0.21 0.20
817 811 813 4 5
100
0.25 0.24 0.23
946 926 918 933 4 6
120
0.29 0.28 0.26 0.25
1074 1040 1023 1028 1051 5 7 8
140
0.33 0.31 0.30 0.28 0.28
1203 1155 1128 1124 1140 1150 6 8 9
160
0.37 0.35 0.34 0.32 0.31 0.30
1331 1270 1233 1220 1229 1233 7 9 9
180
0.41 0.39 0.37 0.35 0.34 0.33
1460 1385 1338 1316 1318 1316 7 9 10
200
0.45 0.43 0.41 0.38 0.37 0.36
1589 1500 1443 1413 1407 1399 8 10 11
220
0.49 0.47 0.44 0.42 0.40 0.40
1718 1615 1549 1509 1496 1482 9 11 12
240
0.53 0.51 0.48 0.45 0.43 0.43
1847 1731 1654 1605 1585 1564 10 12 13
260
0.57 0.55 0.52 0.48 0.46 0.46
1976 1846 1760 1701 1675 1648 10 13 14
280
1.01 0.59 0.55 0.52 0.49 0.49
2105 1961 1865 1798 1764 1731 11 14 15
300
1.05 1.03 0.59 0.55 0.52 0.52
2234 2077 1971 1894 1854 1814 12 15 16
320
1.09 1.06 1.03 0.58 0.56 0.55
2363 2193 2077 1991 1943 1897 13 16 16
340
1.13 1.10 1.06 1.01 0.59 0.58
2493 2309 2183 2088 2033 1980 13 17 17
360
1.17 1.14 1.10 1.05 1.02 1.01
2622 2425 2289 2184 2122 2064 14 18 18
380
1.21 1.18 1.13 1.08 1.05 1.05
2751 2541 2395 2281 2212 2147 15 19 19
400
1.25 1.22 1.17 1.11 1.08 1.08
2881 2657 2502 2378 2302 2231 16 19 20
420
1.29 1.26 1.21 1.15 1.11 1.11
ALL ENGINES
IN CRUISE QUICK CHECK FROM ANY MOMENT IN CRUISE TO LANDING - ALL ENGINES
CRUISE : LONG RANGE AT FL100 - DESCENT : 250KT
IMC PROCEDURE : 120 KG (6 MIN)
NORMAL AIR CONDITIONING ISA FUEL CONSUMED (KG)
ANTI ICE OFF CG=25.0% TIME (H.MIN)
AIR
DIST. INITIAL WEIGHT (1000KG)
(NM) 50 55 60 65 70 75 79
279 276 273 272 272 273
40
0.15 0.15 0.15 0.15 0.14 0.14
403 404 404 406 410 416 421
60
0.19 0.19 0.19 0.18 0.18 0.18 0.18
527 531 534 540 549 559 568
80
0.23 0.23 0.23 0.22 0.22 0.22 0.21
651 659 664 673 687 702 715
100
0.28 0.27 0.27 0.26 0.26 0.25 0.25
775 786 793 807 825 844 861
120
0.32 0.31 0.31 0.30 0.30 0.29 0.28
898 913 923 940 963 987 1008
140
0.36 0.34 0.35 0.34 0.33 0.33 0.32
1022 1041 1053 1074 1101 1130 1154
160
0.41 0.38 0.39 0.38 0.37 0.36 0.35
1145 1168 1183 1207 1239 1272 1300
180
0.45 0.42 0.43 0.42 0.41 0.40 0.39
1268 1295 1312 1340 1377 1414 1446
200
0.50 0.46 0.47 0.46 0.45 0.44 0.42
1392 1422 1442 1473 1514 1556 1592
220
0.54 0.50 0.51 0.50 0.49 0.47 0.46
1515 1549 1571 1606 1652 1698 1738
240
0.58 0.54 0.55 0.54 0.52 0.51 0.50
1638 1676 1701 1738 1789 1840 1883
260
1.03 0.58 0.59 0.58 0.56 0.55 0.53
1760 1803 1830 1871 1926 1982 2029
280
1.07 1.02 1.03 1.02 1.00 0.58 0.57
1883 1930 1960 2003 2063 2123 2174
300
1.11 1.06 1.07 1.06 1.04 1.02 1.00
2006 2057 2089 2136 2200 2265 2319
320
1.16 1.10 1.11 1.10 1.08 1.06 1.04
2128 2184 2218 2268 2337 2406 2464
340
1.20 1.14 1.15 1.14 1.12 1.09 1.07
2250 2310 2347 2400 2474 2547 2609
360
1.25 1.18 1.19 1.18 1.15 1.13 1.11
2373 2437 2476 2532 2610 2689 2754
380
1.29 1.22 1.23 1.22 1.19 1.17 1.15
2495 2563 2605 2664 2747 2829 2898
400
1.33 1.26 1.27 1.26 1.23 1.21 1.18
2617 2690 2734 2796 2883 2970 3043
420
1.38 1.30 1.31 1.30 1.27 1.24 1.22
2739 2816 2863 2928 3019 3111 3187
440
1.42 1.34 1.35 1.34 1.31 1.28 1.25
2860 2942 2992 3059 3155 3251 3331
460
1.47 1.38 1.39 1.38 1.35 1.32 1.29
2982 3068 3120 3191 3291 3392 3475
480
1.51 1.42 1.43 1.42 1.38 1.36 1.32
WIND COMPONENT
Applicable to: ALL
60 10°
20°
55
30°
50 WIND ANGLE
40°
45
40 50°
W
60
IN
35
D
SP
60°
HEAD-WIND COMPONENT (kt)
EE
30
50
25 D
40
70°
20
30
15
20
10 80°
10
0 90°
10
100°
15
20 110°
0 10 20 30 40 50 60
CROSS-WIND COMPONENT (kt)
For awareness and for the specified aircraft, the following table provides the flight crew with a list of optional
aircraft systems and functions related to aircraft flight operations.
Item System Installed
Applicable to: ALL
BUSS NAV No
CPDLC DATALINK No
Applicable to: ALL
RAAS SURV No
Applicable to: ALL
ROW/ROPS SURV No
Applicable to: ALL
OPERATING SPEEDS
Applicable to: ALL
OPERATING SPEEDS
Applicable to: ALL
OPERATING SPEEDS
Applicable to: ALL
OPERATING SPEEDS
Applicable to: ALL
If the Fuel Penalty Factor of the HYD G SYS LO PR ECAM alert is applicable (spoiler extended),
sum the corresponding factor with the Fuel Penalty Factor related to the INOP SYS “L(R) AIL”
partially extended.
FPF (HYD G SYS LO PR) = 10 %
FPF (INOP SYS: L AIL) = 8 %
Therefore, TRIP FUEL PENALTY = (FOB - EFOB at DEST) x (10 % + 8 %)
3%
Spoilers 2, 3 and 4(1) to
B+Y SYS LO PR SPLR 2+3+4 R ELEV Right elevator is failed 10 %
RAT extended (4)
0%
SPLR 1+2+4+5 Stabilizer is jammed to
G+Y SYS LO PR 10 %
STABILIZER Spoilers 1, 2, 4 and 5(1)
(4)
3%
Spoilers 2, 3 and 4(1) to
B+Y SYS LO PR SPLR 2+3+4 R ELEV Right elevator is failed 10 %
RAT extended (4)
HYDRAULIC ARCHITECTURE
Applicable to: ALL
HYDRAULIC ARCHITECTURE
Applicable to: ALL
FMA CAPABILITY →
EQUIPMENT ↓ CAT 2 CAT 3 SINGLE CAT 3 DUAL
AP 1 AP ENGAGED 1 AP ENGAGED 2 AP ENGAGED
AUTOTHRUST 0 1 1
FMA 1 2 2
A/THR CAUTION 0 1 1
ELECTRICAL SUPPLY SPLIT 0 0 1
FAC 1 1 2
ELAC 1 1 2
YAW DAMPER/RUDDER TRIM 1/1 1/1 2/2
HYDRAULIC CIRCUIT 2 2 3
FMGS PFD 2 2 2
MONITORED FLIGHT WARNING COMPUTER 1 1 2
FOR FMA LDG BSCU CHANNEL 1(1) 1(1) 1
CAPABILITY ANTISKID 1
1(1) 1(1)
NOSEWHEEL STEERING (1)
1 1(1) 1
RADIO ALTIMETER 1 2 2
(displayed on
both sides)
ILS RECEIVER 2 2 2
BEAM EXCESSIVE DEVIATION 1 for PM 2 2
WARNING
ATTITUDE INDICATION ON PFD 2 2 2
ADR/IR 2/2 2/2 3/3
AP DISCONNECT PB 2 2 2
"AP OFF" ECAM WARNING 1 1 2
"AUTOLAND" LIGHT 1 1 1
RUDDER TRAVEL LIMIT SYSTEM 1 required for autoland with crosswind
higher than 12 kt
NOT FMGS
WINDSHIELD HEAT (L or R windshield) 1 for PF
MONITORED
WINDSHIELD WIPERS OR RAIN 1 for PF
FOR FMA LDG
REPELLENT (if activated)
CAPABILITY
ND 1 2 2
AUTO CALLOUT FUNCTION one is required for 1 1
autoland
ATTITUDE INDICATION (STBY ) 1 1 1
DH INDICATION 1 for PM
(1) For automatic rollout, one is required. For autoland without automatic rollout, none is required.
Note: - Flight crews are not expected to check the equipment list before approach. When an ECAM or
local caution occurs, the crew should use the list to confirm the landing capability.
- On ground, the equipment list determines which approach category the aircraft will be able to
perform at the next landing.
- Electrical power supply split : This ensures that each FMGC is powered by an independent
electrical source (AC and DC).
- Failure of antiskid and/or nosewheel steering mechanical parts are not monitored for landing
capability.
- The DH will be displayed on the FMA, and the ″Hundred Above″ and ″Minimum″ auto callouts will
be announced, provided that the DH value has been entered on the MCDU.
- This OEB covers a significant operational issue. Non-compliance with this OEB could have a significant
impact on the safe operations of the aircraft. The Operators shall distribute its content to all flight crews
without delay. An extract of this OEB is provided for insertion in the QRH.
- It is strongly recommended that all Operators accelerate the incorporation of all corrective Service
Bulletins as soon as they are available.
Reason for issue: This OEB replaces the A320 OEB 138.
The purpose of this OEB is to provide all A320 family operators with
operational recommendation following an event of non-deployment of several
passenger oxygen masks during ground test. The deployment was manually
initiated by pressing the MASK MAN ON pb located on the cockpit overhead
panel.
Applicable to: All A320 family aircraft equipped with Puritan-Bennett P/N 1S-Series and
2S-Series.
Cancelled by: Refer to the "Cancelled by" section of the associated FCOM OEB.
Note: The interchangeability code, given in the Illustrated Part Catalog (IPC), indicates the conditions for interchangeability of
equipment. After installation of corrective modification(s)/SB(s), if an Operator reinstalls any equipment affected by this OEB, it is the
Operator's responsibility to ensure that the recommendations given in this OEB are applied again for the applicable aircraft.
Operations Engineering Bulletins are issued by Airbus as the need arises to quickly transmit technical and
procedural information. They are distributed to all FCOM holders and to others who need advice of changes
to operational information.
Information in this bulletin is recommended by Airbus but may not be approved by Airworthiness Authorities.
If the procedures contained in this OEB differ from the procedures in the AFM, the AFM remains the
reference.
ECAM ENTRY
None
PROCEDURE
Whenever the passenger oxygen masks have to be manually deployed, apply the following procedure
to ensure that the totality of the passenger oxygen masks deploys:
MASK MAN ON pushbutton must be pressed for at least 2 s.
- This OEB covers a significant operational issue. Non-compliance with this OEB could have a significant
impact on the safe operations of the aircraft. The Operators shall distribute its content to all flight crews
without delay. An extract of this OEB is provided for insertion in the QRH.
- It is strongly recommended that all Operators accelerate the incorporation of all corrective Service
Bulletins as soon as they are available.
Reason for issue: This OEB replaces the A320 OEB 188.
One Operator reported a case where the flight crew initiated a Go Around
slightly below the Minimum Descent Altitude (MDA), and the aircraft did not
pitch up as expected. The flight crew performed a non precision approach (a
VORDME approach) using the FINAL APP managed guidance mode with the
AP1 (Autopilot) engaged during the final approach.
This OEB is issued to provide flight crews with an operational procedure to
avoid such aircraft behavior.
The operational procedure provided in this OEB applies to all Non Precision
Approaches, for both conventional approaches and RNAV approaches, flown
in FINAL APP managed guidance mode.
Applicable to: All A318/A319/A320/A321 aircraft
Cancelled by: Refer to the "Cancelled by" section of the associated FCOM OEB.
Note: The interchangeability code, given in the Illustrated Part Catalog (IPC), indicates the conditions for interchangeability of
equipment. After installation of corrective modification(s)/SB(s), if an Operator reinstalls any equipment affected by this OEB, it is the
Operator's responsibility to ensure that the recommendations given in this OEB are applied again for the applicable aircraft.
Operations Engineering Bulletins are issued by Airbus as the need arises to quickly transmit technical and
procedural information. They are distributed to all FCOM holders and to others who need advice of changes
to operational information.
Information in this bulletin is recommended by Airbus but may not be approved by Airworthiness Authorities.
If the procedures contained in this OEB differ from the procedures in the AFM, the AFM remains the
reference.
ECAM ENTRY
None
PROCEDURE
During a non precision approach, when using the FINAL APP managed guidance mode:
● At DA(DH) or MDA(MDH), or earlier in approach if visual conditions are
obtained:
DISENGAGE the FINAL APP mode by pressing the APPR pushbutton on the
FCU.
When the flight crew presses the APPR pb in order to disengage the FINAL APP managed guidance
mode, a basic vertical guidance mode, either V/S or FPA, engages.
This ensures that the SRS and GA TRK guidance modes correctly engage, if the flight crew initiates a
go-around slightly below MDA (MDH).
- This OEB covers a significant operational issue. Non-compliance with this OEB could have a significant
impact on the safe operations of the aircraft. The Operators shall distribute its content to all flight crews
without delay. An extract of this OEB is provided for insertion in the QRH.
- It is strongly recommended that all Operators accelerate the incorporation of all corrective Service
Bulletins as soon as they are available.
Reason for issue: This OEB replaces the A320 OEB 189.
This OEB is issued to provide Operators with the operational
recommendations to apply in cases where the flight crew performs an RNAV
or a LOC or LOC Back Course (B/C) approach with the MAP located before
the runway (RWY) threshold.
This is because in such cases, the FMGC does not compute the vertical flight
path correctly. As a result, it may cause the aircraft, when flown in managed
vertical guidance, during an RNAV approach, to fly a vertical flight path lower
than the published one on the approach procedure chart.
This anomaly also applies to the vertical deviation indication symbol, VDEV.
These recommendations were originally published in Refer to FCOM Standard
Operating Procedures - Non Precision Approach section. Due to the fact that
more and more RNAV procedures are being published in the Instrument
Approach Procedures (lAP), Airbus found it necessary to publish this OEB in
order to highlight these recommendations.
Applicable to: All A320 family aircraft fitted with the Honeywell FMS.
Cancelled by: Refer to the "Cancelled by" section of the associated FCOM OEB.
Note: The interchangeability code, given in the Illustrated Part Catalog (IPC), indicates the conditions for interchangeability of
equipment. After installation of corrective modification(s)/SB(s), if an Operator reinstalls any equipment affected by this OEB, it is the
Operator's responsibility to ensure that the recommendations given in this OEB are applied again for the applicable aircraft.
Operations Engineering Bulletins are issued by Airbus as the need arises to quickly transmit technical and
procedural information. They are distributed to all FCOM holders and to others who need advice of changes
to operational information.
Information in this bulletin is recommended by Airbus but may not be approved by Airworthiness Authorities.
If the procedures contained in this OEB differ from the procedures in the AFM, the AFM remains the
reference.
ECAM ENTRY
None
PROCEDURE
FOR RNAV APPROACHES
For any approach labelled as RNV on MCDU:
VERIFY on the approach chart and on the MCDU that the MAP is at the runway
threshold
On the MCDU F-PLN page, if the last waypoint of the active F-PLN, displayed
in green, is identified as a runway (e.g. LFB032L), it means that the runway
threshold is the MAP.
■ If the MAP is located at the runway (RWY) threshold:
Use of the vertical managed guidance mode (FINAL APP) is possible.
■ If the MAP is not located at the runway (RWY) threshold:
DO NOT USE vertical managed guidance (FINAL APP)
USE NAV mode for lateral guidance
USE SELECTED vertical guidance mode only (FPA is recommended)
DISREGARD the VDEV symbol, and crosscheck the final descent using
altitude versus distance to the MAP.
Note: Approaches labelled as "GPS" on the MCDU can be flown in FINAL APP mode, regardless
of the MAP position.
- This OEB covers a significant operational issue. Non-compliance with this OEB could have a significant
impact on the safe operations of the aircraft. The Operators shall distribute its content to all flight crews
without delay. An extract of this OEB is provided for insertion in the QRH.
- It is strongly recommended that all Operators accelerate the incorporation of all corrective Service
Bulletins as soon as they are available.
Reason for issue: This OEB replaces the A320 OEB 204.
This OEB is issued to inform the operators of the following: Erroneous
alternate (ALTN) fuel predictions are experienced when the flight crew
modifies a company route (CO RTE) previously inserted in the alternate Flight
Plan (F-PLN).
This OEB provides an explanation and operational recommendations in case
of erroneous ALTN fuel predictions.
Applicable to: Aircraft with Honeywell FMGC Release 1A "H2" (MOD 38778, Airbus SB A320
22-1269 and MOD 38779, Airbus SB A320 22-1270)
Cancelled by: Refer to the "Cancelled by" section of the associated FCOM OEB.
Note: The interchangeability code, given in the Illustrated Part Catalog (IPC), indicates the conditions for interchangeability of
equipment. After installation of corrective modification(s)/SB(s), if an Operator reinstalls any equipment affected by this OEB, it is the
Operator's responsibility to ensure that the recommendations given in this OEB are applied again for the applicable aircraft.
Operations Engineering Bulletins are issued by Airbus as the need arises to quickly transmit technical and
procedural information. They are distributed to all FCOM holders and to others who need advice of changes
to operational information.
Information in this bulletin is recommended by Airbus but may not be approved by Airworthiness Authorities.
If the procedures contained in this OEB differ from the procedures in the AFM, the AFM remains the
reference.
ECAM ENTRY
None
PROCEDURE
This OEB PROC N°41 is issued to provide flight crews with the following recommendations:
This procedure only applies when a CO RTE is used for ALTN F-PLN. In the case of ALTN fuel
predictions erroneously set to zero further to a modification of this ALTN F-PLN:
ENTER manually a waypoint in the en-route F-PLN (neither in the departure, nor
in the arrival), to start a new computation of ALTN fuel predictions
Maintain or delete the entered waypoint at convenience
Check the ALTN fuel predictions are correct
- This OEB covers a significant operational issue. Non-compliance with this OEB could have a significant
impact on the safe operations of the aircraft. The Operators shall distribute its content to all flight crews
without delay. An extract of this OEB is provided for insertion in the QRH.
- It is strongly recommended that all Operators accelerate the incorporation of all corrective Service
Bulletins as soon as they are available.
Reason for issue: This OEB replaces the A320 OEB 205.
This OEB is issued to provide the operators with the operational
recommendations to apply when the flight crew performs a Non Precision
Approach (NPA) with two or more Flight Path Angle (FPA) coded in the
Navigation DataBase (NDB).
Applicable to: All A318/A319/A320/A321 aircraft with Thales/GE FMS 2 (Rev 2+ "S4",
Release 1A "S5" and "S6")
Cancelled by: Refer to the "Cancelled by" section of the associated FCOM OEB.
Note: The interchangeability code, given in the Illustrated Part Catalog (IPC), indicates the conditions for interchangeability of
equipment. After installation of corrective modification(s)/SB(s), if an Operator reinstalls any equipment affected by this OEB, it is the
Operator's responsibility to ensure that the recommendations given in this OEB are applied again for the applicable aircraft.
Operations Engineering Bulletins are issued by Airbus as the need arises to quickly transmit technical and
procedural information. They are distributed to all FCOM holders and to others who need advice of changes
to operational information.
Information in this bulletin is recommended by Airbus but may not be approved by Airworthiness Authorities.
If the procedures contained in this OEB differ from the procedures in the AFM, the AFM remains the
reference.
ECAM ENTRY
None
PROCEDURE
■ If the operator has established a list of impacted NPAs, updated with the
current Navigation DataBase cycle:
When preparing a NPA, the flight crew must check if the procedure is in the list
or not:
● If the procedure is not in the list (i.e. not impacted):
There is no restriction on the use of managed lateral and vertical guidance.
- This OEB covers a significant operational issue. Non-compliance with this OEB could have a significant
impact on the safe operations of the aircraft. The Operators shall distribute its content to all flight crews
without delay. An extract of this OEB is provided for insertion in the QRH.
- It is strongly recommended that all Operators accelerate the incorporation of all corrective Service
Bulletins as soon as they are available.
Reason for issue: The objective of this OEB is to highlight that in the event of an erroneous Radio
Altimeter (RA) height indication, guidance modes may not engage as
expected.
Applicable to: All A318/A319/A320/A321 aircraft equipped with the ELAC L97 standard (or
subsequent ELAC standards).
Cancelled by: FG C14 or FG PC14 or FG I15 or FG PI13 standards.
Note: The interchangeability code, given in the Illustrated Part Catalog (IPC), indicates the conditions for interchangeability of
equipment. After installation of corrective modification(s)/SB(s), if an Operator reinstalls any equipment affected by this OEB, it is the
Operator's responsibility to ensure that the recommendations given in this OEB are applied again for the applicable aircraft.
Operations Engineering Bulletins are issued by Airbus as the need arises to quickly transmit technical and
procedural information. They are distributed to all FCOM holders and to others who need advice of changes
to operational information.
Information in this bulletin is recommended by Airbus but may not be approved by Airworthiness Authorities.
If the procedures contained in this OEB differ from the procedures in the AFM, the AFM remains the
reference.
ECAM ENTRY
None
PROCEDURE
This bulletin is issued to remind operators of the possible consequences of an erroneous Radio
Altimeter (RA) height indication. As listed in the OEB 46, if a RA transmits an erroneous height
indication, this may have effects on the auto flight system depending on the flight phase.
This OEB PROC is issued to provide flight crews with the following recommendations:
■ During go-around
● If SRS and GA TRK modes remain engaged and other guidance
modes cannot be selected or engaged as expected:
Note: - At the thrust reduction altitude, LVR CLB will not be displayed on the FMA,
- ALT* and ALT will not engage at the FCU altitude.
Disconnect APs.
Set both FDs to OFF then ON. FDs revert to basic modes (HDG - V/S).
Re-engage guidance modes as appropriate.
■ For the approach that follows the go-around:
Do not arm the G/S mode.
Flight crews must report, in the technical logbook, any of the consequences of an
erroneous RA height listed in the OEB N°46.
- This OEB covers a significant operational issue. Non-compliance with this OEB could have a significant
impact on the safe operations of the aircraft. The Operators shall distribute its content to all flight crews
without delay. An extract of this OEB is provided for insertion in the QRH.
- It is strongly recommended that all Operators accelerate the incorporation of all corrective Service
Bulletins as soon as they are available.
Reason for issue: This OEB is issued to provide operational recommendations in the case of a:
- HYD G ENG 1 PUMP LO PR ECAM caution followed by a HYD Y
RSVR OVHT ECAM caution.
- HYD Y ENG 2 PUMP LO PR ECAM caution followed by a HYD G
RSVR OVHT ECAM caution.
Applicable to: All A318/A319/A320/A321 Aircraft.
Cancelled by: Refer to the "Cancelled by" section of the associated FCOM OEB.
Note: The interchangeability code, given in the Illustrated Part Catalog (IPC), indicates the conditions for interchangeability of
equipment. After installation of corrective modification(s)/SB(s), if an Operator reinstalls any equipment affected by this OEB, it is the
Operator's responsibility to ensure that the recommendations given in this OEB are applied again for the applicable aircraft.
Operations Engineering Bulletins are issued by Airbus as the need arises to quickly transmit technical and
procedural information. They are distributed to all FCOM holders and to others who need advice of changes
to operational information.
Information in this bulletin is recommended by Airbus but may not be approved by Airworthiness Authorities.
If the procedures contained in this OEB differ from the procedures in the AFM, the AFM remains the
reference.
ECAM ENTRY
HYD G ENG 1 PUMP LO PR followed by a HYD Y RSVR OVHT
PROCEDURE
● If a HYD G ENG 1 PUMP LO PR ECAM caution is followed by a HYD Y
RSVR OVHT ECAM caution, disregard the HYD Y RSVR OVHT ECAM
procedure, and apply the following procedure to stop the overheat
situation:
HYD Y RSVR OVHT
PTU.............................................................................................................OFF
YELLOW ENG 2 PUMP..................................................................... KEEP ON
● If a HYD Y ENG 2 PUMP LO PR ECAM caution is followed by a HYD G
RSVR OVHT ECAM caution, disregard the HYD G RSVR OVHT ECAM
procedure, and apply the following procedure to stop the overheat
situation:
HYD G RSVR OVHT
PTU.............................................................................................................OFF
GREEN ENG 1 PUMP....................................................................... KEEP ON
RED OEB – RED OEB – RED OEB – RED OEB – RED OEB – RED OEB – RED OEB – RED OEB
- This OEB covers a significant operational issue. Non-compliance with this OEB could have a significant
impact on the safe operations of the aircraft. The Operators shall distribute its content to all flight crews
without delay. An extract of this OEB is provided for insertion in the QRH.
- It is strongly recommended that all Operators accelerate the incorporation of all corrective Service
Bulletins as soon as they are available.
Reason for issue: This OEB is issued to provide a procedure in case both FMS display dashed
CG on the FUEL PRED page.
Applicable to: This OEB is applicable to following aircraft fitted with Thales FMS and FAC
standard previous to CAA06:
- A318
- A319/A320/A321ceo fitted with sharklets
- A320neo family
- A319/A320/A321ceo with SB 22-1229 that activates the characteristic
speeds computation based on FMS data.
Cancelled by: Refer to the "Cancelled by" section of the associated FCOM OEB.
Note: The interchangeability code, given in the Illustrated Part Catalog (IPC), indicates the conditions for interchangeability of
equipment. After installation of corrective modification(s)/SB(s), if an Operator reinstalls any equipment affected by this OEB, it is the
Operator's responsibility to ensure that the recommendations given in this OEB are applied again for the applicable aircraft.
Operations Engineering Bulletins are issued by Airbus as the need arises to quickly transmit technical and
procedural information. They are distributed to all FCOM holders and to others who need advice of changes
to operational information.
Information in this bulletin is recommended by Airbus but may not be approved by Airworthiness Authorities.
If the procedures contained in this OEB differ from the procedures in the AFM, the AFM remains the
reference.
RED OEB – RED OEB – RED OEB – RED OEB – RED OEB – RED OEB – RED OEB – RED OEB
ECAM ENTRY
None
PROCEDURE
This procedure must be performed on ground only.
The GW CG value must be displayed at least on one FMS to resume normal operations.
GENERAL DESCRIPTION
Applicable to: ALL
Identification Title
OEB26 Erroneous Radio Altimeter (RA) Height Indication
Issue 1 ECAM Entry None
OEB33 Pack Flow Monitoring
Issue 1 ECAM Entry None
OEB34 NAV ADR 1+2+3 FAULT ECAM Warning Undue Activation
Issue 1 ECAM Entry NAV ADR 1+2+3 FAULT
OEB35 Loss of AP and A/THR Associated with Alternate Law
Issue 2 Reversion
ECAM Entry None
CAUTION When Airbus provides the Operator with the LEOEB, the information “ECAM Entry ” does
not necessarily mean that (for Operators using the OEB REMINDER function) the
Operator’s maintenance personnel has activated the OEB REMINDER codes for this OEB
onboard the aircraft.
It is the Operator’s responsibility to define a suitable process to provide the flight crew with
confirmation that the OEB REMINDER codes are activated for the ECAM alerts affected
by OEBs.
A vertical bar in the margin of the QRH LEOEB identifies that the OEB is either new, revised or has an
aircraft validity change.
EMER LANDING
ALL ENG FAILURE
Applicable to: ALL
Apply the following if not able to maintain altitude after the loss of thrust near the ground.
DITCHING FORCED LANDING
APU ....................................... START APU .......................................START
LANDING GEAR .......................... UP
FLAPS LEVER ................................ 2 FLAPS LEVER.................................2
VAPP............................DETERMINE VAPP ............................DETERMINE
GW 40 t 50 t 60 t 70 t 80 t 90 t 95 t
VAPP 150 kt 150 kt 163 kt 173 kt 183 kt 193 kt 198 kt
EMER EVAC
Applicable to: ALL
A320 QRH
