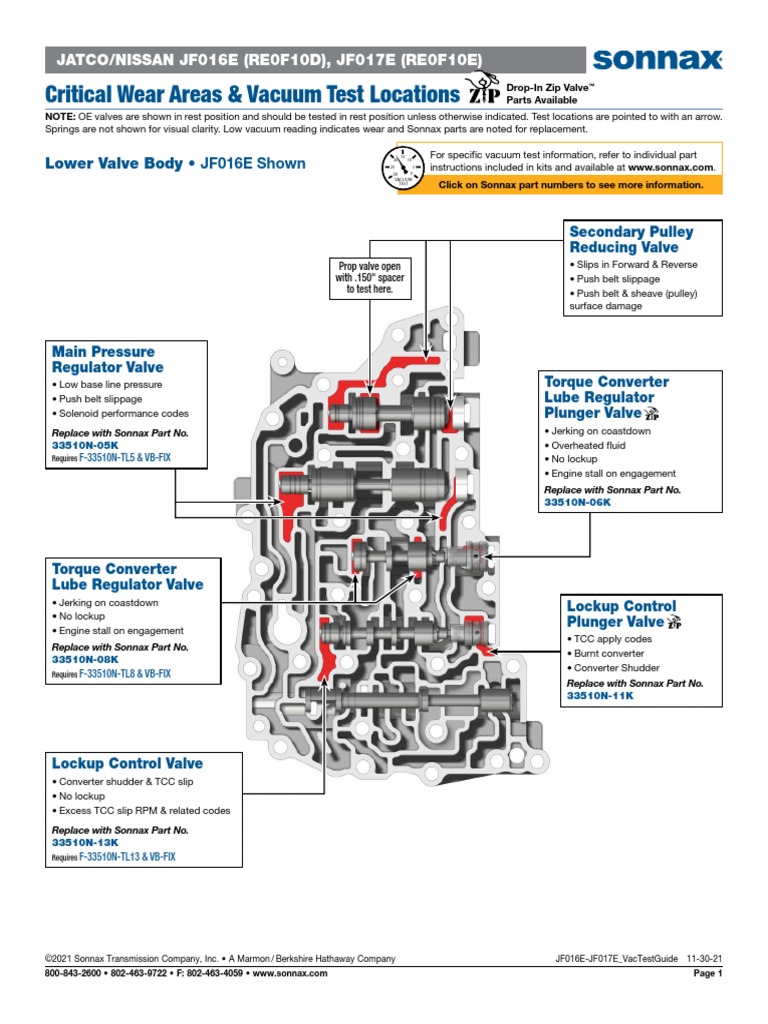

JATCO/NISSAN JF016E (RE0F10D), JF017E (RE0F10E)
Critical Wear Areas & Vacuum Test Locations Drop-In Zip Valve™
Parts Available
NOTE: OE valves are shown in rest position and should be tested in rest position unless otherwise indicated. Test locations are pointed to with an arrow.
Springs are not shown for visual clarity. Low vacuum reading indicates wear and Sonnax parts are noted for replacement.
For specific vacuum test information, refer to individual part
Lower Valve Body • JF016E Shown
15
20 10
25
30 0
5 instructions included in kits and available at www.sonnax.com.
VACUUM
TEST
Click on Sonnax part numbers to see more information.
Secondary Pulley
Reducing Valve
Prop valve open • Slips in Forward & Reverse
with .150" spacer • Push belt slippage
to test here. • Push belt & sheave (pulley)
surface damage
Main Pressure
Regulator Valve
• Low base line pressure Torque Converter
• Push belt slippage Lube Regulator
• Solenoid performance codes Plunger Valve
Replace with Sonnax Part No. • Jerking on coastdown
33510N-05K • Overheated fluid
Requires F-33510N-TL5 & VB-FIX • No lockup
• Engine stall on engagement
Replace with Sonnax Part No.
33510N-06K
Torque Converter
Lube Regulator Valve
• Jerking on coastdown
Lockup Control
• No lockup
Plunger Valve
• Engine stall on engagement
• TCC apply codes
Replace with Sonnax Part No.
• Burnt converter
33510N-08K
• Converter Shudder
Requires F-33510N-TL8 & VB-FIX
Replace with Sonnax Part No.
33510N-11K
Lockup Control Valve
• Converter shudder & TCC slip
• No lockup
• Excess TCC slip RPM & related codes
Replace with Sonnax Part No.
33510N-13K
Requires F-33510N-TL13 & VB-FIX
©2021 Sonnax Transmission Company, Inc. • A Marmon / Berkshire Hathaway Company JF016E-JF017E_VacTestGuide 11-30-21
800-843-2600 • 802-463-9722 • F: 802-463-4059 • www.sonnax.com Page 1
JATCO/NISSAN JF016E (RE0F10D), JF017E (RE0F10E)
Critical Wear Areas & Vacuum Test Locations Drop-In Zip Valve™
Parts Available
NOTE: OE valves are shown in rest position and should be tested in rest position unless otherwise indicated. Test locations are pointed to with an arrow.
Springs are not shown for visual clarity. Low vacuum reading indicates wear and Sonnax parts are noted for replacement.
For specific vacuum test information, refer to individual part
Upper Valve Body • JF016E Shown
15
20 10
25
30 0
5 instructions included in kits and available at www.sonnax.com.
VACUUM
TEST
Click on Sonnax part numbers to see more information.
Primary Pulley
Reducing Valve
• Chatter on acceleration
• High or low line pressure
• Pulley breakage
• Slips in Forward & Reverse
Replace with Sonnax Part No.
33510N-03K (JF016E)
Requires F-33510N-TL3 & VB-FIX or
33510N-04K (JF017E) Pilot Valve A
Requires F-33510N-TL4
& VB-FIX
• Low solenoid feed pressure
• Solenoid performance codes
Pilot Valve B
• Low solenoid feed pressure
• TCC slip codes
©2021 Sonnax Transmission Company, Inc. • A Marmon / Berkshire Hathaway Company JF016E-JF017E_VacTestGuide 11-30-21
800-843-2600 • 802-463-9722 • F: 802-463-4059 • www.sonnax.com Page 2
JATCO/NISSAN JF016E (RE0F10D), JF017E (RE0F10E)
OE Exploded View
Lower Valve Body • JF016E Shown
NOTE: Depending upon vehicle application, the OE springs shown may not be present.
101
102
103
104
104
105
JF016E, JF017E Valve Body Descriptions
I.D. No. Description
101 Secondary Pulley Reducing Valve
102 Main Pressure Regulator Valve
103 Torque Converter Lube Regulator Valve
104 Lockup Control Valve
105 Manual Valve
©2021 Sonnax Transmission Company, Inc. • A Marmon / Berkshire Hathaway Company JF016E-JF017E_VacTestGuide 11-30-21
800-843-2600 • 802-463-9722 • F: 802-463-4059 • www.sonnax.com Page 3
JATCO/NISSAN JF016E (RE0F10D), JF017E (RE0F10E)
OE Exploded View
Upper Valve Body • JF016E Shown
NOTE: Depending upon vehicle application, the OE springs shown may not be present.
207
201
202
206
205
204 203
JF016E, JF017E Valve Body Descriptions
I.D. No. Description
201 Pilot Valve A
202 Primary Pulley Solenoid Valve
203 Pilot Valve B
204 Select Solenoid Valve
205 Line Pressure Solenoid Valve
206 Secondary Pulley Solenoid Valve
207 Primary Pulley Reducing Valve
