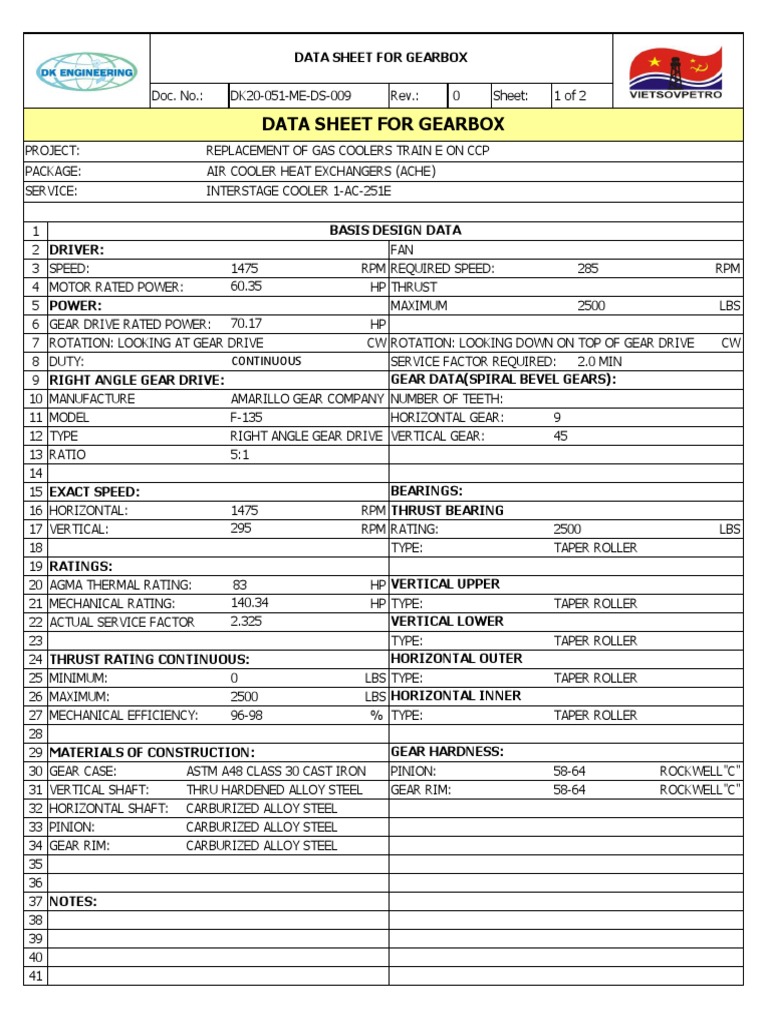

DATA SHEET FOR GEARBOX

Doc. No.: DK20-051-ME-DS-009 Rev.: 0 Sheet: 1 of 2

DATA SHEET FOR GEARBOX


PROJECT: REPLACEMENT OF GAS COOLERS TRAIN E ON CCP
PACKAGE: AIR COOLER HEAT EXCHANGERS (ACHE)
SERVICE: INTERSTAGE COOLER 1-AC-251E

1 BASIS DESIGN DATA


2 DRIVER: FAN
3 SPEED: 1475 RPM REQUIRED SPEED: 285 RPM
4 MOTOR RATED POWER: 60.35 HP THRUST
5 POWER: MAXIMUM 2500 LBS
6 GEAR DRIVE RATED POWER: 70.17 HP
7 ROTATION: LOOKING AT GEAR DRIVE CW ROTATION: LOOKING DOWN ON TOP OF GEAR DRIVE CW
8 DUTY: CONTINUOUS SERVICE FACTOR REQUIRED: 2.0 MIN
9 RIGHT ANGLE GEAR DRIVE: GEAR DATA(SPIRAL BEVEL GEARS):
10 MANUFACTURE AMARILLO GEAR COMPANY NUMBER OF TEETH:
11 MODEL F-135 HORIZONTAL GEAR: 9
12 TYPE RIGHT ANGLE GEAR DRIVE VERTICAL GEAR: 45
13 RATIO 5:1
14
15 EXACT SPEED: BEARINGS:
16 HORIZONTAL: 1475 RPM THRUST BEARING
17 VERTICAL: 295 RPM RATING: 2500 LBS
18 TYPE: TAPER ROLLER
19 RATINGS:
20 AGMA THERMAL RATING: 83 HP VERTICAL UPPER
21 MECHANICAL RATING: 140.34 HP TYPE: TAPER ROLLER
22 ACTUAL SERVICE FACTOR 2.325 VERTICAL LOWER
23 TYPE: TAPER ROLLER
24 THRUST RATING CONTINUOUS: HORIZONTAL OUTER
25 MINIMUM: 0 LBS TYPE: TAPER ROLLER
26 MAXIMUM: 2500 LBS HORIZONTAL INNER
27 MECHANICAL EFFICIENCY: 96-98 % TYPE: TAPER ROLLER
28
29 MATERIALS OF CONSTRUCTION: GEAR HARDNESS:
30 GEAR CASE: ASTM A48 CLASS 30 CAST IRON PINION: 58-64 ROCKWELL"C"
31 VERTICAL SHAFT: THRU HARDENED ALLOY STEEL GEAR RIM: 58-64 ROCKWELL"C"
32 HORIZONTAL SHAFT: CARBURIZED ALLOY STEEL
33 PINION: CARBURIZED ALLOY STEEL
34 GEAR RIM: CARBURIZED ALLOY STEEL
35
36
37 NOTES:
38
39
40
41

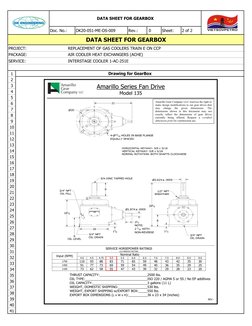

DATA SHEET FOR GEARBOX

Doc. No.: DK20-051-ME-DS-009 Rev.: 0 Sheet: 2 of 2

DATA SHEET FOR GEARBOX


PROJECT: REPLACEMENT OF GAS COOLERS TRAIN E ON CCP
PACKAGE: AIR COOLER HEAT EXCHANGERS (ACHE)
SERVICE: INTERSTAGE COOLER 1-AC-251E

1 Drawing for GearBox
