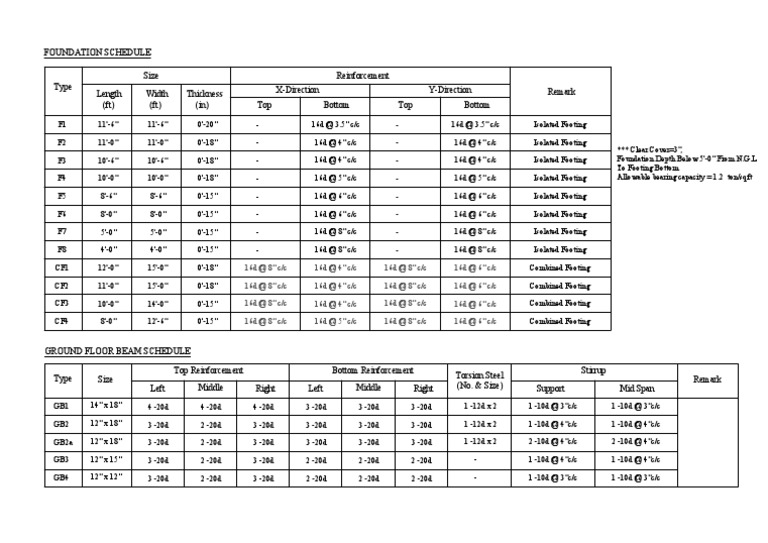

    FOUNDATION SCHEDULE

    Size Reinforcement
    Type X-Direction Y-Direction
    Length Width Thickness Remark
    (ft) (ft) (in) Top Bottom Top Bottom

    F1 11'-6" 11'-6" 0'-20" - 16d @ 3.5" c/c - 16d @ 3.5" c/c Isolated Footing

    F2 11'-0" 11'-0" 0'-18" - 16d @ 4" c/c - 16d @ 4" c/c Isolated Footing
    *** Clear Cover=3",
    F3 10'-6" 10'-6" 0'-18" - 16d @ 4" c/c - 16d @ 4" c/c Isolated Footing Foundation Depth Below 5'-0" From N.G.L
    To Footing Bottom
    F4 10'-0" 10'-0" 0'-18" - 16d @ 5" c/c - 16d @ 5" c/c Isolated Footing Allowable bearing capacity = 1.2 ton/sqft

    F5 8'-6" 8'-6" 0'-15" - 16d @ 6" c/c - 16d @ 6" c/c Isolated Footing

    F6 8'-0" 8'-0" 0'-15" - 16d @ 6" c/c - 16d @ 6" c/c Isolated Footing

    F7 5'-0" 5'-0" 0'-15" - 16d @ 8" c/c - 16d @ 8" c/c Isolated Footing

    F8 4'-0" 4'-0" 0'-15" - 16d @ 8" c/c - 16d @ 8" c/c Isolated Footing

    CF1 12'-0" 15'-0" 0'-18" 16d @ 8" c/c 16d @ 4" c/c 16d @ 8" c/c 16d @ 6" c/c Combined Footing

    CF2 11'-0" 15'-0" 0'-18" 16d @ 8" c/c 16d @ 4" c/c 16d @ 8" c/c 16d @ 6" c/c Combined Footing

    CF3 10'-0" 14'-0" 0'-15" 16d @ 8" c/c 16d @ 4" c/c 16d @ 8" c/c 16d @ 6" c/c Combined Footing

    CF4 8'-0" 12'-6" 0'-15" 16d @ 8" c/c 16d @ 5" c/c 16d @ 8" c/c 16d @ 6" c/c Combined Footing

    GROUND FLOOR BEAM SCHEDULE

    Top Reinforcement Bottom Reinforcement Stirrup


    Type Size Torsion Steel Remark
    Left Middle Right Left Middle Right (No. & Size) Support Mid Span
    GB1 14" x 18" 4 -20d 4 -20d 4 -20d 3 -20d 3 -20d 3 -20d 1 -12d x 2 1 -10d @ 3"c/c 1 -10d @ 3"c/c

    GB2 12" x 18" 3 -20d 2 -20d 3 -20d 3 -20d 3 -20d 3 -20d 1 -12d x 2 1 -10d @ 4"c/c 1 -10d @ 4"c/c

    GB2a 12" x 18" 3 -20d 2 -20d 3 -20d 3 -20d 3 -20d 3 -20d 1 -12d x 2 2 -10d @ 4"c/c 2 -10d @ 4"c/c

    GB3 12" x 15" 3 -20d 2 -20d 3 -20d 2 -20d 2 -20d 2 -20d - 1 -10d @ 4"c/c 1 -10d @ 4"c/c

    GB4 12" x 12" 3 -20d 2 -20d 3 -20d 2 -20d 2 -20d 2 -20d - 1 -10d @ 3"c/c 1 -10d @ 3"c/c
